Heavy-Duty Tarpaulin: GSM Ratings, What to Buy, and What Tarp Won't Do

A January frost arrives overnight and you wake up to find the bricklayer's last day of work has gone soft. Mortar that was setting fine at 5pm is crumbling at 7am, joints have lost their key, and the top three courses of your new wall need to come down. The cost of redoing the work runs to four figures by the time you've paid the bricklayer's day rate, replaced the materials, and pushed every following trade back a week. A modestly priced sheet of the right tarpaulin would have prevented all of it. Knowing which sheet to buy, and how to fix it down without it taking your blockwork with it when the wind picks up, is the difference between a site that copes with British weather and one that doesn't.

What it is and what it's for

A tarpaulin is a sheet of woven plastic, vinyl, or canvas used to cover something temporarily. On a construction site it earns its keep five times over: protecting newly laid masonry from rain and frost, covering open roofs at the end of the day, draping over stacks of bricks and blocks, sheeting newly fitted joinery before plasterers arrive, and shielding kitchen units in storage from dust and water. One material, five jobs.

The most regulated use is masonry protection. NHBC Standards 6.1.20 require freshly laid cavity walls to be covered whenever work stops, both overnight and for inclement weather. The tops of both leaves, the cavity, and any exposed insulation all need to be protected. Where there's a frost risk, NHBC requires two layers: a thermal layer of hessian sacking (which insulates) and a waterproof layer of polythene sheet or tarpaulin (which keeps rain off). Below 3°C and falling, work has to stop. It can resume when the temperature is 1°C and rising and forecast to exceed 3°C.

If your bricklayer doesn't cover the wall before they leave, mortar will wash out of the joints under rain, fine particles will stain the brick face and contaminate the cavity, and frost will cause the mortar to lose its key. The wall doesn't fall down, but it loses strength, looks awful, and may fail building control inspection. Building control officers visit during the structure phase in autumn and winter expecting to see this protection in place.

Two principles run through every NHBC requirement worth knowing: leave an air gap between the cover and the masonry so the new wall can cure (don't shrink-wrap it), and secure the cover so it cannot pull the top course off the wall when the wind catches it.

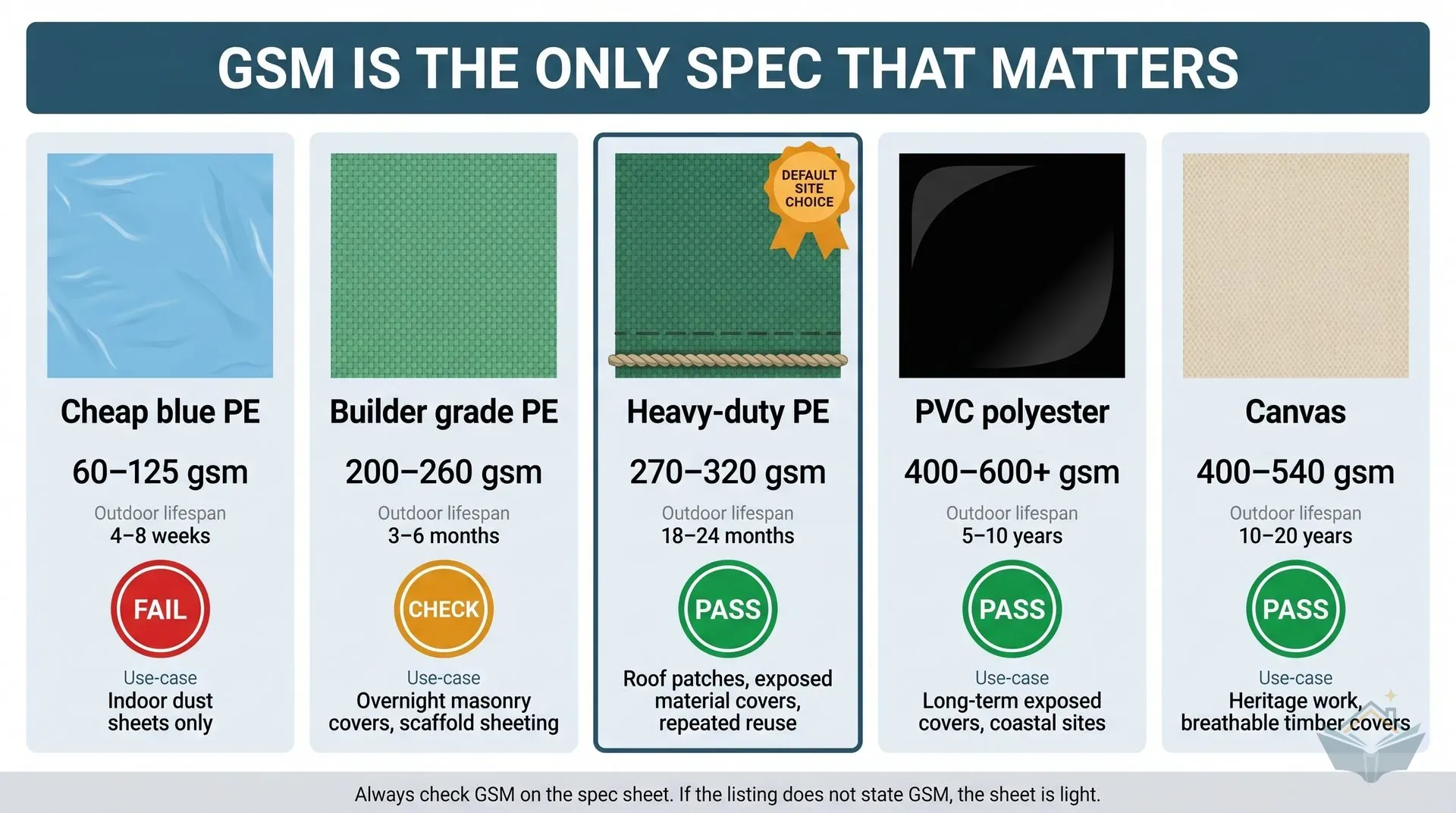

The GSM rating: the only spec that matters

Tarpaulin labels lie. "Heavy duty" means whatever the marketing department decides it means. The number you actually need is the GSM, which stands for grams per square metre and measures how much material the manufacturer used per unit area. Higher GSM means thicker weave, stronger fabric, more eyelets, longer life, and better waterproofing.

Wickes sells a 5x8m sheet labelled "Heavy Duty Tarpaulin". Read the spec and it's 125 gsm. The construction industry definition of heavy duty starts at 250 gsm. Wickes is calling a lightweight tarp "heavy duty" because they're competing against even thinner blue beach tarps and 125 gsm looks heavy in that context. For a building site, 125 gsm is short-term cover for stacked materials. It's not what you want on a wall in November.

The lifespan numbers in that table assume continuous outdoor exposure. UV is the killer. Even a 270 gsm tarp with a 3% UV inhibitor (the typical industry spec) becomes brittle after 18-24 months in direct sun. Storing tarps under cover when not in use roughly doubles their working life.

Materials: woven PE, PVC, and canvas

Three materials cover almost every tarp you'll see on a UK site. Each behaves differently when wet, in wind, in heat, and against abrasion.

Woven polyethylene is what most "tarpaulins" actually are. Strands of HDPE or LDPE woven into a fabric and laminated with a thin PE film to make it waterproof. Cheap, widely stocked, available in every size, and the right choice for short to medium-term protection. The weakness is that on flat horizontal surfaces under standing water, the weave allows water to penetrate. PE tarps are water-resistant when pitched, not genuinely waterproof when flat.

PVC-coated polyester is a polyester base fabric coated both sides with flexible PVC. Heavier, more expensive, and properly waterproof under any conditions. Stays flexible to -40°C, doesn't crack in winter, and lasts five years or more outdoors. Specialist suppliers like Tarpaflex and Tarpaulins Direct stock PVC; you won't find it at Screwfix or Wickes. Worth the money for long-duration covers and exposed sites near the coast.

Treated canvas is heavy-duty cotton with a wax or proofing treatment. Breathable, which matters for covering damp timber or stored joinery where condensation under a plastic sheet would cause mould. Long life if stored dry. Expensive and heavy. Niche product for heritage work and timber stockholders.

For most extension projects, a stock of two genuine 270 gsm PE tarps at 4x5m and one larger 5x8m, plus a roll of £60 – £110 visqueen, covers every site protection job that comes up over six months of building.

What tarp doesn't do well

The honest answer that supplier websites won't give you: there are jobs where a tarpaulin is the wrong tool, no matter how heavy duty.

Whole-roof temporary cover

If your roof structure is up and the tile run gets delayed for any reason (waiting on materials, weather, the roofer's schedule), the instinct is to throw a big tarp over the whole roof until they can come back. Don't.

The community evidence on this is consistent across every UK self-build forum. A whole-roof tarp acts as a sail. Wind gets under it, lifts it, and either tears the eyelets out or rips the sheet apart. In the worst cases, the tarp comes off the roof, drags fixings with it, and damages neighbouring properties. One BuildHub thread documents a tarp that scattered debris across an entire close before being recovered from a tree two gardens away.

The right approach for any roof run lasting more than a day or two is to lay breathable roofing membrane directly onto the rafters and batten it down with roofing battens at roughly two-foot intervals. The battens stop the membrane lifting in wind, the membrane is genuinely waterproof under standing water, and the whole assembly works the way the roof was designed to work. A modest budget of membrane and battens covers a typical extension roof, which is less than two heavy-duty tarps and works infinitely better.

If the open period is one calendar day in calm weather and you'll be back tomorrow, a tarp is fine. For anything longer, batten the membrane down. This is one of the few cases where the consensus across professional builders, structural engineers, and seasoned self-builders is unanimous.

Standing water on flat surfaces

A flat-roof patch held down with a tarpaulin will leak. The weave isn't watertight under the pressure of pooled water; on horizontal surfaces with no pitch, water finds every micro-gap in the fabric. For flat roofs awaiting their proper covering, lay 1200-gauge visqueen first (solid PE film, no weave), then a tarp on top for UV protection. The visqueen is the actual waterproof layer. The tarp protects the visqueen from sunlight.

Fitted floor protection

Once a finished floor is down (engineered oak, ceramic tile, polished concrete), a plastic tarp is the wrong choice. It traps moisture against the floor and prevents oils, lacquers, and adhesives from curing properly. It slides underfoot and creates a trip hazard. It bunches up and tears under footfall.

The right product for fitted floors is £3 – £6, a rigid corrugated polypropylene board sold under the brand names Correx, Antinox, and Proplex. Tape the seams with low-tack cloth tape, not duct tape. Reusable across several jobs if you take it up carefully.

A tarpaulin is acceptable on bare subfloor (OSB, concrete slab, screed before its sealer goes down), where breathability isn't a concern and the surface won't be damaged by trapped moisture.

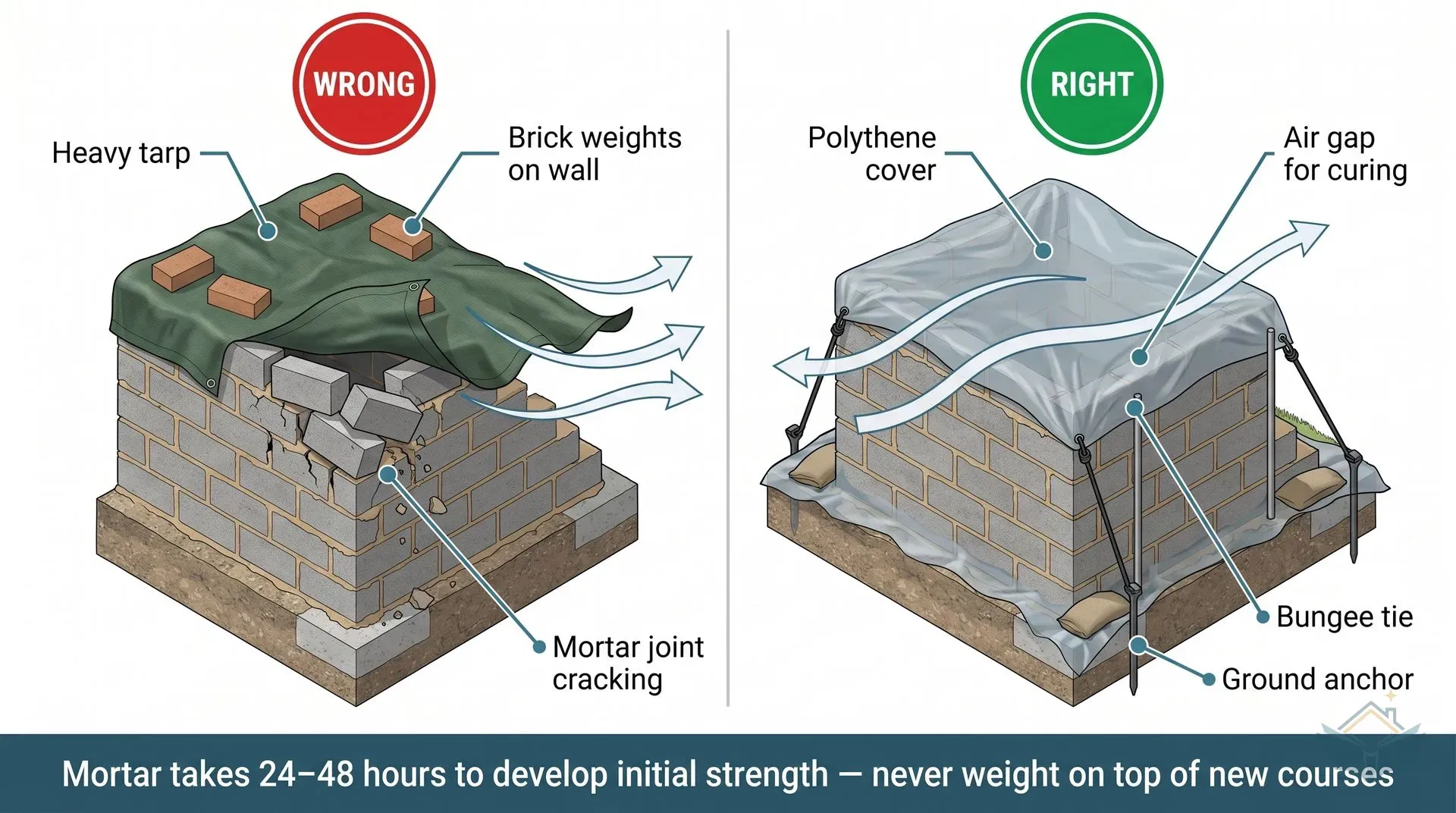

How to use it on masonry overnight

The biggest single mistake homeowners make is throwing a heavy tarp over fresh blockwork and weighting it with a few bricks placed on top of the wall. The wind picks the tarp up, the bricks scrape across the top course, and the top course comes off with the tarp. The fresh mortar isn't strong enough to resist the prying force. A safer approach matters more than a thicker sheet.

The principle is to cover the wall, leave an air gap so it can cure, and anchor the tarp away from the wall itself. Polythene strips draped over the top course and weighted at ground level beyond both faces of the wall is the lightest and safest method. Heavy tarps belong on stacked materials, not directly on rising walls.

For walls already a metre or more high, hang the tarp from the scaffold above and tie the lower corners to ground anchors or scaffold uprights. The tarp drapes over the wall but bears no weight on the masonry. If you can lift the tarp off the wall by a hand's width without untying anything, it's installed correctly. If pulling on a corner moves a brick, take it off and start again.

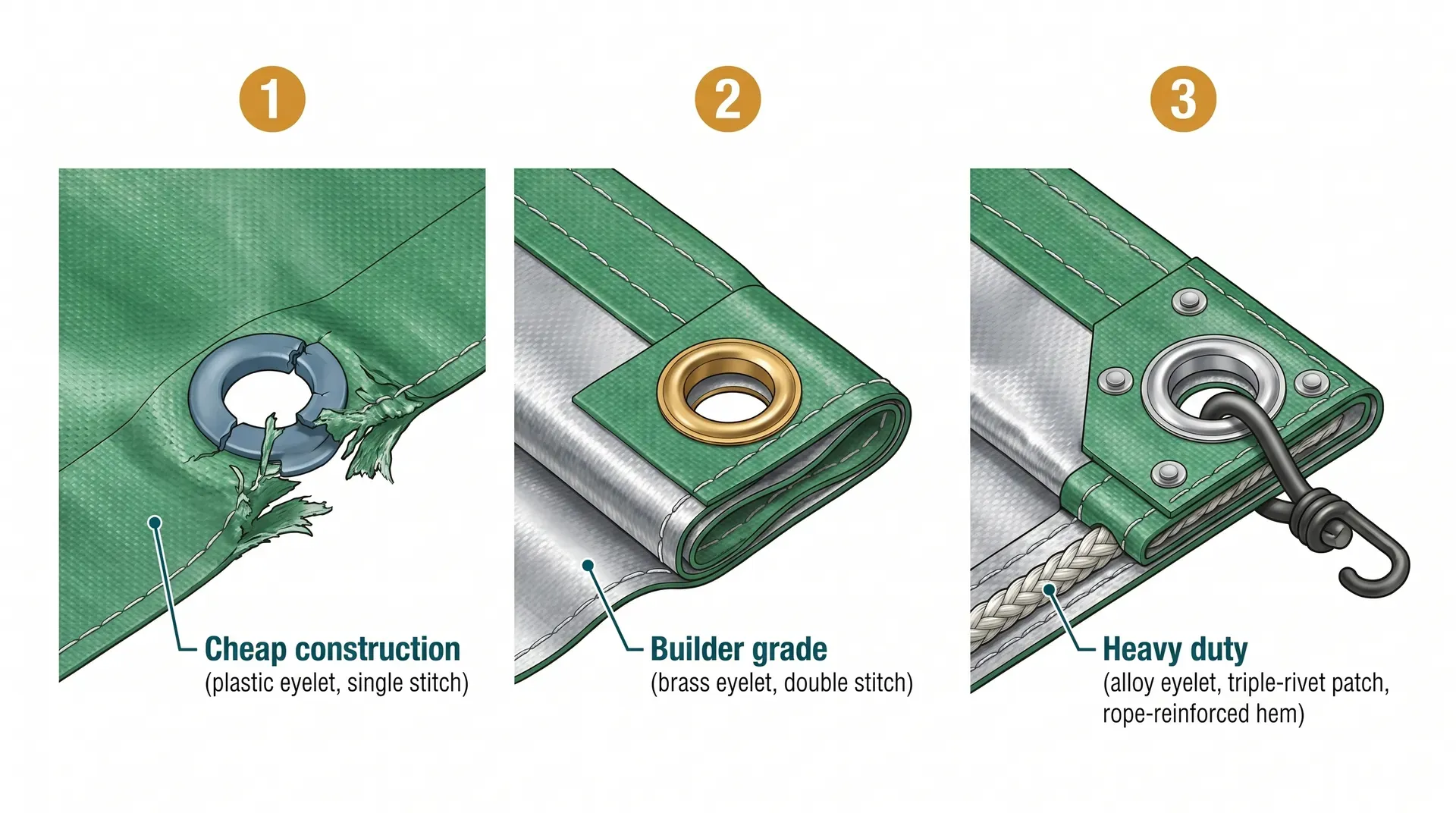

Eyelets, edges, and securing: what to check on the spec sheet

Tarpaulin failure is almost always edge failure, not fabric failure. The sheet itself rarely tears in the middle. What fails is the eyelet ring pulling out of the hem, or the heat-sealed seam unzipping under wind load. Three specs on the product listing tell you whether the tarp will survive a winter.

Eyelet spacing. Industry standard for a genuine heavy-duty tarp is one eyelet every metre, plus a reinforced eyelet at every corner. Cheaper sheets space them every 1.5m or 2m, which doubles the load on each ring when the wind catches the fabric between them. Look for "eyelets every 1m" or "eyelets at 50cm" on the product spec. If it just says "eyelets" with no spacing, assume they're sparse.

Eyelet construction. Brass and 12mm aluminium alloy eyelets, set through a reinforced patch of fabric (often a triple-rivet patch at the corners), are what you want. Plastic eyelets are an immediate red flag. Single-rivet brass eyelets pull through under load.

Hem reinforcement. The hem is the folded edge of the sheet. A double-stitched hem with a heat-sealed PE rope inside (so the eyelets pull against the rope rather than the fabric directly) is the durable construction. A single-sewn hem with no rope tears within a season. If the listing says "reinforced rope hem" or "heat-sealed rope edging", that's good. If it just says "hemmed", be suspicious.

The fixing method matters as much as the eyelet spec. Use bungee shock cord, not rope, to tie the tarp down. Bungees stretch when the wind gusts, so the eyelet only sees a portion of the peak load. Rope holds the tarp rigid and the eyelet absorbs the full wind force every gust. A cheap bag of 25 short bungee ties from any merchant doubles the working life of the tarp by reducing eyelet stress.

Click to enlarge

Always pitch the tarp so water drains off rather than pools. Standing water on a flat tarp adds weight rapidly and stresses the heat-sealed seams. Even a slope of a few degrees is enough to shed water. Inspect the tarp after every storm; a small tear caught early can be repaired with tarp tape in minutes, but ignored will spread under the next gust.

Use case 1: covering masonry overnight

Already covered above in detail. The key points: light cover not heavy, anchored away from the wall, NHBC requires hessian plus polythene where frost risk exists, air gap to allow curing.

For a typical extension wall under construction, two 4x5m polythene sheets or builder-grade tarps are usually enough to cover both leaves with overlap. Budget £18 – £30 per sheet at builder grade, which is the right specification for overnight use because the sheet only needs to handle one or two nights at a time before being moved.

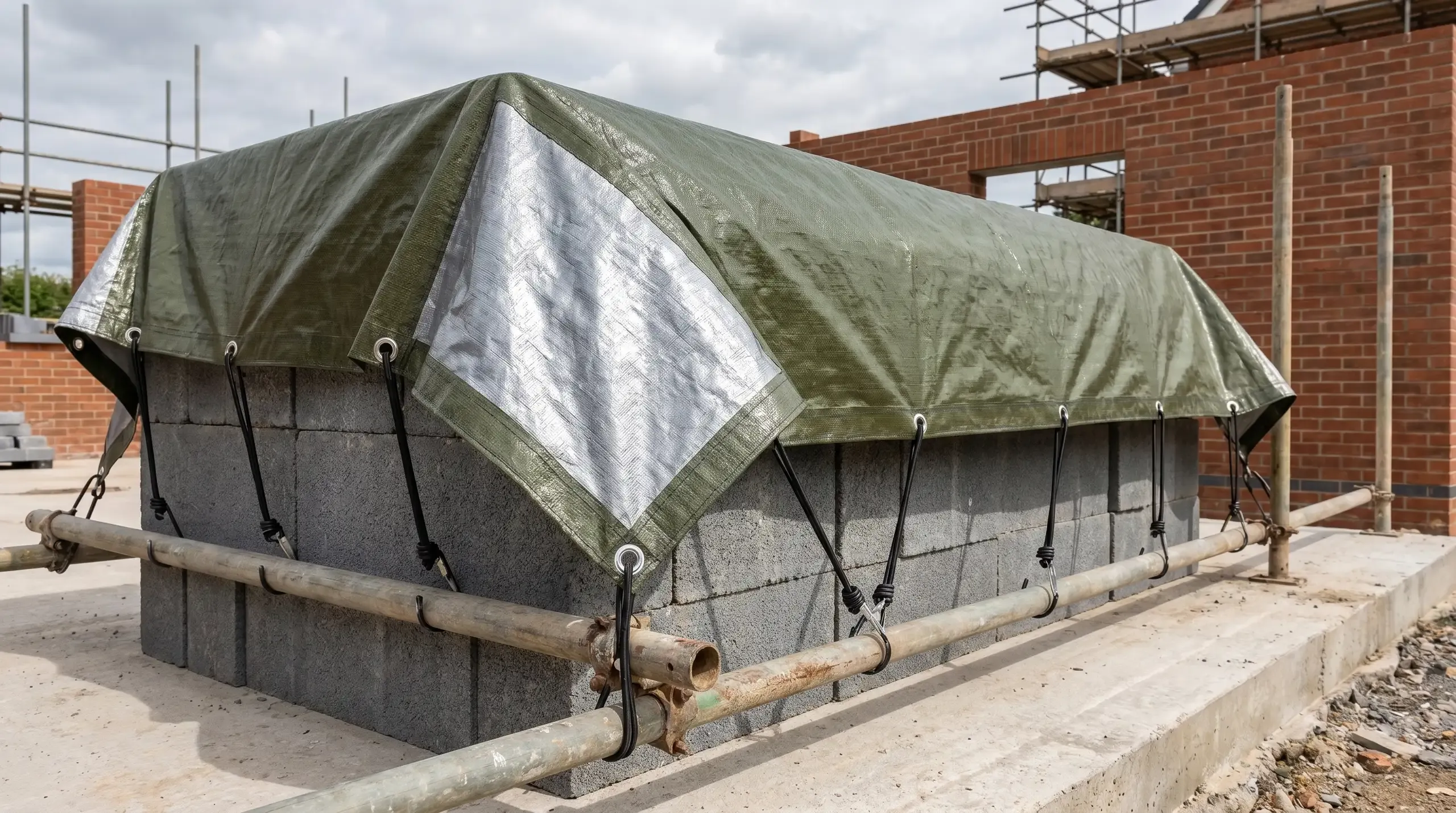

Use case 2: covering material stacks

Bricks, blocks, plasterboard, insulation, bagged cement: everything stacked on site needs to stay dry. Bagged cement particularly: it draws moisture from the air and goes hard inside the bag within 2-3 months even when stored under cover. Insulation gets soaked and loses its U-value if it sits open in rain. Plasterboard is ruined by water before it ever goes on a wall.

For stacked materials, weight isn't a concern because the stack itself supports the cover. Use a heavy-duty 270 gsm sheet so it lasts the duration of the project, and size up: a 5x8m sheet costs roughly the same as two 4x5m sheets but covers more area with fewer joins. £42 – £55 is the standard buy.

For very large stacks or several stacks on one site, a roll of 1200-gauge visqueen worked out cheaper per square metre than buying multiple individual tarps. £60 – £110 covers 100 square metres, more than enough for the entire material stockpile of a typical extension. The trade-off is no eyelets to tie down, so weight the edges with bricks or sand bags.

Use case 3: joinery covers and kitchen units

When the joiner has fitted skirting, architrave, and door linings, but the plasterer is coming back to skim, the timber needs protection. Spattered plaster scrapes off oak architrave, but the residue stains and the oak loses its uniform colour. The professional approach is a combination: heavy-duty plastic sheeting to wrap the timber, masking tape to seal the edges, and rigid Corex board on any face that might be hit by a trowel.

Kitchen units in storage before fitting need similar protection. Most kitchen suppliers ship units in cardboard boxes that survive single-use indoor storage but fall apart in damp. A tarp over the boxes, raised off the floor on pallets, in a dry but unheated space, is the standard arrangement. Don't put kitchen carcasses directly on a concrete slab; the moisture wicking up will swell the MFC chipboard within days.

For taping plastic sheeting to oak or other finished timber, use Blue Dolphin 14-day low-tack tape, not standard masking tape. The cheap masking tape leaves residue that takes solvent to remove from a finished surface. The 14-day tape comes off cleanly even after weeks.

Use case 4: floor protection during second-fix

This is where homeowners most often pick the wrong product. The OSB or chipboard subfloor is in, the screed has cured, and now plasterers, electricians, plumbers, kitchen fitters, and tilers all need to walk across it for weeks. A tarpaulin laid loose on the floor is a classic mistake: it slides underfoot, rucks up under wheelbarrow tyres, and collects water near every door.

Pre-finish (raw OSB or bare screed): a thick polythene sheet or visqueen laid full-coverage and taped at the seams works. Cheap and effective for the rough phase.

Post-finish (engineered oak, polished concrete, ceramic tile, vinyl): switch to £3 – £6. Rigid corrugated polypropylene board, taped at the seams with low-tack cloth tape. The boards are reusable, don't slide, and protect against dropped tools as well as foot traffic. A typical kitchen extension floor (around 30m²) needs about 12 sheets, so multiply the per-sheet cost accordingly to budget the run.

Use case 5: scaffold and exposed wall covers

If a wall is up but rendered finishes won't go on for weeks, scaffold sheeting (also called "scaffold tarp" or "debris netting") wraps the scaffold to keep wind-driven rain off the wall and to contain dust and debris from going onto neighbours' properties. Specialist scaffold sheeting at 250-300 gsm with reinforced seams and rope-edged hems is the right product, sized to fit the scaffold bay dimensions. Standard rectangular tarps work but tend to be inefficient for the geometry.

Around the wall base where masonry meets ground, prevent splash-back from rainfall by lapping a tarp out from the wall by a metre or so, weighted at the far edge. Splash-back over months stains the lower brickwork in a grey-green band that doesn't clean off without acid washing.

Cost and where to buy

The retail tarpaulin market splits into two channels with sharply different value: general DIY retailers stock everything as "heavy duty" regardless of GSM, while specialist suppliers list the exact gram weight and let you compare directly.

For one-off jobs, a quick collection from Screwfix or Toolstation works. For an extension project that will need site protection for six months, ordering from a specialist supplier costs the same or less and gets you proper 270 gsm material with the eyelet spec stated on the listing.

£18 – £28 is the typical price for a genuine heavy-duty 4x5m sheet at a specialist supplier. £42 – £55 for the larger 5x8m. £18 – £80 for PVC, depending heavily on size.

For comparison, a cheap blue PE tarp in similar sizes runs £8 – £12 for a 3x4m sheet from any DIY retailer. Useful for indoor dust covers and a single short job; not what you want on the wall in November.

Alternatives

For specific jobs, the tarpaulin is not always the right tool. The decision tree:

• Whole-roof temporary cover lasting more than a day: breathable roofing membrane battened down with roofing battens at two-foot centres. See the whole-roof temporary cover section above for the rough budget and reasoning.
• Flat-roof patches and any horizontal application with pooling water: 1200-gauge visqueen as the actual waterproof layer, tarp on top for UV protection only.
• Large-area material stack covers (multiple stacks, big footprint): visqueen DPM roll, weighted at the edges. Cheapest cost per square metre.
• Fitted floor protection during second fix: Correx, Antinox, or Proplex rigid board taped at seams.
• Long-term outdoor covers (year-plus exposure): PVC-coated polyester rather than PE, despite the higher cost.
• Heritage timber covers where breathability matters: treated canvas.

The general rule is that a 270 gsm PE tarp is the right product for site protection of stacked materials and short-duration covers. For everything else on the list above, there's a better material for the specific job.

Common mistakes

Buying on the "heavy duty" label without checking GSM. The Wickes 125 gsm trap is the most visible example, but the same problem runs across other DIY retailers. If the spec sheet doesn't state GSM, the tarp is light and the seller is hiding it. Always read the spec, not the marketing.

Tying down with rope instead of bungee. See the eyelets and securing section above for why this matters and what to buy. Rope holds the tarp rigid against every gust; bungee shock cord absorbs the load before it tears the eyelet out.

Weighting the cover on top of fresh masonry. Heavy tarps placed directly on a rising wall will pull the top courses off when the wind moves them. Cover lightly, anchor at ground level beyond the wall, never weight on top of new mortar.

Using a tarp on a flat or near-flat surface and expecting it to be waterproof. Woven PE is water-resistant when pitched, not waterproof under standing water. For any horizontal application, use visqueen as the waterproofing layer.

Leaving tarps in direct sun when not in use. UV degradation halves the working life of a PE tarp. Fold and store covers under a sheet or in the garage between uses. A tarp that's "always out" lasts months. The same tarp stored when not needed lasts years.

Trying to use a tarp as whole-roof temporary cover. It will fail in wind. Battened roofing membrane is cheaper, more reliable, and is what professional builders use. The community evidence on this is overwhelming.

Where you'll need this

Heavy-duty tarpaulins and the wider site protection toolkit show up across most stages of any extension or renovation project:

• Walls and blockwork - covering newly laid masonry overnight and during inclement weather, NHBC 6.1.20 compliance during the bricklayer's days on site
• Foundations and footings - protecting the open trench from rain washout before concrete pour, covering bagged cement and stacks of blocks waiting to be laid
• Roof structure - short-duration cover of an open roof at end of day before the membrane and battens go on
• Plastering - protecting joinery and fitted timber from plaster splash, dust covers over kitchen units in storage
• Flooring - protecting subfloor before finish and finished floors during following trades (using Correx rather than tarp post-finish)

Site protection is one of those line items that disappears off the project budget because it's small per item but adds up across a six-month build. A coherent kit of two heavy-duty 270 gsm tarps, a roll of visqueen, a stack of Correx, and a bag of bungee cords is a modest line on the materials sheet and prevents thousands of pounds of damage to materials, masonry, and finished surfaces over the life of the project.
