16mm Rebar (T16): When Your Foundations Need More Steel

Your structural engineer's drawing shows four pad foundations, each with a cage of T16 bars at 200mm centres. Your builder ordered T12 instead because "it's what we always use." Building control arrives, holds a vernier against the bar, reads 12mm, and fails the inspection on the spot. The concrete truck booked for that afternoon drives away unused. You've lost a day of groundworker time, a wasted delivery slot, and a week's delay while the correct steel is ordered, fabricated, placed, and re-inspected. The price difference between T12 and T16 for four pad foundations is about £30. The cost of getting it wrong is ten times that.

T16 isn't exotic. It's the standard step-up from T12 when your structural engineer needs more tensile strength in the concrete. If your extension involves steel beams (RSJs) supported on pad foundations, or a ring beam around the top of your blockwork, you'll almost certainly see T16 on your drawings.

What it is and why your engineer specifies it

T16 rebar is a 16mm-diameter ribbed steel bar. The "T" means high-tensile (you'll also see it written as "H16" on some drawings and product listings, which means the same thing). The ribs along the bar's surface grip the surrounding concrete once it cures, creating a composite that resists both compression (concrete handles this well) and tension (concrete is weak in tension, which is why it cracks without steel reinforcement).

All structural rebar in the UK must comply with BS 4449:2005+A3:2016, Grade B500B minimum. That means 500 MPa yield strength (the force needed to permanently deform the bar) and Class B ductility (minimum 5% elongation at peak force). You'll occasionally see B500C on product listings, which is a higher ductility grade. It exceeds B500B requirements, so it's perfectly acceptable. The bar must carry a CARES certification mark. CARES is the UK's independent, UKAS-accredited quality scheme for reinforcing steel. Without it, building control can reject the material outright.

So when does T16 appear on your drawings instead of T12? The structural engineer decides based on the loads. The common triggers in a domestic extension are:

• Pad foundations under steel beams - where an RSJ or steel column transfers a concentrated point load into the ground, the foundation must spread that load over a wider area. T16 provides 78% more steel cross-section than T12 (201mm² vs 113mm²), which gives the pad the tensile capacity to resist bending under that point load.
• Ring beams - a reinforced concrete beam running along the top of your blockwork walls, tying them together structurally. A typical domestic ring beam uses 4 x T16 longitudinal bars with T8 links at 200mm centres.
• Deep or wide strip foundations - where poor ground conditions require a larger foundation that acts structurally (resisting bending forces) rather than simply sitting as a mass of concrete.
• Starter bars - short sections of rebar cast into footings or slabs to provide reinforcement continuity where new walls or slabs will join. T16 starter bars are common where the connecting element carries heavy load.

If your engineer's drawings show T12 for the strip foundations but T16 for the pad foundations, that's normal. Different parts of the same foundation system need different steel. Don't substitute one for the other.

How T16 differs from T12

The T12 rebar page covers the fundamentals of reinforcement: what bar bending schedules are, how to read them, what building control inspects, how tie wire works. All of that applies equally to T16. This page focuses on what's different.

The weight difference is the one that catches people out on site. A 6m T12 bar weighs 5.34 kg. Pick it up with one hand. A 6m T16 bar weighs 9.48 kg. That doesn't sound like much, but try manoeuvring a nearly 10 kg bar that's 6 metres long into a trench while keeping it level and avoiding the spacers you've just carefully positioned. It's a two-person job.

Bending is the other practical difference. T12 can be bent around a scaffold tube with effort. T16 can't, not reliably. The radius will be wrong, the bend will spring back, and building control may reject hand-bent bars with incorrect bend radii. For T16, you either hire a manual rebar bender (a lever-arm tool that clamps the bar and bends it around a pin) or, much better, you order the bars cut and bent from a fabricator.

Ordering: cut and bent vs straight bars

Send your structural engineer's bar bending schedule to a rebar fabricator. They cut every bar to length, bend it to the correct shape code (per BS 8666:2020), label each bar by mark number, and deliver the lot bundled and ready to tie. This is standard practice for any reinforcement involving T16.

Fabricated T16 costs roughly £1 – £1.80 per kg. For a set of four pad foundations, you might need 40-60 kg of T16 steel. That's £40-108 for precisely cut and bent reinforcement, delivered ready to place. The alternative is buying straight 6m bars at £11 – £20 each, hiring a mechanical bender, and hoping your bends match the shape codes on the drawing. The fabricator is the right answer.

Straight 6m bars still have a place. If your schedule is entirely straight bars (shape code 00), or if you need a few extra for starter bars, order them from an online steel supplier. SteelWorld, Next Day Steel, and Builder Depot all stock T16 in 3m and 6m lengths. Builders' merchants like Travis Perkins, Jewson, and Tippers carry it too, but at a premium.

Cover requirements

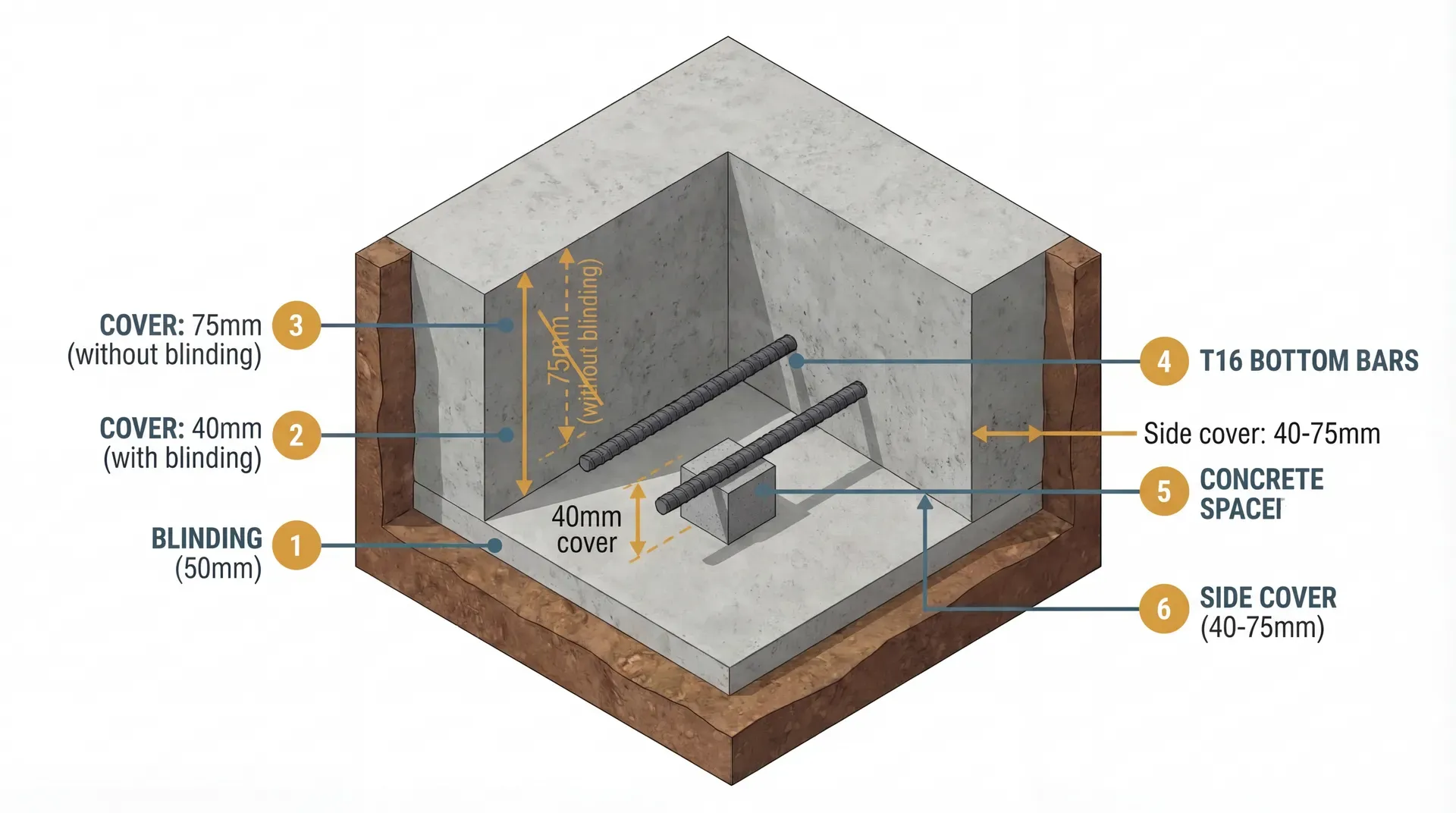

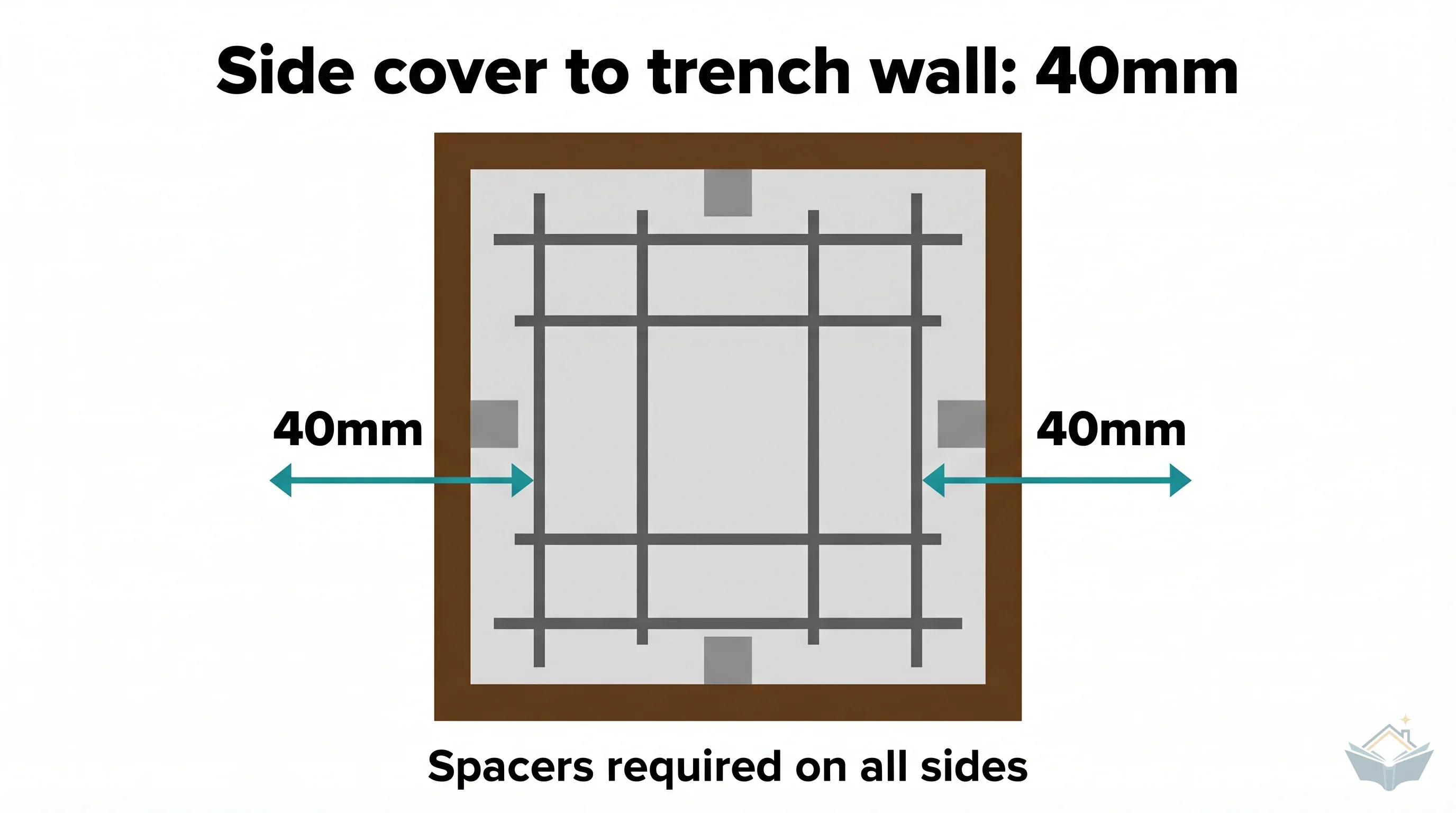

Cover rules for T16 are identical to T12. The concrete must maintain a minimum distance between the bar surface and the nearest edge of the finished concrete. This protects the steel from corrosion.

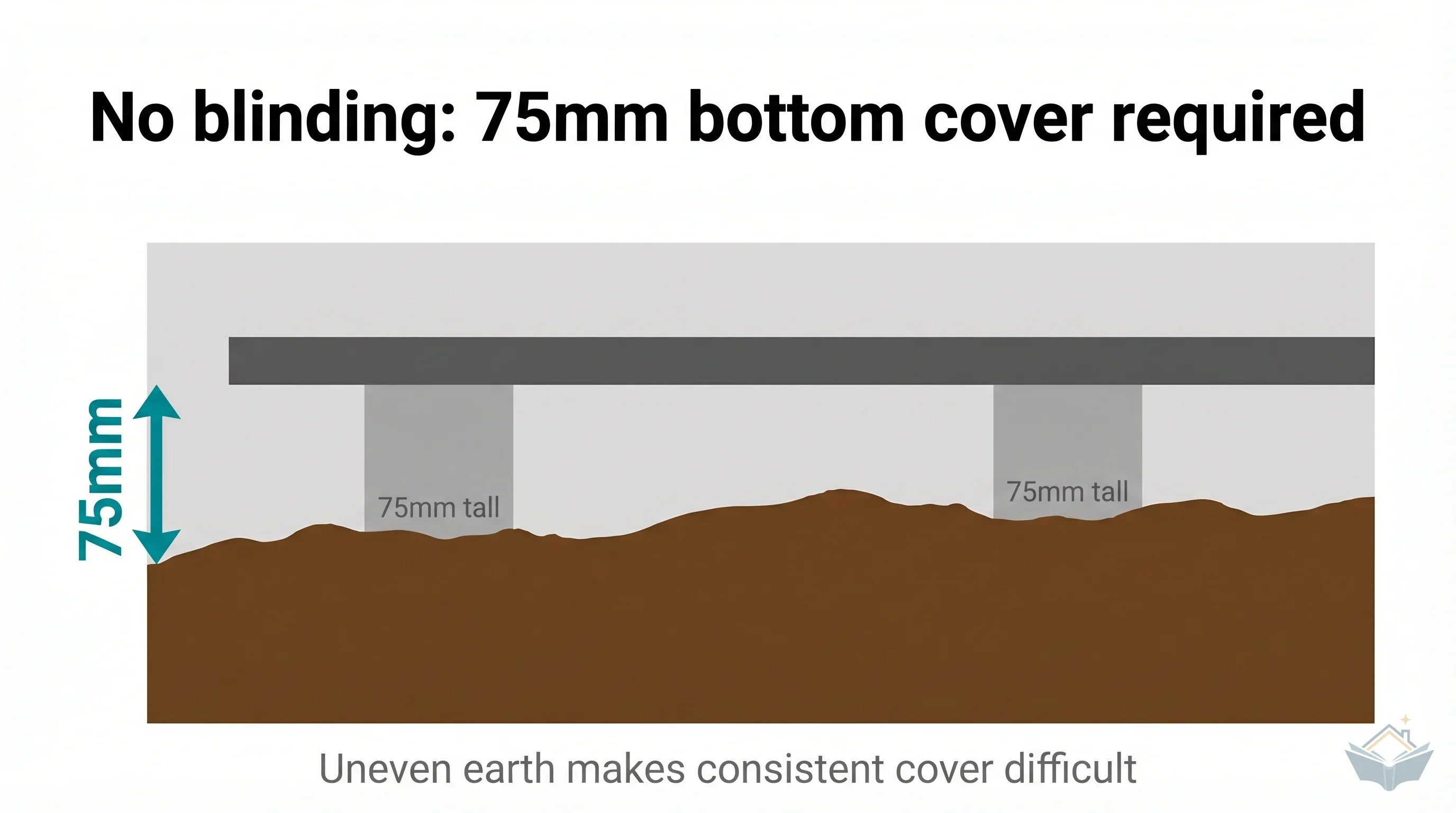

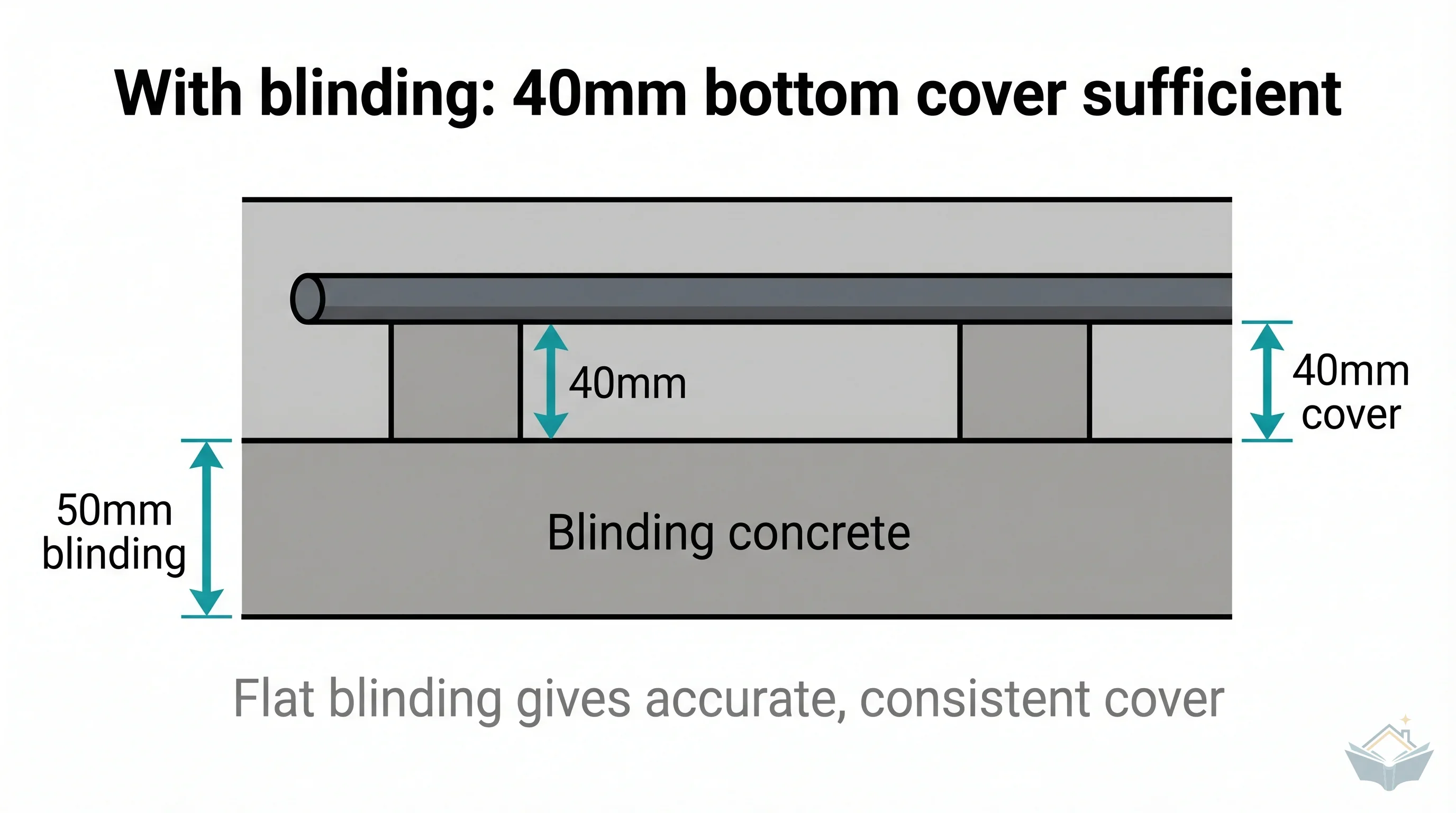

Blinding makes everything easier. A 50mm layer of lean-mix concrete (C8/10) poured into the trench base before placing rebar cuts the required bottom cover from 75mm to 40mm. For pad foundations, where you're building a cage rather than laying a few straight bars, the flat surface that blinding provides is practically essential. Without it, spacers rock and sink into uneven ground, the cage tilts, and cover varies wildly across the pad.

Spacers must be proprietary concrete blocks or plastic chairs, maximum 50mm x 50mm cross-section, placed at no more than 1m centres. Never use bricks, bits of broken block, or timber offcuts. Building control will reject them. LABC published an incident report of an inspector finding reinforcement mesh resting on a shopping trolley frame. That's the extreme case. Bricks are the common one.

Click to enlarge

Lap lengths

Where two T16 bars need to overlap (because the required length exceeds a single bar, or where starter bars connect to the main reinforcement), the overlap length matters structurally. Too short, and the bars can pull apart under load.

The simplified rule of thumb is 40 times the bar diameter: 40 x 16mm = 640mm. That's the minimum anchorage length in C30/37 concrete with good bond conditions. But here's where it gets more complicated. The full Eurocode 2 lap length calculation accounts for the percentage of bars lapped at the same location, bar position, and concrete grade. In C25/30 concrete (common for foundations), the EC2 lap length is 61 x diameter = 976mm.

In practical terms, 640mm is roughly the length of your forearm from elbow to fingertip. 976mm is about a full arm span from armpit to fingertip. Building control will measure laps with a tape. Short laps are one of the most common reasons for a failed reinforcement inspection, because it's easy to eyeball an overlap and assume it's long enough when it's 100mm short. Measure every one.

Stagger your laps. Don't join all the bars at the same point along the foundation. Offset adjacent laps by at least the lap length itself. Your engineer's drawings should indicate where laps are permitted.

Ring beam reinforcement

A ring beam is a reinforced concrete beam that runs along the top of your blockwork walls, tying the structure together. It's common in extensions where the roof loads or wall configuration need additional structural continuity.

The typical domestic ring beam specification uses 4 x T16 longitudinal bars (Eurocode 2 requires a minimum of 4 bars in a beam) with T8 links (stirrups) at 200mm centres. The links are smaller-diameter bars bent into rectangular hoops that wrap around the longitudinal bars, preventing them from buckling outward under load. Each link sits within 150mm of its nearest longitudinal bar.

Ring beam cages are pre-fabricated off-site and delivered in manageable lengths. The fabricator bends the T8 links and assembles the cage with the T16 bars running through. On site, you lift the cage sections onto the blockwork, tie them together at the laps, and then form and pour the concrete around them.

Your builder handles this. But knowing what a ring beam looks like means you can glance at what's been placed and spot obvious problems: missing links, bars touching the formwork (zero cover), laps that look too short.

Cost and where to buy

T16 rebar in 6m lengths costs £11 – £20 from online steel suppliers. The 3m lengths are £6 – £12 each. Pricing varies widely between supplier types.

For a set of four pad foundations (each roughly 900mm x 900mm), you might need 20-30 bars of T16 in various lengths and shapes. At 1.58 kg/m, the total steel weight is typically 80-150 kg. That's still well under a tonne, so you're ordering by the bar, not by the tonne.

The total T16 rebar cost for pad foundations on a typical extension is £150-400 depending on how many pads, their size, and whether you buy straight bars or fabricated cages. It's a tiny fraction of your overall build cost. Don't price-shop rebar at the expense of programme. A one-day delay because your cheap supplier couldn't deliver on time costs more than the difference between SteelWorld and Tippers.

How much you need

Your structural engineer's bar bending schedule is the definitive order list. But for budgeting and sanity-checking, here's what a typical pad foundation requires.

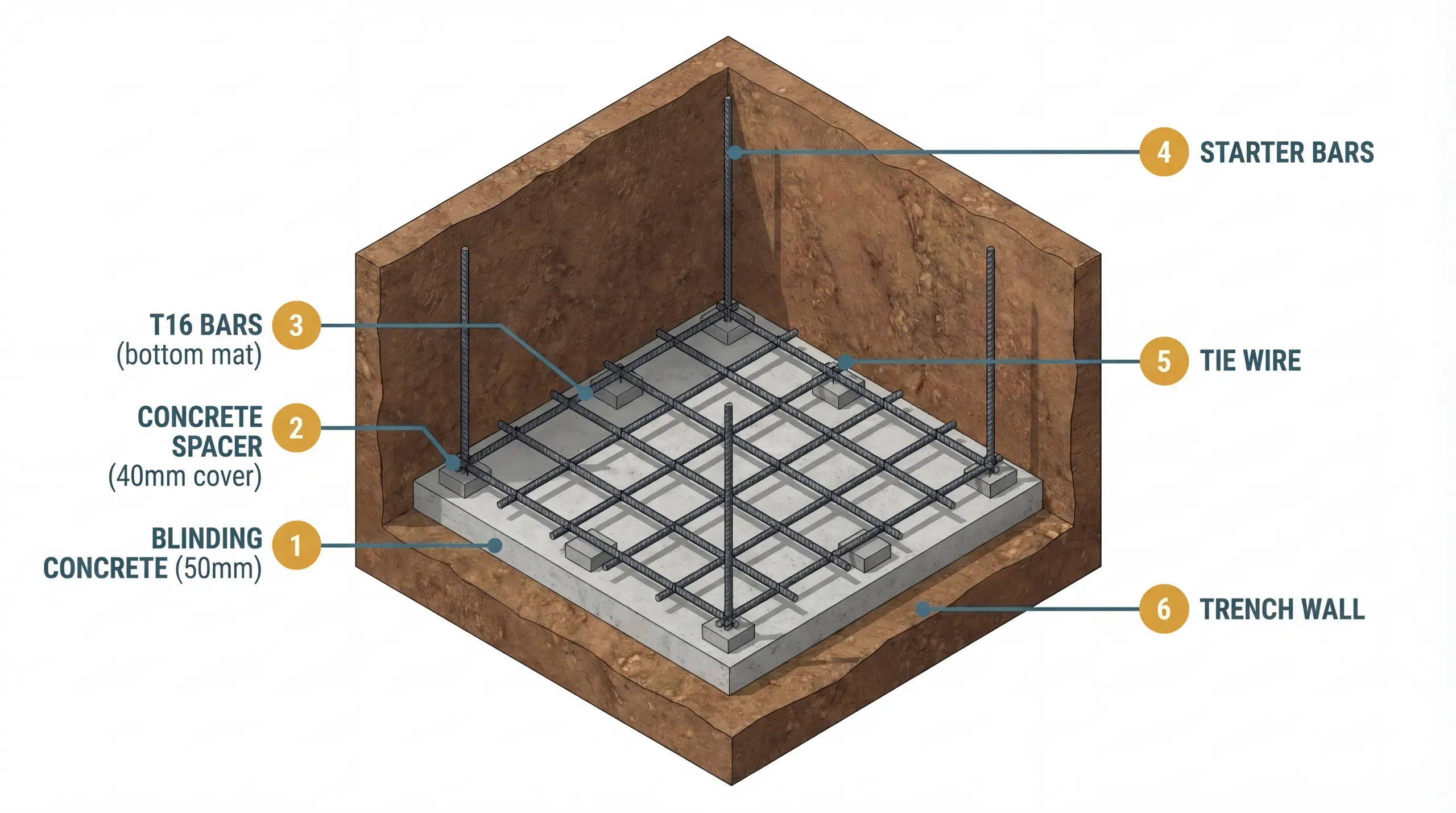

A single pad foundation (say 900mm x 900mm x 500mm deep) with T16 at 200mm centres needs roughly:

• Bottom mat: 5 bars each direction = 10 bars, each approximately 800mm long (allowing for cover both sides)
• Total bar length per pad: approximately 8 linear metres of T16
• Weight per pad: 8m x 1.58 kg/m = 12.6 kg
• Four pads: 50 linear metres, about 80 kg

Add starter bars (if specified), any links or stirrups, and 10% for cutting waste. For four pad foundations, budget 90-100 kg of T16 steel. At fabricator prices of £1 – £1.80 per kg, that's £90-180 for the steel, delivered cut and bent to the bar bending schedule.

Ring beams add more. A 20-linear-metre ring beam with 4 x T16 longitudinal bars needs 80 linear metres of T16 (126 kg) plus T8 links. Your engineer's schedule will have the exact numbers.

Storage and handling

T16 bars are heavy enough to matter. A bundle of ten 6m bars weighs 95 kg. Don't stack them where they'll need to be moved twice. Place them as close to the excavation as possible, on timber bearers to keep them off the ground and out of standing water.

Surface rust is fine. A thin orange film on the bar surface actually improves bond with the concrete. Flaky, scaling rust that comes off in chunks is not fine. If bars have been sitting in weather for weeks and the surface is pitted or the rust peels away under your hand, the cross-section is reduced and the bar should be rejected.

Cover stored bars with a tarpaulin if they'll be on site for more than a few days. Oil, mud, grease, and mould release agents all contaminate the bar surface and reduce the bond with concrete. NHBC inspectors check for contamination and will reject dirty bars.

Alternatives

T12 rebar (12mm) is the lighter-duty bar used for standard strip foundations, distribution reinforcement in slabs, and anywhere the structural engineer determines that the loads don't warrant T16. If your extension has simple strip foundations on good ground with no pad foundations under steels, T12 is what you'll see on your drawings. Everything covered on the T12 page about bar bending schedules, tie wire, building control inspections, and cover requirements applies identically to T16.

T20 rebar (20mm) is the next step up. It's specified for retaining walls, heavily loaded ground beams, and commercial applications. At 2.47 kg/m, it's nearly 60% heavier again than T16 and almost never appears in standard domestic extension work. If your engineer has specified T20, the loads involved are substantial and professional steel fixing is advisable.

Mesh reinforcement (A142, A193, A252) covers flat areas like ground floor slabs and raft foundations. Mesh arrives as welded steel sheets, not individual bars. Your engineer may specify both mesh (for the slab) and rebar (for the pad foundations) on the same project. They serve different purposes.

Where you'll need this

• Foundations and footings - T16 rebar in pad foundations supporting steel beams, and potentially in ring beams, where the structural engineer specifies heavier reinforcement for concentrated loads

Common mistakes

Substituting T12 for T16 because "it's what we always use." This is the mistake building control inspectors report most often with rebar. Your builder has laid hundreds of metres of T12 strip foundations and may not check that the pads need a different diameter. The inspector measures every bar. Wrong diameter means pulling out the cage and starting again. Check the drawing yourself before the bars go in.

Short laps. The rule of thumb for T16 is 640mm minimum, but your engineer may specify up to 976mm depending on concrete grade and bond conditions. Either way, 300mm overlaps (which look "about right" to the eye) are nowhere near enough. Measure with a tape, not by feel.

Trying to bend T16 by hand. T12 can be wrestled around a scaffold tube with some effort. T16 will spring back, produce an incorrect bend radius, and leave you with bars that don't match the shape codes on the drawing. Use a mechanical bender or order cut and bent. The cost difference is negligible.

Forgetting the weight. Four pad foundations might need 80-100 kg of T16 steel. That's not something you carry in the back of a car. Plan delivery access and make sure there's somewhere to unload the bundle close to the excavation. Moving a 95 kg bundle of 6m bars across a building site is not a solo job.

Ignoring the hold point. Reinforcement must be inspected by building control before the concrete pour. This applies to every element: strip foundations, pad foundations, ring beams. If your builder pours a pad foundation without inspection, building control can require the concrete to be broken out. The forums are full of horror stories from homeowners who discovered this too late.
