12mm Rebar (T12): The Steel Inside Your Foundations
UK guide to 12mm reinforcement bar. Specifications, cover requirements, lap lengths, ordering pre-bent vs cutting on site, and what building control checks before the pour. From £7 – £10 per 6m length.
Your structural engineer's drawings arrive as a PDF. Somewhere on page three there's a table of numbers, bar marks, shape codes, and a note saying "T12 @ 200 c/c btm." You don't know what any of it means. Your builder says he'll sort it. Two weeks later, building control fails the reinforcement inspection because the lap lengths are 300mm instead of 480mm, the cover is wrong, and three bars are missing from the corners. The concrete truck is booked for tomorrow morning. It's not coming. That failure costs you a day of groundworker time, a wasted concrete delivery slot, and the stress of watching your programme slip before the walls are even up.
Understanding T12 rebar won't make you a structural engineer. But it will let you check that what's in the trench matches what's on the drawing, before the inspector arrives.
What it is and when your engineer specifies it
T12 rebar is a 12mm-diameter ribbed steel bar used to reinforce concrete. The "T" stands for high-tensile (sometimes written as "H12", which means the same thing). The ribs along its surface grip the concrete once it sets, creating a composite material that can handle both compression (concrete is good at this) and tension (concrete is terrible at this, which is why it cracks without steel).
All T12 bar used in the UK must comply with BS 4449:2005+A3:2016, Grade B500B. That designation means: 500 MPa yield strength (how much force it takes to permanently deform the bar), B ductility class (the standard grade for structural work, with a minimum 5% elongation at peak force). The bar must carry a CARES certification mark, which is the independent quality assurance scheme for UK reinforcing steel. If it doesn't have a CARES mark, building control can reject it.
Not every extension foundation needs rebar. Simple trench-fill foundations in good ground often don't. Your structural engineer decides. The common triggers for specifying reinforcement are: clay soil (which shrinks and swells), trees near the foundations (root heave risk), boundary wall strip footings (which can rotate under load), and any foundation where the width exceeds the depth (wide strip foundations where the concrete acts as a beam, not just a mass). If your engineer's drawings show reinforcement, it's there for a reason. Don't skip it.
Standard sizes and specifications
T12 arrives on site as straight bars in standard lengths. The most common is 6m (technically 6.1m from the mill, but sold as 6m). You can also buy 3m and 1.5m lengths. Each 6m bar weighs 5.34 kg, based on the formula: weight in kg = (diameter in mm squared / 162.28) x length in metres. That works out at 0.888 kg per metre.
188 bars of T12 make up one tonne. A typical extension foundation uses 20-40 linear metres of rebar, which is 4-7 bars at 6m length. Total weight: roughly 18-36 kg. You're not ordering by the tonne.
For a standard extension, T12 is the workhorse diameter. T10 (10mm) is sometimes specified for lighter reinforcement, and T16 (16mm) for heavier loads like pad foundations under steel columns. Your structural engineer's drawings will state exactly which diameter goes where. Don't substitute one for another.
How to read your engineer's rebar schedule

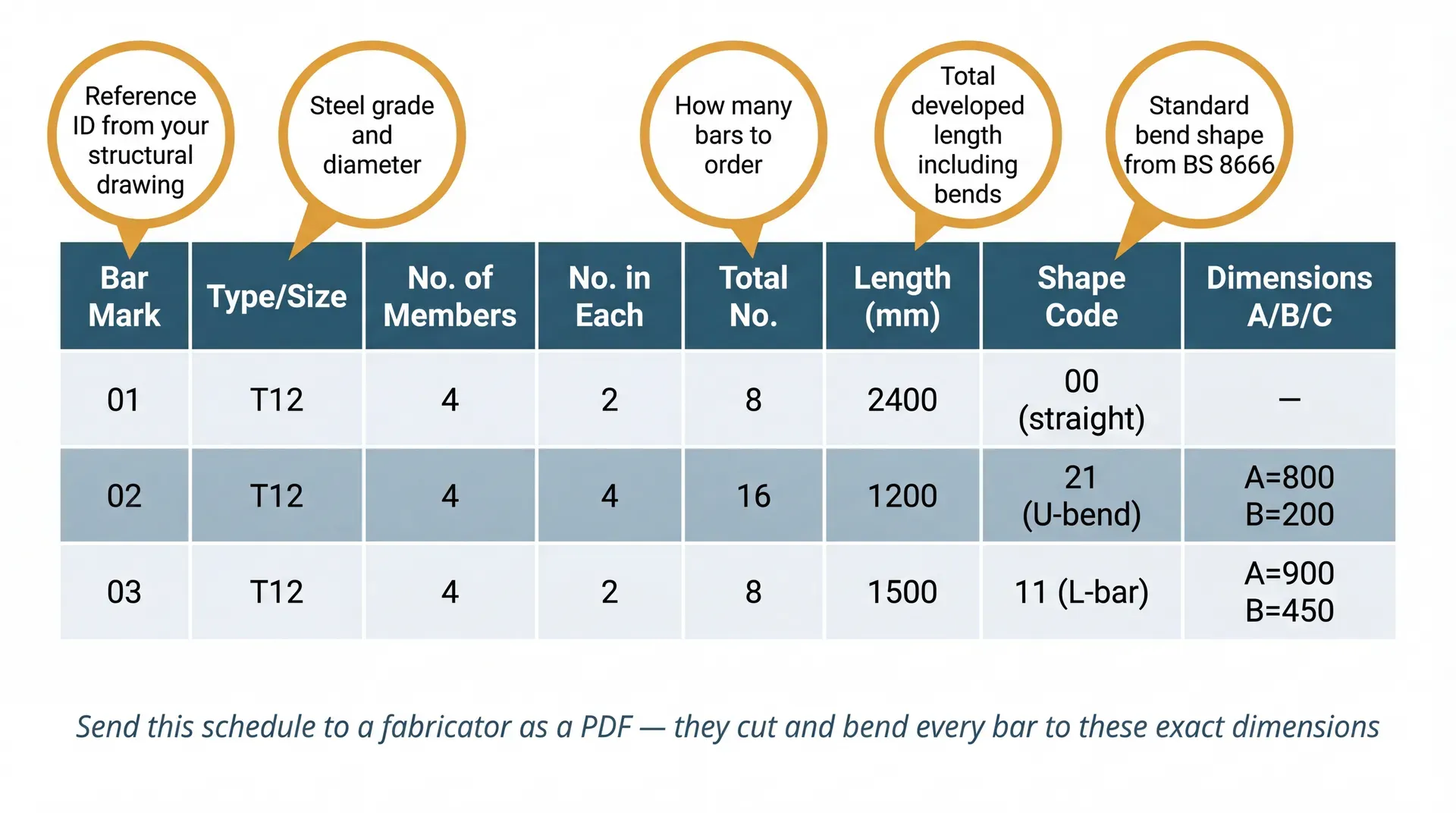

This is the single biggest source of confusion for homeowners receiving structural drawings. The bar bending schedule (also called a reinforcement schedule) is a table that lists every bar needed for the job. It follows BS 8666:2020 and uses shape codes, which are standard reference numbers for different bar shapes (straight, L-bend, U-bend, and so on).
A typical schedule has these columns:
- Bar mark - a reference number (01, 02, 03...) that corresponds to labels on the structural drawing
- Type and size - T12 means high-tensile 12mm
- Number of members - how many identical structural elements need this bar (e.g. 4 corners)
- Number in each - how many bars per element
- Total number - members x bars per member
- Length - the total developed length of each bar in mm (including any bends)
- Shape code - a BS 8666 reference (e.g. shape code 00 = straight, shape code 21 = U-bend)
- Dimensions - the specific measurements for each bend
Cross-check the schedule against the structural drawings. Each bar mark on the schedule should correspond to a labelled bar on the plan or section drawing. If bar mark 01 is "T12 straight, 2400mm long, 8 required", you should be able to count eight T12 bars labelled "01" on the plan. If the numbers don't match, ask your engineer before ordering.
Ordering pre-bent vs cutting on site
Send the bar bending schedule to a rebar fabricator. They'll cut and bend every bar to the exact dimensions, bundle them by bar mark, and deliver them ready to tie. This is what professional builders do. It costs roughly £1 – £1.80 per kg for fabricated bar, compared to £7 – £10 per 6m straight length from a steel supplier.
The economics are clear. For a typical extension needing 30 linear metres of T12, the total steel weight is about 27 kg. Even at the higher fabrication price, you're looking at under £50 for the steel. The time saved by not bending bars on site, the accuracy of machine-bent shapes, and the reduced risk of building control rejecting hand-bent bars with wrong radii make pre-bent the obvious choice.
Search "rebar fabricator" or "cut and bent reinforcement" plus your county. Companies like Reinforcement Products Online, KB Rebar, and local steel stockholders all offer this service. Send them the engineer's bar bending schedule as a PDF. Turnaround is typically 3-5 working days.
Cutting straight bars to length on site is fine for simple jobs. A pair of heavy-duty bolt croppers handles T12 without problems. But bending T12 by hand around a scaffold tube is physically exhausting and produces inaccurate bends. On BuildHub, a self-builder who tried bending 300 U-links by hand described it as "back breaking." The consensus across community forums is consistent: buy pre-bent.
Cover: the number that building control will measure

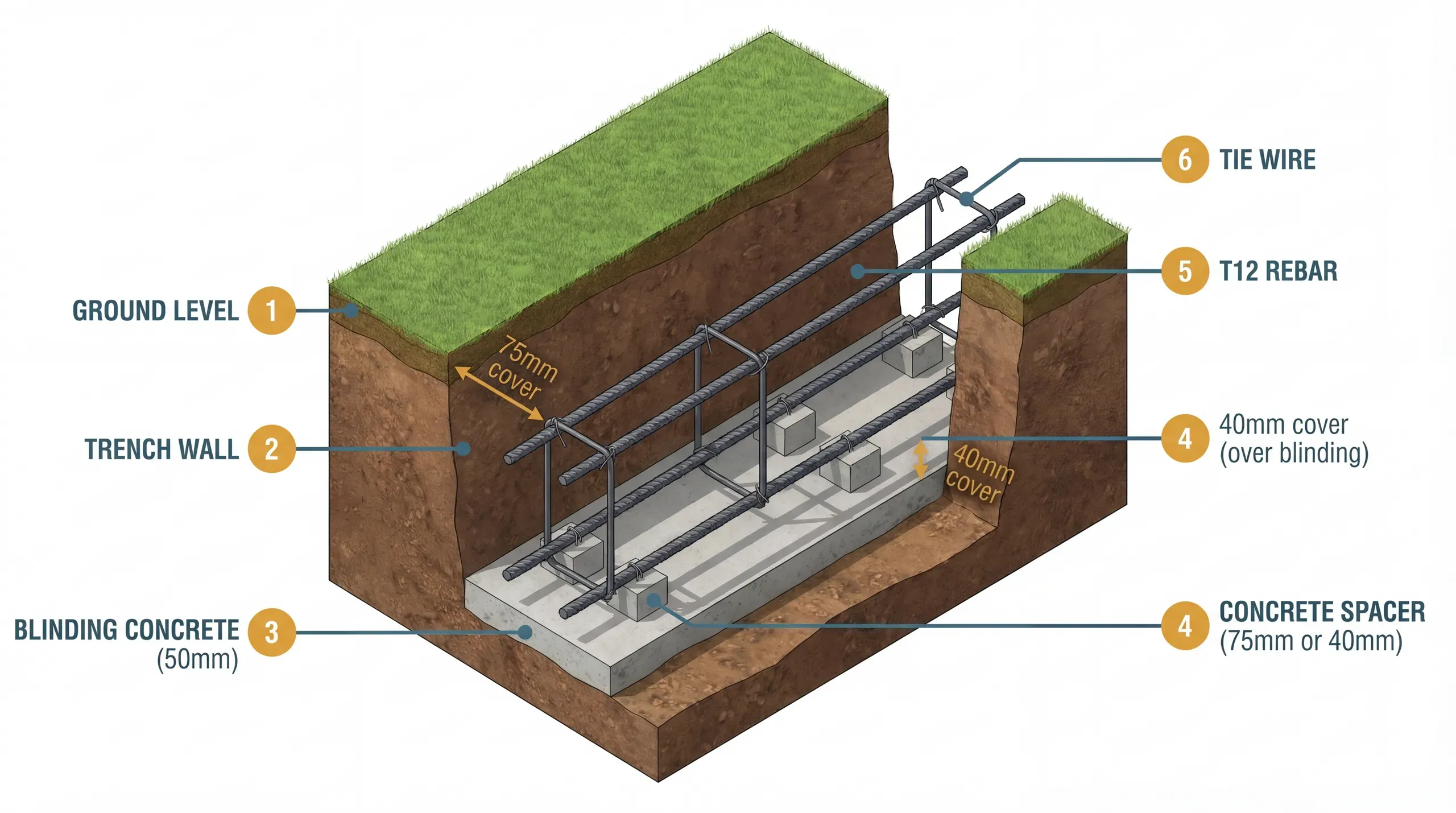

Cover is the distance between the surface of the rebar and the nearest face of the concrete. It protects the steel from corrosion. Get it wrong and the steel rusts inside the concrete, expands, and cracks the foundation from within. Building control measures this with a ruler.
The required cover depends on one thing: what's on the other side of the concrete.
| Condition | Nominal cover required | Why |
|---|---|---|
| Cast directly against earth (no blinding) | 75mm | Eurocode 2 exposure class XC2. Accounts for uneven trench surfaces and large placement tolerance (±50mm). |
| Cast over 50mm blinding concrete | 40mm | Blinding provides a flat datum surface, reducing placement tolerance to ±15mm. Allows much thinner cover. |
| Exposed surface (e.g. retaining wall face) | 50mm | Exposed to weather cycling. Higher corrosion risk than buried concrete. |
| Internal floor slab | 25mm | Protected from moisture. Lowest corrosion risk. |
The blinding connection is the most useful fact on this page. A 50-75mm layer of lean-mix concrete (C8/10 grade) poured into the trench bottom before placing rebar serves two purposes: it gives the spacers a flat, stable surface to sit on, and it cuts the required cover from 75mm to 40mm. That's a real saving in concrete volume and makes spacer placement far easier. Ask your builder whether blinding is included. If it's not, and your engineer has specified 40mm cover, something is wrong.
If your engineer's drawing says "40mm cover" but there's no blinding specified, the cover should actually be 75mm (for concrete cast directly against earth). This is a common error. Clarify with your engineer before the pour.
Cover is maintained on site using spacers: small concrete blocks or plastic chairs that sit under and around the rebar, holding it at the correct distance from the trench wall and base. Concrete spacers are cheap (from £15 – £22 per 100) and come in specific cover heights: 40mm, 50mm, 75mm. Place them at maximum 1m centres and stagger them so the rebar doesn't sag between supports.
Never use bricks, lumps of old concrete, or bits of timber as spacers. Building control will reject them. Bricks absorb water and can create weak spots. Timber rots. Only proprietary spacers designed for the purpose are acceptable.
Lap lengths: where bars overlap
Rebar doesn't come in infinite lengths. Where two bars need to join, they overlap and are tied together with wire. The length of that overlap is the lap length, and it's calculated from Eurocode 2 based on the bar diameter, concrete strength, and the bar's position in the section.
For T12 in C25/30 concrete (the most common foundation concrete grade), the standard lap length for bottom bars in good bond conditions is approximately 480mm (40 times the bar diameter). Top bars, which have poorer bond because air and water can collect beneath them during casting, need longer laps of around 560-680mm.
480mm minimum lap for T12 bottom bars. That's nearly half a metre of overlap. Measure it. Short laps are one of the most common defects found by building control inspectors.
Stagger your laps. Don't join all the bars at the same point, because that creates a weak section. Offset adjacent laps by at least 500mm. Your engineer's drawings should show where laps are permitted and how they should be staggered.
Tying the cage together

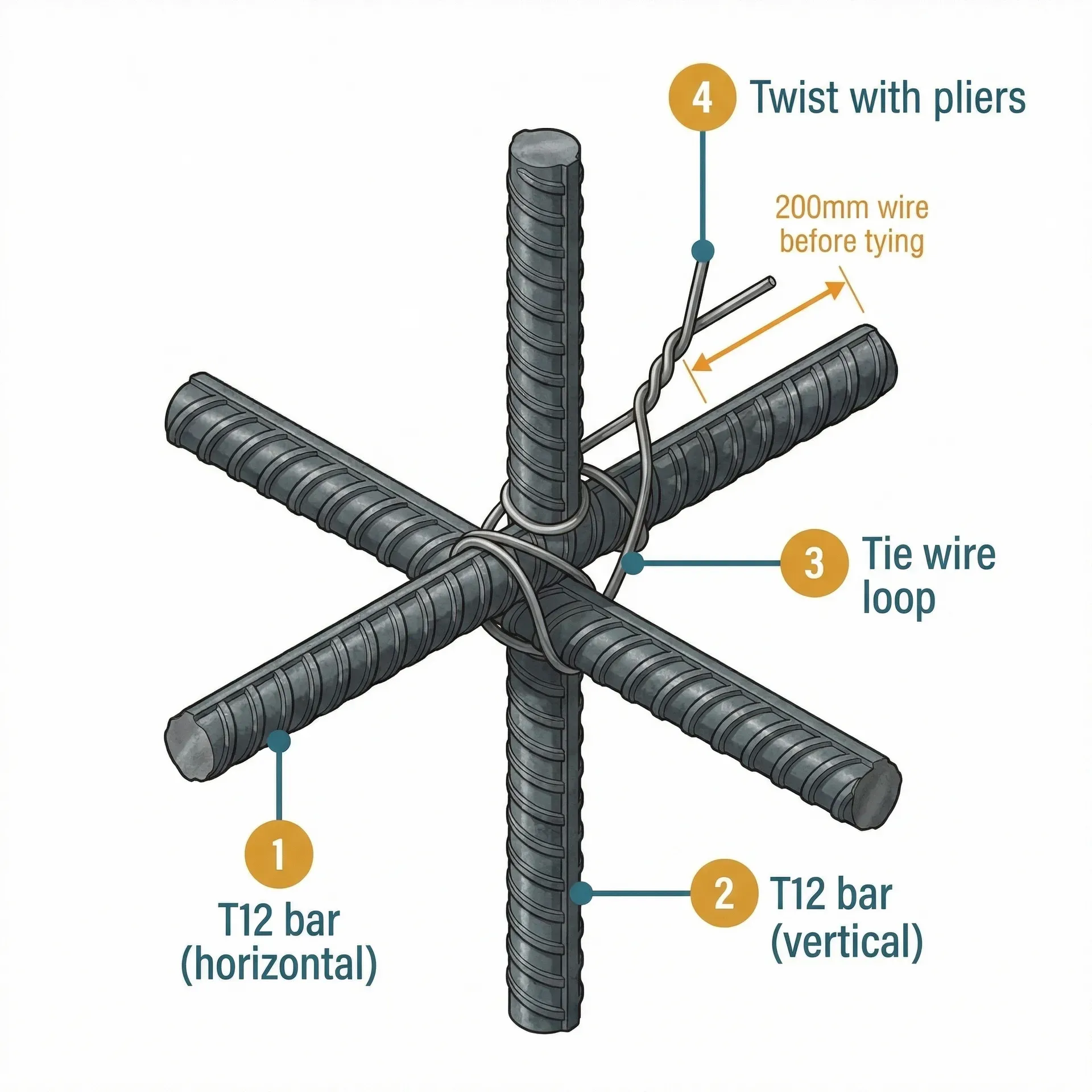

Rebar is assembled into cages or mats using tie wire: a soft, annealed steel wire in 17 gauge (1.4mm diameter). You cut 200-250mm lengths, loop them around the intersection of two bars, and twist with pliers or a dedicated rebar tying tool. The tie doesn't carry structural load. It just holds everything in position until the concrete is poured.
A standard 8kg coil of tie wire costs £6 – £8 and is more than enough for a domestic extension. You'll use roughly 0.5-1 kg for a typical foundation cage.
Tie every intersection. Not every other one. Every one. If bars shift during the concrete pour because they weren't tied, the spacing changes, the cover changes, and the structural design is compromised.
What building control inspects (and when)
The reinforcement inspection is a mandatory hold point. That means you must call building control, have the inspector visit and approve the reinforcement cage, and only then pour concrete. Pouring before inspection is a serious problem. The MoneySavingExpert forum has threads from homeowners who discovered their builder poured without a BC sign-off. Retrospective certification is difficult, expensive, and sometimes impossible without breaking out concrete to check.
The inspector will check:
- Bar sizes match the structural drawing (they'll measure with a vernier or caliper)
- Spacing between bars matches the specification
- Cover is correct at multiple points (they'll measure with a ruler at the trench base, sides, and ends)
- Lap lengths are adequate (they'll measure these)
- All intersections are tied
- Bars are clean and free from contamination (oil, mud, mould release agent)
- Spacers are proprietary, correctly sized, and at appropriate centres
- The reinforcement cage hasn't shifted or sagged
Never pour concrete without building control sign-off on the reinforcement. This is a mandatory hold point under Building Regulations. If your builder says "we'll get it signed off after", that's a red flag. The inspector must see the steel before it disappears under concrete.
The ideal sequence: excavation complete, BC inspects the trench, blinding poured (if specified), blinding cures for 24-48 hours, rebar placed and tied, spacers positioned, BC inspects the reinforcement, concrete poured the same day or next morning. The reinforcement should not sit exposed to weather for more than two weeks. If it does, cover the starter bars with plastic bags or tube to prevent excessive corrosion.
Rust: what's acceptable and what's not
Surface rust on rebar is fine. A thin orange-brown film of surface rust actually improves the bond between steel and concrete. The Concrete Society confirms this.
Flaky rust is not fine. If the rust has formed thick, loose scales that come off when you brush the bar, or if the bar surface is pitted (showing small craters where steel has corroded away), the bar's cross-section is reduced and it should be discarded. NHBC inspectors check for this and will reject bars with loose mill scale, heavy flaky rust, or contamination.
The practical test: run your hand along the bar. If your palm comes away with a thin orange dusting, that's fine. If chunks of rust fall off or you can feel pits and grooves, the bar needs replacing.
How much you need
Your structural engineer's bar bending schedule tells you exactly what to order. But for ballpark planning and quote-checking, a typical single-storey extension uses 20-40 linear metres of T12 rebar.
Worked example for a 4m x 6m extension on strip foundations:
- Foundation perimeter: approximately 20 linear metres
- Two bars running along the bottom of each strip (2 x 20m = 40m of bar)
- Assume laps every 6m (at bar joints), adding ~480mm per lap (roughly 7 laps x 0.48m = 3.4m)
- Add 10% for cutting waste: 43.4m x 1.1 = 47.7m
- That's 8 bars at 6m length, weighing about 42 kg total
This is a rough guide. Your engineer's schedule is the definitive quantity. Don't order to this estimate, order to the schedule.
For tie wire: 1 coil is more than enough. For spacers: one spacer per metre of bar, both underneath and at the sides. Budget 40-60 spacers for a standard extension.
Cost and where to buy
T12 rebar in straight 6m lengths costs £7 – £10 (exc. VAT) from online steel suppliers. The 3m lengths are £4 – £10 each, with a wide spread between online specialists and high-street builders' merchants.
Next Day Steel and Reinforcement Products Online are the cheapest online sources. Jewson and Travis Perkins stock rebar but charge more, and availability varies by branch. For a small domestic job, the convenience of ordering online with delivery is usually worth it.
Pre-bent bar from a fabricator works out at £1 – £1.80 per kg. For 42 kg of steel, that's roughly £42-76. The time saved and the accuracy gained make this the right choice for anything beyond simple straight bars.
The total rebar bill for a standard extension foundation is modest: 8 bars at £7-10 each (£56-80), plus a coil of tie wire (£6 – £8), plus 50-odd spacers. You're looking at under £100 for the lot. It's not where your money goes on a build. But getting it wrong delays the programme, wastes a concrete delivery, and creates a building control headache that can take days to resolve.
Alternatives
Rebar 16mm (T16) is specified for heavier-duty work: pad foundations under steel columns, deeper strip foundations, and retaining walls. Heavier at 1.58 kg/m (nearly double T12) and harder to bend by hand. Your engineer decides which diameter is needed based on the loads.
Mesh reinforcement (A142, A193, A252) is used for ground floor slabs and raft foundations where the reinforcement needs to cover a flat area rather than run in linear strips. Mesh arrives as flat sheets (4.8m x 2.4m is standard) with bars welded in a grid pattern. The number in the name refers to the cross-sectional area of steel per metre width. Mesh and rebar serve different purposes; both are specified by the engineer for different parts of the same foundation.
Storage on site
Keep rebar off the ground. Lay it across timber bearers so air circulates underneath and it doesn't sit in puddles. If bars will be stored for more than a couple of weeks before use, cover them with a tarpaulin to reduce excessive rusting. A bit of surface rust is fine, but bars sitting in standing water for weeks will develop heavy corrosion that needs addressing before use.
Store bars in a location where they won't be driven over, tripped on, or buried under other materials. A 6m steel bar sticking out of a pile of building materials is a site safety hazard.
Where you'll need this
- Foundations and footings - T12 rebar is placed in the foundation trenches before the concrete pour, where the structural engineer has specified reinforcement
Common mistakes
Ordering the wrong amount because you didn't read the bar bending schedule. The schedule is the order list. Count the bars, check the lengths, send it to a fabricator. Don't guess.
Using 300mm laps instead of 480mm. This is the single most common defect found by building control. The CROSS safety report documents it as a recurring failure across UK construction sites. Measure your laps. 480mm minimum for T12 bottom bars.
Skipping the blinding and then using 40mm spacers. If there's no blinding, you need 75mm cover, which means 75mm spacers. Using 40mm spacers without blinding means the steel is too close to the earth, and corrosion will compromise the foundation within decades.
Pouring concrete before building control has inspected. The reinforcement inspection is a mandatory hold point. There's no retrospective sign-off. If the concrete is already poured, the inspector can require you to break it out and start again.
Improvising spacers from bricks or broken blocks. Bricks absorb water and create weak spots in the concrete. Building control will fail them on sight. Use proprietary concrete or plastic spacers designed for the purpose.
