A252 Mesh Reinforcement: Heavy-Duty Steel Fabric for Raft Foundations and Reinforced Slabs

Your structural engineer's drawings say "A252 mesh, top and bottom." You phone a builders' merchant and they quote you per sheet, but don't mention that each sheet weighs 46 kg, measures 4.8 metres long, and won't fit through your side gate. You order them anyway. They arrive on a flatbed, four sheets deep, and nobody on site can move them without a second pair of hands. Meanwhile you've bought the wrong number of sheets because you forgot to account for the 450mm overlap at every joint. The concrete pour is booked for Thursday.

This page explains what A252 mesh is, why your engineer specified it instead of a lighter grade, and how to get it on site, laid correctly, and inspected before the truck arrives.

What it is and what it's for

A252 is a grade of welded steel fabric (mesh) used to reinforce concrete slabs and raft foundations. The name tells you its specification: "A" means square mesh (the same wire size and spacing in both directions), and "252" means 252 mm² of steel cross-sectional area per metre width. That number is how structural engineers compare mesh grades when designing a slab. More area means more steel means more load capacity.

The physical specification: 8mm diameter cold-reduced wire, welded at 200mm centres in both directions. Each intersection is resistance-welded (fused by heat and pressure, not just tied). The result is a rigid, flat panel that arrives on site ready to lay.

A252 is manufactured to BS 4483:2025, the current UK standard for steel fabric reinforcement. You'll see many supplier websites still referencing BS 4483:2005, the previous edition. The designation system and A252 specifications haven't changed between versions, so either reference describes the same product. The steel itself is Grade B500A (500 MPa yield strength), and every sheet should carry a CARES certification mark, which is the independent UK quality assurance scheme for reinforcing steel. If it doesn't have a CARES mark, building control can reject it.

Your SE specifies A252 rather than a lighter grade when the slab carries heavier loads or needs greater crack resistance. The common scenarios: raft foundations on poor ground, extension floor slabs over 150mm thick, slabs supporting heavy point loads (a load-bearing internal wall, for example), and conservatory bases where ground conditions are variable. For simple shed bases and garage floors, A142 or A193 is usually sufficient.

Types, sizes, and specifications

A252 comes in three standard sheet sizes. The choice affects handling, coverage, and cost per square metre.

Standard 4.8 x 2.4m sheets are the default for raft foundations and large slabs. They're significantly cheaper per square metre than smaller sizes. But the logistics are real: a 4.8m sheet cannot pass through a typical 900mm-wide side gate, and at 45-46 kg each, you need two people to lift and position them. If your site has rear-only access via a narrow passage, order merchant-size sheets instead and accept the higher per-m² cost and the additional laps.

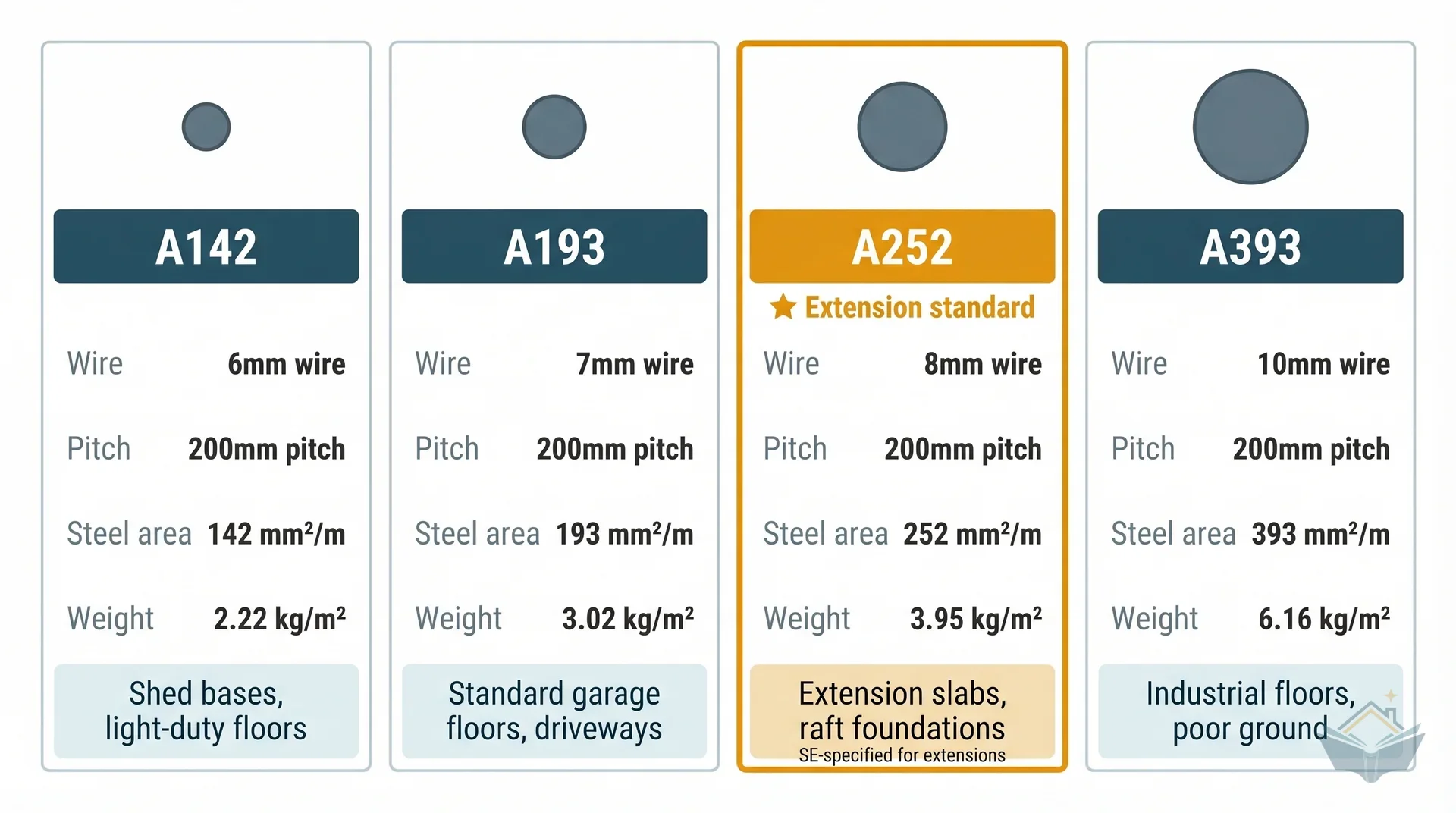

Where A252 sits in the mesh range

The jump from A193 (7mm wire) to A252 (8mm wire) increases the steel area by 30% and the weight per sheet by roughly 10 kg. That 30% matters structurally. It doesn't matter which grade you think is right. Your structural engineer's drawings are the specification.

How to work with it

Getting it on site

This is the part nobody warns you about. Standard A252 sheets are 4.8 metres long. A typical terraced or semi-detached house has side access of 800-1000mm wide and often a gate that's narrower still. The sheets won't fit through. Your options:

• Order merchant-size sheets (3.6 x 2.0m) that will fit, and accept more laps
• Have the sheets craned over the house (expensive, usually not justified for mesh alone)
• Take delivery before access is restricted (before scaffolding goes up, for example)
• If the site has open front access, have the sheets carried through the house (remove internal doors first)

At 45-46 kg per sheet, standard A252 requires two people to lift. Don't attempt it solo. The mesh is rigid but flexes enough to be unpredictable when handled by one person, and the cut wire ends are sharp. Wear heavy gloves.

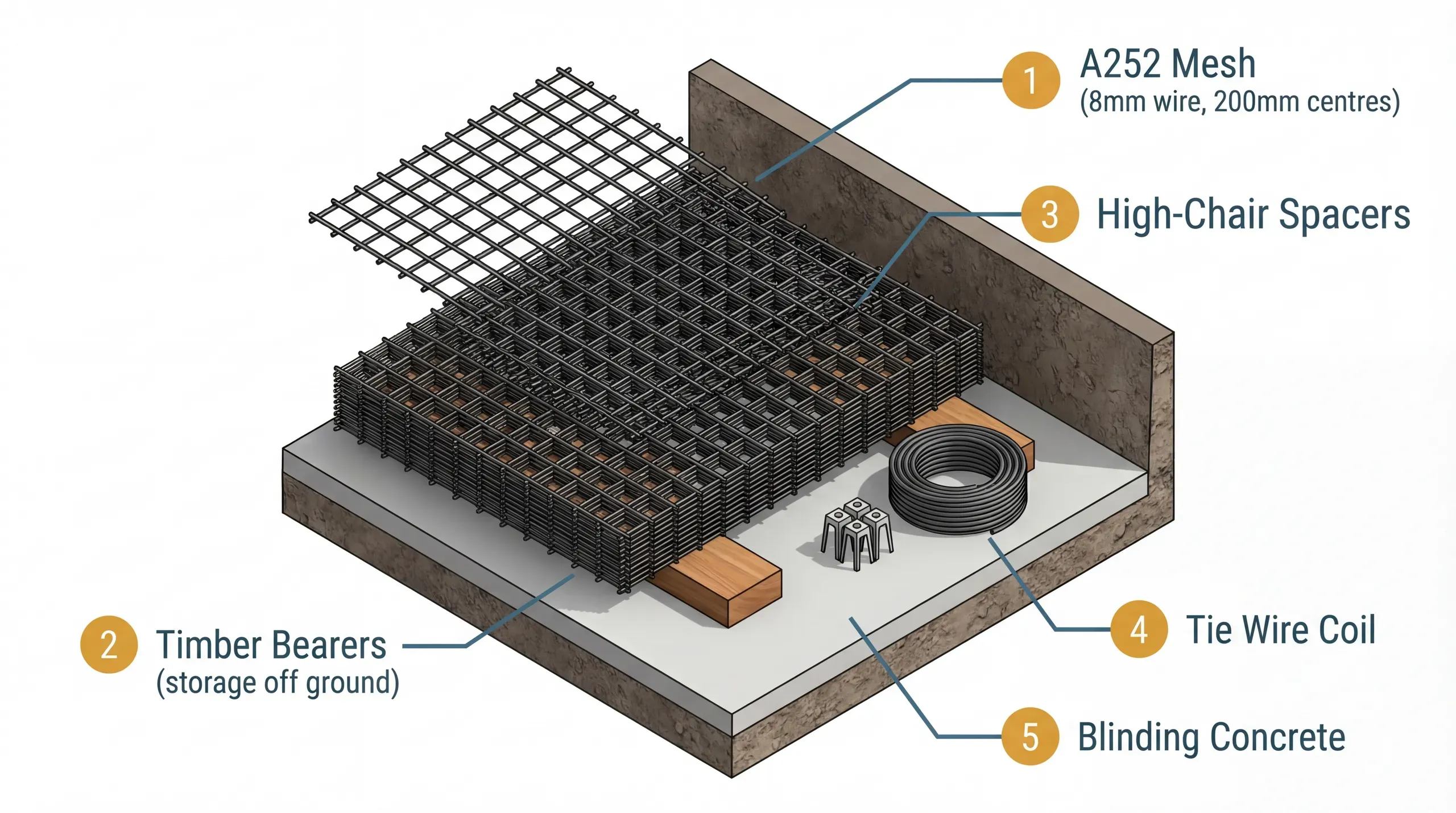

Storage

Keep sheets off the ground on timber bearers. Mesh sitting in puddles develops heavy rust that goes beyond acceptable surface oxidation. Stack sheets flat, not leaning against walls (they'll bow permanently). Cover with a tarpaulin if they'll be stored for more than a week.

Cutting

You'll need to cut sheets to fit around obstacles, at slab edges, and to fill L-shaped areas. An angle grinder with a metal cutting disc is the right tool. Cut one wire at a time. The mesh is rigid enough that it doesn't move much during cutting, but secure it with your foot or have someone hold it steady. Wear eye protection and gloves. The cut ends are razor-sharp.

Click to enlarge

Placing the mesh

Mesh sits on spacers, never directly on the sub-base, insulation, or DPM. The spacers maintain the required concrete cover (the gap between the steel and the nearest concrete surface, which protects the steel from corrosion).

For single-layer A252:

• Place plastic or concrete spacers at maximum 1m centres across the slab area
• Set spacer height to achieve the specified cover (typically 40mm over blinding, 50mm minimum where concrete contacts soil directly)
• Lay mesh sheets across the spacers
• Where sheets meet, overlap by minimum 450mm (two bar pitches of 200mm plus 50mm, per LABC guidance)
• Tie every lap intersection with binding wire. Not every other one. Every one.

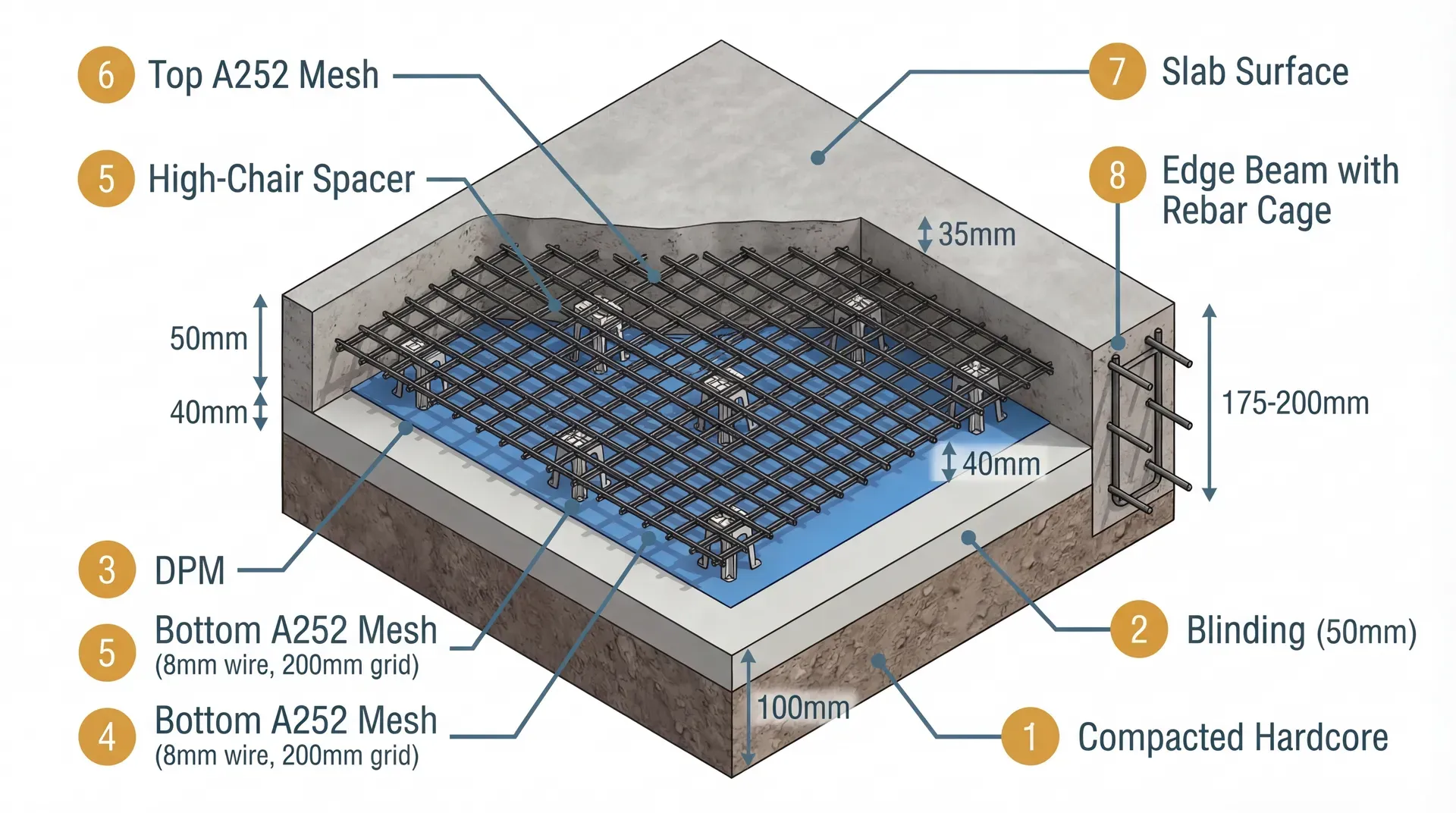

For double-layer A252 (typical in raft foundations):

The bottom mesh goes on standard spacers. The top mesh is supported on "high chairs" or "deck chairs" (tall plastic spacers that straddle the bottom mesh and hold the top layer at the correct height). The maths for a 200mm slab with 40mm bottom cover and 35mm top cover: 40mm (bottom cover) + 8mm (bottom mesh) + 109mm (chair height) + 8mm (top mesh) + 35mm (top cover) = 200mm. Your SE should specify the chair height. If they haven't, ask.

Lap lengths

Where two sheets of A252 overlap, the minimum lap is 450mm. That's two bar pitches (2 x 200mm) plus 50mm, following LABC guidance and Eurocode 2. You'll find some industry guides quoting 350mm, but LABC (the building control authority) specifies 450mm for A252, and that's the figure your inspector will use.

At a 450mm overlap on 200mm-pitch mesh, you're overlapping two complete wire spacings plus an extra 50mm. Tie wire at every intersection within the lap zone. On a 4.8m sheet with 450mm laps at each end, the effective coverage per sheet drops from 11.52 m² to roughly 10 m². Factor this into your quantity calculation.

How much do you need

The calculation is straightforward but the lap allowance trips people up.

Step 1: Calculate slab area. Length x width in metres. For an L-shaped slab, split into rectangles and add them.

Step 2: Divide by effective coverage per sheet. For standard 4.8 x 2.4m sheets, use 10 m² effective coverage (accounting for 450mm laps). For merchant 3.6 x 2.0m sheets, use 6 m² effective coverage.

Step 3: Multiply by layers. Single layer = x 1. Double layer (raft foundation) = x 2.

Step 4: Add waste. 10% for rectangular slabs. 15-20% for L-shaped or irregular slabs where you'll have more cutting and offcuts.

Worked example: A 5m x 4m raft foundation with double-layer A252, using standard sheets.

• Slab area: 20 m²
• Sheets per layer: 20 / 10 = 2 sheets (round up)
• Double layer: 2 x 2 = 4 sheets
• Add 10% waste: 4 x 1.1 = 4.4, round up to 5 sheets
• Total weight: 5 x 46 kg = 230 kg (roughly a quarter of a tonne)

For a larger 8m x 5m raft: 40 m² / 10 = 4 sheets per layer, 8 sheets for double layer, plus 10% = 9 sheets. Total weight: 414 kg.

Cost and where to buy

A252 mesh pricing varies significantly between suppliers. Online steel specialists consistently undercut general builders' merchants.

The best prices come from specialist online suppliers: Reinforcement Products Online, Next Day Steel, Cross Country Building Services, and Lemon Groundwork Solutions all deliver nationwide. At bulk quantities (10+ sheets), expect £43 – £75 per standard 4.8 x 2.4m sheet (exc. VAT). Single-sheet and small-order prices run higher, up to £75 per sheet from general merchants.

ECO mesh

Some suppliers (Lemon GS among them) offer an "ECO" variant of A252. ECO mesh has 200mm external overhangs instead of the standard 100mm. This saves one wire per lap joint, making the sheets marginally lighter (~43 kg vs 46 kg for standard) and reducing waste at overlaps. The physical specification (8mm wire, 200mm centres, 252 mm²/m) is identical. If your supplier offers it at the same price, it's worth taking.

Delivery considerations

Standard 4.8m sheets require a flatbed truck. Most steel suppliers include delivery in the price for orders over a certain threshold (typically 5-10 sheets). Below that, expect a delivery charge of £30-80 depending on distance. Hiab delivery (a truck-mounted crane that lifts sheets over a wall or fence) is available from some suppliers but costs more.

Confirm your site access before ordering. If the delivery truck can't reach the rear of the property and the sheets won't fit through the side passage, you'll need to arrange for sheets to be offloaded at the front and carried through, which requires at least two people per sheet.

Alternatives

A193 (7mm wire, 193 mm²/m) is the medium-duty option, roughly 25% less steel per metre than A252. Lighter at 35 kg per standard sheet, making handling easier. Commonly specified for standard domestic garage floors and extension slabs up to 150mm thick where loads are modest. If your SE specified A252, you cannot downgrade to A193 without their approval.

A142 (6mm wire, 142 mm²/m) is the light-duty option. At 26 kg per standard sheet, one person can manage it. Used for shed bases, path foundations, and lightly loaded slabs. Roughly 44% less steel per metre than A252.

A393 (10mm wire, 393 mm²/m) is the heavy-duty option, specified for industrial floors, heavily loaded slabs, and very poor ground conditions. At 71 kg per standard sheet, it requires mechanical handling on site. Rarely specified for domestic extension work unless ground conditions are exceptionally bad.

Steel fibre reinforcement is an alternative to mesh where fibres are mixed directly into the concrete at the batching plant. Dramatically cheaper (around £1-1.50 per m²) and eliminates all the handling, cutting, and spacer work. But it requires explicit SE approval and is not accepted by all building control bodies for structural applications. Don't substitute fibre for mesh without written SE sign-off.

Rebar (T12, T16) serves a different purpose. Mesh reinforces flat areas (slabs). Rebar reinforces linear elements (strip foundations, edge beams in raft foundations). In a typical raft, you'll have A252 mesh across the slab area plus rebar cages in the edge beams. They're complementary, not interchangeable.

Where you'll need this

A252 mesh appears during the groundwork phase of any extension, renovation, or new-build project that involves reinforced concrete slabs or raft foundations.

• Foundations and footings - A252 mesh is laid in raft foundations and reinforced ground-bearing slabs before the concrete pour

Common mistakes

Ordering standard-size sheets when site access won't allow it. Measure your side gate and access passage before ordering. A 4.8m sheet will not fit through a 900mm opening. Order merchant-size sheets (3.6 x 2.0m) for restricted sites and accept the extra laps.

Using 350mm laps instead of 450mm. Several industry guides and supplier websites quote 350mm minimum overlap. LABC specifies 450mm for A252 (two bar pitches plus 50mm at 200mm pitch). Building control inspectors use the LABC figure. Short laps are one of the most commonly flagged defects at the pre-pour inspection.

Forgetting spacers, or using bricks instead of proprietary spacers. Mesh must sit on plastic or concrete spacers compliant with BS 7973, placed at maximum 1m centres. Bricks absorb water, create weak planes in the concrete, and building control rejects them on sight. High-chair spacers for the top layer of double-mesh installations are available from the same suppliers that sell the mesh.

Not accounting for double-layer requirements in a raft. Your SE drawings will state "top and bottom" if two layers are needed. That doubles your sheet count, your tie wire consumption, and your spacer requirements. It also means calculating the correct high-chair height to maintain cover on both faces. Don't assume single-layer unless the drawings confirm it.

Letting mesh sit in the weather for weeks. Surface rust is acceptable. Heavy flaky rust with pitting is not. If sheets will be stored on site for more than a week or two, cover them with a tarpaulin and keep them off the ground on timber bearers.

Scheduling the concrete pour before building control has inspected. The mesh inspection is a mandatory hold point. Building control must see the mesh in position, on spacers, with correct laps tied, before any concrete is poured. Book the inspection at least one working day before your planned pour date. Pouring without sign-off can mean breaking out hardened concrete, which costs thousands and delays the programme by weeks.
