A roofer fits a sarked roof with the membrane pulled tight across the boards and tile battens straight on top. No counter-battens. Six months later, condensation runs down the inside of the boarding, the boards start to rot, and the only fix is to strip the entire roof, lift the membrane, install proper counter-battens, and reset the tiles. Three weeks of work and several thousand pounds of remedial cost, all because of a missing 25mm gap that should have been there from day one. Counter-battens are the cheapest insurance on a pitched roof and the layer that gets cut most often when budget pressure hits.
What they are and what they're for

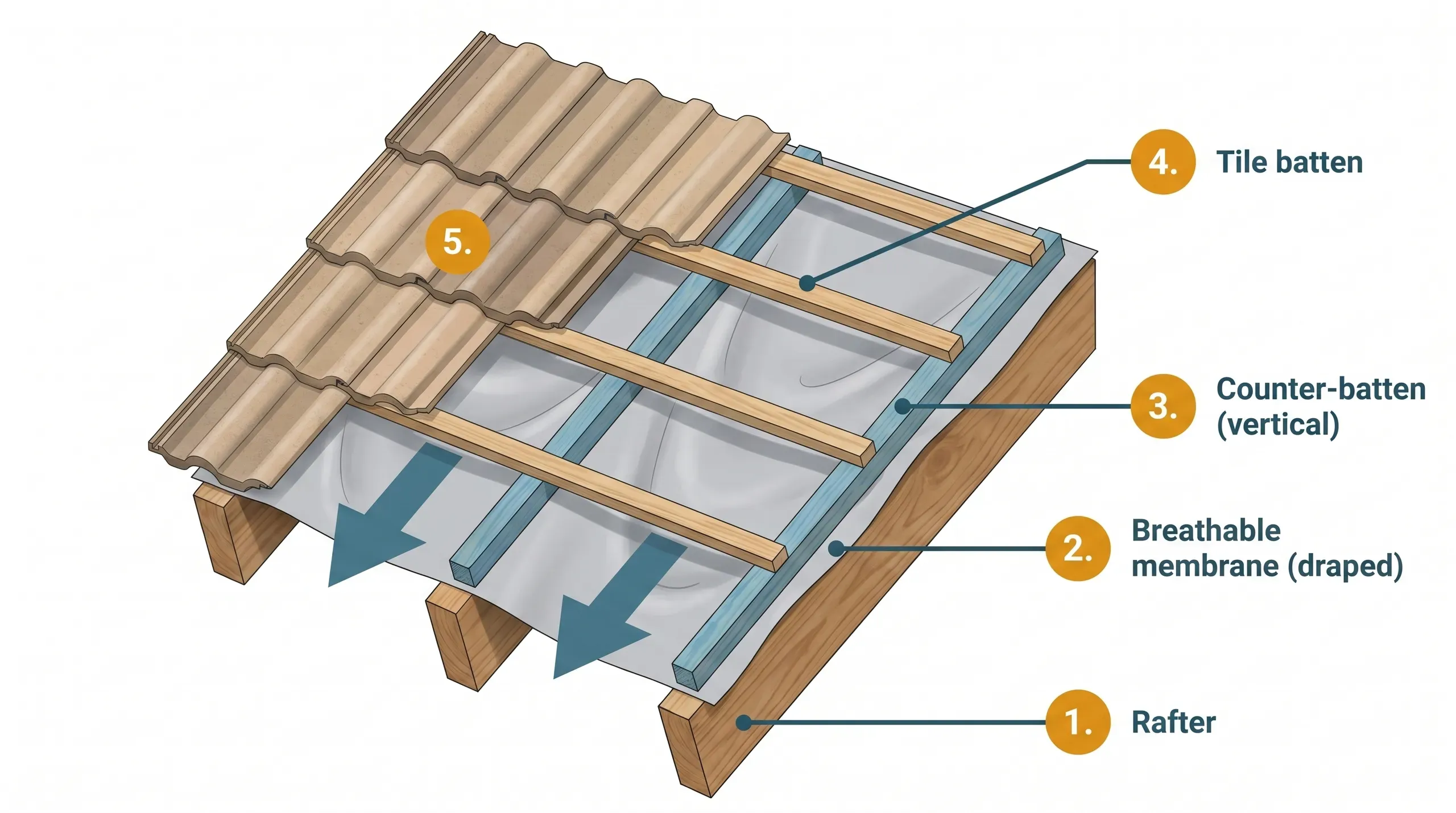

Counter-battens are treated softwood battens fixed vertically up the rafter line, on top of the breathable membrane and underneath the horizontal tile battens. They run the same direction as the rafters, not across them. That single 25mm of vertical depth they create is doing two jobs at once.
The first job is drainage. Even the best breathable membrane lets a small amount of water past at tile junctions, around penetrations, and during driving rain. If the tile battens sit directly on a flat membrane, that water has nowhere to go and pools at the upslope edge of every horizontal batten. Counter-battens lift the tile battens clear of the membrane and create a continuous channel down the rafter line. Water runs straight to the eaves and drops into the gutter. No standing water, no rot.
The second job is ventilation. On warm-roof builds (insulation between or above the rafters) and on roofs with airtight tile coverings (metal tiles, fibre cement slates), water vapour from inside the house needs somewhere to escape. The 25mm void created by counter-battens is the ventilation path. BS 5250:2021 sets the minimum free ventilation areas: 25,000 mm2 per metre at the eaves and 5,000 mm2 per metre at the ridge for cold roofs combined with airtight coverings. A continuous 25mm counter-batten void delivers exactly that.
The governing standard is BS 5534:2014+A2:2018, the same code that controls tile battens. Both NHBC and LABC inspectors check counter-batten installations against it.
How counter-battens differ from tile battens
People mix these up. They look similar (often the same timber section), but they do completely different jobs.
| Layer | Direction | Job | Sits on | Carries |
|---|---|---|---|---|
| Counter-batten | Vertical (up the rafter line) | Create drainage and ventilation gap; secure membrane | The breathable membrane, fixed through to the rafter | No structural tile load |
| Tile batten | Horizontal (across the rafters) | Hold the tiles by their nibs | The counter-battens | Full dead load of tiles, snow, wind uplift |
The horizontal tile battens are the structural ones. They carry the tiles. They have to be BS 5534 grade-stamped because they bend under load. Counter-battens are non-structural in most situations because the load passes through them vertically into the rafter, not across them as bending. Marley's technical position (Conflict 1 in the research) is that grading is only required for counter-battens when they restrain insulation board edges or span unsupported areas.

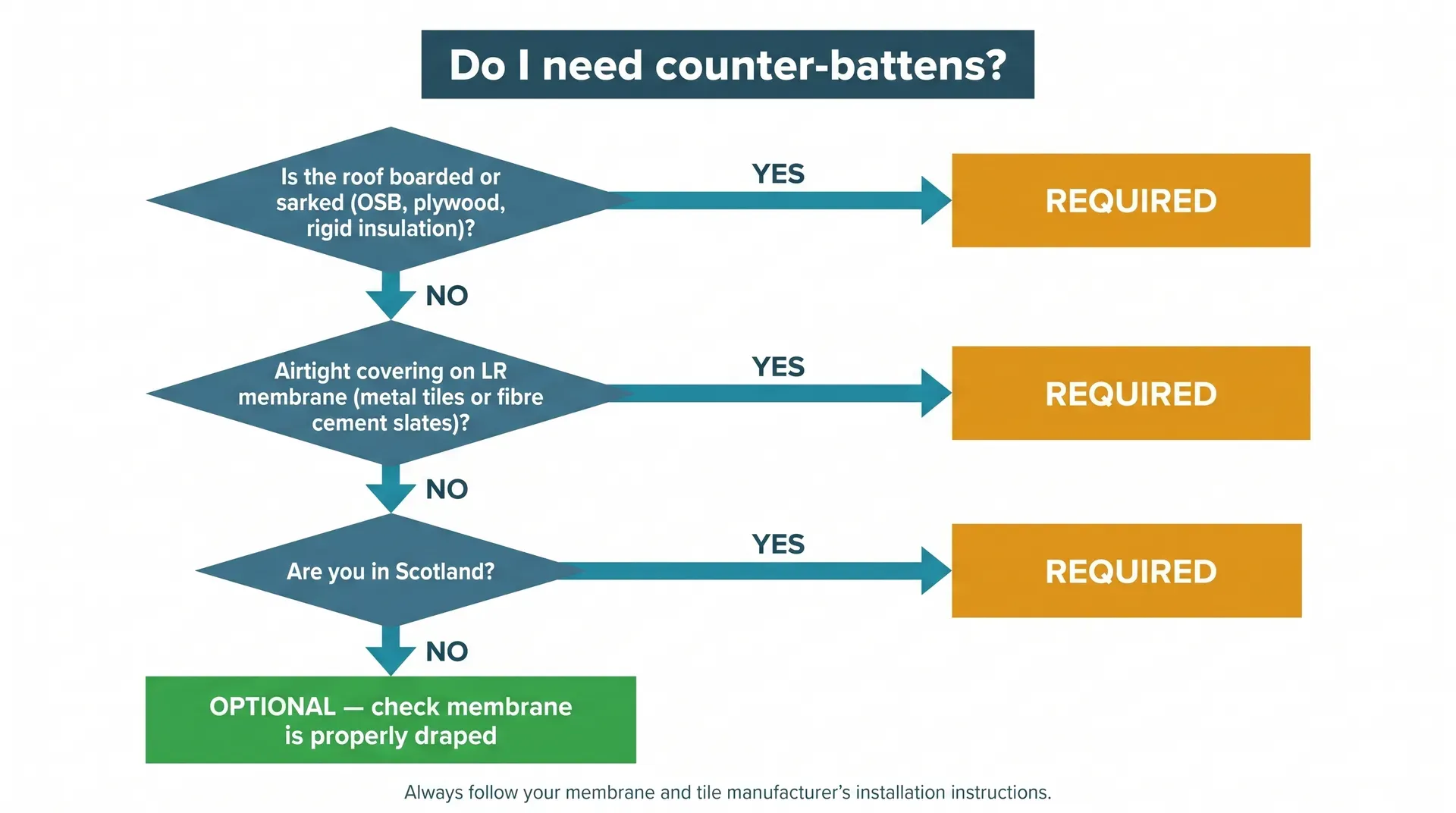

When counter-battens are mandatory
This is where most homeowners get confused, and where most online sources fail to give a clean answer. The rule comes down to one question: can the membrane drape between the rafters?
Mandatory if the roof is boarded or sarked. Anything sitting on top of the rafters (OSB, plywood, sarking boards, rigid PIR insulation laid as a warm roof) means the membrane is fully supported and cannot sag. Counter-battens are non-negotiable. Without them, water has nowhere to drain.
Mandatory in Scotland. Sarking boards are standard Scottish construction (a holdover from harsher weather and historical practice). Because every Scottish pitched roof is sarked, every Scottish pitched roof needs counter-battens. The Scottish Building Standards Section 3.10 makes this explicit for Roof Type C. English homeowners reading Scottish forum advice often misinterpret this as universal practice. It isn't.
Mandatory with airtight coverings on LR membranes. If you've specified a vapour-permeable airtight membrane (LR type) and your tile covering is itself airtight (metal tile profiles, fibre cement slates), the assembly has no path for vapour to escape unless you create one. LABC warranty guidance is explicit: 25mm counter-battens with the BS 5250 ventilation areas at eaves and ridge.
Optional on open-rafter roofs with draped membrane. If you have standard rafters with no boarding, a vapour-permeable underlay draped (not pulled tight) between them, and a breathable tile covering (clay or concrete tiles), the natural sag in the membrane between rafters creates the drainage channel. Counter-battens become optional. Many English single-storey extensions fall into this category.
"Optional" doesn't mean "skip them to save money." If there's any doubt about whether the membrane will be draped properly, fit counter-battens. The material cost is trivial against the remediation cost if water builds up. Forum threads consistently make this point: "a few counter battens don't cost much."
Sizes and specifications
The standard cross-sections are 25x38mm and 25x50mm, the same as tile battens. The 25mm dimension is the depth (the void it creates above the membrane), and BS 5534 requires this minimum after a 2014 revision. Anything thinner doesn't qualify. If a roofer offers you 18x25mm counter-battens (a pre-2014 size you'll occasionally see in older properties), reject them.
| Counter-batten size | Use case | Treatment grade | Approx. trade price per metre |
|---|---|---|---|
| 25 x 38mm | Standard drainage gap on rafters at 450mm centres or less | UC2 (BS 8417) | £0.58-£0.85 |
| 25 x 50mm | Standard drainage and ventilation on most pitched roofs; rafters up to 600mm centres | UC2 (BS 8417) | £0.78-£1.10 |
| 38 x 50mm | Wider bearing for heavier coverings or longer spans between fixings | UC2 or UC3 | Specialist supply |
| 47 x 50mm | Deep counter-batten for warm-roof builds with rigid insulation; provides extra void for ventilation | UC3 (Tanalith E) | £2.35-£2.50 |
For a standard cold pitched roof on a domestic extension, 25x50mm UC2 is the default. That's what your roofer will almost certainly use, and it's the right choice. The deeper 47x50mm sections come into play on high-insulation warm roofs where the build-up needs more vertical depth, or where the architect has specified extra ventilation void.
Treatment grades explained
UC2 (Use Class 2) means the timber has been pressure-treated for service in conditions where it's protected from the weather but exposed to occasional wetting. That covers a typical roof void. UC3 (Use Class 3, sometimes called UC3.2) is rated for more direct exposure to wetting cycles. UC2 is the BS 8417 minimum specified by BS 5534 for roofing battens.
In practice, the heavier 47x50mm counter-battens supplied by builders' merchants tend to be UC3 because they're being sold as carcassing timber that may have wider applications. UC3 is an upgrade, not a downgrade. If you're in a coastal exposure zone or a severe-weather area, specifying UC3 for counter-battens is sensible insurance.
What you absolutely cannot do is use untreated timber. Roofing battens of any kind in untreated form will rot within years, even in a sheltered roof void. BS 5534 makes this explicit and NHBC inspectors will reject any untreated batten on sight.
Markings to look for
Every batten arriving on site should carry indelible markings. For counter-battens specifically, the requirements are slightly relaxed compared to tile battens (which must be BS 5534 grade-stamped) because most counter-batten applications are non-structural. But you should still see:
- Manufacturer name
- Timber species code (WPCA for whitewood, PNSY for redwood)
- Treatment standard (BS 8417 confirms preservative treatment)
- Size
If your specification calls for graded counter-battens (warm-roof builds where the counter-batten edges restrain insulation, or any structural application), the BS 5534 stamp must be present too.
Colour means nothing on its own. Blue, red, and orange tints are applied during the treatment process, but counterfeit and undertreated battens have been documented in the UK market with the same colour appearance. The marking is what counts. If a batten arrives without any indelible stamp, it isn't a compliant roofing batten regardless of how blue it looks.
How to work with them

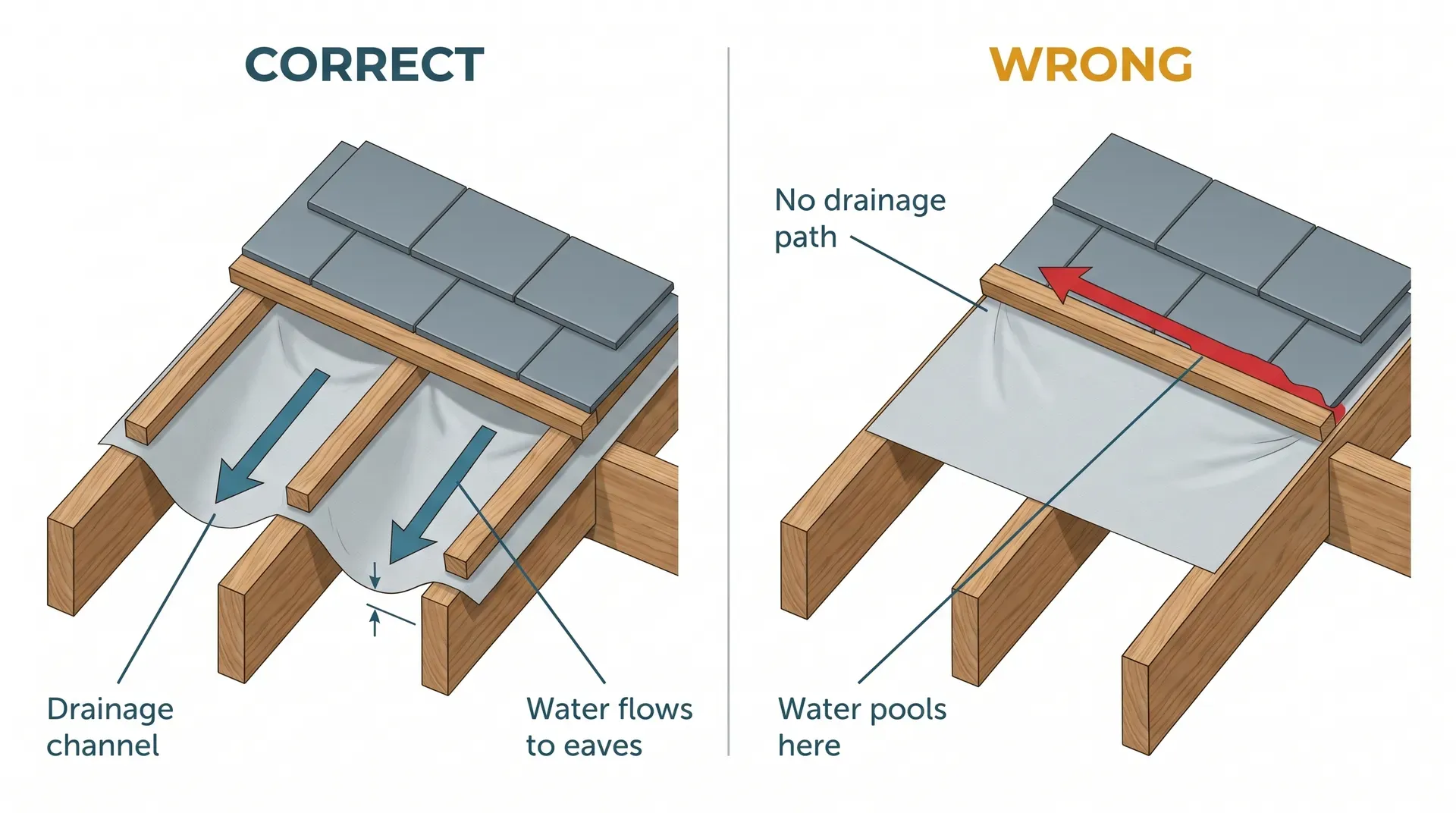

The membrane drape rule
This is the single most common practical mistake on counter-batten installations, and it appears in five out of nine community forum threads on the topic. The membrane must be draped, not tensioned.
When the membrane is laid over open rafters, it should sag between each pair of rafters by roughly 15-25mm. That sag creates the drainage channel even before the counter-battens go on. When counter-battens are then fixed on top, they run along the rafter line and pin the membrane down at the high points (over each rafter), leaving the sagged channels open for water to drain.
If the membrane is pulled drum-tight across the rafters, there is no channel. Water that passes the tiles hits a flat horizontal surface at the top of every tile batten, sits there, and works its way through to the timber. The membrane manufacturers are explicit on this: their installation instructions require the membrane to be loose, not taut.
Fixing counter-battens
Each counter-batten is fixed straight through the membrane into the rafter beneath. The fixing must penetrate the rafter by at least 40 mm using a minimum 3.35mm diameter galvanised round wire nail, typically 65mm long for a 25mm counter-batten. Mechanically fired nails are acceptable: 63mm minimum length, 3.1mm shank diameter, ring-shank, galvanised. Stainless or hot-dip galvanised fixings are required for coastal and severe exposure zones because bright steel rusts within months.
NHBC standards require that counter-battens be fixed to the rafters, not just to sarking sheets. This sounds obvious but it's a common defect: roofers nail through the sarking only, missing the rafter beneath. The fixing has no real holding power and the counter-batten can lift in high winds. Use a chalk line or a nail-finder to mark the rafter centres on top of the membrane before fixing.
Maximum fixing centres along each counter-batten are 600mm. For a 4.8m counter-batten, that's at least nine nails per length. Nails should be driven flush with the top of the batten, not below the surface (driving them in too deep crushes the batten and reduces pull-off resistance).
At every membrane joint (the horizontal lap between sheets of underlay), make sure a counter-batten runs over the lap. The counter-batten compresses the membrane at the lap, sealing it against wind-driven rain. Cedral's installation guidance specifies this directly: counter-battens must be installed over the horizontal underlay laps to prevent membrane failure.
Length and joints
The minimum counter-batten length is 1.2 m spanning at least three rafters. Shorter pieces aren't permitted because they don't develop enough holding strength.
Joints between counter-battens must fall directly over a rafter, never in mid-span. For gauges above 200mm (which most counter-battens are), no more than one in four counter-battens should be joined over the same rafter. Stagger the joints so the structural loading is spread. Skew-nail each joint end to prevent the batten lifting at the junction.
Cut ends exposed at verges or hips must be re-treated with end-grain preservative on site. The pressure treatment doesn't penetrate to the end-grain after cutting, and an untreated end-grain is the most vulnerable point on the whole batten.
Storage on site
Counter-battens are pressure-treated but they're still timber. Stacked on wet ground, they soak up moisture and warp. After installation, they then dry and shrink, which can lift the tile battens above and shift the tiles.
BS 5534 requires moisture content at installation to be 22% or below. Battens delivered direct from a kiln-dried supplier come in around 18-20%. Battens left in the rain for a week can hit 30% or more. The fix is simple: lay them flat on bearers (timber blocks or bricks) to keep them off the ground, and cover them with a proper tarpaulin. Don't lean them upright against a wall (they bow), don't leave them in their plastic delivery wrap (it traps moisture), and don't store them inside a wet roof void.
How much do you need
Counter-battens follow the rafter spacing, not the tile gauge. One counter-batten per rafter, full length from eaves to ridge.
Step 1: Count the rafters. For a typical extension roof at 600mm rafter centres, a 5m wide roof has 5000 / 600 = 8.3, round up to 9 rafters per slope.
Step 2: Measure the rafter length (the sloped distance from eaves to ridge in metres).
Step 3: Multiply rafters per slope by rafter length, then multiply by the number of slopes (usually two for a standard pitched roof).
Step 4: Add 10% for joints, offcuts, and damage.
Worked example for a 5m x 4m rear extension at 35 degrees pitch with rafters at 600mm centres:
- Rafter length: approximately 4.9m (4m horizontal corrected for pitch)
- Counter-battens per slope: 9 (one per rafter)
- Total counter-battens for two slopes: 18
- Linear metres: 18 x 4.9 = 88.2m
- Plus 10% waste: 97m
- In 4.8m lengths: 97 / 4.8 = 20.2, round up to 21 lengths
That's a small order. For most domestic extensions, the counter-batten requirement is one or two packs from a builder's merchant.
Cost and where to buy
Counter-battens use the same timber stock as tile battens. Pricing tracks the tile batten market closely, with a small premium when you specifically request the heavier 47x50mm sections used for warm roofs.
25x50mm BS 5534 counter-batten, per metre inc VAT (specialist/trade)
£1 – £1
25x50mm BS 5534 counter-batten, per metre inc VAT (DIY retail)
£2 – £2
47x50mm UC3 deep counter-batten, per metre inc VAT (warm-roof builds)
£2 – £3
Specialist roofing suppliers (JJ Roofing Supplies, Roofing Superstore, Burton Roofing) and direct timber merchants (Davies Timber, The Roof Shop) are the cheapest source. Travis Perkins and Jewson sit somewhere in the middle. Wickes charges close to double the trade rate per metre.
For a typical extension roof needing around 100 linear metres of counter-batten, trade prices work out to £1 – £1 per metre, so roughly 80 to 110 in total; retail runs £2 – £2 per metre, so 150 to 215 in total. The total is a small fraction of any roofing job.
Selco's batten stock includes a 60-year treatment warranty (yellow or blue marking for NHBC compliance) at competitive trade-account prices. If your roofer uses a Selco trade account, that's typically the best balance of price and documented compliance.
Standard lengths are 3.6m, 4.2m, and 4.8m. Some specialist suppliers offer 5.1m and 5.4m at a surcharge. Minimum order quantities apply at trade-direct suppliers (commonly 20-48 metres), so it's not always practical to order counter-battens separately from a small job.
Alternatives
There aren't direct alternatives to counter-battens for the situations where they're required. If the membrane is fully supported and you need a drainage gap, a counter-batten is the only practical way to create one. The few exceptions:
Specialist multifoil membranes that allow direct batten fixing. Products like TLX Gold are specifically tested to allow tile battens to fix directly through the multifoil into the rafter without counter-battens, while the multifoil's structure maintains an air space. This is product-specific and you must follow the manufacturer's installation rules exactly. It doesn't generalise to other multifoils.
Metal connector systems for warm roofs. Where thermal bridging through timber counter-battens becomes a concern on high-insulation builds (PassivHaus territory), metal connectors like the GL6 system can replace timber counter-battens. The thermal bridge penalty drops to around 0.005-0.010 W/m2K, effectively negligible. This is overkill for a standard extension and adds significant cost.
Omitting counter-battens entirely on draped open-rafter installations. For standard cold pitched roofs with vapour-permeable membranes on open rafters, where the membrane can be properly draped and where the tile covering is itself breathable, counter-battens are genuinely optional. This is the most common UK situation outside Scotland.
Common mistakes
Skipping counter-battens on a sarked or boarded roof. The single most expensive error. The membrane has nowhere to drain to, water builds up at the top of every tile batten, and the boards rot from above. Almost always requires a complete strip and re-batten to fix.
Pulling the membrane tight. Even with counter-battens fitted, a taut membrane defeats the purpose. The drape between rafters is the drainage channel. Membrane manufacturers' instructions are explicit and consistent on this point.
Using 18x25mm counter-battens (or 18mm depth in any form). Pre-2014 BS 5534 allowed thinner sections. The current standard requires a minimum 25mm depth. NHBC and LABC inspectors will reject anything thinner.
Fixing counter-battens to sarking only, not to rafters. Inadequate holding strength. The counter-batten can lift in high winds, taking the tile batten and tiles with it. Mark the rafter centres on top of the membrane before fixing.
Wrong size for the application. Using 25x38mm where the architect or warm-roof manufacturer specified 47x50mm. The thinner section may not provide adequate ventilation void, and on warm-roof builds the insulation board edges may not be properly restrained. Build-up details from the architect or insulation manufacturer take precedence over generic batten sizing.
Not treating cut ends. Every counter-batten cut at a verge has an untreated end-grain face. End-grain preservative takes ten seconds to brush on and prevents rot starting at the most vulnerable point.
Bright-steel nails in coastal exposure. Standard galvanised nails corrode in salt air. Specify hot-dip galvanised or stainless fixings within five miles of the coast.
Where you'll need this
- Roof structure - counter-battens are fitted after the breathable membrane is laid and before the horizontal tile battens go on
- Roof covering - the counter-batten layer determines the drainage and ventilation behaviour of the whole tile system
Counter-battens are fitted during the structure phase of any extension or renovation project that includes a pitched roof on a sarked, boarded, or warm-roof build-up. They go on after the breathable membrane is in place and before the horizontal tile battens are fixed. Building control inspection of the roof structure typically occurs before tiling begins, so any counter-batten defects need to be caught and corrected before tiles are laid.
