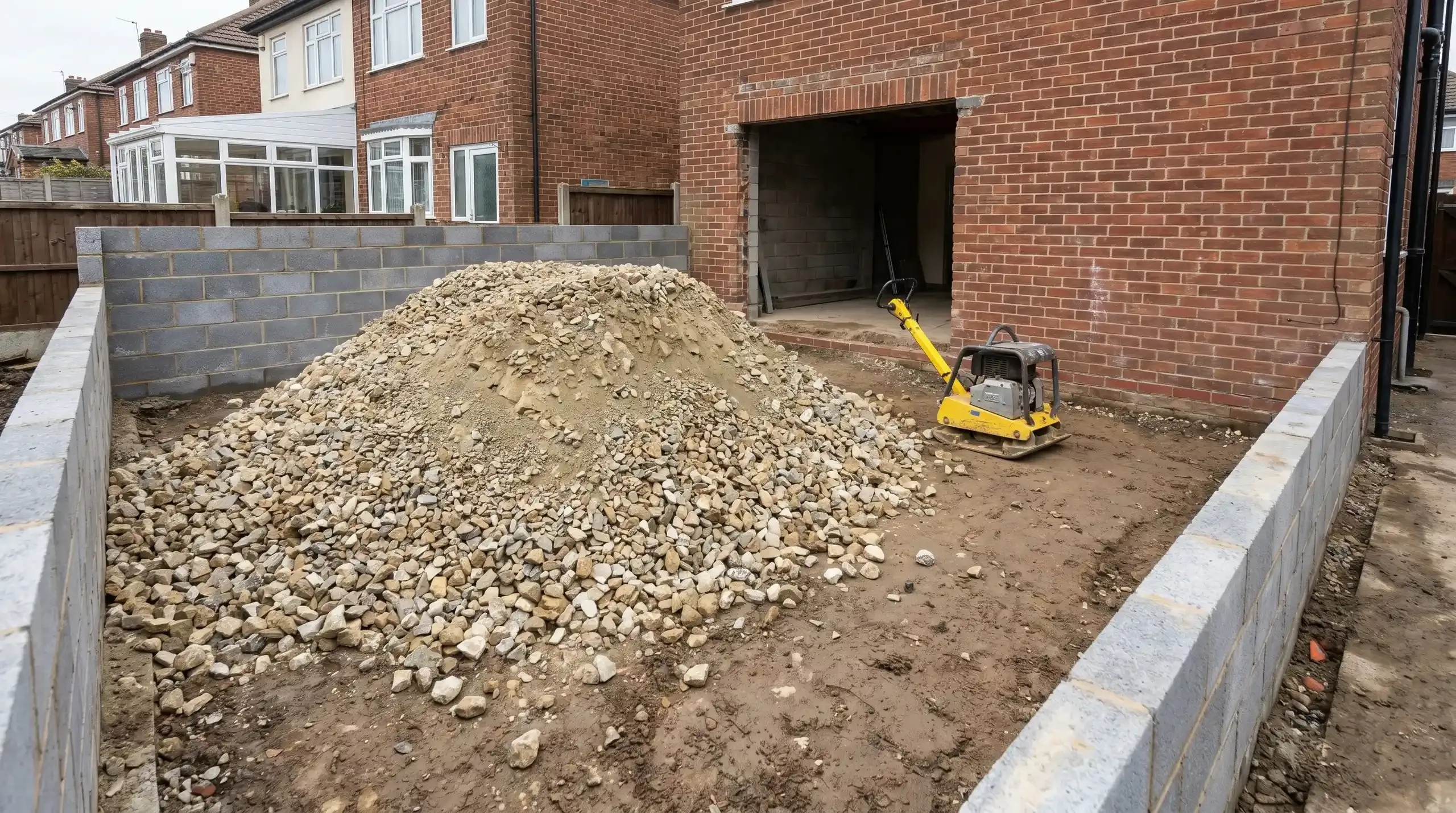

Hardcore (MOT Type 1): The Compacted Layer Under Every Extension Slab

A homeowner pours a six-figure extension. Three years later, the kitchen floor cracks in two diagonal lines from the corner. The cause: the builder dumped 200mm of hardcore in a single layer, ran a plate compactor over the top, and called it done. The bottom 100mm was never compacted. Under the load of the slab and the kitchen units above, that loose material settled, and the slab cracked. Fixing it means lifting the kitchen, breaking out the slab, and starting again. All because someone skipped the rule about compacting in lifts.

That's what bad hardcore work looks like. The material itself is cheap and the technique is straightforward, but the consequences of getting it wrong are buried under tonnes of concrete and only show up years later. Building control inspect the hardcore layer for a reason.

What hardcore is and what it does

Hardcore is the compacted layer of crushed stone laid inside your foundation walls, between the excavated ground and the concrete floor slab above. Its job is structural. The slab needs a stable, well-graded base that won't settle, won't allow water to pool, and won't bridge soft spots in the natural ground. Without that base, the slab cracks.

For a domestic extension, the standard specification is MOT Type 1, sometimes written DTp1 or 6F1. The "MOT" is a historical reference to the Ministry of Transport (the predecessor to today's Department for Transport) and the "Type 1" refers to a specific gradation defined in Clause 803 of the Specification for Highway Works (SHW). It's a crushed stone product, 40mm down to dust, with a specified mix of particle sizes that pack together tightly when compacted to leave very few voids. That dense, well-graded structure is what gives MOT Type 1 its load-bearing capacity.

The governing technical standard is BS EN 13242 (aggregates for unbound and hydraulically bound materials). For building control on a domestic extension, your supplier should be able to confirm the material meets SHW Clause 803 and is sourced from gritstone, limestone, granite, or basalt. Crushed concrete is acceptable as a recycled alternative if it carries WRAP Quality Protocol certification, more on that below.

NHBC Standards Chapter 5.1 sets the rules for ground-bearing extension floors. The relevant ones:

• Maximum total infill depth under a ground-bearing slab: 600mm. Beyond that, you need a suspended floor.
• Compaction in layers (lifts) not exceeding 225mm in the NHBC standard, although the practical figure for domestic plate compactors is much less.
• Material must be well-graded, inert, and free from organic matter, expansive materials, demolition debris (unless certified), or hazardous substances.
• A blinding layer (sand or fine material) is mandatory between hardcore and the damp proof membrane to prevent the DPM being punctured by sharp aggregate.

Building control will inspect the hardcore layer before the concrete pour. They check correct material, correct depth, adequate compaction (the foot-print test), and the blinding layer in place. Miss the inspection or fail it and you cannot retrospectively prove compliance. The slab has to come up.

Types of MOT and which one you actually need

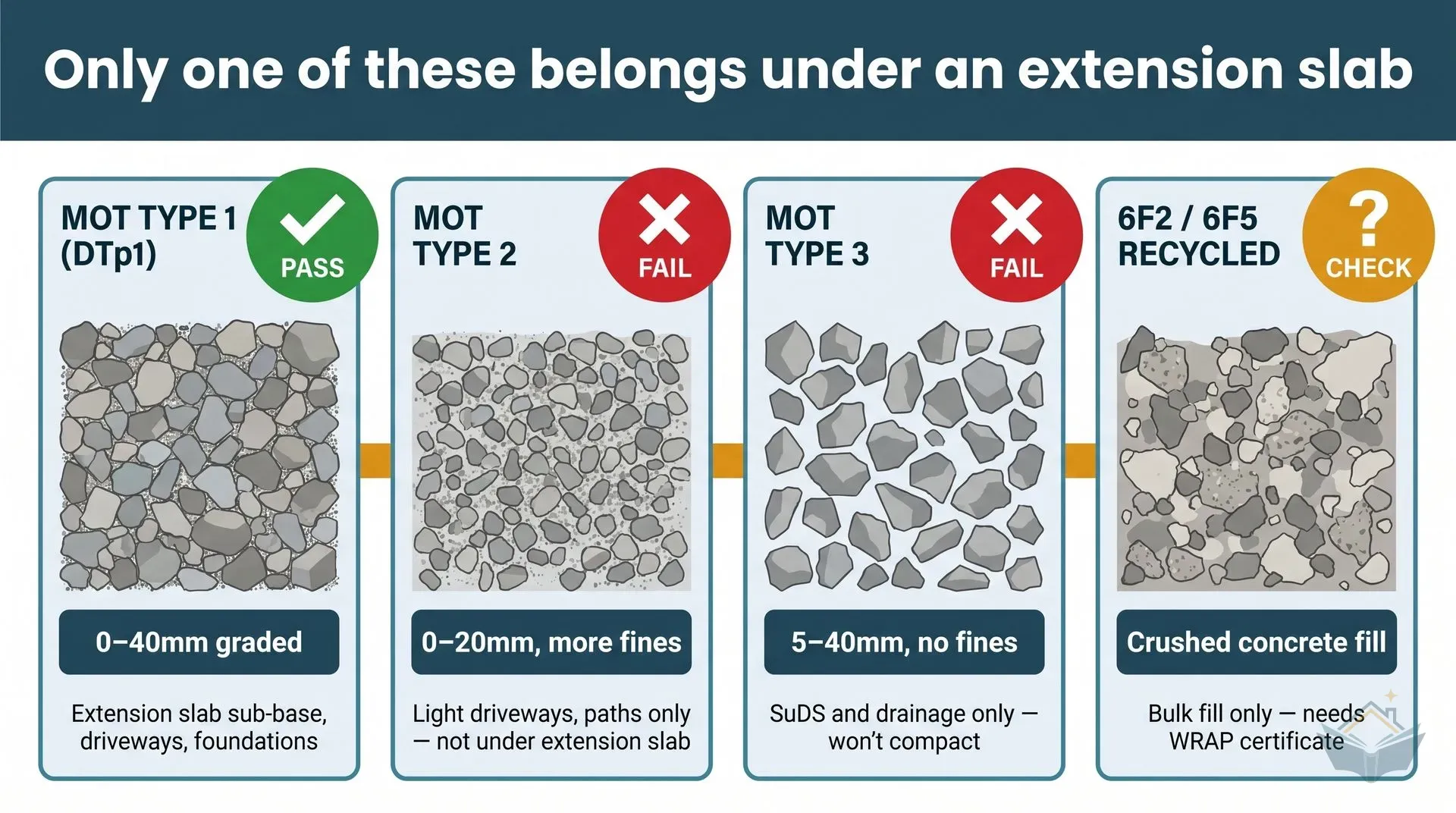

There are four MOT classifications, and homeowners regularly get confused between them. Only one is the right answer for an extension floor.

For an extension foundation, MOT Type 1 is the only correct answer. Type 2 has too many fines and not enough load-bearing capacity. Type 3 is open-graded for drainage and won't compact properly. The 6F2 and 6F5 grades are recycled crushed concrete fill, useful as bulk fill on larger civil engineering projects but only suitable as a direct sub-base under a domestic slab when they meet SHW Clause 803 and carry WRAP Quality Protocol certification.

The "Type 1 Graded" trap

A genuine catch in the recycled aggregate market: a lot of recycled material is sold as "Type 1 Graded" rather than certified MOT Type 1. The grading just means the particle sizes match the Type 1 envelope. It says nothing about contamination, certification, or compliance with Clause 803. Building control inspectors and NHBC have rejected loads of "Type 1 Graded" recycled material that turned out to contain wood, plastic, glass fragments, or organic content.

Virgin vs recycled: what to actually buy

Virgin MOT Type 1 (freshly quarried limestone, granite, or basalt) is the safest choice for foundation work. It carries the Clause 803 certification by default, comes with a clean delivery ticket, and there's no question for your BCO to ask.

Recycled MOT Type 1 (crushed concrete from demolition waste, processed and certified) is around 20-30% cheaper. It's exempt from the Aggregates Levy (£2 on virgin material), which is part of the price gap. For a 30m² extension at current levy rates, the saving is modest. If the certification is solid and the supplier is reputable, recycled material performs identically once compacted. The catch is verifying that certification.

For a one-off extension, the price gap usually isn't worth the certification headache. Order virgin Type 1 and move on. If you're doing a larger project where the saving is meaningful, source recycled from a WRAP Protocol supplier, get the documentation, and keep it for your building control file.

How much you actually need

This is where most homeowners go wrong. They calculate the compacted volume, order that amount, and then run out before they reach final level. The reason is the compaction factor: loose hardcore takes up roughly 20% more volume than the same material compacted. To finish at 150mm compacted, you need to lay roughly 180-190mm of loose material.

The standard depth for an extension slab sub-base is 150mm compacted, sometimes 200mm if your structural engineer has specified it for ground conditions. Anything more than 600mm and NHBC requires a suspended floor instead.

Worked example: 30m² rear extension at 150mm compacted

Step by step:

1. Compacted volume: 30m² × 0.15m = 4.5m³
2. Loose volume (add 20% compaction factor): 4.5 × 1.20 = 5.4m³ loose
3. Convert to tonnes (loose bulk density 2.1 t/m³): 5.4 × 2.1 = 11.3 tonnes
4. Add 5% contingency for over-dig and edge waste: 12 tonnes to order

For 200mm compacted on the same footprint: roughly 16 tonnes.

A quick mental check: one tonne of Type 1 covers about 3.3m² at 150mm compacted, or 4.8m² at 100mm. For 30m² at 150mm: 30 ÷ 3.3 ≈ 9 tonnes compacted, plus 20% loose = ~11 tonnes. Matches the calculation above.

Bulk bag vs tipper load: when each makes sense

A bulk bag (typically 850kg, sometimes 1,000kg) costs more per tonne than a loose tipper load. Sometimes a lot more. The breakeven point sits somewhere around 3-4 tonnes.

For a typical extension slab requiring 10-16 tonnes, a tipper load is roughly half the cost of the equivalent in bulk bags. The only reason to choose bulk bags at this scale is access: if a tipper truck physically cannot reach your site (narrow lanes, locked rear access, parked cars), bulk bags delivered by a HIAB crane lorry give you the same material at a higher cost per tonne but without the access problem.

How to actually lay it

This is the section most guides skip. The technique decides whether your slab cracks in three years or lasts a hundred.

Excavate to the right depth first

Before any hardcore arrives, the excavation must be at the correct depth. Calculate downward from finished floor level: subtract slab thickness (typically 100-150mm), insulation thickness (50-150mm depending on U-value target), DPM (negligible thickness but plan for it), blinding sand (50mm), and your compacted hardcore depth (150mm). For a typical extension that's around 400-500mm of excavation below finished floor.

If you set the excavation too shallow, you'll either be short on hardcore or short on insulation. Either way, something has to give and your build deviates from the structural engineer's specification.

If the excavated ground is soft clay, water-logged, or shows obvious soft spots, lay a geotextile membrane before the hardcore. Geotextile is a non-woven fabric (usually polypropylene) that prevents fines from the natural soil migrating up into the hardcore over time, which would otherwise contaminate the sub-base and reduce its load-bearing performance. NHBC accept geotextile as a ground stabilisation method where the natural ground isn't suitable.

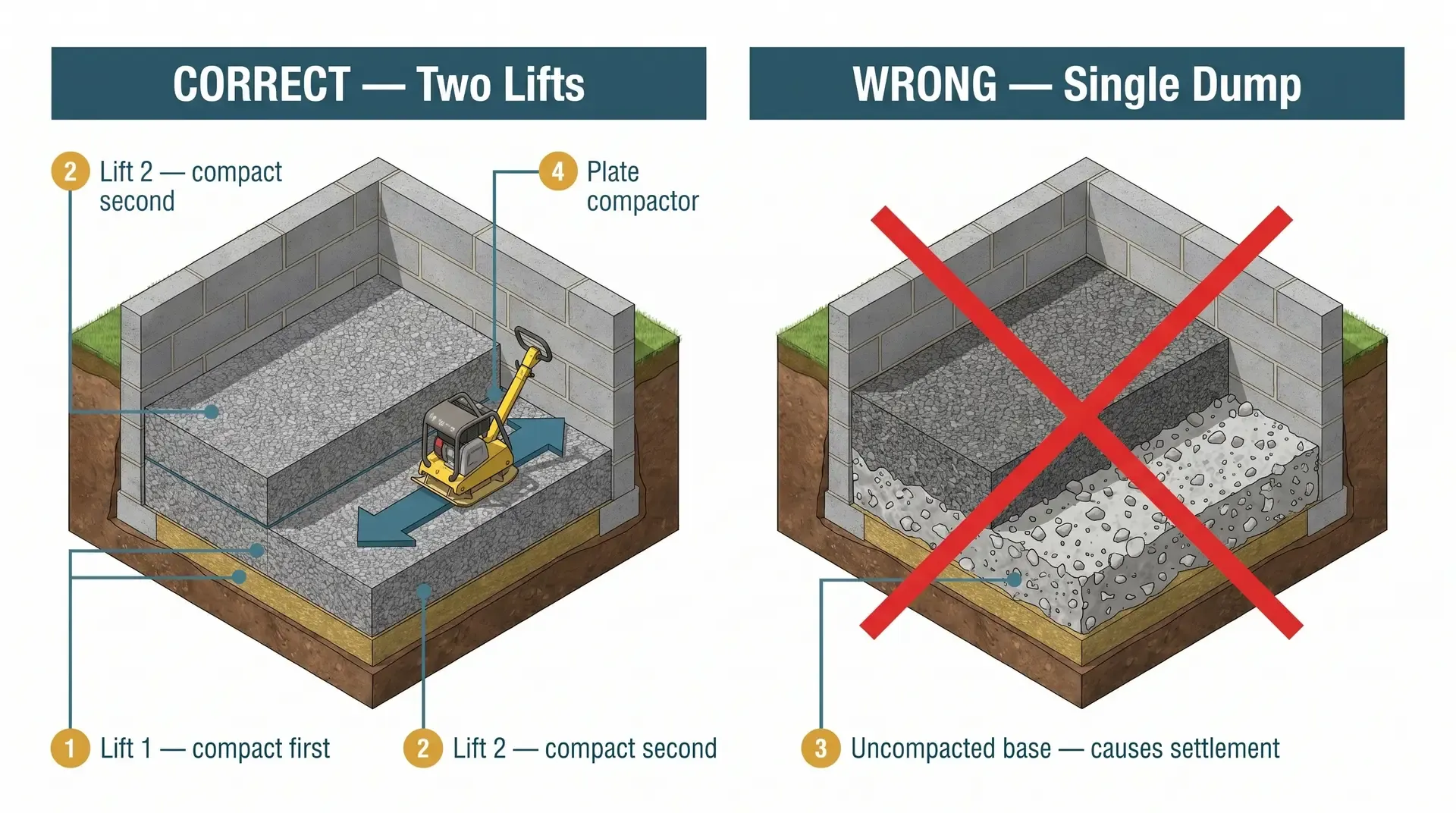

Compact in lifts, never the full depth in one go

This is the rule that gets broken on every problem job. A plate compactor (the typical 50-140kg machine you'll hire from Travis Perkins or HSS) is only effective to about 75-100mm depth per pass. Dump 200mm of hardcore in one go and run the compactor over it, and you'll compact the top 75mm while the bottom layer stays loose. The slab settles. The slab cracks.

The correct method:

1. Lay a 75-100mm layer of loose hardcore across the area.
2. Run the plate compactor in overlapping passes, 2-4 passes per lift, in alternating directions.
3. Check by foot. Stand on the surface and shift your weight. If you leave a noticeable footprint, keep compacting. If the surface barely takes an impression, it's compacted.
4. Lay the next 75-100mm layer.
5. Repeat until you reach finished sub-base level.

For a 150mm compacted depth, that's two lifts. For 200mm, three lifts. The compactor needs to pass over each lift before the next one goes down. You cannot compact afterward and undo the damage.

NHBC's regulatory maximum lift depth is 225mm, but that figure is calibrated for heavy professional rollers and large compactors that exert far more force than the typical hire-shop plate compactor. For domestic plate compactors, 75-100mm is the practical figure. Stick to it.

Click to enlarge

The blinding layer is not optional

Once the hardcore is compacted to the right level, the next layer is blinding sand: 50mm of sharp sand (or sometimes a "scalpings and sand" mix) laid over the compacted hardcore and lightly compacted to give a smooth, even surface. This is mandatory under NHBC 5.1.16 because the next layer up is the damp proof membrane, and a sheet DPM laid directly onto rough hardcore will be punctured by sharp aggregate when the wet concrete pour presses down on it. A 1,200-gauge polythene sheet is tough but it can't survive being pressed onto an exposed 40mm flint chip with several tonnes of weight above it.

Blinding is dealt with in detail in the Blinding Concrete and Sand page. The short version: don't skip it, don't substitute thick sand for fine, and check the surface is smooth enough that you can run your hand across it without catching anything sharp.

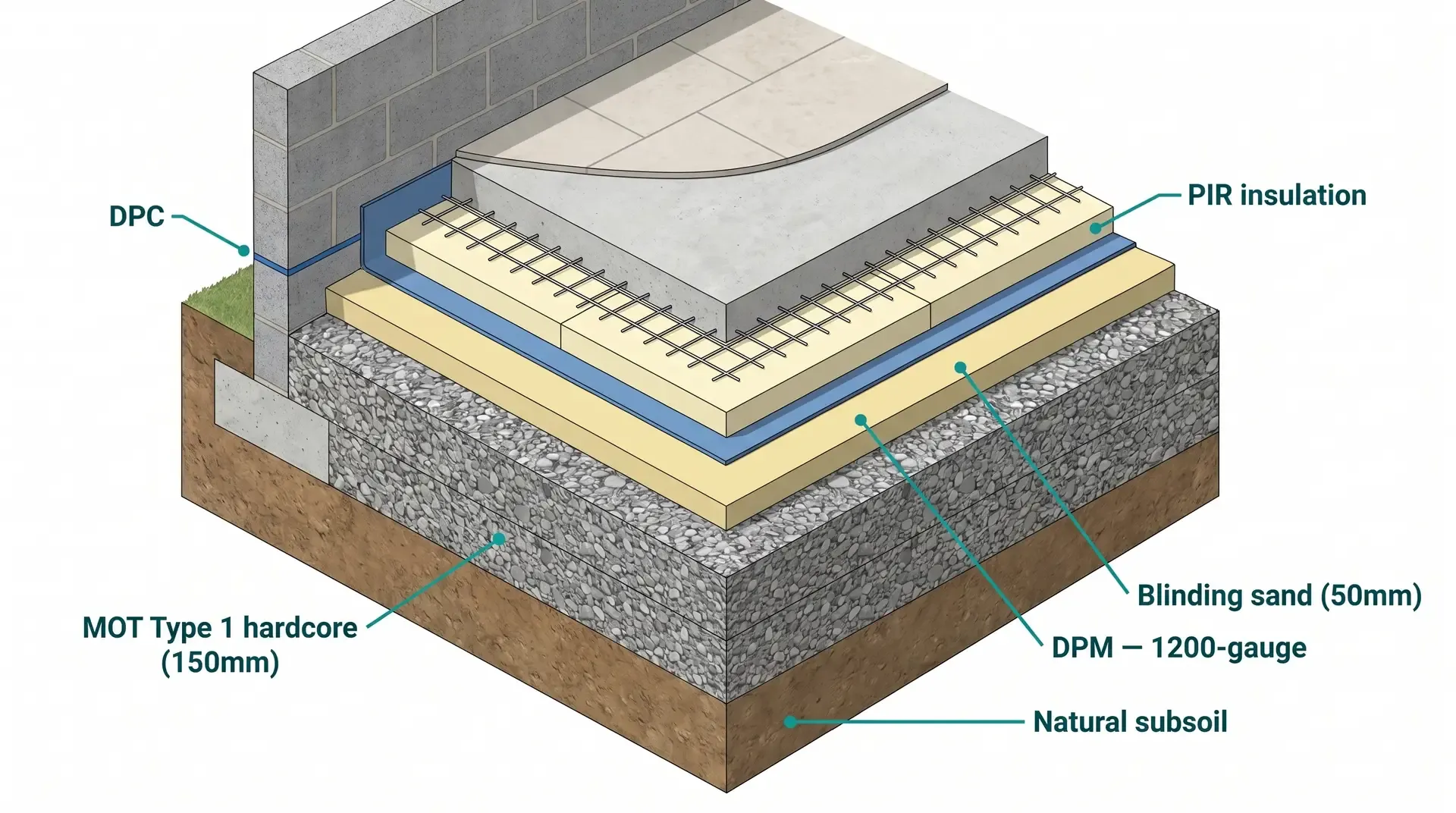

Click to enlarge

Verifying compaction

Building control inspect the hardcore layer before the concrete pour. The two checks they perform:

1. The foot-print test. Walk across the surface with normal weight. A well-compacted hardcore layer takes barely any impression. If your boot leaves a clear print, the surface is under-compacted and needs more passes.
2. Visual inspection. Surface should be reasonably level, with no visible loose pockets, no large stones standing proud, no organic material or contamination. The fines should bind the surface together so that the plate compactor runs smoothly across the top in its final passes.

Take photos of the compacted surface before blinding goes down, and again before the concrete pour. If anything is queried later, those photos are your evidence.

Cost and where to buy

Hardcore is one of the cheapest materials you'll buy on a build. The cost is in the volume, not the unit price.

Loose tipper load (the standard for extension work)

Tipper prices vary by region and quarry. Northern England and Scotland typically land near the lower end of the range above. The South East commands a premium, particularly inside the M25, where granite-quarried product can sit well above the upper end of the published range. Pure Clean Rental Solutions (a North-West supplier) and HGS Southern (Sussex) both quote near the bottom of the range for 8-10 tonne loads. Online Building Supplies sit toward the top end with a 10-tonne minimum.

Most national merchants (Travis Perkins, Jewson, Buildbase, MKM) offer tipper deliveries through their aggregate divisions, but pricing is often less competitive than going direct to a local quarry or aggregate haulier. A phone call to two or three local hauliers will usually beat the merchant rate.

Bulk bags (for restricted access or small quantities)

Bulk bag pricing varies enormously between merchants. Tippers Builders Merchants (Lichfield branch) sit at the cheap end of the range above. Bradfords and other premium merchants sit at the top. Trade Superstore Online (a Travis Perkins channel) sit in the middle with free delivery on many products. Northwest Aggregates offer 1-tonne bags (1,000kg) which give slightly better value per tonne than 850kg bags from the same supplier.

For a 12-tonne order on a 30m² extension at 150mm depth, bulk bags cost roughly twice the tipper price. That gap is the access premium.

Recycled crushed concrete (Type 1 certified)

Recycled Type 1 is around 20-30% cheaper than virgin material. It's exempt from the Aggregates Levy, which contributes to the price difference. Tiny Tipper sells recycled in the South East at a regional premium that sits well above the typical national range. Hello Gravel quotes near the bottom end of the published range for typical recycled material in the rest of the country. Supplier quality varies enormously: only buy WRAP Quality Protocol certified material for foundation work, and request the documentation before delivery.

Plate compactor hire

You won't be compacting by hand on anything larger than a 1m² area. For an extension slab, you need a plate compactor. Budget around the day rate below for local plant hire, and remember that week rates often work out cheaper than two day-hires.

A 50kg compactor handles most domestic extension work. A 140-160kg reversible compactor (which can run forward and backward without turning around) is better for tight corners and larger areas, but the smaller machine is fine for a 30m² extension.

Total budget for hardcore on a typical extension

For a 30m² rear extension at 150mm compacted depth, tipper delivery is the cheapest route for the material itself. Bulk bags roughly double the material cost and only make sense where access prevents a tipper from reaching the foundation. Add plate compactor hire for two to three days and the cost of blinding sand on top. The CostRange components above carry the underlying figures.

Common mistakes that cause real problems

Dumping the full depth in one layer. The single most common error. Slab settles within 2-5 years. Cracks across the floor. The fix involves lifting the floor finish, breaking out the slab, redoing the hardcore, and re-pouring. This is the dominant theme in problem-job forum threads on hardcore. The rule: 75-100mm lifts, full compaction between each lift, no exceptions.

Ordering the compacted volume instead of the loose volume. You order 9 tonnes for a 30m² extension at 150mm compacted, the truck delivers 9 tonnes loose (which becomes only ~7.5m² compacted footprint at 150mm), and you're 20% short. Either you order another partial load (expensive surcharge) or you reduce the compaction depth (which fails BCO inspection). Order the loose volume, which is the compacted volume × 1.2, plus 5% contingency.

Accepting an uncertified "Type 1 Graded" delivery. The driver tips a load, you check it looks fine, and you sign for it. The BCO arrives and asks for the WRAP Quality Protocol certificate. There isn't one. The load gets rejected. You pay to remove it and reorder. Always confirm certification before delivery, and reject any load that arrives without a delivery note showing the product code, weighbridge ticket, and certification reference.

Skipping the blinding layer. The DPM goes directly onto rough hardcore. The concrete pour presses 2,400kg/m³ of wet concrete down onto a sharp aggregate edge. The DPM punctures invisibly. Two years later, rising damp shows up at the perimeter walls. Building control require blinding under NHBC 5.1.16 for a reason.

Setting the hardcore level too high. The original BuildHub thread on this had a contractor delivering 18 tonnes for a small extension and abandoning the job with the level set 100mm too high. The remaining hardcore had to be removed by hand. Calculate carefully, double-check the finished floor level before ordering, and if in doubt, set the hardcore slightly low and add a thicker blinding layer rather than slightly high and have nowhere to put the slab.

Trying to compact with site traffic. Some builders will tell you that running a wheelbarrow over the hardcore for a few weeks during construction "compacts it naturally." It does not. Traffic creates uneven pressure points, leaves loose patches between the wheel tracks, and provides nothing like the uniform energy of a plate compactor. Mechanical compaction in lifts is mandatory for any load-bearing sub-base. There is no shortcut.

Where you'll need this

• Foundations and Footings - hardcore is compacted inside the foundation walls to build up to oversite/slab level

These specifications apply to any extension or renovation project where a ground-bearing slab is being formed. The same hardcore-blinding-DPM-slab build-up sits under garage conversions, garden rooms, loft conversion plant rooms with new ground floor, and full self-builds.
