A193 Mesh Reinforcement: The Steel Grid Inside Your Floor Slab
UK guide to A193 welded steel mesh for extension floor slabs. Specs, sheet sizes, how many you need, overlap rules, spacer placement, and what building control checks before the pour. From £33 – £40 per sheet.
Building control arrives to inspect your floor slab before the pour. They look down and see mesh sheets lying flat on the insulation with no spacers underneath, overlaps of 150mm instead of 350mm, and no tie wire holding the sheets together. The inspection fails. Your concrete truck is booked for 7am tomorrow, and now it's not coming. Rescheduling that truck, plus the pump, plus the groundworker's time costs you a day's labour and a wasted delivery slot. All because the mesh was laid wrong.
A193 is the most commonly specified mesh for residential extension floor slabs in the UK. Get it positioned correctly and building control signs off in five minutes. Get it wrong and you're rebooking everything.
What it is and what it's for
A193 is a welded steel mesh made from 7mm-diameter wires crossing at 200mm intervals in both directions, forming a rigid grid. The "A" means it's square mesh (equal spacing in both directions), and "193" refers to the cross-sectional area of steel per metre width: 193 mm²/m. It's manufactured to BS 4483 from Grade B500A steel and must carry a CARES certification mark (the independent quality assurance scheme for UK reinforcing steel).
A standard sheet measures 4.8m by 2.4m and weighs approximately 34-35 kg. That's a two-person lift. Builders' merchants also stock a smaller 3.6m by 2m sheet that's easier to handle and fits in a long-wheelbase van.
The mesh sits inside a concrete floor slab to control cracking. Concrete is strong in compression (it handles weight bearing down on it) but weak in tension (it cracks when forces try to pull it apart). Temperature changes, ground movement, and drying shrinkage all create tensile stresses in a floor slab. Without reinforcement, these stresses produce cracks that widen over time and can let moisture through. The mesh distributes those stresses across its grid of steel wires, keeping any cracks hairline-thin and structurally irrelevant.
A193 is the default mesh grade for domestic extension floor slabs in the UK. If your structural engineer or BCO specifies "mesh reinforcement" without stating a grade, they almost certainly mean A193.
Is mesh always required?
No. This is one of the most misunderstood points in extension building. Building Regulations don't universally mandate mesh reinforcement for every ground-bearing floor slab. Whether you need it depends on ground conditions, fill depth, soil type, slab thickness, and your individual BCO's judgment.
On stable ground with shallow fill (under 600mm), some BCOs don't require mesh at all. On clay soils prone to heave, or where the fill depth exceeds 600mm, mesh is almost always specified. Where the slab sits on top of rigid insulation (a "floating floor" configuration), the risk of cracking increases and BCOs routinely request mesh even on otherwise good ground.
Your structural engineer or BCO decides. Don't assume you need it, and don't assume you don't. Ask, and get the answer in writing before you order materials.

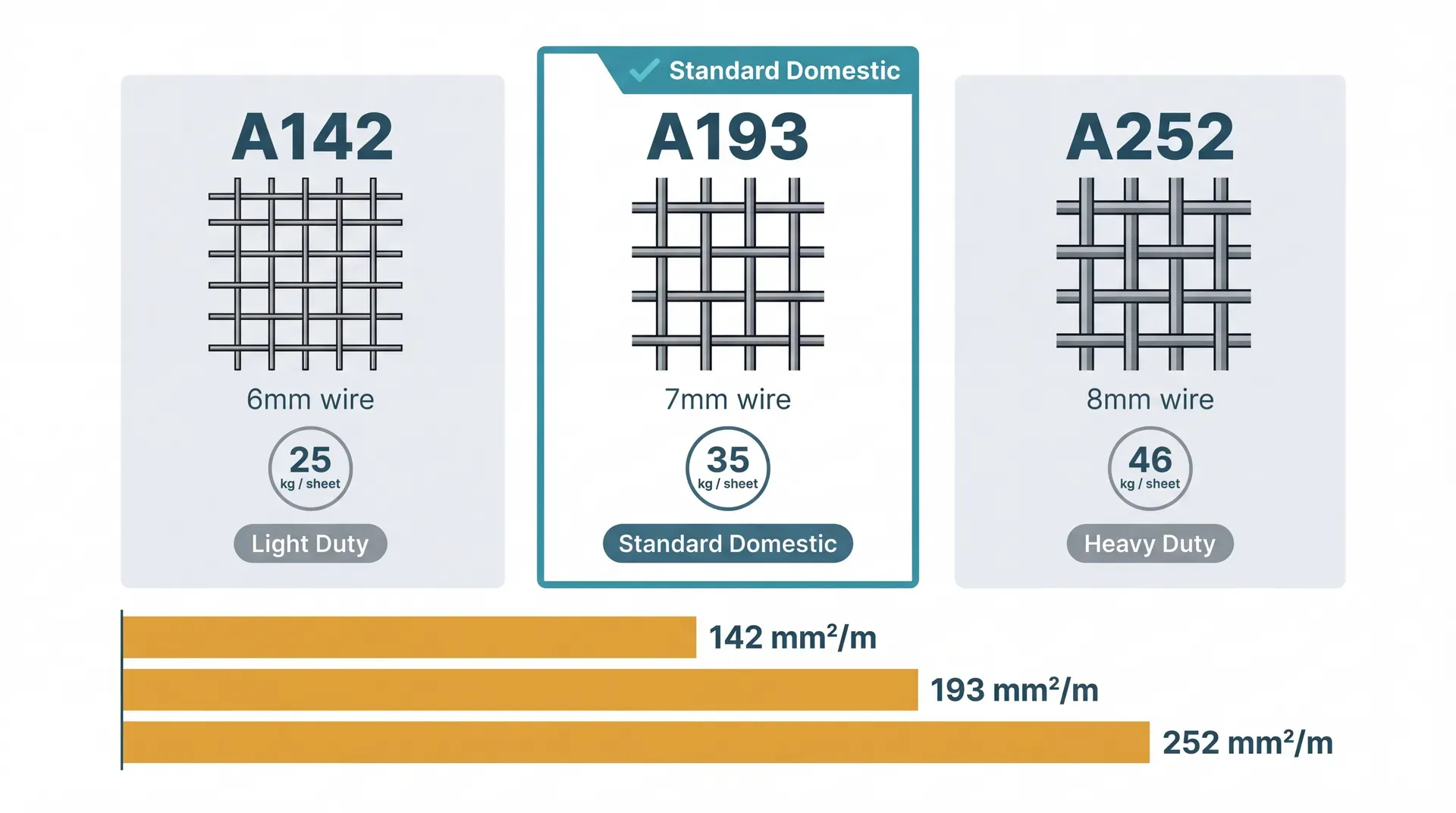

Types, sizes, and specifications
A193 sits in the middle of the A-mesh range. Understanding where it fits helps you check that what your engineer specified matches what arrives on site.
| Grade | Wire diameter | Spacing | Steel area | Weight per sheet | Typical use |
|---|---|---|---|---|---|
| A142 | 6mm | 200 x 200mm | 142 mm²/m | ~25 kg | Light-duty: paths, garage bases, good ground with shallow fill |
| A193 | 7mm | 200 x 200mm | 193 mm²/m | ~35 kg | Standard domestic extension floor slabs, moderate ground conditions |
| A252 | 8mm | 200 x 200mm | 252 mm²/m | ~46 kg | Heavy-duty: raft foundations, poor ground, thick slabs (150-200mm) |
The difference between grades is wire diameter. The spacing stays the same. Going from A142 to A193 means each wire is 1mm thicker, which adds about 36% more steel cross-section per metre. That extra steel makes A193 the conservative choice for domestic extensions where ground conditions aren't perfect, which describes most UK sites.
Standard sheet sizes
Two sizes are widely available:
Full sheet: 4.8m x 2.4m (11.52 m² nominal area). This is the mill standard. Weight: 34-35 kg. Effective coverage accounting for overlaps: approximately 10 m² per sheet. Available from steel reinforcement suppliers and some builders' merchants. Delivery is usually by flatbed.
Merchant sheet: 3.6m x 2.0m (7.2 m² nominal area). Stocked by most builders' merchants including Jewson and Tippers. Lighter at around 22 kg and fits in a van. More manageable for small sites with tight access, but you need more sheets and create more overlap joints.
Both sizes have a 100mm overhang beyond the last wire on all edges. This overhang matters for overlap calculations.
How to work with it
Handling and delivery
A full 4.8m x 2.4m sheet of A193 weighs 34-35 kg and has sharp edges. It's a two-person job. Wear heavy-duty gloves (not latex or nitrile, proper leather rigger's gloves) and steel-toe boots.
Sheets are delivered in bundles of up to 40, stacked flat on a lorry. A bundle weighs nearly 1,400 kg. You need a clear, flat area to offload and store them. Stack them on timber bearers off the ground to prevent corrosion from sitting in puddles.
If your site has restricted access (a side passage, for example), the smaller 3.6m x 2.0m merchant sheets are worth the higher per-square-metre cost. Trying to manoeuvre a 4.8m sheet through a 900mm gap between your house and the boundary fence is miserable work.
Cutting
You'll need to cut sheets to fit around soil pipes, corners, and the slab perimeter. An angle grinder with a metal cutting disc handles 7mm wire quickly. Bolt croppers work too but are slower. Cut in situ after laying, not before, so you can mark the exact cut lines against the formwork and pipe positions.
When cutting mesh with an angle grinder, hot metal fragments fly. Wear safety glasses, not just a face shield. And keep the DPM covered with offcuts or boards around the cutting area. One stray spark can melt a hole in the membrane that building control will spot.

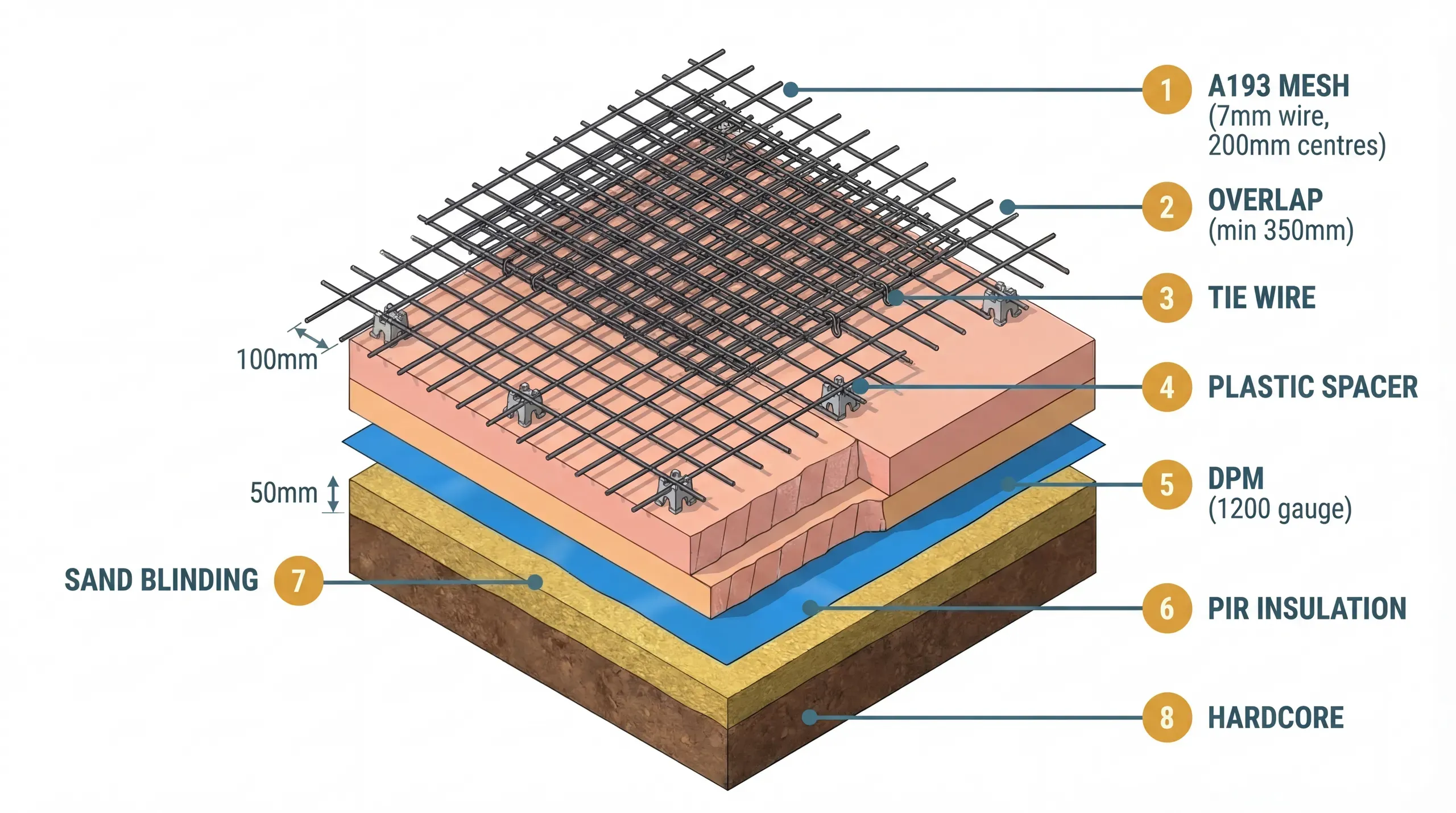

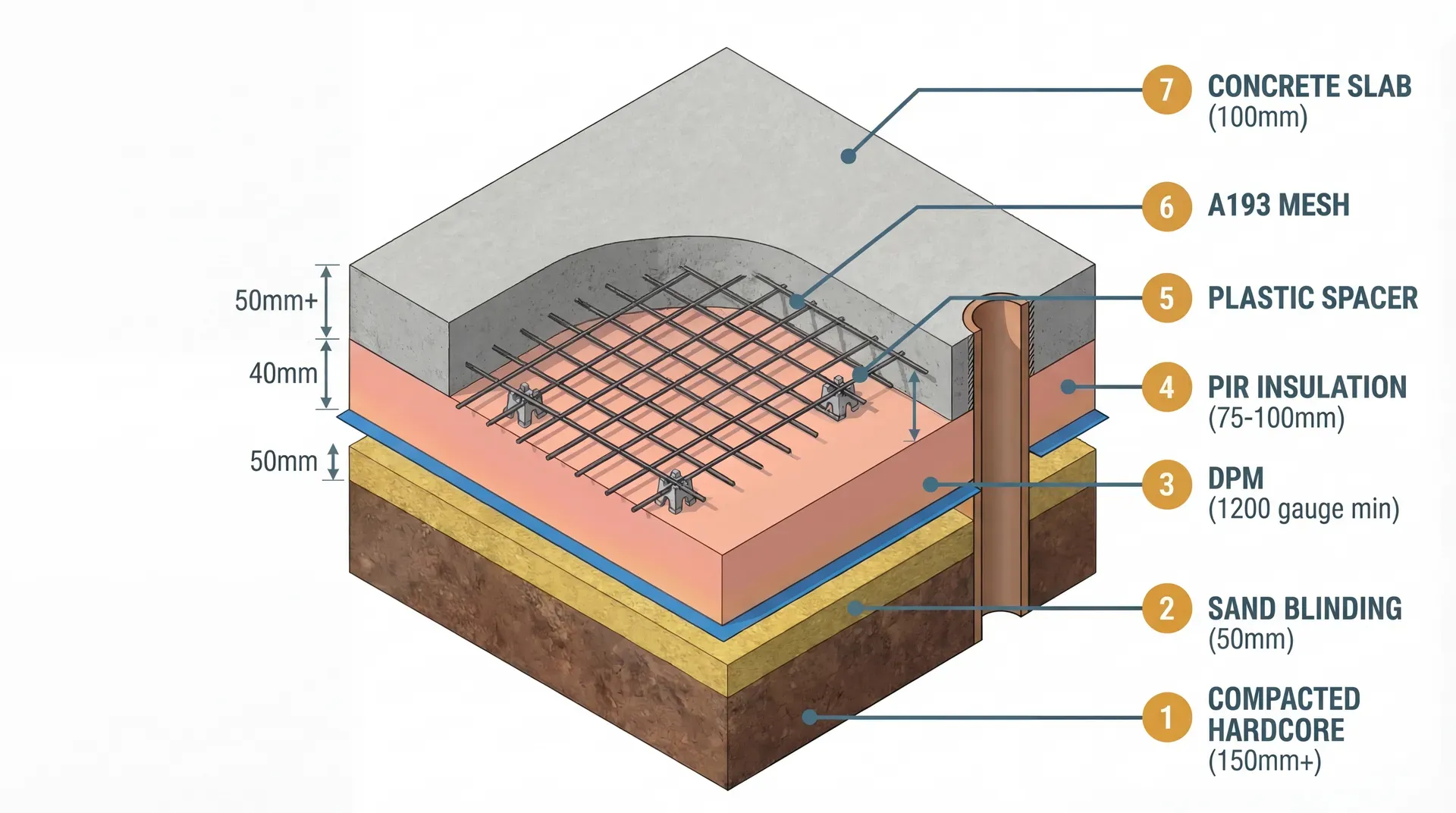

The slab build-up
A193 mesh doesn't sit directly on the ground. It lives inside a precisely layered structure. From bottom to top:
- Compacted hardcore (typically 150-300mm, depends on ground conditions)
- Sand blinding (approximately 50mm of sharp sand, levelled smooth to protect the DPM)
- Damp proof membrane (DPM) (minimum 1200 gauge, joints overlapped by 300mm and sealed, linked to the DPC in the walls)
- Rigid insulation (typically 75-100mm PIR board, if the design places insulation below the slab)
- A193 mesh on spacers (raised 40mm above the insulation/DPM to achieve correct concrete cover)
- Concrete slab (minimum 100mm thick for ground-bearing domestic floors)
Spacers
This is the part that gets failed at inspection most often. The mesh must be supported on spacers (sometimes called chairs) to maintain a minimum 40mm concrete cover between the bottom of the mesh and the DPM or insulation below. Without that 40mm gap, the concrete doesn't fully surround the steel, the reinforcement doesn't work as designed, and corrosion risk increases.
Use proprietary plastic "castle" spacers or "wheel" spacers to BS 7973. They cost pennies each and guarantee consistent height. Don't improvise with broken bricks or offcuts of timber. BCOs reject improvised spacers because they compress, rot, or shift during the pour.
Place spacers at maximum 1m centres, staggered so they don't create a continuous line of weakness through the slab. In practice, 600-800mm spacing gives a firmer, more stable mesh platform that doesn't bounce when workers walk on it.
When the mesh sits on insulation rather than blinding, it wants to sink into the board under load. Use wider-base spacers (castle type rather than single-point chairs) and space them at 600mm rather than 1m. The insulation is rigid but will dent under concentrated loads.
Overlaps and tying
Where two sheets meet, they must overlap by a minimum of 350mm (two full grid squares at 200mm pitch). Many suppliers and BCOs recommend 400-600mm in practice. The overlapping wires are lashed together with 17-gauge annealed tie wire at 300-400mm intervals along the join, and at every intersection point around the perimeter of the overlap zone.
Don't skip the tying. Untied sheets slide apart during the concrete pour as the truck driver or pump operator pushes concrete across the slab. Sheets that drift leave a strip of unreinforced concrete at the joint.
Stagger your overlaps. If you're laying six sheets side by side, don't have all six cross-joints in a straight line. Offset alternate rows so the joints are distributed across the slab area. This avoids creating a continuous weak line through the floor.
How much do you need
The calculation is straightforward but catches people who use the nominal sheet area without accounting for overlaps.
A standard 4.8m x 2.4m sheet has a nominal area of 11.52 m². But with 350mm overlaps on two edges (one long side and one short side for interior sheets), the effective coverage drops to roughly 10 m² per sheet. Edge and corner sheets lose less to overlaps because they only overlap on one or two sides.
The formula: floor area in m² divided by 10, then add 10% for cutting waste and awkward shapes.
Worked example: 4m x 6m extension floor slab
Floor area: 24 m²
Sheets needed: 24 / 10 = 2.4, plus 10% waste = 2.64. Round up to 3 sheets.
At £33 – £40 per standard sheet, that's roughly £100-120 for the mesh. Add a coil of tie wire (£6 – £8) and a bag of spacers (£5-10 for 50 spacers). Total reinforcement cost for a typical extension slab: £115-140. It's one of the cheapest components in the entire build.
Worked example: 5m x 8m extension floor slab
Floor area: 40 m²
Sheets needed: 40 / 10 = 4, plus 10% = 4.4. Round up to 5 sheets.
If you're using the smaller 3.6m x 2.0m merchant sheets (7.2 m² nominal, roughly 6 m² effective with overlaps): 40 / 6 = 6.67, plus 10% = 7.3. Round up to 8 sheets. More sheets means more overlaps and more tying, but easier handling.
Cost and where to buy
A193 mesh is a specialist steel product. Screwfix and Wickes don't stock it. You're buying from builders' merchants or steel reinforcement suppliers.
A193 mesh, standard 4.8m x 2.4m sheet
£33 – £40
A193 mesh, merchant 3.6m x 2.0m sheet
£24 – £29
Prices are ex VAT. All figures from Next Day Steel, Lemon Groundwork Solutions, Reinforcement Products Online, and Cross County Building Services (March 2026). Volume discounts apply: 10+ sheets typically attracts 10% off, 30+ sheets 20% off from some suppliers.
Where to order:
- Builders' merchants (Jewson, Travis Perkins, Tippers) stock the 3.6m x 2.0m size. Walk-in or order for delivery. Price tends to be higher than specialist suppliers but delivery is local and fast.
- Steel reinforcement suppliers (Reinforcement Products Online, Next Day Steel, Lemon Groundwork Solutions) stock full 4.8m x 2.4m sheets. Online ordering with delivery in 2-3 working days. Cheaper per sheet, but delivery is by flatbed and you need space to receive a large vehicle.
For a typical extension needing 3-5 sheets, the total mesh cost is £100-200. Delivery charges from steel suppliers (£30-60 depending on distance) can be a larger percentage of the order than the materials themselves. If your builder is ordering other steel (rebar, lintels) from the same supplier, add the mesh to that order and save on delivery.
Alternatives
A142 mesh (6mm wires, 142 mm²/m). Lighter at 25 kg per sheet and easier to handle. Suitable for light-duty slabs on good ground: paths, garage bases, garden rooms. If your BCO specifies A142, it's because the ground conditions don't demand A193. Don't upgrade to A193 thinking "heavier must be better." The structural engineer has calculated the load requirements. Heavier mesh won't hurt, but it wastes money and is harder to work with.
A252 mesh (8mm wires, 252 mm²/m). Heavier at 46 kg per sheet (a difficult two-person lift). Specified for raft foundations, poor ground conditions, and thick slabs of 150-200mm. If your engineer specifies A252, the ground conditions are serious and the mesh is doing real structural work, not just crack control. Don't substitute A193 for A252.
Steel fibre reinforcement. Polypropylene or steel fibres mixed directly into the concrete, eliminating the need for mesh sheets. Easier to pour (no spacers, no tying) but provides crack control only, not structural reinforcement. Suitable where the engineer has determined that crack control is all the slab needs. Not a like-for-like substitute where the specification calls for mesh.
The building control inspection
The floor slab pour is a mandatory hold point. Building control must inspect before any concrete goes in. This is not optional and cannot be done retrospectively.
What the BCO checks:
- Hardcore: correct depth, properly compacted, no organic material
- Sand blinding: approximately 50mm, smooth surface without sharp stones that could puncture the DPM
- DPM: minimum 1200 gauge, joints overlapped by 300mm and sealed with DPM tape, membrane linked to the DPC in the walls
- Insulation: correct thickness and coverage for Part L compliance, edge insulation at perimeter to prevent thermal bridging
- Mesh: correct grade (A193, or whatever the specification states), spacers in place at correct centres, minimum cover achieved, sheets tied at overlaps, mesh free from mud, grease, or other contamination
- Concrete thickness: formwork set to achieve minimum 100mm slab depth
Notify your BCO at least 24 hours before you plan to pour. Allow lead time for their visit. Don't book the concrete truck until the BCO has confirmed they've inspected and approved.
The single most common mesh defect found at inspection is sheets resting directly on insulation or DPM with no spacers. This renders the reinforcement structurally useless because the steel sits at the very bottom of the slab rather than within it. Building control will fail the inspection and the concrete delivery gets cancelled. Check spacers are in place before you call the BCO.
Common mistakes
Laying mesh directly on the insulation. Without spacers, the mesh sits on the bottom face of the slab. Concrete below the mesh is negligible, so the reinforcement can't resist tension on the underside of the slab. It's structurally useless. Use spacers. Every time.
Using too-small overlaps. Sheets butted edge-to-edge, or overlapped by only one grid square (200mm), don't transfer load across the joint. The structural minimum is 350mm (two full grid squares). Many BCOs expect 400-600mm. If in doubt, go wider.
Not tying the overlaps. Untied sheets drift apart during the pour. Concrete is heavy and fluid, and the force of it flowing across the slab pushes unsecured mesh out of position. Tie wire is cheap. Use it at every overlap.
Ordering the wrong grade. If the specification says A193, don't accept A142 because the merchant had it in stock and it was cheaper. The grades are not interchangeable. Check the grade stamp on the edge of the sheet against the structural drawing.
Walking directly on the mesh during layout. This pushes the mesh down into the insulation, bending the wires and displacing spacers. Lay scaffold boards across the mesh and walk on those. Or use the pour-in-stages technique: pour 50mm of concrete first, then drop the mesh in on top before continuing the pour. This avoids standing on the mesh entirely.
Forgetting the DPM-to-DPC link. The mesh draws attention, but the BCO also checks that the DPM under the slab connects to the damp proof course (DPC) in the walls. A slab with perfect mesh but a broken DPM-to-DPC junction will still fail the inspection.
Where you'll need this
- Foundations and Footings - placed on spacers within the ground floor slab, inspected by building control before the concrete pour
