Pea Gravel: The £100 Material That Decides Whether Your Drainage Passes Building Control

Your drainage trench is dug, the pipes are laid at a clean 1:40 fall, the joints are good, and you're ready to backfill before the rain comes back. You shovel the spoil heap straight back in. The next morning, the building control officer arrives, sees no granular surround, and tells you to dig it all out again. That's a wasted day, two more bags of pea gravel you didn't budget for, and a pipe run that may already be deformed from the point loads of rubble pressing on the joints. Pea gravel is one of the cheapest materials on a building site. Skipping it is one of the most expensive mistakes.

What pea gravel is and what it's for

Pea gravel is rounded 10mm aggregate. The "pea" refers to the size, not the shape, though the rounded form is what makes it useful. You'll see it sold under several names that all mean the same thing: pea gravel, pea shingle, 10mm gravel, pipe bedding gravel, drainage gravel. Builders merchants tend to call it "10mm gravel" or "pipe bedding gravel"; garden centres call it "pea shingle" or "decorative gravel"; the spec sheets and engineering drawings call it "10mm single-size aggregate" or "graded 5-10mm aggregate".

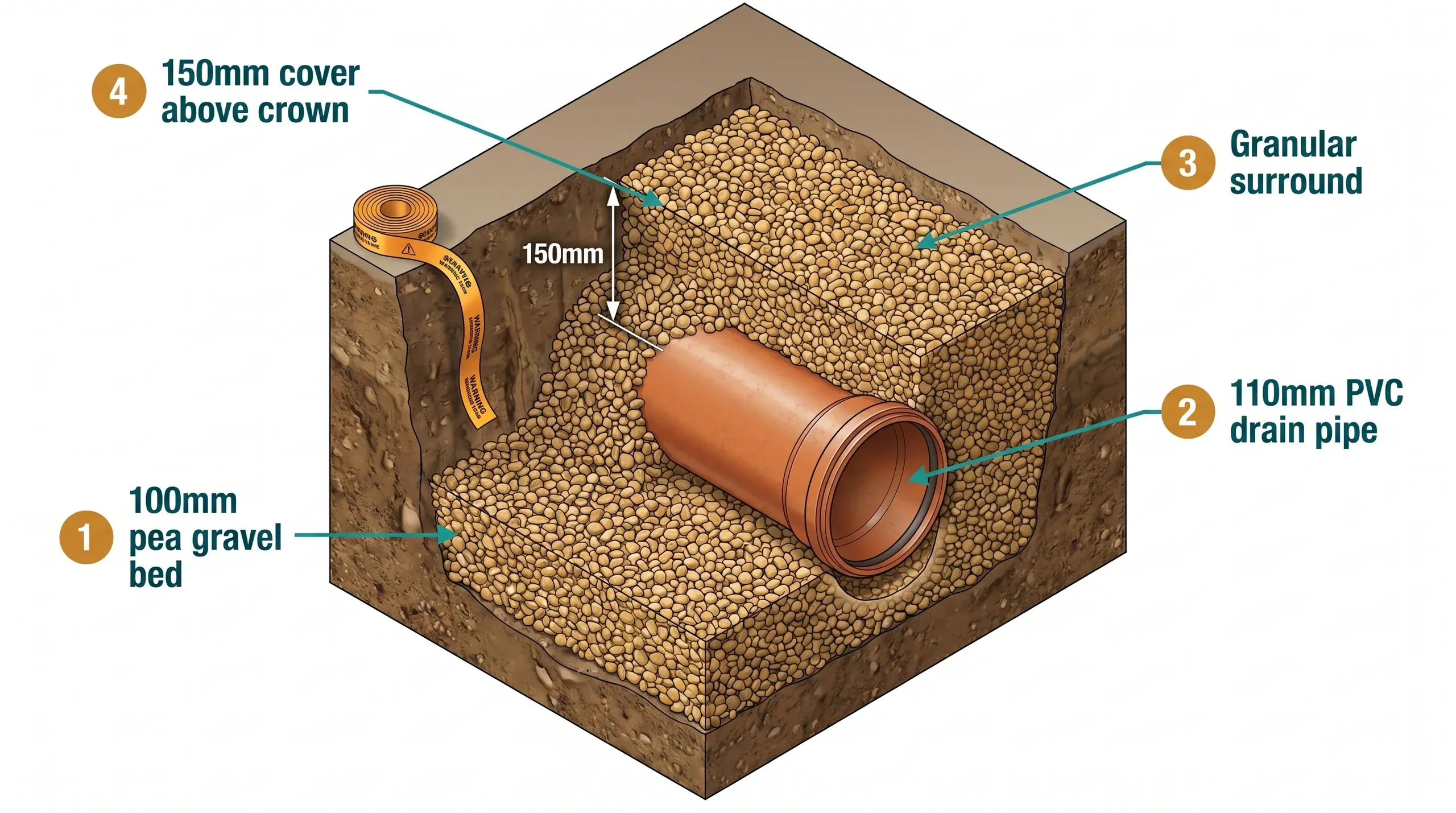

The primary structural use of pea gravel on a domestic build is as the bedding and surround for underground drainage pipes. Approved Document H of the Building Regulations is the relevant statutory document. It refers to BS EN 1610 (the European installation standard for buried pipes), which specifies a granular bed beneath the pipe and a granular surround packed around and above it before any other backfill is placed. NHBC Standards 2025 Section 5.3.15 sets the same requirement. The material must be 10mm single-size or graded 5-10mm. Sharp sand contaminates joints, crushed limestone has angular edges that can damage pipe walls, and DOT Type 1 (a graded sub-base material) compacts unevenly around the pipe profile. Pea gravel does none of those things, which is why it's the default specification.

The reason rounded shape matters comes down to physics. When you backfill with angular material, point loads concentrate at the contact points between stone edges and the pipe wall. Over time, those points create stress concentrations that crack the barrel of a flexible PVC pipe. Rounded particles distribute the load evenly across the pipe surface and flow into the joint sockets without leaving voids. The same property that lets pea gravel pour smoothly into a trench is what stops it from puncturing your drain.

A secondary use is drainage layer in French drains, land drains, and DPC splash strips. A French drain is a perforated pipe set in a gravel-filled trench used to intercept groundwater. A splash strip is a narrow gravel channel against a house wall that protects the damp-proof course from rain bouncing off paving. Both rely on pea gravel's free-draining property: water flows through the voids between the rounded particles much faster than through soil or sand.

The third use is purely decorative: paths, driveways, planted beds, between paving slabs. The same material from a builders merchant at the bulk-bag rate (£60 – £90) is sold from a garden centre as "decorative pea shingle" at roughly two to three times the price for the same volume. The product is functionally identical. Buy from the builders merchant.

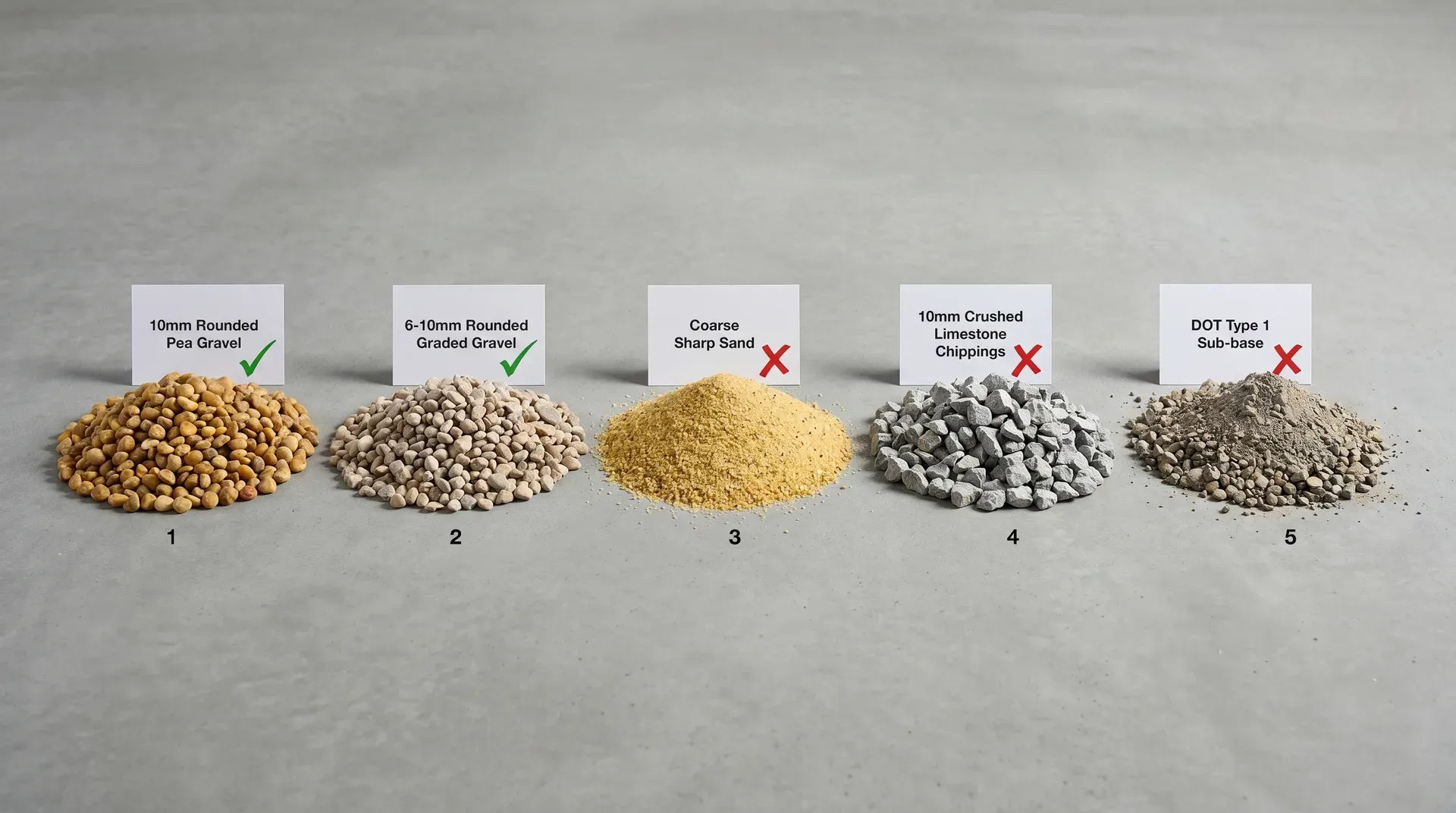

Types, sizes, and specifications

The three numbers that matter on a delivery ticket: particle size, shape, and grading.

The reference standard is BS EN 1610 Annex B Table B15, which specifies particle size by pipe diameter. For domestic drainage (100-125mm pipes, the size used for foul and surface water drains in extensions), the specification is 10mm single-size or 5-10mm graded. That's what "pipe bedding gravel" labels on builders merchant bulk bags are referring to. The pipe-bedding label exists because suppliers know the spec gets misread otherwise.

There's also a colour-and-source split. Most UK pea gravel is golden-brown limestone or quartzite, dredged from rivers or pits in the Midlands and East Anglia. Scottish and northern suppliers often deliver grey or near-white aggregate from local quarries. The colour has no functional impact on drainage performance. It only matters if the gravel will be visible (decorative use, exposed splash strips). For underground drainage, take whatever the merchant has in stock.

Click to enlarge

Bedding classes (the language your engineer or BCO will use)

If a structural drawing or building control note specifies a "bedding class", they're referring to BS EN 1610's classification system. The class defines how much granular material wraps around the pipe and how strong the resulting installation is. Five classes apply in practice:

• Class N (selected fill, no granular surround) - rare; older clay pipe installations only.
• Class C/F (granular bed only, sidefill is as-dug material) - sometimes used where pipe loads are very low.
• Class B (granular bed plus haunching to half pipe diameter, surround to 100-150mm above the crown) - the domestic default for flexible plastic pipes.
• Class S (full granular surround to 300mm above the crown) - enhanced support, often required by NHBC for new-build residential or where future loading is uncertain.
• Class A (concrete cradle around the pipe) - heavy loading, vehicle crossings, or contaminated ground.

For most kitchen extensions and other domestic projects with flexible PVC drainage pipes laid 300-600mm below garden level, Class B is the spec. NHBC inspections may require Class S - a deeper surround. If your build is registered with NHBC or the inspector specifies "300mm cover above crown", treat that as the surround target. The extra material adds only a modest premium per linear metre of run for the gravel itself - cheap insurance against a re-dig.

How to work with it

Pea gravel weighs roughly 1.6 tonnes per cubic metre (loose-poured). A standard 850kg bulk bag is just over half a cubic metre. A 25kg handy bag is about 0.015 cubic metres. Those numbers matter when you're planning the order and the labour.

A full 850kg bulk bag is too heavy to lift with a wheelbarrow once it's in your trench. The realistic working method is: have the merchant tip the bag at the trench edge with the lifting straps still attached, cut the bottom flap, and shovel directly into the trench. If the bag is set down on a slope or where you can't shovel directly into the run, you'll spend a frustrating hour barrowing it twenty yards at a time. Tipper-load delivery (loose, no bags) is faster for any quantity over 2 tonnes - the driver tips it onto a clear hard surface near the trench.

Cutting and shaping is unnecessary - pea gravel pours and self-levels. The real work is placement sequence and depth control.

Bedding the pipe correctly

The procedure for laying a new drainage run is:

1. Excavate the trench to the required depth, plus 100mm for the bed. Trench width is the pipe outside diameter plus 300mm minimum (so 410mm wide for a 110mm pipe).
2. Pour and rake a 100mm even bed of pea gravel along the trench bottom. Check the level with a long spirit level set on a screeded board, not by eye. The bed sets the gradient of the pipe; if the bed undulates, the pipe will too.
3. Set the pipes on the bed, sockets facing uphill (toward the building, away from the sewer connection). Scoop a small recess in the gravel bed at each socket position so the pipe barrel sits flat. Without that recess, the pipe rocks on the socket like a seesaw, creating a series of low points along the run that trap solids and cause recurring blockages.
4. Verify the gradient with a spirit level. The standard fall for a 110mm foul drain is 1:40 (25mm per metre). Steeper than 1:80 and shallower than 1:20 is the legal envelope, but 1:40 is the working target. Check fall before the surround goes in - it is much harder to adjust after.
5. Pack pea gravel as surround around the pipe, working it under the haunches with a shovel handle until there are no voids. Fill to 150mm above the crown for Class B, or 300mm for Class S.
6. Stop. Call building control.

Click to enlarge

Compaction and what comes next

Pea gravel does not need mechanical compaction. The rounded shape means the particles will already be at near-maximum packing density once shovelled in and lightly tamped with the back of the shovel. Mechanical compaction directly above a fresh pipe is forbidden anyway - NHBC Standards specify that a plate compactor can only be used over a pipe once there's at least 450mm of cover above the pipe crown. Below that depth, the vibration transmits through the gravel and can deform a flexible PVC pipe.

Once the BCO has signed off the surround, backfill in compacted layers of no more than 300mm. If a vehicle will eventually cross the run (driveway, parking area), top with a concrete protective slab or extend the granular surround all the way to formation level. For garden runs, lightly compacted as-dug spoil is acceptable above the gravel.

Storage on site

Pea gravel doesn't degrade in weather, doesn't freeze in any meaningful way, and doesn't need cover. The only practical concern is contamination. If the bag is open and you walk over it in muddy boots, the lower 50mm becomes useless for pipe bedding because of the soil dust mixed in. Tip bags onto a clean hard surface (a slab of board or scrap plywood) rather than directly onto bare ground if you're going to use them gradually. For loose tipper deliveries, designate the drop point in advance and don't park anything on the heap.

How much do you need

The number every homeowner gets wrong, in both directions. Order too little and you're paying a second delivery fee for a half bag. Order too much and you've got a quarter-tonne mound of gravel to dispose of (it'll end up as decorative path filling, but only after another month of nagging from your partner).

For a standard 110mm foul drain run with Class B bedding (100mm bed, 150mm cover above crown, 410mm trench width), the volume of pea gravel needed per linear metre of run is approximately 0.14 cubic metres, or 0.22 tonnes.

The maths: trench cross-section area minus pipe volume. Trench width 0.41m (pipe outside diameter plus 300mm) multiplied by total gravel zone depth 0.36m (100mm bed plus 110mm pipe outside diameter plus 150mm cover) gives 0.148 cubic metres. Subtract the pipe volume (a 110mm cylinder, roughly 0.0095 cubic metres per linear metre) to get 0.14 cubic metres of gravel per linear metre of pipe.

In bulk-bag terms, that's:

• 5m drain run: ~1.1 tonnes - 1 bulk bag plus a handy bag for top-up
• 10m drain run: ~2.2 tonnes - 2-3 bulk bags
• 15m drain run: ~3.3 tonnes - 4 bulk bags or a 5-tonne loose tip
• 20m drain run: ~4.4 tonnes - 5 bulk bags or a 5-tonne loose tip

Add 10-15% wastage. Trenches are never perfectly dimensioned. Some gravel ends up under the spoil heap. Some gets walked into the soil. The rounded numbers above already include a small allowance, but on irregular ground or where you're working solo (slow placement equals more waste), order a full extra bag rather than splitting hairs.

For a typical 30m² rear extension, the new drainage run from the kitchen waste, WC, and any external gully into the existing sewer connection is usually 8-12 metres. Plan on 2-3 bulk bags or 2.5 tonnes loose. If your run is longer (sewer connection at the front of the property, kitchen at the rear), scale up linearly using the per-metre figure.

For Class S bedding (300mm cover above the crown rather than 150mm), the gravel zone deepens from 360mm to 510mm, so volume increases by roughly 45%. A 10m run that needed 2.2 tonnes for Class B needs about 3.2 tonnes for Class S.

For French drains and DPC splash strips, calculation differs. A typical splash strip is 300mm wide x 300mm deep against the house wall - that's 0.09 cubic metres or 0.14 tonnes per linear metre. Around a typical 30m² extension, allow 0.5-1 tonne for splash strips depending on perimeter length and whether you're treating the whole house or just the new walls.

Cost and where to buy

Pricing splits sharply by format. The same material costs four times as much per tonne in 25kg bags from a retailer as it does loose from a tipper.

The lowest rates come from local quarries and aggregate yards, often via the merchant's "tipper" or "loose load" option. Minimum orders of 5-10 tonnes are common at the cheapest end. For a typical extension drainage job (2-3 tonnes), you'll usually order in bulk bag format.

Wickes, Travis Perkins, Jewson, Bradfords, Buildbase, and MKM all stock 850kg bulk bags. The lower end of the range is regional builders merchants near a quarry source; the upper end is national retailers and online suppliers with delivery built into the headline price. Watch for delivery charges added at checkout - some merchants advertise a bulk-bag price near the lower end of the range, then add a "Big & Bulky" delivery fee that pushes the effective cost above the upper end of the range.

For small repairs or topping up an existing run, handy bags are available:

These are stocked by Screwfix, Toolstation, Wickes, and B&Q. Don't use them as the primary supply for a drainage job. At 40 bags per tonne, the per-tonne cost runs roughly four times the loose-tipper rate. They're for finishing a partial run when you've miscalculated by 50kg.

Bulk delivery to a domestic site

If your project also needs gravel for a new driveway, decorative paths, or other landscaping, the economics shift. A typical four-bulk-bag delivery to a domestic property runs:

Splitting the delivery cost across four bags is more efficient than four separate single-bag orders. Plan ahead: if you know you need pea gravel for drainage and decorative use, time the orders together.

Builders merchant vs garden centre

The garden centre version of pea gravel is the same product. The price is not. A 25kg "decorative pea shingle" bag from a garden centre runs around twice the retail handy-bag rate at builders merchants. The same weight of "10mm gravel" at Wickes or Toolstation runs £4 – £7 per 25kg bag. On a tipper-load delivery to a builders merchant trade account, the per-25kg-equivalent cost drops to a small fraction of either retail option.

Alternatives

There is no straight substitute for 10mm rounded pea gravel as drainage pipe bedding. Building control accepts very few alternatives:

6-10mm graded gravel is acceptable per BS EN 1610 Annex B for 100mm pipes. It packs slightly tighter than single-size 10mm but functions identically for pipe protection. If your merchant has graded but not single-size, take it.

Recycled crushed glass has emerged as an environmental alternative on commercial projects. It's rounded after tumbling and behaves like gravel hydraulically. Domestic availability is patchy and most BCOs are unfamiliar with it. Stick with mineral pea gravel for inspection certainty.

Limestone chippings (angular 10mm) are sometimes substituted by groundworkers familiar with rigid clay pipe installations. For flexible PVC drainage, the angular edges create stress points. Some BCOs accept it; most don't. Don't take the risk on inspected work.

What is never acceptable: as-dug soil, clay, topsoil, DOT Type 1, recycled hardcore, brick rubble, or sharp sand. All of these will fail inspection and most will damage the pipe.

For French drains and land drains, 20mm rounded gravel can substitute for pea gravel where the pipe is perforated and the goal is bulk water transmission rather than even pipe support. The larger voids drain faster. Don't use 20mm for solid drainage pipe surround.

Where you'll need this

• Drainage - bedding and surround for the foul and surface water pipes connecting the extension into the existing sewer system. Typically 2-3 bulk bags for a single-storey rear extension drainage run.

These applications appear across all stages of any extension or renovation project, not only kitchen extensions. Any time underground drainage is being laid - garden room foul connection, side return WC drain, garage conversion soil branch, soakaway crate surround - pea gravel is the bedding and surround material. Treat the spec the same way every time: 100mm bed, surround to 150mm or 300mm above the crown depending on bedding class, BCO inspection before backfill.

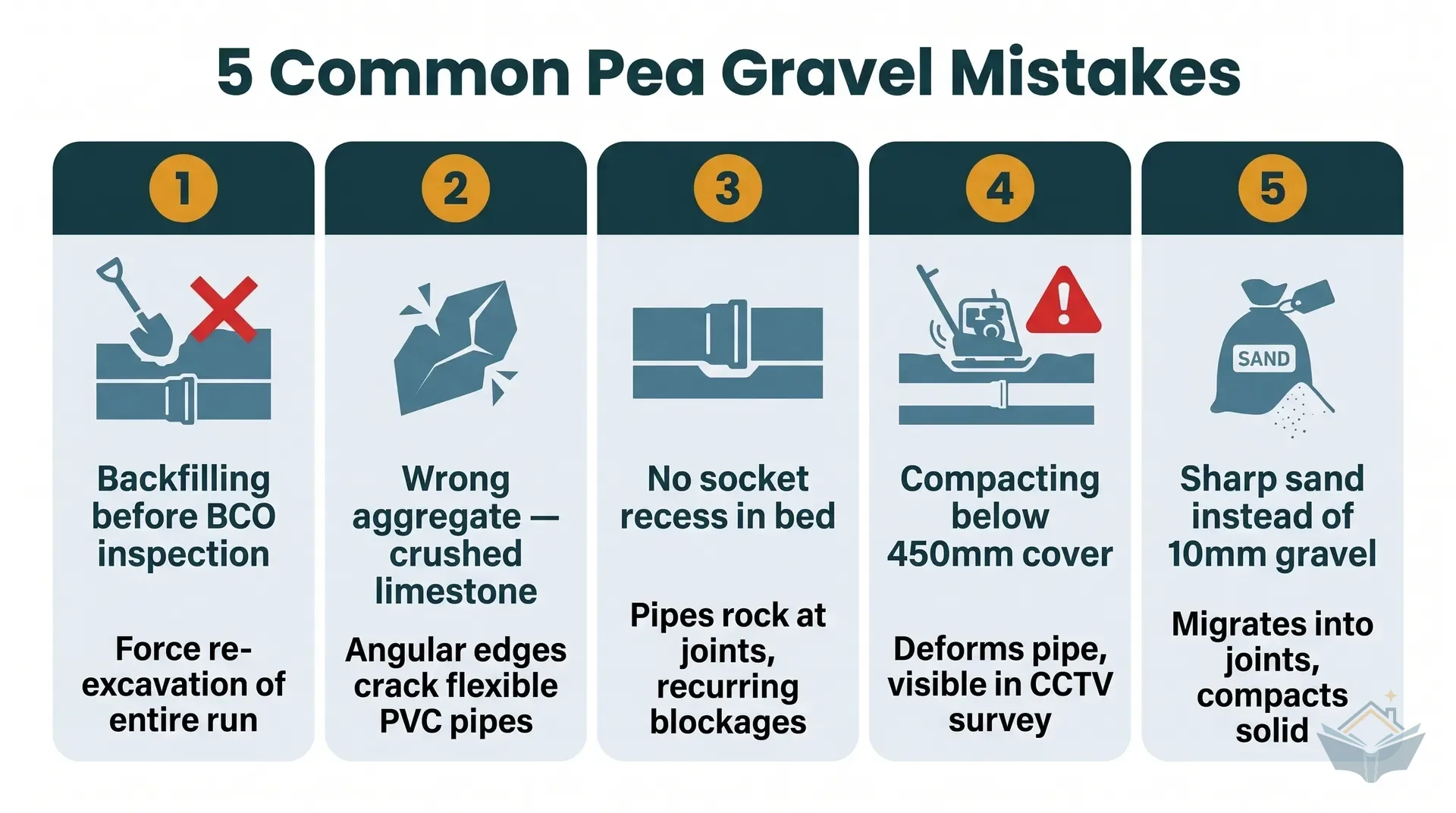

Common mistakes

Backfilling with as-dug spoil before the granular surround is in place. The most common reason a drainage inspection fails. The fix is straightforward (excavate, install gravel, re-inspect) but expensive in time. Pre-position pea gravel at the trench edge before pipes are laid, so there's no temptation to start backfilling with whatever is to hand.

Using the wrong material because "the merchant only had 6mm". 6mm pea shingle is a debate-starter on builders' forums. Some BCOs accept it, most prefer 10mm. If the merchant doesn't stock 10mm, drive to one that does or pay the delivery fee from a different yard. A modest delivery surcharge is far cheaper than a re-dig.

Skipping the socket recess. Forming a small dip in the bed gravel under each pipe socket is mentioned in the Kalsi Plastics guide and almost nowhere else, but experienced groundworkers swear by it. Without the recess, the pipe sits high at every joint, and the slow-flowing waste pools at the low points between joints. Over years of use, that becomes a recurring blockage problem.

Mechanically compacting too soon over a pipe. See the compaction section above for the 450mm cover rule. The deformation a plate compactor causes may not be visible from above but it shows up as a permanent dip in a CCTV survey years later. Wait until you have full cover.

Ordering enough for the bed only, not the surround. A common miscalculation is to factor in the 100mm bed and forget the 150-300mm of surround above the crown. The surround is the larger volume. If your trench is 410mm wide and the gravel zone is 360mm deep, the surround alone (150mm above crown plus the haunching around the pipe) is roughly two-thirds of the total order.

Buying decorative pea shingle from a garden centre at three times the price because the merchant didn't have 10mm in stock. The merchant's product is identical to the garden centre's; the only difference is the marketing label. If you can wait two days for delivery, the saving on a typical drainage job is substantial.
