Your builder's groundworker lays two sheets of A142 mesh across a 20m2 floor slab, resting them flat on the DPM with no spacers, overlapping by 100mm at the join. The concrete truck arrives, pours, and leaves. Six months later, a crack runs diagonally across your new kitchen floor. The mesh was supposed to prevent that. But it was sitting at the bottom of the slab where it does nothing, the overlap was a third of what it should have been, and nobody checked before the pour.
A142 mesh costs under £100 for a typical extension floor. Getting it wrong costs you a cracked slab and a very difficult conversation about remediation.
What it is and what it's for
A142 is the lightest grade of welded steel mesh manufactured to BS 4483:2025, the British Standard for steel fabric reinforcement. The name tells you two things: "A" means the mesh is square (equal wire spacing in both directions, used for crack control rather than structural load-bearing), and "142" is the cross-sectional area of steel in mm2 per metre width.
The mesh is made from 6mm-diameter high-tensile steel wires, resistance-welded at every intersection on a 200mm grid. Each sheet weighs 2.22 kg per square metre. It arrives on site as a flat, rigid panel that you can lean against a wall but can't roll up.
A142 is crack control mesh, not structural reinforcement. That distinction matters. When a concrete slab shrinks as it cures (and all concrete shrinks), tensile stresses develop that can cause cracks. The mesh distributes those stresses across a wider area, keeping any cracks tight and controlled rather than opening up into visible lines. It does not make the slab stronger in the way that rebar in a foundation trench does.
A-type mesh (A142, A193, A252) is for crack control. B-type mesh (B196, B283, B385) has different bar spacing in each direction and is designed for structural loading. If your structural engineer specifies B-type mesh, you cannot substitute A-type.
When does your floor slab need A142? The most common trigger is insulation under the slab. Modern extension floors typically have PIR or EPS insulation beneath the concrete (to meet Building Regulations Part L thermal performance requirements). This insulation creates a slightly floating condition where the slab isn't resting directly on compacted ground. Building control officers increasingly request A142 mesh in this situation, even when the structural engineer hasn't specified it on the drawings. If your BCO has seen mesh on the plans, or mentioned it during an earlier inspection, you must include it. Removing it at that point creates a compliance problem.
For simple domestic floor slabs on good ground, without insulation underneath, mesh may not be technically necessary. But once it's on the drawings, it's on the drawings.
A142 is the lightest mesh grade and is designed for light-duty crack control only. It is not automatically the right choice for an extension habitable room floor. Your structural engineer specifies the mesh grade based on the loads, ground conditions, and slab design. If no grade is specified, ask your engineer rather than defaulting to A142. For habitable rooms with furniture, partition walls, and foot traffic, A193 or A252 are commonly specified instead.
Types, sizes, and specifications

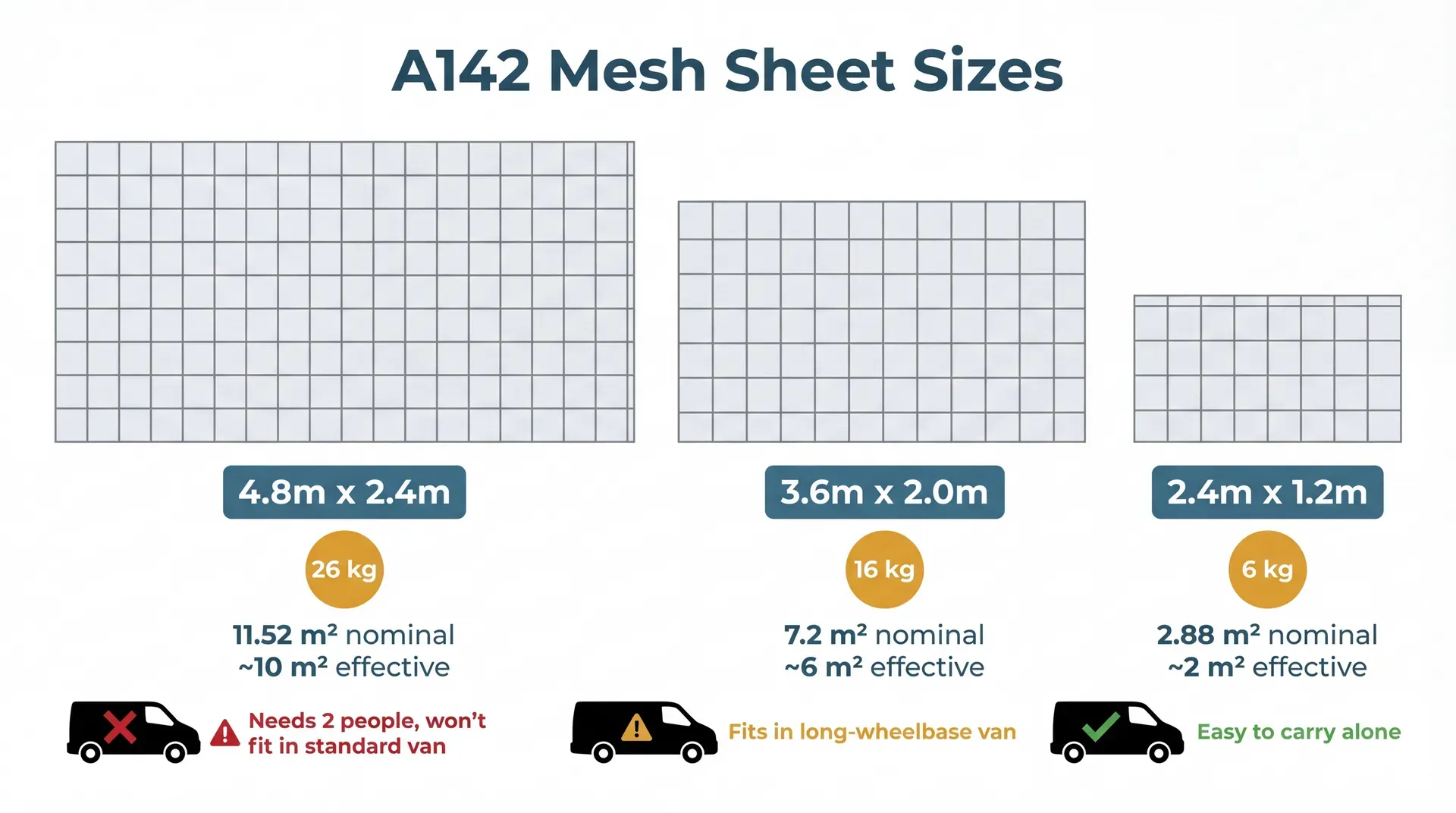

A142 comes in three sheet sizes. The one you buy depends on access, handling, and how much floor you're covering.
| Sheet size | Nominal area | Effective coverage (with overlaps) | Approx. weight | Best for |
|---|---|---|---|---|
| 4.8m x 2.4m (standard) | 11.52 m2 | ~10 m2 | 26 kg | Large floor slabs. Best value per m2. Needs two people to carry and won't fit in a standard van. |
| 3.6m x 2.0m (merchant) | 7.2 m2 | ~6 m2 | 16 kg | Most common for domestic work. Manageable by one person. Fits in a long-wheelbase van with the doors shut. |
| 2.4m x 1.2m (safety size) | 2.88 m2 | ~2 m2 | 6 kg | Small areas, patches, and awkward shapes. Easy to handle but expensive per m2. |
All three sizes use the same wire specification: 6mm diameter wires at 200mm centres in both directions, manufactured to BS 4483:2025 with CARES certification (the independent quality assurance scheme for UK reinforcing steel). The only difference is how many cuts the factory made.
The cost-per-square-metre difference between sizes is real. A 4.8m x 2.4m sheet works out around £2.30-2.60/m2. The 2.4m x 1.2m safety size is closer to £5.50-6.00/m2, more than double. For a 20m2 floor, that's the difference between £50 and £120 in mesh alone.
How A142 compares to heavier grades
| Grade | Wire diameter | Grid spacing | Steel area (mm2/m) | Weight (kg/m2) | Typical use |
|---|---|---|---|---|---|
| A142 | 6mm | 200 x 200mm | 142 | 2.22 | Light-duty crack control: paths, patios, shed bases, garage floors (non-vehicular), floor slabs where engineer confirms adequate |
| A193 | 7mm | 200 x 200mm | 193 | 3.02 | Medium-duty: domestic garages (minimum for vehicles), habitable extension floors. Safer default if no engineer spec |
| A252 | 8mm | 200 x 200mm | 252 | 3.95 | Heavy-duty: driveways with vehicle use, extension floors under load, conservatory floors. Often specified by structural engineer for extension ground slabs |
How to work with it
Placement: the lower third, not the centre
This is where most installations go wrong. The mesh must sit in the lower third of the slab, typically 40-50mm from the base. Not in the centre. Not resting on the DPM at the bottom.
The reason is physics. When a ground-bearing slab cracks, it cracks upward from the bottom because the underside is in tension. The mesh needs to be positioned where the tension is, which is the lower portion of the slab. In a 100mm slab, 40-50mm from the base puts the mesh roughly one-third up from the bottom. This gives it enough concrete cover below to prevent corrosion, while positioning it where it can actually do its job.
LABC (Local Authority Building Control) specifies minimum concrete cover depths that depend on what's beneath the concrete:
- 40mm cover over blinding or DPM membrane
- 75mm cover where concrete is cast directly against earth
- 25mm minimum for internal floor slabs over membrane

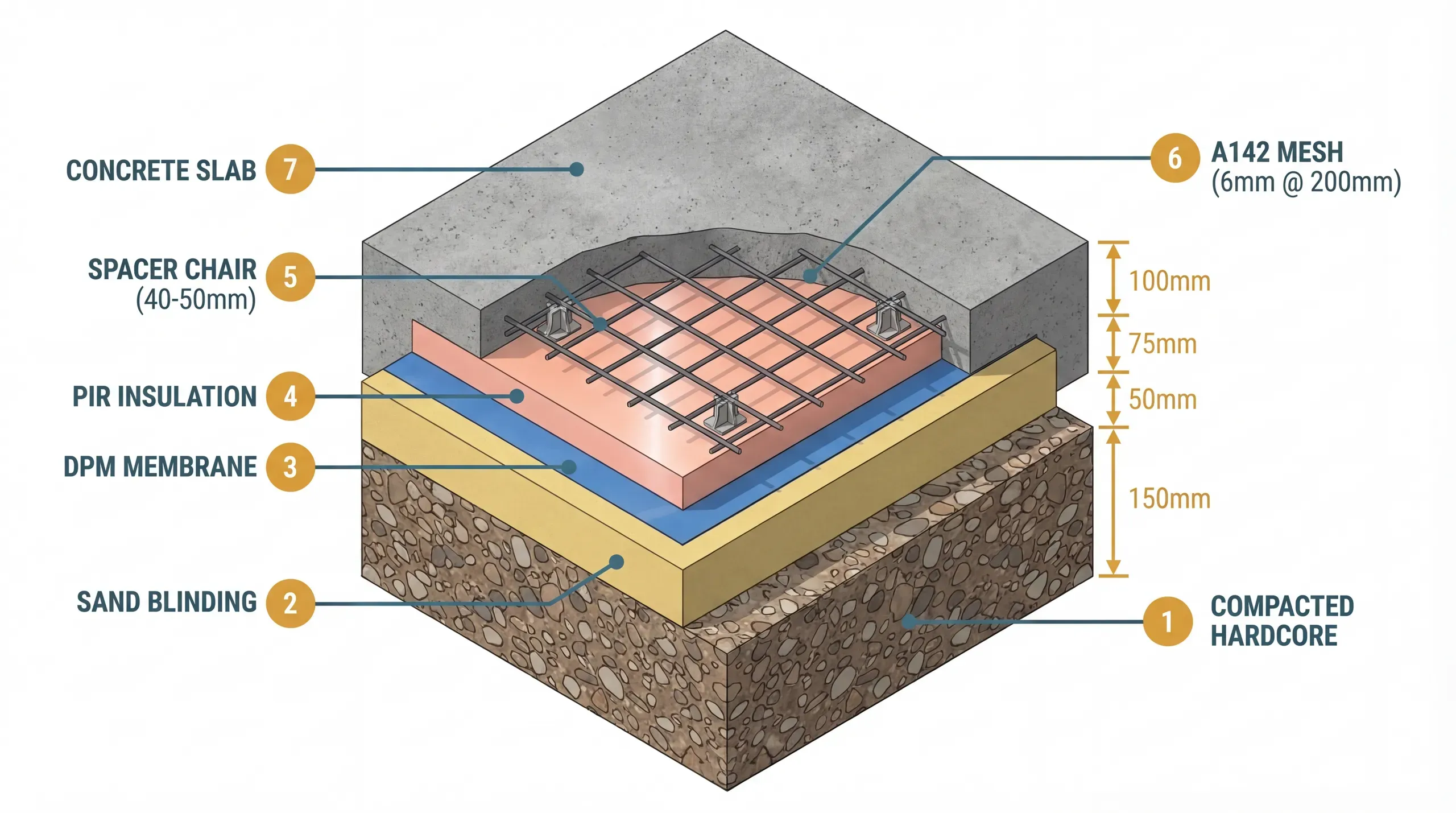

For a typical insulated floor build-up (hardcore, blinding, DPM, insulation, mesh, concrete), the mesh sits on spacer chairs above the insulation, with 40-50mm of clear space between the insulation surface and the mesh.
Supporting the mesh: spacers and chairs
The mesh must be held at the correct height throughout the pour. This means spacer chairs, placed at a maximum of 1m centres and staggered (not in straight lines, which can create planes of weakness in the concrete).
Two types work:
Plastic "hystool" chairs are the most common on domestic jobs. They clip onto the mesh wires and come in various heights to match your required cover. They're cheap and quick to fit. The risk: heavy concreters walking on the mesh during the pour can crush plastic chairs, dropping the mesh to the slab base where it provides no benefit. Use chairs rated for the load.
Rebar "Mars bars" are short lengths of rebar bent into U-shapes that sit under the mesh. They're stronger than plastic and can't be crushed, but they take longer to make and position. Some groundworkers prefer these for larger pours.
An alternative installation method avoids the spacer problem entirely. Pour 50mm of concrete first, let it begin to stiffen (not set), then lay the mesh directly onto the fresh concrete and continue pouring above it. This keeps the mesh at the correct depth without spacers and eliminates the risk of chairs being crushed during the pour. It requires good timing and an experienced team, but it's a proven technique used on domestic sites.
Never rest the mesh directly on insulation boards. It will sink into the boards during the pour, ending up at completely the wrong depth.
Overlapping sheets
Where two sheets meet, they must overlap by a minimum of 450mm. This is the LABC figure, calculated as two bars plus 50mm (2 x 200mm pitch + 50mm = 450mm). Some trade sources quote 350mm (two full grid squares), which is acceptable for general practice, but 450mm is the figure your building control officer will reference.
Tie the overlapping sheets together with binding wire at 300-400mm intervals along the lap. Without ties, the sheets can shift during the pour, opening up gaps in coverage.
Do not leave gaps between mesh sheets. A common mistake is buying too few sheets and leaving the perimeter edges unmeshed, hoping nobody will notice. If your BCO has seen mesh during an earlier visit, they'll expect full coverage at the pre-pour inspection. Insufficient coverage means the concrete truck waits while you sort it out.
Cutting on site
A142's 6mm wires cut easily with heavy-duty bolt croppers. No power tools needed for straight cuts. For angled cuts or cutting many wires quickly, an angle grinder with a metal cutting disc works but produces sparks, so you'll need eye protection, gloves, and ear protection.
Plan your cuts before ordering. Sketch the floor area with sheet positions and overlaps. Off-cuts from one area can often fill edges elsewhere.
How much do you need
The calculation is straightforward once you know which sheet size you're using.
For 4.8m x 2.4m sheets (10 m2 effective coverage per sheet after overlaps): Divide your floor area by 10, then add 10% for waste and cutting.
For 3.6m x 2.0m sheets (6 m2 effective coverage per sheet after overlaps): Divide your floor area by 6, then add 10% for waste.
For L-shaped or complex floor plans, add 15-20% waste instead of 10%.
Worked example: a 4m x 5m extension floor (20 m2).
Using 4.8m x 2.4m sheets: 20 / 10 x 1.1 = 2.2, so order 3 sheets. Total cost: roughly £81-90 for the mesh.
Using 3.6m x 2.0m sheets: 20 / 6 x 1.1 = 3.67, so order 4 sheets. Total cost: roughly £76-120 depending on supplier.
The larger sheets are usually cheaper overall and involve fewer overlaps (meaning fewer potential weak points). But they're heavier and need two people to handle. For a domestic extension where access is tight, the 3.6m x 2m merchant size is the practical choice.
Cost and where to buy
A142 mesh - 3.6m x 2.0m sheet
£19 – £30
A142 mesh - 4.8m x 2.4m sheet
£27 – £30
Online specialist suppliers (Next Day Steel, Reinforcement Products Online, Lemon Groundwork Solutions) sit at the lower end of that range, typically £19 – £30 for a 3.6m x 2m sheet. High-street builders' merchants charge more. Lawsons, for example, list the same 3.6m x 2m sheet at over £45. Travis Perkins is typically in the low £30s. The product is identical.
Delivery is the hidden cost. Mesh sheets are large, rigid, and unwieldy. Economy delivery from an online supplier runs £30-90 for UK mainland. Next-day delivery can be £90 or more. Reinforcement Products Online charge £95-288 depending on your postcode. For Scottish Highlands and Northern Ireland, phone your local merchant rather than relying on online ordering; delivery surcharges to remote postcodes are steep.
If your groundworker or builder has a trade account at a builders' merchant, ask them to add the mesh to their order. Trade accounts get better pricing than retail, and the mesh arrives with the rest of the materials on the same delivery. You save the separate delivery charge entirely.
For a typical 20m2 extension floor, you're spending £80-120 on mesh and potentially another £30-90 on delivery if you order it separately. The mesh itself is not expensive. The delivery can cost more than the product.
Wickes and Screwfix don't typically stock mesh reinforcement in-store. Travis Perkins and Jewson do, but availability varies by branch. Phone ahead.
Alternatives
A193 mesh uses 7mm wires on the same 200mm grid, giving 36% more steel per square metre. It's heavier (3.02 kg/m2 vs 2.22) and costs roughly 30-40% more per sheet. If your engineer hasn't specified a grade and you're laying a habitable room floor, A193 is the safer default. It provides better crack control under the heavier loads of furniture, partition walls, and foot traffic.
A252 mesh uses 8mm wires and is nearly twice the steel area of A142. This is what structural engineers commonly specify for extension ground floor slabs where the slab carries real loads. If you see A252 on your structural drawings, don't substitute A142 to save money. The cost difference is modest (roughly £10-15 more per sheet) but the performance gap is significant.
Fibre-reinforced concrete is sometimes suggested as an alternative to mesh. Polypropylene fibres mixed into the concrete at 600-1000g per cubic metre control plastic shrinkage cracks during the first hours of curing. They do not provide post-crack tensile resistance the way steel mesh does. They are not a substitute for A-type mesh in any application where mesh has been specified. SIKA has specifically advised against fibre concrete as a replacement for steel mesh in insulated raft applications. The cost saving is often minimal once extra concrete volume is accounted for.
If your BCO or engineer has specified mesh, use mesh. Fibres are a different product for a different purpose.
Where you'll need this
- Foundations and footings - A142 mesh placed in ground-bearing floor slabs before the concrete pour, where specified by the structural engineer or requested by building control
Common mistakes
Laying the mesh flat on the DPM with no spacers. The mesh ends up at the very bottom of the slab, embedded in the first few millimetres of concrete where it does nothing. This is the single most common installation defect found in post-crack investigations. The mesh must sit 40-50mm above the base on proper spacer chairs.
Using 100mm overlaps instead of 450mm. A single grid square overlap (200mm) looks like it should be enough. It isn't. LABC requires 450mm (two bars plus 50mm). Short overlaps mean the mesh can't transfer stresses across the joint, and that's exactly where cracks form.
Ordering standard aggregate blocks when your engineer specified dense, then wondering why the BCO is asking about mesh. BCOs increasingly request mesh when insulation is laid under the slab. If your floor build-up includes PIR or EPS insulation beneath the concrete, expect the BCO to want A142 as a minimum, even if it wasn't on the original drawings. Budget for it.
Buying too few sheets to save money. Leaving unmeshed gaps around the perimeter or at sheet joints defeats the entire purpose. If a BCO has seen mesh during an earlier visit, they expect full coverage. Cover the whole floor area, with proper overlaps, or don't bother at all.
Resting mesh on insulation boards without chairs. The mesh sinks into the insulation during the concrete pour, ending up at completely the wrong depth. Spacer chairs are mandatory when mesh is placed over insulation. No exceptions.
