Concrete Spacers: The Cheapest Thing That Fails the Most Inspections

Building control arrives to inspect your floor slab. The groundworker has laid the mesh, tied the overlaps, and everything looks neat. The inspector crouches down, slides a finger under the mesh, and finds it sitting directly on the DPM with no spacers underneath. Inspection failed. Your concrete truck is booked for 7am tomorrow, and now you're rescheduling a delivery, a pump, and a groundworker's day. Total cost of the delay: £300-500. The spacers that would have prevented it cost £15-25 for the whole slab. This is the single most common reason for a failed reinforcement inspection on domestic extension builds.

What they are and what they're for

Spacers are small blocks or clips placed under reinforcement (mesh sheets or rebar bars) to hold the steel at the correct height within a concrete pour. The gap between the steel and the nearest concrete surface is called "cover". Without adequate cover, moisture reaches the steel, the steel corrodes, the concrete cracks, and the reinforcement stops doing its job. Cover is not optional and not approximate. Building control measures it.

The concept is simple. A 40mm spacer sits under your mesh, creating a 40mm gap. Concrete fills that gap during the pour, encasing the steel. The spacer stays in the concrete permanently. It becomes part of the structure.

Spacers go by half a dozen names on building sites. You'll hear them called cover blocks, dobies, meshmen, castle spacers (after their cross-shaped top), hot cross buns, chairs, or rebar chairs. They're all the same family of products, just different shapes for different applications.

Which cover depth do you need?

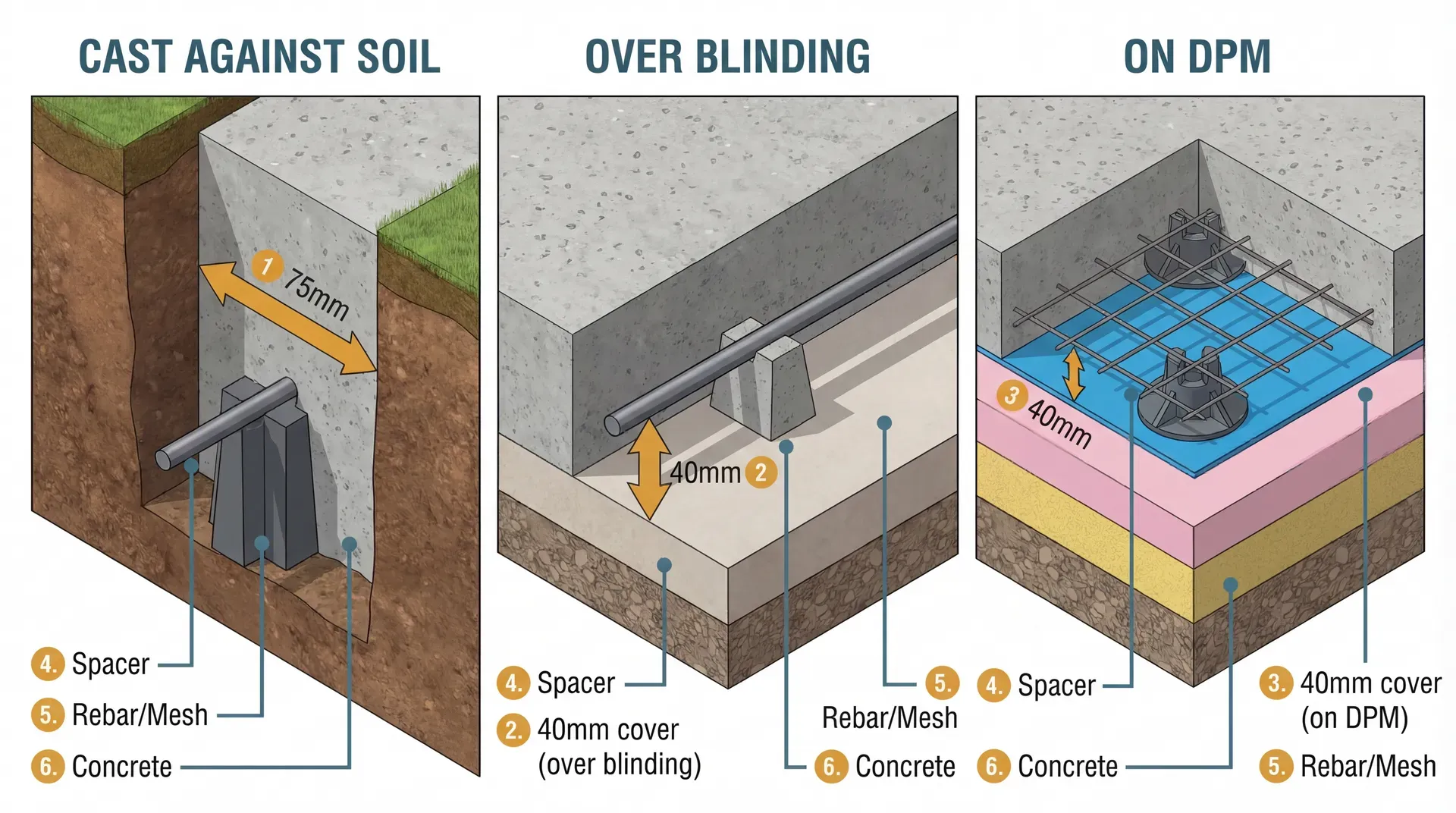

This is the question that determines which spacers you buy. The required cover depth depends on how exposed the concrete is to moisture and soil. Get the wrong depth and building control fails the inspection, regardless of how neatly everything else is laid.

These figures come from LABC guidance and align with Eurocode 2 UK National Annex requirements for domestic construction. Your structural engineer's drawings should specify the cover. If they don't, ask. Don't guess.

The formula behind the numbers is straightforward: nominal cover = minimum cover + a deviation allowance (10mm for in-situ concrete). So 75mm nominal cover means the designer started with 65mm minimum and added 10mm for the reality that concrete placement isn't perfect.

Click to enlarge

Types of spacer

Concrete castle spacers (meshmen)

The workhorse for domestic floor slabs. A small cement block with a cross-shaped or castellated top that cradles mesh wire intersections. Made from glass fibre reinforced cement at 50 N/mm² or higher. They won't compress under foot traffic during the pour, they match the thermal expansion rate of the surrounding concrete (so they don't create moisture pathways over time), and they don't burn or melt.

Castle spacers are the right choice for any application where concrete is in direct contact with the ground. That includes strip foundations, ground-bearing floor slabs, and any slab without a DPM below it. They're available in cover depths from 25mm to 100mm, though the 40/50mm double-cover type is by far the most common for domestic extensions.

Plastic clip-on spacers

Moulded from copolymer polypropylene with a wide base and a clip that grips the mesh wire or rebar. Lighter, cheaper per unit, and faster to install than concrete blocks. The clip holds the spacer firmly in place, which is useful on sloped or uneven surfaces where concrete blocks might roll.

Plastic spacers work well for residential floor slabs on DPM where workers aren't walking across the mesh during the pour. Their weakness is foot traffic: they can crush under a person's weight, allowing the mesh to sink to the bottom of the slab. If your groundworker needs to walk across the mesh to place concrete, use concrete castles or lay scaffold boards over the mesh.

Chair spacers (for top steel)

Where the design calls for two layers of reinforcement (a raft foundation, for example), the upper mesh needs support from below. Chair spacers (also called hystools or deck chairs) are tall supports, typically 75-150mm high, that sit on the lower mesh and hold the upper mesh at the correct separation. They're wire or plastic frames shaped like a small stool.

You won't need chairs for a standard single-layer floor slab. They appear on raft foundations and heavily reinforced slabs where the structural engineer specifies top and bottom steel.

Concrete bar spacers

Long horizontal spacers (typically 1m lengths) that sit under rebar in strip foundations. They run perpendicular to the bars and support multiple bars at once. Available from 15mm to 75mm cover depth. Less common in domestic work than castle or clip-on types, but useful where you're supporting a row of parallel rebar across a long trench.

How to place them

Placement is straightforward but the details matter. Getting spacers wrong is the fastest way to fail a building control inspection, and fixing it after the concrete is poured means breaking out and reporing at your cost.

Spacing and density

NHBC Standards Section 3.1.10 requires spacers at no more than 1m apart. In practice, 600-750mm spacing gives a firmer mesh platform. The mesh bounces less when walked on, and there's less risk of the steel sagging between support points.

For a standard 3.6m x 2m mesh sheet, that means 4-6 concrete castle spacers per sheet for a light domestic slab, or 6-8 for heavy-duty applications or where workers will walk on the mesh. Plastic clip-on spacers with their wider base can manage at 8 per sheet minimum.

Sequence on site

1. Lay and compact the hardcore sub-base
2. Spread and level 50mm of sand blinding
3. Lay the DPM (minimum 1200 gauge, joints overlapped 300mm)
4. Install rigid insulation if specified
5. Position spacers in a staggered grid on the DPM or insulation surface
6. Lower the mesh sheets onto the spacers
7. Tie mesh overlaps with annealed tie wire at 300-400mm intervals
8. Check cover depth with a tape measure at multiple points
9. Book building control inspection
10. Wait for inspection sign-off before ordering concrete

That sequence matters. Spacers go down before the mesh, not after. Trying to lift a full sheet of A193 mesh (approximately 22 kg) to slide spacers underneath is difficult, risks tearing the DPM, and usually results in uneven spacing.

Soft ground and insulation

On rigid insulation boards (PIR or EPS), concentrated point loads from individual spacers can dent the surface. Use castle spacers with a wider footprint rather than single-point plastic chairs. The wider base distributes the load. Some builders place small squares of plywood under each spacer on insulation, but this is unnecessary with castle-type spacers that already have a broad base.

On soft blinding or where the DPM sits directly on fill material, narrow spacers can punch through. Castle spacers again outperform clip-on types here because they spread the load.

How many do you need

The calculation depends on your slab area and spacer type.

For concrete castle spacers (the most common for domestic slabs):

Spacers per sheet = 4-6 (light domestic) or 6-8 (heavy-duty/external)

A standard 3.6m x 2m mesh sheet covers about 6 m² effective area after overlaps. So for a light domestic slab: roughly 4-6 spacers per 6 m², which works out at about 1 spacer per 1-1.5 m².

Worked example: 4m x 5m extension floor slab (20 m²)

Mesh sheets needed: 20 / 6 = 3.3, plus 10% waste = 3.7, round up to 4 sheets.

Spacers needed: 4 sheets x 6 spacers = 24 spacers, plus 10% = 27. Round up to 30.

Castle spacers come in packs of 25, 50, 100, and 200. A pack of 50 covers this job with some left over. Total cost: around £10-15 for the spacers.

Worked example: 6m x 8m extension floor slab (48 m²)

Mesh sheets needed: 48 / 6 = 8, plus 10% = 8.8, round up to 9 sheets.

Spacers needed: 9 sheets x 6 spacers = 54 spacers, plus 10% = 60.

A pack of 100 castle spacers covers this with spares.

Cost and where to buy

Spacers are one of the cheapest materials on the entire build. A pack that covers a typical extension floor slab costs less than a round of drinks.

Prices from Next Day Steel, JP Ironmongery, Myers Building Supplies, and Lemon Groundwork Solutions (March 2026, exc. VAT).

Bulk makes a meaningful difference. Dog-bone type spacers from specialist civils suppliers run 12-20p each in quantities of 500+, compared to 30-50p each from general builders' merchants selling small packs. For a single extension, the price difference is negligible. For a builder doing multiple jobs, it adds up.

Where to order:

• Online reinforcement suppliers (Next Day Steel, Lemon Groundwork Solutions, JP Ironmongery) have the widest range and best prices. Order spacers alongside mesh or rebar to consolidate delivery charges.
• Builders' merchants (Jewson, Travis Perkins, Buildbase) stock basic 40/50mm castle spacers and plastic clip-ons. Prices are higher but you can walk in and buy on the day.
• eBay has competitive prices on castle spacers (40/50mm packs of 100 from £15) with free delivery. Check seller ratings and ensure the product states BS 7973-1 compliance.
• Screwfix and Toolstation stock limited ranges of plastic spacers. Fine for small quantities.

Alternatives (there aren't any good ones)

Building control officers have rejected all of the following on documented inspections:

• Broken bricks or paving slabs - inconsistent height, crush unevenly, absorb water
• Chunks of hardcore - shift during the pour, dislodge under concrete flow
• Offcuts of timber - rot over time, creating voids in the slab
• Shopping trolley mesh (yes, this has actually been tried) - wrong dimensions, no quality certification
• Stones or rocks - dislodge when concrete flows from the chute

One forum contributor documented an engineer refusing concrete commons (standard bricks) used as spacers under mesh. Another had building control reject site-made mortar blocks. The Concrete Society's guidance is explicit: spacers must be "bought in and not made on site" for quality control.

There are no legitimate alternatives to proprietary BS 7973-compliant spacers for inspected structural concrete. They cost 10-22p each. The concrete truck you'll waste rebooking after a failed inspection costs £200+. This is not a cost-saving opportunity.

The building control inspection

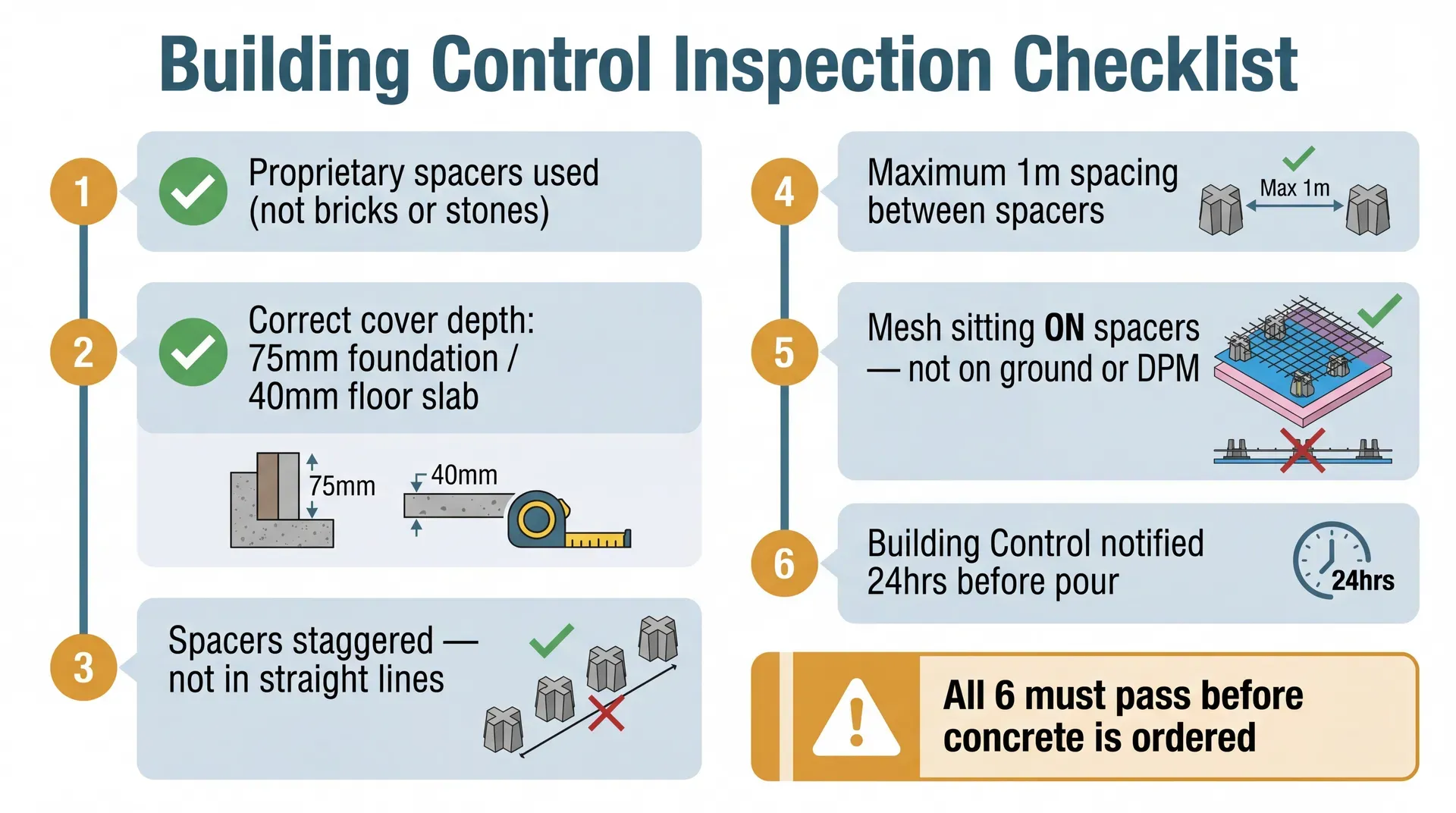

Reinforcement cover is a specific item on the building control inspector's checklist. They check it at two points: the foundation stage (before strip foundation concrete is poured) and the floor slab stage (before oversite concrete is poured). Both are mandatory hold points. You cannot pour concrete until the inspector has signed off.

What they're looking at:

• Spacers are proprietary products, not improvised substitutes
• Spacers are the correct cover depth for the application (75mm for foundations against soil, 40mm on DPM)
• Spacers are staggered, not laid in continuous straight lines
• Spacing between spacers is no more than 1m (though 750mm or tighter is preferred)
• Mesh or rebar is sitting on the spacers, not resting on the ground, DPM, or insulation
• No spacers have tipped over, sunk into soft ground, or been knocked out of position

Click to enlarge

Common mistakes

Using the wrong cover depth. A 40mm spacer in a strip foundation that requires 75mm cover. The mesh or rebar sits 35mm too low. Building control measures it, fails it, and your pour is postponed. Check the structural engineer's specification before buying spacers.

Laying spacers in straight lines. A continuous row of spacers creates a plane of weakness running through the slab. The CROSS safety reporting system flagged this as a "widespread problem across construction sites" because it creates hidden corrosion risk that only manifests years later. Stagger them.

Not checking actual dimensions. Some suppliers' products don't match their stated cover depth exactly. One forum contributor found "meshmen" spacers labelled as 40/50mm providing only 30-40mm actual cover. Measure a sample from the pack before laying the full slab.

Too few spacers. Mesh sagging between widely-spaced supports is visible and building control will spot it. If the mesh bounces when you step on it (on scaffold boards), add more spacers. Better too many at 15p each than a failed inspection at £300+.

Placing spacers after the mesh. Trying to lift a full mesh sheet (approximately 22 kg for A193) to slide spacers underneath tears DPM, dislodges other spacers, and produces uneven cover. Spacers go down first. Mesh goes on top.

Forgetting spacers entirely. The most common defect at floor slab inspections. Mesh sitting flat on the DPM or insulation is structurally useless because all the steel sits at the very bottom of the slab rather than within it. The concrete below the mesh is negligible, so the reinforcement can't resist tension. Building control will fail it immediately.

Where you'll need this

• Foundations and Footings - placed under mesh and rebar to maintain correct concrete cover, inspected by building control before the pour
