Engineered Wood Flooring: The Complete UK Guide for Extensions and UFH
UK guide to engineered wood flooring: veneer thickness tiers, UFH compatibility at 27°C, 65% RH moisture test, expansion gaps, 2026 prices from £23-130/m² plus £15-45/m² labour.
Your engineered oak goes down over the new liquid screed at the end of second fix. It looks perfect. Six months later, midway through the first real winter with the underfloor heating running, the planks split along the edges and gap at the joints. The fitter, the screed contractor, and the UFH installer each have an explanation; nobody is taking the five-to-fifteen-thousand-pound bill to lift the lot and relay it. Engineered wood is the right finish for a kitchen extension with UFH, but the sequence around the product is where every failure happens.
What it is and what it's for
Engineered wood flooring is a multi-layer board with a real hardwood veneer (almost always European oak in the UK market) bonded to a structural core of plywood or HDF (High Density Fibreboard, a dense engineered sheet material). The veneer on top is typically 2-6mm thick. The core below is 8-16mm. The total plank thickness works out at 14-20mm for most residential products, with a balancing backing layer on the underside to stop the plank cupping.
That sandwich construction is what makes it different from solid wood. A solid oak board is 18-22mm of the same species, top to bottom. It moves a lot with humidity and temperature, which is why solid wood and underfloor heating don't mix. The cross-ply core of engineered wood resists that movement (the grain directions cancel each other out), and the thinner veneer on top has less mass to swell or shrink. This is why engineered wood is the default timber choice for extensions with UFH, and why you will very rarely see solid oak specified on a new build.
The "engineered" label covers a wide quality range. A 10mm board with a 2mm veneer on an HDF core from a DIY shed is engineered wood. So is a 20mm board with a 6mm veneer on birch ply from a premium specialist. Both are sold with the same marketing language. The differences are invisible on day one and dominate the life of the floor. Which tier you pick determines whether your floor is still usable in twenty years or needs replacing in eight.
The British Standard that governs installation is BS 8201:2011, the code of practice for installation of wood and wood-based panel flooring. It sets the flatness tolerance for the subfloor (3mm deviation under a 2m straightedge), the moisture threshold (65% relative humidity maximum), the acclimatisation period, and the expansion gap requirements. You won't read it. Your fitter should have. If they can't answer questions about BS 8201, hire someone else.

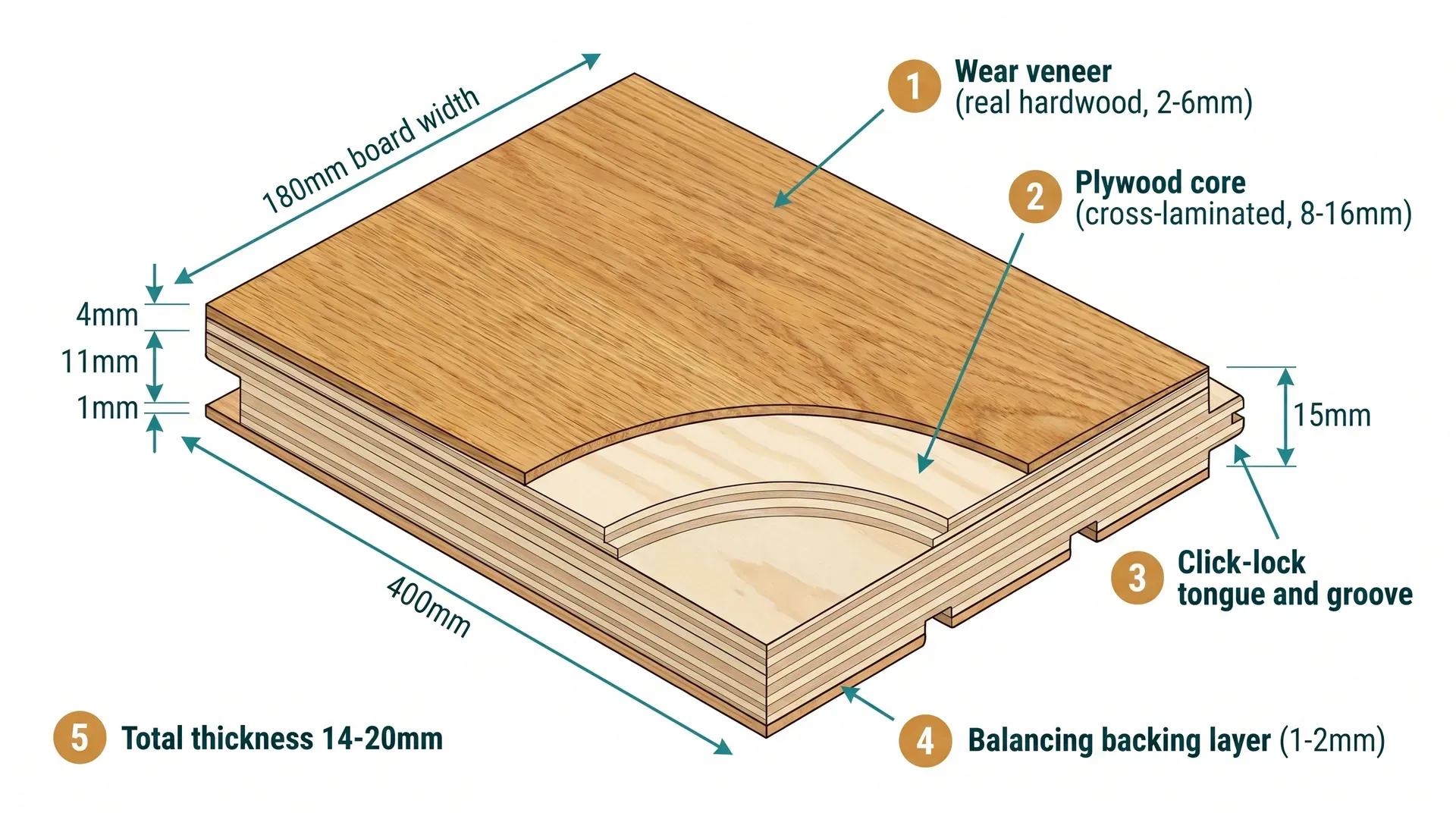

Construction and veneer thickness tiers
The single most important number on the spec sheet is the wear veneer thickness. This is the layer of real hardwood that sits at the surface and takes every footstep, scrape, and refinish for the rest of the floor's life. Once it's gone, the floor is finished. Veneer thickness determines three things: how long the floor lasts, how many times you can sand it back, and how much it costs.
| Tier | Veneer | Core | Total thickness | Refinish potential | Expected life |
|---|---|---|---|---|---|
| Budget | 2mm | HDF | 10-12mm | 0-1 very light sand | 8-15 years |
| Mid | 3-4mm | Plywood | 14-15mm | 1-2 full sands | 20-30 years |
| Premium | 5-6mm | Multi-ply birch | 18-20mm | 3-5 sands | 40+ years |
Each sanding pass removes approximately 0.5-1mm of wear layer, and a professional refinish demands at least 0.5-1mm of veneer left over the core once they're done. A 2mm veneer is effectively non-refinishable. You get one very light scuff before you expose the HDF beneath, and from then on any damage is permanent. A 4mm veneer gives you one confident full sand or two light ones. A 6mm veneer is a lifetime floor, comparable in refinish terms to solid oak.
The core matters almost as much. Plywood cores use alternating perpendicular grain layers that flex together when moisture or temperature shifts. HDF is uniform and dense, which makes it cheaper and gives it a very flat machined finish, but it absorbs moisture more readily and has less grip for refinishing. HDF is fine over a dry, stable subfloor. Over a concrete slab with any chance of residual damp, or anywhere near a wet zone, plywood is the safer core.
Board dimensions also vary by tier. Budget products run narrow (150-180mm) and short (1.2-1.8m). Premium products run wide (200-260mm) and long (up to 2.4m, occasionally 3m). Wider and longer planks cost more per m² and look more expensive, but they also move more in absolute terms with humidity shifts, so the expansion gap and acclimatisation protocol matter more.
UFH compatibility: the rules that decide whether your floor survives
This is where extensions most often come unstuck. Engineered wood over underfloor heating works well if four things are right. Get any one of them wrong and you'll see splitting, gapping, cupping, or delamination inside the first heating season.
Rule 1: surface temperature never exceeds 27°C
27°C is the industry-wide limit for floor surface temperature on any timber floor. This is not the thermostat setting in the room and not the flow temperature of the UFH circuit. It is the actual surface temperature measured at the board. A surface floor sensor (not just an air thermostat) is required to monitor it. Exceeding 27°C, even briefly, causes longitudinal splits along plank edges and at knots, rapid shrinkage between boards, and visible gapping that can open to 2-3mm within weeks.
Some manufacturers specify 26°C for specific species or wider boards. Always check the product data sheet. If your UFH installer says "wood is fine, I'll run it at the same flow temperature as the tiles," they're wrong. Wood floors need a lower flow temperature, typically 35-40°C at the manifold instead of the 45-50°C you'd run for porcelain.
Rule 2: combined thermal resistance stays under 0.15 m²K/W
Heat has to get through the floor to warm the room. The wood board, any underlay, and any adhesive bed all add thermal resistance (a measure of how much the material slows heat transfer, expressed in m²K/W or tog). Most hydronic UFH systems specify a maximum combined resistance of 0.15 m²K/W, which is 1.5 tog.
Here is where most homeowners (and some installers) trip up. Shops sell underlay by tog rating, and many installers default to "thicker is better" for acoustic reasons. Standard foam or rubber underlay comes in at 2-5 tog, which is 0.20-0.50 m²K/W. Put that over UFH and you've doubled or tripled the intended thermal resistance. The UFH system tries to compensate by running harder. Floor surface temperature overshoots 27°C. The wood splits.
Standard acoustic underlay (2-5 tog) over underfloor heating will block heat transfer and drive the surface temperature above 27°C. Only UFH-rated underlay rated under 1 tog (under 0.10 m²K/W) is acceptable. Check the manufacturer's data sheet, not the retail pack. Tog ratings are not always printed on the front of the bag.
A 14-20mm engineered wood board contributes roughly 0.08-0.13 m²K/W on its own. Add a 1 tog UFH underlay and you're at 0.18-0.23 m²K/W total, already at or above the efficient transfer limit. This is why glue-down installation is often recommended over UFH: bonding the board directly to the screed removes the underlay layer entirely and improves heat transfer.
Note on units. The UK flooring trade uses tog (imperial) and m²K/W (metric) interchangeably, and the conversion is often stated wrongly in retail literature. The correct relationship is 1 tog = 0.10 m²K/W. If a product spec sheet says "1 tog (0.25 m²K/W)" then somebody has multiplied instead of dividing, and the number you need is the one from the manufacturer's technical data sheet, not the marketing leaflet.
Rule 3: the screed passes a 65% RH moisture test before anything goes down
This is the threshold in BS 8201:2011 for all timber floors. It is stricter than the 75% RH threshold used for luxury vinyl tile because wood is hygroscopic: it absorbs and releases moisture from the surrounding material and air continuously. Residual damp in the screed migrates up into the timber after installation, which causes swelling, cupping, or delamination.
The test is a hygrometer (relative humidity probe) sealed to the floor surface or inserted into a shallow drilled hole, left in situ for minimum 72 hours. Reading must be 65% RH or lower. Screed hygrometer hire costs a couple of pub rounds; a flooring contractor will do the test and report for roughly three-digit figures.
A documented case on DIYnot reports a five-figure remediation bill after an engineered wood floor was laid over a concrete subfloor without a moisture test and without a damp-proof membrane. The screed looked dry but was not. Six months later the boards had cupped, delaminated, and needed complete replacement, along with the screed below. A 72-hour hygrometer hire would have prevented the job.
For anhydrite (calcium sulphate) screed specifically, the laitance must be mechanically removed by shot-blasting or grinding before any primer or adhesive is applied. This is a mandatory extra step for liquid anhydrite screed that does not apply to sand-cement screed. Skipping it means your glue bonds to the weak laitance layer rather than the screed, and the floor lifts off in sheets inside the first year.
Rule 4: UFH is off during install, ramped slowly after
The UFH system must be commissioned and fully run through its drying cycle before the wood goes down. Then it's switched off 24-48 hours before install, kept off during install, and kept off for 24-48 hours afterwards while adhesive cures (glue-down) or boards settle (floating). After that, the flow temperature ramps up at maximum 1°C per day until reaching normal operating temperature.
"Boost mode" and rapid heat-up cycles are the single most common cause of wood floor splitting in the first heating season. Even the most stable engineered board cannot absorb a 10°C-per-day ramp without damage.
Float or glue down over UFH
Both methods work over UFH. The community and trade view diverges on which is better, and the choice depends on whether you prioritise heat transfer or repairability.
| Factor | Float (click-lock) | Glue-down |
|---|---|---|
| Labour cost | £15-25/m² | £25-45/m² |
| Sound underfoot | Slightly hollow echo | Solid, no hollow sound |
| Heat transfer through floor | Reduced by underlay layer | Direct, best for UFH efficiency |
| Subfloor prep | Standard flatness tolerance (3mm under 2m) | Primer, laitance removal, dust-free |
| Repair of damaged plank | Lift and replace individual board | Almost impossible without damage |
| Access to services below | Lift a section if needed | Permanent; cut and patch if needed |
| Expansion gap | 10-15mm at perimeter | 10-15mm at perimeter (same) |
| Suitable products | Most click-lock engineered | Check manufacturer; not all products approve glue-down |
The BuildHub expert consensus on UFH-only heated floors is that glue-down gives better system efficiency and a more solid feel underfoot, at the cost of repairability. On a forever-home extension where the floor needs to last 20+ years and the UFH is the primary heat source, glue-down is the better call. On a rental or a shorter-term install where boards might need lifting to access cables, pipes, or for damage replacement, click-lock floating with a proper UFH-rated underlay is fine.

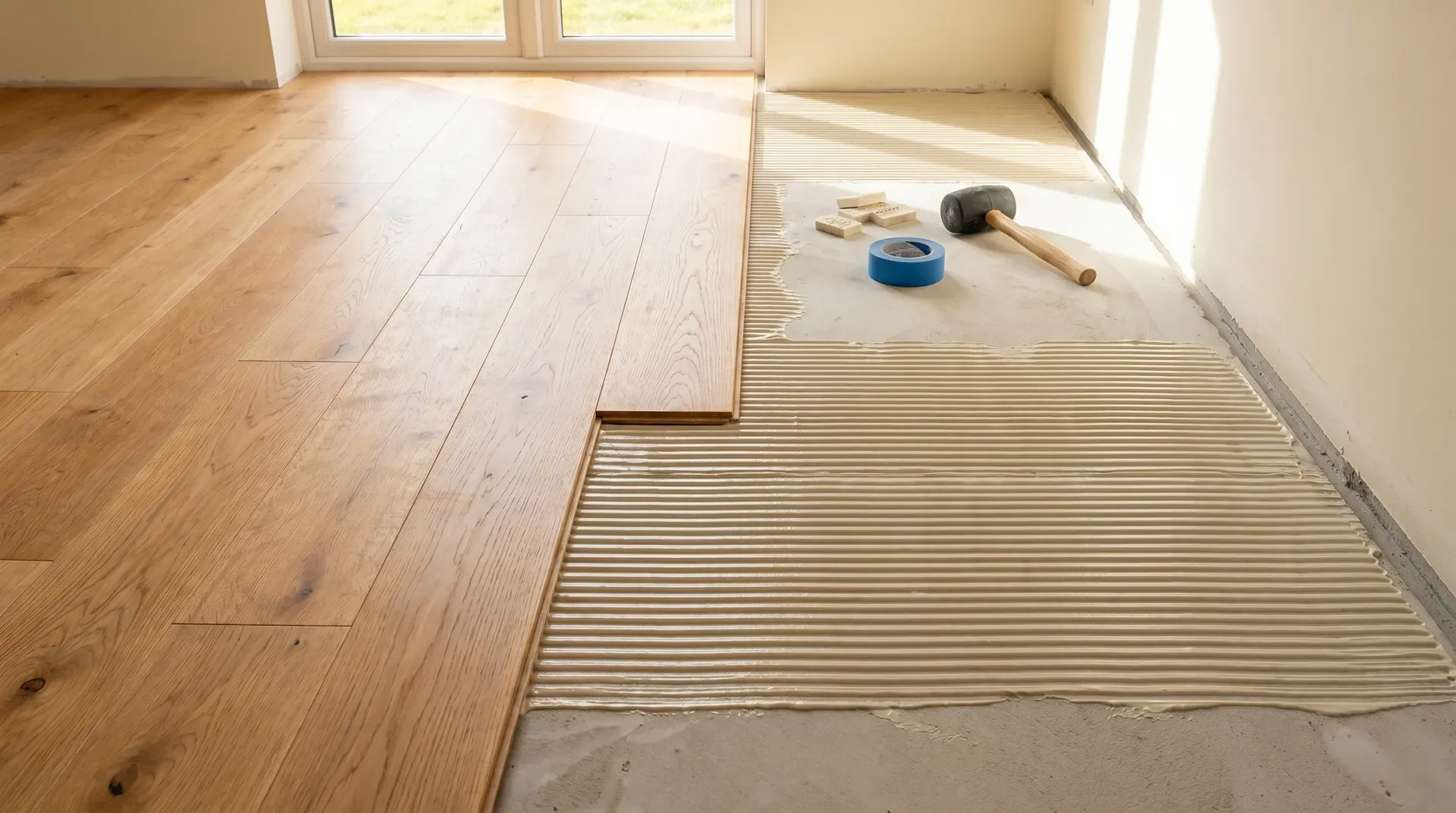

Glue-down uses a permanently flexible 1-part polyurethane or SMP (Silicon Modified Polymer) adhesive, full-spread across the subfloor. Sika SikaBond T-54 and Ted Todd MS Flex are common UK specifications. Expansion gaps are still required (minimum 10-15mm at the perimeter) even though the board is bonded: the bonded surface accommodates minor movement through the flexible adhesive, but a large seasonal swing still needs room to expand.
Finish types: the call that decides how you'll maintain the floor
The factory finish sets what the floor looks like on day one and what you do to it every year after. Three categories dominate the UK residential market, plus a growing fourth for contemporary tastes.
Oiled
Oil penetrates into the wood fibres instead of sitting on top as a film. The grain stays visible and the surface keeps a natural matt appearance. The trade-off is ongoing maintenance: re-oil every 6-24 months depending on traffic. Kitchens and hallways need 6-12 months between re-coats. Bedrooms can go 18-24 months. You apply the maintenance oil with a cloth or roller yourself; it's a two-hour job for a 20m² room.
The advantage that justifies the maintenance is spot repair. If a scratch or stain appears, you sand it back lightly with fine paper and re-oil the affected area. The repair blends in because there's no surface film to feather. No other finish lets you do this without a full floor refinish.
Lacquered
Lacquer (polyurethane or acid-cured) sits on top of the wood as a hard clear film. It resists spills, staining, and foot traffic for 10-20 years with no intermediate re-coating. Simple sweep and damp-mop maintenance with a pH-neutral wood floor cleaner. No periodic re-oiling needed.
The drawback is all-or-nothing refinishing. When the lacquer eventually fails in a high-wear patch (usually at doorways or in front of the oven) you can't spot-repair. The whole floor has to be sanded back to bare wood and re-coated, which is a specialist job at a meaningful per-m² rate and means clearing the room for several days. Most households choose lacquer knowing they'll never re-coat and will simply replace the floor when it's done.
Brushed and oiled (hardwax oil)
A wire-brush rotary tool removes the soft grain from the surface leaving a textured profile, then hardwax oil (Osmo Polyx-Oil, Rubio Monocoat) is applied into the open grain. The texture hides minor scratches because a scratch across a textured surface scatters light rather than showing a clean line. The hardwax oil is more durable than pure oil but still spot-repairable.
Best choice for households with children, pets, or anyone honest about the abuse the floor is going to take. Maintenance schedule is the same as standard oiled (6-24 months), with the added step of vacuuming the texture grooves regularly because they trap dust.
Smoked or reactive finishes
Ammonia-fumed or thermally modified oak reacts with the timber's own tannins, producing a colour change through the full depth of the wear veneer rather than just the surface. The aesthetic is stable (cannot peel or chip), but the modified timber is slightly more brittle and offers less refinishability. Premium price point, typically finished with UV oil on top.
Never use a steam mop on any engineered wood floor. Steam penetrates the joints and seals, causing edge swelling, finish delamination, and adhesive bond failure in glue-down installs. Steam mop damage is specifically excluded from every major manufacturer warranty. A slightly damp microfibre mop with a pH-neutral wood floor cleaner is the full maintenance regime for lacquered boards.
How much do you need
Wastage allowance is the first calculation. Standard straight-plank layouts need 10% extra over the measured floor area to cover cuts, off-cut waste, and damaged boards. Herringbone or chevron patterns need 15% because the pattern generates more short-end waste at perimeter cuts.
For a 50m² kitchen extension in straight planks, you order 55m². For the same floor in herringbone, you order 57.5m². Underlay is ordered to the exact floor area with no wastage allowance (the roll is cut to fit). Adhesive, for glue-down, follows the manufacturer's coverage rate: typically one 13kg tub covers 12-15m² at a 10mm notch trowel, so a 50m² extension needs three to four tubs.
Expansion gap deduction is wasted effort; you measure the room as-is and the 10-15mm gap sits under the skirting.
Acclimatisation and expansion gap: the two free insurance policies
Neither costs anything. Skipping either is how most DIY installs fail.
Acclimatisation
48-72 hours minimum with the unopened boxes laid flat in the installation room, at normal occupied temperature (18-24°C) and humidity (35-55% RH). Spaced a few centimetres apart rather than stacked, with the cartons partially opened at the ends to allow airflow. Central heating and UFH should be at normal operating levels during this period.
Boards shipped straight from a cold delivery vehicle or an unheated garage, then installed the same day, expand (if they were too cold and humid) or shrink (if too dry) once the room reaches normal temperature. Both failure modes are visible within weeks. Acclimatisation is free. It takes no site time. There is no reason to skip it.

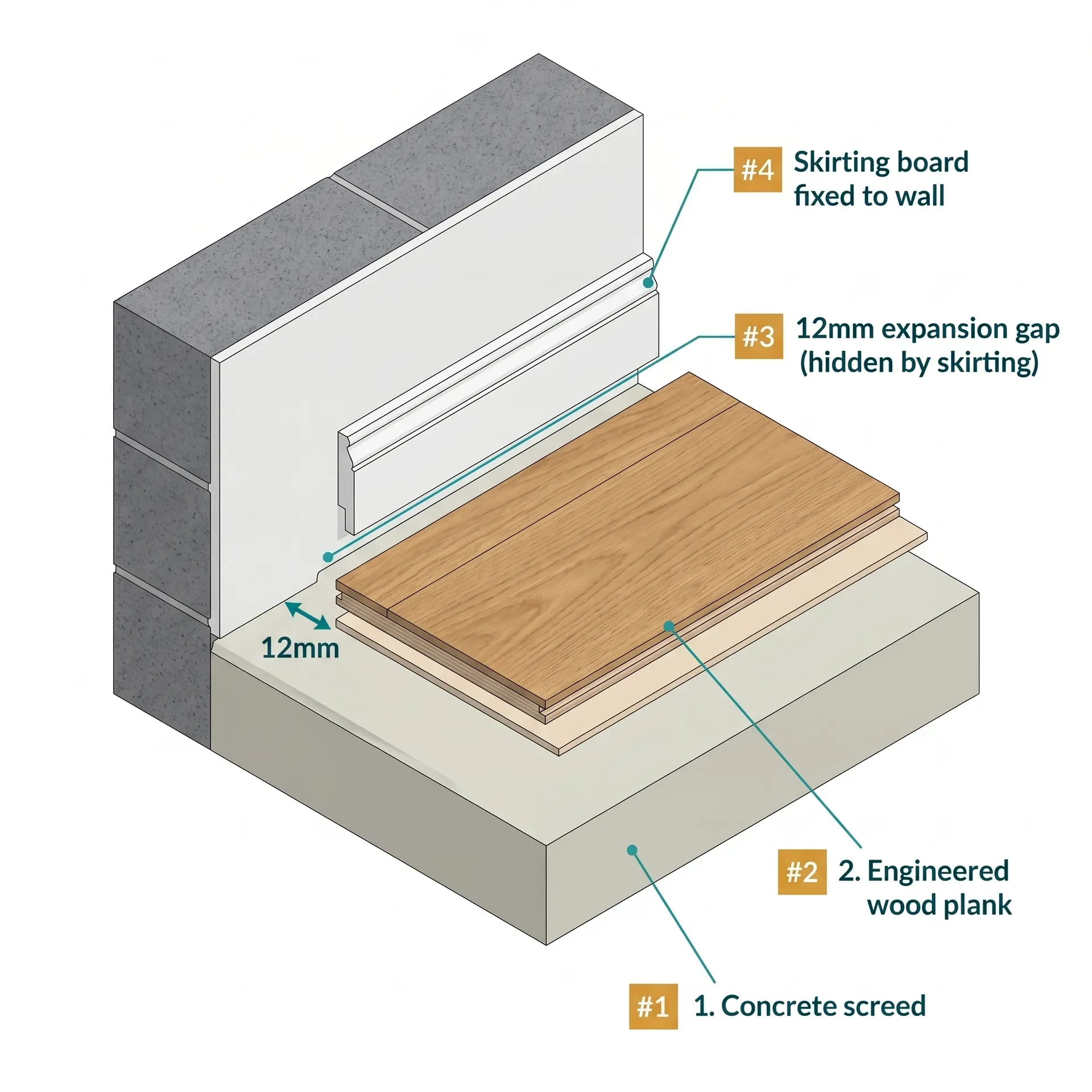

Expansion gap
10-15mm at every wall, skirting, door frame, pipe, structural post, and hearth. Minimum. V4 Wood Flooring specifies 12mm as their working minimum. Skirting boards, beading, or floor trim hide the gap at the perimeter. At doorways, a transition strip (T-bar or threshold profile) straddles the gap and conceals it.
For rooms longer than 8-10m in any direction, an intermediate expansion joint is required in the middle of the run, typically hidden under a door threshold. Add 2mm per extra metre of continuous run over 8m. A knock-through kitchen-diner spanning 12m of continuous floor needs an intermediate expansion joint at the halfway point (concealed by a transition strip at the natural threshold between spaces) even if the room reads visually as one.
Glue-down floors still need the perimeter gap even though the boards are bonded. The bonded adhesive layer accommodates minor movement but not seasonal swings. A documented DIYnot case records a 6m floor buckling across its full width after one winter because a 5mm gap was used instead of 12-15mm. The buckling pushed the whole floor up against the kitchen units, splitting boards and distorting the worktop line.
Cost and where to buy
2026 UK retail pricing runs a wide range. Same square metre of oak flooring varies by a factor of five depending on the brand, veneer thickness, and board format.
| Tier | Product examples (2026 inc VAT) | Price per m² | Veneer / core |
|---|---|---|---|
| Budget | Wickes W by Woodpecker 10mm (Farm Light Oak, Nature Light Oak) | £23-30 | 2-2.5mm veneer / HDF |
| Budget-mid | Wickes W by Woodpecker 14mm (City Oak, Chateau Herringbone) | £30-44 | 3mm veneer / plywood or HDF |
| Mid | Basix Classic 1-Strip, Flooring Superstore Natural Rustic Oak, Kahrs Tres | £41-54 | 3-4mm veneer / plywood |
| Mid-premium | Kahrs Da Capo, V4 Alpine / Heritage / Driftwood | £80-100 | 4mm veneer / birch plywood |
| Premium | Ted Todd Project plank, V4 Tundra chevron | £75-130 | 4-5mm veneer / multi-ply birch |
| Ultra-premium | Ted Todd Furrow herringbone, Kahrs Da Capo Oak Maggiore | £115-120+ | 5-6mm veneer / multi-ply |
Labour ranges are summarised in the comparison table above. Solo fitter day rates sit at a standard carpentry day rate; a two-person team roughly doubles that. A 50m² extension typically takes one fitter three to four days in straight planks and five to six in herringbone. Herringbone or chevron patterns add roughly 20-30% to the per-m² labour rate on top of the straight-plank baseline because every board has to be mitred and indexed against a reference line.
For the 50m² extension baseline at mid-range specification, the all-in cost (materials, underlay, fitter labour, door trims, transition strips, wastage) sits at £2,500-5,000. Budget specifications land at the lower end, premium brands and herringbone patterns push the upper end.
Ancillary costs add up quickly. UFH-rated underlay at a low per-m² rate (do not substitute standard acoustic underlay). PU or SMP adhesive per 13kg tub for glue-down, covering 12-15m². Self-levelling compound if the subfloor needs correction. Old floor removal adds a modest per-m² labour line. Door trimming where boards pass under door linings costs roughly a short per-door charge.
Where to buy
Wickes and Flooring Superstore cover the budget to mid tier with own-brand and Woodpecker products. Basix, Kahrs, and V4 are stocked through specialist flooring retailers (One Stop Flooring, Tile and Floor Superstore, Grosvenor Flooring) and distributed through builders' merchants on trade account. Ted Todd is sold through approved dealers only (Timber Floor Studio and a small network of showrooms) and does not discount at retail.
Builders' merchants (Travis Perkins, Jewson) can source any of these brands on trade account with a single-digit percentage discount on retail pricing for orders over 30m². For a 50m² extension that amounts to a low three-figure saving on the material cost alone. Delivery is a real consideration: engineered oak arrives in 20-30kg cartons, and a 50m² order runs to 15-20 boxes. Most suppliers charge a modest pallet delivery fee and will kerb-drop only. Getting the pallet into the extension is your problem unless you specify inside delivery at extra cost.
Alternatives
Engineered wood is not the only option for a kitchen extension floor, and it is not always the right one.
Luxury vinyl tile costs less on supply, handles water without damage, works fine over UFH at any flow temperature, and installs faster with a 75% RH moisture threshold instead of 65%. It cannot be refinished and does not have the natural appearance of real wood. Best call for utility rooms, family kitchens with pets or small children, rental properties, or any budget-led spec.
Porcelain floor tiles cost more over the full install for mid-range tiles but transfer UFH heat better than any other finish, are completely waterproof, and last the life of the building. Cold underfoot when heating is off, acoustically harder than wood, and expensive to break through if services below need accessing. The usual call for high-traffic areas where durability matters more than the soft feel of wood.
Laminate flooring is sometimes positioned as a wood alternative but it is not the same product. Laminate has a photographic print of wood grain under a plastic wear layer; there is no real wood in it. Cheaper than engineered, faster to install, and fine for bedrooms, but not a credible replacement for engineered oak in a kitchen-diner where the floor is part of the aesthetic.
Where you'll need this
- Flooring - laying engineered oak over liquid screed and UFH during second-fix stage
- Second-fix plumbing - the floor goes down before skirting and architrave, which means pipework enters the room through carefully positioned holes
Engineered wood flooring sits at second-fix stage on any extension, renovation, or loft conversion where a warm timber finish is specified over a heated floor. The sequencing rule (screed, full drying, moisture test, acclimatisation, then install, then skirting) is the same regardless of project type.
Common mistakes
Installing engineered wood in a wet room or bathroom. Engineered wood is not waterproof and the HDF or plywood core swells on sustained water contact. Marketing language describes budget boards as "water-resistant," which means the surface shrugs off brief spills. It does not mean the board can tolerate steam, splashes, or condensation over time. Use luxury vinyl tile or porcelain in any space with a floor drain.
Skipping acclimatisation. Boards delivered from a cold van and installed the same day expand or shrink once the room reaches normal temperature, producing buckling or gapping within weeks. 48-72 hours in the installation room at occupied temperature is free and non-negotiable. Failing to acclimatise is cited in almost every forum post documenting a premature failure.
Running UFH too hot after install. Switching the system straight from off to full operating temperature, or using boost mode in the first weeks, causes veneer splitting at plank edges and knots. Ramp up at maximum 1°C per day to operating temperature.
Inadequate expansion gap, especially at doorways. A 5mm gap instead of 12-15mm leaves no room for seasonal expansion. Floors buckle in summer or when UFH first reaches operating temperature. At doorways a transition strip straddles an adequate gap with no visual downside.
Choosing 2mm veneer for a kitchen. Budget 2mm-veneer board in a high-traffic room wears through to the core within 5-8 years and cannot be refinished. The cost saving over a 4mm product is rarely justified by the life expectancy difference. 2mm veneer belongs in bedrooms and low-traffic second rooms, not in front of the cooker.
