Transition Strips: T-Bars, Reducers and Thresholds for UK Floors in 2026

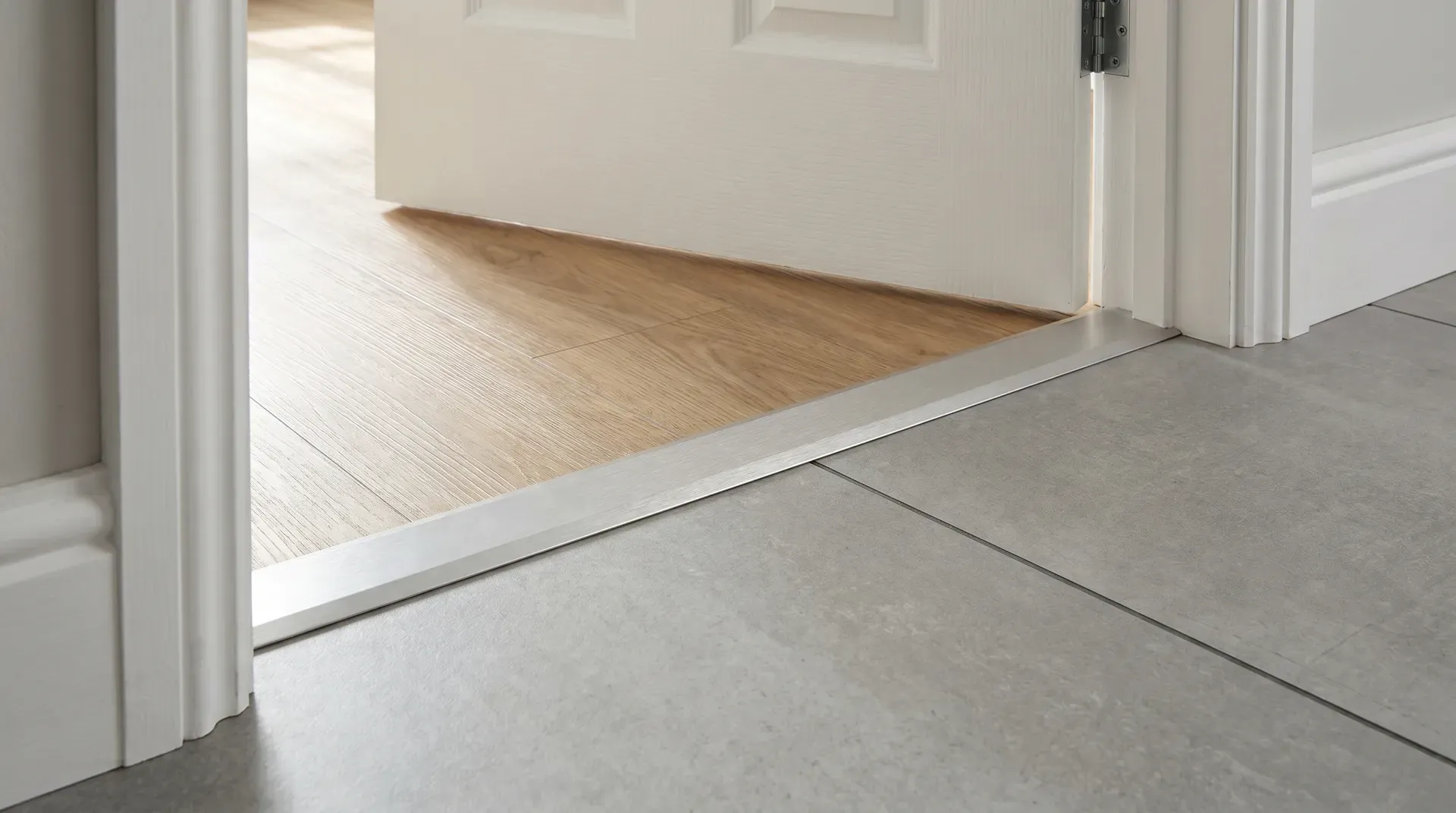

A 4m² kitchen extension floor bulges in the middle of July. The fitter laid a gorgeous click LVT wall-to-wall, ran it through the doorway into the hall, butted it tight against the carpet in the adjoining room, and skipped the threshold bar because "it looked neater without one". The floor had nowhere to expand. The flooring warranty is void, because every floating floor warranty in the UK requires a transition strip at every doorway. A skipped threshold bar would have saved a floor replacement bill. Transition strips look like a trim. They are actually a structural requirement.

What it is and what it's for

A transition strip is a metal, wood, or plastic profile that bridges two floor finishes. You see them at doorways between rooms with different floors, at level changes between a kitchen and a hallway, and at the exposed edge of a floor where it meets a hearth, step, or sliding door track. The profile does four jobs at once. It covers the expansion gap that every floating floor needs. It protects the raw edge of the flooring from being kicked, catching, or chipping. It smooths any height difference so nobody trips. And it provides a clean visual break between two finishes that would otherwise meet in an ugly, dust-catching line.

Every click-together floor sold in the UK (laminate, LVT, engineered wood) is a floating floor. It is not fixed to the subfloor. Instead it rests on an underlay and is free to expand and contract with temperature and humidity. That movement needs somewhere to go. The expansion gap around the perimeter of the room handles edges against walls. But in doorways, where the floor on one side needs to move independently of the floor on the other, a transition strip covers and protects a deliberate gap in the middle. Omit the strip and you pin the floor. The floor has nowhere to grow. It buckles, peaks at the joints, or splits at the click seams.

The relevant UK standards are straightforward. Approved Document M (Building Regulations, accessibility) caps the maximum threshold upstand at 15mm in accessible dwellings, and any upstand above 5mm must be chamfered or rounded to prevent a trip hazard. BS and HSE guidance treats any floor-to-floor step over 3-4mm as a trip risk that needs a reducer. Beyond the regs, almost every flooring manufacturer's warranty makes transition strips at doorways a condition of cover. Skip them and any future warranty claim fails on the spot.

The trade calls these strips by several names. Threshold strip, doorway strip, door bar, cover strip, T-bar, reducer, end cap, transition profile. They are all the same family of product. The distinctions come down to the profile shape (which depends on whether the two floors are level or at different heights) and the material (which is a mix of cost and looks).

Types, sizes, and specifications

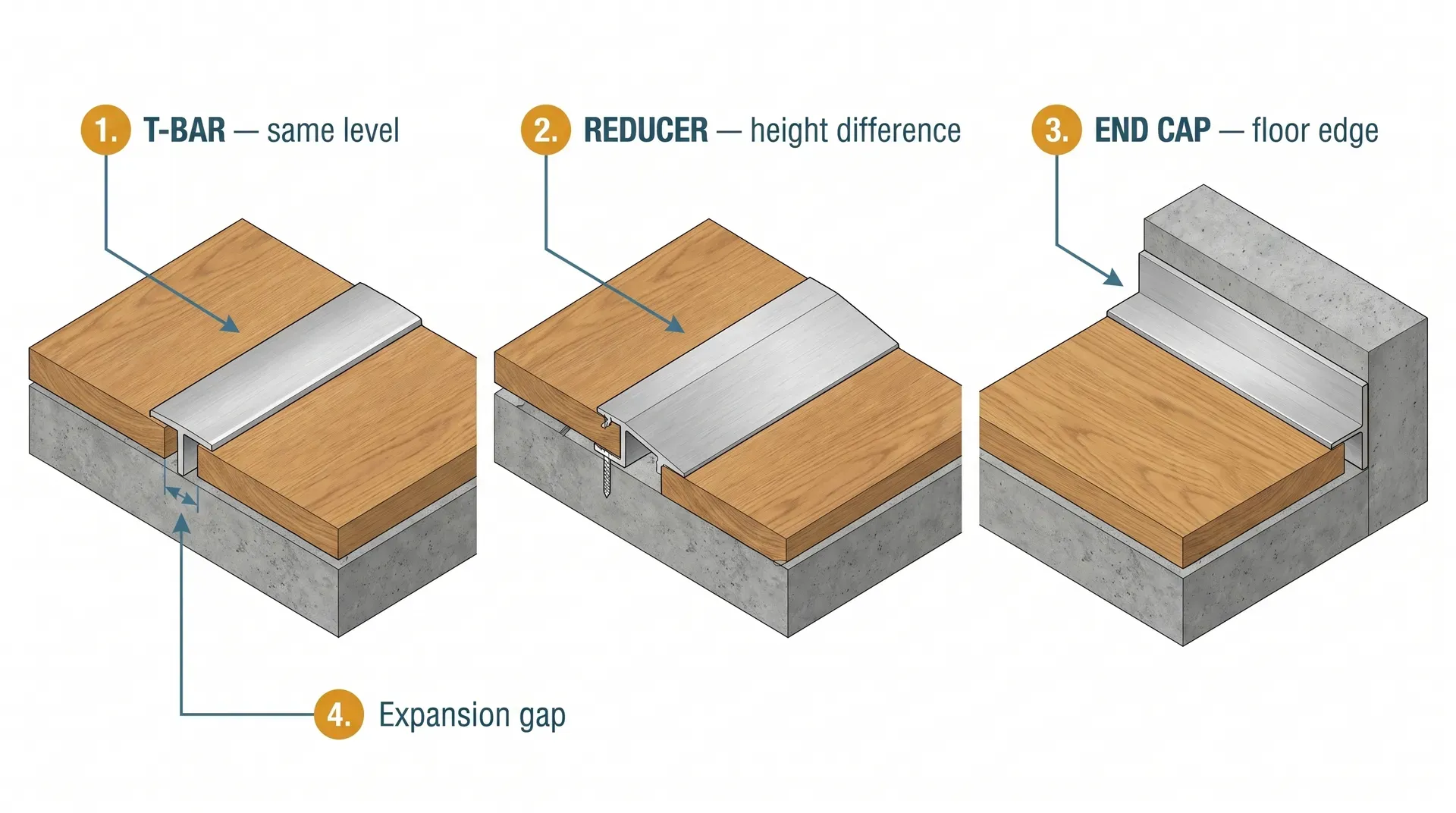

Three profile shapes cover most domestic installations: T-bar, reducer (also called a ramp), and end cap. A fourth specialist category, stair nosing, appears where flooring runs over a step edge. A fifth, the carpet door bar, is a purpose-built variant for carpet-to-hard-floor junctions.

Click to enlarge

T-bar

A T-bar has a T-shaped cross section. The stem of the T drops into the expansion gap between the two floor edges, and the top of the T caps the gap from above. On the best products (and any reasonable quality brand), the T-bar is a two-part system. A metal or plastic channel (the "track") screws or bonds to the subfloor first. The decorative top cap then clips or snaps into the track. This hides all fixings and means you can replace a damaged top cap later without disturbing the floors or the track.

Use a T-bar when both floors are the same level, or within 3mm of each other. The flat profile sits flush, covers the expansion gap, and looks clean.

Reducer (ramp)

A reducer has a sloped top face, descending from the higher floor to the lower floor. The rise varies by material: PVC reducers typically handle 0-6mm, aluminium reducers 3-18mm (some heavy-duty profiles up to 22mm), and solid brass reducers 2-9mm. For height differences above 22mm you are in bespoke territory: either rebate the subfloor on the higher side to level the two floors before fitting a T-bar, or install a two-stage transition with packing shims beneath a taller reducer.

Any step over 3mm between adjacent floors is a trip hazard in practice. 4mm is the BS/HSE threshold where a reducer becomes effectively mandatory. In an accessible dwelling built to M4(1), M4(2), or M4(3), the 15mm maximum upstand from Part M applies and anything over 5mm must be chamfered or rounded. A standard aluminium reducer ramp meets both requirements.

End cap

An L-shaped or square-edge profile that finishes a floor edge where there is no adjacent floor to join. Common cases are where a new kitchen floor meets a stone hearth, a sliding door recess, a bath panel, or the edge of a step down to a lower room. One leg anchors to the subfloor beneath the flooring. The vertical face covers the exposed floor edge. End caps are sometimes called terminal profiles or square edge profiles.

Stair nosing

A specialist profile for the leading edge of a step where LVT, laminate, or tile runs to the stair edge. Most domestic stair nosings are aluminium with a PVC or rubber non-slip insert along the nose. Standard dimensions for 5mm LVT are a 42mm-wide top face and a 28mm drop down the riser. BS 8300 and DDA guidance require non-slip nosings with colour contrast in commercial settings, and that same specification is sensible in a home with children or older residents.

Carpet door bar

A Z-bar or adjustable threshold where carpet meets laminate, LVT, or tile. It clamps the carpet edge on one side while resting on the rigid floor on the other, and it can be packed underneath with shims to bring it to the correct height. Professional fitters generally prefer square-edge profiles over T-profiles on the carpet side, because the unsupported carpet side of a T-profile rocks and wears faster.

Profile materials

Anodised aluminium is the default choice in UK homes. It is light, strong, cut with a hacksaw or mitre saw, and available in enough finishes to match almost any door furniture. Stainless steel costs more and is worth the premium only in wet rooms or where a specific commercial look is wanted. Solid oak profiles (or pre-stained veneer variants) give the best visual match to a wood or wood-effect floor, but suffer in moisture. The branded Incizo profiles from Quick-Step and Pergo sit at a modest premium per 2.15m length (Flooring King, Flooring Village, April 2026) and are the only factory-matched colour option for those floor ranges, worth it on a feature doorway where a mismatch would look obvious.

How to work with it

Cutting

Aluminium transition strips cut cleanly with a hacksaw fitted with a fine-tooth blade (24-32 TPI) or a mitre saw fitted with a non-ferrous metal blade. File the cut edge smooth and deburr the ends. Solid oak profiles cut with a standard wood saw or a mitre saw; a 60-tooth ATB blade gives the cleanest end grain. uPVC profiles cut with a hacksaw or sharp utility knife scored multiple times. Branded Incizo profiles are sold pre-cut to 2.15m; cut them to length with a mitre saw or hacksaw, not a power saw with a chipping blade.

Measure the full doorway width from jamb to jamb. Cut the strip 2-3mm short at each end so it sits within the door lining rather than butted tight, which leaves a small tolerance for expansion and for fitting the strip cleanly. Where the strip runs full width, maintain a 5mm expansion gap between each end of the strip and the door frame.

Fixing methods

Three methods cover almost every situation. Choose based on the subfloor, the presence of underfloor heating, and how much the fixings matter visually.

Concealed track is the default for a reason. The strip stays clean-looking for the life of the installation, the track can be refixed or replaced without lifting the floor, and the top cap comes off for replacement if it gets damaged. The fixings are hidden and the profile stays below the line of the top cap.

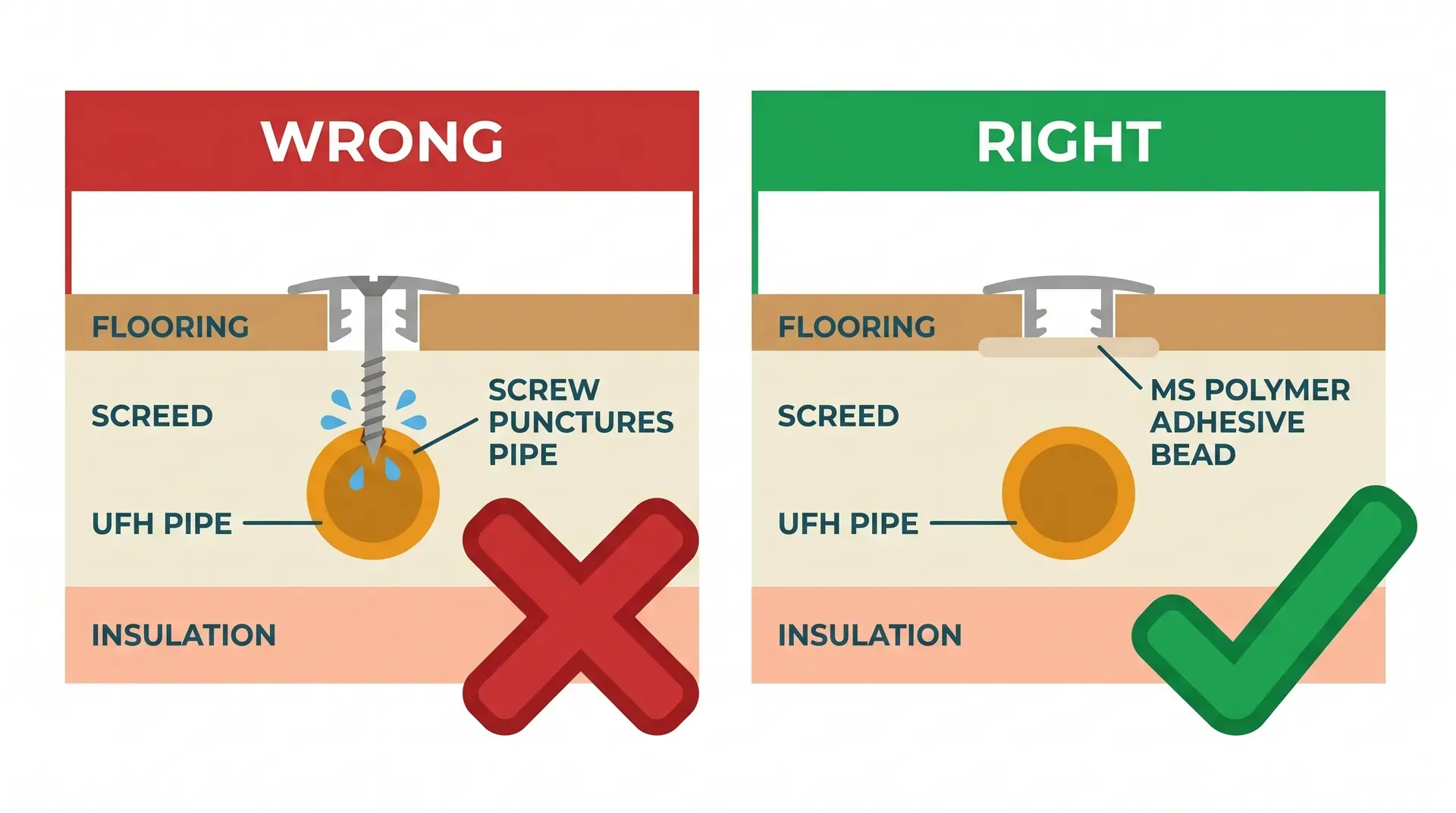

Fixing over underfloor heating

Drilling fixings through a screed containing UFH pipes or electric heating mats risks puncturing the heating circuit. A leak or short in a buried heating system is not a cheap repair. On any floor with underfloor heating, use a self-adhesive strip or bond the track down with construction adhesive (MS polymer or a high-strength hybrid adhesive like Sikaflex or CT1). Do not screw into the screed unless you have cable or pipe depth confirmed from the installer's as-built drawings, and even then, drill no deeper than you need and use the shortest fixing that will hold.

Click to enlarge

Door undercutting

Adding new flooring raises the finished floor level. The combined thickness of the floor, underlay, and the transition strip may exceed the original clearance under the existing door. If the door cannot close with the strip in place, you have three options: undercut the door jambs and architrave so the strip slides beneath them (tidy, and hides the raw edge of the strip), plane or shorten the door leaf so it clears the new floor height (reliable but leaves a wider gap at the bottom), or both, depending on how much height you have added.

Professional floor fitters undercut jambs as a matter of course. Standard UK internal door clearance is around 10mm above finished floor level, but it varies; always measure on site before committing to a strip height. A stacked offcut of the new flooring plus underlay gives a reliable cutting guide for a flush trim saw or oscillating multi-tool. Cut the jamb 1-2mm deeper than the stacked height to give the strip and any minor movement somewhere to sit.

Click to enlarge

Storage and handling

Aluminium and stainless profiles are easy to bend if stored flat under weight. Stand them vertically or hang them on a rack. Solid oak profiles warp if stored in a damp garage; keep them inside at room temperature for 48 hours before fitting, which lets the timber acclimatise and prevents movement after installation. uPVC becomes brittle below about 5°C and cracks if cut or flexed cold. Bring it inside to warm up before cutting.

How much do you need

Transition strips are counted, not calculated. One strip per doorway, plus one per level change or end-of-floor junction. The only calculation to get right is length.

Standard lengths sold in the UK:

• 0.9m (retail: Wickes, B&Q, Vitrex). Fits a standard 762mm or 838mm internal door. Most common DIY size.
• 1.0m (B&Q A54 aluminium range).
• 1.8m (Wickes silver T-bar). Fits a double door or a wide opening.
• 2.15m (Quick-Step Incizo, Pergo Incizo). The branded laminate profiles' standard length.
• 2.5m (Dural, Schluter SCHIENE, Schluter RONDEC). Trade and tile-trim profiles.
• 2.7m (generic UK retail and stair nosings).

Measure the clear opening width between the door jambs. Add nothing for overlap (the strip sits inside the jambs, not under them, unless you have undercut the jambs). Subtract 4-10mm total for the expansion gaps at each end. That gives you the strip length.

A worked example: a standard 762mm internal door opening with 5mm expansion at each end needs a 752mm strip. Cut from a 0.9m (900mm) retail length with 148mm offcut to spare.

For a double door or bifold opening at 1500mm clear width, a 1.8m strip is more cost-effective than two 0.9m strips butted together, because a butt joint in the middle of a wide opening is visible and catches muck. The 1.8m Wickes silver T-bar sits at a low single-item price point (Wickes, April 2026) and is a good default.

For a typical kitchen extension you are buying strips for: the main doorway into the hallway, any secondary doorway to a utility or boot room, any doorway to a WC, and any level change at a bifold threshold. Budget for three to five strips on a ground-floor extension project.

Cost and where to buy

Transition strip pricing splits into five tiers. The tier is driven primarily by material (aluminium, steel, oak, branded composite) and length.

Budget retail aluminium (Wickes, B&Q, Vitrex)

Standard anodised aluminium T-bars and reducers at 0.9m to 1.0m sit at the bottom of the market. A Wickes 0.9m T-bar and reducer is a low single-item price (Wickes, April 2026). A B&Q A54 anodised aluminium T-bar at 1.0m sits similarly (diy.com, April 2026). Vitrex carpet-to-laminate cover strips at 0.9m span a short price range depending on finish (Wickes, April 2026). These are fine for most domestic doorways if the finish suits the decor. Available finishes include silver, gold, champagne, bronze, black, inox (brushed), and electro-polished.

Mid-range aluminium (National Stair Nosings, specialist retailers)

Specialist suppliers stock wider ranges of profiles, heights, and finishes than DIY sheds. Standard aluminium T-bars and reducers from National Stair Nosings sit at entry-to-mid retail tier per strip (nationalstairnosings.co.uk, April 2026). Stair nosings at 2.7m step up a tier depending on profile shape (National Stair Nosings, stairnosingsuk.co.uk, April 2026). Heavy-duty reducers for larger height differences reach the upper retail tier per strip.

Solid oak door bars

Oak T-bars and reducers at 0.9m sit at roughly double the entry aluminium retail tier. Wickes and All-in-All Flooring Accessories both stock mid-tier solid oak threshold bars and reducer bars (Wickes, all-in-all-flooring-accessories.co.uk, April 2026). Wood Flooring Supplies runs wider across thicknesses and stain options, with thicker colour-stained profiles at the top end of the oak retail range. Budget roughly double the aluminium cost for solid oak, and expect to factor in the visual payoff against oak flooring.

Branded Incizo profiles (Quick-Step, Pergo)

The Incizo system is a 5-in-1 profile: the same base can be cut and configured as a T-bar, reducer, end cap, carpet join, or stair nosing. A Quick-Step Incizo 2.15m laminate profile sits at the mid retail tier across Flooring King and Flooring Village (April 2026). The Pergo equivalent sits in the same band. 100+ colour options match the Quick-Step floor ranges exactly. If you are fitting a Quick-Step or Pergo floor and want a precise colour match at the doorway, the Incizo profile is worth the premium over a generic aluminium strip. If you are using a different floor, the colour match is not there and a generic profile is better value.

Trade tile trims (Dural, Schluter)

These are a different category of product, used during tile installation rather than as retrofit strips. A Schluter SCHIENE A aluminium tile edge trim at 2.5m sits at a short entry retail band depending on height (Tiling Supplies Direct, April 2026). A Schluter RONDEC E stainless steel tile trim at 2.5m spans a wider band depending on height (Tiling Supplies Direct, April 2026). Dural Duraflex KA drilled aluminium transition strips at 2.5m sit in the mid retail band depending on cover width (Premium Tile Trim, April 2026), with self-adhesive variants at the lower end of that band. Tile trims are embedded in tile adhesive during tiling; they become a permanent part of the tile installation. They are the right choice when a tile floor meets another floor at the same level, specified and installed by the tiler before grout.

Where to buy

For standard aluminium profiles, Wickes, B&Q, and Screwfix cover 80% of UK domestic needs. For wider colour ranges, heavier-duty reducers, and stair nosings, specialist online suppliers like National Stair Nosings, Quality Carpet Trims, and All-in-All Flooring Accessories have deeper stock. For Quick-Step or Pergo Incizo profiles, named flooring retailers (Flooring King, Flooring Village, Flooring Superstore) carry them in the matched decor ranges. For tile trims, tile-specialist retailers like Tiling Supplies Direct, Premium Tile Trim, and Pro Tiler Tools have the full Dural and Schluter ranges.

Delivery considerations are small for transition strips. A 0.9m profile fits in a carrier bag. A 2.5m tile trim ships in a long cardboard sleeve and arrives by parcel courier. The only catch is very long profiles (4m aluminium strips for wide openings) which are not widely stocked in retail and often need a specialist supplier with a courier that handles extended-length parcels.

Alternatives

There is no direct substitute for a transition strip at a doorway with a floating floor. The manufacturer's warranty requires one, and the physics of thermal expansion makes one necessary regardless of warranty. But within the category, several alternatives serve different situations.

A colour-matched grout-filled expansion joint is an alternative between two large-format tile floors at the same level, where both tiles are installed in the same continuous tile bed. Instead of a raised metal trim, you leave a 6-10mm joint between the two floors and fill it with a flexible grout (typically a polymer-modified cementitious grout or a silicone matched to tile colour). This looks cleaner than a metal strip on a continuous tile floor, but it only works for tile-to-tile at the same level. Any floating floor still needs a metal or wood strip.

A carpet gripper rod with a flat finish is sometimes used where carpet meets a tile floor at the same level, as a cheaper alternative to a Z-bar threshold. It works but leaves the carpet edge less protected against foot traffic and vacuum cleaners. Spend the modest extra on a proper carpet door bar.

A tile edge trim installed during tiling (Schluter SCHIENE, Dural Duraflex KA) replaces a retrofit transition strip at any tile-to-other-material junction. This is the professional choice when the tile floor is being installed fresh; it is not a retrofit option once the tile bed has cured.

Where you'll need this

• Flooring - one transition strip at every doorway where a floating floor meets another floor, plus any level changes or end-of-floor junctions

Transition strips appear throughout any extension or renovation project where new flooring meets existing flooring at a doorway, where two different floor finishes meet in a single room, or where a floor ends at a stair edge, hearth, or sliding door track. Budget a strip per doorway and one per level change on every flooring schedule.

Common mistakes

Skipping the strip on a floating floor. The single most expensive transition-strip mistake. Every floating floor warranty in the UK requires a transition strip at every doorway so the floor can expand. Without one, the floor pins itself between rooms and fails at the seams within two to three seasonal cycles. The cost of omitting a sub-twenty-pound threshold bar is a four-figure floor replacement bill at typical LVT supply-and-fit rates for a 25-30m² area.

Screwing the strip or its track into the floating floor. The track must fix only to the subfloor. Fixing into the laminate, LVT, or engineered wood itself prevents the expansion the floor was designed to accommodate. The floor squeaks, peaks at joints, or splits at click seams.

Forgetting to undercut the door. Adding new flooring raises the finished floor level. If the strip plus new floor exceeds the original door clearance, either the door cannot close, or the strip cannot fit. Check clearance before ordering and undercut jambs or plane the door leaf as needed.

Using a T-bar where a reducer is needed. A T-bar across a 10mm height difference leaves a dangerous step edge. Use a reducer (ramp) for any level change over 3mm. The correct profile has a sloped top face that eliminates the trip hazard.

Surface-screwed strip catching feet. Screw heads left proud of the strip surface, or a strip positioned in the high-traffic line rather than directly under the closed door, create trip hazards. Countersink screws fully and position the strip so it sits beneath the closed door line.

Cheap colour mismatch. Generic silver aluminium against warm oak laminate looks amateurish. Match the finish to the floor (branded Incizo on Quick-Step or Pergo ranges) or at least to the door furniture (champagne or bronze anodised to match brass handles; inox brushed to match stainless handles; black to match matt black fittings).

Self-adhesive strip on a dusty or uneven subfloor. Adhesive fails on porous, dirty, or uneven surfaces. Clean the subfloor with isopropyl alcohol, check flatness with a 600mm straightedge, and switch to a screw-fixed or track-fixed strip if the subfloor is not good enough for adhesive.

Drilling screws through a UFH screed. Risks puncturing heating pipes or electric mats. On any UFH floor, use a self-adhesive strip or bond the track down with MS polymer adhesive. Do not drill into the screed unless you have pipe or cable depth confirmed from the installer's as-built drawings.

Cutting the strip too short at each end. Gaps at each end allow debris to get under the strip. Cut the strip to within 4-10mm of the full doorway width (5mm expansion gap at each end is right), not 50mm short of the opening.
