Porcelain Floor Tiles: The Complete UK Guide for Kitchen Extensions

Your extension floor goes down in the wrong order and you won't find out for six months. The tiler arrives, the screed looks flat, the tiles go in, grout cures, heating comes on. Then at the second winter the grout starts cracking along one line, a tile pops hollow when you tap it, and the cost of pulling it up beats the cost of doing it properly first time by a factor of four. Porcelain is the right floor finish for a UK kitchen extension with underfloor heating. It conducts heat better than any other domestic flooring, it's fully waterproof, and it will outlast the kitchen units by thirty years. But it needs the right substrate, the right adhesive, the right membrane, and the right sequence. Cut corners on any of those and the floor fails.

What it is and what it's for

Porcelain tile is a dense, vitrified ceramic fired at 1200-1400°C (compared with 900-1050°C for standard ceramic tile). That higher firing temperature fuses the clay body into something closer to glass than pottery. The result is a tile that absorbs less than 0.5% of its weight in water (tested per BS EN ISO 10545-3, classified as Group BIa under ISO 13006), registers 7-8 on the Mohs hardness scale (ceramic sits at 5-6), and weighs 20-24kg per m². The everyday consequences of those numbers: porcelain doesn't stain, doesn't absorb spills, doesn't chip from dropped pans the way ceramic does, and handles anything a UK kitchen will throw at it.

For a kitchen extension floor, porcelain is the default choice for one specific reason beyond durability: it conducts heat better than anything else you'd reasonably put on an extension floor. Thermal conductivity sits at 1.3-1.5 W/mK depending on the specific tile body, against roughly 0.15 W/mK for engineered wood and 0.25 W/mK for LVT. If you've paid for an anhydrite liquid screed with UFH buried in it, porcelain lets that system actually warm the room. Put LVT on top and you've insulated the heating system from the room it's meant to heat.

The other numbers worth knowing before you buy:

• PEI rating (BS EN ISO 10545-7): abrasion resistance on a five-level scale. PEI I is bedroom-only. PEI II is light domestic. PEI III is all domestic areas including kitchens. PEI IV is heavy residential and light commercial. PEI V is heavy commercial. A busy family kitchen with a dog and three children will scratch a PEI III tile within a couple of years.
• R-rating (DIN 51130): slip resistance, measured by the angle at which a person starts to slide on an oiled ramp. R9 is dry areas only. R10 is standard kitchen and bathroom. R11 is wet zones and splash areas. R12 and R13 are commercial. If you have a rear door onto a patio where rain gets tracked in, specify R11.
• Rectified vs cushion edge: a rectified tile has been ground square after firing to a sharp 90° edge. This lets the tiler use 2mm grout joints. Cushion-edge tiles have a slightly rounded factory edge and need 3-4mm joints minimum because the edges won't butt up cleanly. Large-format tiles are almost always rectified. Cheaper budget tiles often aren't.

Porcelain also comes in sizes that matter for how the floor looks. Common UK formats are 300x600mm, 600x600mm, 800x800mm, 600x1200mm, and 1200x1200mm. Large-format (anything 600mm on the long edge or bigger) is what nearly every kitchen extension now specifies, because fewer grout lines makes a small space look bigger. But large format multiplies the demands on substrate flatness, adhesive coverage, and cutting tools.

Porcelain vs ceramic: what actually changes

Most homeowners treat porcelain and ceramic as the same product at different price points. They're not. The difference matters for where you can use each type, how long it lasts, and how the tiler has to install it.

The practical upshot: if your floor has underfloor heating, spans an extension that flexes seasonally, or sees heavy traffic, specify porcelain. Ceramic is fine for a bathroom wall or a utility room floor that gets light use. For a kitchen floor with UFH on a screed, don't let anyone talk you into ceramic because the supply price is lower. The installation cost is higher than the tile cost, so you're saving a small percentage of total project cost and accepting a tile that will absorb stains, chip from impacts, and warm up more slowly.

See the separate guide on ceramic floor tiles for situations where ceramic is the right call.

Choosing the right porcelain tile

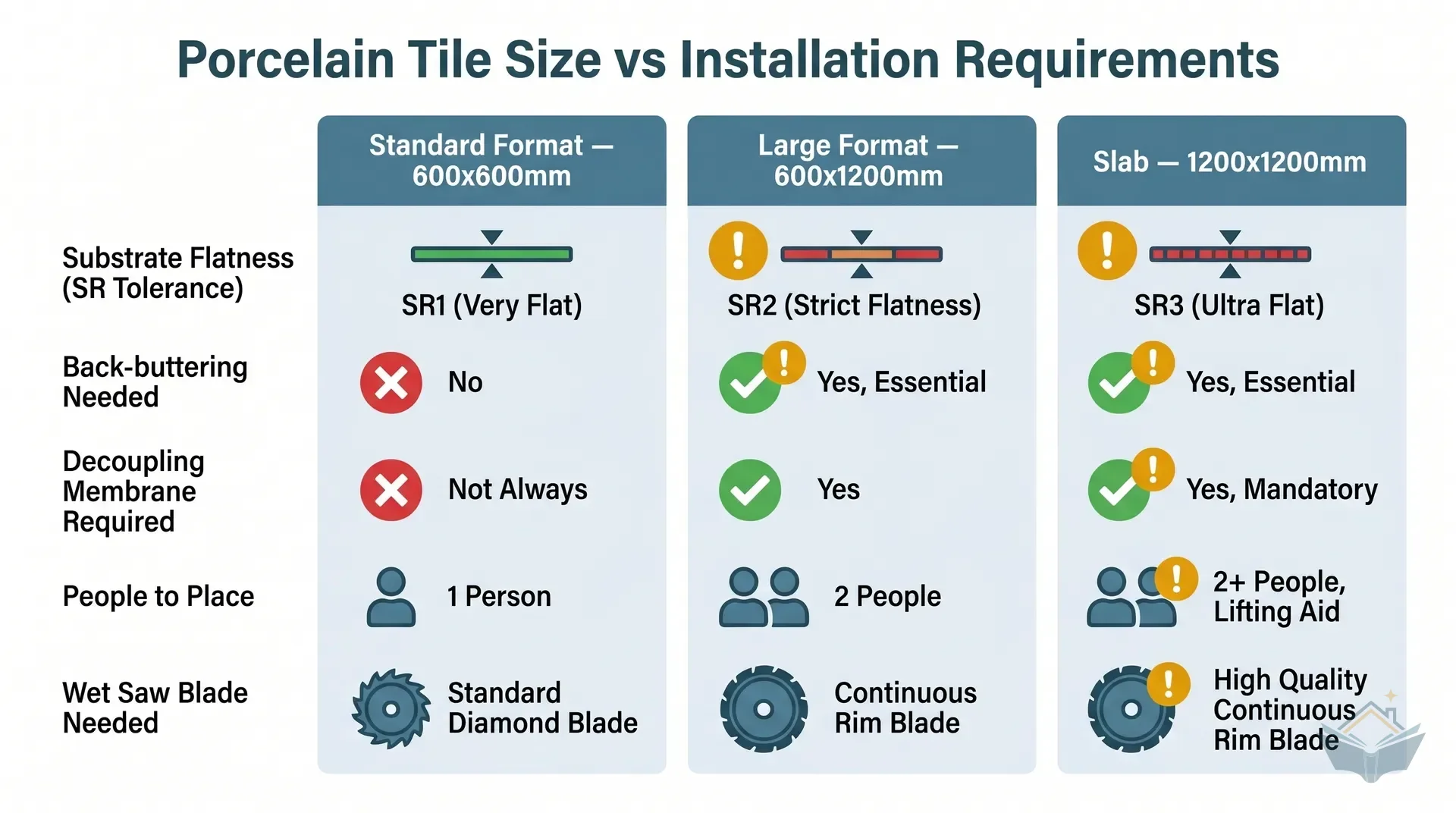

Size

Pick the size before you pick the pattern. A 600x1200mm tile in a 3m-wide galley kitchen looks generous. The same tile in a 2m-wide utility corridor looks wrong. As a rule of thumb, the tile's long edge should divide evenly into the shorter room dimension at least twice. For typical kitchen extensions (3.5-6m wide), 600x600mm and 600x1200mm are the safe defaults.

Large-format tiles (600mm+) hide the floor better because there's less grout. But they demand:

• A substrate that meets SR1 flatness tolerance (3mm deviation over a 2m straightedge, per BS 8204). Screed at SR2 or worse will show every dip as lippage between tiles.
• A tile levelling system (clips and wedges that force adjacent tile edges to sit flush during cure). Without one, even a skilled tiler will leave visible lippage on tiles this size.
• A wet saw capable of the cut length. A 300mm manual cutter won't cross a 1200mm tile.
• Two people to handle each tile. A single 600x1200mm porcelain weighs 17-18kg and flexes enough during placement that one person alone will crack it.

Finish

Matte is the sensible kitchen finish. It hides water spots, fingerprints, and micro-scratches. Polished porcelain looks beautiful in a showroom but shows every footprint and smear in a real kitchen, and the polishing process opens up micro-pores in the surface that need sealing (a water-based penetrating sealer, reapplied every 2-3 years) to stop coffee, red wine, and olive oil staining. Textured and structured finishes (stone-effect, wood-effect, tactile grip) push the R-rating up to R11 or R12 and are worth specifying near external doors.

PEI and R-rating match to room

For a kitchen extension floor where cooking, foot traffic, dogs, and dropped utensils all happen, specify PEI IV minimum and R10 minimum. For a rear kitchen extension with a door opening onto a garden or patio, spec R11 within 1m of the door to handle wet shoes tracking in rain.

The substrate: this is what kills porcelain floors

Tile failure in UK extensions almost always traces back to the substrate, not the tile. Porcelain itself is close to indestructible. What fails is the bond between the tile and the screed, or the screed itself cracking and taking the tile with it.

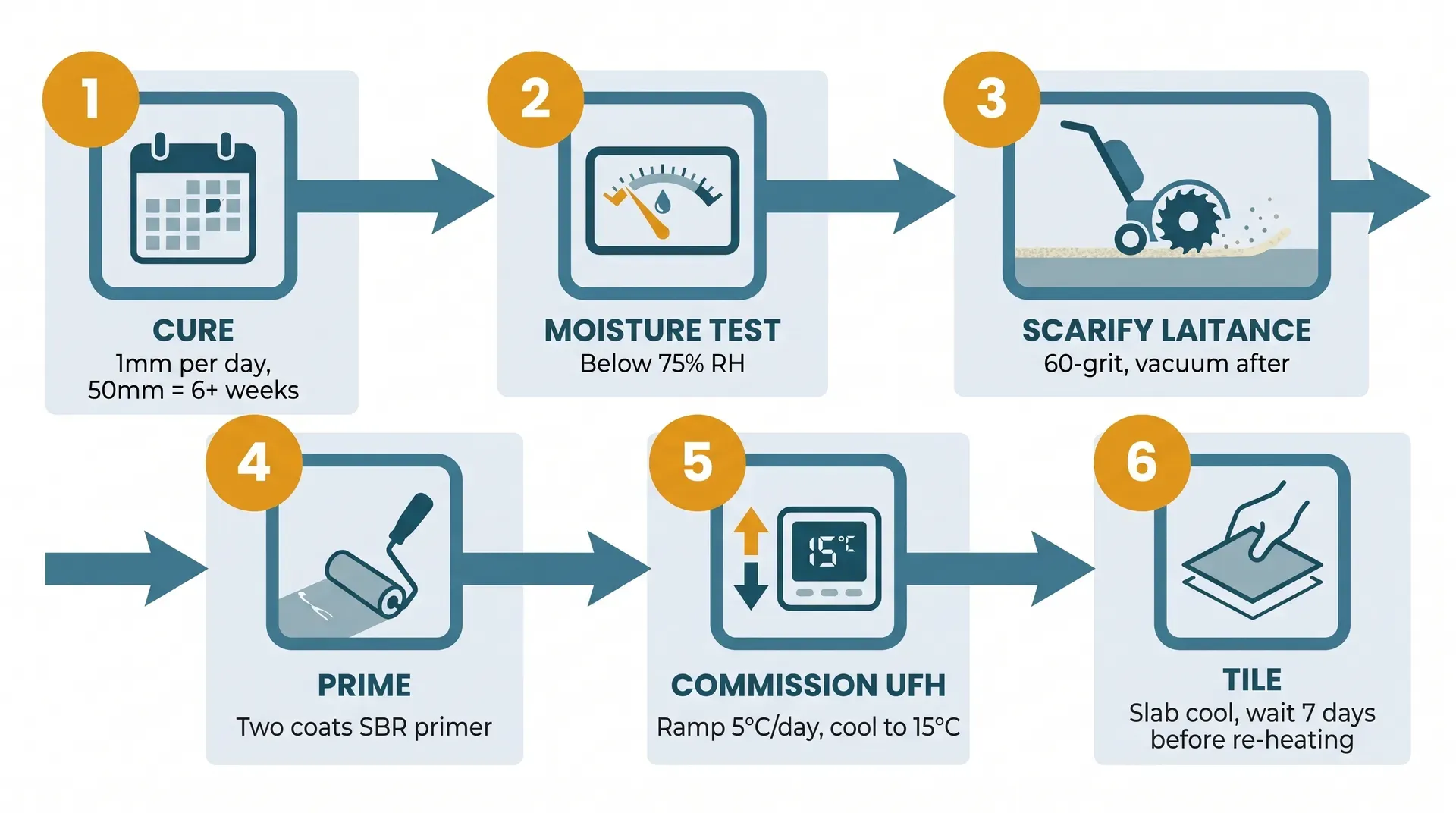

Anhydrite (calcium sulphate) screed preparation

Most new kitchen extensions use liquid anhydrite screed because it flows around UFH pipes better than sand-cement and conducts heat more efficiently. See the liquid anhydrite screed page for the full spec. What matters for tiling: anhydrite screed develops a laitance (a thin, weak layer of fine particles and binder) on the surface as it cures. If you tile directly onto that laitance, the adhesive bonds to a layer that isn't structurally attached to the screed below. The first thermal cycle from the UFH pulls the tile, adhesive, and laitance off in a single sheet.

The anhydrite preparation sequence is non-negotiable:

1. Wait for cure. Anhydrite dries at roughly 1mm/day under ideal conditions (20°C, 65% RH or below). A 50mm anhydrite pour needs ~6 weeks minimum in ideal conditions; 8-12 weeks typical once UK winter humidity and real site conditions are factored in. Dehumidifiers help, direct heat does not.
2. Test moisture. Before tiling, moisture content must be below 75% RH (carbide bomb test) or 75% RH (hair hygrometer in a sealed box test). Anything higher and the tile adhesive will react with the gypsum in the screed and form ettringite crystals that expand and debond the tile. This is not optional.
3. Remove laitance. A rotary floor scarifier with 60-grit sandpaper, passed over the full floor 4-6 days after pour (when the screed is firm enough to walk on but before the laitance fully hardens). Vacuum thoroughly afterward.
4. Prime. Two coats of SBR-based primer or a dedicated anhydrite primer. The first coat soaks in, the second forms a continuous film. Skip the primer and cement-based adhesive will react chemically with the anhydrite again, forming ettringite at the bond line.
5. Commission UFH. Before tiling, the UFH system must be raised to operating temperature over 5°C per day increments, held at maximum for 7 days, then cooled to 15°C. This forces any shrinkage and movement out of the screed before the tile goes down.
6. Tile with the UFH cool. Tile only when the slab is at or below 15°C. After tiling, wait 7 days before re-commissioning the heating, then ramp it back up gradually.

If your screeder and tiler are the same contractor, this sequence gets priced in. If they're separate, the tiler may arrive on site expecting a prepped substrate and find raw screed covered in laitance. Clarify who owns substrate prep before either trade starts.

Click to enlarge

Sand-cement screed preparation

If your extension uses sand-and-cement screed instead of anhydrite, the prep is simpler. No laitance, no gypsum chemistry. But you still need:

• 6 weeks minimum screed drying time before tiling (per BS 8203 and manufacturer installation guidance for cementitious screeds), or until moisture is below 5% CM
• SR1 flatness, checked with a 2m straightedge
• A light abrasion with a diamond grinding pad to expose fresh cement for the adhesive to key into
• One coat of SBR primer (optional but improves bond)

Concrete slab (uninsulated, no UFH)

For an outbuilding or a rear extension where the existing concrete slab is being tiled directly, the slab must be level to SR1, clean of oil and paint, and free of surface dust. Grinding dips back and using self-levelling compound to fill lows is standard.

Decoupling membranes: when they're mandatory, when they're optional

A decoupling membrane (also called anti-fracture matting) is a thin plastic mat (typically 3mm thick) laid between the screed and the tile adhesive. It absorbs small movements in the substrate so they don't reach the tile. Common products are Schluter DITRA 25 (the industry default, polyethylene with an anchoring fleece). See £10–12/m² for current retail pricing from Pro Tiler Tools and Target Tiles. Dural Durabase CI++ is a close substitute at roughly 10% less.

When the membrane is effectively mandatory:

• Any UFH installation. Thermal expansion and contraction from the heating system will stress the tile-adhesive bond. Membrane absorbs it. Professional tilers on UK forums put it this way: "Nearly every tiling job I price has matting included. Will they come up without matting? Probably not. But a very expensive lesson if they do."
• Large-format tiles (600mm+) over any screed. More tile area means more differential movement at the bond line. Membrane removes the risk.
• Tile-over-tile installations. Membrane isolates the new adhesive from any movement in the old tile bed.
• Substrates with known movement. Timber subfloors, solid timber joists below, or screeds where you've seen hairline cracks.

When you can skip it: a small (under 15m²) tiled area on a stable, cured concrete slab with no UFH, no expansion joints running through it, and tiles under 600mm. Budget ceramic on a stable concrete utility floor doesn't need it.

The total build-up is worth thinking about before you sign off on final floor levels. Ditra is 3mm thick. With adhesive above and below, total build-up from the membrane alone is roughly 6mm. Add a 10mm tile and 3mm adhesive bed and you have 25mm above the screed. If your architect specified the structural floor level assuming 10mm tile plus 3mm adhesive (13mm total), you've gained 12mm on your finished floor height. That matters at door thresholds and level transitions into adjoining rooms.

Adhesive: get this wrong and everything fails

Adhesive for porcelain floors must be a cement-based powder (C class under BS EN 12004). Ready-mixed tub adhesives (D class) do not cure under impermeable porcelain because moisture can't escape. On a floor, the tile above and the substrate below seal the adhesive in. It stays wet, never hardens, and the tile eventually lifts.

Within cement-based adhesives, the class that matters for porcelain floors is deformability: S1 (2.5-5mm deformation under BS EN 12002 test) or S2 (greater than 5mm). S1 is the residential UFH standard. Every major manufacturer (Mapei, BAL, Weber, Kerakoll, Ardex) produces at least one C2 S1 porcelain-suitable adhesive. An S1 flexible bag runs roughly 2x standard cement adhesive, and for UFH floors there is no realistic substitute.

S2 is for specific high-movement substrates: UFH over compressible insulation without a solid screed, or timber subfloors. For standard UFH over anhydrite or sand-cement screed, S2 is overkill and its extra flexibility reduces impact resistance under heavy furniture. The exception is when you're installing over an uncoupling mat: mat manufacturers (Schluter, Dural) require a standard C2 adhesive, not S2, because the mat itself handles the movement. Using S2 over a mat is belt-and-braces to the point of harming the bond.

See the tile adhesive page for the full decision matrix including how to read the classification codes on the bag.

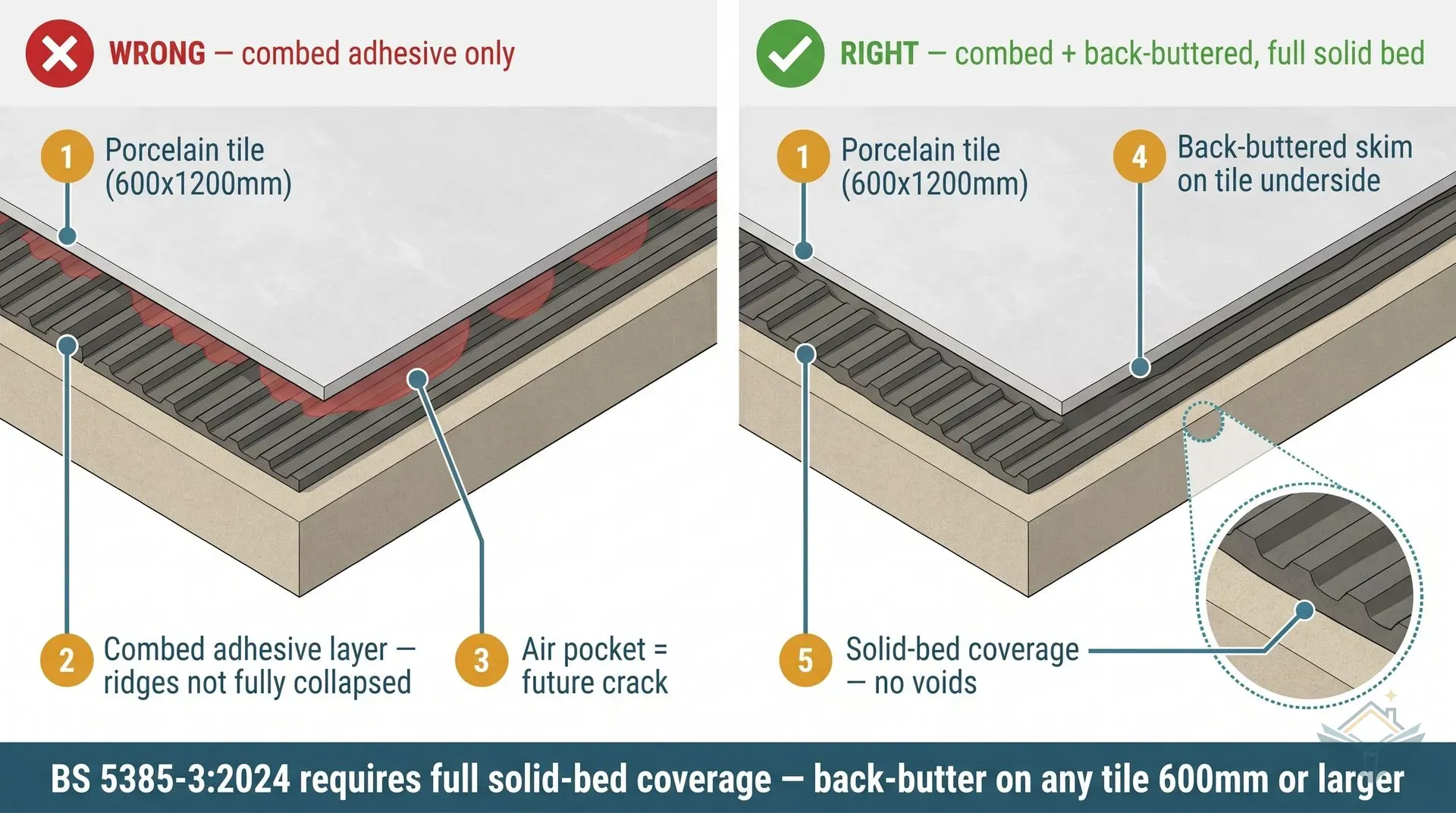

Coverage matters as much as choice. 100% BS 5385-3:2024 requires solid-bed fixing: full adhesive contact with no voids under a floor tile. To hit that on tiles 600mm or larger, you have to back-butter (apply a thin skim coat to the back of each tile in addition to combing the substrate). The combed ridges on the floor don't fully collapse under the weight of a large tile, which leaves air pockets. Back-buttering fills them. A hollow spot under a 600x1200mm porcelain in a kitchen where someone drops a cast-iron pot on it will crack the tile. Full solid-bed coverage prevents that.

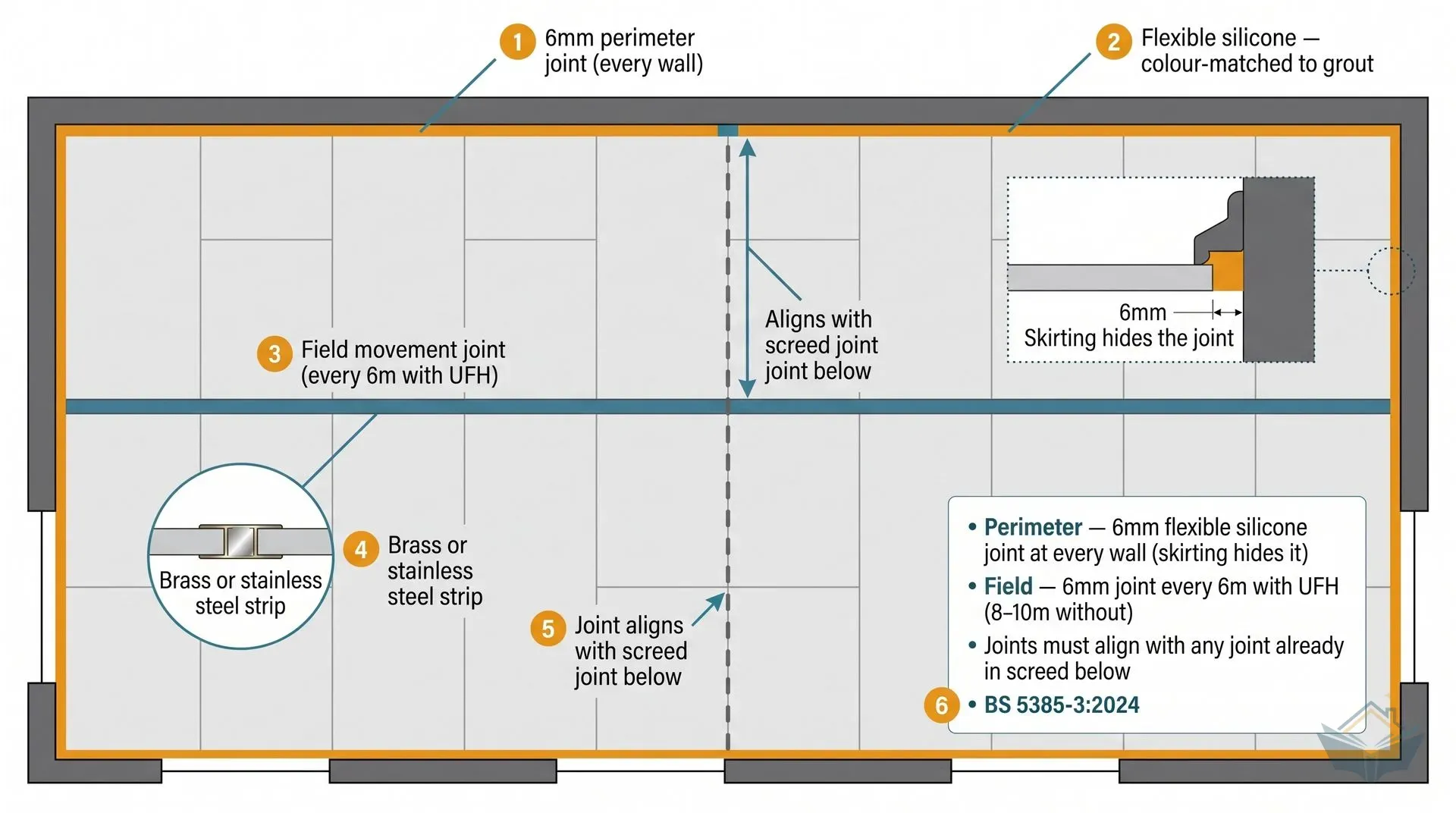

Movement joints: the detail that stops tenting

A tiled floor needs to move. Expansion from UFH, thermal cycling from day to night, seasonal humidity change in the building: every floor is trying to grow and shrink. If you give it nowhere to go, the pressure builds until the tiles lift in a ridge (tenting) or crack randomly across the field.

BS 5385-3:2024 sets the standard:

• Perimeter movement joint: minimum 6mm gap between the outermost tile and any wall, column, or threshold, filled with flexible silicone sealant (coloured to match the grout). The skirting board covers the joint at walls, so the joint is invisible in the finished floor. This is not optional.
• Field movement joints: every 8-10m along any linear run on internal floors. Every 6m where UFH is present, because the heating increases movement. A field joint is a 6mm wide strip running the full depth of the tile and adhesive, filled with silicone.
• Joints must align with any joints already in the screed. If the screed has a crack-control joint running across the middle of the floor, the tile joint must sit directly above it. Tile bridging a screed joint will crack.

Tilers routinely skip field movement joints on the grounds that they're ugly. A brass or stainless steel movement strip from Schluter or Dural is a discreet alternative at the critical lines. Colour-matched silicone at perimeters is essentially invisible. The cost of the strips is modest per metre. The cost of ripping up a tented floor is several thousand.

Cutting porcelain: wet saw or nothing

Porcelain's Mohs 7-8 hardness eats standard tile-cutting blades. A manual score-and-snap cutter works on ceramic and on soft porcelain under 600mm, but on rectified porcelain and anything over 600mm the snap travels at an angle and the tile breaks in the wrong place. An angle grinder with a general-purpose diamond blade will cut, but chips the glazed edge severely and throws dust everywhere.

The right tool is a wet saw (a tile cutter with a water-cooled continuous-rim diamond blade) with a blade specifically rated for porcelain. Marcrist and Rubi are the two brands professional tilers trust:

• Rubi CPC Pro diamond blade: 180-250mm versions. Suits occasional DIY or a single-project job.
• Marcrist CK850: premium porcelain blade. A premium continuous-rim diamond blade costs significantly more than entry-level but lasts 10x longer, which is what professional tilers use on large-format jobs.

For hire, a Rubi DC-250 wet cutter or equivalent from specialist tile tool hire firms covers a day's wet saw hire. For a single kitchen extension floor, hire rather than buy unless you're tiling multiple rooms in the same project.

Cutting technique for porcelain:

• Mark the cut line with a pencil, then apply a strip of masking tape along the line. Tape reduces chipping at the cut edge.
• Feed the tile slowly into the blade on the first pass. Speeding through causes the blade to glaze (lose its diamond cutting face) and the tile to chip.
• On long cuts (500mm+), lift the blade briefly every few seconds to flush water through the kerf and cool the blade. A blade that overheats loses its diamond bond within minutes.
• For L-shaped cuts (around sockets, corners), score the short leg first, then cut the long leg. Don't try to cut around a corner in a single pass.

How much does it cost

Material pricing splits cleanly into three tiers in 2026:

For installed cost with £50-120/m2 being typical for mid-range porcelain fitted by a competent tiler, the breakdown per m² is roughly tiles at £30–55/m², adhesive and grout at £8–12/m², decoupling membrane at £10–12/m², and tiler labour at £30–60/m². All-in for mid-range porcelain over UFH with a decoupling membrane typically lands at £80–120/m².

For a 50m² kitchen extension tiled end to end in mid-range porcelain, see £5,000-9,500 for the typical budget including tiles, membrane, adhesive, grout, and labour. Premium tile selection (Mandarin Stone, Ca' Pietra) pushes the upper end materially higher for the same area. Budget Wickes tiles with a good tiler can bring the total down meaningfully, though the finish is noticeably more basic.

Labour for large-format tiles commands a surcharge on top of the base per-m² rate. Tilers typically add 30-50% for tiles 600x1200mm and above because each tile takes longer to place, requires two people for lift-and-set, and demands a larger wet saw. Some tilers decline large-format work entirely, or quote the job as a day rate rather than per m². For an 80m² extension floor in 600x1200mm tiles, budget 6-8 tiler days. Tiler day rates from £200–360/day are typical.

Order quantity

Specify tile quantity at actual floor area plus 10% wastage for standard formats and 15% for large-format or diagonal layouts. A 50m² floor in 600x600mm tiles needs 55m² ordered. The same floor in 1200x1200mm needs 57-58m². Wastage covers:

• Cuts at perimeter walls that can't be reused
• Occasional tile damage during cutting (large format snaps diagonally if mishandled)
• Future repairs. Tile manufacturers change production runs, so a tile bought today may not exactly match the same product code two years later. Keep 2-3 full tiles after the job for repairs.

Where to buy

• Wickes and B&Q for budget tiles. Limited selection but reliable stock and fast delivery.
• Topps Tiles and CTD Tiles for mid-range. Full catalogue, trade counter pricing available, samples to take home.
• Walls and Floors online for broad mid-range selection with regular sale pricing that can halve the headline price.
• Direct Tile Warehouse for trade-priced mid-range with free delivery on bulk orders.
• Mandarin Stone, Ca' Pietra, Original Style, Porcelanosa for premium. Expect longer lead times (2-6 weeks) on imported Italian and Spanish tile.

Alternatives

Porcelain isn't the only viable kitchen floor finish. The main alternatives and when each one wins:

• Ceramic tile: easier to cut (score-and-snap works) and identical aesthetic at a glance. Ceramic sits below porcelain supply-cost but saves less than you'd expect once labour is factored. Loses to porcelain on durability, stain resistance, and thermal performance over UFH. Fine for a utility room, a downstairs loo, or a light-use extension where budget is tight.
• Luxury vinyl tile (LVT): warmer underfoot, quieter, simpler to install. Thermal conductivity is roughly one-eighth of porcelain, so if you have UFH you're cutting the system's effectiveness by a large margin. Durable (10-25 year warranties) but not waterproof at joints on a floating installation. Good choice for a kitchen without UFH where warm feel matters.
• Engineered wood flooring: beautiful, adds warmth, compatible with UFH at specific low operating temperatures. Moves seasonally with humidity, scratches from dog claws and moved furniture, and permanently stains from red wine and water damage. Needs sanding and refinishing every 10-15 years. For a formal dining area that connects to the kitchen, engineered wood works. For the cooking zone itself, porcelain is more forgiving.
• Polished concrete: industrial look, warm and efficient over UFH, zero joints. Expensive and demands specialist contractors. Shows every hairline crack the slab develops, which on a new extension with settling substrate is not zero.

For a typical UK kitchen extension with UFH, porcelain is the right call eight times out of ten. LVT is the right call when the client specifically wants warmth underfoot and accepts the reduced UFH efficiency. Engineered wood suits open-plan designs where the dining zone matters more visually than the cooking zone's durability.

Where you'll need this

• Flooring - porcelain is the default specification for a kitchen extension floor with UFH, chosen for thermal conductivity, durability, and stain resistance
• Tiling - installation stage covering substrate prep, adhesive selection, movement joints, and grouting

Porcelain specification decisions made during kitchen design feed back into the first-fix stage: once the tile size and build-up height are known, door thresholds, skirting heights, and level transitions can be detailed correctly. Getting the tile choice made before the screed is poured prevents the common rework of raising or lowering thresholds once the floor depth changes late.

Common mistakes

Specifying a polished R9 tile for the kitchen floor. Polished porcelain looks premium in a showroom and lethally slippery when a pan of pasta water hits the floor. R10 minimum for kitchens, R11 near external doors. Matte or structured finish, not polished.

Buying ceramic instead of porcelain because they look the same. Within eighteen months the ceramic will be showing wear at high-traffic points, stains from cooking oil in the zone around the hob, and scratches from chair feet. The aesthetic delta at year one is small. At year five it's obvious.

Tiling directly onto anhydrite screed without laitance removal. This is the most common single cause of extension tile failure. The laitance is a thin, weak layer that looks like the screed surface but isn't structurally bonded to what's beneath. Adhesive bonds to it, and the whole sandwich comes off together within 6-12 months, usually after the first full winter of UFH cycling.

Skipping the decoupling membrane over UFH. Six of eight BuildHub forum threads on porcelain floor failures cited a missing decoupling mat over UFH as the root cause. The cost of remediation when the tiles crack is ten times the membrane cost plus the disruption of stripping out an occupied kitchen.

Using cheap non-S1 adhesive to save a few pounds per bag. A standard C2 adhesive without the S1 flexibility rating will crack under thermal cycling from UFH. The saving on 10 bags of adhesive is trivial against the cost of one cracked grout line (a half-day call-out to repair) or a debonded tile (removing it without damaging neighbours and re-bedding).

Skipping field movement joints on long runs. A tiled floor longer than 8m in any direction needs a movement joint. Tilers sometimes skip this because the client doesn't want to see a silicone line across the floor. A brass or stainless trim handles it discreetly. Skipping it leads to tenting when the UFH comes on hard in January.

Not achieving solid-bed adhesive coverage on large-format tiles. Combing the substrate alone doesn't guarantee full contact on tiles 600mm+. Back-buttering is the fix. Hollow spots under a tile don't fail immediately, but they fail eventually, and the crack pattern tells the next tiler exactly what happened.

Using the wrong cutting tool. A manual cutter on rectified porcelain produces angled snaps. An angle grinder produces chipped edges. Wet saw with a porcelain-rated diamond blade is the only right answer. Hire one rather than cutting corners on tooling.

Tiling before UFH commissioning. A screed that hasn't been through its first heat cycle still has shrinkage to do. Tiling locks that shrinkage into the adhesive bond. Commission the UFH, cool it to 15°C, tile on the cool slab, wait 7 days, ramp heating back up slowly. This sequence is in every manufacturer's installation guide and in BS 5385-3. It gets skipped more often than any other step.

Under-ordering tiles. See the Order quantity section for wastage allowances. Ordering exact coverage plus 5% means running short mid-installation and either matching a new production batch (visible colour variation) or waiting 4-6 weeks for the same batch to come back in stock while the tiler's schedule slips.
