2.5mm Twin and Earth Cable (6242Y): The UK Socket Circuit Standard

Your electrician lists "3 x 100m 2.5mm T&E" on the materials schedule for your extension. You search Screwfix, find drums at £79 – £84, and spot a Toolstation own-brand option for a few pounds less. You buy three of the cheap ones. Your electrician turns up, strips the first metre, and tells you the sheath tears like wet paper. He won't use it. You're out £240 and a morning's labour. This page tells you which cable to buy, how much you need, and why the earth conductor inside is smaller than you'd expect.

What it is and what it's for

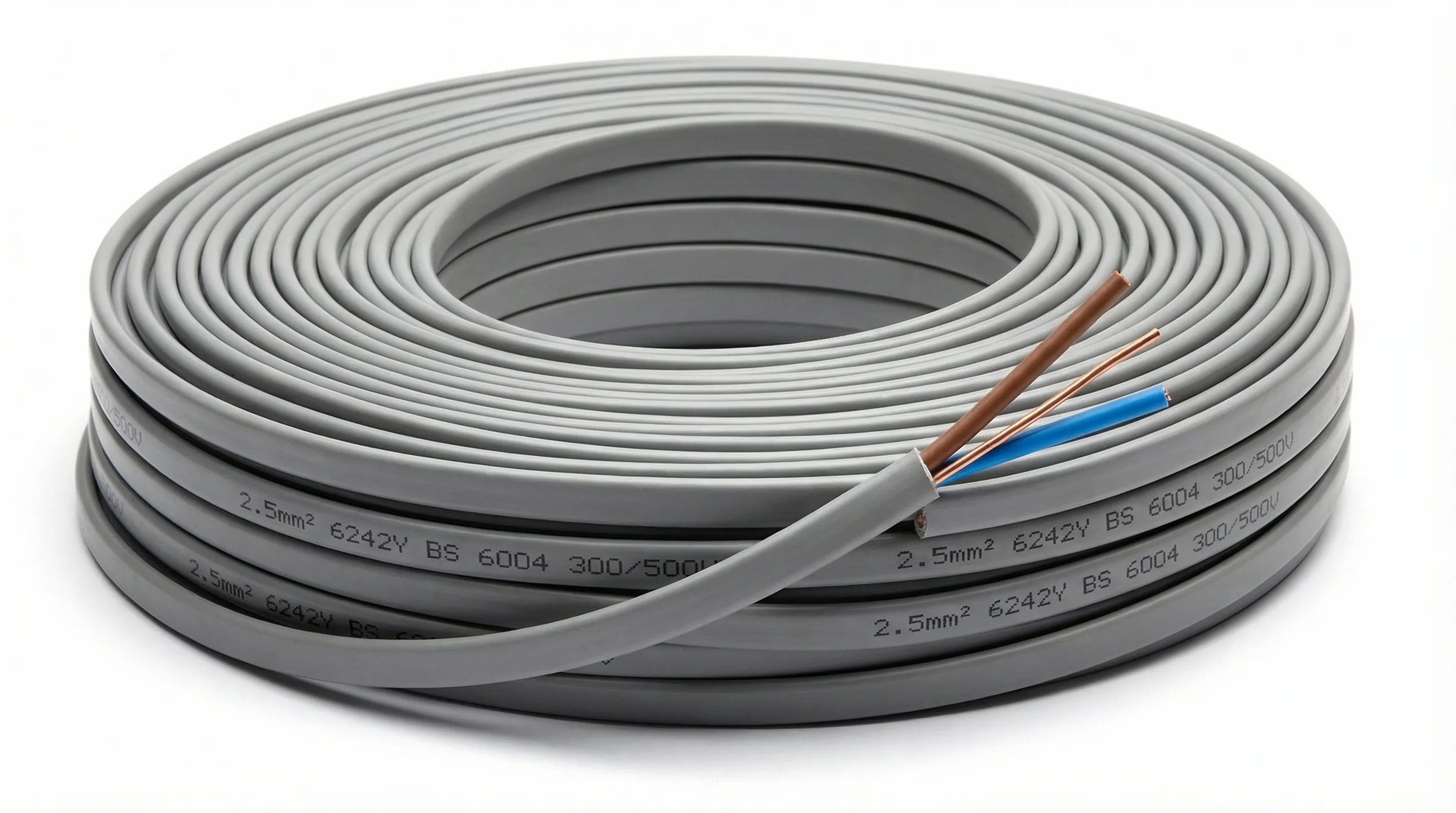

Twin and earth is the flat cable that carries electricity around your house. The "twin" refers to two insulated copper conductors (live and neutral), and the "earth" is a bare copper wire running between them. The whole assembly sits inside a flat grey PVC outer sheath. The 2.5mm in the name is the cross-sectional area of each current-carrying conductor, measured in square millimetres.

2.5mm twin and earth is the standard cable for socket circuits in UK domestic installations. Every 13A socket outlet in your extension connects back to the consumer unit via this cable. It's rated at 27A when clipped directly to a surface (the BS 7671 Table 4D5 figure for Reference Method C at 30 degrees ambient temperature), which gives comfortable headroom for the 32A MCB protecting a ring circuit or the 20A MCB protecting a radial.

The formal designation is 6242Y. The "6" means 300/500V insulation class, "24" means flat construction with a bare earth, "2" means two current-carrying cores, and "Y" means PVC sheathed. You'll also see 6242B (white sheath, LSOH/low smoke zero halogen) for buildings where fire regulations demand reduced toxic emissions. For a standard domestic extension, grey 6242Y is what you need.

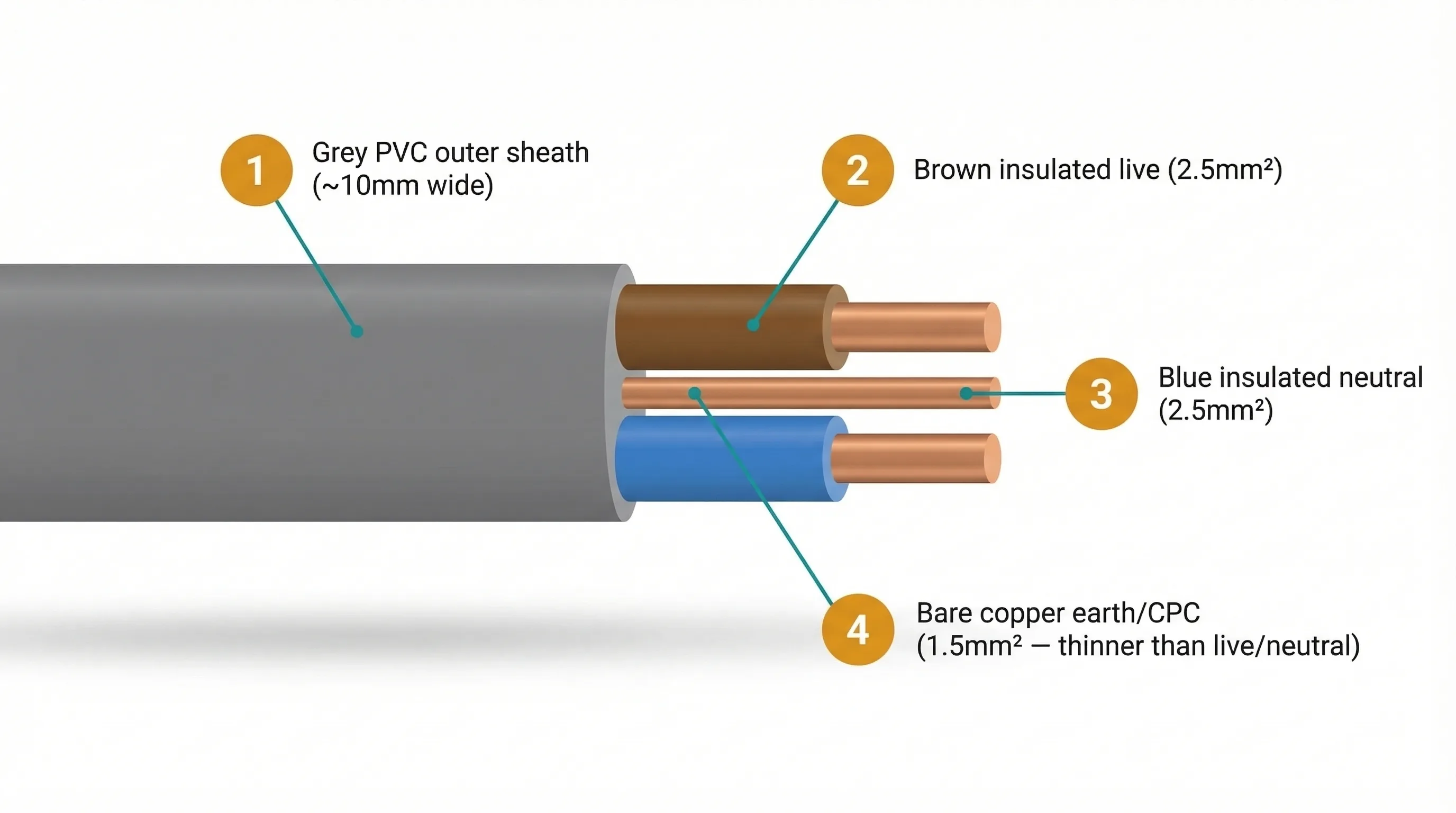

The earth is 1.5mm, not 2.5mm

This catches beginners. Open up a length of 2.5mm twin and earth and you'll find the bare copper earth conductor (the CPC, or circuit protective conductor) is 1.5mm, not 2.5mm. It's visibly thinner than the live and neutral cores. This is normal and compliant with BS 7671.

In a ring circuit, the CPC forms a ring just like the live and neutral conductors, which means current has two paths back to the consumer unit. Regulation 543.7.2.1(i) permits this reduced CPC size specifically because the ring arrangement provides redundancy. Both ends of the CPC must terminate independently at every connection point (socket, junction box, consumer unit) for this protection to work. If one connection fails, current still has a path through the other leg of the ring.

On a radial circuit, the 1.5mm CPC has no redundancy. But the calculations still work because the protective device (MCB) disconnects fast enough to prevent the smaller conductor from overheating during a fault. Your electrician will verify this with an earth fault loop impedance test (Zs test) during commissioning.

Click to enlarge

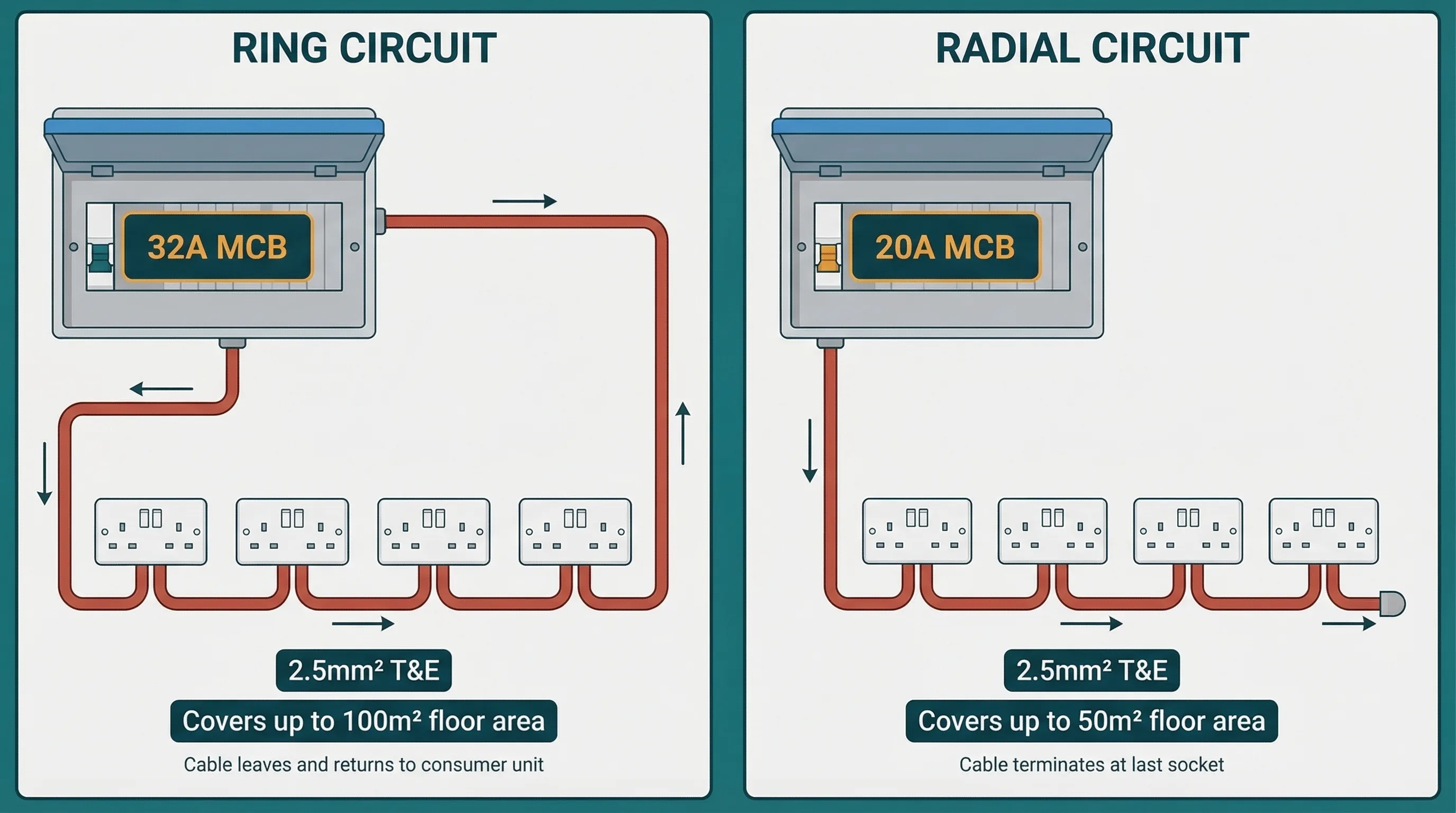

Ring circuits vs radial circuits

This is the single most misunderstood topic in domestic socket wiring, and your extension will use one arrangement or the other.

Ring circuits

A ring circuit starts at the consumer unit, visits each socket in sequence, and returns to the consumer unit. The cable forms a continuous loop. Because current can flow in both directions around the ring, the load splits roughly equally between the two legs. A 2.5mm cable carrying half the load in each direction can serve a circuit protected by a 32A MCB. The ring effectively doubles the cable's capacity without doubling the copper.

BS 7671 limits a ring circuit to a floor area of 100m squared. A typical domestic ring serves an entire floor of a house (ground floor, first floor), with the kitchen often on its own ring due to the number of appliances.

The ring design is a uniquely British invention from the 1940s. Post-war copper shortages made it impractical to run heavy cable to every socket, so the ring topology halved copper usage while maintaining safety. It works, but it has a specific failure mode: if the ring breaks at any connection point (a loose terminal, a rodent chewing through cable), the circuit silently becomes two radials. Each radial now carries the full load on a single 2.5mm conductor protected by a 32A MCB. That's above the cable's 27A rating. The circuit still functions, but it's overloaded and unsafe. This failure is invisible without a continuity test.

Radial circuits

A radial circuit runs from the consumer unit to each socket in a chain, with no return path. It's the standard wiring method used everywhere else in the world, and it's been used in the UK for over a century.

For a radial on 2.5mm cable, the MCB is limited to 20A and the floor area to 50m squared. For a 4mm cable radial, you can use a 32A MCB and serve up to 75m squared.

A radial is simpler to install, simpler to test, and has fewer failure modes than a ring. There's no "open ring" problem because there's no ring to break.

Which one for your extension?

For a small single-storey extension (20-30m squared) with four to eight socket outlets, a 20A radial on 2.5mm cable is the simpler, perfectly adequate choice. Your electrician runs one cable from the consumer unit to each socket in sequence. Done.

For a larger extension, or one where the kitchen has many high-draw appliances spread across multiple sockets, a 32A ring circuit provides more capacity. Your electrician may also choose a ring if they're connecting the extension sockets into an existing ring circuit in the house.

Don't dictate the topology to your electrician. But do understand what they've chosen, because it affects testing, fault-finding, and future modifications. Ask: "Are you running a ring or a radial for the sockets?" If they can't explain why they chose one over the other, that's a warning sign.

Click to enlarge

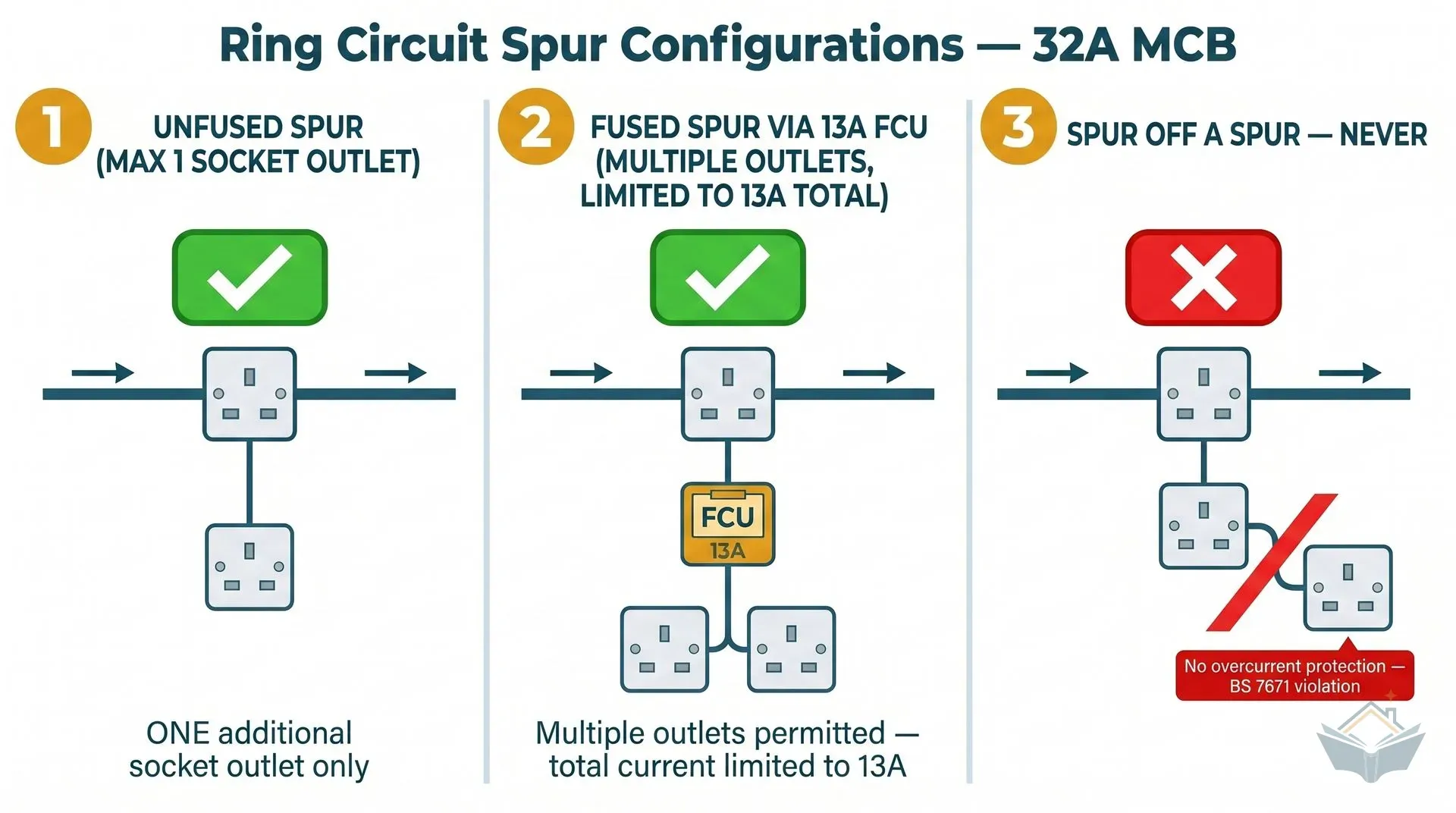

Spurs: the danger zone

A spur is a branch cable tapped off a ring circuit to feed an additional socket. Spurs cause more confusion than any other aspect of domestic wiring.

An unfused spur (cable tapped directly from a socket on the ring) can only feed one single or one double socket outlet. That's it. One socket, period. The reason: the spur cable is a single 2.5mm conductor with no return path, so it can't safely carry the 32A that the ring's MCB allows. Limit it to one socket and the maximum draw is 13A (one plug), well within the cable's rating.

A fused spur runs through a fused connection unit (FCU) rated at 13A. Behind that fuse, you can connect as many sockets as you like because the FCU limits the total current to 13A regardless. Fused spurs are commonly used for under-counter appliances, worktop sockets, and locations where running the ring cable would mean a long diversion.

How to work with it

You won't be wiring socket circuits yourself. New circuits in an extension are notifiable work under Part P of the Building Regulations (England and Wales), meaning a registered electrician must certify the installation. But you'll be buying the cable, and you may be pulling it through the structure under your electrician's supervision. Here's what matters.

Handling and running cable

2.5mm twin and earth is noticeably stiffer than its 1.5mm counterpart. The solid copper conductors resist bending, and the flat profile means it wants to twist if you're not careful pulling it off the drum. Work with a partner: one person feeds cable off the drum while the other routes it through joists and studs. Pulling cable off a drum on your own leads to kinks, and a kinked cable is a weak point where moisture can enter.

Fix cable with flat T&E clips at 300mm intervals on horizontal runs. Near accessories and bends, clip at 150mm. Use the correct size clip for 2.5mm flat cable (the clip should grip the sheath firmly without crushing it).

When drilling through joists, drill through the centre of the joist (the neutral axis), not the top or bottom third. Holes must be no larger than one-quarter of the joist depth. For a standard 200mm joist, that's a 50mm hole. A 2.5mm T&E cable is roughly 10mm wide, so a 12mm hole gives adequate clearance.

Safe zones

BS 7671 Regulation 522.6.204 requires cables less than 50mm from a wall surface to be routed in prescribed safe zones: vertically above or below electrical accessories, or horizontally within 150mm of the ceiling or floor. These zones tell future trades where cables are likely to be, reducing the risk of someone driving a screw through your wiring five years later.

All cables in walls (regardless of zone) must have 30mA RCD protection. Your consumer unit should provide this via an RCBO or RCD-protected MCB for each circuit. If your existing consumer unit doesn't have RCD protection on every circuit, your electrician will need to address this as part of the extension work.

Sleeving the earth

At every termination point (socket, junction box, consumer unit), the bare 1.5mm copper earth must be covered with green and yellow PVC sleeving before connecting to the earth terminal. Skip one, and the installation fails inspection. Buy a roll of 3mm green/yellow sleeving before first fix starts.

How much do you need

A typical single-storey kitchen extension (20-30m squared) needs one or two socket circuits plus dedicated feeds for the cooker and any high-draw appliances. The 2.5mm T&E covers the socket circuits only (the cooker goes on 6mm cable, and lighting on 1.5mm).

Worked example for a 4m x 6m kitchen extension with one radial socket circuit (8 double sockets):

• Consumer unit to first socket (route through ceiling void, down wall): 12m
• Between sockets around the room perimeter: 35m
• Drops from ceiling void to socket height at each position: 16m (8 sockets x 2m each)
• Subtotal: 63m
• Plus 10% contingency: 69m
• Order: 1 x 100m drum (you'll have 30m leftover for future work or modifications)

If your electrician opts for a ring circuit instead, the cable returns to the consumer unit, adding another 12m or so. You'd still be within a single 100m drum for most small extensions.

For a larger extension with two socket circuits (common when the kitchen has heavy appliance loads), budget for two 100m drums.

Cost and where to buy

Current retail prices for a standard 100m drum of 2.5mm 6242Y twin and earth (March 2026):

Smaller quantities exist but the economics are terrible. A 25m drum from Toolstation is £32.90 (£1.32/m per metre). A 100m drum at ~£81 works out to £0.81/m per metre. If you need more than 30m, always buy the full drum.

Trade wholesalers (CEF, Edmundson Electrical) sell at roughly 10-20% below retail, but you need a trade account. If your electrician is buying materials, they'll source through a wholesaler. If you're buying materials yourself, Screwfix and Toolstation are the practical options. Both offer same-day click-and-collect.

Which brand?

Any cable with a BASEC approval mark meets BS 6004 and is fit for purpose. That's the non-negotiable buying criterion.

Beyond that, brand matters in practice. Prysmian is manufactured in the UK and is the default recommendation from most electricians. Consistent sheath quality, strips cleanly, holds shape well in clips. Doncaster Cables is the other major UK manufacturer, slightly softer insulation that some electricians prefer for tight spaces. Pitacs and Time are budget imports (Turkey). Both carry BASEC approval, but trade forum complaints about Pitacs are persistent and specific: "dark grey, not very flexible, tears very easily" is a direct quote from an electrician on DIYnot. The Time brand (Screwfix's budget line) gets fewer complaints but is still imported.

The price gap between Prysmian and Time is £5 per drum. On a two-drum order, that's £10 total. Buy Prysmian or Doncaster.

Cables and insulation: the derating trap

This is the technical issue that trips up design calculations on modern, well-insulated extensions.

When 2.5mm T&E cable passes through or is surrounded by thermal insulation, it can't shed heat effectively. BS 7671 addresses this with derating factors that reduce the cable's permitted current capacity. The 27A clipped-direct rating drops to approximately 13.5A when the cable is fully enclosed in insulation for a continuous run of 500mm or more. That's half. On a 32A ring circuit, this derating could mean the cable is no longer adequately rated unless the ring topology splits the load.

The practical scenario is cables running through insulated wall cavities or above insulated ceilings. In a modern extension built to current Building Regulations thermal standards, there's insulation everywhere: PIR boards in the walls, mineral wool above the ceiling, sometimes insulation under the floor. Every cable that passes through these zones needs its derating calculated.

Your electrician handles this calculation, not you. But here's why it matters to you as a homeowner: if the electrician hasn't accounted for derating, and building control or a subsequent inspection catches it, the cables may need to be rerouted or upsized. That's expensive after the walls are plastered and decorated.

Alternatives

1.5mm twin and earth is the smaller sibling, used for lighting circuits. You'll need both sizes for a full first fix: 1.5mm for lights, 2.5mm for sockets. Don't use 2.5mm for lighting. It works electrically but is harder to terminate in light fittings and wastes copper.

4mm twin and earth serves radial circuits up to 32A. If your electrician wants a 32A radial rather than a ring (perhaps for a utility room with several high-draw appliances), they'll specify 4mm cable. It's about 50% more expensive per drum than 2.5mm.

6mm twin and earth is for dedicated high-load circuits: cookers, ovens, large hobs. Your kitchen extension will almost certainly need a 6mm feed for the cooker circuit, protected by a 32A or 40A MCB depending on the appliance rating.

Armoured cable (SWA) is used for outdoor runs and buried cables (garden rooms, outbuildings, external sockets). It has a steel wire armour layer that provides both mechanical protection and an earth path. You won't need it inside a standard extension.

Where you'll need this

• First fix electrics - socket circuit cables run during first fix, before walls are closed up and plastered
• Electrical layout planning - the number of socket circuits and cable routes determines how much 2.5mm T&E to order

The ordering decision happens earlier than first fix. During pre-construction, when your electrician provides a cable schedule, is when you should buy. Cable prices track copper commodity markets and shift 10-15% in a quarter. Buying early locks in the price.

Common mistakes

Buying cable without a BASEC mark. Cheap cable from online marketplaces may look identical to approved products but may not meet BS 6004 for insulation thickness, conductor purity, or voltage rating. Your electrician should refuse to install it. Check the drum label and the repeating print on the sheath itself.

Confusing the CPC size with the conductor size. The bare earth wire in 2.5mm T&E is 1.5mm, not 2.5mm. If you're doing ring continuity testing (or watching your electrician do it), the CPC end-to-end resistance will be 1.667 times higher than the live or neutral resistance. That's normal. A lower reading than expected means there's a parallel earth path somewhere (bonded metalwork, adjacent circuits), not a fault.

Adding a spur off a spur. The most common wiring mistake found during inspections. One unfused spur from a ring to one socket is fine. A second spur off that first spur is a code violation with no overcurrent protection. If you need more outlets, run a fused spur or extend the ring.

Assuming a ring circuit is intact without testing. A broken ring (loose terminal at one socket, rodent damage, nail through cable) silently becomes two overloaded radials. Test ring continuity at first fix stage, before walls are closed. Insist your electrician performs and records this test.

Using chocolate block connectors in inaccessible locations. If cable needs to be joined inside a wall or under a floor that won't be accessible later, standard connector strips aren't acceptable. BS 5733-MF compliant maintenance-free connectors are required: WAGO 221-series in a Wagobox Pro enclosure, or Ashley J803/J804 maintenance-free junction boxes.

Not accounting for derating in insulated walls. Modern extensions are heavily insulated. Cable surrounded by insulation for more than 500mm loses roughly half its current capacity. If your electrician hasn't discussed derating with you, ask. It's particularly relevant for cables running through insulated stud walls or above ceiling insulation in a flat-roof extension.
