Cable Sizing Guide: Which Cable Size Do You Need?

Decision guide for choosing between 1.5mm, 2.5mm, 4mm, 6mm, and 10mm twin-and-earth cable in a UK domestic extension. Covers derating through insulation, ring vs radial, and Part P.

By Ian

Project managed a £182k Oxfordshire kitchen extension

Cable sizing looks simple until the installation method changes the answer. A cable that is fine clipped openly can need upsizing once it passes through insulation or long runs, and that can turn a straightforward materials order into wasted drums and surprise cost. The tables electricians use are not guesswork, but they are not one-line rules either. For a domestic extension, the right size depends as much on how the cable is installed as on what circuit it serves.

The quick-reference table

Start here. For a standard extension with cables clipped to joists and studs (not buried in insulation), these are the cable sizes, MCB ratings, and circuit types your electrician will specify.

CircuitCable sizeMCB ratingCircuit typeTypical appliances
Lighting1.5mm²6ARadialDownlights, pendants, under-cabinet LEDs
Sockets (small extension)2.5mm²20ARadial4-8 sockets in a single room
Sockets (larger extension or full floor)2.5mm²32ARingMultiple sockets across 100m² max
Sockets (32A radial)4mm²32ARadialSockets across up to 75m², cable clipped direct and kept out of insulation
Cooker / induction hob6mm²32ARadialCookers up to 14kW (diversified)
Electric shower (up to 7.5kW)6mm²40ARadial7.5kW shower on a short, uninsulated run
Electric shower (8kW+) or large cooker (above 14kW)10mm²40-45ARadialHigh-power shower, range cooker, large induction hob

That table works for the straightforward case. But if your extension has insulated stud walls, insulated ceilings, or cables running through loft insulation, the numbers change. Read on.

Why cable sizing isn't a simple lookup

Every cable has a current-carrying capacity, measured in amps. A 2.5mm twin-and-earth cable clipped directly to a joist can safely carry 27 A. That same cable buried in thermal insulation for more than 500 mm can safely carry only 13.5 A. Same copper. Same plastic. Half the capacity.

The reason is heat. Electric current generates heat in the conductor. Normally, that heat dissipates into the surrounding air. Wrap the cable in insulation and the heat has nowhere to go. The conductor temperature rises, the PVC sheath softens, and eventually the insulation degrades. BS 7671 (the IET Wiring Regulations, currently at the 18th Edition with Amendment 4 published April 2026) handles this through derating factors: correction values that reduce the cable's official capacity based on how it's installed.

Three factors combine to determine the actual safe current:

  • Ca (ambient temperature) - if the surrounding air is hotter than 30 degrees C, the cable carries less. Rarely an issue in UK domestic work.
  • Cg (grouping) - cables bundled together share heat. Five circuits through the same hole in a joist derate each other. Your electrician spaces cables apart where possible to avoid this.
  • Ci (thermal insulation) - the big one for extensions. This is where cable sizing decisions change.

The formula is: safe capacity = cable rating x Ca x Cg x Ci. Your electrician runs this calculation for every circuit. You don't need to do it yourself, but you need to understand why the answer isn't always what the cable drum label suggests.

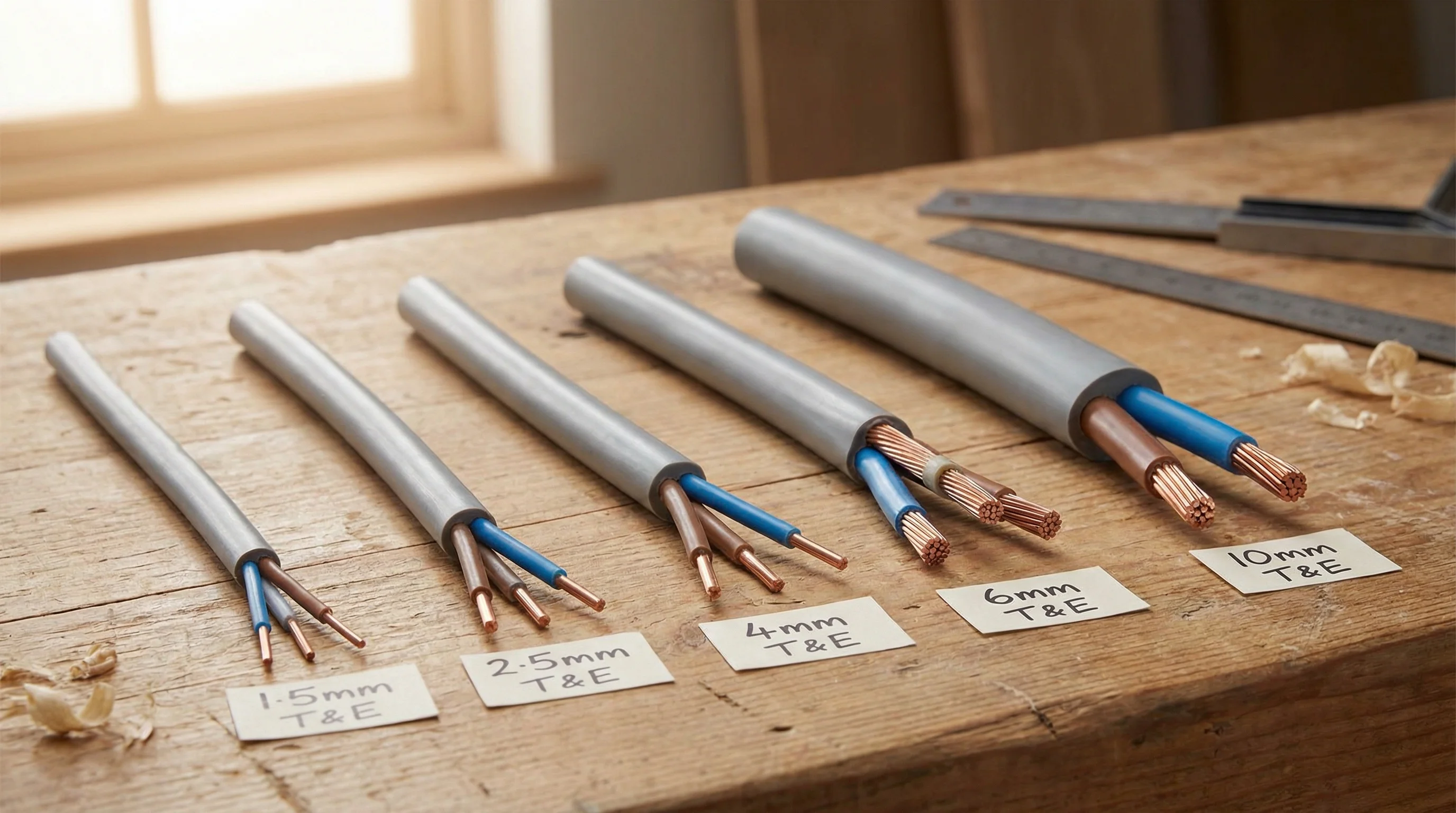

The five cable sizes explained

1.5mm twin and earth

The lighting circuit standard. Rated at 20A when clipped directly to a surface (Reference Method C), but your electrician will protect it with a 6A MCB because domestic lighting loads are low. Even with LED fittings drawing well under 1A per point, the 6A MCB provides short-circuit and overload protection.

The generous headroom between the 6A protection and the 20A capacity means derating through insulation is rarely a problem for 1.5mm lighting circuits. Even at Method 103 (fully surrounded by insulation), 1.5mm still carries 10A, well above the 6A MCB rating.

A single 100m drum at £55 – £60 covers a typical extension lighting circuit with spare. Expect to use 30-50m for a single-storey rear extension, depending on the number of light points and the route back to the consumer unit.

For the full specification, see the 1.5mm twin and earth page.

2.5mm twin and earth

The socket circuit standard. Rated at 27A clipped direct (Method C). This is the cable behind every 13A socket outlet in a typical UK home, and it's the cable your electrician will run for the extension sockets unless installation conditions force an upsize.

On a 32A ring circuit, 2.5mm works because current splits both ways around the ring, so each leg carries roughly half the load. On a 20A radial, 2.5mm is comfortably within its rating. The trouble starts when the cable passes through insulation.

A 100m drum costs around £81. One drum typically covers the socket circuit for a 20m² extension with enough left over for a spur or two.

Full details on the 2.5mm twin and earth page.

4mm twin and earth

The size most homeowners have never heard of. 4mm is the standard cable for a 32A radial socket circuit, and it is also the usual step up when derating or voltage drop makes 2.5mm inadequate.

Rated at 37 A clipped direct, 4mm carries enough current for a 32A radial circuit only while it keeps at least 32A after derating, which in practice means clipped direct. At Method 102 (cable touching the inner wall surface in an insulated stud wall), 4mm delivers 27A: enough for a 20A radial or a ring, not for a 32A radial. At Method 103 (fully surrounded), it drops to 18.5A, below the 20A that a 20A radial and the cable of a ring both need.

When your electrician specs 4mm for your extension sockets, this is why. It's not overengineering. It's the response to derating or voltage drop on your particular cable routes.

A 100m drum of 4mm costs £165 – £179, compared to £81 for 2.5mm. The price difference is real, but where your routes need it, the extra capacity is worth it.

6mm twin and earth

The heavy-duty cable for cookers, induction hobs, and electric showers up to about 7.5 kW. Rated at 47 A clipped direct. The conductors are stranded copper (unlike the solid conductors in 1.5mm and 2.5mm), which makes the cable thicker and stiffer but more flexible than a solid conductor of the same size would be.

A 25m drum costs £63 – £70; a 50m drum £100 – £120. For most extensions, a 25m drum is enough for the cooker circuit (typical run from consumer unit to cooker point is 10-20m).

The diversity allowance in the IET On-Site Guide (Appendix A) means that a 10kW cooker doesn't draw its full 43A at the socket. The diversified current for a 10kW cooker is approximately 25A (including the usual 5A allowance for a socket on the cooker control unit), which is well within 6mm capacity on a 32A MCB. Even a 14kW cooker diversifies to about 30A.

Warning

6mm cable in insulation tells a different story. Fully surrounded by insulation (Method 103), 6mm drops to 23.5 A. That's below the 32A MCB rating. If your cooker circuit routes through insulated stud walls or ceiling voids packed with mineral wool, your electrician must either reroute the cable to avoid insulation, use conduit to create an air gap, or upsize to 10mm.

Full specifications on the 6mm twin and earth page.

10mm twin and earth

The biggest cable you'll encounter in a typical domestic extension. Rated at 64 A clipped direct. 10mm is specified for electric showers above 7.5-8kW (most modern electric showers are 8.5-10.5kW) and for large range cookers above 14kW.

10mm cable is heavy, stiff, and awkward to terminate in standard back boxes. Your electrician will use deeper back boxes (47mm minimum) and may need to use a cooker connection unit rather than a standard socket outlet to accommodate the cable.

A 50m drum costs £170 – £200. You'll rarely need more than 15-20m for a single radial run to a shower or cooker position.

The derating deep-dive

This section is the reason your electrician's cable specification may differ from what a basic online table suggests. No other homeowner-facing guide explains this properly. It's the single biggest knowledge gap in domestic electrical work.

What the installation methods mean

BS 7671 defines how a cable is physically installed using reference method numbers. Each method has different current-carrying capacities because each allows different amounts of heat to escape from the cable.

MethodDescription1.5mm²2.5mm²4mm²6mm²10mm²
Method CClipped directly to wall, joist, or timber stud. Best heat dissipation.20A27A37A47A64A
Method AEnclosed in conduit in an insulated wall.14.5A20A26A32A44A
Method 100Above plasterboard ceiling, insulation NOT exceeding 100mm16A21A27A34A45A
Method 101Above plasterboard ceiling, insulation EXCEEDING 100mm13A17A22A27A36A
Method 102In stud wall with insulation, cable touching inner wall surface (plasterboard side)16A21A27A35A47A
Method 103In stud wall with insulation, cable NOT touching wall surface (fully surrounded by insulation)10A13.5A18.5A23.5A32A

Source: BS 7671:2018+A4:2026 Table 4D5, confirmed via Doncaster Cables manufacturer data and SparkyHub reference tables.

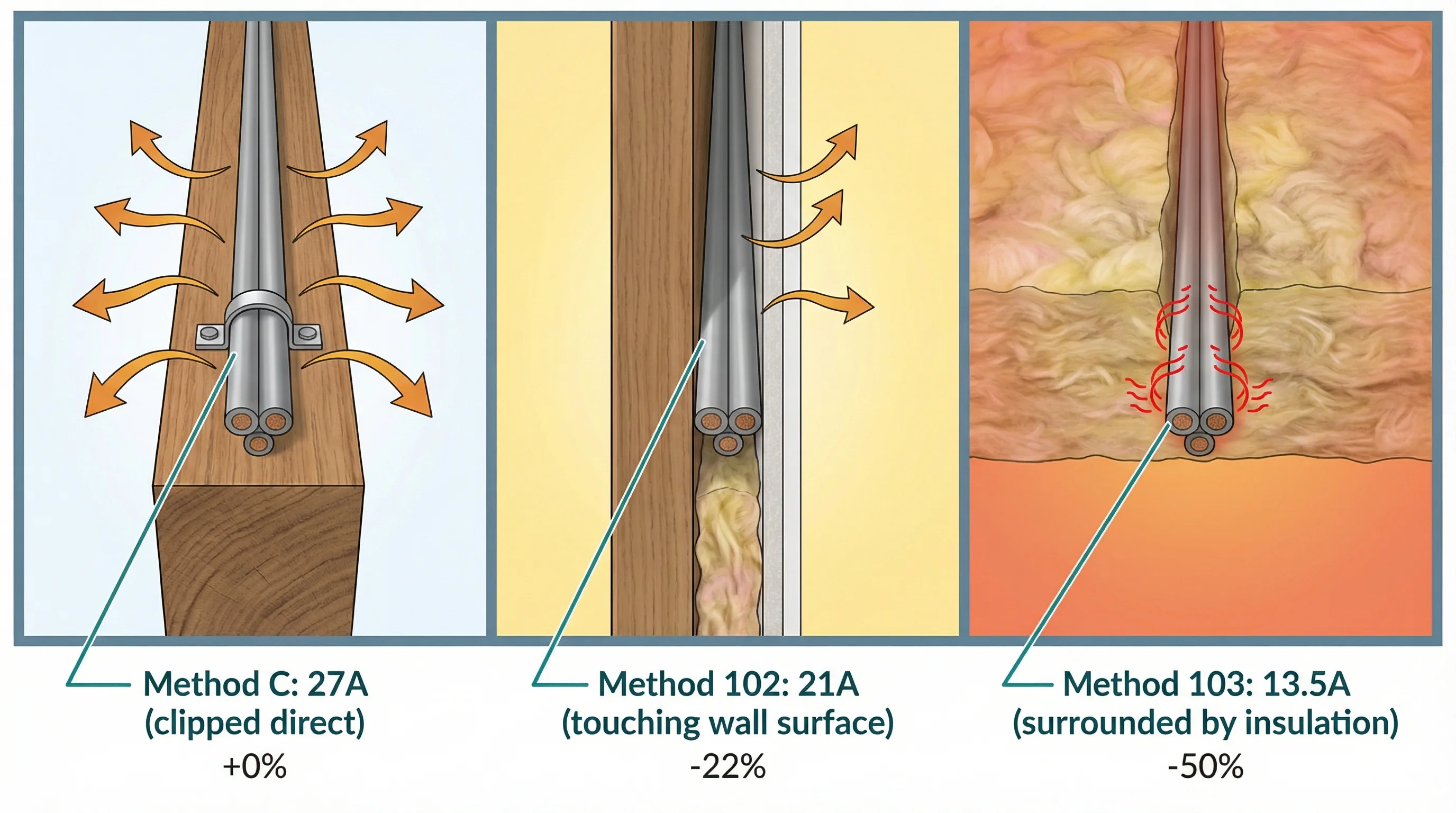

How installation method affects cable current-carrying capacity: the same 2.5mm cable can carry 27A clipped direct but only 13.5A when surrounded by insulation.

The 50% rule

When a cable is fully surrounded by thermal insulation for 500mm or more, BS 7671 (Regulation 523.9) applies a correction factor (Ci) of 0.5. That's a 50% reduction. A 2.5mm cable rated at 27A becomes a 13.5A cable. A 6mm cable rated at 47A becomes a 23.5A cable.

This is the rule that catches people. A 13.5A capacity on what's supposed to be a 32A ring circuit is inadequate. Even on a ring where the load splits two ways, each leg needs to carry at least 20A to satisfy the circuit design. 13.5A per leg doesn't meet that threshold.

Warning

If your extension has 140mm+ insulated stud walls (which most modern extensions do, to meet current building regulation U-values), and the socket cable routes through the insulation rather than along the stud surface, your electrician must change the design. A 2.5mm cable fully surrounded by insulation is derated to 13.5A, which is below the minimum safe capacity for both ring and radial socket circuits, and 4mm only reaches 18.5A, so upsizing to 4mm is not enough on its own. The usual answer is to keep the cable clipped to the stud or touching the plasterboard (Method 102: 21A for 2.5mm, 27A for 4mm) or to route it outside the insulation. This isn't optional. It's a BS 7671 requirement.

The Ci correction factors by insulation depth

The 50% rule is the worst case (500mm or more of the cable's length surrounded). A shorter length surrounded by insulation derates less severely (BS 7671 Table 52.2, for cables up to 10mm²):

  • 50mm of cable surrounded: Ci = 0.88 (12% reduction)
  • 100mm of cable surrounded: Ci = 0.78 (22% reduction)
  • 200mm of cable surrounded: Ci = 0.63 (37% reduction)
  • 400mm of cable surrounded: Ci = 0.51 (49% reduction)
  • 500mm or more surrounded: Ci = 0.50 (50% reduction)

For a 2.5mm cable (27A baseline): with 100mm of its length surrounded, it drops to 21.1A. With 200mm, 17.0A. At 500mm, 13.5A. The longer the surrounded length, the more severe the penalty.

When electricians specify 4mm instead of 2.5mm

Your electrician will spec 4mm for the extension socket circuit when any of these apply:

  1. Cable routes through insulated stud walls. Kept touching the plasterboard (Method 102), 2.5mm drops to 21A and 4mm gives 27A, comfortable for a 20A radial. Fully surrounded by insulation for more than 500mm (Method 103), 2.5mm drops to 13.5A and even 4mm only reaches 18.5A, short of a 20A radial, so upsizing to 4mm is not enough: the cable is rerouted against the plasterboard or outside the insulation, or the circuit is redesigned around a larger cable.

  2. Multiple cables grouped through the same route. Five circuits through the same hole in a stud introduce a grouping derating factor (Cg) on top of the insulation derating. Combined, these factors can push 2.5mm below safe limits even on a 20A radial.

  3. Long cable runs with voltage drop concerns. BS 7671 gives an informative voltage-drop recommendation of 5% for power circuits (11.5V at 230V). On a 25m run at 20A, 2.5mm cable drops 9V (3.9%); 4mm drops 5.5V (2.4%). If the run is longer or the load higher, 4mm keeps you within limits where 2.5mm wouldn't.

  4. A 32A radial circuit rather than a ring. BS 7671 Appendix 15 explicitly permits 4mm on a 32A MCB for radial circuits serving up to 75 m² floor area.

Tip

Ask your electrician which installation method they're using for the socket cables. If they say "clipped direct to the studs" (Method C) or "touching the plasterboard side" (Method 102), 2.5mm is fine. If they say "running through the insulation" (Method 103), ask whether they've accounted for the derating. A good electrician will have done this already. An average one might not have thought about it.

What about cables through loft insulation?

Loft insulation creates the same problem. If your extension has a warm roof or a ceiling void packed with mineral wool, cables running across the ceiling joists and covered by insulation fall under Method 101 (insulation exceeding 100mm). For 2.5mm, that's 17A rather than 27A.

17A is below the 20A required for a radial on a 20A MCB, and below the 20A minimum BS 7671 sets for the cable of a 32A ring (Regulation 433.1.204), so a ring does not get round it. Your electrician will either route cables below the insulation, use raised cable supports to keep the cable above the insulation, or specify 4mm.

Method 100 (insulation not exceeding 100mm) gives 21A for 2.5mm, which is adequate for most socket circuits. The distinction between "up to 100mm" and "over 100mm" matters. Modern building regulations push loft insulation well beyond 100mm, so Method 101 is increasingly the relevant scenario.

Ring vs radial: how circuit topology affects cable choice

The circuit type your electrician chooses affects which cable size is correct. This is the second most common source of confusion after derating.

Ring circuit

A ring starts at the consumer unit, loops through every socket, and returns to the consumer unit. Load splits both ways. 2.5mm cable on a 32A MCB, serving up to 100 m² floor area. The ring topology effectively doubles the cable capacity because current has two paths.

Ring circuits are the traditional UK approach. They work well for wiring an entire floor of a house. But for a small extension with four to eight sockets in a single room, they're more cable and more complexity than necessary.

Radial circuit

A radial runs from the consumer unit to the first socket, then daisy-chains to each subsequent socket in sequence. No return path. Two standard configurations:

  • 20A radial on 2.5mm: serves up to 50 m² floor area. Perfect for a typical 20-30m² single-storey extension.
  • 32A radial on 4mm: serves up to 75m² floor area. Better for larger extensions or where derating makes 2.5mm marginal.

Professional consensus has shifted towards radials for extension socket circuits. A radial is simpler to install, easier to test, and has fewer failure modes than a ring. There's no "open ring" failure where a broken connection silently overloads one leg of the cable. For a single-room extension, a 20A radial on 2.5mm (or 4mm if derating applies) is the standard recommendation.

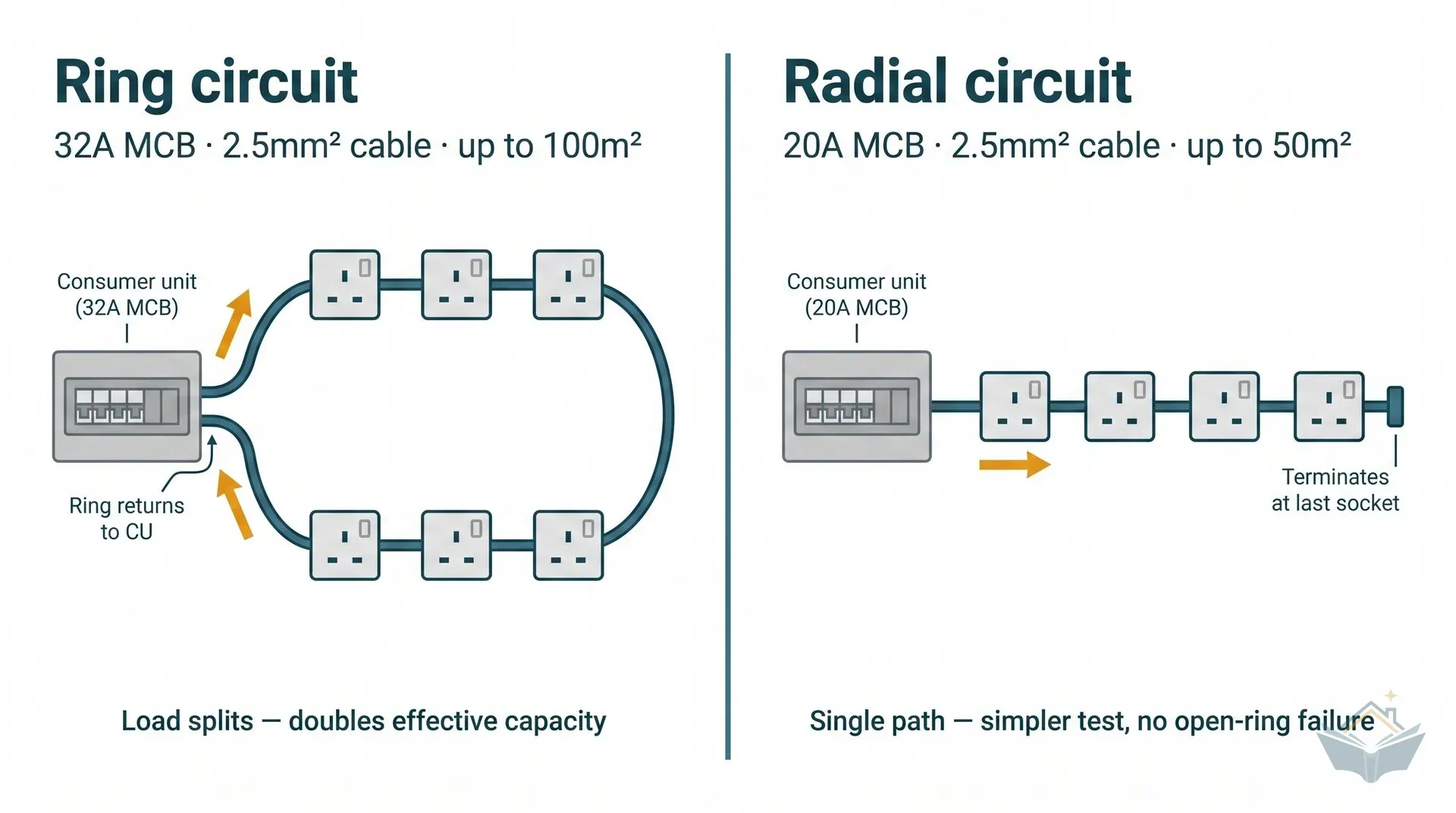

Ring vs radial: the ring splits current both ways around the loop (doubling effective capacity); the radial runs a single path that terminates at the last socket.

Tip

Don't dictate the circuit type to your electrician. But ask: "Are you running a ring or a radial for the extension sockets, and why?" The answer tells you whether they've thought about the specific requirements of your extension or are defaulting to habit.

Spurs: the one-socket rule and when a fused spur is the answer

A spur is a branch off a ring circuit feeding an additional socket. Spurs cause more wiring mistakes than any other domestic electrical detail.

Unfused spur: A single cable tapped directly from a socket on the ring. It can feed 1 single or 1 double socket. That's the limit. The spur cable is a single 2.5mm conductor with no return path, protected only by the ring's 32A MCB. A single socket limits the maximum draw to 13A (one plug), which is within the cable's capacity. Connect two double sockets to an unfused spur and you've created a potential overload.

Fused spur: Runs through a fused connection unit (FCU) with a 13A fuse. Behind that fuse, you can connect multiple outlets because the FCU limits total current to 13A regardless of how many sockets are downstream. Fused spurs are the right answer when you need several outlets in a location that's awkward to reach with the ring cable (island units, worktop socket strips, outdoor sockets).

For an extension, you'll generally avoid spurs entirely. A new radial or ring circuit from the consumer unit is cleaner and more future-proof than tapping spurs off an existing circuit. Spurs are a good solution for adding one socket to an existing room, not for wiring a new space.

How much cable for a typical extension

For a 4m x 5m (20m²) single-storey rear extension with the consumer unit inside the existing house, these are realistic cable quantities. Lengths include the run from the consumer unit through the existing house to the extension, plus the circuit within the extension itself.

Lighting circuit: 30-50m of 1.5mm twin and earth. One 100m drum (£55 – £60) covers this comfortably with spare for a second lighting circuit or a future modification. Buy the 100m drum even if you only need 40m. The per-metre price on small coils is roughly double the drum rate, and leftover cable stores indefinitely.

Socket circuit: 50-80m of 2.5mm twin and earth for a radial or ring. One 100m drum (around £81) is the right purchase. If your electrician specifies 4mm due to insulation derating, the drum costs £165 – £179. See the 4mm section above for why this happens.

Cooker/hob circuit: 10-20m of 6mm twin and earth. A 25m drum (£63 – £70) is normally enough. If the consumer unit is at the opposite end of the house from the kitchen, measure the actual route and buy a 50m drum (£100 – £120) to be safe.

Shower circuit (if applicable): 10-20m of 6mm (up to 7.5kW) or 10mm (8kW+). Most extensions don't include a shower, but if yours does (en suite utility room, for example), budget for a separate radial. A 10mm 50m drum is £170 – £200.

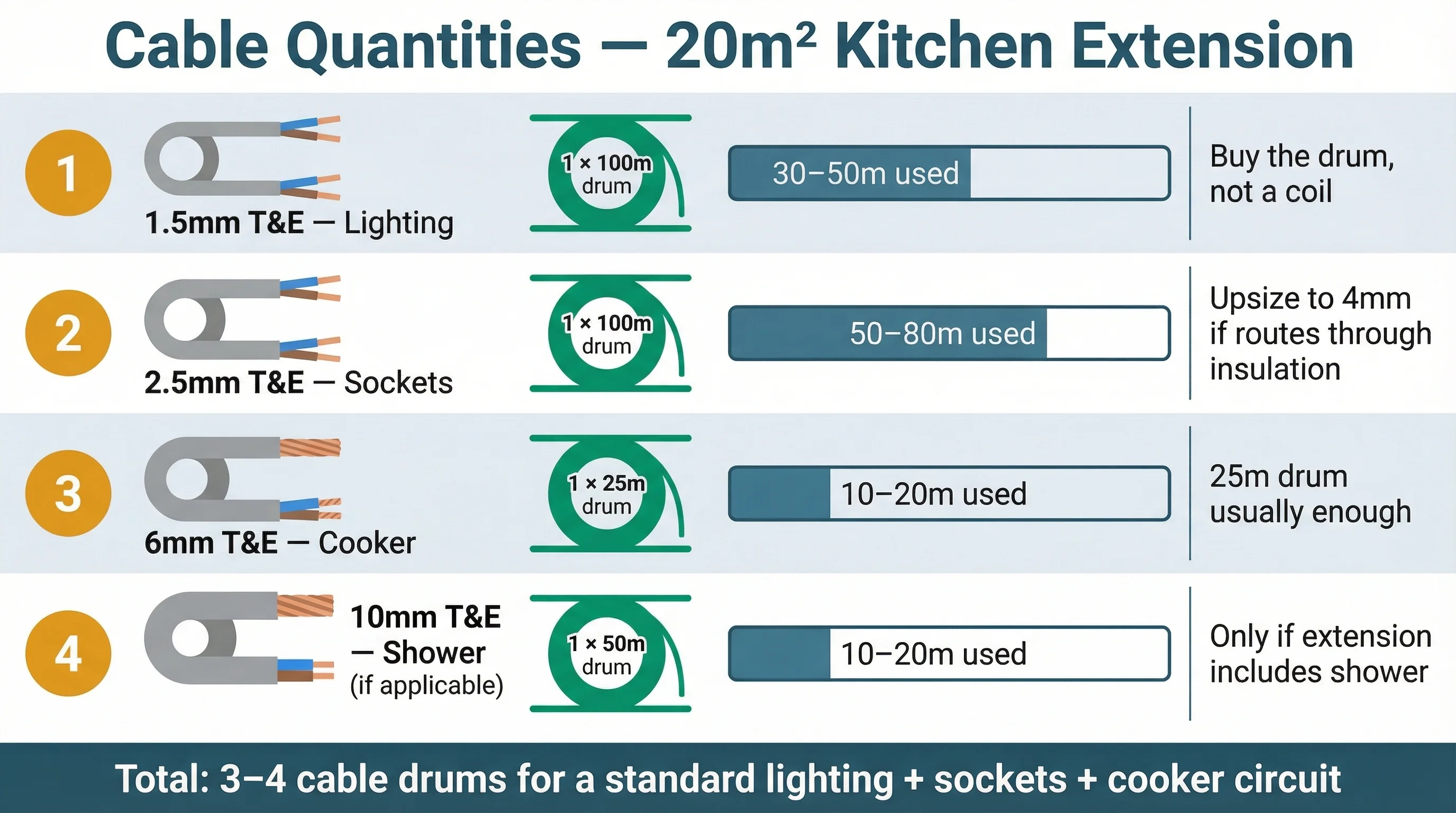

Cable drum quantities for a typical 20m² extension. Buy drums rather than short coils for the per-metre savings.

Tip

Buy one extra drum of 2.5mm. Cable gets damaged during the build (scaffolding drops on it, plasterboard screws go through it, the apprentice nicks the sheath with a knife). Returning a drum for a few pounds is easier than holding up the job because you're one run short. The cost of a spare drum is trivial compared to a wasted half-day of electrician time.

Total cable cost estimate

For a standard 20m² extension (lighting + sockets + cooker circuit, no shower), the cable materials are a small fraction of the total first-fix electrics cost, which runs £2,500 – £4,000 including labour.

To put a number on the rest for your own layout, the Electrician Budget Calculator estimates first and second fix labour, fittings, consumer unit work and certification from your socket and light counts.

Interactive calculator

Electrician Budget Calculator

Estimate the full electrical budget for your kitchen extension: first and second fix labour, fittings, consumer unit work, outdoor lighting, smart home additions, and certification.

Part P: who installs it and what's notifiable

Every new circuit in a domestic extension is notifiable electrical work under Part P of the Building Regulations (England and Wales). This isn't optional. It means either:

  1. A Part P registered electrician (NICEIC, NAPIT, or equivalent registered competent person scheme) designs, installs, tests, and certifies the work. They self-certify to building control. This is the standard approach for extensions.

  2. You or an unregistered electrician do the work, and you notify your local building control before starting. A building control inspector then arranges inspection and testing. This costs more in building control fees and creates more administrative friction.

In practice, option 1 is the only sensible choice for an extension. The wiring involves multiple new circuits, which means the electrician must issue an Electrical Installation Certificate (EIC) with full test results. An unregistered installer can still fill in an EIC but cannot self-certify the work, so building control has to inspect it before your building control completion certificate is issued.

Warning

In England, adding a socket to an existing ring circuit (an unfused spur) outside a special location such as a bathroom is non-notifiable work. In Wales, the same addition is notifiable in a kitchen, bathroom or outdoors. Installing a new circuit for your extension is always notifiable. These are different things. If your electrician says "it's not notifiable because it's just sockets," make sure they understand you're running new circuits from the consumer unit, not extending an existing one.

Scotland has separate building standards (Section 4, Safety) with an equivalent requirement for competent-person certification of new circuits. Northern Ireland has no statutory equivalent of Part P for domestic electrical work, though voluntary contractor registration schemes operate there. The cable sizing tables (BS 7671) are UK-wide, and the practical outcome is the same everywhere: use a registered electrician for new extension circuits.

Where you'll need this

  • Electrical layout planning - deciding which circuits you need and where sockets, lights, and appliance points go determines which cable sizes to order
  • First-fix electrics - your electrician runs all cable during first fix, before plasterboard goes up. Cable sizing decisions must be finalised before this stage

Cable sizing decisions feed into every electrical aspect of an extension or renovation project. The principles here apply to loft conversions, garage conversions, and garden rooms in exactly the same way. Modern insulation standards mean the derating question comes up on virtually every project where cables pass through insulated structures.

Common mistakes

Buying cable before the electrician specifies. You find a deal on 2.5mm cable and stock up. Your electrician arrives, surveys the insulated stud walls, and tells you the socket circuit needs 4mm. Those drums of 2.5mm have no use on this job.

Assuming the drum label is the actual capacity. The 27A printed on a 2.5mm cable drum assumes Method C (clipped direct). In your insulated extension, that same cable may only be rated at 13.5A. The label isn't wrong, but it's incomplete.

Running 6mm cable to a cooker point through insulation without recalculating. 6mm at Method 103 drops to 23.5A, below the 32A MCB that protects it, so the circuit fails whatever the cooker's diversified load (about 25A for a 10kW cooker). Your electrician should upsize to 10mm or reroute to avoid the insulation.

Confusing "cable size for my shower" with a single right answer. A 7kW shower and a 10.5kW shower need different cable sizes, different MCB ratings, and potentially different circuit arrangements. The question isn't "what cable for a shower?" It's "what cable for this specific shower, on this specific route, through these specific conditions?"

Ignoring grouping derating. Your electrician bundles five circuits through the same hole drilled in a joist. Each cable derates the others because they share heat. A 4mm cable that comfortably carries 37A alone might only manage 28A when grouped with four other circuits. Your electrician accounts for this. Online calculators sometimes don't.

Warning

PVC-sheathed cables (standard grey 6242Y) must never contact expanded polystyrene (EPS) insulation. The plasticisers in PVC migrate into EPS, causing the cable sheath to become brittle and crack over time. Use PIR, mineral wool, or phenolic insulation around cable routes. NHBC standards prohibit PVC cable contact with EPS in all new residential construction. If your builder is using EPS boards in the stud walls, raise this with your electrician before first fix.
