1.5mm Twin and Earth Cable (6242Y): The UK Lighting Circuit Standard

Your electrician quotes for two lighting circuits and lists "1.5mm T&E" on the materials schedule. You search online and find 100m drums ranging from £50 – £70, three different colour sheaths, cable codes like "6242Y" and "6242B," and forum arguments about whether you actually need 1.5mm or can get away with 1.0mm. You buy the cheapest option without checking the label, your electrician arrives, and he won't use it because there's no BASEC mark on the drum. You're out £50 and a day's progress. This page stops that happening.

What it is and what it's for

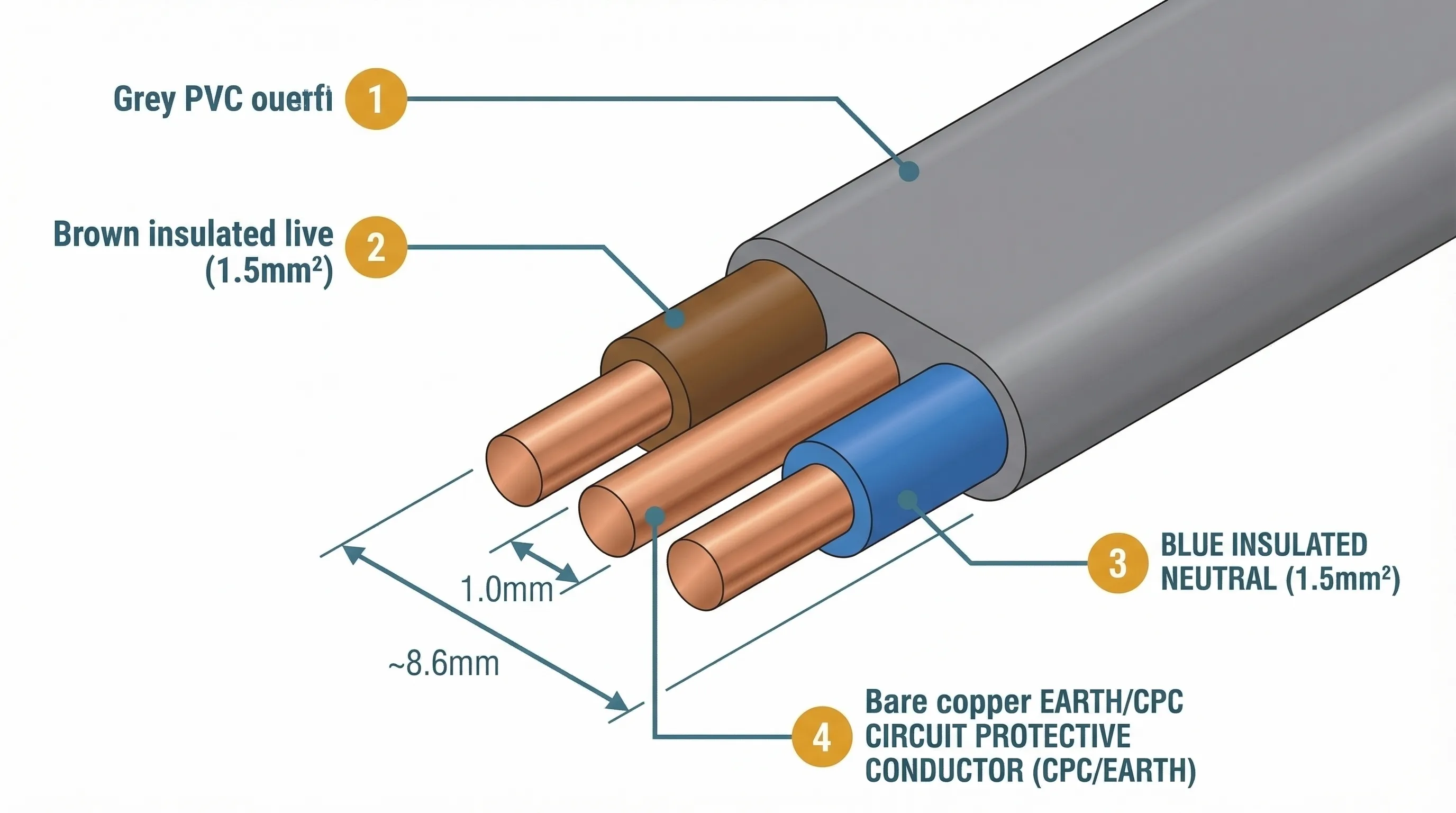

Twin and earth is the flat cable that carries electricity around your house. The "twin" is two insulated copper conductors (live and neutral), and the "earth" is a bare copper wire running between them. The whole lot sits inside a flat grey PVC sheath. It's the standard wiring cable for fixed domestic electrical installations in the UK: lighting circuits, socket circuits, cooker supplies, and everything in between.

The 1.5mm in the name refers to the cross-sectional area of each current-carrying conductor (live and neutral), measured in square millimetres. That conductor size determines how much current the cable can safely carry, which in turn determines what circuits it's suitable for. 1.5mm twin and earth is the standard cable for domestic lighting circuits, protected by a 6A MCB (miniature circuit breaker) at the consumer unit.

Click to enlarge

The earth conductor is always bare copper and always one size smaller than the live conductors. For 1.5mm cable, the earth is 1.0mm. This bare copper must be covered with green and yellow striped PVC sleeving at every point where it's exposed (every switch, every light fitting, every junction box). Skip this step and your installation will fail inspection.

What does 6242Y mean?

Every cable you buy has a designation code printed on the sheath. For standard twin and earth, that code is 6242Y. It breaks down like this:

• 6 = 300/500V voltage class (the insulation rating)
• 24 = flat cable construction with bare earth conductor
• 2 = two current-carrying cores (live and neutral)
• Y = PVC sheathed (thermoplastic)

You'll also see 6242B on some drums. The B means the sheath is LSOH (low smoke zero halogen) instead of PVC. LSOH cable has a white sheath instead of grey. In a fire, standard PVC releases hydrogen chloride gas, which is toxic and corrosive. LSOH cable produces minimal smoke and no halogen acids.

For a standard domestic extension, you don't need LSOH cable. BS 7671 recommends it for escape routes in certain building types, and it's mandatory in hospitals and high-occupancy buildings. Your building control officer could specify it if the extension contains a fire escape route or is part of an HMO. But for a typical kitchen or rear extension, standard grey 6242Y is what your electrician will expect and what you should buy.

Cable sizes and when to use each

1.5mm is the lighting standard, but it's only one size in a range. Understanding which cable goes where prevents one of the most common ordering mistakes.

The 14.5A current capacity quoted above is for cable clipped directly to a surface (BS 7671 Reference Method C), which is the most common installation method in a domestic first fix. That same cable installed differently has different ratings: up to 24A when enclosed in conduit, or as low as 7.25A when fully surrounded by thermal insulation for more than 500mm.

The 1.0mm vs 1.5mm debate

Electricians argue about this constantly. 1.0mm cable is technically adequate for most lighting circuits because modern LED loads rarely exceed 2-3A total, well within the 11.5A capacity of 1.0mm cable on a 6A breaker. It's cheaper, lighter, and uses less copper.

But 1.5mm is the de facto standard for first fix in extensions. The reasons are practical, not regulatory. Longer cable runs in an extension mean voltage drop matters more, and 1.5mm gives you headroom. If the cable passes through insulation above a ceiling, the derating penalty is less painful on 1.5mm than on 1.0mm. Most electricians stock only 1.5mm for simplicity. And on a new build or extension, the material cost difference between 1.0mm and 1.5mm across two lighting circuits is about £10 – £15 total. That's not worth the risk of marginal calculations on a long run.

Use 1.5mm for your extension lighting circuits. It's the right default.

How to work with it

You won't be wiring circuits yourself (new circuits in an extension are notifiable work under Part P, meaning a registered electrician must certify the work). But you will be buying the cable, and you may be running it through the building under your electrician's supervision. Knowing how it handles matters.

Running and fixing cable

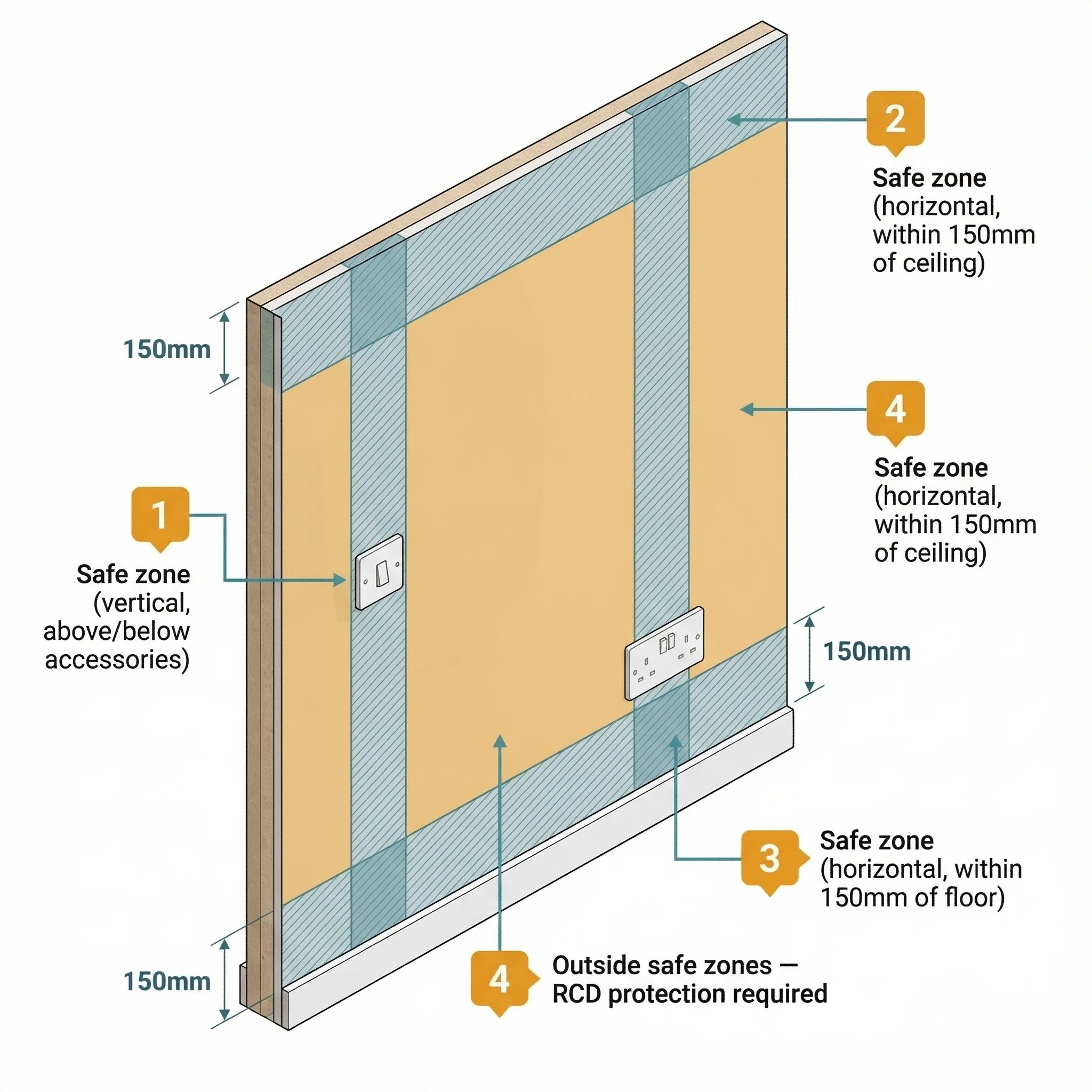

Twin and earth is flat, which makes it easy to clip to timber joists and studs. Use flat T&E clips (not round clips, which are for round flex cables), fixed at 300mm intervals on horizontal runs and 150mm near fixtures and accessories. The cable runs in defined "safe zones" specified by BS 7671: vertically above or below electrical accessories, and horizontally within 150mm of a ceiling or floor. These zones tell the next person working on the wall where cables are likely to be, so they don't drive a screw through one.

Leave 200mm of slack at every connection point. Cable pulled tight into a back box makes termination difficult and creates stress on the conductors. Your electrician will thank you for the slack and curse you for cutting it short.

When drilling through joists, drill through the centre (neutral axis) of the joist, not the top or bottom third where stress is highest. Holes should be no larger than one-quarter of the joist depth. For a 200mm joist, that's a 50mm maximum hole. Notching (cutting a groove in the top of the joist) is acceptable within defined limits but weakens the timber more than drilling.

The earth sleeving step

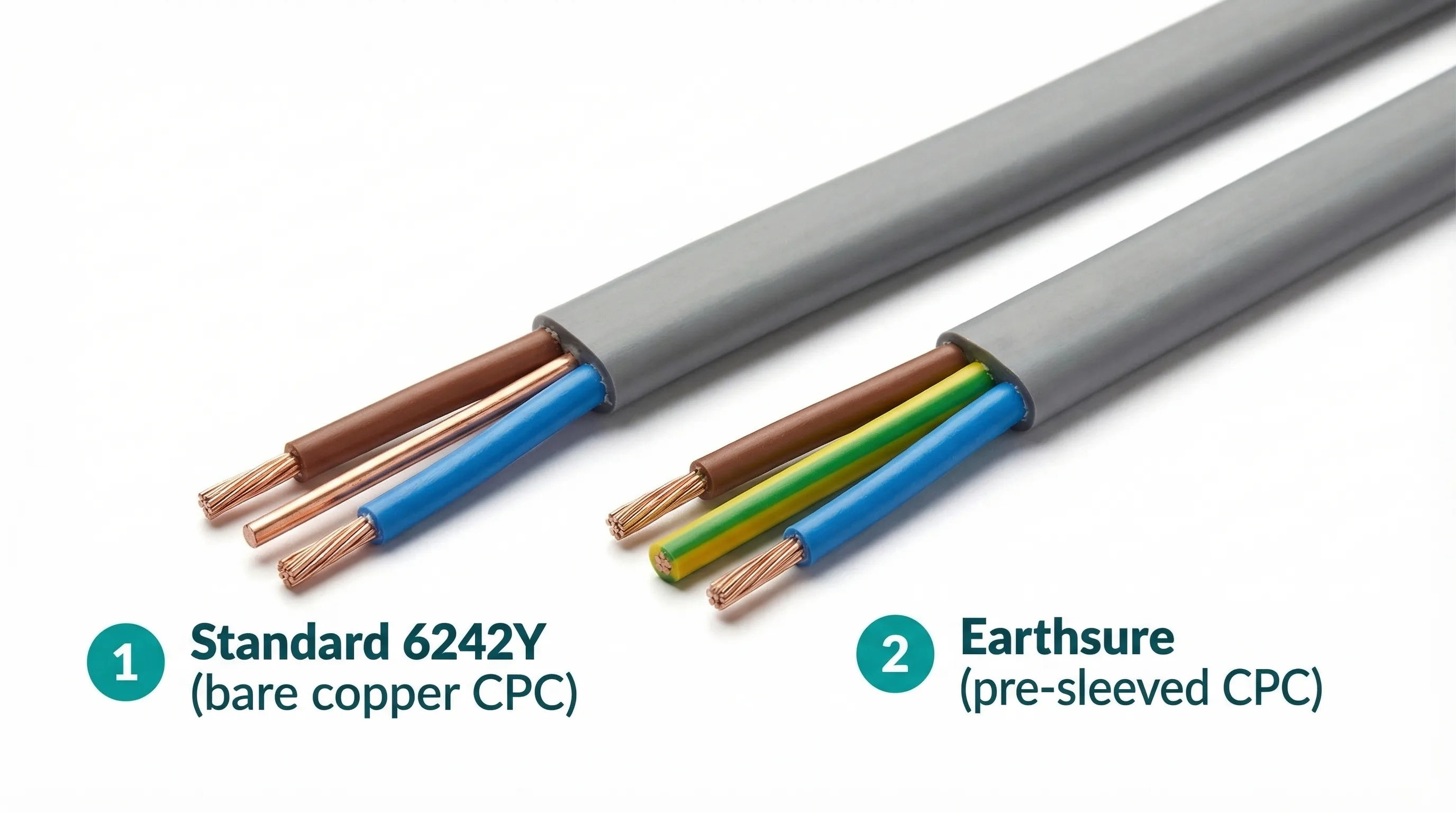

At every termination point (switch, light fitting, junction box, consumer unit), the bare copper earth conductor must be covered with green and yellow PVC sleeving. You strip back the grey outer sheath to expose the cores, cut and strip the brown and blue insulation for the terminal connections, and sleeve the bare copper earth with a short length of green/yellow PVC tube before connecting it to the earth terminal.

Stripping the cable

Use a proper cable stripper or a sharp knife to slit the grey outer sheath lengthways, being careful not to nick the coloured insulation underneath. A Stanley knife works but you need a light touch. The standard technique is to bend the cable to separate the cores slightly, then run the knife along the flat side to slit the sheath without cutting into the conductor insulation. If you nick the brown or blue insulation, that section of cable is compromised and should be cut back to undamaged material.

The conductor insulation strips cleanly with wire strippers set to the correct gauge. Don't use pliers or your teeth.

Click to enlarge

How much do you need

A typical single-storey rear extension (3m x 6m) with two separate lighting circuits needs roughly 80-150m of 1.5mm twin and earth, depending on the number of light points, the route distances from the consumer unit, and how the circuits are split. That's one to two 100m drums.

Here's a rough worked example:

• Circuit 1 (downlights over kitchen area): 8 downlights, 20m consumer unit to first point, approximately 60m total cable run including drops and loops between fittings
• Circuit 2 (feature lighting and utility area): 4 downlights plus 2 pendant positions, approximately 50m total cable run
• Total: 110m
• Plus 10% contingency for mistakes and re-routes: 121m
• Order: 2 x 100m drums (you'll have leftover, which keeps for future work)

The contingency matters. Cable is cheap. Waiting for a delivery while your electrician is on the clock is not. Buy one more drum than the calculation says you need. A spare 100m drum at ~£55 is trivial insurance against a wasted day.

Cost and where to buy

Current retail prices for a standard 100m drum of 1.5mm 6242Y twin and earth (March 2026):

Smaller quantities are available but poor value. Wickes sell a 7.5m coil for £9.00 (£1.20/m per metre, versus £1 – £1 per metre on a 100m drum). Fine for adding a single light point to an existing circuit. Not sensible for first fix wiring of an extension.

Trade wholesalers (CEF, Edmundson Electrical) sell for less, typically £40 – £50 ex VAT per 100m drum, but you need a trade account. If your electrician is buying materials, they'll source through wholesalers. If you're buying materials yourself for the electrician to install, Screwfix and Toolstation are your best retail options. Both offer next-day delivery or same-day click-and-collect.

Which brand should you buy?

Any cable with a BASEC approval mark meets BS 6004 and is fit for purpose. That's the buying signal. Brand preference beyond that mark is personal.

That said, tradespeople have opinions. Prysmian is the default recommendation from most UK electricians, manufactured domestically with consistent quality across batches. Doncaster Cables is the other major UK manufacturer, preferred by some for its flexibility (it bends more easily in tight spaces). Pitacs and Time are budget brands. Both carry BASEC approval, but forum complaints about sheath quality (tears easily, harder to strip cleanly) appear regularly. The price difference between budget and premium is £5 – £10 per 100m drum. On a two-drum job, that's £10 – £20 total. Buy Prysmian or Doncaster and don't think about it again.

The EPS insulation problem

This is the mistake that doesn't show up for years and then costs thousands to fix. Standard PVC-sheathed cable (6242Y) must not be run in direct contact with expanded polystyrene (EPS) insulation. The plasticisers in the PVC sheath migrate into the polystyrene over time, making the cable insulation brittle and cracked. It's a slow chemical reaction, not an overnight failure, but the result is exposed conductors inside your walls or ceiling.

NHBC prohibits this contact in all new residential construction. Building control should catch it at first fix inspection. But if it's missed, you won't know until an electrical inspection years later reveals degraded cable that needs complete replacement.

This only affects EPS. PIR insulation (the foil-faced rigid boards from Celotex, Kingspan, and similar manufacturers) and mineral wool (Rockwool, Knauf) do not interact with PVC. If your extension walls use PIR insulation (which most do these days, because PIR meets building regulations U-values more easily at thinner profiles), you can clip cable directly to the stud and run it behind the insulation board without concern.

Cables and insulation: the derating problem

When cable passes through or is surrounded by thermal insulation, it can't shed heat as effectively. BS 7671 addresses this with derating factors that reduce the cable's permitted current capacity.

For 1.5mm twin and earth clipped directly to a surface in free air (Reference Method C), the current capacity is 14.5A. That same cable fully enclosed in thermal insulation for a continuous run of 500mm or more (Reference Method 103) drops to 7.25A, exactly half. A lighting circuit on a 6A MCB still works because the MCB rating is below 7.25A. But if you've run 1.0mm cable instead, the derated capacity is lower and the margins get uncomfortable.

The practical scenario is cables above an insulated ceiling. If the cable sits on top of plasterboard with insulation laid above it (touching one side only, for less than 500mm), there's no derating needed under BS 7671 Method 100. But if the insulation is deep enough to fully surround the cable, or the cable is sandwiched between two layers, you're into Method 101 or 103 territory and derating applies.

This is your electrician's calculation to make, not yours. But it's why 1.5mm is the right default for extension lighting circuits. The headroom matters.

Regulatory context

New circuits in an extension are notifiable work under Part P of the Building Regulations (in England and Wales). This means the electrical work must either be carried out by an electrician registered with a competent person scheme (NICEIC, NAPIT, ELECSA, or similar) or be notified to your local building control before work begins.

You can legally run cable and prepare back boxes yourself. But the final connections, testing, and certification must be done by a qualified person. Your electrician will issue an Electrical Installation Certificate (EIC) and a BS 7671 compliance certificate, which you need for your building control sign-off at the end of the project.

The current UK wiring standard is IET Wiring Regulations, 18th Edition (BS 7671:2018), with Amendment 4 issued in 2026. This is the standard your electrician designs and tests against. You don't need to read it, but you should know it exists, because it's the document that determines cable sizes, circuit lengths, protection devices, and testing requirements.

Click to enlarge

Alternatives

2.5mm twin and earth is the next size up and the standard for socket circuits. If you're ordering cable for a full first fix, you'll need both: 1.5mm for lighting and 2.5mm for ring mains and radial socket circuits. Don't use 2.5mm for lighting circuits. It works electrically but it's harder to terminate in light fittings, wastes copper, and costs more.

1.0mm twin and earth is adequate for short lighting runs and point-to-point connections between downlights. Some electricians use it for the final drops from a 1.5mm feed to individual light fittings. It's cheaper and easier to handle in tight ceiling voids. But it's not the right main circuit cable for an extension, for the derating and headroom reasons discussed above.

Fireproof cable (FP200 or MICC) is required for fire alarm circuits and emergency lighting in commercial buildings. You won't need it for a standard domestic extension unless you have a specific fire alarm system requirement from building control.

Where you'll need this

• First fix electrics - lighting circuit cables run during first fix, before walls are closed up
• Electrical layout planning - the number of lighting circuits and cable routes determines how much 1.5mm T&E you need to order

These are the stages where 1.5mm cable gets used. But the ordering decision happens earlier, during pre-construction, when your electrician provides a cable schedule. Buy early. Cable prices track copper commodity markets and can shift 10-15% in a quarter.

Common mistakes

Buying cable without a BASEC mark. Non-approved cable sold cheaply on marketplaces may not meet BS 6004. Your electrician should refuse to install it, and building control won't accept it. Check the drum label and the print on the sheath itself.

Not sleeving the bare earth at terminations. The earth conductor arrives bare. At every point where it's exposed (switches, lights, junction boxes), it must be covered with green/yellow PVC sleeving. Miss one, and it's a failed inspection. This is the single most common beginner mistake in forum threads about twin and earth cable.

Running PVC cable against EPS insulation. Already covered above. Use conduit through EPS sections. PIR and mineral wool are safe.

Buying small coils instead of 100m drums. A 10m coil costs £12 – £13, which is £1 – £1 per metre. A 100m drum at £55 – £60 works out to £1 – £1 per metre. If you need more than 20m, a drum is always better value.

Kinking the cable during installation. Twin and earth is solid copper, not stranded. Sharp bends and kinks create a weak point. Pull cable gently off the drum, keeping bends gradual. A kink that creases the sheath is a potential failure point where moisture can enter. If you kink it badly, cut back past the damage and use what's undamaged.

Confusing old and new colour codes. Pre-2006 UK wiring used red for live and black for neutral. Post-2006 harmonised colours are brown (live) and blue (neutral). If your extension connects to existing wiring in the house, old and new colours must not coexist in the same circuit without a warning label at the consumer unit identifying which colour scheme applies. Your electrician will handle this, but if you see red and black cables in your existing consumer unit, mention it when getting quotes. It tells the electrician the existing installation pre-dates 2006 and may need additional inspection.
