Levelling Staffs: How to Read the E-Pattern Graduations and Take an Accurate Reading

You set up a brand-new optical level on its tripod, dial in the bubble, and look through the eyepiece. Crosshairs, magnification, beautiful crisp image. But there's nothing in the field of view to measure against. The optical level on its own gives you a perfectly horizontal line of sight and absolutely no readings. Without a graduated rod held at the point you want to measure, the most expensive surveying instrument in the world is useless. The levelling staff is that rod. It's the cheapest part of the optical-level kit and the only part that produces actual numbers.

What it is and when you need one

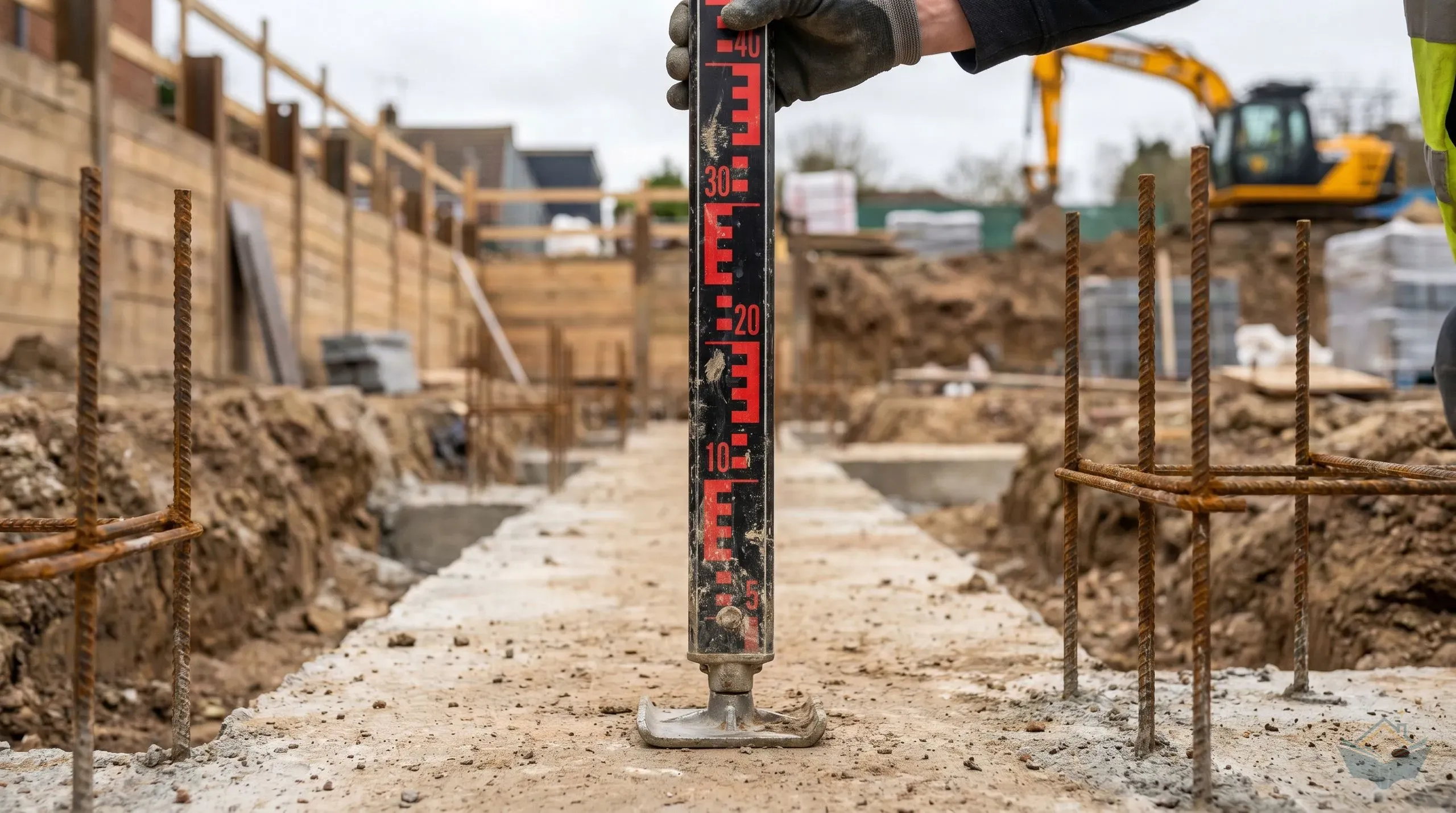

A levelling staff is a graduated measuring rod, typically 4 to 5 metres long, telescoping into shorter sections for transport. One face carries the metric graduations - bold black-and-red E-shaped patterns at every centimetre, with clear numerals at every decimetre. You hold the staff vertically on the point you want to measure. A second person looks through the optical level (or rotary laser detector) and reads the graduation that aligns with the crosshairs. The reading is the height from the foot of the staff up to the line of sight.

You need a levelling staff any time you're using:

• An optical level for foundation level checks, drainage falls, or screed datum work. The optical level is incapable of producing a number without a staff.
• A rotary laser level with a laser detector for outdoor levelling. The detector clamps to the staff and reads the staff at its reference mark.
• Any precision long-range height measurement during groundwork, drainage installation, paving, or landscaping.

For purely indoor work with a cross-line laser projecting a visible line on a wall, you don't need a staff - the line is already on the wall. The staff is specifically for jobs where the level reference is a horizontal line through the air (an optical level's line of sight or a laser plane) and you need to measure where that line falls relative to a point on the ground.

±1mm at 30m

A standard 5m telescopic levelling staff used with an optical level produces height readings accurate to within ±1mm over distances of up to 30m, the practical maximum for domestic groundwork. Beyond that distance, atmospheric refraction and reading parallax dominate the error budget.

Anatomy and graduations

A typical UK staff has four telescoping sections, extending to 4 or 5 metres total length. Each section is aluminium or fibreglass, with a foot plate at the bottom and a locking clamp between sections. The face shows graduations on at least one side; some staffs are double-sided with metric on one face and imperial on the other (rare these days but found on older or specialist tools).

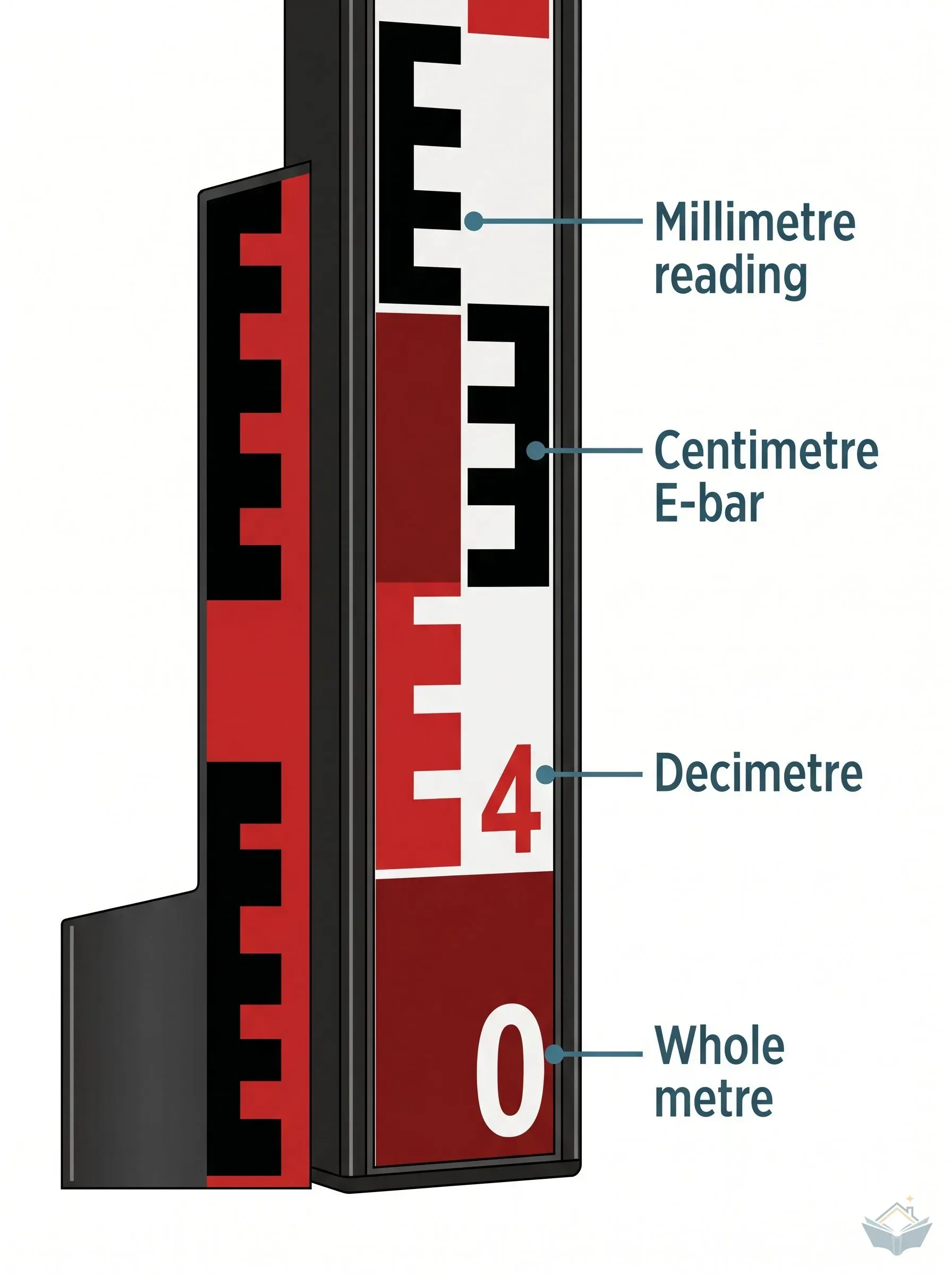

The metric face uses the E-pattern convention. Each centimetre is a black bar shaped like a horizontal letter E (or its mirror, depending on the centimetre), with a 5cm group alternating between red and black. The decimetre is marked clearly with a numeral, and every metre is marked with a larger numeral and often a colour change.

The reason for the E-pattern is reading at distance through an optical level's eyepiece. The shape gives you visual cues at four levels of zoom:

• Whole metre: the large numeral
• Decimetre: the small numeral or colour band
• Centimetre: the count of E-bars within the decimetre
• Millimetre: the position within the E-bar (each leg of the E is 1cm tall, with the legs themselves about 5mm wide and the gap between them 5mm, so half-centimetre subdivision is straightforward)

Once your eye is trained, reading a staff at 30 metres is no slower than reading one at 3 metres. The pattern self-discloses the level of detail you need.

Click to enlarge

How to use it properly

A levelling staff almost always works as part of a two-person team: one person on the optical level, one person holding the staff. The staff-holder's job is to keep the staff:

• Vertical. A staff tilted out of vertical reads too high (more of the staff is in the line of sight than the actual ground-to-line height).
• Stationary. A staff that wobbles during the reading gives an unreliable number.
• At the right point. The staff foot must sit precisely on the level point being measured, not 50mm to one side.

Getting the staff vertical

The simplest method: just hold it as vertical as you can by eye. For most domestic work this is good enough - anything within 2-3 degrees of vertical introduces less than 1mm of error in a 1m reading.

For more accuracy, use a staff bubble. A small cylindrical level clamps to the back of the staff face, with two perpendicular bubble levels visible to the staff-holder. Centre both bubbles and the staff is vertical to within 0.5 degrees. Cheap staffs don't include one; better staffs do, or you can buy a separate clip-on bubble for 5-10 pounds.

A trick that works without a bubble: gently rock the staff back and forth in the line-of-sight plane while the level operator reads the minimum number on the staff. The staff is vertical at the moment the reading is at its lowest - at any other angle, the line of sight intersects a higher graduation. The level operator notes the lowest number seen during the rock as the correct reading.

Standing the staff on the right point

For foundation level checks, the staff foot sits on the trench base or the formed concrete surface. For drainage checks, it sits on the invert (the lowest point of the pipe at the inspection point). For finished floor level (FFL) work, it sits on the existing finished floor of the house at a marked datum point.

Always note exactly where the staff foot is. A reading of 1.456m on the trench base 50mm from where you wanted it is useless. A common mistake on busy sites is the staff-holder's foot wobbling or the staff foot being placed on a stone or a soft patch of soil that compresses under the staff weight.

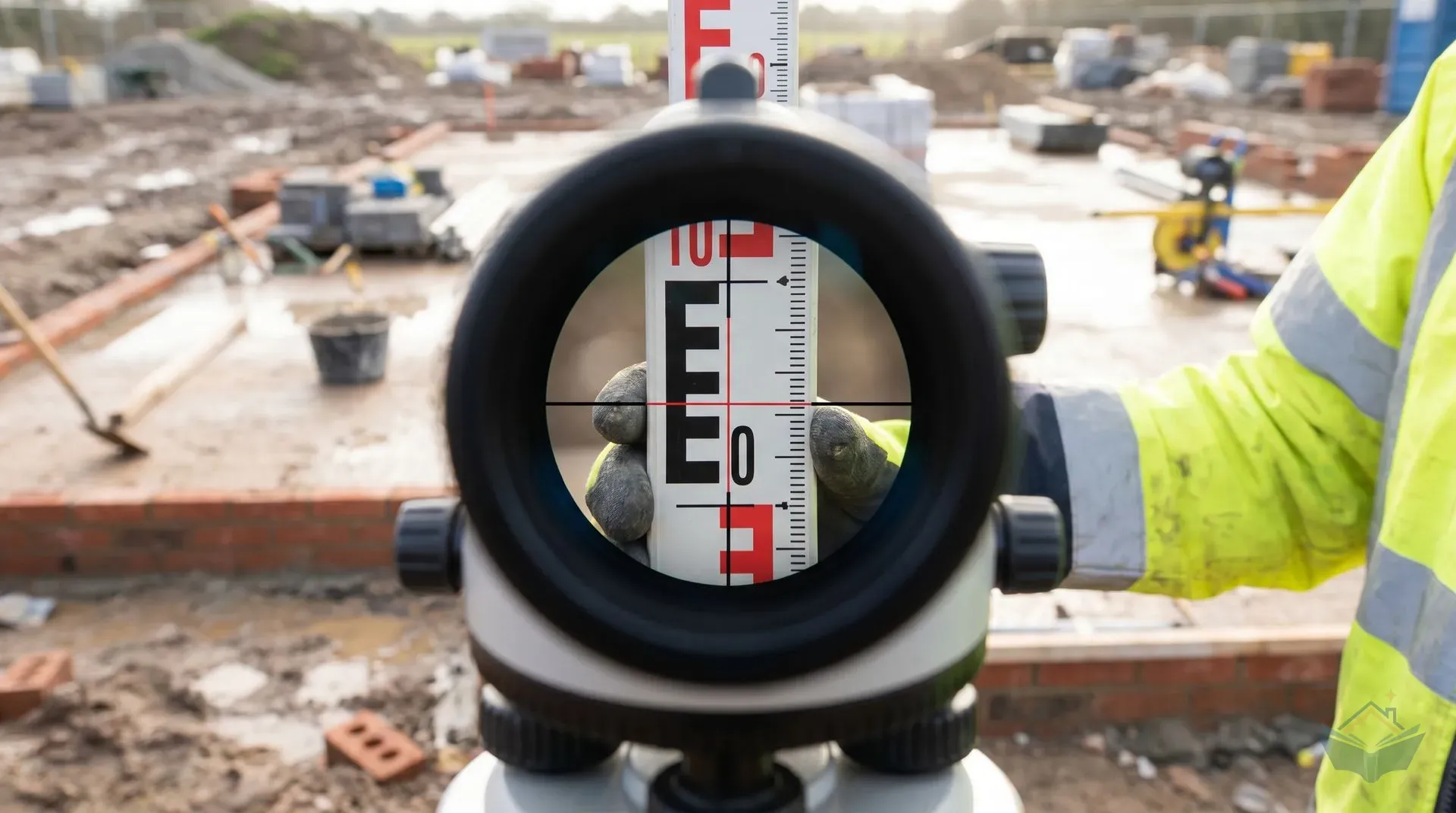

Reading the staff through an optical level

The level operator looks through the eyepiece. The crosshairs are visible against the staff. The horizontal crosshair marks the line of sight. Read the graduation that aligns with the horizontal crosshair.

Most optical levels show three crosshairs: a centre line (the level reading) and two stadia lines above and below. The stadia lines let you estimate distance - the staff length subtended between the upper and lower stadia, multiplied by 100, equals the distance from the level to the staff. A 0.05m subtension means the staff is 5m away. Useful as a quick check that the staff is at the distance you expected.

Click to enlarge

Telescopic versus folding staffs

Two designs dominate the UK market.

Telescopic staffs (also called "extending" or "thunderbird" staffs) use overlapping sections that slide inside each other and lock with quick-release clamps at each joint. Easy to set up, easy to pack down, and the lock points are usually marked with metric graduations so you can see at a glance whether each section is fully extended.

Folding staffs use hinged sections that fold flat against each other for transport. Less common in the UK domestic market because they're more fiddly to extend and the hinge points can develop play that affects reading accuracy. Found mainly in older surveyor's kits and on some specialist heritage tools.

For a homeowner doing a single extension, a telescopic staff is the only sensible choice. They're cheaper, easier to use, and pack into a typical car boot.

What to buy

Budget: 4-5m telescopic, basic graduations

Generic telescopic staffs sold via Amazon UK, Screwfix, and Toolstation in this band. 4 or 5 metres extended length, aluminium sections, plastic locking clamps, basic black-and-red metric graduations on one face. Folds down to roughly 1.2m for transport.

These are functionally fine for one or two extension projects. The aluminium can dent if dropped, the locking clamps can develop slop after 100+ extensions, and the foot plate can bend if jammed onto a hard stone surface. For occasional use, none of this matters.

Mid-range: branded with bubble level

Stanley, Faithfull, and Bosch sell mid-range staffs with sturdier construction. The clamps are metal rather than plastic, the graduations are printed on a more durable backing (resists abrasion from rough handling), and a built-in bubble level on the back face confirms vertical without needing a separate accessory. Some include a carry bag.

For someone doing extended groundwork or planning multiple projects, the upgrade is worthwhile. The clamps especially make a difference - a clamp that holds firmly under repeated use means readings stay reliable through a long working day.

Hire option

Plant hire firms (HSS, Brandon Hire Station, Speedy) hire levelling staffs for 8-15 pounds per day. If you only need one for a single foundation pour or a one-day drainage check, hiring is cheaper than buying. Bring it back the same day to avoid extra charges. Many groundworkers and builders already own one, so check before hiring.

What to avoid

The cheapest no-brand staffs on Amazon (sub-40 pounds) sometimes have inaccurate graduations - printed slightly off-pitch or with the E-pattern not aligned to the metric markings. A staff with bad graduations is worse than no staff because the error compounds over multiple readings without you noticing. Stick to recognised brands or buy from a retailer that allows returns if a quick check shows the graduations are wrong.

A quick check on a new staff: use a steel rule to verify the graduations are exactly 1cm apart at three points along the staff (top, middle, bottom). If any are noticeably off, return it.

Maintenance

A levelling staff is mostly aluminium or fibreglass. It needs almost no maintenance:

• Wipe down with a damp cloth after a wet site day to prevent corrosion at the joints
• Check the lock clamps once a season - a drop of light oil on the threads keeps them moving freely
• Don't drop the staff foot-first onto concrete; a bent foot plate distorts every reading from then on
• Store the staff fully collapsed and clipped (most have a strap) so the sections don't wobble in transit

If the graduations begin to fade (rare on modern staffs but common on old ones), don't sand them off and try to repaint - buy a new staff. Mistakes from a hand-painted face are not worth the 50-100 pounds saved.

Where you'll need this

• Foundations and footings - measuring trench depths and concrete pour heights against the optical level
• Drainage - confirming invert levels and gradient drops along the run
• Damp-proof course - checking the DPC sits at the same height as the existing house DPC
• Walls and blockwork - verifying course heights up to roof level on long elevation walls
• Screeding - establishing a level datum across the floor area for uniform screed depth

The staff is one of those tools that disappears from the conversation because nobody talks about it directly - but if you're using an optical level or a rotary laser with detector for any of the above, the staff is what's actually producing the measurements. Don't buy the level without the staff. They're a system, not two independent tools.

Safety

The staff is long, light, and conductive (aluminium versions). Three risks worth knowing:

Overhead power lines. A 5m staff is over half the typical height of a domestic overhead service cable. Holding the staff vertical near a low-hanging cable risks contact. On any site near overhead lines, check the clearance before standing the staff up.

Wind on extended staffs. A fully extended 5m staff catches wind like a sail. Beyond about 30 mph the staff becomes hard to hold steady and readings become unreliable. On windy days, take more readings and average them, or wait for a calmer hour.

Staff falling. A staff falling sideways from full height can hit anyone within a 5m radius. When holding a staff during a reading, plant your feet firmly and keep both hands on the staff. Don't try to one-hand it while holding a phone or a tape measure with the other.
