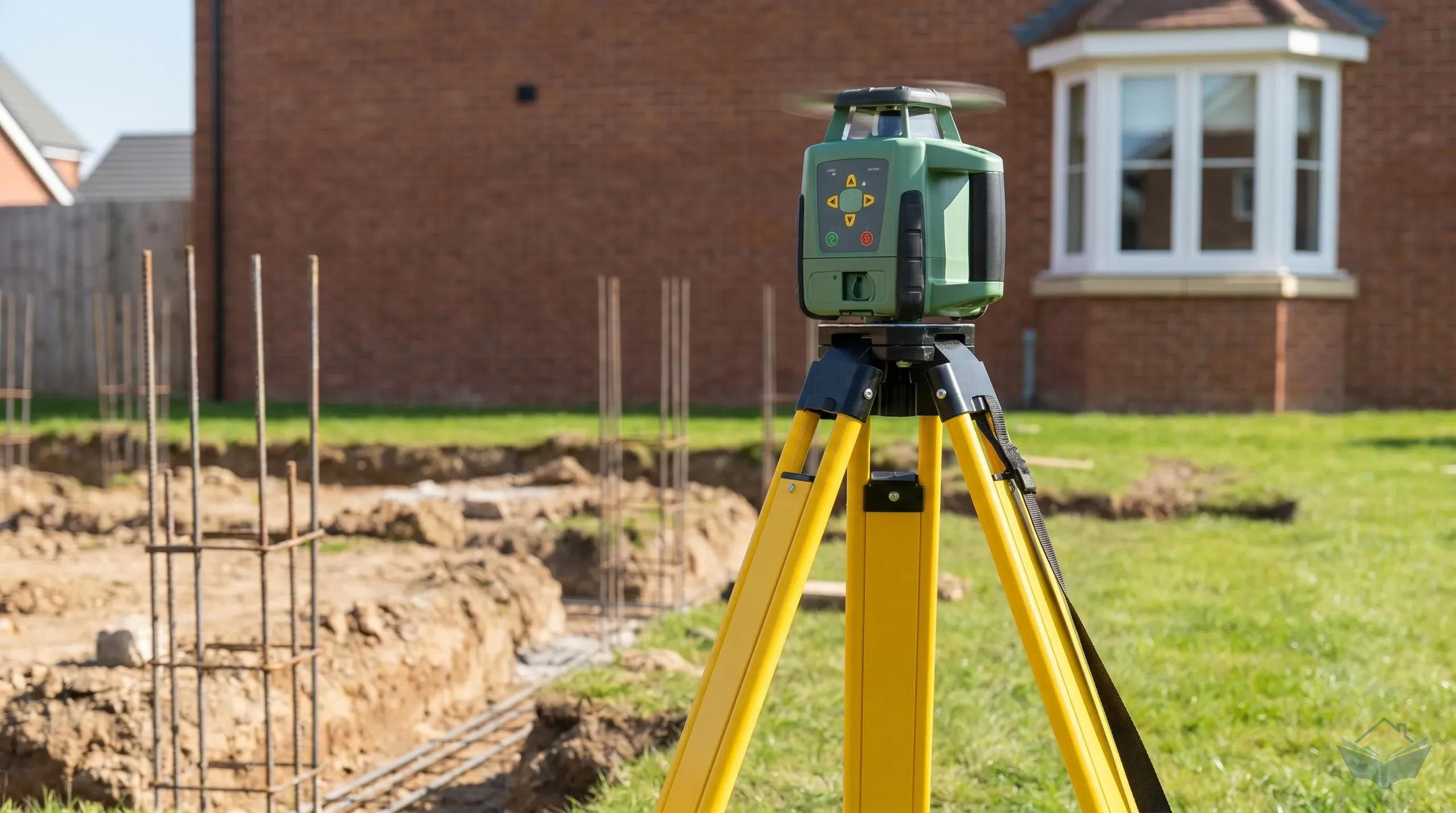

Rotary Laser Levels: How to Set Foundation and Drainage Levels Across a Whole Site
The UK guide to rotary laser levels for groundwork. How they differ from cross-line lasers, hire vs buy decisions, and pairing with a detector and staff.
You're checking foundation levels across a 12m × 8m extension footprint. Your groundworker dug the trench yesterday. Building control visits tomorrow and the trench bottom only looks roughly level by eye. An optical level sees half the footprint before a structural pier blocks the line of sight. A rotary laser level on a single tripod sweeps a perfect horizontal plane 360 degrees around the entire site. One person with a staff and a detector walks the perimeter and reads every corner from one setup. The whole job takes 20 minutes.
What it is and when you need one
A rotary laser level is a laser instrument designed for large-scale outdoor levelling. Unlike a cross-line laser (which projects a static line on the wall in front of it), a rotary laser spins a single laser dot rapidly around a vertical axis, creating a continuous horizontal plane that surrounds the device 360 degrees. Anywhere within line of sight of the rotating head, the laser plane defines the same level reference.
Because the beam is a spinning dot rather than a static line, two things change versus a cross-line laser:
- The beam is invisible to the eye in daylight. A spinning dot at any moment is illuminating only a narrow strip of any wall, and the human eye cannot integrate that flash into a visible line. You always need a laser detector to use a rotary laser outdoors.
- The range is much longer. Because the beam is concentrated as a single dot rather than spread into a fan-shaped line, it carries further before becoming too dim to detect. Typical rotary lasers work to 300m+ with a detector, against 30-50m for a cross-line laser at best.
You need a rotary laser level when:
- Setting out foundation levels for an extension footprint larger than about 5m × 5m, where a cross-line laser's range and indoor visibility limits become a problem
- Setting drainage falls over runs of 10m or more outdoors, where neither a cross-line laser nor a long tape measure works
- Levelling concrete pours for a slab or screed across a large area
- Patio and landscape grading for paving, retaining walls, or drainage fields
- Excavation control to maintain a constant trench bottom level over long runs
For most domestic extension projects, a rotary laser is borderline overkill - a cross-line laser plus a short outdoor session for groundwork would typically suffice. The threshold for needing a rotary laser is usually project size: anything over about 30m² extension footprint or any drainage run over about 8m benefits from one. Below that, a cross-line laser plus a detector handles most of the work.
300m+ range with detector
A typical builder-grade rotary laser level achieves working range of 300-500m with a laser detector clipped to a staff. The same beam projected as a static line (cross-line laser) is barely visible to the eye at 10m in bright daylight.
How a rotary laser works

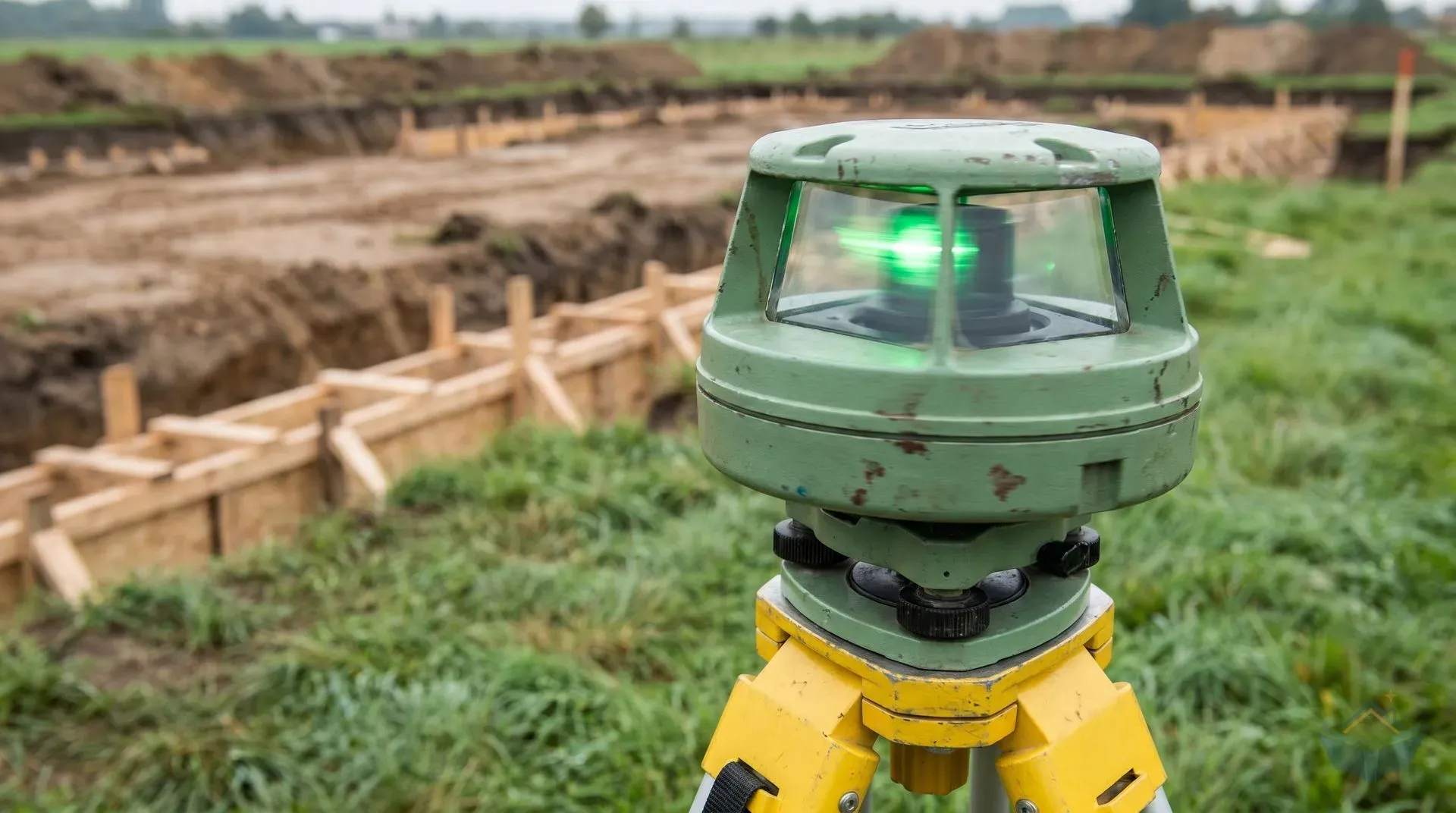

The internal mechanism is simple in concept and tougher than it looks in practice. A small motor spins a prism or mirror at the top of the device, redirecting a fixed laser source horizontally as the prism rotates. At the prism's rotation rate (typically 200-600 RPM), the laser sweeps a complete horizontal plane every fraction of a second.
The device self-levels using a pendulum or electronic compensator that detects tilt and either physically tilts the laser source to compensate, or refuses to operate (showing an error) if the tilt is beyond compensation range. Once the device finds level, the rotating plane is exactly horizontal everywhere within its rated range.
A laser detector picks up the spinning beam as a series of pulses (one per rotation). The detector knows the rotation frequency and can distinguish the laser pulses from random ambient light. The detector's photodiode column then identifies where on the column the pulses fell, telling you whether the beam is above, below, or at the centre of the detector.
Some rotary lasers also have a vertical mode - the prism rotates around a horizontal axis instead of vertical, creating a vertical plane. Useful for plumb references over long distances (checking the verticality of a tall wall, setting out vertical lines in a structural frame). For domestic extension work, you mostly use horizontal mode.
Self-levelling vs manual
Two grades of rotary laser are common.
Self-levelling rotary lasers automatically find horizontal once placed roughly level on the tripod (typically within 4-5 degrees of level). They beep or display an error if they can't compensate. Once they've found level, they hold it through small bumps and vibrations from passing traffic or wind. These are the dominant choice for any user who'll set up and re-set up the device through a working day.
Manual rotary lasers require you to centre two bubble levels with screws on the device base. They're cheaper but slower to set up and prone to drift if the tripod settles into soft ground. Mostly found on older second-hand units or budget specials. Not recommended for new purchase.
Some self-levelling rotary lasers add a dual-axis capability: instead of just self-levelling horizontal, they can be deliberately set to a slope (e.g. 1:80 for drainage falls), and the device maintains that slope across the rotation. The laser plane is then a slope rather than a horizontal - useful for setting drainage gradients over a large excavation.
For domestic extension use, a single-axis self-levelling rotary laser is the right baseline. Dual-axis adds 200-400 pounds to the price and is rarely worth it for one project.
Hire versus buy
This is the key practical decision for most homeowners.
Hire (most common choice)
Rotary laser level hire (per day)
£25 – £45
Rotary laser level hire (per week)
£60 – £110
Plant hire firms - HSS, Brandon Hire Station, Speedy, Nationwide - all stock self-levelling rotary lasers with detector and tripod as a kit. Daily hire (25-45 pounds) covers a single foundation setting-out session. Weekly hire (60-110 pounds) covers extended groundwork including drainage runs. Most kits include a 5m levelling staff, a detector with clamp, a tripod with quick-release legs, and a hard carry case.
For a single extension project, hire is almost always the right answer. The total cost over a 6-12 week build is typically 150-300 pounds, against 400-800 pounds+ to buy a comparable kit. Hire also means you're using current-generation equipment that's been calibrated by the hire shop, and any malfunction is replaced or repaired by the hire shop rather than you.
The only reason not to hire is if you genuinely plan multiple projects across several years, in which case the per-project amortised cost flips in favour of buying.
Buy
Budget rotary laser level (kit)
£300 – £500
The DeWalt DW079LG (around 350-450 pounds from Screwfix or Toolstation) is the typical entry-level branded kit: green laser, self-levelling, 50m+ range with detector, tripod and detector included. The Stabila LAR 250 (around 300-400 pounds) and Bosch GRL 250 HV (around 400-500 pounds) sit at this price point with similar specs.
These hold up well to trade use. If you genuinely intend to use a rotary laser repeatedly over the next 5-10 years, buying makes sense. If you don't, hire.
Pro rotary laser level (kit)
£600 – £800
Above 500 pounds sits the professional surveying tier: Topcon RL-H5A, Leica Rugby 610, Spectra Precision LL300N. Higher accuracy (±1mm at 30m), longer range (500m+), more robust construction, dual-axis options, and battery systems sized for all-day continuous use. Overkill for any homeowner extension.
Tip
If you find yourself hiring a rotary laser more than three times in a year (or three times across two extension projects), you're better off buying. The per-day cost of ownership over three years amortises to less than the daily hire rate. This is a niche scenario for most homeowners but realistic for property investors managing multiple builds.
How to use it properly
Setting up the tripod
The tripod needs to be on stable ground. A rotary laser is heavy enough to topple a poorly-secured tripod in wind. Press the tripod legs firmly into the ground (or onto a paving slab if working on a hard surface). Check the tripod head is approximately level using the bubble - the rotary laser's self-levelling will handle fine adjustment, but the device can't self-level beyond its compensation range.
Position the tripod somewhere central to the work area, with line of sight to every measurement point. Avoid placing it directly downwind of dust sources (skip activity, cement mixing) - particles in the air refract the laser beam and reduce detection reliability.
Mounting the laser
The rotary laser screws onto the tripod thread (usually 5/8-inch UNC, larger than camera tripod threads). Tighten by hand only - overtightening can damage the device's mounting plate. The kit usually includes a tripod with the right thread.
Power on. The device beeps and the rotating head spins up to operating speed. The bubble levels on the device base should be roughly centred; if they're not, adjust the tripod leg lengths. Once stable, the device's self-levelling kicks in and within 30-60 seconds the laser is level.
Reading levels with the detector
This is where the rotary laser pays off compared to running back and forth between an optical level and the staff.

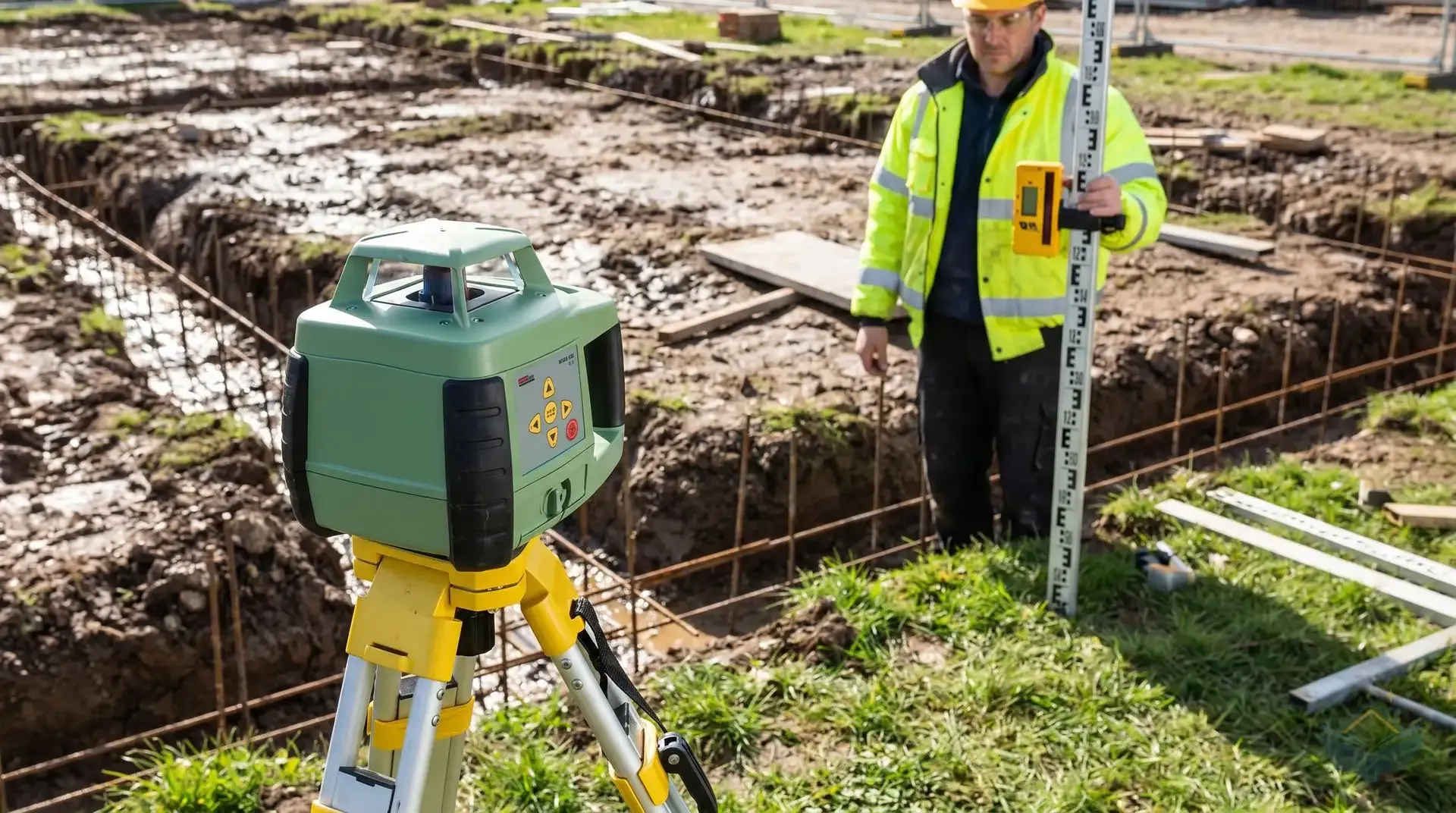

Clamp the detector to the staff
At a height roughly matching the laser tripod height. The detector's reference mark should sit at a sensible height on the staff (e.g. 1.0m, 1.5m).
Walk to the first measurement point
Foot of the staff on the level point, staff vertical, detector at chest height for easy reading.
Slide the detector or move the staff until the beam locks
The detector beeps and the centred-line indicator illuminates when the beam aligns with the centre sensor.
Read the staff at the detector reference mark
Note the reading (e.g. 1.245m). This is the staff height where the laser plane intersects.
Walk to the next point and repeat
The laser plane is the same height everywhere, so each new reading reflects the height difference between this point and the others. A reading of 1.300m at the next point means that point is 55mm lower (the staff has to extend further to reach the same plane).
For a foundation level check across a 12m × 8m footprint, you'd typically take 8-12 readings (corners, midpoints, drainage gulleys) in 15-20 minutes, all from one tripod setup. Compare against the design levels to find where the trench bottom needs adjusting before the concrete pour.
Setting drainage falls
A single-axis rotary laser projects a horizontal plane. To set a drainage fall, you don't tilt the laser - you measure the natural ground level at each point and calculate the required dig depth.
For a 1:80 fall over an 8m run, the downstream invert needs to sit 100mm below the upstream invert. Take readings at each end of the run with the laser-and-detector setup. The difference between the two readings is the natural ground level difference. Subtract or add the planned fall to find how much deeper the downstream trench needs to be.
If you have a dual-axis rotary laser, you can set the laser plane itself to slope at 1:80, then any reading along the run gives you the matching invert level directly. The detector beeps when the staff foot is at exactly the right depth at every point. For a long drainage run with multiple pipe joints, this is much faster than calculating each invert separately.
Comparing rotary laser, optical level, and cross-line laser
Three tools, three different jobs. Choose based on the task.
| Tool | Best for | Range | Visibility outdoors |
|---|---|---|---|
| Rotary laser level | Large outdoor sites, long-range levelling, 360-degree reference | 300-500m with detector | Invisible to eye, requires detector |
| Optical level | Foundation level checks, drainage, precision long-range readings | 30-100m with staff | Operator looks through eyepiece, daylight no issue |
| Cross-line laser | Indoor work, short-range outdoor, visible line on walls | 10-30m line-of-sight, 50m+ with detector | Visible to eye in dim light, fades in bright daylight |
For a typical UK extension project, the cross-line laser handles most indoor work and the rotary laser handles the groundwork. The optical level is an alternative to the rotary that some builders prefer for its simplicity (no batteries, no calibration, no electronics), but it requires two people to use and is slower for large sites.
Common mistakes
Using it indoors without need. A rotary laser is overkill for indoor cross-line work. The spinning dot is harder to see than a static line, and you need a detector to read the beam reliably. Use a cross-line laser indoors and save the rotary for outdoor groundwork.
Tripod sinking into soft ground. The tripod legs press into wet grass or freshly-disturbed soil and the device drifts out of level over the course of the day. Place the legs on flat stones, paving slabs, or a board if the ground is soft.
Insufficient battery for the day's work. Rotary lasers use more power than cross-line lasers because of the rotating motor. Charge the battery overnight and bring spares for a long day. A laser that dies mid-pour with the concrete already mixed is the kind of mistake you don't make twice.
Detector incompatible with the laser. Same problem as cross-line lasers: wavelength must match (red or green) and the detector must support the rotation rate of the laser. Some hire kits include both as a matched pair; check before walking off the lot with mismatched components.
Standing in the beam path. The rotating beam needs unobstructed line-of-sight from the laser to the detector. Builders walking through the work area block the beam. On a busy site, plan readings for a quiet moment or work the perimeter so other workers stay in the cleared zone.
Where you'll need this
- Foundations and footings - checking trench bottom levels across the full extension footprint before concrete pour
- Drainage - setting falls over long runs from the extension to the connection at the boundary
- Damp-proof course - verifying DPC level matches the existing house DPC across multiple measurement points
- Walls and blockwork - checking course heights are consistent on long external walls during structural build-up
The pattern across all these tasks: large outdoor sites where line-of-sight matters and a single-tripod-setup reference plane saves hours of repositioning a different instrument. For smaller indoor work, you don't need a rotary laser; for groundwork on anything bigger than a porch, you do.
Safety
Rotary lasers sold for UK domestic use are typically Class 2 lasers (1mW or less in the visible spectrum). Class 2 means the human blink reflex is sufficient to prevent eye damage from short exposure. The rotating beam at any single point is very brief (a fraction of a second per rotation), reducing risk further.
Warning
Don't position the rotary laser at eye height where someone walking past might catch the beam directly in the eye on every rotation. Mount the tripod high enough that the laser plane is above head height, or low enough that it's at waist level. The danger isn't a single brief flash - it's repeated brief flashes from a stationary observer who can't blink fast enough between rotations.
Some commercial rotary lasers are Class 3R (up to 5mW). These are designed for long-range professional surveying and have higher eye-injury risk. Check the device label before use; most domestic-grade lasers will be clearly marked Class 2.
The tripod and the device together weigh 4-7kg. Tipping risk on a tall tripod is real - secure the legs into the ground or weight the legs with sandbags in windy conditions. A laser falling from full tripod height onto rubble usually means professional recalibration or replacement.
Cheap rotary lasers from unverified Amazon sellers may not comply with UK laser safety standards. Stick to recognised brands sold through established UK retailers, or hire from a licensed plant hire firm.
