Water Levels: Why a £15 Hose Beats a £400 Laser Around Corners
The UK guide to water levels for transferring levels around obstructions. How they work, when to use one over a laser or optical level, and what to buy from £10.
You're setting a level mark on the far side of a chimney breast that blocks line of sight from your laser or optical level. You could move the instrument, take a backsight, take a foresight, and accumulate error from two setups. Or you could uncoil a length of clear hose, fill it with water, and let physics do the work. A water level is the cheapest, simplest tool ever invented for transferring levels around obstacles. The Romans used the same principle to build aqueducts. It still works on a UK extension site in 2026.
What it is and when you need one

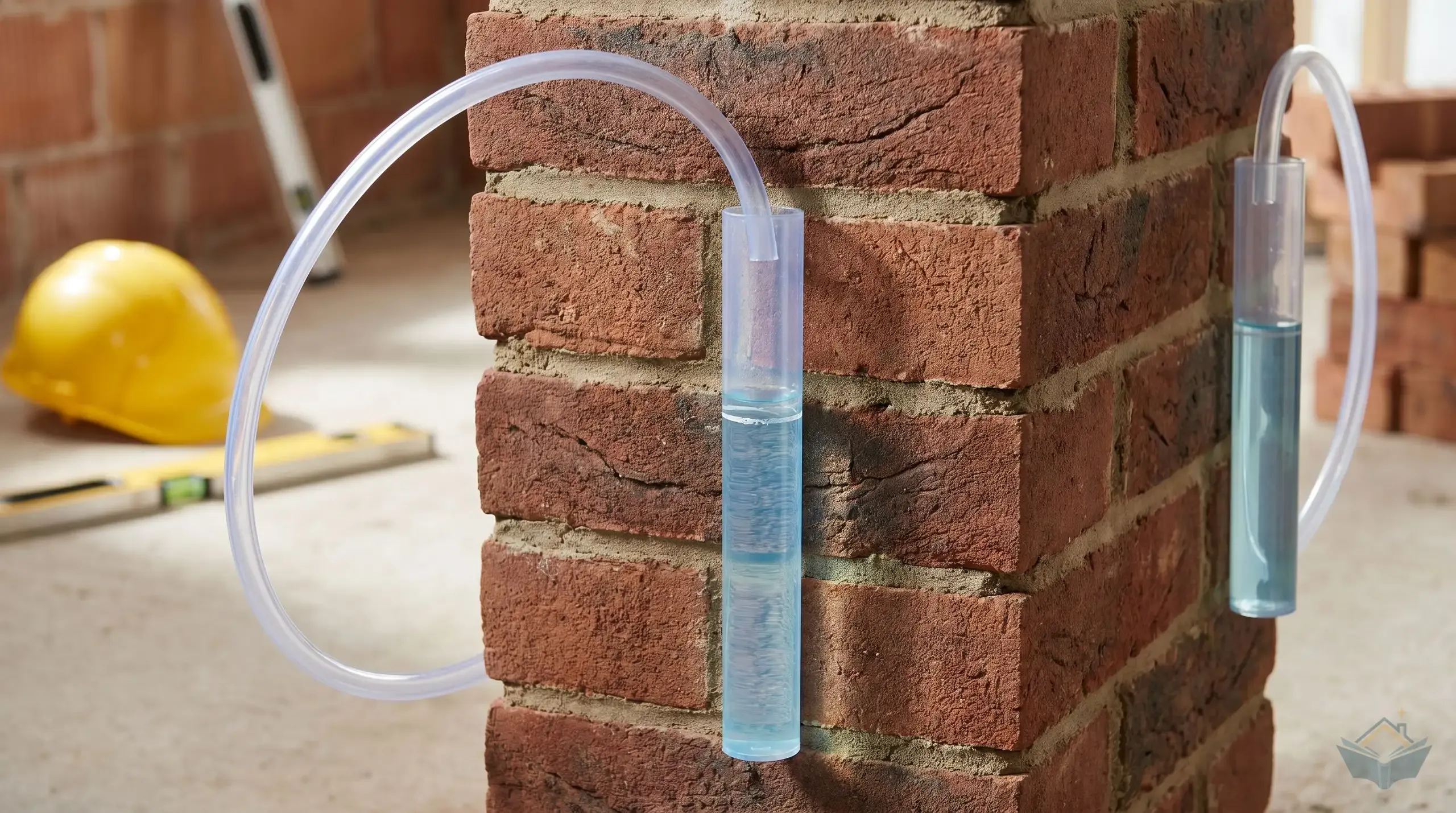

A water level is two clear plastic tubes connected by a flexible hose, all filled with water. Hold one tube against the point you know is level (your reference). The water in the second tube settles at exactly the same height, no matter where you hold it or how the hose curves between them. That's the principle: water always finds its own level, so two open ends of a connected water system sit at identical heights everywhere.
You need one whenever the points you want to compare are not in line of sight. A laser level projects a straight beam, so any solid object between you and your target wall blocks the reading. A water level doesn't care about obstructions. The hose can run round corners, under doorways, through window openings, and behind columns. As long as both ends are open and the system holds water without leaks, you get a true level reference at both points.
Common situations where a water level beats anything electronic:
- Setting a finished floor level (FFL) datum from inside the existing house through the back wall to the new extension foundation, where the building structure blocks line of sight
- Marking a continuous course line around a chimney breast or internal piers
- Transferring a damp-proof course (DPC) level from an existing wall to a new one when scaffolding or the wall itself is in the way
- Setting drainage invert levels where the run drops below ground and an optical level can't see the gulley pit
- Working solo where there's nobody to hold a levelling staff
±1mm over 30m
A water level is accurate to roughly ±1mm over any distance the hose can span. Optical levels and rotary lasers offer similar accuracy but require line of sight. Cross-line lasers lose accuracy beyond 10-15m indoors and become unreadable in bright daylight.
How it works
The science is simple. Water in a connected system settles to a single horizontal plane because gravity pulls equally on all of it. Lift one end of the hose higher and the water in that end drops; the water at the other end rises by the same amount until both menisci are level again. This works regardless of how the hose loops, twists, or changes elevation between the two ends. Only the heights of the open meniscus surfaces matter.
The trade-off versus electronic levels is workflow speed. A laser projects an instant reference around a room. A water level needs the hose moved into position at every point you want to measure. For one or two reference points, the water level is faster (no setup, no batteries, no calibration). For dozens of points around an open room, a laser wins.
Types and variants
There are three forms in common use.
| Type | How it works | Best for | UK price |
|---|---|---|---|
| DIY hose-and-tubes | Length of clear plastic tubing (10-30m) with water poured in. End caps stop spills during transport. | Occasional level transfer around obstacles. Most homeowners. | £10-20 (or free if you have spare clear hose) |
| Branded water level kit | Two graduated reservoirs with valves, connected by reinforced clear hose. Easier to fill, less prone to splashing. | Repeated use over a multi-week build. Cleaner workflow. | £25-50 |
| Electronic / digital water level | Pressure transducers in two units linked by a thin water tube. Reads height differences digitally on an LCD. | Trade users who do level transfer regularly. Adds dataset display, range marking. | £80-200 |
For homeowner extension work, the basic clear-hose version is plenty. A 15-metre length of clear plastic tubing from a builders merchant or aquarium shop, with two end caps to stop the water sloshing out, costs less than a sandwich. Many tradespeople still keep one in the van decades after lasers became standard, because for certain jobs there's no faster way.
How to use it
Setting up
Fill the hose with clean water until both ends sit at roughly the same level. Tap or shake out any air bubbles in the tube - bubbles create false readings because the water column breaks at the bubble. Hold the hose vertically at each end and walk along the length watching for trapped air; gently flick the tube to dislodge any pockets.
A small drop of food colouring or a splash of dilute washing-up liquid makes the water meniscus easier to see in the clear tube. Avoid anything oily that might leave a residue.
Warning
Do not use a water level in freezing weather. Water expanding as it freezes will split the tubing or burst the reservoirs. In winter conditions either work indoors, drain the tube before storage, or use a glycol antifreeze mix (1:3 ratio with water).
Transferring a level
Set the reference
Identify the point you want to transfer (an existing floor level, a damp-proof course, a string line height). Hold one end of the hose against this point. Adjust the water inside the tube so the meniscus sits exactly on your reference mark.
Walk the other end into position
Carry the second end of the hose to where you want the matching level. The hose can route around any obstacles. Keep both ends open to atmosphere - if you cap or pinch one end, the system stops working.
Mark the matching level

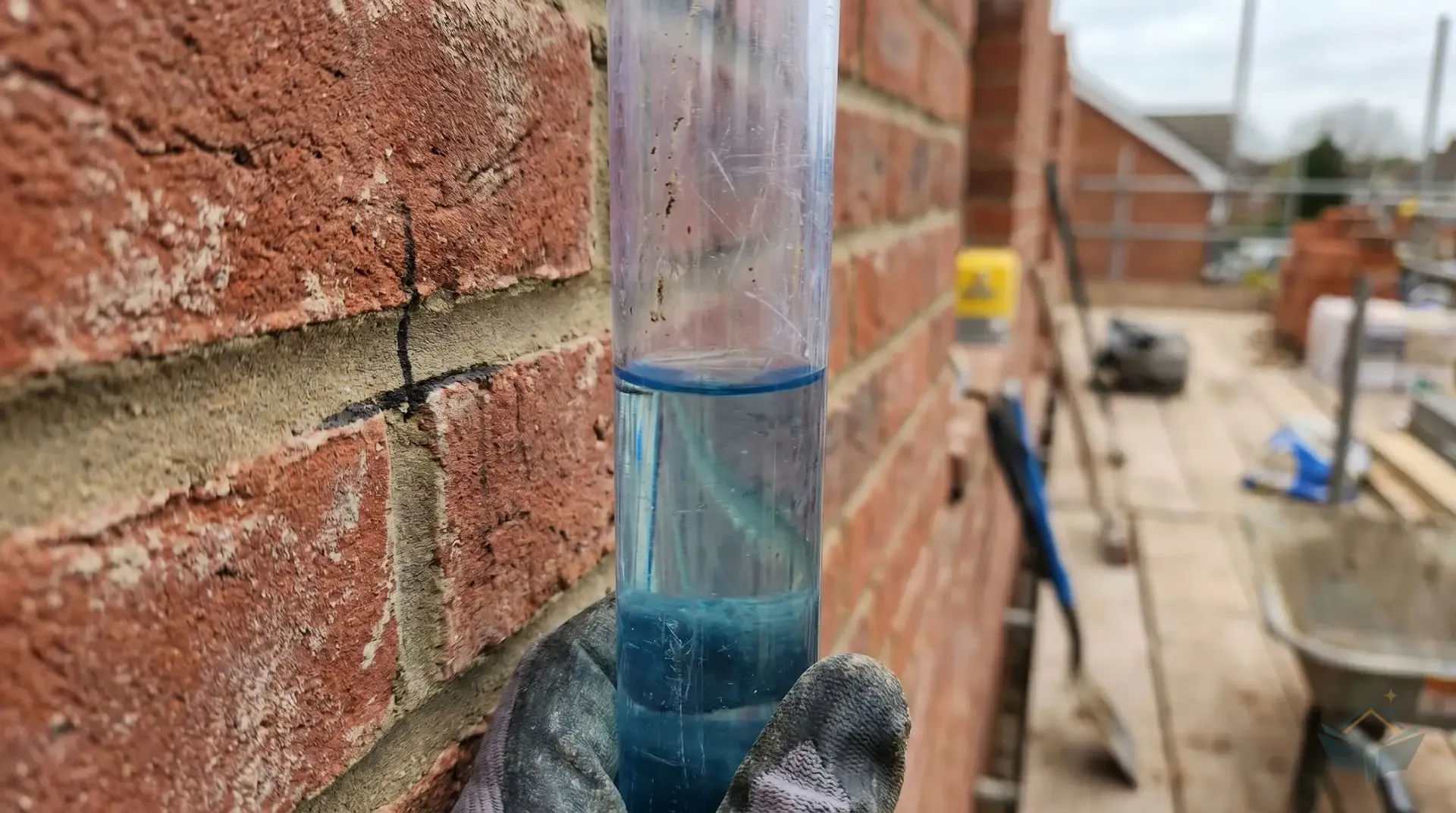

Hold the second tube against the wall or post you want to mark. The water meniscus in this end now sits at exactly the same height as the meniscus in your reference end. Mark the level on the wall, then move on or transfer to a third point.
Verify with a return reading
Walk back to the reference end and check the meniscus is still at your starting mark. If it has drifted, you have a leak, an air bubble, or someone moved the reference end. Re-set and try again.
Setting drainage falls
Mark the upstream invert (the bottom of the pipe at the high end). Then move the second tube to where the downstream invert needs to sit. The water level shows you the matching level at the downstream end - but you want a deliberate drop of [Unknown guidance value: below-ground-drainage-gradient] for foul drainage. Subtract the required fall from the matched level to find the correct downstream invert. For a 6m run at 1:80, the downstream invert sits 75mm below the upstream invert, which the water level lets you measure to within ±1mm.
Tip
Mark a permanent reference line on the existing house wall before the build starts (a pencil line, scratch in the render, or felt-tip on a brick face). This becomes your single source of truth for any level transfer over the whole project, and it survives long after laser batteries die or your spirit level goes missing.
What to buy
DIY: clear tubing from any merchant
Budget DIY water level kit
£10 – £20
Buy 10-30 metres of clear PVC tubing (12mm or 16mm internal diameter) from a builders merchant, a plumbing merchant, or a pet shop's aquarium aisle. Add two rubber bungs, end caps, or even just a finger over the open end during transport. A funnel makes filling easier. Total spend: under 20 pounds unless you go heavyweight.
Branded kits: cleaner workflow
The Faithfull Water Level (around 30 pounds at Screwfix when stocked) is the typical mid-range option: 10m hose, two graduated tubes with rubber stoppers, a fill bottle, and a carry bag. Slightly easier to use than a DIY rig because the reservoirs are wider and slosh less, but the price gap is mostly convenience.
Electronic water levels: niche
Electronic water level
£80 – £200
Digital electronic water levels (Geo-Fennel, Stabila Type 196 LD) replace the visible meniscus with pressure sensors that show level differences on an LCD. They're more expensive than a basic optical level and offer no real accuracy advantage for domestic work. Tradespeople who do repetitive level transfer over long multi-month projects sometimes justify them. Homeowners almost never should.
Common mistakes
The water level is one of the few tools where the failure modes are obvious and self-correcting once you know about them.
Air bubbles in the line. A bubble splits the water column. The two ends will not match. Always check the full length of the hose by holding it up and looking for breaks before you trust a reading.
One end higher than the water can reach. If the hose is too short, or you try to lift one end above the maximum water column height, the water drops below the open end and air enters. The system stops working until you re-fill.
Pinched or kinked hose. A kink in the tubing acts like a closed valve. The water stops moving and your reading is wrong. Run your hand down the full length to feel for kinks before each reading.
Sun heating the dark side of the hose. Water expands as it warms. If one section of hose sits in direct sunlight while the other is in shade, the warmer water expands and pushes the cold-side meniscus higher. On a hot day, lay the hose along the same shade line at both ends, or work in the cool of the morning.
Warning
Never trust a single water-level reading on a critical drainage or foundation level. Take a second reading after walking the line back to the reference end. If the two readings agree to within 1-2mm, the level is sound. If they disagree, find the leak, bubble, or kink before you commit anything to concrete or drainage runs.
Where you'll need this
- Foundations and footings - transferring a fixed datum from the existing house DPC to all corners of the foundation trench
- Drainage - setting consistent invert levels around chimney breasts or internal walls when an optical level can't see through
- Damp-proof course - matching the new DPC to the existing house DPC across a structurally complex elevation
- Walls and blockwork - checking course heights are consistent on a long wall where line of sight is broken by piers
- Screeding - confirming the screed datum on the far side of an internal wall is the same as the rest of the floor
These situations all share one feature: the points you want to level are not in line of sight, so an optical or laser instrument needs an intermediate setup that introduces error. A water level produces a single reading directly from reference to target.
Safety
A water level is one of the safest tools on site. The only real risks are workplace hazards (carrying a wet hose up a ladder, slipping on spilled water indoors) rather than the tool itself.
In freezing conditions, drain the tubing fully before storage. Frozen water expanding inside the tube will split the plastic and you'll arrive at the next morning's job with a useless mess.
Cheap clear plastic tubing degrades in UV light over time, becoming brittle and prone to splitting. If you're keeping a water level kit for years rather than weeks, store it indoors out of direct sun.
