Laser Detectors: How to Use a Laser Level Outdoors When You Can't See the Beam

You're setting drainage falls in a 20-metre run from the new extension to the boundary. You've got a perfectly good cross-line laser level on a tripod. Indoors this morning you could see the line clearly; outdoors at midday in May, the beam vanishes after about three metres. A laser detector clips onto a levelling staff, beeps and shows an arrow when you sweep through the invisible beam, and tells you exactly where the beam falls regardless of daylight. A 40 pounds accessory turns a 150 pounds indoor laser into a 50-metre outdoor measuring tool.

What it is and when you need one

A laser detector is an electronic accessory that makes a laser beam visible to you when daylight has overpowered it for the human eye. Inside the housing, a row of photo-sensors detects the laser light. The detector tells you (via beeps, LCD arrows, or LED bars) whether the beam is hitting above, below, or exactly on the centre line of the device. You position the detector until the indicators say "on beam," then read the level off the staff or wall behind it.

You need one any time you're doing levelling work outdoors with a laser level, or working over distances longer than about 10-15m even indoors. Specifically:

• Setting drainage falls over runs of 5m or more outside. The beam is invisible to the eye in any decent daylight.
• Foundation level checks outdoors during groundwork, where the laser tripod sits 10-30m away from the inspection point.
• Patio and landscaping levels for paving, retaining walls, and garden steps.
• Long-range indoor work in large open spaces, lofts during conversion, or when daylight is flooding through an unfinished extension's openings.
• Solo levelling where you can't have a second person sighting through an optical level. Clip the detector to the staff, walk to each measurement point, and read the result yourself.

A detector is functionally optional for short-range indoor work where the line is visible. For anything else, it's the difference between a usable tool and a frustrating one.

50m+ working range

A laser detector extends the working range of a typical cross-line or rotary laser level from 10-15m line-of-sight to 50m or more outdoors. Without a detector, the beam is invisible past about 3m in bright daylight; with one, the same beam can be detected reliably at the laser's full rated range.

How a detector works

The detector houses a vertical column of photodiodes - light-sensitive electronic components - calibrated to the wavelength of the laser source. When the rotating or pulsed laser beam sweeps across the detector face, the photodiodes register the light and the electronics work out where on the column the beam landed.

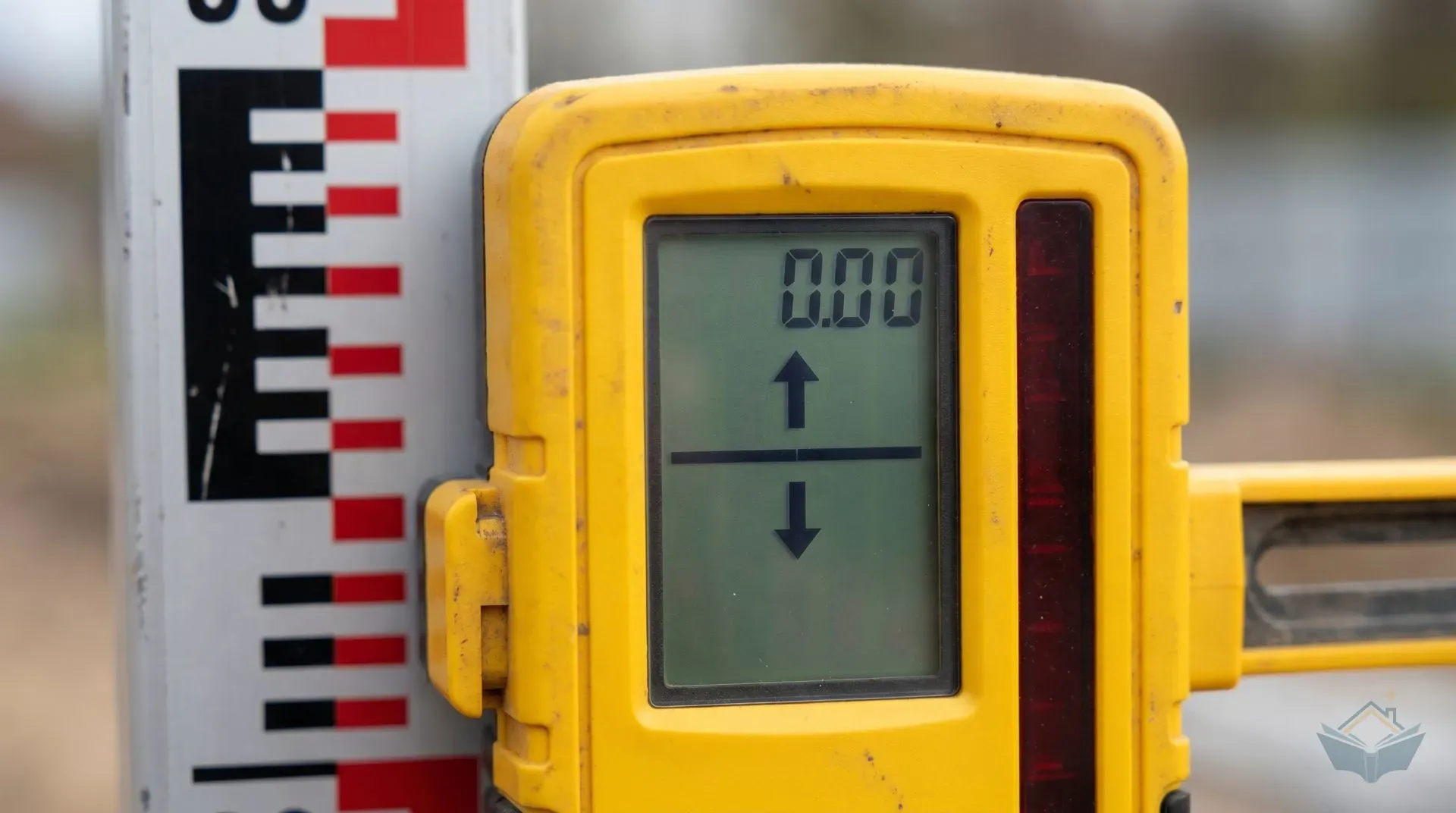

If the beam hits high on the column, the detector shows an "up" arrow on the LCD and emits a fast beep - meaning you need to move the detector down (or move the staff up) to reach the beam centre. If the beam hits low, you get a "down" arrow and a slow beep. When the beam aligns with the centre sensor, you get a steady tone and a centred-line indicator. That's your reading point.

Most detectors emit audible signals so you can find the beam by sound alone, without looking at the display. Useful when the staff is held at arm's length and you can't see the screen clearly.

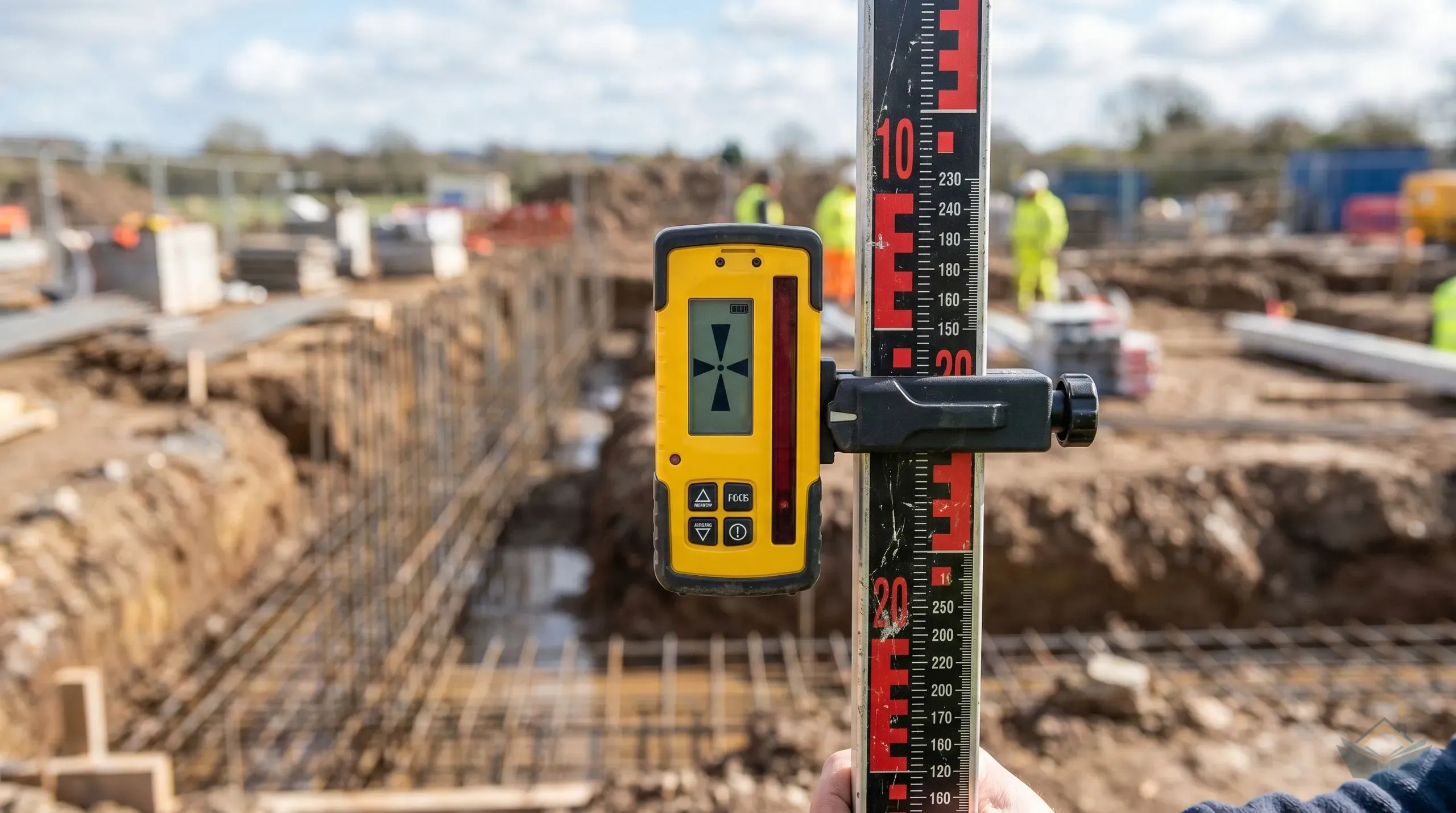

The detector clamps to the staff at any height. The clamp lock is calibrated so the centre of the detector aligns with a specific graduation on the staff (usually a sticker arrow on the clamp body matches a known point on the detector face). Read the staff at the clamp's reference mark, and that's the height the laser beam was hitting.

Click to enlarge

Compatibility: matching detectors to lasers

Not every detector works with every laser. Three things must align.

Wavelength

The photodiodes inside the detector are tuned to a specific wavelength of light. Red lasers (635nm) and green lasers (532nm) need different detectors. Some detectors are dual-wavelength and detect both. Buying a red-only detector for a green laser, or vice versa, means the detector can't see the beam at all.

Pulse mode

Most rotary lasers and modern cross-line lasers have a "pulse mode" or "outdoor mode" that flashes the beam on and off at a frequency the detector recognises. This pulse signature is how the detector distinguishes the laser from random ambient light. If the laser doesn't have pulse mode, the detector won't lock onto it.

Older or budget cross-line lasers may not have pulse mode at all, which means a detector won't work even if the wavelength matches. Check the laser's specifications before buying a detector - if it doesn't list "pulse output," "outdoor mode," or "detector compatible," the detector won't function.

Brand pairing (sometimes)

Some manufacturers (Bosch, DeWalt, Stabila) use proprietary pulse signatures that only their own brand detectors recognise reliably. Generic detectors often work with these but may need a specific compatibility setting. Within the same brand, a detector marketed for a brand's rotary laser usually also works with that brand's cross-line laser if the cross-line has pulse mode. Cross-brand pairing requires checking the spec sheet or trying it before committing.

How to use it properly

Clamping to a staff

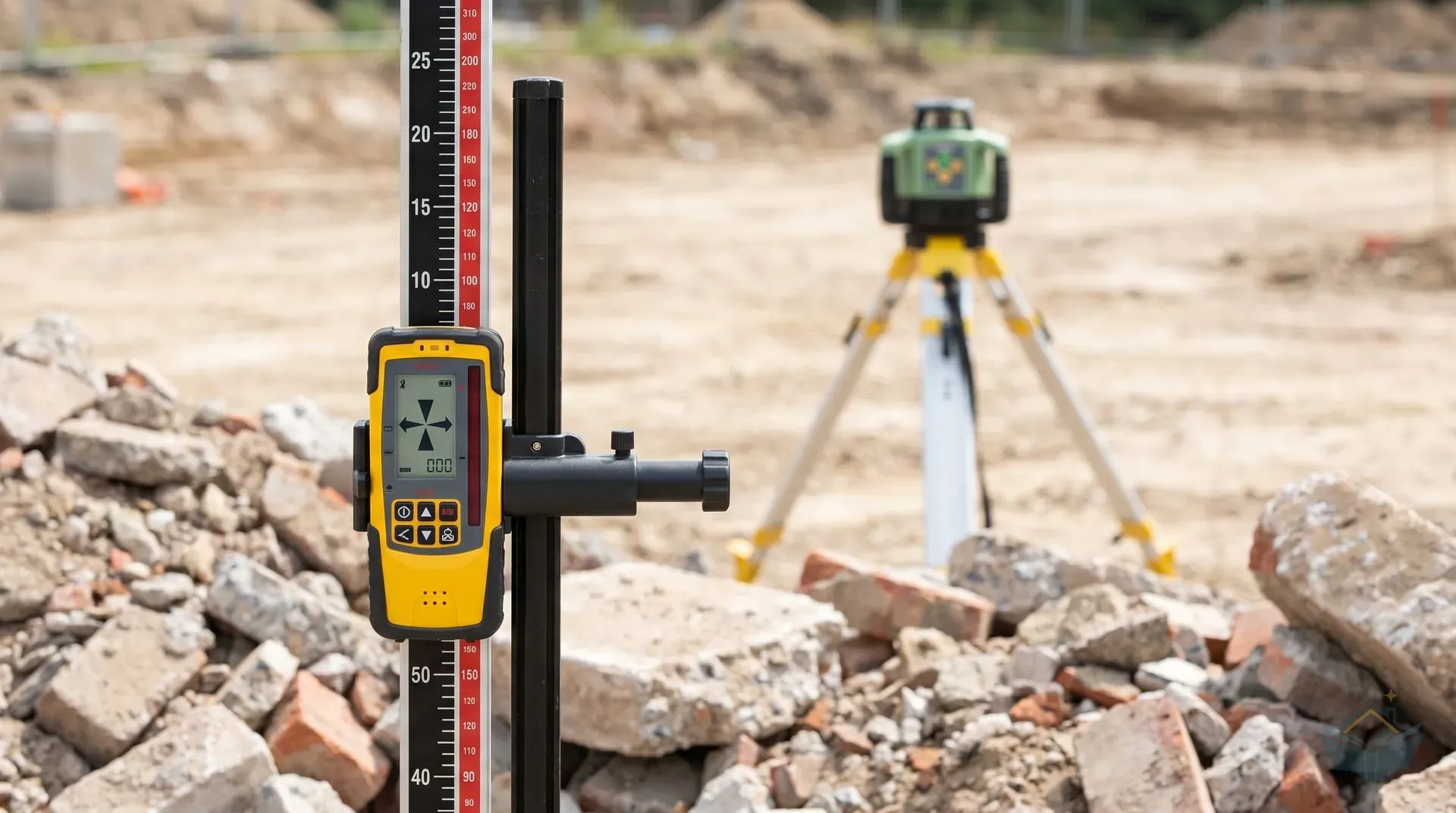

The detector clamps to the staff with a quick-release lever. Loosen the lever, slide the detector to roughly the height where the beam will hit, tighten the lever. The clamp body has a reference mark (usually an arrow or notch) that indicates the height on the staff that corresponds to the centre of the detector's sensor column.

Hold the staff vertically on the point you're measuring. Most staff designs include a small bubble level on one face - check it's centred before taking the reading. A staff held at an angle gives a false reading because the sensor measures vertical height from the foot of the staff.

Finding the beam

Setting drainage falls outdoors

This is the most common job for a laser detector on an extension build.

1. Set the laser on a tripod somewhere central to the run, with line-of-sight clear (no piles of rubble, vehicles, or scaffolding between laser and target points).
2. Set up the laser to project a horizontal plane (rotary mode if available; otherwise just the horizontal cross line).
3. At the upstream end of the drainage run, hold the staff with the detector and find the beam. Note the staff reading (e.g. 1.250m).
4. At the downstream end, find the beam again. Note that reading (e.g. 1.345m).
5. The difference (95mm in this example) is the natural ground level difference plus or minus the planned fall.

For a 1:80 fall over 7.6m, you need 95mm of drop. If your readings show exactly that, the natural ground already has the right gradient. If the readings show only 50mm of drop, you need to dig the downstream trench 45mm deeper to achieve the planned fall. The detector turns this calculation into a five-minute job rather than a half-day with marker pegs and string lines.

Solo working

A laser detector lets one person do work that traditionally needed two. With an optical level, one person sights through the eyepiece and another holds the staff. With a laser detector, the laser does the sighting (at a fixed angle from the tripod), the detector finds the beam, and a single operator carrying the staff reads the level at every point. For a homeowner project where you can't always rope in a second pair of hands, this is the practical advantage of laser-plus-detector over an optical level.

Click to enlarge

What to buy

Detector pricing splits into two clear tiers.

Budget: sub-60 pounds

Magnusson, Wickes own brand, and unbranded detectors from Amazon UK marketplace sit in this band. Single-wavelength (specify red or green when buying), basic LCD with up/down arrows, audible beep, simple clamp. Fine for occasional use on one extension project where you'll detect a beam a dozen or so times.

The clamp mechanisms can be a weakness - cheaper plastic clamps loosen with vibration or after being dropped on rubble. The detection range is usually rated to 30-40m, which is plenty for domestic projects.

Mid-range: 60-120 pounds

Bosch LR 6, DeWalt DW0892, and Stabila REC 250 sit at this price point. Available at Screwfix, Toolstation, and direct from manufacturer retailers. Improvements over budget models include:

• Dual-wavelength sensors (work with red or green lasers without specifying)
• Larger sensor column (typically 12-15cm tall, vs 8-10cm on budget) which makes finding the beam faster
• Backlit LCD for low-light use (early morning groundwork, dim cellars during waterproofing)
• Higher detection range (50m+) for larger plots
• More robust clamp with metal components rather than all-plastic

For someone doing a multi-week build with daily use, a mid-range detector pays for itself quickly in time saved finding the beam.

Pro and beyond

Detectors above 120 pounds (Topcon, Spectra Precision) are professional surveyor's tools, designed to work with high-end rotary lasers over 100m+ ranges. They're overkill for any homeowner extension project. Skip this tier.

Common mistakes

Wrong wavelength. A red detector won't see a green beam and vice versa. Check the laser's wavelength before buying a detector. If you upgrade your laser later, the old detector probably won't work with it.

Laser not in pulse mode. A detector needs the laser running in outdoor or pulse mode to recognise it. If the detector beeps randomly or shows arrows constantly without locking on, the laser is likely in standard line mode rather than pulse mode.

Holding the staff at an angle. A staff tilted out of vertical reads the wrong height. Always check the staff bubble level (or just step back and sight by eye) before locking a reading.

Detector clamp loose. A detector that slides on the staff during a sweep gives readings that drift. Tighten the quick-release lever fully, and check periodically through the day if you're doing repeated readings.

Standing in the beam path. The detector needs unobstructed line-of-sight from the laser. Watching the operator wave their arms in front of the laser to "block" the beam is a common cause of false readings on busy sites.

Where you'll need this

• Foundations and footings - long-range outdoor level checks during foundation pours and trench inspections
• Drainage - setting falls over runs that span several metres outdoors
• Damp-proof course - checking DPC level matches the existing house at points further than 10m from the laser
• Walls and blockwork - checking course heights on a long external wall in daylight
• Roof structure - verifying ridge height and eaves alignment on extension roof construction

The pattern in all these uses is identical: an outdoor or long-range job where a laser would be useful, but where the beam is invisible to the eye in normal site conditions.

Safety

A laser detector itself is electronically passive and produces no risk. The risks are all attached to the laser it works with - a Class 2 laser is safe for momentary exposure but can cause flash-blindness in dim conditions where pupils are dilated. Never look directly into the laser source or position the laser at eye height where it might catch a sweeping head turn.

Battery handling is the only routine safety consideration. Most detectors use 9V or AA batteries. Replace them when the LCD shows a low-battery warning rather than when they fail completely - a partially-failed battery can cause intermittent false-positive beam detections that lead to incorrect levels.

Storing the detector in its case (not loose in a tool bag) protects the LCD and the sensor face from scratches. A scratched sensor face still works but is harder to read clearly in bright light.
