Tape Measures: How to Choose, Read, and Use One Without Costly Mistakes
The UK guide to tape measures for extension projects. Why metric-only beats dual scale, how the hook works, and what to buy from £4 – £7 upwards.
A kitchen fitter measures the wall for a run of base units. The tape reads 3,247mm. The units get ordered to fit. When they arrive, the wall actually measures 3,261mm because the tape's hook had been knocked and was reading 14mm short on every measurement. That's a 14mm gap that no end panel can disguise. It's a reorder, a two-week delay, and a few hundred pounds wasted. All because nobody checked the tape.
The tape measure is the tool you'll use more than any other on a building project. It's also the one most people spend the least time choosing. Grab the cheapest one off the shelf, assume it works, never check it. That's how measurement errors happen.
What it is and when you need one
A tape measure is a retractable steel blade marked in millimetres and metres, coiled inside a compact housing with a spring mechanism that retracts the blade when you release it. A small metal hook at the tip lets you catch the edge of a surface for outside measurements.
You need one from day one of a building project. Measuring rooms before the architect draws up plans. Checking the builder's foundation trenches match the structural engineer's spec. Marking socket positions for the electrician. Verifying kitchen unit positions during installation. Checking dimensions against drawings at every building control inspection. The tape measure is the last tool you put down and the first one you reach for.
For a typical extension or renovation, you need at least one tape. Two is better (one lives in the house, one stays on site). An 8m tape covers most tasks: measuring rooms, checking wall runs, verifying opening sizes. A 5m tape is lighter and more compact for close work: marking socket heights, checking cabinet widths, measuring tile layouts.
How to read the markings
UK construction works in millimetres. Not centimetres, not inches, not "about three feet." Millimetres. Your structural engineer's drawings are in millimetres. Your building control inspector thinks in millimetres. Your kitchen supplier quotes in millimetres. Get comfortable reading them.
On a metric tape, the large numbers count centimetres (10, 20, 30...) and the small lines between them are individual millimetres. Every tenth millimetre line is slightly longer, marking the centimetre boundary. Every hundredth centimetre (every metre) gets a large label and usually a colour change on the blade.
To read a measurement: find the nearest large number, then count the small lines past it. If the edge falls on the seventh line after the "124" mark, that's 1,247mm. Not 1.247 metres, not 124.7cm. Write it as millimetres. Always.
When writing down measurements, always use millimetres and never mix units. "3247" is unambiguous. "3m 24.7cm" invites transcription errors. "3 metres and a bit" is how expensive mistakes happen.
Buy metric-only
This is an opinionated recommendation, and experienced UK tradespeople back it up consistently.
Most tape measures sold in the UK have dual markings: metric on one edge, imperial on the other. The imperial markings are a relic. UK construction runs entirely on metric. Building regulations, structural calculations, and material specifications are all metric. The imperial markings serve no purpose except to confuse you.
A dual-scale tape means your eye can land on the wrong edge. You glance at the tape, read "42", and write it down. Was that 42 centimetres or 42 inches? On a metric-only tape, there's no ambiguity. One scale. One reading. No second-guessing.
Metric-only tapes are harder to find on the high street (dual-scale outsells them by a wide margin in the UK, despite metric being the legal requirement for trade measurements since 1995). But they're available from Hultafors, Fisco, the Gosforth Handyman shop, and some Stanley ranges. They're worth seeking out.
If you already own a dual-scale tape and don't want to replace it, put a strip of electrical tape over the imperial edge. Crude but effective.

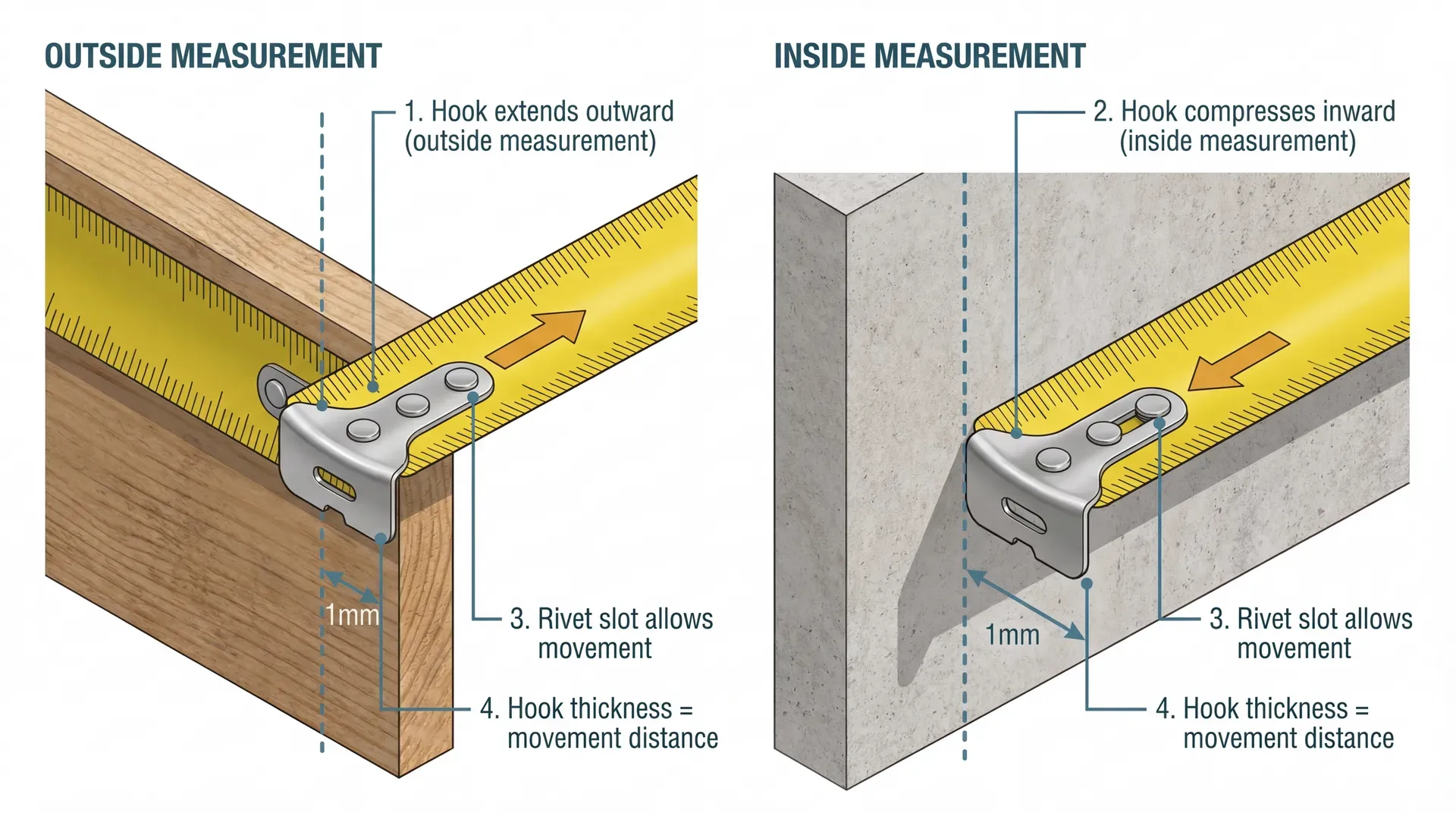

Why the hook is loose (and why that's correct)
Pick up a new tape measure and wiggle the metal hook at the end. It moves. It slides back and forth by about 1mm. Beginners invariably think this means the tape is broken or cheap.
It's not. The hook is designed to move.
The hook's thickness is roughly 1mm. When you hook the tape over the edge of a board and pull (an outside measurement), the hook slides outward by 1mm. This compensates for the hook's own thickness, so the reading is accurate from the true edge of the board. When you push the tape against an internal surface (an inside measurement), the hook slides inward by 1mm. Same compensation, opposite direction.
The rivet that holds the hook has a slot, not a tight hole. That slot is precisely sized to allow exactly the right amount of movement. If someone has replaced the rivets with tight ones, or if the slot is worn and sloppy, the tape will read inaccurately in one direction or the other.
If the hook on your tape has no play at all, or if it wobbles significantly more than 1mm, the tape will give you false readings. Check this before relying on any tape for critical measurements like kitchen unit positions or window opening sizes.
How to measure properly
Sounds obvious. It isn't. Here are the techniques that prevent mistakes.
Hook it, don't hold it. For outside measurements, hook the tape firmly on the edge and pull the blade taut. Don't just hold the hook against the surface with your thumb, as this stops the hook from sliding to its correct position and introduces the hook's thickness as an error.
Burn an inch (or 100mm). For the most accurate short measurements, ignore the hook entirely. Align the 100mm mark with one edge, read the far edge, and subtract 100. This eliminates any hook-related error completely. Cabinet makers and kitchen fitters use this technique routinely.
Blade sag kills accuracy on long runs. Extend a tape 4 metres unsupported and it droops. That droop adds length to the reading. For any measurement over about 2 metres, press the blade flat against the surface you're measuring. If you can't (measuring across a room, for instance), keep the blade level and accept that the reading will be slightly long. On a 5m span, blade sag can add several millimetres to your reading.
Read from directly above. Parallax error (reading the tape at an angle) shifts the apparent position of the mark. Get your eye directly over the point you're reading. This matters more than you'd think on measurements that need to be accurate to a millimetre.
Mark with a V, not a line. When transferring a measurement to timber or a wall, draw a small V with the point exactly on the dimension, not a vertical line. A V has a precise point. A pencil line has a width of 0.5-1mm, and you never know which edge of the line is the actual measurement.
For measuring room dimensions solo, hook the tape on a nail tapped lightly into the skirting or use the magnetic tip (if your tape has one) on a door hinge. A wide-blade tape with good standout will also hold rigid across a room if you can brace the far end against the opposite wall.
Standout: why blade width matters
"Standout" is the distance a tape blade can extend horizontally before it collapses under its own weight. A wider blade stays rigid for longer. This matters because you'll often need to measure solo, extending the tape across a room with nobody holding the far end.
A narrow 19mm blade (typical of budget tapes) collapses at about 1.5 metres. A 25mm blade reaches around 2.5 metres. A 32mm blade, the kind fitted to a Stanley FatMax or Milwaukee Wide Blade, reaches 3.3 to 4 metres before folding. That's the difference between needing a helper and not.
For measuring rooms (the most common task on any extension project), 3m+ standout is not a luxury. It's practical.
Accuracy classes
Tape measures sold in Europe are classified by the EC accuracy system into three classes.
| Class | Tolerance at 5m | Tolerance at 10m | Typical tapes |
|---|---|---|---|
| Class I | ±0.6mm | ±1.1mm | Hultafors, Tajima, Fisco (specialist brands) |
| Class II | ±1.3mm | ±2.3mm | Stanley FatMax, Milwaukee, most branded tapes |
| Class III | ±2.6mm | ±4.6mm | Long surveyor's tapes (30m+), rarely seen in short tapes |
For domestic extension work, Class II is perfectly adequate. The ±1.3mm tolerance at 5 metres means your readings are accurate to well within the tolerances that blockwork, framing, and kitchen installation demand.
Class I is worth considering if you're fitting your own kitchen or doing precision joinery where every millimetre genuinely matters. But most homeowners managing a build don't need it. The difference between a Class I and Class II tape matters far less than whether you're measuring correctly in the first place.
Budget unclassified tapes (typically under £4) carry no accuracy guarantee at all. They're legal to sell but there's no EC mark on the blade and no promise they're measuring what they claim. The community horror story of someone ordering wrong-sized radiators because their cheap tape had inaccurate markings is exactly the risk.
How to check your tape
Two simple tests. Do them when you buy a new tape and any time the tape gets dropped or knocked.
The comparison test. Measure the same object with two different tapes. A kitchen worktop is ideal, as it's a rigid, flat surface with a clean edge. If both tapes agree to within 1mm over a 1-metre span, both are probably fine. If they disagree by more than 2mm, one (or both) has a problem.
The hook test. Measure a rigid object by hooking the tape on one end (outside measurement). Then measure the same object by pressing the tape against one end (inside measurement). The readings should be identical. If they differ by more than 1mm, the hook's slide mechanism is worn or damaged.
If either test fails, replace the tape. A budget tape that reads wrong will cost you far more in wasted materials and rework than a mid-range replacement.

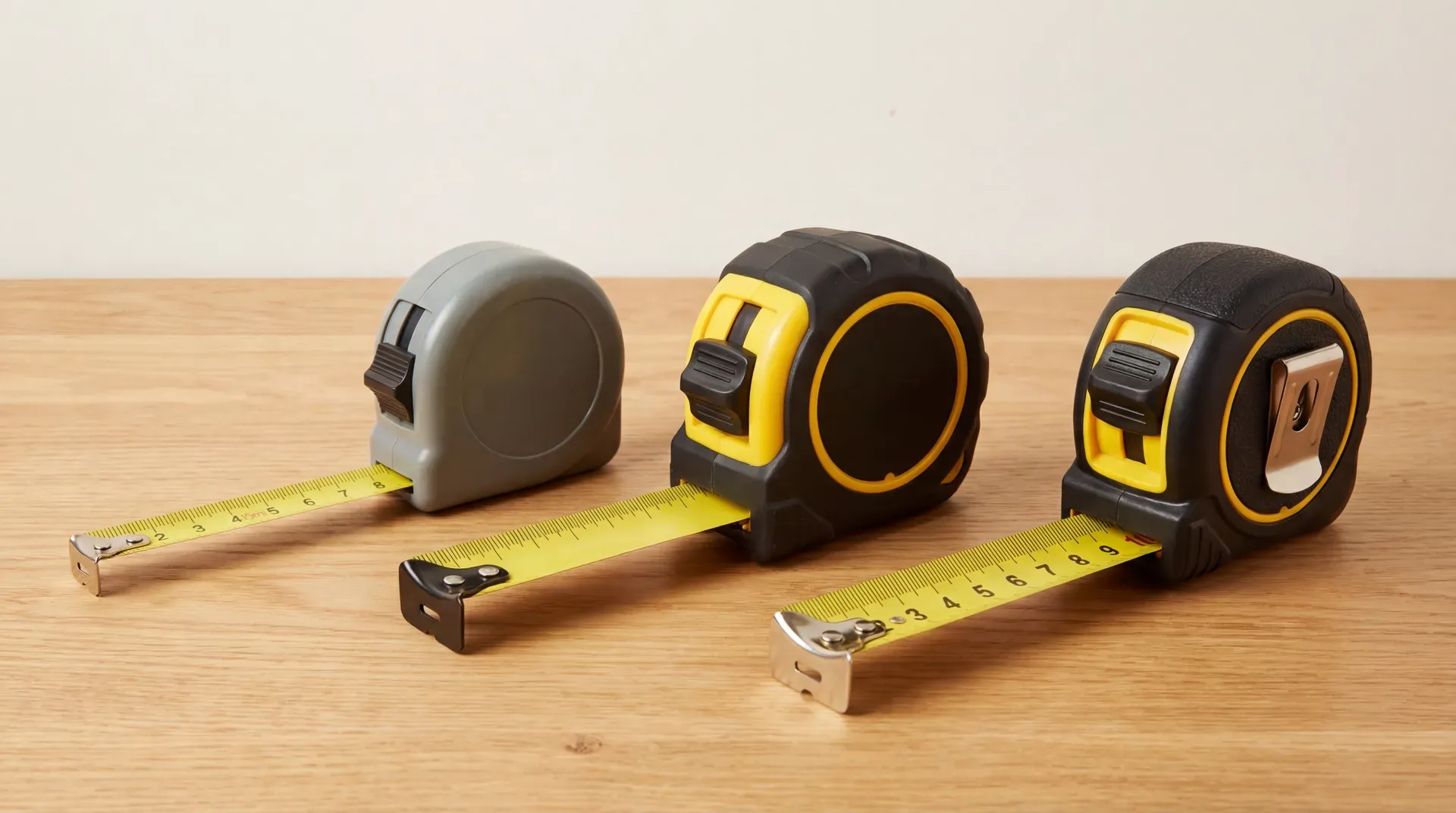

What to buy
Three clear tiers. Buy from the middle one.
| Tier | Price | Models | Best for |
|---|---|---|---|
| Budget | £4 – £7 | Forge Steel 5m (Screwfix, £3.89), Minotaur 5m (Toolstation, £3.98), Wickes General Purpose 5m (£4) | A spare tape to leave in a toolbox or car. Not your primary measuring tool. |
| Mid-range | £15 – £22 | Stanley FatMax 5m (£15-23), Stanley FatMax 8m (£17-22), Milwaukee Magnetic 5m (£15), Milwaukee Magnetic 8m (£19) | The right choice for any homeowner managing a build. Wide blade, good standout, reliable accuracy. |
| Pro / Class I | £25 – £50 | Hultafors Big T 8m (£25), Tajima Hi Lock Class I 5m (£25), Tajima stainless steel 5m (£30-38) | Kitchen fitters, joiners, anyone who needs guaranteed Class I accuracy. |

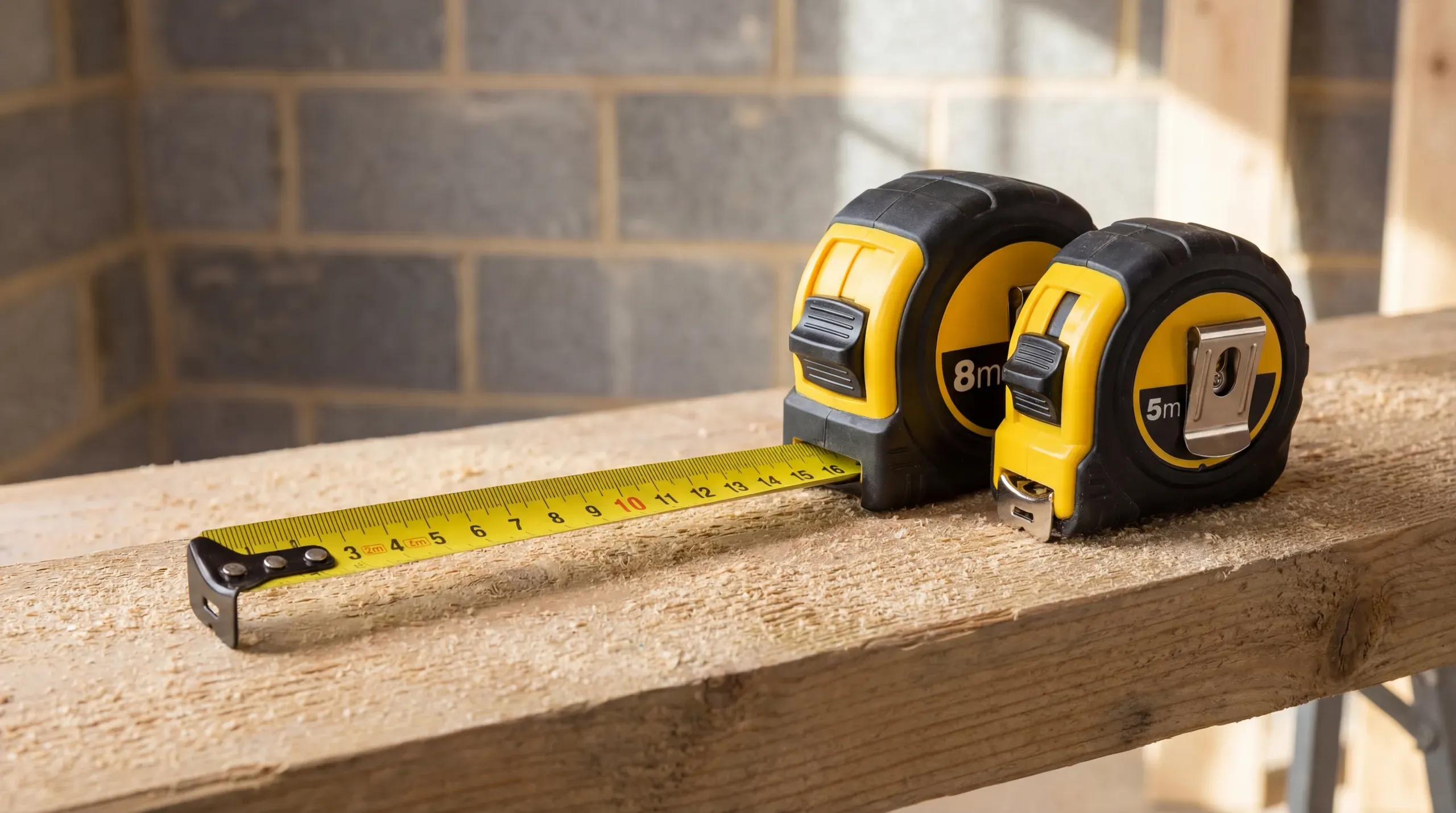

The Stanley FatMax is the default recommendation across every UK trade forum, builder community, and tool review. It's Class II, has a 32mm blade with 3.3m standout, and costs around TBC depending on length and retailer. Buy the 8m version. It covers everything from room measurements to external dimensions, and the extra 3 metres over a 5m tape costs almost nothing.
If you want Class I accuracy for kitchen fitting, the Hultafors Big T 8m starting from TBC is the best-value option. It's Class I certified, uses inkjet graduations for clearer markings, and has a belt clip that actually holds firm on site. Hultafors (who acquired Fisco in 2008) are the brand you'll find on professional surveyor's and joiner's tapes.
The magnetic-tip Milwaukee tapes are worth considering if you're working around steel (steel lintels, metal stud framing, radiator brackets). The magnet lets you hook the tape onto a steel surface without a helper. It's a genuine convenience, not a gimmick.
The two-tape approach used by experienced tradespeople: keep a compact 5m tape in your pocket for quick measurements (socket heights, tile cuts, checking cabinet widths) and an 8m in the toolbox for room dimensions and longer runs. Having both saves time and avoids constantly pocketing and unpocketing a bulky 8m tape throughout the day.
Stanley, Milwaukee, and budget ranges. Often competitive on FatMax pricing.
Alternatives
A tape measure is irreplaceable for contact measurement (hooking onto edges, pressing into corners, running along surfaces). But for room-scale measurement, a laser distance measure does the same job faster and more accurately.
A laser measure fires a beam across the room and reads the distance digitally. Point it at a wall, press the button, get a reading accurate to within a couple of millimetres. No blade sag, no hook error, no helper needed. They're worth having alongside a tape.
But a laser can't measure around corners, along a curved surface, or in tight spaces where there's no flat surface to bounce the beam off. You still need a tape measure. They complement each other; neither replaces the other.
For setting out foundations and checking boundary distances, a 30m open-reel surveyor's tape is the right tool. These are a different product entirely: fibreglass or steel blades designed for long outdoor runs, not retractable into a compact housing. Your builder will have one. You probably don't need to buy one yourself.
Where you'll need this
A tape measure is used at every stage of an extension or renovation project:
- Groundwork - measuring foundation trench depth and width against the structural engineer's specification, checking DPC height (minimum 150mm above finished ground level), measuring drainage pipe runs
- Structure - verifying wall dimensions, window and door opening sizes, cavity widths, steel bearing lengths against structural drawings
- Roof - measuring rafter lengths, joist spacings, and batten gauge spacing to match tile specification
- First fix - marking socket and switch positions, measuring cable routes, measuring pipe run lengths and waste outlet positions
- Kitchen design - measuring the room for kitchen layout planning (wall lengths, window positions, door widths, ceiling height)
- Second fix - measuring for kitchen unit positions, worktop cutouts, flooring quantities, tile layouts, paint area calculations
- Building control inspections - having a tape to hand lets you demonstrate dimensions to the inspector on the spot (foundation depth, cavity width, DPC height)
- Snagging - verifying dimensions match specifications: gap sizes, worktop overhang, socket heights, clearances
Common mistakes
Letting the tape snap back. The recoil spring pulls the blade back fast. Let it fly and the hook whips across whatever is nearby, scratching surfaces, chipping plaster, or catching skin. Control the rewind with your thumb on the blade.
Measuring from the wrong end. On dual-scale tapes, the imperial markings sometimes start from the opposite end to the metric. People who measure from the "wrong" zero have ordered materials to imperial dimensions without realising it.
Not accounting for the housing on inside measurements. When measuring a room width by pressing the tape into one wall and extending to the other, the tape housing sits against the wall and its width isn't included in the blade reading. Quality tapes print the housing width on the back of the case (typically 70-85mm) so you can add it. Or use the burn-an-inch technique and measure from the 100mm mark.
Lending your good tape. It will come back with a bent hook, a kinked blade, or not at all. Keep a cheap spare specifically for lending, and keep your measuring tape in your own pocket.
