Magnetic Spirit Levels: When the Magnet Actually Helps (and When It Doesn't)

You're on your own in a joist void at 8pm, trying to check the fall on a run of steel gas pipe with a spirit level. One hand is holding a torch. One hand is holding the level. You need a third hand to mark a pencil line where the bracket goes. A magnetic level would have stuck to the pipe and left both hands free. That small bit of extra tool cost is the difference between a ten-minute job and an hour of swearing in the dark.

What a magnetic spirit level is

A magnetic spirit level is a standard spirit level with one or more magnets built into its base. When you place the level on a steel surface, the magnet holds it in position without you needing to hold it. That frees both hands for marking, adjusting, or operating another tool.

Everything else about a magnetic level is identical to any other spirit level: aluminium box-beam or torpedo profile, a horizontal vial, a plumb vial, often a 45° vial, accuracy of around 0.5mm per metre on decent models. The magnet is an add-on, not a different tool class. Read the main spirit level guide for how to read vials, how the flip test works, and why box-beam construction matters.

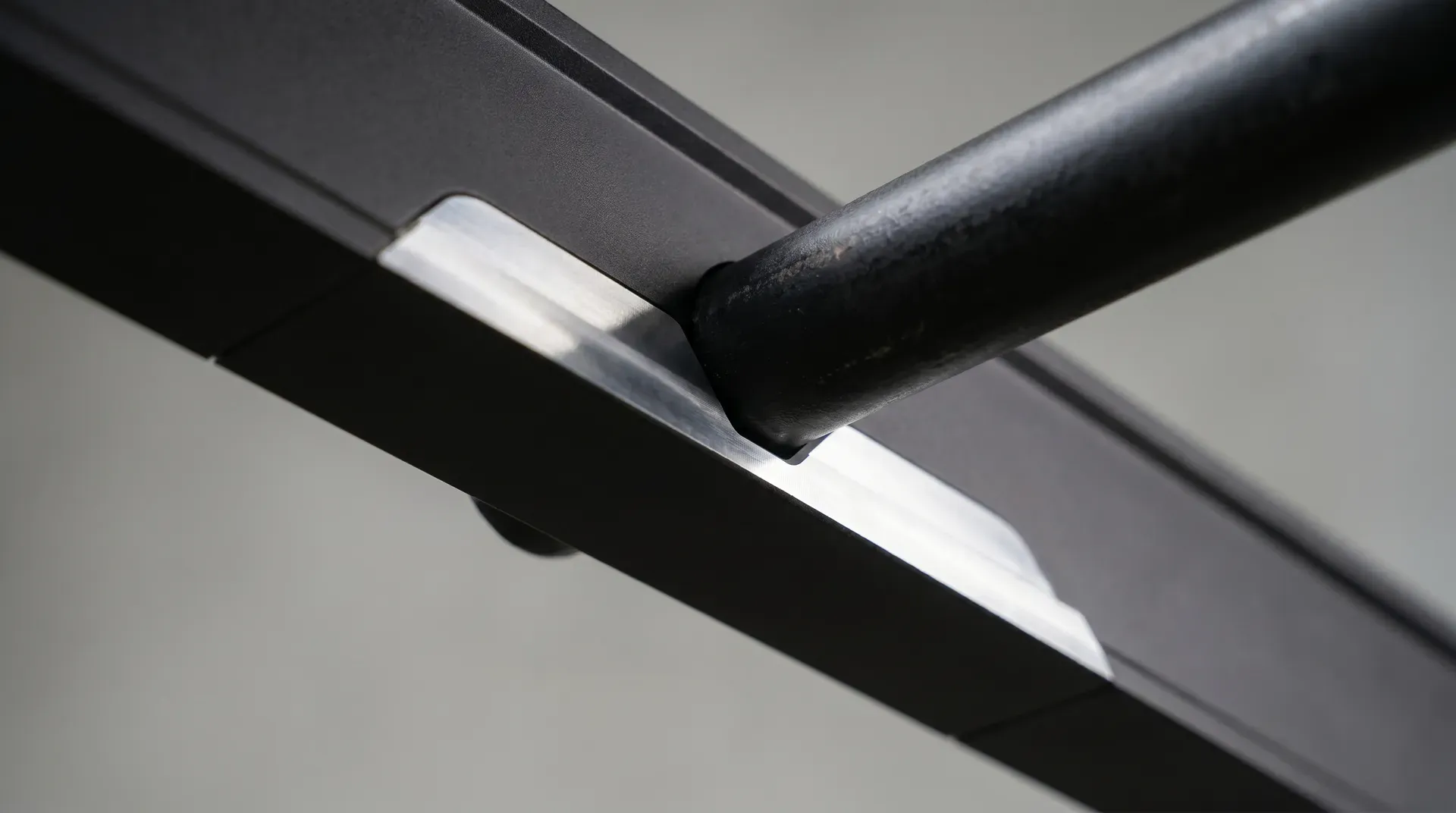

Most magnetic levels include a V-groove machined into the magnetic base. The groove is a small V-shaped channel running along the centreline of the bottom face. Its job is to let the level sit stably on a round surface (like a pipe) without rolling off. The V-groove and the magnet are two separate features that happen to live on the same face. Confusing them is the single most common mistake homeowners make when buying a magnetic level for plumbing.

The non-ferrous problem nobody tells you about

Magnets only grip ferrous metals. That means steel and iron. Anything else is invisible to a magnet: copper, brass, aluminium, stainless (mostly), lead, plastic, timber, plaster, glass.

UK domestic plumbing is predominantly copper pipe for hot and cold supply, and plastic for soil, waste, and rainwater. A magnetic level will not stick to any of them. The V-groove will give you a stable rest on the round pipe surface so it doesn't roll off, but you still have to hold the level in place with a finger or tie it to the pipe with cable tie. You bought a magnetic level. The magnet does nothing.

Where the magnet does work:

• Steel pipe (black iron gas pipe, older heating runs)
• Cast iron soil stacks on Victorian properties (cast iron is ferrous, despite its name sounding exotic)
• Galvanised steel trunking and conduit
• Steel lintels and RSJs (rolled steel joists, the steel beams that hold up the wall above a door or window opening)
• Angle iron brackets, post bases, joist hangers made from pressed steel
• Steel stud framing in commercial or studwork partitions

Neodymium vs ferrite: why the magnet type matters

The magnet inside the base of the level is either neodymium (a rare-earth alloy) or ferrite (a ceramic iron-oxide compound). The difference in holding strength is enormous.

A neodymium magnet is seven to twelve times stronger than a ferrite magnet of the same physical size. In practice, that means a neodymium-equipped torpedo level hangs off a steel beam overhead without sliding. A ferrite torpedo slides down and clatters to the floor within ten seconds. The magnet in the Magnusson torpedo (£7) is ferrite. The magnet in the OX Pro (£16) or Stabila 70TM torpedo (£20) is neodymium. The extra tenner buys you something that actually grips.

Premium brands spell this out on the product page: Stabila describes its rare-earth magnets as "up to 5x stronger than standard ferrite." OX Pro calls them "rare earth magnets." If the product page is silent about magnet type, assume ferrite. Budget levels almost never advertise rare-earth magnets because they don't have them.

For occasional DIY where the level only needs to hold on a flat horizontal steel surface with gravity helping, ferrite is fine. For overhead work where gravity is working against the magnet, rare-earth is the only reliable option. If you're checking a ceiling-mounted steel beam, a horizontal gas pipe run under floor joists, or a conduit route along the underside of a soffit, buy rare-earth.

Sizes and variants

Magnetic levels come in the same four broad sizes as non-magnetic levels, but the buying logic is different because the magnet adds a small premium to the base price at each tier, rising with rare-earth versus ferrite magnet grade.

A specialist variant worth knowing about: the Stabila 80M is an "installation" level designed specifically for plumbing and heating. It has printed installation dimensions along the profile (so you can space radiator brackets or bathroom fittings without a tape measure) and a six-ring horizontal vial that reads both 1% and 2% slopes directly. If you're doing your own heating pipework, it's the one level worth the premium. Available in 600mm and 1000mm.

The overlap with torpedo levels

Open the magnetic level category on Screwfix and half the products are also listed under torpedo levels. That's because most torpedo-sized levels are magnetic by default. The torpedo form factor is almost exclusively used by plumbers and electricians, and they want hands-free grip on the steel surfaces they work with.

If you already own a good torpedo level, check its spec sheet. It's probably magnetic. Buying a "magnetic spirit level" that's 230mm long would be buying the same tool twice. The interesting buying decision is the second level: do you want a magnetic 600mm box beam for longer steel runs, or do you stick with a 1200mm non-magnetic box beam for general bricklaying, window frames, and blockwork (where a magnet is useless)?

The right answer depends on what you're actually building:

• If you have a steel frame structure, magnetic 600mm and 1200mm both earn their keep
• If you have timber structure with traditional masonry, non-magnetic is fine at longer lengths and the only magnetic level you need is a torpedo for pipe work

How to use a magnetic level properly

Place the level on the steel surface with the magnet facing the work. On a horizontal surface, the magnet holds the level in position while you read the vial. On an overhead surface (the underside of a steel beam, for example), the magnet holds the level upside-down. Read the bubble directly below, eye level with the vial, to avoid parallax error.

On a round steel surface like gas pipe, align the V-groove along the long axis of the pipe. The V sits across the pipe cross-section, so the level tracks the pipe rather than the surface under it. If the level wants to rotate around the pipe, the magnet isn't strong enough for the weight or the pipe isn't ferrous (check with a fridge magnet if you're not sure).

For checking fall on a horizontal pipe run, place the level along a 1200mm section and read the bubble. A fall of 1:40 (used for low-flow foul drainage, see below) shows as a bubble offset of roughly 7mm in a 300mm vial, which is easy to see. A fall of 1:80 is harder to read by bubble alone, which is one reason plumbers increasingly use digital levels for drainage work. The digital spirit level reads the angle as a number on a screen and removes the guesswork.

The swarf problem

On any site where steel is being cut, drilled, or ground, fine metal filings (swarf) accumulate on every horizontal surface. They're almost invisible. They also stick to magnets like nothing else.

Place your magnetic level on a steel beam that's been angle-ground earlier in the day and the magnet face picks up a layer of swarf. A single steel filing under the magnet face tilts the level a fraction of a millimetre. Over a 600mm run, that's enough to throw off a critical reading. The plumber reads "level," drills the bracket, installs the pipe, and discovers a week later that the run has a reverse fall.

Click to enlarge

Wipe the magnet face with a dry cloth or the edge of your hand before every critical reading. Takes two seconds. Prevents the reading that costs you a day's work to put right. Nobody teaches this because it feels obvious once you've done it, but it's the single most common reason experienced tradespeople swear at magnetic levels. Budget magnetic levels with exposed magnet faces are worst. Premium levels often recess the magnet slightly below the milled base surface, which reduces swarf accumulation but doesn't eliminate it.

Accuracy and the flip test

Every spirit level, magnetic or not, should pass the flip test before you trust it. Place the level on any surface. Mark its position. Rotate it 180 degrees end-for-end on the same marks. The bubble should read identically. If it's shifted, the level is inaccurate.

Magnetic levels have one additional risk: dropping them onto a steel floor can damage the magnet mounting as well as the vials. Rare-earth magnets are brittle. A hard knock can crack the magnet or shift its position inside the base. Always flip-test after a drop.

Stabila and Bahco guarantee accuracy for ten years if the level isn't physically damaged. Forge Steel (Screwfix's budget brand) guarantees for one year and community feedback on long-term accuracy is mixed. Magnusson is inconsistent across units: some hold accuracy for years, others drift within months. The flip test tells you whether your specific level is trustworthy today.

Where the magnet pays for itself

The magnet earns its cost premium in these situations:

• Overhead first-fix plumbing in joist voids. Working alone with a torch, a pencil, and a steel pipe run. The magnet is the third hand you don't have.

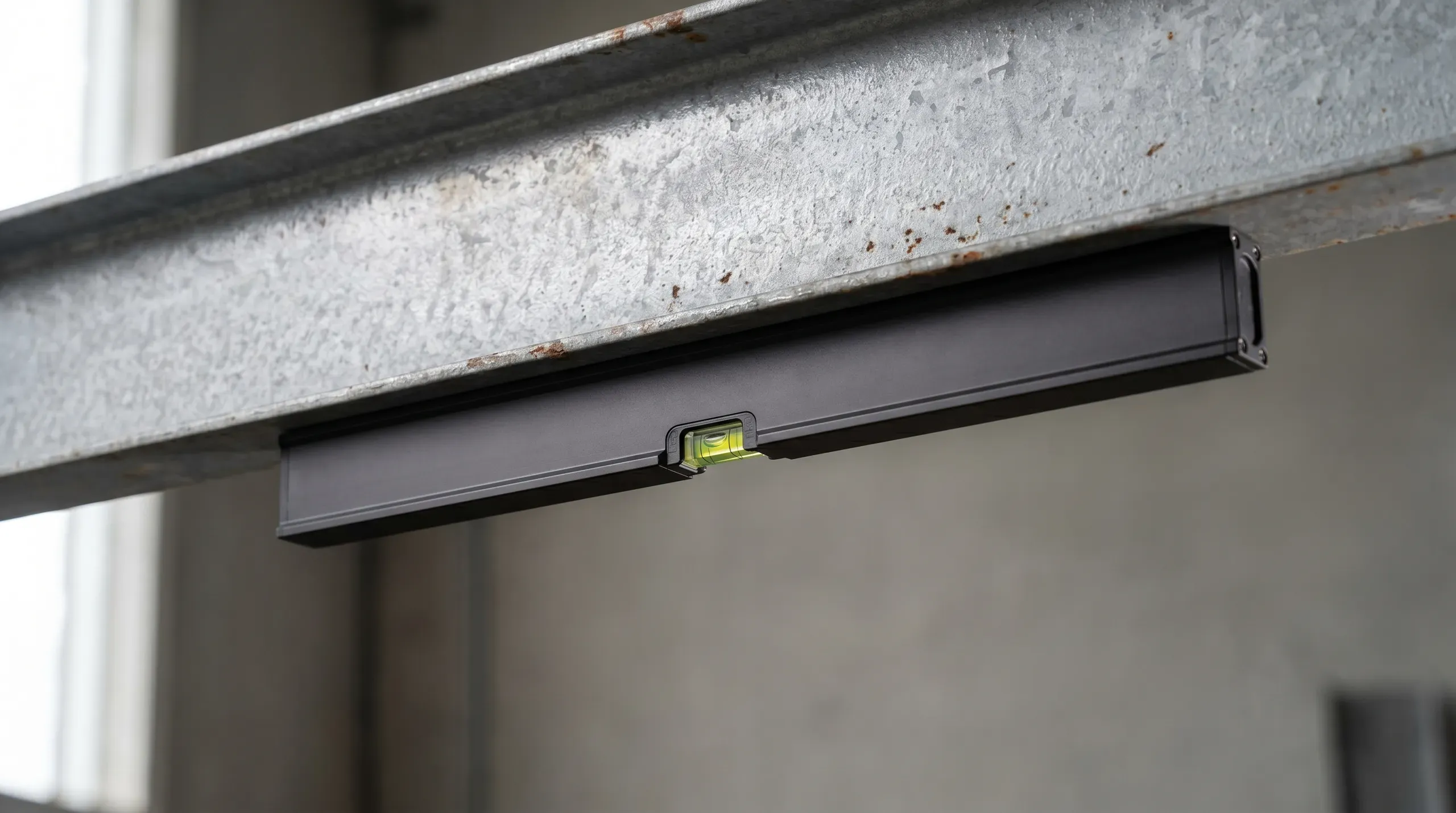

• Steel lintel plumb and level checks. After the bricklayer sets a steel lintel, you check it's level with a magnetic 600mm resting on the steel flange. No scaffolding acrobatics holding the level in place.
• Metal conduit alignment. Electricians routing steel conduit along studwork or ceilings. Magnetic level hangs on the conduit itself to check the run is straight.
• Overhead gas pipework. Black iron gas pipe running across a kitchen ceiling or through a loft. Hands-free fall checks are the only way to work safely without a second person.
• Structural steelwork snagging. Checking plumb on steel posts, angle brackets, and beam ends after steel erection.

When it doesn't pay for itself

The magnet is wasted weight on:

• Interior stud wall levelling (timber frame, no steel)
• Kitchen unit installation (MDF and chipboard carcasses)
• Blockwork and brickwork (clay and concrete aren't magnetic)
• Plasterboard plumb checks
• Screed and flooring work
• Copper pipe plumbing (most domestic hot/cold supply)
• Plastic soil and waste pipe (all modern domestic drainage above ground)

For all of these, a standard non-magnetic box beam is equally accurate and typically a few pounds cheaper per size. If your project is a straightforward masonry-and-timber extension with copper plumbing and plastic drainage, you need one magnetic torpedo (for the few steel touches) and non-magnetic 600mm and 1200mm box beams for everything else.

UK drainage falls: why the 1200mm magnetic matters

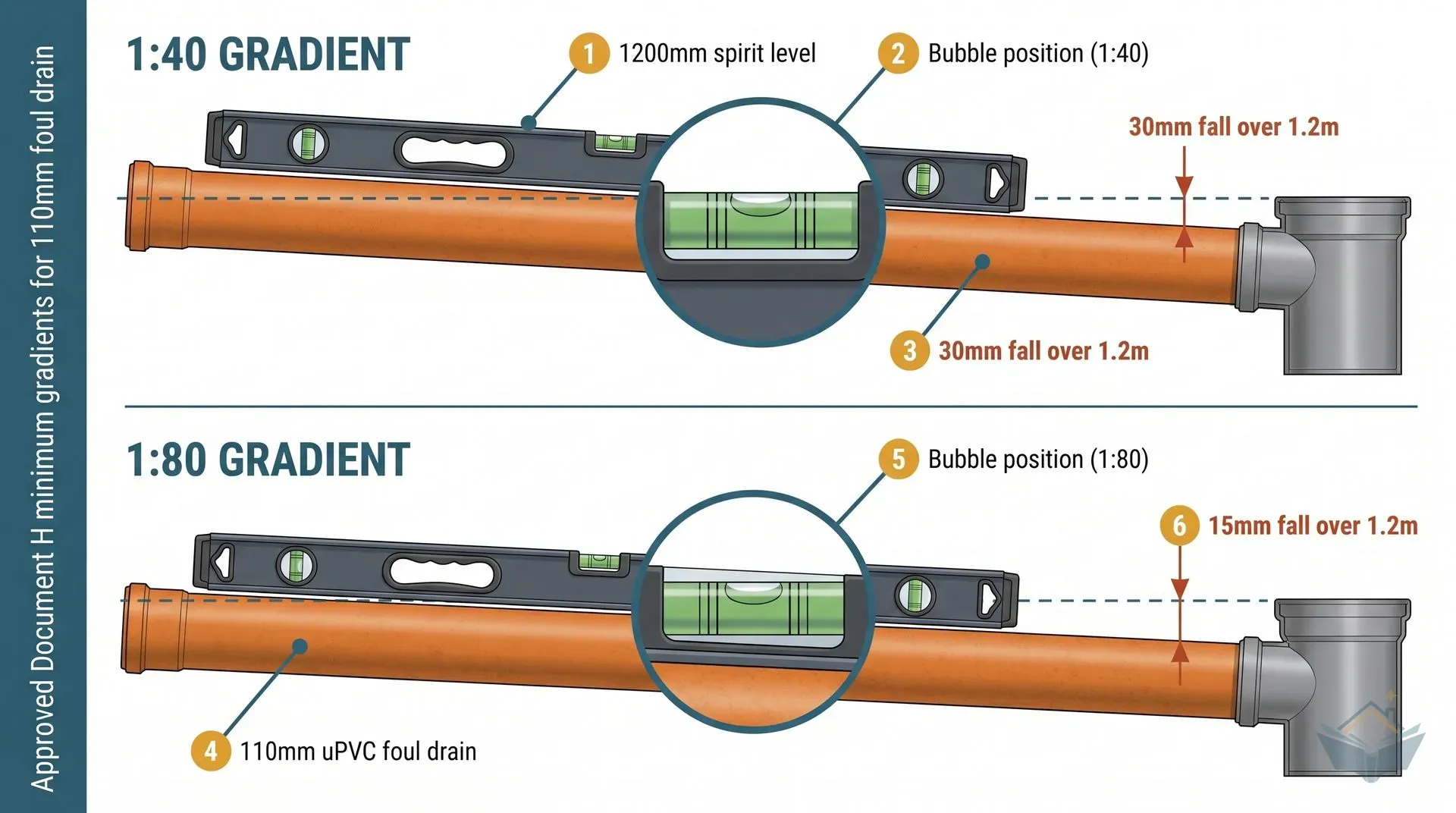

Approved Document H (Part H of the Building Regulations for England and Wales) sets minimum gradients for foul drainage. A 110mm plastic foul drain (the standard UK size) needs at least 1:40 for low flow rates below 1 litre per second, dropping to 1:80 minimum where flows exceed 1 l/s (which requires a minimum of one WC on the run). LABC explicitly recommends a 1200mm spirit level as the tool for checking these falls during installation.

The 1:80 figure is the tricky one. In 6m lengths of 110mm PVC, the pipe naturally flexes under its own weight, and that flex is larger than the 1:80 gradient you're trying to achieve. A 1200mm level placed along a section averages out the flex and gives you a reliable reading. A 600mm level is too short to span the flex and will give false readings.

Under-pitch your foul drain and the system loses self-cleansing velocity, solids settle out, and you get blockages. Over-pitch it and water races away from solids, leaving them stranded and producing the same blockage from the opposite direction. The 1:40 and 1:80 limits are both boundaries you don't want to cross. A reliable 1200mm level is the cheapest way to stay inside them.

Note that plastic soil pipe isn't ferrous, so the magnet does nothing here either. What you're using is the box-beam length and the vial accuracy. You hold the level along the pipe run by hand or by resting it on the pipe top. If you want hands-free for this kind of work, a digital spirit level on a magnetic-tipped tripod (or a rotating laser level set to a known fall) is the professional answer.

What to buy

Buy for the surface you'll actually place the level on. If you work mostly with copper, plastic, and timber, save your money and buy non-magnetic. If you work with steel, buy the best magnet you can afford because that's the whole reason you're paying the premium.

Budget tier: occasional DIY, flat horizontal steel surfaces only. Magnusson 225mm magnetic torpedo (£7 at Screwfix, product code 8296V), Forge Steel 600mm magnetic (£11), Magnusson 1200mm magnetic box beam (£23). Ferrite magnets. Acceptable for hanging shelves against a steel beam or checking a radiator bracket is level. Don't trust overhead.

Mid-range: serious DIY or homeowner managing a build. OX Pro 230mm rare-earth torpedo (£16 at Screwfix, product code 519PK), Stabila 70TM 220mm rare-earth torpedo (£20), Stanley FatMax Xtreme 600mm magnetic box beam (£45). Rare-earth magnets, 0.5mm/m accuracy, box-beam construction. Sweet spot for anyone doing their own first-fix plumbing, electrical conduit, or checking a builder's steel lintels.

Premium: trade-quality, lifetime tool. Stabila 81SM 250mm rare-earth scaffold/torpedo (£41 – £45 at Toolstation), Stabila 80ASM 300mm rare-earth box beam (£60 at Screwfix, product code 868RG), Bahco 466 1200mm magnetic (£67 at PrimeTools). Ten-year accuracy guarantee, reinforced profiles, factory-calibrated vials. Overkill for most homeowners but the right answer if you're managing multiple projects or want tools that outlast the build.

Alternatives

A non-magnetic box-beam spirit level is the obvious alternative if your work isn't on steel. Saves a few pounds per size. Read the main spirit level guide for buying logic.

A digital spirit level shows the angle as a number and often beeps at true level. Useful for drainage falls where you need precise 1:40 or 1:80 and don't trust a bubble read. More expensive (starting around £35 – £65 and running well into three figures for pro models) and battery-dependent. Some digital models are magnetic too, combining both advantages.

A laser level projects a level line across an entire room. Different tool, different job. Pairs well with a spirit level rather than replacing it.

A string line or water level costs almost nothing and will verify long falls over any distance. Slower and less convenient than a magnetic level, but accurate and immune to swarf, drops, or dead magnets.

Where you'll need this

Magnetic spirit levels earn their keep wherever steel meets measurement on any extension or renovation project. Typical points in the build:

• During structure work when steel lintels, RSJs, and structural posts go in. Check plumb and level on the steelwork before the masonry or timber goes back around it.
• At first-fix plumbing on steel gas pipe runs, legacy cast iron soil stacks, and any heating pipework that uses black iron fittings.
• At first-fix electrics when routing galvanised steel conduit or steel trunking along studwork, ceilings, or commercial-style installations.
• During roof structure work where steel beams or posts support the roof build-up, and you need hands-free checks on members overhead.
• At snagging stage when verifying steel installations remain level and plumb after load takes up.

The magnet does nothing on brick, block, plasterboard, copper pipe, plastic pipe, or timber. For those surfaces, read the spirit level guide instead and save the money.
