A plumber drops a soil pipe into the trench, eyeballs the fall, buries it, and signs off. Six months later, the drain blocks because the gradient was 1:120 instead of 1:80. The gravel grader dug up 14 metres of pipe, the solids had settled in the slack, and the rework bill ran to four figures. A digital level on the pipe at bedding stage would have shown 0.4 degrees on the screen. Too shallow. Fixed in ten minutes before backfill. That's the job this tool is built for.
What a digital spirit level is
A digital spirit level is a box-beam aluminium level with an electronic inclinometer (a tilt sensor) built into the middle of the bar. Instead of only reading a bubble in a glass vial, you also get an LCD screen showing the exact angle of the surface in degrees, percent slope, or millimetres per metre. Most quality models keep a traditional bubble vial as well, so you can cross-check the digital reading against the physics of a floating bubble.
The useful upgrade over a normal bubble level is not precision. It's the audio beep. When you place a digital level on a surface and tilt it, the tool beeps faster and faster as you approach level (or a preset target angle) and sounds a continuous tone when you hit it. You don't need to see the bubble. You can work with the level overhead, behind a cupboard, in a trench, or in low light where the vial window is unreadable.
The second genuine upgrade is the hold function. Press the HOLD button, and the last reading freezes on the screen. Move the level to your saw or workbench, read the angle, transfer it to the material. That's useful for cutting mitres to match an existing roof pitch, or replicating a ramp gradient on a second section of fall.
When a digital level is worth the money (and when it isn't)
This is where most buying guides get it wrong. Digital levels are marketed as precision instruments, so readers assume they're better for everything. They aren't.
For blockwork plumb checks, bricklaying, stud wall building, checking door frames, hanging kitchen units, and general joinery, a quality bubble level such as the Stabila 70-2 is faster, more reliable, and doesn't run out of battery at the wrong moment. The bubble gives you an instant visual read with no boot-up time, no button presses, no menu to scroll through. Every professional bricklayer surveyed on UK trade forums says the same thing: digital is overkill for blockwork. Buy a Stabila 196-2 bubble level and be done with it.
Where digital earns its keep is tasks that require a specific slope angle, not just level or plumb. Setting foul drain falls to 1:40 or 1:80 under Approved Document H. Cutting a ramp to the 1:12 maximum in Approved Document M. Pitching a condensate pipe to its 3 degree minimum. Replicating a bespoke mitre angle. Setting a shower tray fall to 1:50. On these jobs the digital display removes guesswork that a bubble vial can't replicate no matter how carefully you tape a packer to it.
A rough rule: if your job can be described as "level" or "plumb," a bubble level is enough. If your job requires a specific non-level angle, a digital level pays for itself on the first use.
The drainage gradient table no-one else gives you
Drainage regulations are written in ratios. The level on your pipe reads in degrees or millimetres per metre. Translating between the two is where most homeowners lose confidence, and where builders on a hurry get it wrong. Here is the conversion every UK extension will need.
| Gradient ratio | Millimetres per metre | Degrees | Percent slope | Where it applies |
|---|---|---|---|---|
| 1:12 | 83 mm/m | 4.76° | 8.3% | Part M maximum ramp (dwellings) |
| 1:19 (≈3°) | 52 mm/m | 3.00° | 5.2% | Condensate pipe minimum (HHIC / BS 6798) |
| 1:40 | 25 mm/m | 1.43° | 2.5% | Part H foul drain, low flow |
| 1:50 | 20 mm/m | 1.15° | 2.0% | Shower tray fall |
| 1:80 | 12.5 mm/m | 0.72° | 1.25% | Part H foul drain, high flow (≥1 WC) |
| 1:100 | 10 mm/m | 0.57° | 1.0% | Surface water minimum |
A few corrections to claims you'll see elsewhere. Condensate pipe fall is 3 degrees minimum (roughly 1:19), not 1:80. That confusion is widespread and it matters, because installing a condensate line at 1:80 will trip the boiler on the first hard frost. The 1:80 figure is the Part H foul drain minimum for 100mm pipework carrying at least one WC. Worcester Bosch's own installation bulletin specifies 52mm per metre for condensate, which is what 3 degrees converts to.

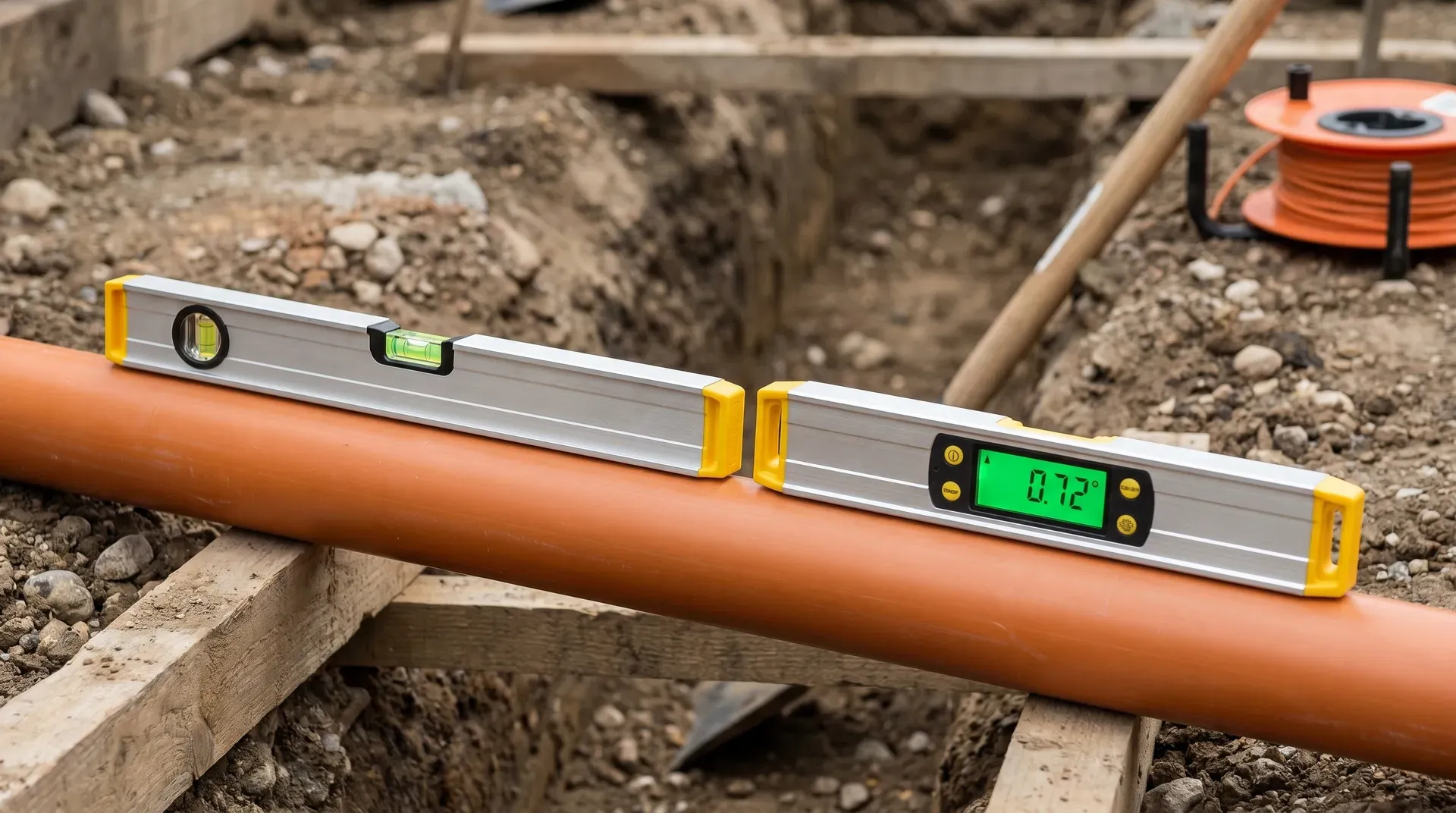

The other thing to register: a 1:80 foul drain is only 0.72 degrees. That's a smaller angle than most people imagine. On a 6-metre pipe run, you're setting a 75mm drop from inlet to outlet. A bubble vial with a 25mm packer taped under one end will get you close. A digital level set to alarm at exactly 0.72 degrees will get you exact, first time.
Budget digital levels can drift 0.5 degrees or more between calibrations. On a drainage run targeting 0.72 degrees, that's a 70 percent error. Do the flip-test on any new digital level before you trust it on drainage work. The self-calibration routine on most models takes ninety seconds.
How to use one properly
The basics are the same as a bubble level. Clean the reference surface. Place the level across the span you're checking, not along a single point. Look at the reading from the side (parallax doesn't affect a digital display the way it affects a vial, but glare does, so shade the screen if you're outdoors).
What's different is setting up the reading. Most digital levels power on in degrees mode by default. For drainage work, switch to millimetres per metre with the UNIT button. That saves you converting in your head mid-job. For ramp work, leave it in degrees. The Stabila TECH 196 DL offers five display modes: degrees, percent, millimetres per metre, inches per foot decimal, and inches per foot fractional. Most homeowners will only ever use the first three.
The HOLD button is the feature to practise with. Place the level on an existing slope (a tile you want to match, a rafter you're copying, a ramp already in place). Press HOLD. Move the level to your workpiece. The screen freezes the original angle and shows how far off you are from it. Match to zero, cut. This is how you transfer angles without using a bevel gauge or a sliding square.
The audio beep wants a calibration pass too. Most units beep at 0 degrees (level), 90 degrees (plumb), and 45 degrees by default. Some let you set a custom target angle, which is the feature you want for drainage. Set the target to 1.43 degrees (1:40 foul drain). Place the level on the pipe. Adjust the pipe until the tool sings. Done, without your eyes anywhere near the screen.
Keep a spare pair of AA batteries in the tool bag. Digital levels default to an auto-off after five to ten minutes, which helps, but the one time the battery dies mid-measurement is always the one time you really needed a reading.
Checking accuracy: the flip test still matters
A digital sensor is not immune to being knocked out of calibration. The idea that "electronic means accurate" is wrong. A drop onto a concrete floor can shift a budget inclinometer by half a degree, and the display will lie to you with confidence to three decimal places.

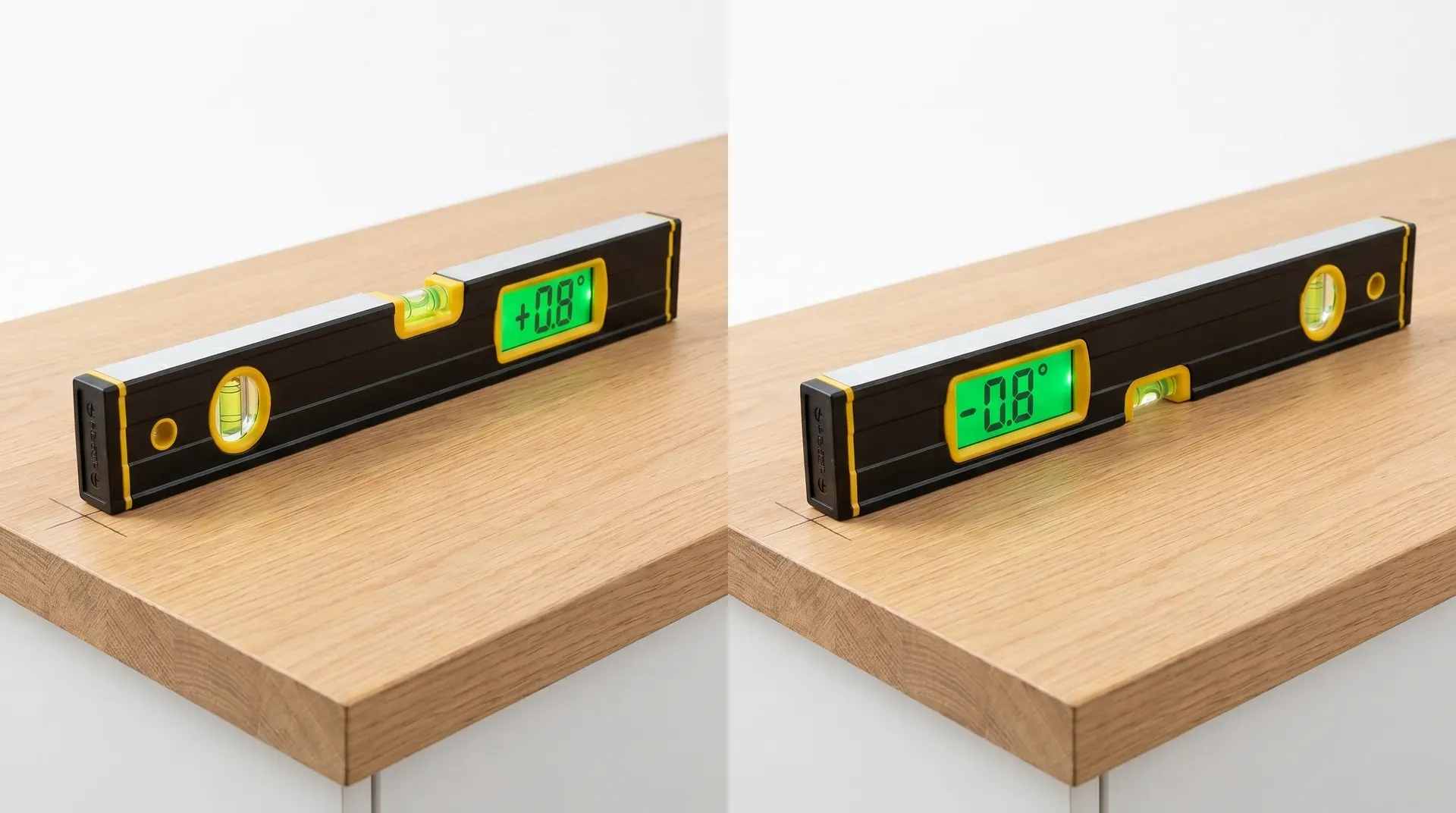

The flip test works identically to the bubble-level version. Place the level on a surface (any surface, not necessarily level). Record the reading in degrees. Rotate the level end-for-end through 180 degrees, keeping it in the same position. Record the second reading. The two numbers should be equal in magnitude and opposite in sign. If the first reading says +0.8 degrees and the flipped reading says -0.8 degrees, the level is accurate. If they don't match, the sensor is out of calibration.
Every modern digital level has a self-calibration routine that fixes this. The procedure varies by model but the shape is similar: hold a specific button combination at power-on, the screen shows "CAL," place the level on a flat surface and record the reading, rotate 180 degrees and record again, the firmware averages the two and sets a new zero. Ninety seconds, no tools required. The Stabila TECH 196 DL goes one step further with what the brand calls CAL-FREE: the sensor resets automatically after impacts or temperature shifts, so you don't have to run the manual routine. On cheaper units, you do.
Do the flip test before trusting a digital level on regulatory work. On drainage, ramps, and condensate falls, a miscalibrated tool produces a compliant-looking reading that later fails inspection or, worse, fails in service.
What to buy
Digital levels split into three bands.
Budget digital (£35 – £65). Own-brand units from Amazon, Magnusson, and similar. Accuracy typically claimed at 0.1 degrees, actual drift of up to 0.5 degrees between calibrations. Fine for one-off DIY jobs where you can run the flip test before each use. A 200mm Trend DAF/8 angle finder sits in this tier at £42 from Toolstation. Useful for mitre transfer and bevel setting, but note it's a folding angle finder, not a full-length spirit level. It won't set a pipe fall across a metre of blockwork.
Mid-range digital (£100 – £150). The Stanley FatMax Digital Level is the benchmark. £100 for the 600mm and £102 for the 1200mm at Screwfix. Accuracy to 0.1 degrees at level and plumb, backlit LCD that auto-rotates, audio buzzer at 0, 45, and 90 degrees, degrees/percent/millimetres per metre display modes, 2× AA batteries supplied, one-year guarantee, carry bag. For most homeowners this is the level to buy if you've decided you want digital. The Bosch GIM 60 Professional at around £115 – £140 sits in the same tier with better build quality but fewer modes.
Pro digital (£175 – £280). The Stabila TECH 196 DL flagship. £175 for the 610mm at ITS, rising to £250 at Screwfix for the same SKU. The 1220mm runs £215 – £280 depending on retailer. Accuracy is 0.05 degrees at 0 and 90 degrees, 0.10 degrees elsewhere. IP67 rated, which means you can drop it in a puddle. 400-hour battery life on 2× AA. Five display modes. Two illuminated displays. CAL-FREE auto-reset. KEY-LOCK keypad protection against accidental button presses in the tool bag. This is the level the drainage contractors and solar installers use, and the price gap versus the Stanley FatMax exists because those professional features genuinely matter when the tool lives on a van.
Milwaukee's REDSTICK Digital sits above even the Stabila at £248 for the 600mm. USB rechargeable battery instead of AAs, PINPOINT mode that combines numeric, graphical, audio, and colour feedback, IP65 rating. Worth it for tradespeople who want to charge overnight rather than swap batteries; overkill for homeowners.
| Tier | Price (600mm) | Price (1200mm) | Flagship model | Buy if... |
|---|---|---|---|---|
| Budget | £35–65 | £45–80 | Trend DAF/8 (angle finder only) | One-off DIY, willing to flip-test before every use |
| Mid-range | £99–115 | £102–140 | Stanley FatMax Digital | You've got a specific precision job and want a reliable tool at sensible money |
| Pro | £175–250 | £215–280 | Stabila TECH 196 DL | Regular precision work, drainage, ramps, or you want a tool that'll still be accurate in ten years |
The honest recommendation for most homeowners managing an extension: if you already own a Stabila 70-2 bubble level and you're only going to set one drainage run, save the money. Tape a 12.5mm packer under one end of the 1-metre bubble level (for a 1:80 fall) or a 25mm packer (for 1:40). When the bubble centres, the pipe is at the right gradient. For one job, that's a zero-pound solution that gets you to the same place.
If you're going to set multiple pipe falls, a condensate line, a shower tray, and a ramp across the project, buy the Stanley FatMax Digital 1200mm at £102. That's the sweet-spot tool.
If you're doing your own drainage across a full extension, bifold installations, a ramp for wheelchair access, and you want one tool that'll still read accurately after a decade on the van, the Stabila TECH 196 DL is the right answer. Expect to pay £175 at ITS for the 610mm or from £215 – £280 for the 1220mm.
Alternatives
A standard bubble spirit level such as the Stabila 70-2 is the direct alternative. The digital upgrade is not really about accuracy, because the Stabila TECH 196 DL's own bubble vials are specified at 0.5mm per metre, the same as a mid-range Stabila 70-2. The real precision advantage is that the digital display reads the angle directly in degrees, eliminating the ratio-to-angle mental arithmetic that the bubble requires you to approximate with packers and shims.
For drainage-only work, the Metex PipeFall (around £30 – £50) is a dedicated tool with preset positions for 1:40, 1:60, 1:80, and 1:100. It's a bubble level with a calibrated wedge built in. Cheaper than a digital level and more focused for its single task. If your entire reason for buying a digital level is drainage setting, consider whether a PipeFall does the job for a fraction of the price.
For angle transfer on joinery cuts (mitres, bevels, rafter birdsmouths), a digital angle finder such as the Trend DAF/8 at £42 is the cheaper alternative. It folds like a builder's square and clamps to the cut line. It won't help with drainage, but it's a precision tool for a fraction of the cost of a full-length digital level.
Where you'll need this
Digital levels earn their keep on these tasks across any extension or renovation project:
- During groundwork, when setting foul drain falls to 1:40 or 1:80 and surface water drains to 1:100
- During first-fix plumbing, when pitching a condensate discharge line to its 3 degree minimum
- During second-fix, when setting shower tray falls to 1:50 before tiling
- During kitchen installation, when levelling appliance feet across a floor that may slope in two directions
- During completion, when checking ramp gradients against Part M before the final building control visit
- During any joinery work where a specific non-level angle needs replicating across multiple cuts
Digital levels are precision tools for precision tasks. For everything else across any extension or renovation project, a quality bubble level does the job faster and costs less.
