Two-Pole Voltage Testers: The Only Tool That Proves a Circuit Dead
The UK guide to GS38-compliant two-pole voltage testers. Models from £49 – £55, the prove-test-prove sequence, and CAT ratings explained.
A homeowner replaces a kitchen light fitting on a Saturday afternoon. Flips the switch off at the wall, climbs the ladder, unscrews the rose, and touches the live conductor. The wall switch was on a different circuit, wired back-to-front in a previous renovation. They survive. Many don't. The tool that would have caught this in ten seconds costs less than a tank of fuel.

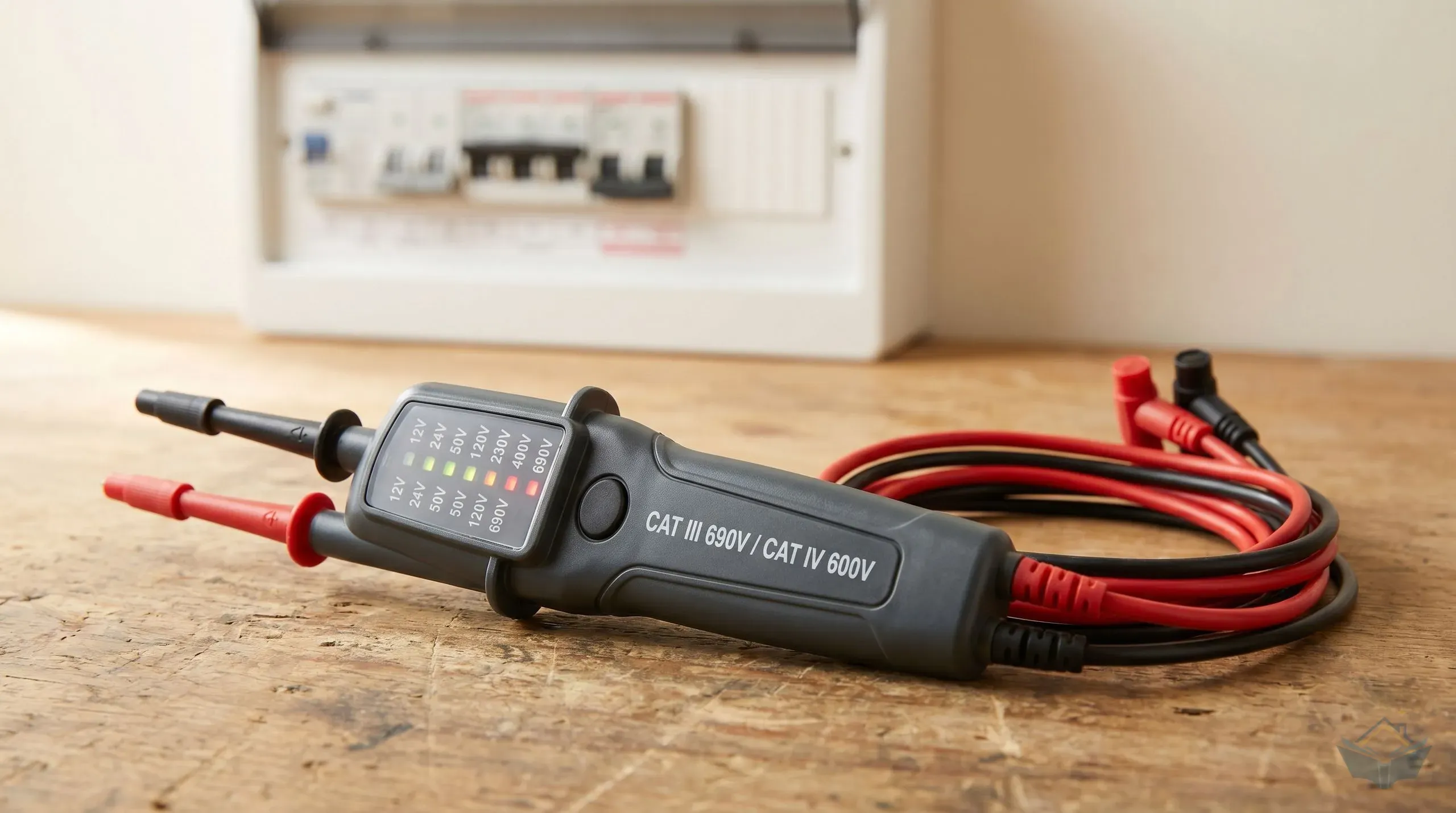

A two-pole voltage tester is a contact instrument with two insulated probe leads. Touch each probe to a different conductor and the tester displays the voltage between them on an LED ladder or digital screen. It is the only tool the Health and Safety Executive accepts for proving an electrical circuit dead under HSE Guidance Note GS38. Non-contact pens, neon screwdrivers, and multimeters with the wrong leads do not satisfy the standard. If you do electrical work yourself, or want to verify your electrician follows proper safe-isolation procedure, this is the instrument to understand.
What it is and why nothing else will do
Voltage is not a property of a single wire. It is a difference in electrical potential between two points. A two-pole tester measures that difference directly by contacting both points at once, which is why it has two probes joined by a flexible cable.
This matters because of how electrical faults behave. A neutral wire that has come loose from its terminal can drift, or "float", up to live potential. Test that floating neutral against earth with a single-probe device and you might see a glow or hear a beep, but cannot tell a healthy 230V supply from a dangerous fault. A two-pole tester, used across all conductor combinations (L-N, L-E, N-E), exposes both the safe-and-dead state and the fault states that look dead at a glance.
Warning
A non-contact voltage tester (NCV pen) cannot prove a circuit dead. GS38 is explicit: NCV pens are for "identifying live equipment, not for proving that it is dead." NCV pens give false negatives through metal conduit, armoured cable, and shielded twin-and-earth, and false positives from capacitive coupling to nearby live cables. The same warning applies to neon screwdrivers, which the UK trade body Voltimum describes as tools that "should never be used and preferably be destroyed." Neither device complies with GS38.
The Electricity at Work Regulations 1989 require employers to provide suitable test equipment. BS EN 61243-3, the European standard for two-pole voltage indicators, sets the design requirements: probe tips with no more than 4mm of exposed metal (2mm preferred), finger guards, double insulation, and current-limiting resistors in the probe tip. A homeowner is not bound by GS38 the way an employer is, but the procedure is the recognised safety standard and what a fatality investigation will look for.
A note on the "fused leads" myth
Older guides claim GS38 requires fused leads on a two-pole tester. Wrong. The 2010 revision of BS EN 61243-3, in full effect from May 2013, removed the fuse requirement for two-pole voltage indicators. It was replaced with protective-impedance design and current-limiting resistors in the probe tip, which give better fault-current protection without a fuse's failure modes (a blown fuse gives a misleading "no voltage" reading). The fuse rule still applies to multimeter test leads under BS EN 61010-031. A post-2013 two-pole tester from a recognised manufacturer has protection built into the probes.

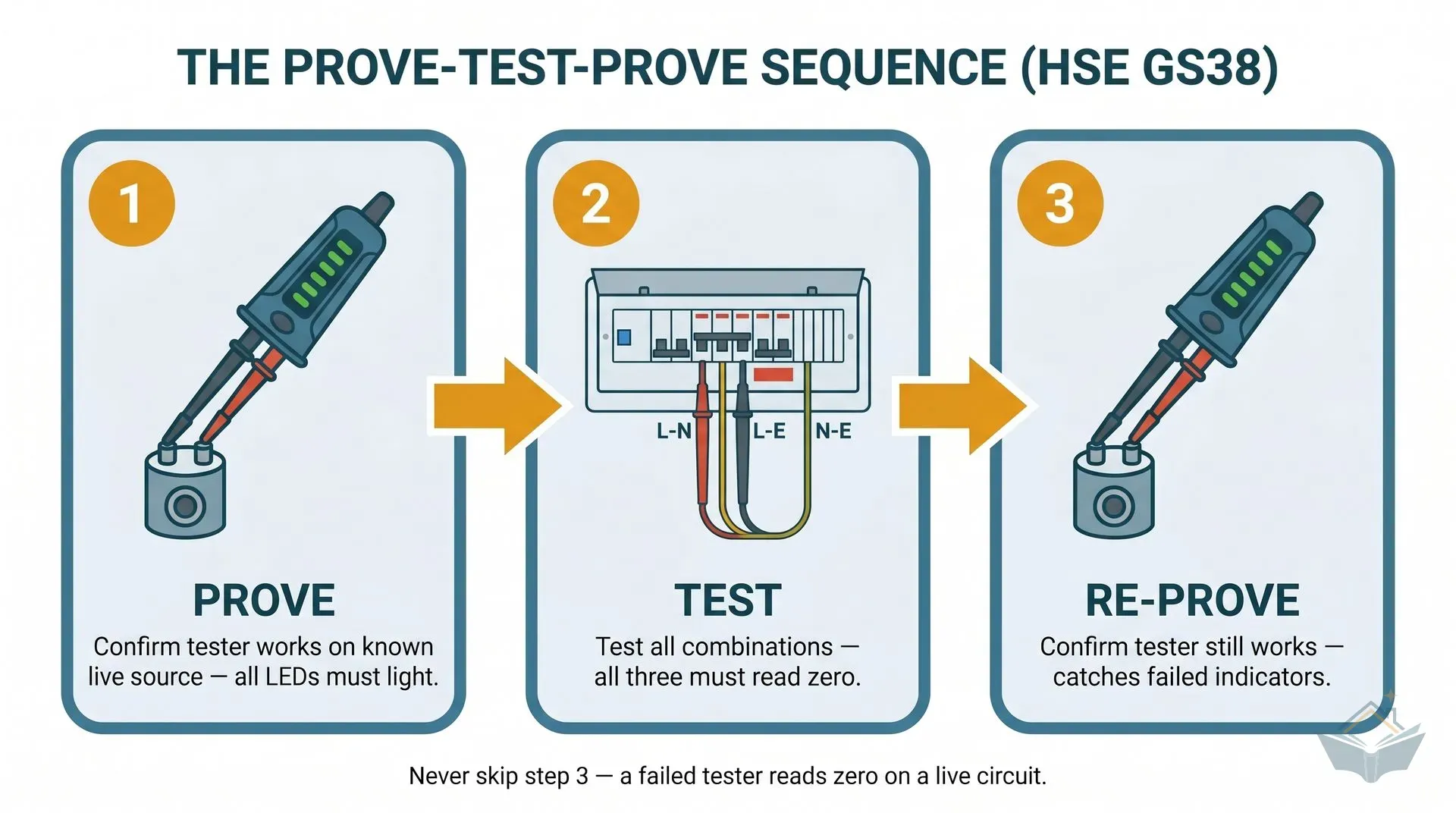

The prove-test-prove sequence
The central concept. Memorise it. Anyone working on UK electrical circuits uses this three-step procedure every time, without shortcuts.
Prove the tester on a known live source
Before touching the target circuit, confirm the tester works. Touch both probes to a known-live source: a proving unit (preferred) or a confirmed-live socket on a different circuit. Every LED on the ladder up to 230V should light, and any audible or vibration alert should activate. If even one indicator fails, stop. Do not use the tester.
Test the target circuit for dead
At the consumer unit, switch off the relevant MCB and lock it off with a lockout device. At the point of work, test all conductor combinations: live-to-neutral, live-to-earth, neutral-to-earth. All three must read zero. Test at the actual point of work, not just at the consumer unit. Circuits are commonly mislabelled and isolating the wrong breaker is a frequent cause of electrical injury.
Re-prove the tester on the same known live source
Go back to the source from step 1 and prove the tester again. This is the step homeowners skip, and the one that catches the worst failure mode: a tester whose indicators failed during step 2. A failed tester reads zero on a live circuit. Without the second prove, you never know your dead reading was wrong.
The trade mnemonic is A.L.I.V.E: Approved kit, Lock-off, Initial prove, Voltage test, Ensure (re-prove). Taught on every UK electrical course. Following it without exception separates a competent electrician from a dead one.
Why all three combinations matter
Each test catches a specific fault mode the other two miss.
Live to neutral confirms the supply has been disconnected at the breaker. The normal case: breaker open, no voltage flows, circuit dead.
Live to earth catches a broken neutral. If the neutral has been disconnected upstream and is floating, L-N might show zero (the floating neutral has drifted to live potential), but L-E shows the full 230V. This combination also confirms the earth path is connected to its reference.
Neutral to earth catches the most lethal scenario: a disconnected neutral that has drifted to live potential. Without an N-E test you can have a circuit that reads zero on L-N (both wires at live potential) and zero on L-E (the live is dead but the neutral is hot). The N-E test reveals the floating neutral immediately.
Edge case: if both earth and neutral are disconnected, a two-pole tester gives no reading on any combination because there is no return path. Rare in modern bonded-earth installations, but the reason an NCV pen as a supplementary preliminary check still has a role.
The features that matter when buying
Product pages list a dozen features. Three genuinely affect whether the tool is safe on your installation. The rest are convenience.
CAT rating: the single most important spec
The CAT (Category) rating tells you what kind of installation the tester is safe to use on. Not a voltage rating: it describes the fault energy the tester can survive at that point in the supply chain.
- CAT II: plug-in appliances and the wiring on the appliance side of a socket. Not adequate for a fuse board.
- CAT III: distribution wiring, consumer units, socket outlets in fixed installations. The minimum for any work at a UK domestic consumer unit.
- CAT IV: origin of the installation, meter tails, the supply head. The highest domestic-applicable rating.
Dual ratings on most testers read like "CAT III 1000V / CAT IV 600V": at 600V the tester provides CAT IV protection; at higher voltages up to 1000V it provides CAT III. For UK 230V domestic work, look for at least CAT III 690V or CAT IV 600V. A CAT II 690V instrument used in a consumer unit is unsafe because transient voltage spikes in distribution wiring can exceed what CAT II is designed to absorb.
Warning
The CAT rating mismatch hazard. Pairing CAT II leads with a CAT III tester downgrades the entire system to CAT II. The lowest-rated component sets the safety category. Replacement leads must always equal or exceed the tester's rating. Stick with manufacturer-supplied leads or buy GS38-compliant replacements from the same brand.
Battery-independent voltage detection
Older testers rely on the internal battery to drive the LED ladder. If the battery is flat, the LEDs do not light regardless of whether voltage is present. A flat-battery tester used without proving will show "no voltage" on a live circuit. People have died from this exact failure.
Modern Fluke (T90, T110, T130, T150) and Kewtech (KT1780, KT1795) testers include a separate battery-independent ELV indicator that detects voltages above 50V AC or 120V DC even with the main batteries flat. The Martindale VI13800 does not, and relies on the user proving against an external unit each time. Both approaches are GS38-compliant; the battery-independent design is more forgiving of human error.
The most reliable design has no batteries at all. The Drummond MTL series uses a neon bulb that cannot give a false dead reading from a power-supply failure. Praised on professional forums but harder to find at retail.
Probe tips and finger guards
Inspect any tester before buying. The probe tips must have no more than 4mm of exposed metal (2mm preferred). Spring-loaded retractable tip caps are the better design. Finger guards (a flange or shroud at the base of the probe handle) prevent your fingers slipping forward into a live terminal. Both are mandatory on any GS38-compliant tester. If a tester arrives without them, return it.
Comparing the mainstream UK options
The UK two-pole tester market is dominated by Fluke, Martindale, Kewtech, and Di-Log, with Megger at the professional tier. Differences within each brand's range come down to indication method (LED ladder, LCD, vibration), continuity testing, and IP rating.
| Tester | Approx price | CAT rating | IP rating | Battery-independent detection | Continuity |
|---|---|---|---|---|---|
| Martindale VT12 | £49 ex VAT | CAT III 690V / CAT IV 300V | IP40 | No (uses external proving unit) | Yes (optical/acoustic to 200kΩ) |
| Di-Log CombiVolt1 | £54.72 | CAT IV 600V | IP67 | No | Yes (0 to 400kΩ) |
| Kewtech KT1780 | £62.99 | CAT IV 600V | IP65 | Yes | Yes (0 to 400kΩ) |
| Fluke T90 | £64.99 | CAT II 690V / CAT III 600V | IP54 | Yes (>50V AC / >120V DC) | Yes (0 to 400kΩ) |
| Martindale VI13800 | £64.20 | CAT IV 600V / CAT III 1000V | IP54 | No (proving unit required) | No |
| Fluke T110 | £87.99 | CAT III 690V / CAT IV 600V | IP64 | Yes | Yes (0 to 40kΩ, vibration alert) |
| Fluke T150 | £141.60 | CAT III 690V / CAT IV 600V | IP64 | Yes | Yes (0 to 1999Ω with LCD) |
A few observations the table does not show. The Martindale VI13800 has the highest CAT rating here (CAT III 1000V) but no continuity function and no battery-independent detection. It assumes you will buy a separate PD440S proving unit. The full Martindale VIPD138-S kit (VI13800 plus PD440S plus case) is the industry-standard GS38 pairing.
The Fluke T90 is fine for domestic work but its CAT III rating is only at 600V. For credibility on a job site or work near an industrial supply, the T110 is the better starting point.
The Kewtech KT1780 is the value pick: battery-independent detection, IP65, CAT IV 600V, and a built-in torch. The tester to recommend to a homeowner who wants one tool for life.
How to use it properly
Owning a GS38-compliant tester is necessary but not sufficient. Using it correctly is the harder part.
Inspect before every use
Check the tester, probes, and leads for cracked insulation, exposed copper, frayed cable at the probe handle, missing finger guards, and damaged probe tips. Any defect means the tester is out of service until repaired or replaced. Damaged insulation can put 230V onto your hand the moment you touch a live conductor.
Hold the probes correctly
Grip each probe behind the finger guard. Never slide fingers forward onto the metal shaft. Never bridge two conductors with a single hand by rolling both probes between thumb and forefinger; that puts the live conductor and the return path in series with your body if the tester fails.
Approach with one probe at a time. Touch the first probe to the first conductor, then bring the second probe to the second. If you slip, only one probe is energised and there is no path through your hand.
Test at the point of work
Isolate at the consumer unit. Lock off. Then test at the actual work location. A circuit can be isolated at the board and still be live at the point of work because of a borrowed neutral, a back-feed, or an upstream wiring fault. The L-N test at the consumer-unit terminals does not catch any of these. Testing at the socket back, junction box, or light fitting catches them all.
For a kitchen extension first-fix that means every junction box where a new cable terminates, every back-box for a new accessory, and every consumer unit terminal where the new circuit lands.
Use a proving unit, not a found live socket
A proving unit (the Martindale PD440S or Kewtech KEWPROVE3) outputs a known calibration voltage that exercises every LED on the ladder. A 230V mains socket only activates the 230V LED, leaving every other indicator unchecked. The proving unit takes about ten seconds to use and confirms the indication system is healthy before you trust your life to it.
A homeowner who tests circuits twice a year can get away with a confirmed-live socket as the proving source. A professional working all day cannot.
How to check your tester is working correctly
Even a recently-purchased tester can fail. The standard self-check takes thirty seconds and should be done at the start of every session.
- Visual inspection. Check probes, leads, and body for damage. Confirm any probe-tip caps are in place.
- Battery state. Press the test button. All indicators should sweep through their full range. A battery-independent ELV indicator should still pass step 3 even if the battery test fails.
- Live source prove. Test against a proving unit or known-live socket. All voltage LEDs up to and including 230V should light up solidly. Audible and vibration alerts should activate.
- Continuity check (if fitted). Touch the probes together. The continuity beep should sound, confirming the leads have not gone open-circuit internally.
If any step fails, the tester is out of service. Replacement is cheaper than the cost of trusting a faulty instrument.
What to buy
For a homeowner who works on their own electrics occasionally and wants to verify their electrician follows proper procedure, the decision comes down to three tiers.
Budget: Martindale VT12 or Di-Log CombiVolt1
Budget two-pole tester
£49 – £55
The Martindale VT12 is the entry-level GS38-compliant tester from a recognised UK manufacturer. Continuity testing, LED voltage ladder from 12V to 690V, 2-year warranty. CAT III 690V / CAT IV 300V covers consumer-unit work but not the meter-tails side. No battery-independent detection, so follow prove-test-prove rigorously and replace batteries on schedule.
The Di-Log CombiVolt1 matches the Martindale on price and beats it on IP rating (IP67 vs IP40) and CAT rating (CAT IV 600V). The Di-Log wins for site use thanks to the sealing; the Martindale has a stronger long-term reliability reputation.
Mid-range: Kewtech KT1780 (the value pick)
Mid-range two-pole tester
£50 – £90
The Kewtech KT1780 is the tester to buy today for a home tool kit. CAT IV 600V, IP65, battery-independent detection, continuity, phase rotation, built-in torch. GS38-compliant probe tips, ships with batteries. Screwfix reviews 4.7/5 across 55+ ratings.
The Fluke T90 is a credible alternative if you prefer the Fluke brand, but its CAT III rating maxes at 600V where the Kewtech is CAT IV at the same voltage.
Professional: Fluke T110, T150, or Martindale VIPD138-S kit
The Fluke T110 adds vibration feedback, a higher CAT III rating at 690V, and Fluke's lifetime brand reputation. The Fluke T150 adds an LCD with resistance measurement and is the only T-series model with resistance to 1999Ω.
If you are buying a complete safe-isolation kit from scratch, the Martindale VIPD138-S bundles the VI13800, the PD440S proving unit, and a carry case. The bundle saves money over buying the parts separately and is the industry-standard apprentice starter kit.
Tip
A standalone proving unit (Kewtech KEWPROVE3 or Martindale PD440S) turns a competent budget tester into a professional setup. If your tester lacks battery-independent detection, the proving unit is not optional.
Alternatives, and what they cannot do
A multimeter can measure voltage in the same configuration as a two-pole tester, but is a poor substitute for proving dead. Three reasons.
First, multimeter test leads are usually not GS38-compliant out of the box. The plug-in 4mm leads supplied with a budget meter typically have inadequate insulation, no finger guards, and exposed metal tips well beyond the 4mm GS38 limit. Replacement GS38-compliant leads must match the meter's CAT rating and add to the total cost.
Second, multimeters require range selection. The wrong range can damage the meter, blow an internal fuse, or give a misleading reading. A two-pole tester has no range selection; it always reads voltage on a fixed ladder.
Third, multimeters are battery-dependent and can fail silently from a flat battery. A flat-battery multimeter shows zero on a live circuit and does not warn you. Modern two-pole testers solve this with battery-independent detection circuits.
A multimeter is the right tool for diagnosing faults, measuring resistance, checking continuity on a long cable run, and confirming socket polarity in detail. It is the wrong tool for the job of proving dead.
A non-contact voltage tester (NCV pen) is useful for the preliminary "is this cable live?" sweep before drilling into a wall or pulling a light fitting. It is not a substitute. Use both: the NCV pen as a screening tool, the two-pole tester as your safety verification tool.
A socket tester verifies the wiring of a 13A socket outlet (live, neutral, earth). Useful for snagging after second fix. Not a tool for proving dead.
Where you'll need this
- First-fix electrics - your electrician proves existing circuits dead before connecting new cables to the consumer unit
- Second-fix electrics - circuits are isolated and proved dead before terminating accessories
- Snagging checklist - any rework or fault investigation after sign-off requires the same procedure
The two-pole tester sits in the same kit as the proving unit, the lockout device, and the inspection labels, used together as a safe-isolation set.
Safety notes
Warning
Electricity kills. Around two dozen people die from electrical contact at work each year in the UK. The leading cause is working on circuits the worker assumed were dead instead of proved dead. If you are not confident in prove-test-prove, leave the work to a qualified electrician. There is no shame in handing the tool back.
If you are managing a build rather than doing the wiring yourself, the value of understanding two-pole testing is verifying your electrician works safely. A competent electrician arrives with a two-pole tester (typically a Fluke T-series or Martindale VI13800), a proving unit, an MCB lockout device, and warning labels, and follows prove-test-prove visibly every time. If yours shrugs at this, uses an NCV pen alone, or says "it's just a small job, I don't need to prove it," that is a red flag. Find a different electrician.
