Multimeters: What to Buy, How to Use One Safely, and Why CAT Ratings Matter
The UK homeowner's guide to digital multimeters. How to check continuity on isolated cable runs, why live testing is the electrician's job, and how to avoid unsafe meters. Budget models from £13 – £30.
By Ian
Project managed a £182k Oxfordshire kitchen extension
Your electrician finishes second-fix wiring and hands you the keys. You flick the lights on, plug in the kettle, everything seems fine. Three months later a socket in the extension trips the RCD every time you plug in the toaster. The fault was there from day one, a reversed live and neutral connection your electrician missed and you had no way to check. A plug-in socket tester would have flagged it in thirty seconds.

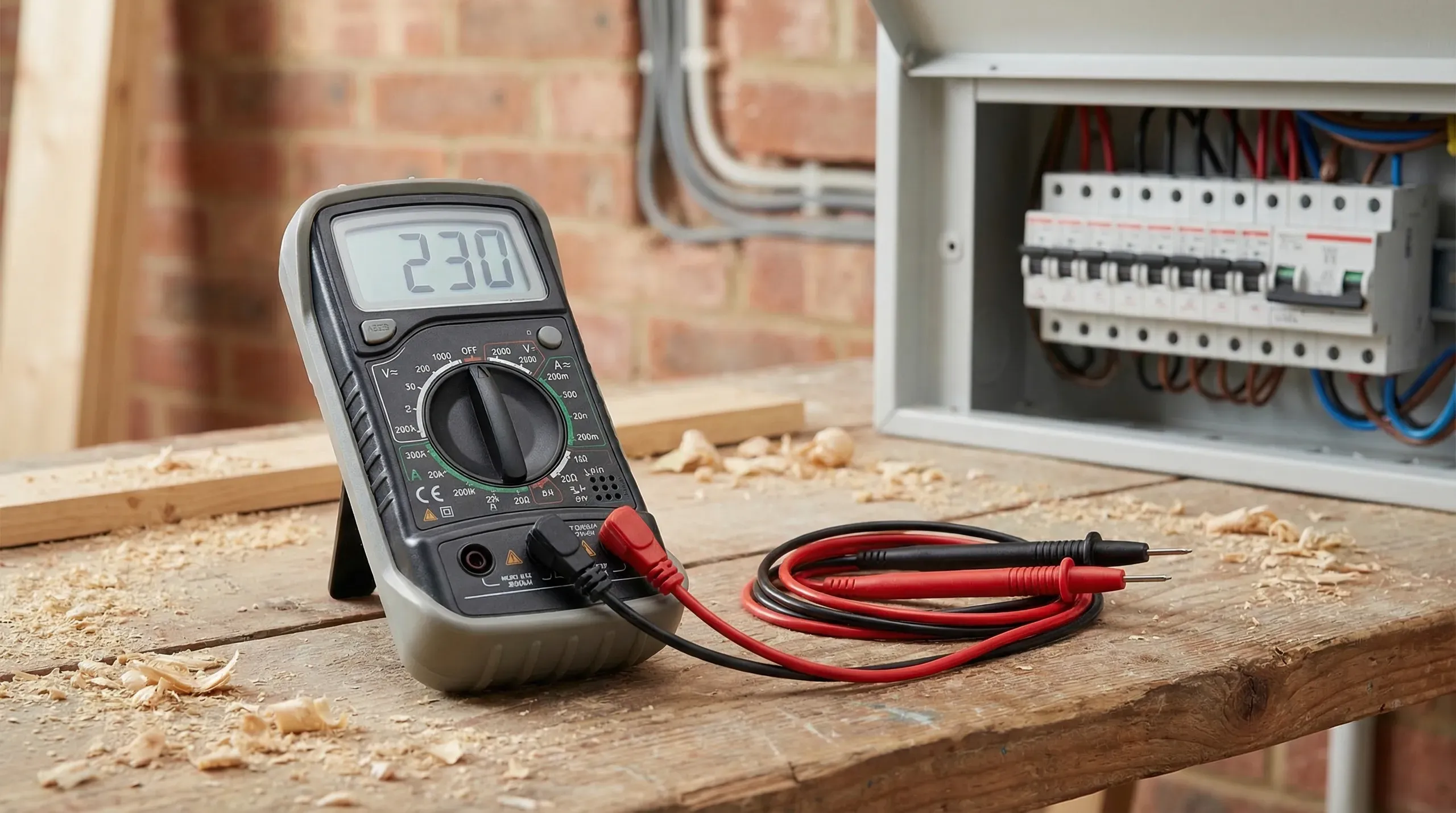

A multimeter is an electronic instrument that measures voltage, current, and resistance. For a homeowner managing a build, it does a few things that matter, all on cables and components that are disconnected from the supply: checks cable runs for continuity before plasterboard covers everything up, checks fuses, batteries and appliance leads, and gives you something concrete to report when you call your electrician back. Measuring live mains is a different job, and it belongs to a competent electrician. You don't need to understand electronics to use one. You need to understand which one is safe to buy.
Why safety matters more than features
Every other guide leads with features and specifications. This one leads with safety, because it's the part that can hurt you.
UK mains runs at 230V AC. That voltage can kill. When anyone puts test probes onto a live conductor, the only thing between them and that 230V is the quality of the meter and its leads. HSE guidance GS38 treats any testing or fault finding on a live system as live working, allowed only when it is unreasonable to work dead, and only by someone competent, with suitable equipment and precautions. That is your electrician, not you. Even for the dead checks a homeowner does, buy a properly rated meter. A properly rated meter contains internal protection circuits, high-rupture-capacity fuses (HRC fuses, which are ceramic fuses designed to safely interrupt a fault current without exploding), and surge suppression that can handle a transient spike. A cheap unrated meter from a marketplace seller contains none of those things.
Warning
Meters with fake CAT ratings exist. Under BS EN 61010 (the safety standard for electrical test equipment), manufacturers self-certify their own ratings. There is no independent verification. Some budget meters stamped "CAT III" lack HRC fuses, have inadequate creepage distances between internal conductors, and would fail if subjected to a mains-voltage fault. Stick to recognised brands: Fluke, Brymen, Kewtech, Megger, Martindale, or branded retailer-own ranges from Screwfix and Toolstation.
CAT ratings explained

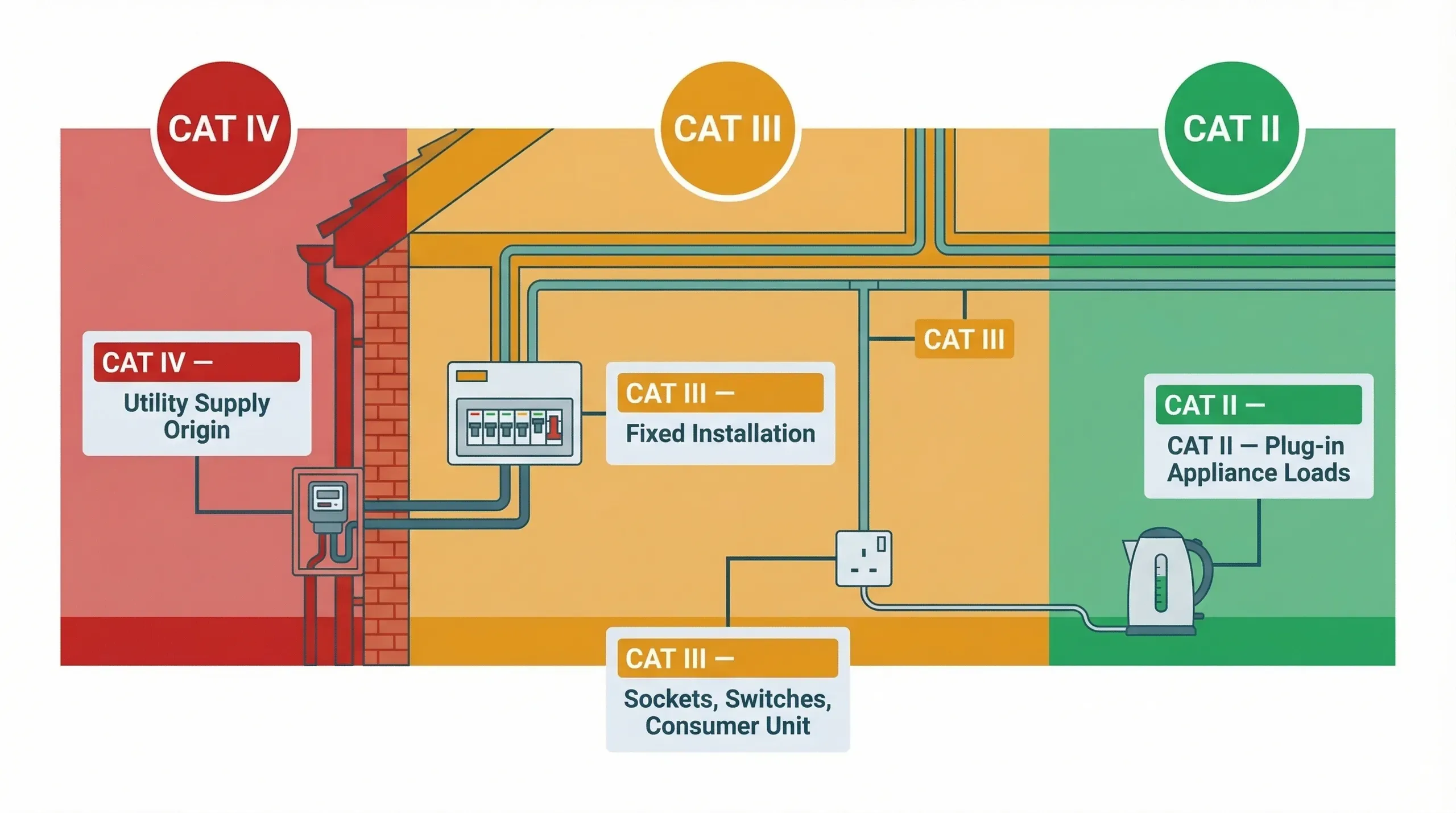

CAT ratings (formally "measurement categories" from IEC 61010) describe where in an electrical installation a meter is safe to use. The rating isn't about voltage alone. It's about how much energy a fault can deliver at that point in the system, which depends on the impedance between you and the transformer on the street.
| CAT Rating | Where It Applies | Example Location | Homeowner Relevance |
|---|---|---|---|
| CAT II | Plug-in appliance loads | Testing a kettle lead, a lamp, a phone charger | Fine for portable equipment only |
| CAT III | Fixed installation within a building | Wall sockets, light switches, junction boxes, distribution boards | The minimum for any mains wiring work |
| CAT IV | Utility supply origin, outdoor meter | The meter box on your outside wall, incoming supply | Only if you're testing at the meter (you shouldn't be) |
For any meter that will be used on the wiring in an extension, even wiring you have isolated, you need CAT III 600V minimum. Not CAT II. A wall socket is part of the fixed installation (CAT III territory), not an appliance load (CAT II). This distinction catches people out because some buying guides say CAT II is "fine for home use." It isn't, not for anything connected to the fixed wiring.
Within the same CAT level, a higher voltage rating means better protection. A CAT III 1000V meter offers more surge protection than a CAT III 600V meter. But across categories, the number doesn't compensate: a CAT II 1000V meter is less safe at a wall socket than a CAT III 600V meter.
Test leads matter as much as the meter
Here's the part nobody mentions in product reviews. Under HSE guidance document GS38 (the UK standard for safe electrical test equipment), test leads must meet specific requirements:
- Probe tips exposed no more than 4mm, ideally 2mm or less
- Retractable shrouds preferred (so you can't accidentally bridge two terminals)
- Finger barriers on both probes to prevent hands sliding onto the metal tip
- Fused leads recommended for multimeter voltage work: a high-breaking-capacity (HBC/HRC) fuse, usually rated no more than 500mA
- Leads marked with their CAT rating
The critical point: if your meter is rated CAT III but your leads are rated CAT II, the whole assembly is derated to CAT II. You've just made your meter unsafe for use on fixed wiring.
Budget meters routinely ship with leads that don't meet GS38 requirements. Long exposed probe tips, no finger barriers, glass fuses instead of HRC fuses. The leads can cost more to replace than the meter itself (GS38-compliant replacement leads run £15 – £25 from brands like Martindale or Kewtech), but they're what stands between your fingers and a live conductor.
Tip
Before you use any multimeter on mains wiring, even wiring that has been isolated, check the test leads. If the metal probe tip is longer than 4mm, or if there's no barrier to stop your fingers sliding forward onto the tip, replace the leads before you do anything else.
Types of multimeter
All digital multimeters measure voltage, current, and resistance. The differences that matter to you are safety rating, auto-ranging, and True RMS.
Basic digital multimeters have a manual range selector. You have to know roughly what voltage or resistance to expect and set the dial accordingly. Get it wrong on a live circuit and you can damage the meter or, worse, create a short circuit. These start at around £8 – £13 and are fine for testing batteries, checking if a fuse has blown, or measuring resistance on a de-energised cable.
Auto-ranging digital multimeters detect the range automatically. Set the dial to resistance or continuity, touch the probes to the cable or component, and the meter figures out the scale itself. This is what you want for occasional home use. It removes a common beginner mistake (the wrong range) and costs very little more.
True RMS meters give accurate AC readings on non-sinusoidal waveforms (distorted versions of the smooth wave pattern that mains electricity normally follows). Why does that matter at home? Modern LED dimmers, variable-speed motor controls, and switch-mode power supplies in electronics distort the waveform. A basic meter that averages the waveform can under-read by up to 40% on these circuits. For the dead checks a homeowner does, it makes no difference. It matters to an electrician measuring voltage on a live circuit with a dimmer switch or current draw on a circuit feeding several electronic devices, where True RMS gives the real number. Good news: True RMS is standard on everything above about £28.
Clamp meters are a different form factor. Instead of probe tips that touch conductors, they have a hinged jaw that clamps around a cable to measure current without breaking the circuit. Electricians use them constantly. A homeowner almost never needs one. If your electrician asks you to buy a clamp meter, ask why.
How to use a multimeter
Setting up
Plug the black lead into the COM (common) port. Always. The red lead goes into the VΩ port for voltage and resistance measurements. There's usually a separate port marked 10A or similar for current measurements. Ignore the current port unless you specifically need to measure current (and if you're a homeowner, you almost certainly don't).
Warning
Never connect a multimeter set to the current (amps) or resistance (ohms) range to anything that might be live. In current mode, the meter becomes a near-short-circuit across the supply. This can blow the meter's internal fuse at best. At worst, it causes an arc flash. As a homeowner, only connect your meter to a cable or component that is disconnected from the supply, or that has been isolated, locked off and proved dead.
Checking sockets after second-fix

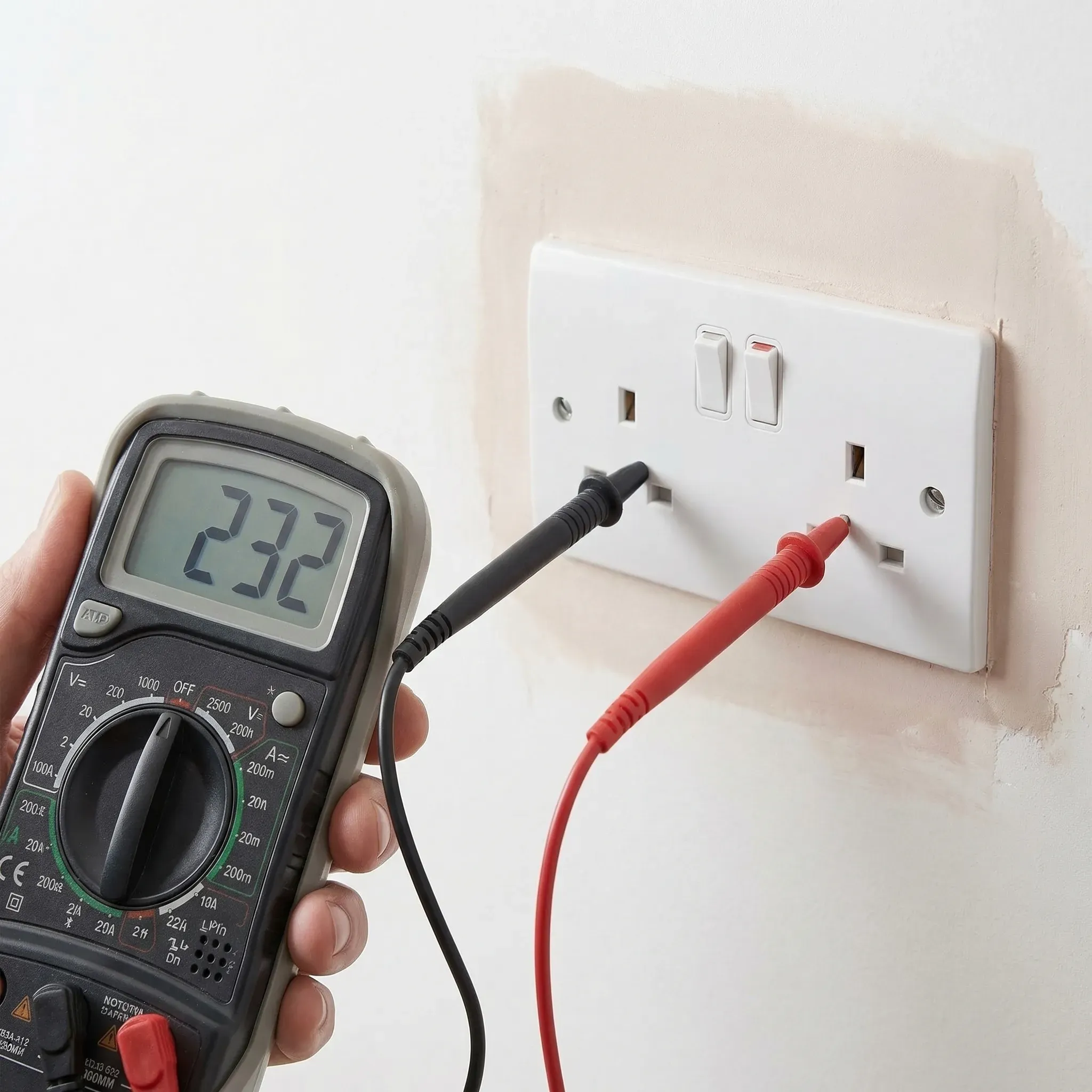

This is the check homeowners most often want to do, and a multimeter is the wrong tool for it. Measuring the voltage at a socket means putting probes onto live 230V conductors, which GS38 classes as live working: a job for a competent electrician using GS38-compliant probes and leads, with precautions against accidental contact. Your electrician tests polarity, earth fault loop impedance and RCD operation on every circuit and records the results on the electrical installation certificate required by BS 7671.
For your own check, use a plug-in socket tester (see below). It flags the common wiring faults at a 13A socket in seconds without exposing you to live parts. It shows whether the wiring looks right; it can never prove a socket or circuit dead, so never use one for that. If the tester shows a fault, or a socket seems to have no supply, don't investigate inside it: check the consumer unit for a tripped device, stop using that socket and ask your electrician.
Checking continuity on a cable run
Before plasterboard goes up and covers all the wiring, check that each cable run is actually continuous from end to end. This catches breaks, bad joins, and cables that have been nicked by a screw or staple during fixing.
The cable must not be connected to a supply. If it is, isolate it at the consumer unit, lock it off and prove it dead with a two-pole voltage tester before you touch it. Set the dial to continuity mode (the symbol looks like a sound wave or a diode with lines). Touch both probes together. The meter should beep and show close to 0 ohms. That confirms the meter and leads are working.
Now touch one probe to each end of the cable run. You need someone at the other end, or you need to link the two conductors at one end and measure both at the other. A continuous cable reads low resistance (under 1-2 ohms for a typical domestic cable run) and the continuity buzzer sounds. No beep means a break somewhere in the cable. Fix it before the plasterboard goes up. Fixing it after means cutting holes.
Tip
The audible continuity buzzer is the single most useful feature for a homeowner. You can check cable runs by listening for the beep without staring at the display, which matters when you're reaching into ceiling voids or crouching under floorboards. Make sure any meter you buy has a continuity buzzer, not just a resistance mode.
Do you actually need a multimeter, or just a socket tester?
If your only goal is to confirm sockets are wired correctly after your electrician finishes, a plug-in socket tester (around £5 – £10) does the job faster. You plug it in, three indicator lights tell you whether the wiring is correct, and it detects the most common faults: live-neutral reverse, live-earth reverse, and missing earth. It never proves a socket dead: a tester with no lights lit tells you nothing about whether the circuit is safe to work on.
A socket tester can't check continuity on a cable run, and a multimeter can. Neither can find an earth-neutral swap on a live socket (a wiring fault where neutral and earth are reversed), because neutral and earth sit at almost the same voltage: that needs dead testing by your electrician.
Buy both. The socket tester is for a quick pass across every socket after second-fix. The multimeter is for continuity and resistance checks on cables and components that are disconnected from the supply. If something doesn't look right on a live circuit, that is your electrician's call.
What to buy
Budget: basic CAT III digital multimeter
Multimeter cat budget
£13 – £30
At this tier, you're looking at the LAP DC Digital Multimeter from Screwfix (around £13), the TIS 258 from Toolstation (around £20), or the Sealey MM20 (around £23). All carry CAT III 600V ratings. None are True RMS at this price, and most require manual range selection.
These work for continuity checking, resistance measurement, and checking batteries. The TIS 258 is the standout here: it includes a temperature probe, which is occasionally useful, and has strong user reviews on Toolstation (372 at time of writing).
Check the test leads before using any of these on mains wiring. The LAP has been noted for having slightly safer probes than some competitors, but none of the budget leads will fully meet GS38 requirements. Fit replacement GS38-compliant leads from Kewtech or Martindale before using one on isolated fixed wiring. Probing live sockets is not a homeowner job whatever leads you have.
Mid-range: True RMS auto-ranging
Multimeter mid range
£29 – £55
This is where the value is for a homeowner managing a build. The AstroAI DM6000AR (around £29) and the LAP AC/DC True RMS from Screwfix (around £33) both offer True RMS, auto-ranging, 6000-count displays (meaning more decimal places and finer resolution), and CAT III ratings. The AstroAI includes a built-in magnet for hanging the meter on a steel surface while you work, which is more useful than it sounds.
The Draper 92433 (£42 – £54) is a step up in build quality and has been tested by Expert Reviews as their best overall pick.
Any of these three will handle everything a homeowner needs during a build project and for years afterwards. Auto-ranging alone is worth the premium over a manual-range budget meter. You'll use this tool infrequently, in awkward positions, often in poor light. You don't want to be thinking about range selection at the same time.
Trade tier: when to spend more
Above £60 you're into meters aimed at professional electricians. The Kewtech KT117 (around £83) and Fluke 113 (around £165) are excellent instruments, but a homeowner doesn't need them. These meters offer faster update rates, higher accuracy specifications (0.3% vs 1% DC voltage accuracy), and better build quality for daily professional use. If you're testing circuits twice a year, the mid-range tier gives you everything you need.
One exception: if you want a meter that will genuinely last twenty years and be handed down to your kids, a Fluke is the one. Electricians use them for decades.
Tip
The Brymen BM235 (around £60 – £80) sits between the mid-range and trade tiers. It's manufactured in Taiwan to genuine CAT III 600V / CAT II 1000V specifications, has True RMS, and is widely respected by electronics professionals as one of the best value-for-money meters available. If you want one meter for life, this is the sweet spot.
Checking your meter is working
Before you test any circuit, check the meter itself.
Touch both probes together in resistance or continuity mode. You should get a beep and a reading close to 0 ohms. If you don't, your leads are damaged or the meter's fuse has blown. Do not proceed.
A homeowner doesn't use a multimeter on live circuits at all, so you never need to check one against a live socket. When a circuit has to be proved dead, the instrument is a two-pole voltage tester, proved on a proving unit or a known live source before and after the test, so a failed tester can't give a false "dead" reading. A multimeter is not suitable for that job (see the safety notes below).
Alternatives
A non-contact voltage tester (NCV pen) is a companion tool, not a replacement. It detects the presence of AC voltage by holding the pen near a cable or terminal, without touching any conductors. It's safer for initial checks ("is this cable live?") but can't tell you the actual voltage, can't check polarity, and can give false readings through thick insulation or inside metal conduit. A silent NCV pen is never proof that a cable is dead. To prove a cable dead before touching it, use a two-pole voltage tester. Measuring the actual voltage on a live circuit is for your electrician.
A plug-in socket tester handles the most common homeowner check: confirming sockets are correctly wired. Faster than a multimeter for a quick sweep of every socket. Limited to 13A sockets only, can't measure voltage, misses some fault types, and never proves a socket dead.
Neither tool replaces a multimeter for cable continuity testing.
A multimeter is not a substitute for a professional multifunction installation tester. Your electrician uses calibrated test instruments (Megger, Kewtech multifunction) to measure insulation resistance, earth loop impedance, and RCD trip times for the BS 7671 electrical installation certificate. You don't need to own those instruments. A multimeter is still useful for your own continuity checks on isolated cable runs before the plasterboard goes up, and a socket tester for a quick pass after second-fix. Anything live is for the electrician.
Where you'll need this
- Second-fix electrics - checking completed circuits for correct wiring and continuity (insulation resistance needs the electrician's insulation tester)
These tools appear across all stages of any extension or renovation project where electrical circuits are being installed or modified. Any project involving first-fix or second-fix electrics benefits from having a multimeter on hand for verification.
Safety notes
Warning
Never use a multimeter to confirm a circuit is dead before working on it. GS38 is explicit: use an approved voltage indicator (a two-pole tester like a Fluke T150 or Martindale VI-15000) to prove dead. A multimeter can fail to detect voltage due to flat batteries, a blown internal fuse, or a broken lead, and you'd have no indication it wasn't working. An approved voltage indicator is designed to fail safe.
Warning
Never measure current on a mains circuit with a multimeter's 10A input. Setting the meter to current mode and probing a live socket creates a near-short-circuit through the meter. This can cause an arc flash, blow the meter apart, and cause serious burns. The current mode is for small low-voltage DC circuits only, such as checking battery drain. Solar panel wiring can carry high DC voltages and is not a place for a multimeter's current input. If you need to measure mains current, an electrician uses a clamp meter that doesn't require breaking the circuit.
Inspect your test leads before every use. Look for cracked insulation, exposed copper at the probe-to-lead junction, and damaged finger barriers. Replace leads at the first sign of wear. A lead failing at 230V is not a gradual process.
