PIR Insulation Board 75mm: The Combination Thickness That Fills the Gaps
75mm PIR insulation explained for UK homeowners: why it rarely meets Part L on its own, how layering gets it there, indicative online prices of £22 – £28 per board, and the combination builds that make 75mm the right choice.
By Ian
Project managed a £182k Oxfordshire kitchen extension
Specify 75mm partial-fill PIR for your cavity walls and you can fail the 0.18 W/m²K wall limit, because most masonry build-ups need about 100mm. Specify 75mm for your floor slab when it needed 100mm, and you'll fail the building control inspection and have to rip up the screed. 75mm PIR is the thickness that sits between the obvious choices, and getting it right means understanding exactly where the regulations draw the line.
What it is and what it's for
PIR (polyisocyanurate) is the rigid foam insulation board with aluminium foil on both faces. If you've read the 50mm PIR page, you already know the basics: closed-cell foam core, lambda value of 0.022 W/mK, foil faces that act as a vapour barrier when you tape every joint. The material is identical. What changes at 75mm is where it fits in your build.
At 75mm thick, a PIR board delivers an R-value (thermal resistance) of 3.40 m²K/W. That's 51% more thermal resistance than a 50mm board. The standard board is 2400 x 1200 mm (2.88 m²), with a maximum weight of about 8 kg for Celotex GA4075. Other products may differ. Still comfortable for one person to carry, but noticeably heavier than the 4.5 kg 50mm boards.
The 75mm thickness exists because building regulations don't have a single number for insulation. Approved Document L (2021, with 2023 amendments) sets different U-value targets for different building elements. 75mm PIR on its own falls short of all of them for a new extension, but it works well as one layer in a combination system.
| Building element | Part L target (extension) | 75mm PIR achieves | Verdict |
|---|---|---|---|
| Cavity walls | 0.18 W/m²K | ~0.20-0.21 W/m²K (partial fill, thermal block) | Fails alone - add insulated plasterboard, or use 100mm |
| Timber frame walls | 0.18 W/m²K | Well above 0.18 (between studs only) | Fails alone - add over-stud layer |
| Ground floors | 0.18 W/m²K | ~0.23 W/m²K | Fails as sole insulation |
| Pitched roofs | 0.15 W/m²K | ~0.25 W/m²K | Fails as sole insulation |
| Flat roofs | 0.15 W/m²K | ~0.25 W/m²K | Fails as sole insulation |

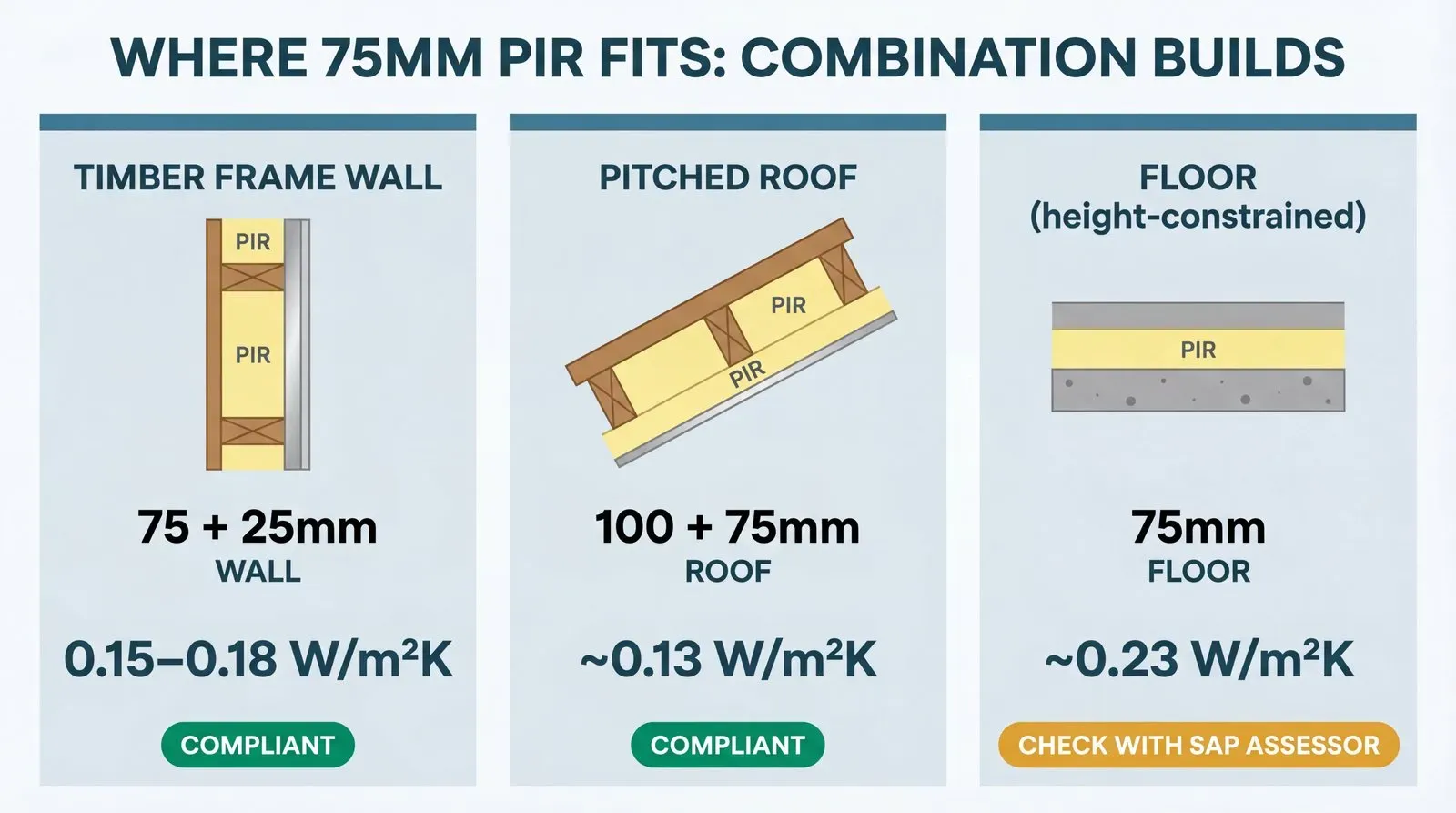

That table tells you where 75mm belongs. For cavity walls in a domestic extension it gets close to the 0.18 W/m²K Part L 2021 limit with a thermal block inner leaf, but still needs insulated plasterboard internally to make up the difference (one building control quick guide gives 100mm partial-fill PIR in a 150mm cavity for 0.18 without it). With a dense-concrete inner block it falls further short. It fails for floors and roofs when used alone, but 75mm boards are commonly combined with other thicknesses to build up to the required U-value in those applications.
Why 75mm instead of 50mm or 100mm
This is the question most insulation guides dodge. Here's when 75mm is the right choice.
Cavity walls where 50mm can't reach 0.18 on its own. A 50mm partial-fill board achieves around 0.26-0.30 W/m²K depending on block type, which no longer passes the 0.18 W/m²K Part L 2021 extension wall limit without both thermal blockwork and insulated plasterboard. At 75mm with a thermal block inner leaf, you get to roughly 0.20 W/m²K once thermal bridging through wall ties and mortar joints is counted, so you still need a thinner layer of insulated plasterboard, or a 100mm board in a 150mm cavity. The extra 25mm reduces how much you need to add internally.
Timber frame walls between 75mm studs. Standard 75mm (3-inch) timber studs are common in internal partition and timber frame construction. The PIR sits flush between the studs, filling the cavity exactly. Add a continuous layer over the stud faces to tackle thermal bridging (heat escaping through the timber itself, which conducts roughly five to six times more heat than PIR). For an external timber frame wall, one building control quick guide reaches 0.18 W/m²K with 90mm between the studs plus 50mm over them, so 75mm studs need at least 50mm over the top; check the U-value calculation.
As the supplementary layer in roof builds. Between-rafter insulation alone rarely achieves the 0.15 W/m²K roof target because the timber rafters bridge the insulation. The common solution is insulation between the rafters plus a continuous layer under them. With 100mm between the rafters, 50mm underneath is not enough: one building control quick guide needs 70mm under the rafters (with 100mm between) to reach 0.15 W/m²K, so a 75mm under-rafter layer gets you to about 0.15 with a little margin.
Floor build-ups where height is constrained. A floor U-value depends on its geometry and complete construction, not insulation thickness alone. England's Approved Document L provides alternative extension assessment routes, but a designer must demonstrate that the applicable route is satisfied and agree the approach with building control. Do not assume a 75mm floor passes because another element performs better.
Tip
Types, sizes, and specifications
Every mainstream 75mm PIR board shares the same core performance: lambda 0.022 W/mK, R-value 3.40 m²K/W, compressive strength 120 kPa on general-purpose ranges and 140 kPa on floor-grade boards, standard size 2400 x 1200mm. The brands are functionally interchangeable for domestic use. Forum consensus is blunt: "It's all basically the same stuff."
| Brand | Product | Lambda | Compressive strength | Fire class | Price (online specialist) |
|---|---|---|---|---|---|
| Celotex | GA4075 | 0.022 W/mK | 140 kPa | BS 476-7 Class 1 | Obtain current delivered quote |
| Kingspan | TW55 | 0.022 W/mK | 140 kPa | Euroclass F | Obtain current delivered quote |
| Kingspan | TP10 (roof-specific) | 0.022 W/mK | 140 kPa | Check declaration | Obtain current quote |
| Recticel | Eurothane | 0.022 W/mK | 120 kPa | Euroclass F | Obtain current delivered quote |
| Ecotherm | Eco-Versal | 0.022 W/mK | 120 kPa | Euroclass E | Obtain current delivered quote |
Celotex GA4075 and Kingspan TW55 are examples of boards that may suit the specified application. Check each current declaration, certification and delivered quote. Neither a supposed production-batch strength range nor a fixed brand premium is a sound selection rule.
Recticel typically comes in 5-10% below Celotex. Ecotherm sits in the same range. Both are perfectly good boards that meet the same BS EN 13165 standard.
Tip
Fire classification
PIR boards carry a Euroclass E or F fire rating (some are also quoted as BS 476-7 Class 1, which is a surface spread of flame test on the facing, not a measure of the core). These are combustible materials. Approved Document B (fire safety), as amended in 2022, recommends class A2-s1, d0 or better insulation in the external walls of residential buildings with a storey 11 metres or more above ground, and regulation 7(2) bans combustible materials in external walls at 18 metres. Your domestic extension or loft conversion sits well below those thresholds. PIR is fine for every typical house project.
The concern about PIR and fire comes from high-rise cladding headlines. Different world. Your single-storey extension is not a tower block. PIR must be covered by plasterboard or another non-combustible lining, and it must never be left exposed on site near heat sources or hot work.
How to work with it
The 50mm PIR page covers the fundamentals of cutting, fitting, taping joints, and installation methods in detail. Everything there applies equally to 75mm boards. Rather than repeat it, here's what changes at this thickness.
Cutting
A standard handsaw cuts 75mm PIR cleanly. Manufacturers also allow score-and-snap (score with a sharp utility knife, snap over a straight edge, cut the facing on the other side), but at this thickness a saw gives the cleaner edge. Mark your cut line on the foil face, saw through, and clean up the edge with a surform if needed.
Cut boards 5mm oversize for friction fits between studs and rafters. A PIR board that's 3mm too small with air gaps on both sides defeats the purpose of rigid insulation.
Warning

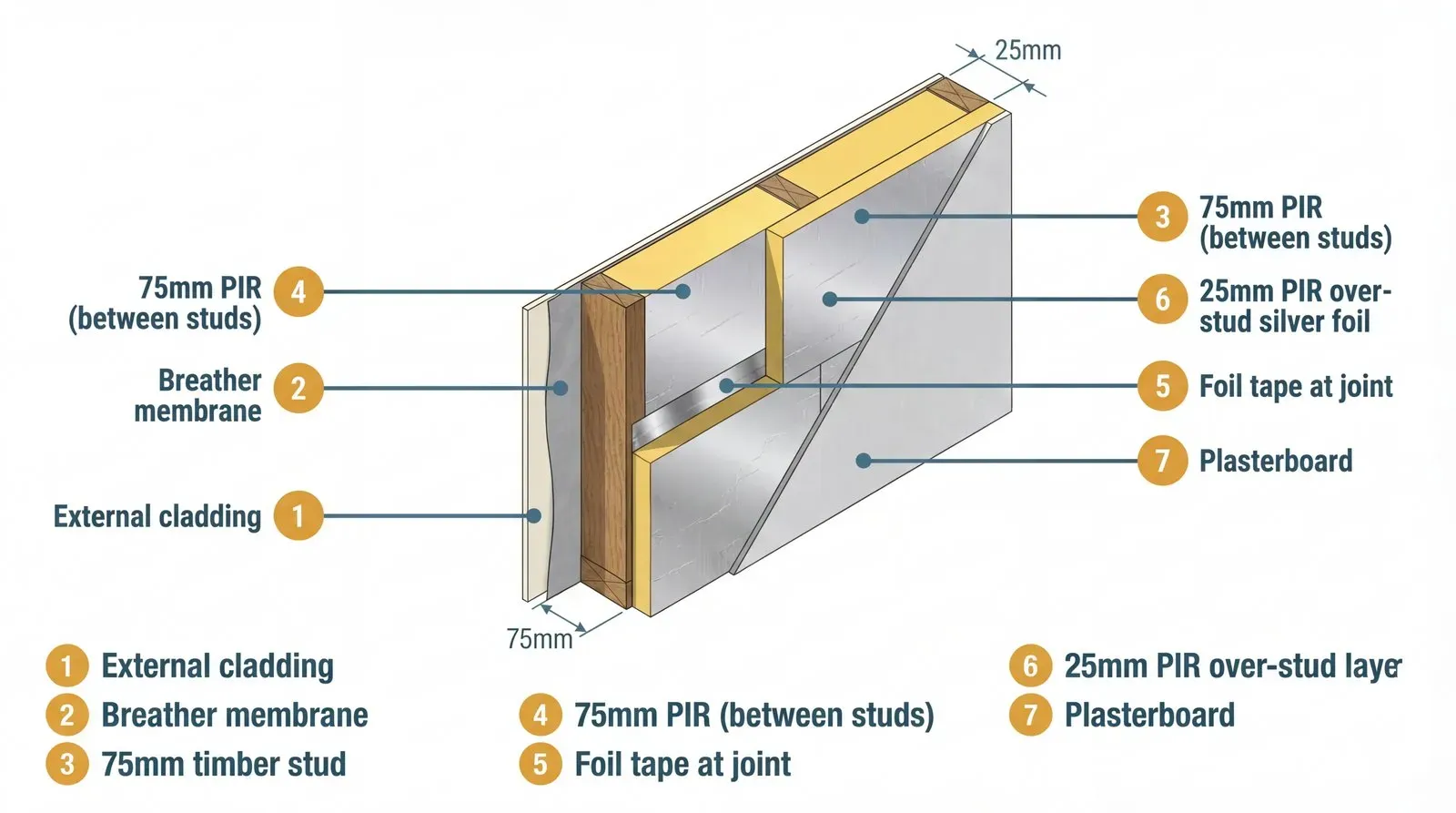

Fitting between timber studs
This is where 75mm boards earn their place. Standard 75mm (3-inch) timber studs in internal walls and some timber frame constructions give you a cavity that's exactly the right depth for a 75mm PIR board. The board sits flush with the stud faces on both sides.

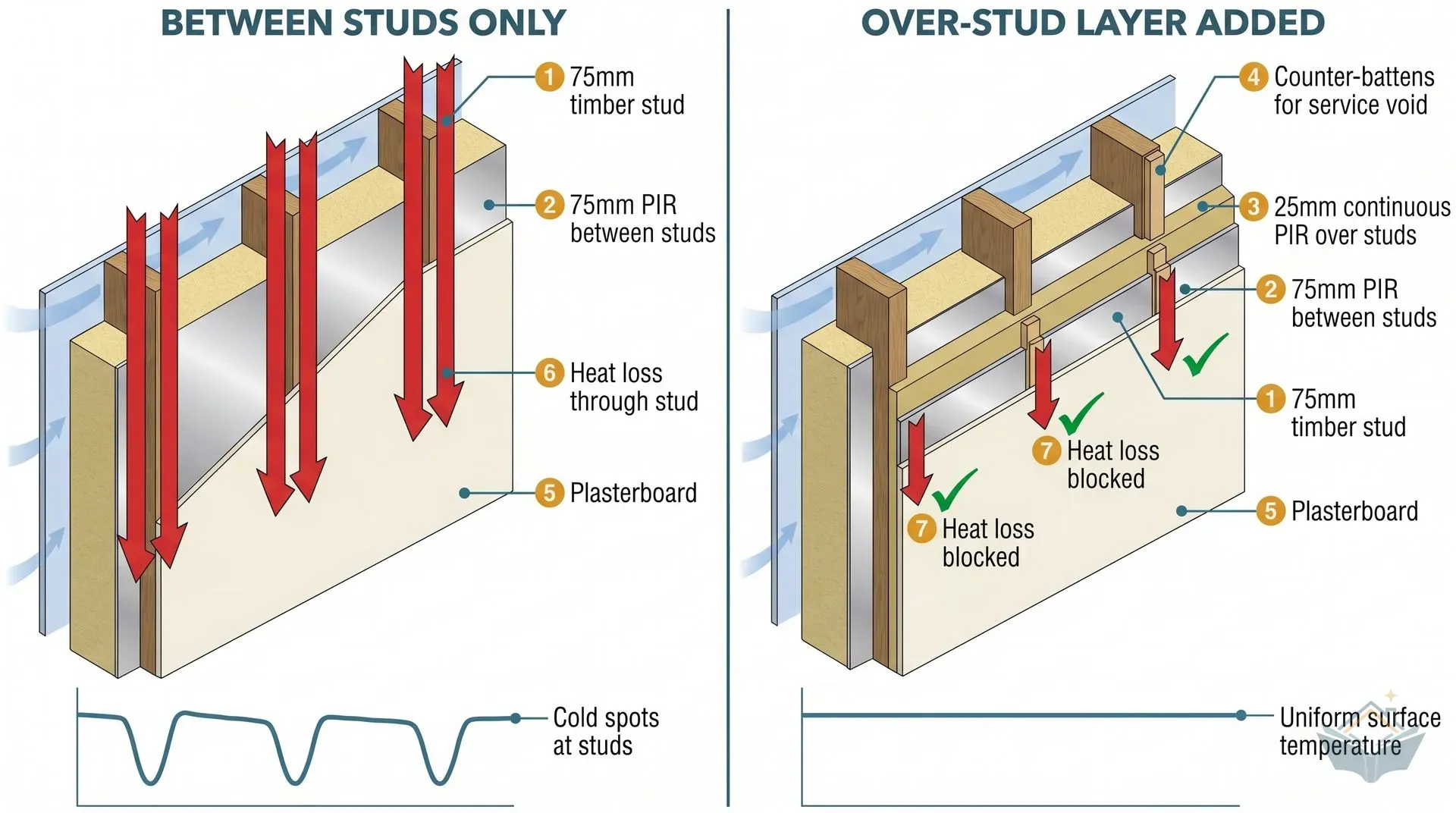

But fitting between studs only leaves a problem. Timber studs conduct heat roughly five to six times faster than PIR insulation. Every stud is a thermal bridge, a stripe of heat loss running floor to ceiling. The fix is a continuous 25-50mm PIR layer fixed over the stud faces before the plasterboard goes on. This layer crosses every stud, eliminating the thermal bridging. Stagger the joints between layers (like brickwork bonding, never align joints in a straight line).
Counter-battens (timber strips screwed through the over-stud layer into the studs) give you a fixing surface for the plasterboard and create a service void for running cables without piercing the insulation.
Fitting in roof builds
When 75mm PIR serves as the under-rafter continuous layer (below the between-rafter insulation), it's fixed to the rafter faces using counter-battens screwed through the board into the rafters. The plasterboard fixes to those counter-battens.
Remember the ventilation gap above the between-rafter insulation. With a breathable membrane (Tyvek or similar), you need 25mm. With traditional bituminous felt, you need 50mm. Check your membrane before ordering boards, because this gap determines how much rafter depth is available for insulation.
Joints: the non-negotiable
Seal board joints as the specified insulation system requires. Where the foil-faced layer is designed to provide air and vapour control, its joints, edges and penetrations must form a continuous seal with compatible tape. Gaps can allow heat and moisture bypass, but no universal percentage loss applies. A separate AVCL may still be required by the construction design.
Use genuine aluminium foil tape (Celotex, Kingspan, or any builders' merchant equivalent). Gaffer tape, duct tape, and general-purpose polymer tapes degrade over time and don't provide vapour resistance.
How much do you need
Each 2400 x 1200mm board covers 2.88 m². The calculation is the same as for any PIR thickness:
- Measure the total area to insulate (wall, floor, or roof) in square metres
- Divide by 2.88
- Add 10% for waste, cuts around openings, and fitting tolerances
- Round up to whole boards
Worked example: timber frame internal walls for a 4m x 6m extension
Two side walls at 4m x 2.4m = 19.2 m², one rear wall at 6m x 2.4m = 14.4 m². Total = 33.6 m². Subtract openings (bifold doors and windows, roughly 6 m²) = 27.6 m² net.
For the between-stud layer: 27.6 / 2.88 = 9.6 boards. Add 10% = 10.6. Order 11 boards.
If adding a 25mm over-stud layer, the area is the same (27.6 m²) but the boards are thinner and cheaper. You could use 25mm PIR or insulated plasterboard for this layer.
At £22 – £28 per board from an online specialist, 11 boards covers the primary insulation layer on a modest extension.
For combination roof builds (100mm between rafters + 75mm under rafters):
A 20 m² roof area needs roughly 7 boards of 100mm between rafters (the rafters take up about an eighth of the area: 17.6 / 2.88 = 6.1, plus 10% = 6.7) and 8 boards of 75mm under rafters (20 / 2.88 = 6.9, plus 10% = 7.6), all at 2.88 m² coverage. The 75mm under-rafter layer for this example is priced at the same £22 – £28 per board from online specialists.
Cost and where to buy
The price difference between buying channels is stark. The same Celotex GA4075 board that prices at £22 – £28 from an online insulation specialist can cost close to double from Wickes (where they stock the premium Kingspan TP10 instead of the general-purpose GA4075) and more again from a walk-in counter at a general builders' merchant.
| Source | Typical price per board (75mm) | Notes |
|---|---|---|
| Online insulation specialist | Obtain current delivered quote | Online Insulation Sales, Insulation Superstore, Insulation4Less, Trade Insulations |
| Recticel online | Obtain current delivered quote | Compare the current delivered quote for the same specification |
| Kingspan TW55 online | Obtain current delivered quote | Premium pricing for equivalent performance. No thermal benefit. |
| Wickes (Kingspan TP10) | Obtain current delivered quote | Roof-specific premium product. Heavily overpriced for general wall use. |
| Builders' merchant walk-in | Obtain current delivered quote | Full retail, no trade account. Avoid for insulation orders. |
75mm PIR board (online specialist, Celotex GA4075)
£22 – £28
A typical extension needs 15-25 boards of 75mm PIR across different applications. At online specialist pricing versus high-street pricing, the total difference runs to hundreds of pounds. Order from an online specialist. Delivery is typically free above a modest threshold, and the boards arrive on a pallet direct to site.
Tip
Don't forget accessories. Budget for foil tape at £7 – £12 per roll (you'll use 2-3 rolls for a full extension), mechanical fixings if fitting to masonry, and any counter-battens for over-stud or under-rafter layers.
Factory seconds with cosmetic damage (dented corners, scuffed foil) appear regularly from specialist outlets and on eBay at a 30-50% discount. The thermal performance is identical. Behind plasterboard, nobody sees the dent.
Where to buy PIR Insulation Board 75mm
Check current prices from UK suppliers.
These are affiliate links: if you buy through them we may earn a small commission, at no extra cost to you. Learn more.
Alternatives
PIR 50mm can still work in cavity walls when paired with thermal blockwork and insulated plasterboard to get near 0.18 W/m²K, but leaves little margin and needs a thicker internal layer than 75mm does. On a standard masonry cavity wall extension, take the board thickness from the U-value calculation rather than the board price. See the 50mm PIR page for full details.
PIR 100mm is the standard choice for ground floors (achieves ~0.18 W/m²K on a solid floor, meeting the limit). If your floor specification calls for insulation, start at 100mm unless height is genuinely constrained. For roof builds, 100mm between rafters is the standard first layer.
Mineral wool 100mm provides roughly the same thermal resistance as 50mm of PIR. It's bulkier and less space-efficient but non-combustible (Euroclass A1), better for acoustic insulation, and easier to fit around irregular shapes and pipes. Mineral wool is the go-to between joists in lofts where space isn't limited and fire performance matters.
Insulated plasterboard (Celotex PL4000, Kingspan Kooltherm K118) bonds a PIR layer to plasterboard in a single product. Useful as the over-stud or under-rafter finishing layer, saving a separate operation. More expensive per m² than buying the two components separately, and you're locked into the manufacturer's thickness combinations.
EPS (expanded polystyrene) costs 30-40% less than PIR but needs much thicker boards for equivalent thermal performance (lambda 0.032-0.038 W/mK versus PIR's 0.022). EPS has its place in floor insulation where depth isn't constrained, but where cavity depth or rafter depth is limited, PIR wins.
Where you'll need this
- Insulation - wall, floor, and roof insulation specification and installation
These applications appear across all stages of any extension or renovation project where thermal performance must meet Part L requirements. PIR boards are used in every project type, not just extensions.
Common mistakes
Assuming 75mm is enough for everything. The most common error. 75mm PIR with thermal blockwork gets to about 0.20 W/m²K, just short of the Part L 2021 extension wall limit of 0.18 W/m²K, so it needs insulated plasterboard as well. It does not pass for floors (0.23 against 0.18) or roofs (0.25 against 0.15) as a standalone layer. If your specification says "75mm PIR" for a floor or roof without describing additional layers in the build-up, question it before the boards go in. Failing a building control inspection after the screed is poured means demolition.
Over-specifying walls. The flip side. Using thicker PIR than the U-value calculation needs wastes money, and in a fixed cavity it narrows the residual cavity (the air gap between insulation and outer leaf), which should be at least 50mm (Approved Document C) to prevent rain tracking to the inner leaf. A 100mm board needs a 150mm cavity.
Ignoring thermal bridging through studs. Fitting 75mm PIR between 75mm studs and calling it done leaves serious heat loss through the timber. Every stud is a cold stripe. Add a continuous 25-50mm PIR layer over the stud faces. Building control inspectors increasingly look for evidence of thermal bridging mitigation, and your SAP calculation probably assumes you've dealt with it.
Warning
Using boards outside their intended application. Check the certification for the exact board and build-up. Product names and matching lambda values do not prove interchangeability.
Skipping the foil tape. Covered in detail on the 50mm PIR page, and addressed in the Joints section above: untaped joints reduce effective performance and create condensation pathways that cause damp, mould, and timber rot. Aluminium foil tape. Every joint. No exceptions.
Storing boards in direct sunlight. UV degrades the foil facing over weeks of exposure. Keep boards covered or indoors until installation. A few days of site exposure won't cause problems, but boards left unwrapped on a sunny scaffold for a fortnight will have compromised foil surfaces.
