PIR Insulation Board 50mm: Where It Works, Where It Doesn't, and How to Install It

Buy 50mm PIR boards when your walls need 100mm, and you've just spent hundreds of pounds on insulation that won't pass building control. Use 50mm PIR in cavity walls where it's the right thickness, but skip the foil tape on the joints, and you lose 20-30% of the board's thermal performance to air leakage. The board itself is simple. Knowing where it belongs in your build, and installing it properly, is what separates a warm extension from one that bleeds heat through every untaped seam.

What it is and what it's for

PIR stands for polyisocyanurate. It's a rigid foam insulation board with aluminium foil laminated to both faces. The foam core (that distinctive yellow or tan colour) traps gas in tiny closed cells, giving PIR the best thermal performance per millimetre of any mainstream insulation material. At 50mm thick, a PIR board delivers an R-value (thermal resistance) of 2.25 m2K/W with a lambda value (thermal conductivity) of 0.022 W/mK.

Those numbers matter because building regulations set maximum U-values (how much heat passes through a building element, measured in watts per square metre per degree of temperature difference). Lower U-values mean better insulation. Approved Document L (2021), which applies to extensions in England and Wales, sets these limits:

That table is the single most important thing on this page. 50mm PIR is the right product for cavity wall insulation in most domestic extensions. It is not enough on its own for floors, pitched roofs, or flat roofs. If your builder or architect has specified 50mm PIR for your floor, check whether they mean 50mm as one layer in a multi-layer build-up or 50mm total. At 50mm total, your floor will fail building control.

The standard board size is 2400 x 1200 mm, covering 2.88 m2 per board. Each board weighs approximately 4.5 kg (density around 31 kg/m3), so a single person can easily carry and handle them. That's a genuine practical advantage over mineral wool batts, which are bulkier and more awkward.

Both faces are foil. This isn't just for protection during transport. The low-emissivity aluminium foil acts as a radiant barrier, improving thermal performance of any adjacent air cavity. More importantly, the foil provides high vapour resistance, turning each board into part of your vapour control layer (VCL). But only if you tape every joint. We'll come back to that.

Types, sizes, and specifications

All mainstream PIR boards at 50mm share identical core performance: lambda 0.022 W/mK and R-value 2.25 m2K/W. The differences between brands are distribution, price, and product range rather than thermal performance.

The community consensus, backed by every forum thread and installer guide in the research, is clear: brand choice matters far less than installation quality. A perfectly installed Recticel board outperforms a poorly installed Kingspan board every time. Save your money on the brand and spend it on foil tape.

Fire classification: what Euroclass F actually means

Standard PIR boards carry a Euroclass F or E fire classification under BS EN 13501-1. That's the lowest end of the fire performance scale, meaning the material is combustible. Some online guides claim PIR achieves Class B or C. That's wrong for standard products; those ratings apply only to specialist high-performance boards like Kingspan Kooltherm.

For domestic extensions (invariably under 11 metres high), Euroclass F is perfectly legal. The December 2022 changes to Approved Document B (fire safety) ban combustible insulation in external walls of buildings over 11 metres. Your single-storey or two-storey extension is well under that threshold. PIR is fine.

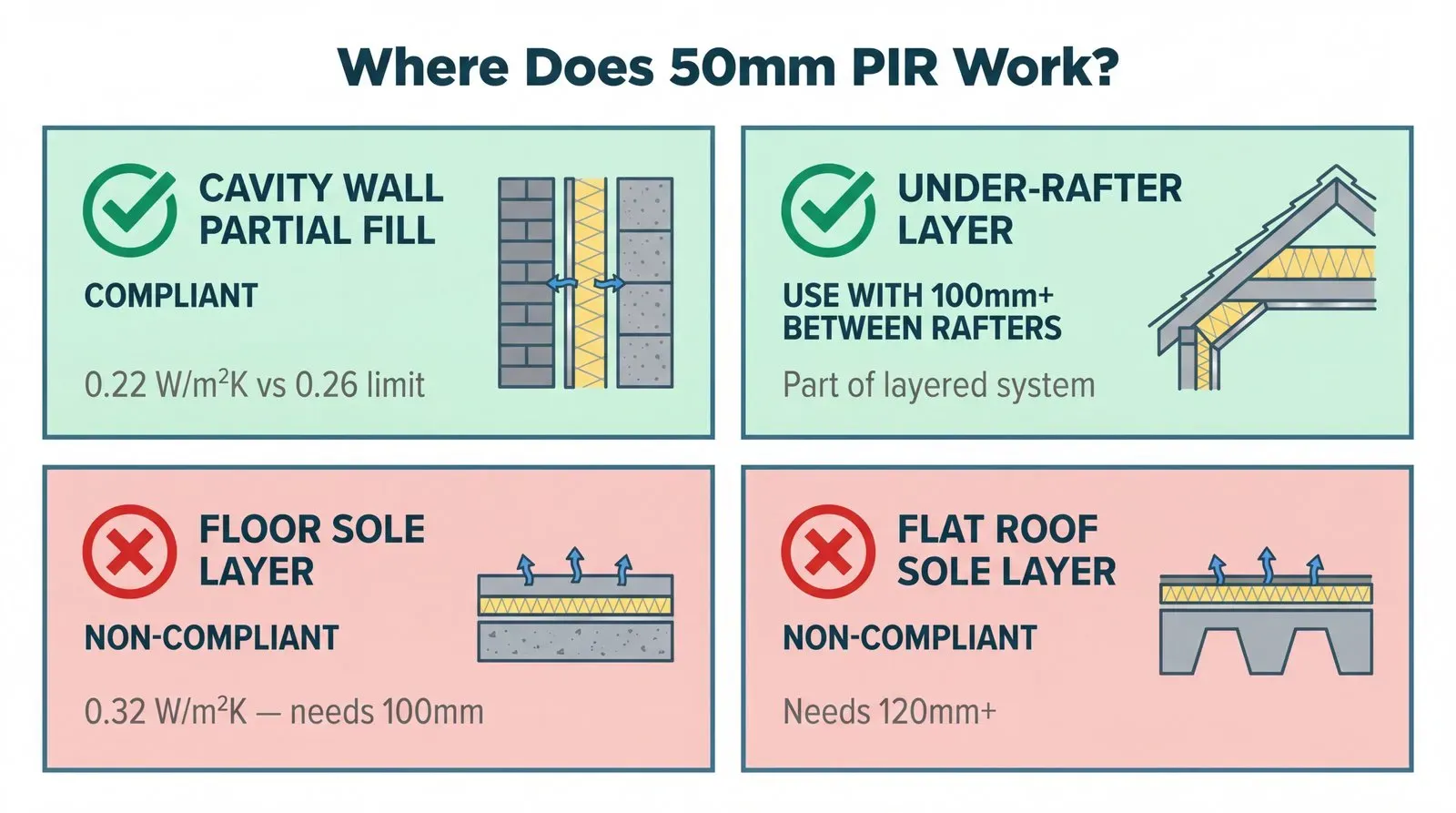

Where 50mm is and isn't the right choice

Click to enlarge

• Cavity wall partial fill: yes. 50mm PIR in the cavity with a 50mm residual air gap is the standard domestic specification. Achieves 0.22 W/m2K, well within the 0.26 limit.
• Under-rafter supplementary layer: yes. 50mm PIR fixed below the rafters, combined with 100mm between the rafters, achieves 0.14-0.16 W/m2K for a pitched roof.
• Underfloor heating below pipes: borderline. 50mm is the minimum many UFH installers will accept, but 75-100mm is more commonly specified to prevent downward heat loss.
• New ground floor sole layer: no. Achieves 0.32 W/m2K against a 0.18 limit. You need 100mm PIR minimum.
• Flat roof sole layer: no. 120mm minimum to hit the 0.16 target.
• Pitched roof sole layer: no. 50mm between rafters gives nowhere near 0.16 W/m2K.

How to work with it

Cutting

50mm PIR is too thick for score-and-snap with a utility knife (that technique only works reliably up to 40mm, because the blade only penetrates 10-15mm). Use a standard handsaw. Any panel saw or general-purpose wood saw cuts PIR cleanly. Mark your line on the foil face with a pencil or marker, then saw through. The foam cuts like butter compared to timber.

For tight fits around pipes or awkward shapes, a surform (a rasp-style hand tool) shaves the edges cleanly. Cut boards 5mm oversize and trim to fit. A friction fit between studs, joists, or rafters is better than a board that's 3mm too small with gaps on both sides.

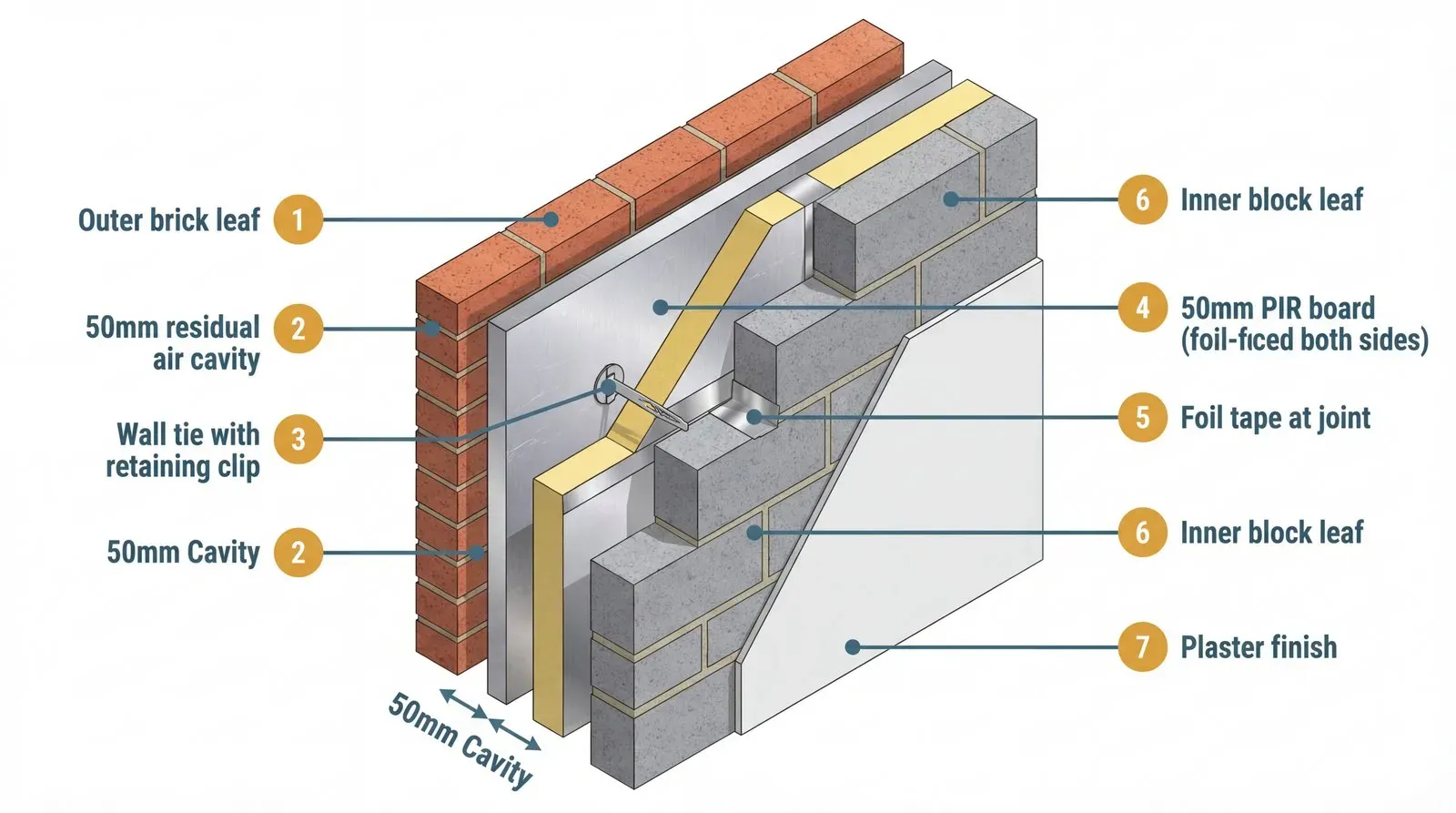

Fitting in cavity walls

For partial-fill cavity wall insulation (the most common use of 50mm PIR in extensions):

Boards are fixed to the inner block leaf using retaining clips that hook over the wall ties. The board sits against the inner leaf with its face flush. The residual cavity (minimum 50mm in severe exposure zones, 25mm acceptable in sheltered locations for buildings under 12 metres) remains between the PIR and the outer brick leaf. This cavity must stay clear. If mortar droppings bridge from the outer leaf to the insulation, you create a damp bridge that bypasses the cavity.

Your bricklayer will install the wall ties and insulation as the wall goes up. If you're ordering materials, confirm with them whether they want the boards delivered at the same time as the blocks. Most do, because they install insulation course by course, not as a separate operation.

Fitting to solid masonry walls (internal insulation)

For internal wall insulation on solid masonry (older properties or solid walls), boards are fixed using dot-and-dab adhesive (50-75mm wide dabs, 150mm long) plus a minimum of six mechanical disc fixings per board. Leave a 15mm gap at the bottom, sealed with polyurethane expanding foam. This gap accommodates any floor-level moisture and prevents wicking.

Fitting in roofs

When used as an under-rafter layer (below thicker between-rafter insulation), 50mm PIR is fixed to the rafter faces using counter-battens screwed through the insulation into the rafters. The plasterboard then fixes to the counter-battens. This creates a continuous insulation layer that crosses the timber rafters, reducing thermal bridging (heat escaping through the timber, which insulates poorly compared to PIR).

The ventilation gap between the top of any insulation and the roof covering depends on your roofing membrane. With modern breathable membranes (Tyvek, Vent5, or similar), a 25mm gap is adequate. With older vapour-closed membranes (traditional bituminous felt), you need a full 50mm gap. Check what membrane is on your roof before specifying insulation thickness.

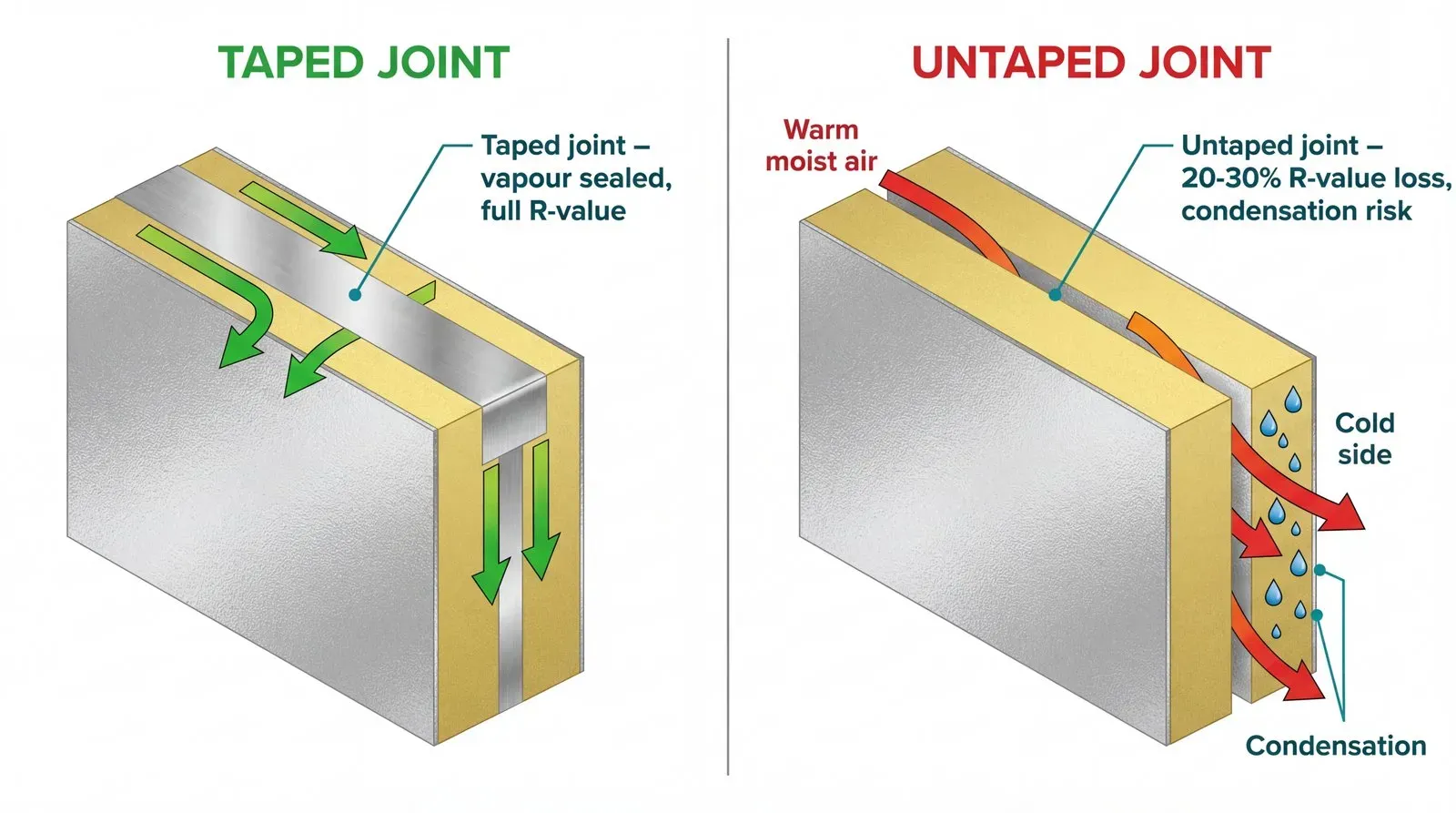

The joints rule

Click to enlarge

This is the part most DIY guides skip, and it's the single biggest installation failure. Every joint between PIR boards must be sealed with aluminium foil tape. Every one. Board-to-board horizontal joints. Board-to-board vertical joints. Board-to-timber junctions where PIR meets a rafter or stud.

The foil facing on PIR acts as your vapour control layer, preventing warm moist air from the inside of your home reaching the cold side of the wall or roof (where it would condense and cause damp, mould, and timber rot). But the VCL only works if it's continuous. An untaped joint is a gap in the vapour barrier. Warm air tracks through it, condenses on the cold side, and your insulation's effective R-value drops measurably.

One industry guide puts it bluntly: a 50mm gap in your vapour control layer can cool a room by 4 degrees. There is no reason to skip taping every joint.

Use proper aluminium foil tape (Celotex, Kingspan, or any BS-compliant foil tape from a builders' merchant). Don't use gaffer tape, duct tape, or general-purpose tape. They degrade, lose adhesion, and don't provide vapour resistance.

Floor installation: the alkaline concrete trap

When PIR boards are used in floor build-ups (under screed), there's a specific risk that no mainstream installation guide mentions. Wet concrete and cement screed are alkaline. Direct contact between alkaline wet screed and the aluminium foil face causes the foil to delaminate over time. The fix is simple: lay a polythene DPM (damp-proof membrane) over the top of the PIR boards before the screed is poured. This protects the foil, maintains the VCL function, and prevents chemical attack.

Stagger board joints in floor installations (like brickwork bonding, never align joints in a straight line across the floor). Leave a 5-10mm expansion gap at the perimeter walls. The chipboard or screed overlay distributes load; the PIR boards themselves have a compressive strength of 120-140 kPa (around 12-14 tonnes per square metre), which is more than adequate for domestic floor loads.

How much do you need

Each 2400 x 1200mm board covers 2.88 m2. The calculation is straightforward:

1. Measure the total area to be insulated (wall area, floor area, or roof area) in square metres
2. Divide by 2.88 to get the number of boards
3. Add 10% for cuts, waste, and fitting around openings (windows, doors, pipes, sockets)
4. Round up to whole boards

Worked example: cavity walls for a 4m x 6m single-storey extension

Perimeter walls (excluding the existing house wall where the extension joins): two side walls at 4m x 2.4m height = 19.2 m2, one rear wall at 6m x 2.4m = 14.4 m2. Total wall area = 33.6 m2. Subtract window and door openings (say 6 m2 for a pair of bifolds and two windows) = 27.6 m2 net wall area.

27.6 / 2.88 = 9.6 boards. Add 10% waste = 10.6 boards. Order 11 boards.

At £16-19 per board from an online insulation specialist, that's 11 boards for roughly £175-210.

Cost and where to buy

The price gap between online insulation specialists and traditional builders' merchants is extraordinary for PIR boards. The same Celotex GA4050 board that costs £16-19 from an online specialist can cost up to £75 ex VAT from a walk-in counter at a general builders' merchant. That's nearly a five-fold markup.

The online specialists (Online Insulation Sales, Trade Insulations, National Insulation Supplies, Insulation UK) consistently price 50mm PIR boards at £15-16 ex VAT. That's their core business and they buy in volume. Delivery is typically free above a modest order threshold.

If your builder is ordering PIR boards through their trade account at Jewson or Travis Perkins, ask what they're paying. If it's well above £20 per board, suggest they order from an online specialist instead, or order the insulation yourself. On a 30-board order, the difference between £16/board and £45/board is over £850. That's real money.

Don't forget the accessories. You'll need aluminium foil tape (around £7-10 per 45m roll, and you'll use more than you think), mechanical fixings if fitting to masonry, and potentially retaining clips for cavity wall installation. Budget £30-50 for accessories on top of the board cost.

Alternatives

PIR 75mm or 100mm - if your specification calls for more than 50mm, step up rather than layering two thinner boards (though layering with staggered joints is acceptable and actually reduces thermal bridging). 75mm PIR costs roughly £22-25 per board from online specialists, 100mm around £30-35.

Mineral wool (100mm) - much cheaper per m2 but considerably thicker for equivalent performance. 100mm mineral wool achieves roughly the same thermal resistance as 50mm PIR. It's non-combustible (Euroclass A1), which matters if you're insulating near heat sources. Mineral wool is better for acoustic insulation and easier to fit around irregular shapes and pipes. Worse for moisture resistance and compressive strength, so not suitable for floors.

EPS (expanded polystyrene) - the budget option at around 60-70% of PIR cost. Lower thermal performance (lambda 0.032-0.038 W/mK versus PIR's 0.022), so you need considerably thicker boards to achieve the same U-value. EPS has its place in floor insulation where depth isn't constrained, but for cavity walls where every millimetre counts, PIR is the better choice.

Insulated plasterboard - a PIR layer pre-bonded to plasterboard (Celotex PL4000, Kingspan Kooltherm K118). Used as the under-rafter or internal wall layer. Saves a separate operation but limits your insulation thickness choices and costs more per m2 than buying PIR and plasterboard separately.

Where you'll need this

• Insulation - primary wall, floor, and roof insulation specification and installation
• Underfloor Heating - insulation layer beneath UFH pipes to prevent downward heat loss

These tasks appear across all stages of any extension or renovation project where thermal performance must meet Part L requirements. PIR boards are not specific to any one project type.

Common mistakes

Using 50mm where 100mm is needed. The most expensive mistake. 50mm PIR is compliant for extension walls (0.22 W/m2K against a 0.26 limit). It is not compliant for floors (0.32 against 0.18) or roofs (nowhere close to 0.16). If your builder has ordered 50mm for the floor, check the specification before it goes in. Exposing and replacing floor insulation after screed is poured is a demolition job.

Skipping foil tape on joints. Covered in detail above, but bears repeating: untaped joints measurably reduce your insulation's performance and create condensation risk that can cause timber rot, mould, and damp patches. A £7 roll of tape. Use it.

Ordering from the wrong supplier. The same branded board ranges from £16 to £75 depending on where you buy it. Online insulation specialists are consistently 60-75% cheaper than walk-in builders' merchant pricing. For an extension's worth of insulation, the saving is hundreds of pounds.

Leaving PIR exposed to UV. Prolonged sunlight degrades the foil facing. If boards are delivered and stored on site before installation, keep them covered or indoors. A few days in direct sun won't destroy them, but weeks of exposure will compromise the foil surface.

Confusing wall U-value targets. Some online sources state the wall U-value for extensions is 0.18 W/m2K. That's the new-build dwelling target, not the extension target. Approved Document L (2021) sets the extension wall limit at 0.26 W/m2K. 50mm PIR comfortably achieves this. Don't over-specify (and over-spend) based on the wrong target, but equally, don't let your builder use the lower 0.28 figure from the pre-2022 regulations.

Ignoring the ventilation gap in roofs. When insulating between rafters, there must be a ventilation gap between the top of the insulation and the roof underlay. The gap size depends on the membrane: 50mm for traditional bituminous felt, 25mm for modern breathable membranes. Getting this wrong either wastes headroom (too big a gap) or causes condensation in the roof structure (too small or no gap). Check your membrane type before ordering insulation.
