Switch Faceplates: Gangs, Ways, Dimmers, and the LED Trap Nobody Warns You About

You pick dimmer switches for your hallway because you want the lights on low in the evening. You buy two matching dimmers, one for each end of the hall, wire them in, and nothing works properly. The lights flicker at low settings, buzz audibly, and one dimmer seems to do nothing at all. You've just wasted £40 on switches you can't use, because nobody told you that two standard dimmers cannot go on the same two-way circuit. That's the kind of mistake this page exists to prevent.

What it is and what it's for

A switch faceplate is the visible plate that sits on the wall surface, screwed into the back box behind it. It's what you press to turn a light on or off. Every lighting circuit in your extension terminates at one or more switches, and the faceplates are fitted during second fix, after plastering and decorating are complete.

The faceplate itself is just the front panel and the switch mechanism. It connects to 1.5mm twin and earth cable that your electrician ran during first fix, and it screws into a back box that was chased into the wall at the same time. The back box provides the structural mount and contains the cable terminations. The faceplate provides the switching function and the finished appearance.

All UK switch faceplates conform to BS 4662 mounting dimensions (86mm x 86mm for single gang, 146mm x 86mm for double gang), so any faceplate fits any back box. You don't need to match brands. What you do need to match is the finish across all your sockets and switches, because mismatched plates in the same room look awful.

Like-for-like replacement of a switch faceplate (same type, same location) is non-notifiable under Part P of the Building Regulations. You don't need to involve building control. But new circuits, new switch positions, or any electrical work in a bathroom are notifiable and must comply with BS 7671 (the 18th Edition wiring regulations, currently at Amendment 3, published July 2024).

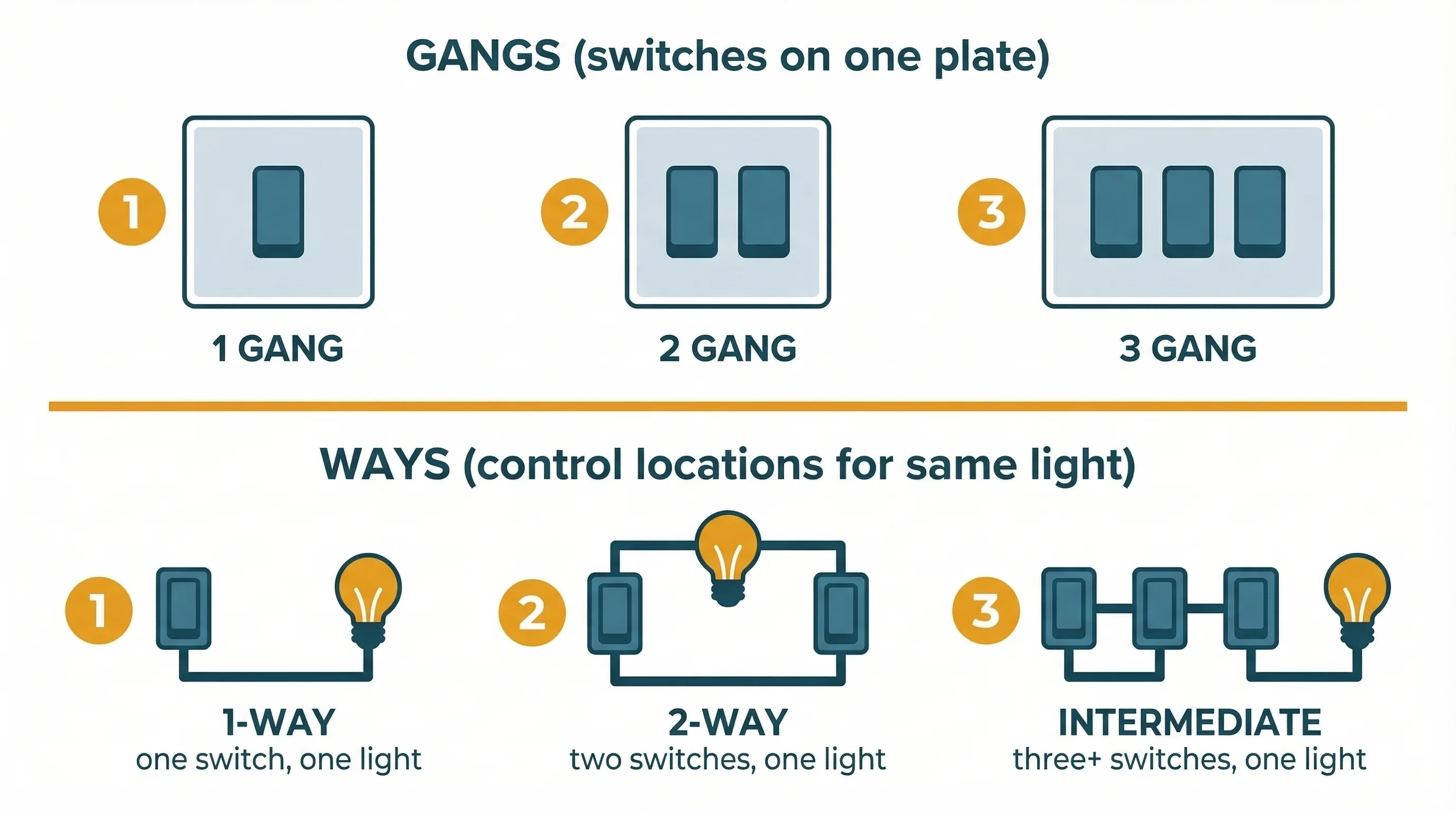

Understanding the jargon: gangs and ways

This is where most homeowners get confused, and the confusion leads to buying the wrong switch. Forum threads are full of people asking "what does 1-gang 2-way mean?" So here's the plain English.

Gangs = the number of switches on one plate. A 1-gang plate has one rocker switch and controls one lighting circuit. A 2-gang plate has two rockers and controls two separate circuits from the same wall position. A 3-gang has three. That's it. Gang counts the switches.

Ways = the number of locations that control the same light.

• 1-way: one switch controls one light. Walk into a room with a single door, flick the switch by the door, light comes on. That's 1-way. Fine for bedrooms, bathrooms, utility rooms.
• 2-way: two switches control the same light. Hallways, staircases, large rooms with two entrances. You turn the light on at the bottom of the stairs and off at the top. Both switches are 2-way switches, wired together with 3-core and earth cable.
• Intermediate: three or more switches control the same light. Long corridors, open-plan rooms with multiple entry points, or multi-floor stairwells. Two of the switches are 2-way; every switch in between is an intermediate switch (which has four terminals instead of three).

Click to enlarge

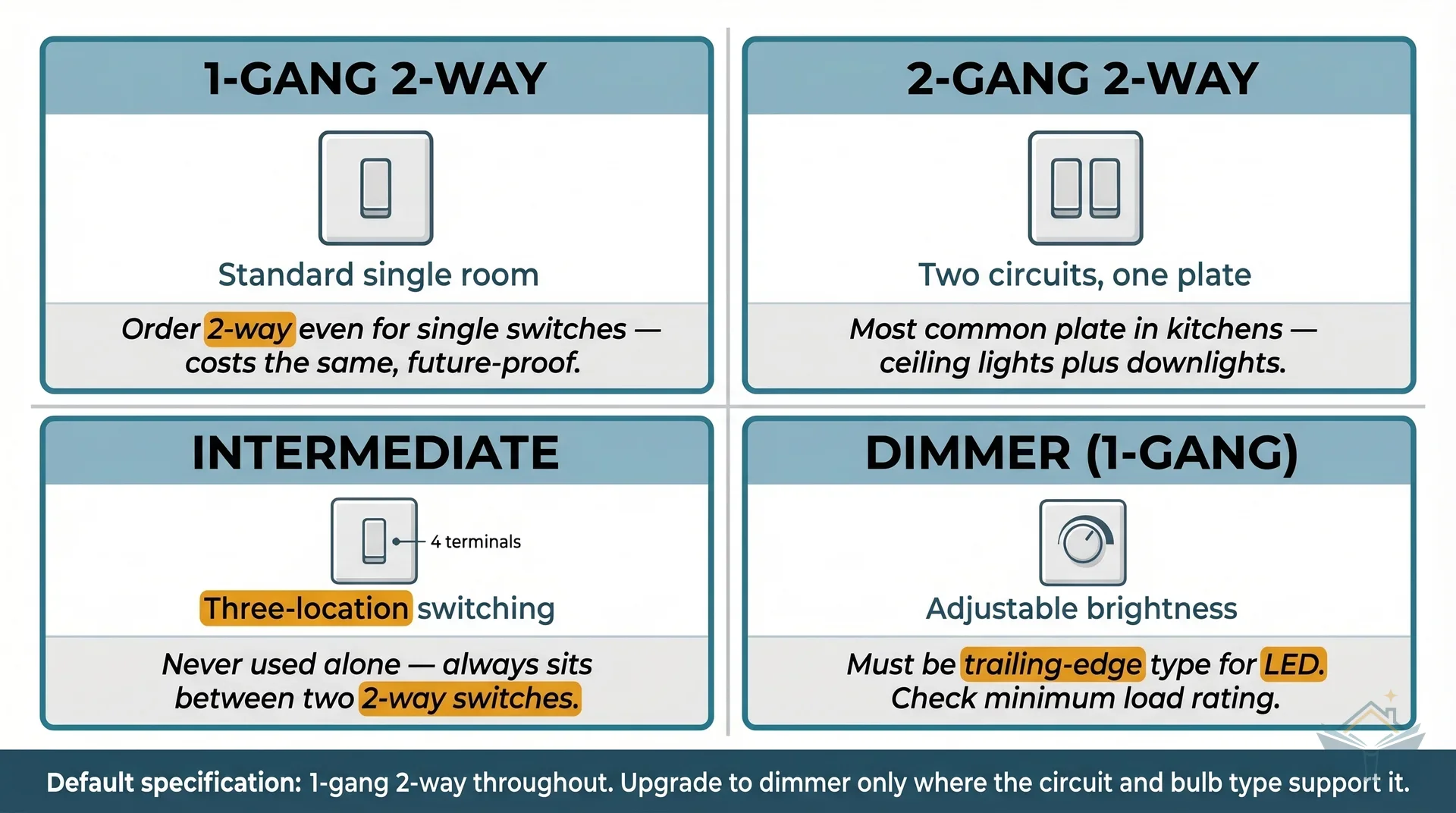

A practical rule: buy 2-way switches for everything, even single-entry rooms. They cost the same (often literally the same product) and give you the option to add a second switch position later without replacing the existing switch. A 1-way switch cannot be used on a 2-way circuit.

Approved Document M sets mounting heights for switches in new dwellings: 450mm to 1200mm above finished floor level. In habitable rooms, 750mm to 1200mm is standard. Switches must be at least 350mm from room corners to allow wheelchair access. Your electrician will know this, but check your plans show accessible heights, especially in kitchens where worktops and splashbacks can interfere.

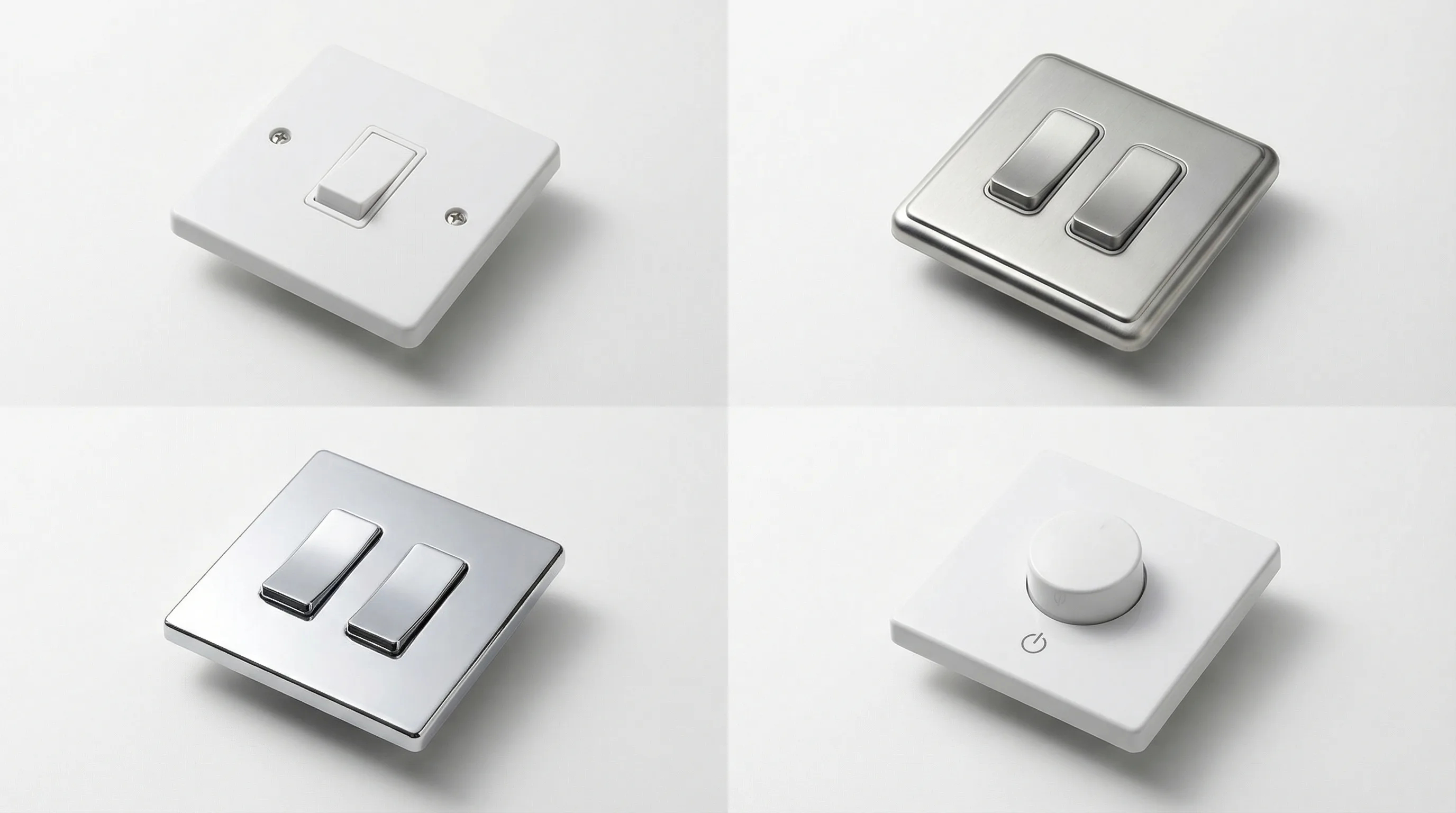

Types and finishes

Switch faceplates come in three broad tiers, and the finish you pick should match your socket faceplates throughout the room.

Key brands you'll see in UK merchants:

• LAP (Screwfix's house brand) - budget tier, perfectly functional. The LAP 1-gang 2-way at £1.09 is as cheap as switches get.
• BG (British General) - solid mid-range. The Nexus Metal range offers brushed steel, polished chrome, and black nickel with anti-fingerprint lacquer and moisture gaskets. Around £6 – £10 per switch.
• MK (now Honeywell) - the Logic Plus range is the electrician's default. White plastic, well-made, slightly more than LAP at around £2.90 for a 1-gang.
• Schneider Electric - the Ultimate range spans from budget Slimline white to premium screwless (3mm profile). The Low Profile variant has curved edges that sit flat against uneven walls.
• Knightsbridge - screwless range with very thin profiles and 15-year warranty. Popular for modern finishes.

The screwless style deserves a note. "Screwless" doesn't mean there are no screws at all. The mechanism still screws into the back box. But a decorative cover plate clips over the top, hiding the screw heads. The result is a clean, flat face with no visible fixings. It looks better, costs more, and makes future access marginally slower because you have to lever the clip-on cover off.

Dimmer switches and the LED compatibility trap

This is the section that will save you the most money. Seven out of eight forum threads about switch problems are about dimmer-LED incompatibility. The symptoms: flickering, buzzing, lights glowing faintly when switched off (ghosting), or bulbs dying within weeks.

The problem comes down to dimmer technology. There are two types:

Leading edge dimmers cut the front of the electrical waveform. They were designed for incandescent and mains halogen bulbs. They're cheap and were the standard for decades. They do not work well with LED bulbs. They cause flickering, audible buzz, and shorten LED lifespan.

Trailing edge dimmers cut the end of the waveform. They run silently, start the bulb gently (soft start), have a lower minimum load, and are specifically designed for LED circuits. This is the type you want.

Minimum load matters. Every dimmer has a minimum wattage it needs to function. Budget LED dimmers typically need 5-10W minimum. If you have a single 5W LED downlight on a circuit controlled by a dimmer rated at 10W minimum, the dimmer won't work properly. The light will pulse, flicker, or not turn on at all. Check the total wattage of all the LED bulbs on that dimmer circuit before you buy.

The industry recommendation for LED dimming, repeated across electrician forums and specialist retailers, is the Varilight V-Pro. It's trailing edge by default, has no minimum load requirement, carries a lifetime guarantee, and is British-made. It works with around 90% of LED bulbs straight out of the box. It costs £25 – £35 depending on the finish, which is double or triple a budget dimmer, but the difference in reliability is enormous. The Varilight V-Pro also has switchable modes (Mode 1 for standard trailing edge, Mode 3 for improved compatibility with some dimmable LED and CFL bulbs) accessible via a recessed button.

At the budget end, the LAP auto-detect trailing/leading edge dimmer from Screwfix costs £11.49 for a 1-gang 2-way, handles 5-150W, and includes thermal overload protection. It's fine for straightforward circuits with quality dimmable LED bulbs.

Load calculation for LED dimmers: the rated wattage on the dimmer (say 400W) is for incandescent bulbs. For LED, divide by 10. A 400W dimmer handles roughly 40W of LED. That's eight 5W downlights, which is a typical kitchen ceiling circuit.

The two-way dimmer trap

This catches people every single time. You have a hallway with switches at both ends. You want to dim the lights. You buy two matching dimmer switches. It doesn't work.

The reason: a standard dimmer switch contains electronics that chop the AC waveform. Put two sets of electronics in series on the same circuit and they fight each other. The result is flickering, flashing, one switch overriding the other, or complete failure. An experienced electrician on ElectriciansForums put it clearly: "Two in series will interrupt each other's supply, probably resulting in flickering, flashing, one may not operate unless the other is full up."

The solution is one of two approaches:

1. One dimmer, one standard 2-way switch. Put the dimmer at the end of the hall you use most. The other end gets a plain 2-way switch that turns the light on and off but doesn't dim.
2. Master/slave (master/companion) dimmer pair. The master dimmer contains the electronics. The slave is a dummy plate that sends a control signal to the master. Both locations can dim. Varilight sells these as matched sets. The slave has no dimmer circuitry of its own.

Dimmer back box depth

Standard UK back boxes are 25mm deep. Most dimmer switches need at least 25mm, but the rotary mechanism and additional wiring bulk mean a 35mm back box is strongly recommended for any dimmer installation. If your back boxes are already in (fitted during first fix), check the depth before ordering dimmers. Your electrician should have anticipated this, but it's worth confirming. Swapping a 25mm box for a 35mm box after plastering means chiselling out the wall, which is exactly the kind of problem covered in the back boxes guide.

Smart switches: the neutral wire problem

Smart switches (WiFi, Zigbee, or Matter-enabled) let you control lights from your phone, voice assistant, or automation routines. The technology works. The problem is the wiring.

Most smart switches need a permanent live, a switched live, AND a neutral wire at the switch position. The neutral is needed to power the smart switch's internal electronics when the light is off. Here's the issue: the majority of UK homes, especially anything built before 2000, don't have a neutral wire at the switch. The neutral goes straight from the ceiling rose back to the consumer unit. It never passes through the switch.

Before you buy any smart switch, pull the existing faceplate off (with the circuit isolated at the consumer unit) and look inside the back box. If you see a blue wire (neutral), you have options. If you only see brown (live), grey, and black wires, you don't have neutral at the switch, and most smart switches won't work without rewiring.

No-neutral options that actually work in UK homes:

• Shelly 1L Gen3 - a small WiFi module that fits behind your existing faceplate inside the back box. No neutral required, but needs a bypass module (about ~£5) if the LED load is under 20W, which it usually is. Needs a 35mm+ back box for the module to fit.
• Aqara H1 (no-neutral Zigbee) - works with loads from 3W to 600W. Requires an Aqara hub (about ~£30). Zigbee mesh is more reliable than WiFi for larger properties.
• Lightwave Smart Dimmer - works without neutral but requires the Lightwave Link Plus hub at £100++. Premium option with a well-integrated app and accessories.
• Tapo S210 - battery-powered wireless switch at about ~£15. No wiring at all. Sticks to the wall with adhesive. Needs a Tapo hub.

Smart switches also need deeper back boxes. WiFi modules typically need 35-47mm depth versus the standard 25mm. If you're planning smart switches for your extension, tell your electrician during first fix so the correct back boxes go in from the start.

Retractive switches are a related option. They spring back to centre when released (like a doorbell button) rather than latching in the on or off position. They send a pulse signal to a smart lighting controller or relay. But they cannot directly control smart bulbs like Philips Hue. Cutting power to a smart bulb disconnects it from the network, which defeats the purpose.

Bathroom switches

Standard wall switches are not permitted inside bathroom zones 0, 1, and 2. Zone 2 extends 600mm from the bath or shower. Within these zones, you need either a pull-cord ceiling switch or a switch mounted outside the room entirely. This is a BS 7671 requirement enforced through Part P.

Pull-cord switches cost £3 – £8 for a basic white ceiling unit. If you're designing an extension bathroom, factor in the switch positions at the electrical layout stage. Your electrician will know the zone rules, but you should understand why the switch is on the ceiling or outside the door when you see the plans.

Cost and where to buy

Switch faceplates are commodity products stocked by every electrical retailer and builders' merchant in the UK.

Where to buy:

• Screwfix - widest range of LAP budget switches and BG mid-range. Best for bulk orders on a build. Free next-day collection.
• Toolstation - strong BG range including screwless flat plate. Slightly different stock from Screwfix despite the same parent company.
• Wickes - stocks MK Logic Plus and own-brand. Good for matching switches with the rest of a kitchen/bathroom fit-out.
• TLC Direct - online specialist with broader decorative ranges (Varilight, Knightsbridge, Hamilton). Better selection of premium finishes than the big three.
• Electrical wholesalers (Edmundson, Rexel, City Electrical Factors) - trade pricing, often 20-30% below retail. Your electrician probably has an account. Ask them to add your switches to their order.

For a typical kitchen extension with 8-12 switch positions, budget white switches cost under under £20 total. Decorative brushed chrome across the same positions runs £80 – £120. Premium screwless finishes push it to £150 – £200. The switches themselves are one of the cheapest line items in your electrical bill.

If you're having an electrician do the work, Checkatrade data puts a like-for-like switch replacement at around ~£75 including materials and minimum call-out. Batch all your switch and socket replacements into one visit. Paying £75 per switch is absurd; paying £75 for an electrician to replace ten switches in an afternoon is reasonable.

Alternatives

If your extension uses simple on/off lighting with no dimming, standard 2-way rocker switches at £1 – £3 each are all you need. Don't overcomplicate it.

For rooms where you want adjustable brightness, a trailing edge LED dimmer is the right choice. The Varilight V-Pro at £25 – £35 is the safest bet if you want it to work first time with minimal fuss. The LAP auto-detect at £11.49 is a reasonable budget alternative for straightforward circuits.

For smart home integration without rewiring, the Shelly 1L Gen3 behind your existing switch is the least disruptive option. It keeps your physical switch functional (guests don't need an app) and adds smart control on top.

Grid switch systems (MK Grid Plus, Schneider GET Ultimate Grid) let you mix switch types on a single plate. Need a dimmer for the kitchen pendants and a standard switch for the under-cabinet lights on the same wall position? A grid system handles that with interchangeable snap-in modules. They cost more (£15 – £25 for the plate plus £5 – £10 per module) but solve problems that standard faceplates can't.

Where you'll need this

• Second fix electrics - all switch faceplates are fitted during second fix after plastering and decorating

Switch faceplates appear during the finishing stages of any extension or renovation project. The choices you make about types, finishes, and dimmer compatibility should be decided during the electrical layout planning stage, well before second fix begins. Get the back box depths right during first fix and the faceplate fitting is straightforward.

Common mistakes

Buying two standard dimmers for a two-way circuit. This is the most common and most expensive mistake. You cannot have two independent dimmers on the same circuit. You need a master/slave pair, or one dimmer and one standard 2-way switch. Check the circuit type before ordering.

Fitting a leading edge dimmer to LED bulbs. The flickering, buzzing, and ghost glow that follows is entirely predictable. Buy trailing edge. If the packaging doesn't say "trailing edge" or "LED compatible", put it back.

Ignoring minimum load on dimmers. A single 5W LED spotlight on a dimmer rated for 10W minimum will pulse and flicker. Add up the total wattage of all bulbs on the circuit. If it's below the dimmer's minimum, either add more lights to the circuit or buy a dimmer with no minimum load (Varilight V-Pro).

Ordering smart switches without checking for neutral. Most UK homes don't have neutral at the switch position. Open the back box and look before you order. No blue wire means no neutral, and most smart switches won't work.

Mixing finishes across a room. BG polished chrome and Knightsbridge polished chrome are not the same shade. Schneider brushed steel and MK brushed steel have different edge profiles. Pick one manufacturer, one range, and order switches and sockets together.

Fitting faceplates before decoration. Switch faceplates go on after painting, not before. If the decorator paints around the faceplates, you get paint ridges around the edges. If the faceplates are fitted and then the walls are painted, you get paint splashes on chrome or brushed steel that won't come off without scratching the finish. Faceplates are the last thing to go on.
