Back Boxes: Metal Flush, Dry Lining, and the Depth Mistake That Costs You a Day

Your electrician chases 35 back boxes into the walls during first fix. Three weeks later, the plasterer finishes, the decorator follows, and your electrician returns to fit the faceplates. He holds a socket up to the wall and the screws won't reach. The box is sitting 15mm behind the finished plaster surface because nobody accounted for the plasterboard and skim. Now he has to chisel out 35 finished walls, refit the boxes, replaster, and redecorate around every single one. A day's labour, plus materials, because of a calculation that takes ten seconds.

What it is and what it's for

A back box (also called a pattress box or flush box) is a small metal or plastic enclosure that sits inside the wall behind every socket, switch, and dimmer in your home. The faceplate (the visible part you press or plug into) screws directly into the back box. The cable terminates inside it. Without the box, there's nothing to hold the faceplate to the wall and nowhere safe to contain the wiring connections.

Every single socket outlet, light switch, dimmer, cooker switch, and fused connection unit in your extension needs one. A typical kitchen extension uses 20-40 back boxes depending on how many sockets and switches your electrical layout includes.

Back boxes are manufactured to BS 4662, the British Standard that governs flush mounting boxes. It specifies the face dimensions (86mm x 86mm for a single gang, 146mm x 86mm for a double gang), the M3.5 fixing screw thread, and the 60.3mm fixing centres for single gang or 120.6mm for double gang. Every faceplate sold in the UK fits every BS 4662 back box. You don't need to match brands.

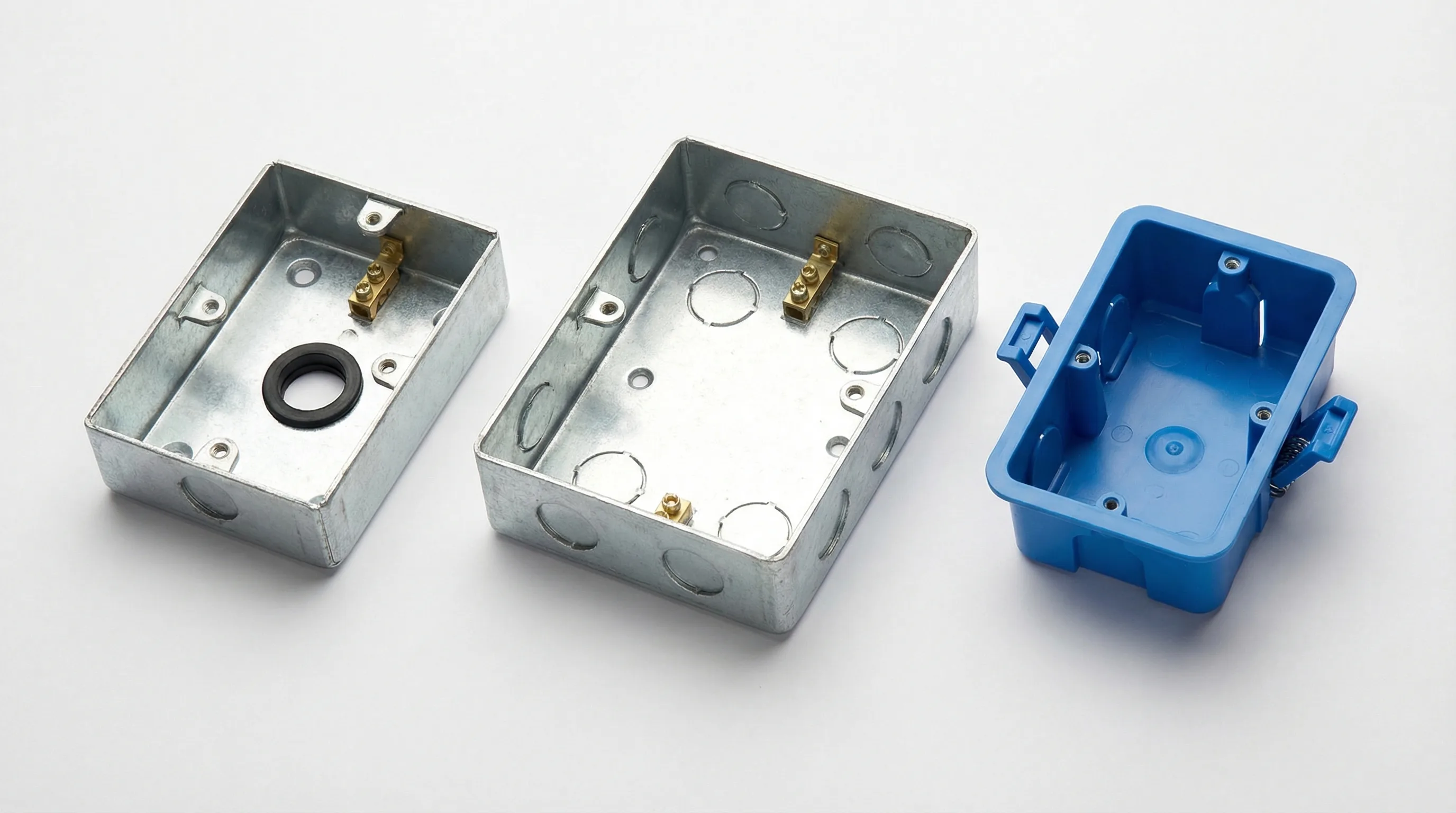

Types: metal flush vs dry lining

The wall construction determines which type of back box you need. Get this wrong and you'll be buying replacements mid-project.

Metal flush boxes (for masonry walls)

Galvanised steel boxes that get chased (cut) into solid walls: brick, block, or concrete. Your electrician cuts a rectangular recess into the masonry slightly larger than the box, feeds cables through knocked-out entry holes, and fixes the box with screws and wall plugs. The wall is then plastered over, leaving just the screw holes visible for the faceplate.

Metal boxes have pre-formed circular knockouts on the sides and back. You punch them out with a screwdriver and fit a PVC grommet (a small rubber collar) to protect the cable sheath from the sharp metal edge. The box has a brass or tinned earth terminal tag on the inside wall for the earthing connection.

These are the standard choice for new-build extension walls (blockwork inner leaf) and for chasing into existing masonry walls.

Dry lining boxes (for plasterboard walls)

Plastic boxes (typically blue or orange) designed for stud partition walls and dry-lined walls where there's no solid masonry behind the plasterboard. Instead of screws and wall plugs, they grip the plasterboard using spring-loaded expanding lugs (small metal tabs that flip behind the board when you tighten the faceplate screws).

The dominant brand is Appleby. Professionals swear by them because the spring clips are reliable and the plastic doesn't crack. Cheap generic dry lining boxes have fragile tabs that snap off during installation. The price difference is 20-30p per box. Don't save 30p and lose 20 minutes.

Surface-mounted pattress boxes

White plastic boxes that sit on the wall surface rather than inside it. Used in garages, utility rooms, outbuildings, and anywhere a neat flush finish isn't needed. They're also the quick fix when you can't chase into a wall (thin partition, stone wall, listed building). Deeper than flush boxes (32-45mm is common) because the entire cable route runs on the surface via trunking or conduit.

Click to enlarge

Depths: the decision that determines whether your faceplates fit

Back boxes come in four standard depths: 16mm, 25mm, 35mm, and 47mm. The depth you need depends entirely on what accessory (faceplate) is going on the front. Choose too shallow and the faceplate won't sit flat against the wall, the terminals will be cramped, and cables get compressed against the back of the box. Choose too deep and you're chasing unnecessarily far into the wall, weakening it.

A few things to note about this table.

16mm boxes technically fit a basic rocker switch, but there's almost no room for cable slack. If anyone later swaps that switch for a dimmer or a decorative flat-plate, the 16mm box won't work. Use 25mm as your minimum depth for everything. The 16mm size exists but has no practical value in new installations.

The slim/flat-plate/screwless column matters because these fashionable faceplates have a deeper body than traditional white moulded plastic ones. The Varilight Ultraflat and Dimension Screwless ranges, for example, specifically require 35mm minimum for dimmers. If you're fitting designer faceplates, tell your electrician the brand and model before they buy back boxes.

The plasterboard offset calculation

This is the single most practical piece of information missing from every other guide on the internet, and it's the reason back boxes get refitted on sites every week.

When your electrician installs a back box during first fix, the wall isn't finished yet. It's bare blockwork (in a masonry extension) or bare timber studs (in a stud partition). The finished wall surface will be 12.5mm plasterboard plus 2-3mm skim coat further forward. That's roughly 15mm of build-up.

If your electrician sets the back box flush with the bare masonry, the finished plaster surface will be 15mm in front of the box face. The faceplate screws are only 25-30mm long. They won't reach.

The fix is simple: set every back box so it protrudes by the combined plasterboard and skim thickness. On a standard 12.5mm board with 3mm skim, that means the box face sits 15mm proud of the masonry. It looks wrong during first fix (the boxes stick out like they've been fitted badly), but once the plasterer boards and skims the wall, they'll sit perfectly flush.

Photograph and measure every back box position from two fixed reference points (floor and nearest corner) before the plasterboard goes on. Once the wall is boarded, you can't see the boxes. You need the measurements to cut accurate holes. Joiners notoriously fail to cut plasterboard holes for back boxes. Your electrician should mark the positions clearly, but take your own photos as insurance.

Earthing: the rule that catches DIYers

Metal back boxes are what BS 7671 (the UK wiring standard, commonly called the 18th Edition) classifies as "exposed-conductive parts." If a live wire comes loose inside the box and touches the metal casing, you need that fault current to flow safely to earth so the MCB or RCD trips. An unearthed metal box is classified as C2 (potentially dangerous) on an EICR (Electrical Installation Condition Report). That's the second most severe category.

Every metal back box has a small brass earth terminal tag riveted to the inside wall. Your electrician connects the circuit's earth conductor (the bare copper wire in twin and earth cable, sleeved in green/yellow) to this tag.

But there's a subtlety that causes problems. Back boxes use two types of fixing lugs:

Fixed metal lugs are part of the metal pressing. The faceplate screws thread directly into metal. This creates a metallic path from the faceplate earth terminal, through the screw, through the lug, to the box body. In theory, the box is earthed via the faceplate mounting screws alone. In practice, the connection relies on clean metal-to-metal contact with no paint, plaster, or corrosion in the thread. It works when new. It degrades over time.

Adjustable lugs are plastic or nylon sliding tabs that let you adjust the faceplate depth slightly. There's no metal path from screw to box. The only way to earth the box is with a separate earth tail from the socket's earth terminal to the box's earth tag.

Best practice, regardless of lug type: always run a short earth tail from the faceplate earth terminal to the box earth tag. It takes 30 seconds per box and removes any doubt. Your electrician should do this automatically. If you see metal boxes with no green/yellow sleeved wire connected to the brass tag, ask about it.

How to work with them

Back boxes are your electrician's responsibility, not yours. But understanding the installation process helps you spot problems and have informed conversations about positioning.

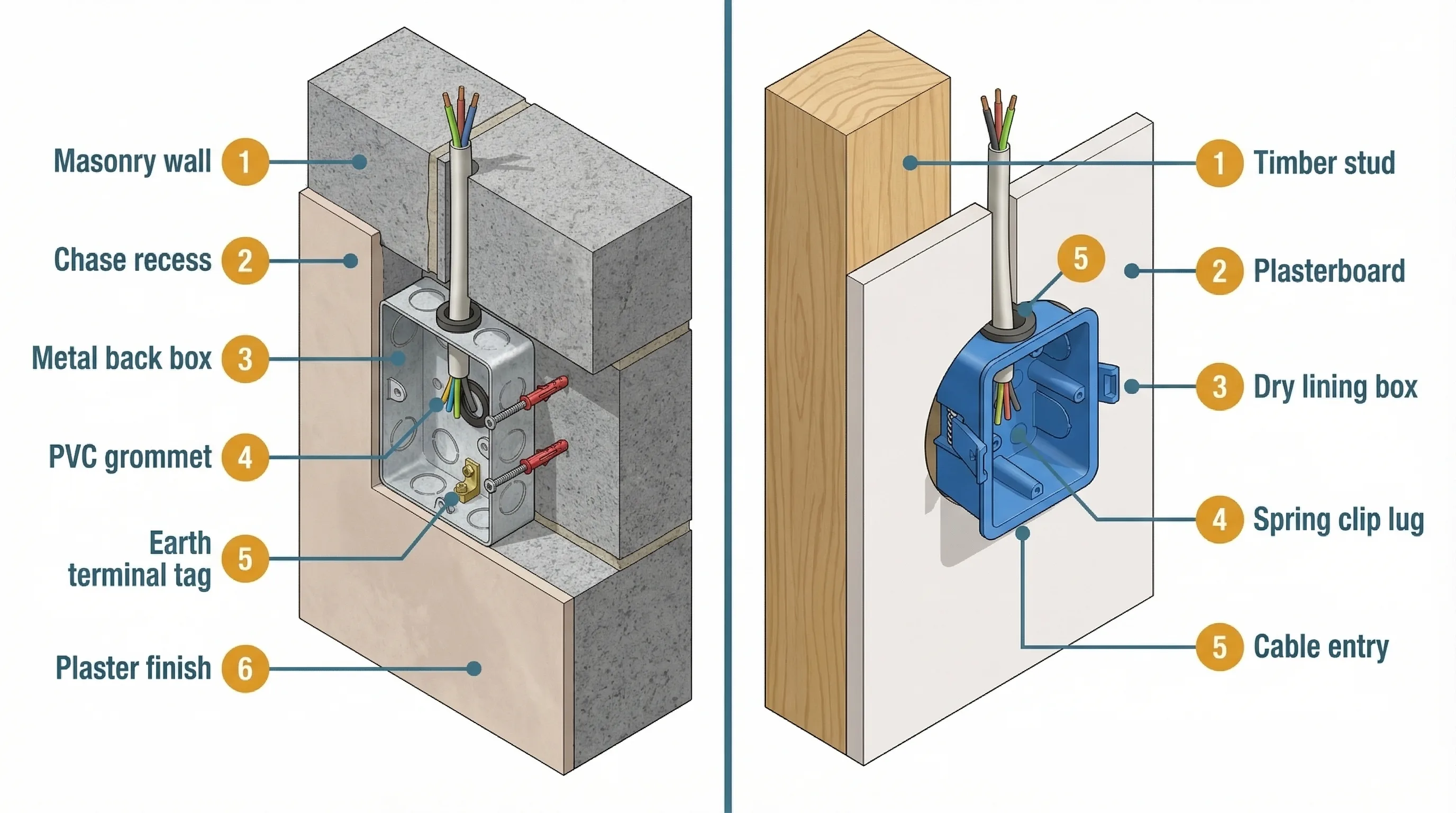

In masonry walls

Your electrician marks the box position on the bare blockwork, then cuts a rectangular recess slightly larger than the box. Methods vary: an SDS drill to create a grid of holes followed by a cold chisel to knock out the waste (the "Swiss cheese" method), an angle grinder with a diamond disc to score the outline (fast but extremely dusty), or a dedicated SDS back box cutter that cuts the recess in one operation. The recess needs to be deep enough for the box plus about 5mm to pack it level with mortar or adhesive.

Building Regulations limit chase depths in masonry walls. Approved Document A sets vertical chases at a maximum of one-third of the wall leaf thickness and horizontal chases at one-sixth. In a standard 100mm block wall, that's 33mm vertical and 16mm horizontal. A 35mm back box in a vertical orientation is right at the limit. A 47mm box may exceed it, depending on the block thickness. Your electrician will know this, but if you're specifying deep boxes for smart home modules, check with them first.

Two fixings minimum: 5.5mm drill, red wall plugs, and the screws supplied with the box. Use a spirit level. A crooked back box means a crooked faceplate, and it's obvious once the wall is decorated.

In plasterboard walls

Cut a circular or rectangular hole in the plasterboard using a padsaw or oscillating multi-tool. Feed the cable through, push the dry lining box into the hole, and tighten the two faceplate screws. The spring clips behind the board pull the box tight against the plasterboard face.

For stud walls in new-build extensions, your electrician often fixes metal boxes to noggins (short horizontal timbers nailed between the studs) before the plasterboard goes on. This gives a more solid fixing than dry lining clips and allows proper earthing through fixed metal lugs. The plasterboard is then cut to fit around the boxes.

Grommets

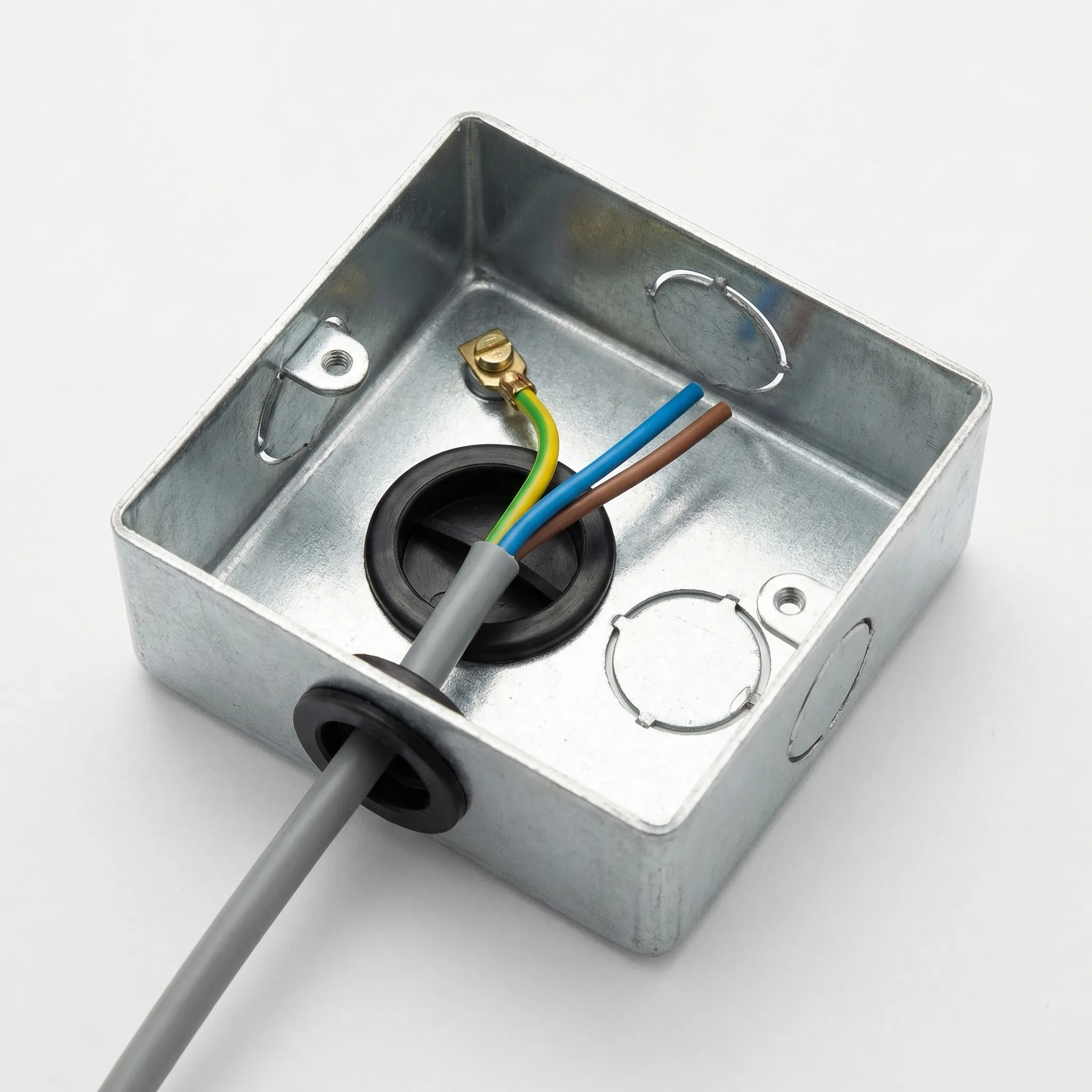

Every cable entry through a popped-out knockout hole must have a PVC grommet fitted. The knockout leaves a sharp metal edge that will chafe through the cable sheath over time, exposing bare conductors. A 20mm PVC open grommet costs a fraction of a penny and takes five seconds to push into the hole.

Pre-punched holes with rolled (smooth) edges on some premium boxes don't strictly require grommets. But at the cost involved, fit them anyway. EICR inspectors sometimes flag missing grommets regardless of the edge profile, and arguing the point isn't worth the reinspection fee.

Click to enlarge

Cost and where to buy

Back boxes are among the cheapest components in an electrical installation. The material cost for an entire extension is typically under £50. The labour to install them is where the real cost sits.

Prices are per box, accessed March 2026. Both Screwfix and Toolstation carry the full range. Buying in 10-packs (LAP brand at Screwfix) saves 5-10% per unit.

For a typical extension with 20 single sockets, 10 double sockets, and 15 switches, you're looking at 45 back boxes. At an average of 70p each, that's about £32. Even if you use premium Appleby dry lining boxes throughout, you won't spend more than £55. This is not a component worth economising on.

Brands

For galvanised steel flush boxes, brand is irrelevant. Tower, LAP, Made4Trade, and generic equivalents all meet BS 4662. They're pressed from the same gauge steel. Buy whatever your electrician's preferred merchant has in stock.

For dry lining boxes, brand matters. Appleby is the professional standard. The spring clips are robust, the plastic doesn't crack when you tighten the screws, and the knockout membranes punch cleanly. Norslo is the alternative for thicker walls (their DL147N handles board thicknesses up to 30mm). Avoid unbranded generic dry lining boxes. The tabs break.

Separating walls and fire-rated partitions

Two regulatory requirements affect back box positioning in specific wall types.

Approved Document E (sound insulation) prohibits back-to-back installation of accessories in separating walls (the wall between your house and your neighbour's). Back boxes on opposite sides must be offset by at least 150mm edge-to-edge. This prevents sound transmission through the thin plaster between the box cavities. Your electrician and your neighbour's electrician need to coordinate.

Fire-rated partition walls (between an attached garage and the house, for example) require acoustic and intumescent cap inserts fitted to the back of each back box. These are small fire-resistant plugs that expand in heat to seal the hole in the fire barrier. A standard back box without an insert creates a weak point in the fire rating. This is routinely omitted in domestic work, but it's a Building Regulations compliance issue.

Alternatives

Plastic flush boxes (thermoset, not thermoplastic) exist but are uncommon in new domestic installations. They're used for phone and data outlets where earthing isn't needed. For mains electrical circuits, metal is standard practice and strongly recommended. Metal provides earthing continuity, better fire containment if a terminal overheats, and meets BS 7671 without any debate.

Surface-mounted pattress boxes are the alternative when chasing into the wall isn't possible. They look bulkier but are faster to install. Some homeowners prefer the industrial aesthetic in utility spaces. For main living areas, flush boxes are the expectation.

Extension frames are 6mm deep adaptor rings that bolt onto the front of an existing back box to increase its effective depth. They're a retrofit fix when you're swapping faceplates on an existing circuit and the old 25mm box is too shallow for the new flat-plate accessory. They work, but they're a workaround, not a first-choice solution for new installations.

Where you'll need this

• First fix electrics - back boxes chased into walls and fixed at every socket and switch position before plasterboard goes on
• Electrical layout planning - your layout plan determines the number, position, and depth of every back box

Back boxes appear during first fix of any extension, loft conversion, or renovation where new electrical circuits are being installed. The principles are identical regardless of project type.

Common mistakes

Wrong depth for the faceplate. The most frequent problem. Someone orders 25mm boxes because they're the cheapest, then discovers the designer flat-plate sockets need 35mm. The fix requires chasing deeper into finished walls or fitting extension frames (which look terrible under flat-plate faceplates because they create a visible gap).

Not accounting for plasterboard build-up. Covered in detail above, but it bears repeating: if your boxes are set flush with bare masonry, they'll be recessed behind the finished wall. Set them proud by the plasterboard plus skim thickness.

Forgetting the earth connection. Metal back boxes with adjustable plastic lugs have no inherent earth path. Without a separate earth tail, the box is unearthed. This is a C2 defect on an EICR.

Missing grommets at knocked-out cable entries. The sharp metal edge will chafe through the cable sheath over months or years. The result is exposed live conductors inside a metal box. Fit a grommet at every punched knockout. They cost fractions of a penny.

Not photographing positions before boarding. Once the plasterboard is on, you can't see the back boxes. If nobody measured and photographed their positions relative to fixed reference points, the joiner or plasterer is guessing where to cut holes. Guessing wrong means cutting into cables.
