Heat-Shrink Tubing: The UK Electrician's Guide for Homeowners

Your electrician runs a 12V garden lighting cable from the kitchen extension wall down to a soakaway-adjacent flowerbed. Six months later, half the lights stop working. The "waterproof" join he made with electrical tape under a plastic cap has filled with water. The crimp inside is green, the cable's corroded back 30mm into the insulation, and the only fix is digging up the cable and starting over. Heat shrink tubing, properly specified and properly applied, is the cheap insurance that prevents this. This page tells you which type to buy, how to apply it, and where it stops being a legitimate substitute for a junction box.

What it is and what it's for

Heat shrink tubing is a hollow plastic sleeve that contracts to a tight grip around a wire when you heat it. Slide a piece over a cable join, hit it with a heat gun, and the tubing shrinks down to half (or a third) of its starting diameter, encasing the join in a smooth insulating skin. Cool, flexible, mechanically tough, and far neater than electrical tape.

It's used for four jobs in domestic electrical work:

• Re-insulating a join after you've made the actual electrical connection (a butt crimp, a soldered splice, or a stripped section that needs covering)
• Waterproofing a low-voltage cable join in an outdoor or buried-adjacent location, using the adhesive-lined variant
• Re-identifying a conductor (covering a black wire with brown sleeving so it reads as live in a modern installation)
• Strain relief at the end of a flexible cable, providing a graduated stiffness transition where the cable enters a plug or appliance

What heat shrink is not is a substitute for a proper electrical connection. The heat shrink itself doesn't carry current, doesn't grip the conductor mechanically, and doesn't satisfy the BS 7671 requirement for an enclosure on fixed wiring. We'll come back to that.

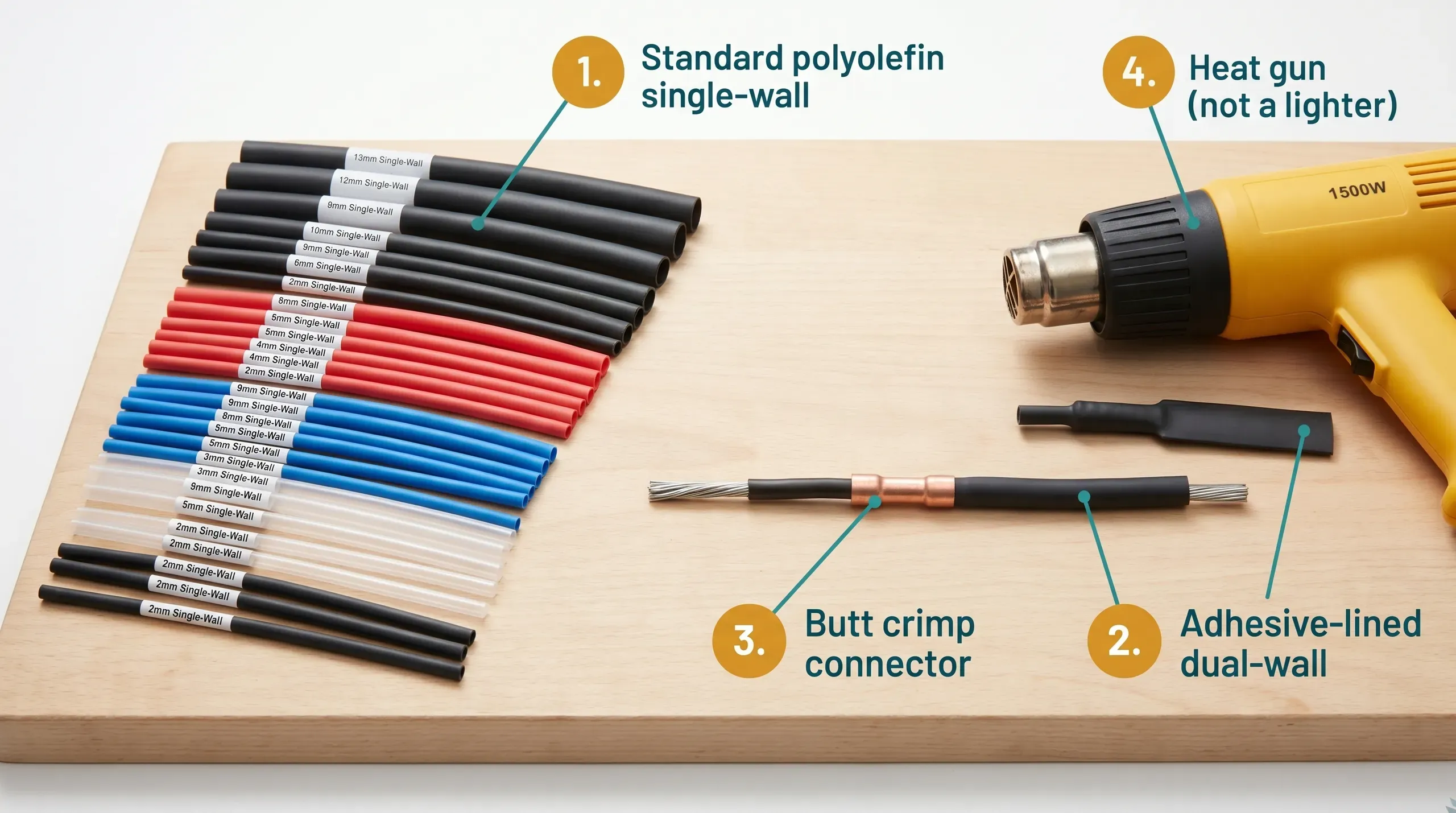

Materials and shrink ratios

Three material grades cover almost everything a homeowner will encounter.

Polyolefin is the standard. Operating range from -55 degrees Celsius to +135 degrees Celsius, starts shrinking at 90 degrees, fully shrinks by 120 to 135 degrees, voltage rating 600V, flame-retardant, RoHS compliant. UV-resistant grades exist for outdoor work. This is what you'll find in 90% of domestic kits.

Adhesive-lined dual-wall is polyolefin with an inner layer of hot-melt adhesive. As the outer tube shrinks, the inner adhesive melts and flows into the cable's voids, creating a watertight seal. You can see the adhesive ooze out at each end when the join is fully made. That's the visible sign of a good seal. Use this for outdoor low-voltage joins, garden lighting, and anywhere moisture can reach the cable.

PVDF (Kynar) is a high-temperature specialist material rated to 175 degrees Celsius. Flame-resistant, chemical-resistant, thinner-walled. You won't need it for general domestic wiring. It exists for applications near appliance heating elements or in industrial environments.

The shrink ratio is the second specification you need to understand. A 2:1 ratio means the tube shrinks to half its expanded diameter (a 12mm tube becomes 6mm). A 3:1 shrinks to a third (12mm to 4mm), and a 4:1 to a quarter. Higher ratios accommodate joins where the connector is much thicker than the cable, which is common with butt crimps and ring terminals.

For a typical kitchen extension or garden room, a budget polyolefin 2:1 assortment kit covers indoor jobs. A separate adhesive-lined 3:1 kit covers outdoor jobs. Don't try to use single-wall polyolefin outside.

Sizing the tube

The expanded diameter (what's printed on the packaging) must comfortably fit over the largest part of the join, usually a butt crimp or a screwed terminal. The recovered diameter (what it shrinks to) must be smaller than the cable it's covering, so the tube grips firmly. The standard guidance: pick a tube 25 to 30% larger than the measured diameter of the largest section it has to slide over. Too tight and it won't go on. Too loose and it won't grip after shrinking.

Polyolefin also shrinks 5 to 10% along its length when heated. Cut your piece slightly longer than you think you need, allowing 50% overlap onto the cable insulation either side of the join.

How to apply it

There's one rule that overrides every other instruction. Slide the tube onto the wire before you make the join. If you make the crimp or solder the splice first and then realise the tube is sitting on the workbench, the connection is now wider than the tube's expanded diameter and you'll need to cut the join apart and start again. Every electrician learns this once. Don't be that beginner.

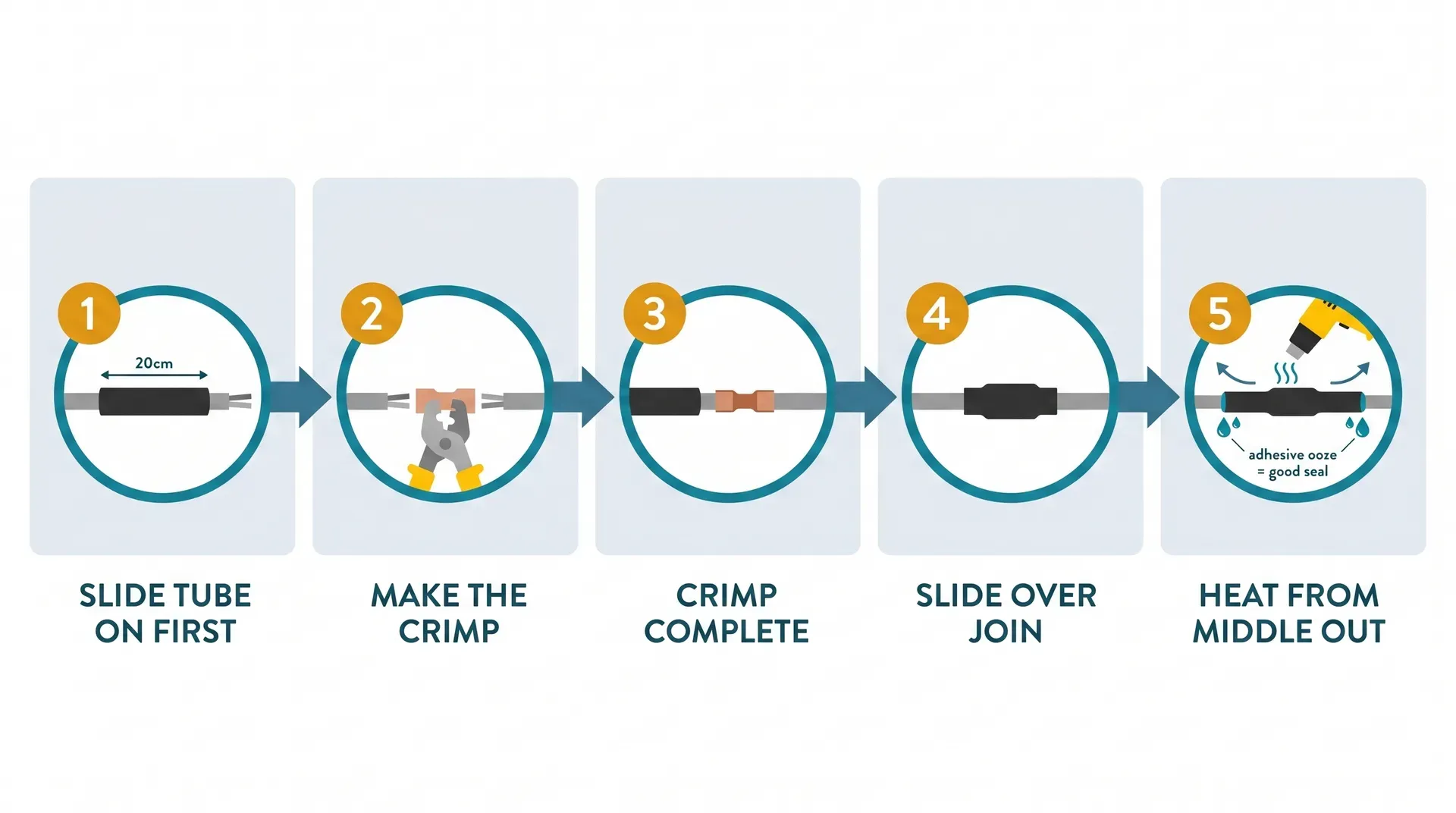

The full sequence:

1. Cut the tube to length. Allow 50% overlap onto the cable insulation either side of the join, plus 5 to 10% extra for longitudinal shrinkage. Don't cut lengthways or score the tube. Surface damage compromises the integrity of the shrink.
2. Slide the tube far down the wire. Push it well clear of the join area, ideally 20 to 30cm back. This stops radiated heat from your soldering iron or heat gun activating the tube prematurely. Some electricians wrap a strip of aluminium foil around the parked tube as a heat shield when soldering.
3. Make the connection. Crimp, solder, or screw-terminal as the job requires. The mechanical and electrical integrity of the join lives or dies here. Heat shrink doesn't fix a bad crimp.
4. Slide the tube over the completed join. Centre it so equal lengths cover the cable insulation on both sides.
5. Apply heat from a heat gun. Set the gun to 120 to 180 degrees Celsius. Start in the middle of the tube and work outwards toward the ends. Rotate the cable as you go for even shrinkage. Keep the gun moving. Stop when the tube is tight against the wire and shows no wrinkles. For adhesive-lined tube, watch for hot-melt adhesive oozing out at each end. That's your seal indicator.
6. Let it cool before flexing. The tube is at its softest when hot. Bend it now and you'll deform the seal.

Why a heat gun and not a lighter

Lighters, matches, and candles look like the obvious heat source. They aren't. An open flame heats unevenly because the visible flame is a narrow region and the flame's tip carries soot. The tube's outer surface chars and blackens before the inner surface has reached shrink temperature. The result is a scorched, uneven, brittle insulation with carbon deposits on the surface and gaps where shrink hasn't completed. The carbon is conductive. On a mains voltage join, that's a fault waiting to happen.

A heat gun delivers controlled, even hot air at a known temperature. A basic 1500W heat gun costs around £15 – £25 from Screwfix or Toolstation and pays for itself on the first job. Some kits include a mini USB-rechargeable heat gun, which works for small electronics jobs but lacks the airflow for thicker tube. For domestic use, any standard 1500W heat gun is sufficient.

Click to enlarge

The regulatory line: heat shrink alone is not a junction box

This is the single most important point in this guide and the one that's missing from every consumer article on the topic. Read it twice.

BS 7671 is the UK Wiring Regulations. Regulation 526.5 states that every joint and termination in a live conductor must be enclosed in one of:

• A suitable accessory complying with the appropriate British Standard (a socket, a switch, a junction box)
• An equipment enclosure
• An enclosure partially formed by non-combustible building material

Heat shrink tubing, on its own, is none of these. It's an insulating sheath, not an "accessory" within the meaning of the regulation. If your only electrical join inside a wall, ceiling, or under a floor is a crimp or twist covered in heat shrink, that installation does not comply with Reg 526.5.

The compliant solutions for fixed wiring are:

• A standard junction box, accessible for inspection (a Wagobox or screw-terminal junction box behind an access panel)
• A maintenance-free junction box marked "MF" and complying with BS 5733 (Wagobox Pro, Ashley J803/J804, Hager Klik)
• A connection inside an existing accessory's enclosure (consumer unit, socket back box, ceiling rose)

Where heat shrink legitimately fits in: it reinstates the insulation over a connection that has already been properly enclosed or is exempt under another regulation. It's the second layer of insulation, not the connection enclosure.

The Reg 526.3 exception

Regulation 526.3 normally requires every connection to be accessible for inspection, testing, and maintenance. There's an exception for joints made by soldering, welding, brazing, or compression jointing (crimping). These are classed as "semi-permanent" methods and may be installed in inaccessible locations such as under floorboards or buried in walls.

Crucially, this exception relates to accessibility, not to enclosure. A crimped joint with heat shrink reinstating its insulation can sit under a floor without needing to be accessible, because the crimp itself is semi-permanent. But the connection still needs an enclosure that satisfies Reg 526.5. In practice, electricians achieve this by using a maintenance-free junction box (Wagobox Pro or similar) into which the crimped, heat-shrunk join is housed.

The grey-area shortcut, much debated on electrician forums, is a crimped join with adhesive-lined heat shrink left in situ inside a wall or floor cavity without a junction box. Some electricians consider this acceptable on the basis that the crimp+heatshrink combination is mechanically equivalent to a maintenance-free accessory. Others insist Reg 526.5 demands a formal MF box. The conservative homeowner position: insist on a maintenance-free junction box for any inaccessible mains-voltage join. It costs £3 – £8, removes the regulatory ambiguity, and protects you in any future inspection or insurance dispute.

Conductor re-identification: where heat shrink is fully legitimate

Section 514 of BS 7671, particularly Table 51, governs conductor identification colours. Brown for line, blue for neutral, green-and-yellow for protective earth. When you extend a modern installation from old red/black/green wiring (pre-2004 colour scheme), the regulations require the new and old colours to be reconciled at the point where they meet, with markings that are "legible and durable."

Coloured heat shrink is one of the explicitly accepted methods. A short length of brown heat shrink covering the end of an old red conductor at the consumer unit terminal makes it unambiguously a line conductor under modern colour conventions. Similarly blue over black for neutral. Once the markings are applied, BS 7671 Reg 514.14.1 also requires a Caution notice fixed at the consumer unit warning of the mixed colour scheme.

This is a use-case where heat shrink is the regulation-preferred solution, not a workaround.

Section 514 conductor re-identification cheat sheet

When you extend pre-2004 red/black wiring with modern brown/blue cable, the joint point needs both conductors marked unambiguously:

Old colour (pre-2004)	New colour (post-2004)	Function	Re-identification method
Red	Brown	Line	Brown heat shrink over the red end at the terminal
Black (in T&E)	Blue	Neutral	Blue heat shrink over the black end at the terminal
Green	Green-and-yellow	Earth	Green-and-yellow PVC sleeving (not heat shrink, this is a continuous identification)

Plus a permanent Caution notice fixed at the consumer unit: "CAUTION: This installation has wiring colours to two versions of BS 7671. Great care should be taken before undertaking extension, alteration or repair." The exact wording is set by Reg 514.14.1.

Where heat shrink fits in domestic work

For a homeowner managing an extension build, you'll encounter heat shrink in four practical contexts.

Outdoor low-voltage lighting joins. Garden lighting cables (12V SELV systems) typically join at butt crimps inside a sealed cable junction. Adhesive-lined 3:1 heat shrink over the crimp, slid onto each cable before the crimp is made, gives a waterproof seal that stands up to rain, frost, and the occasional spade strike. This is the most common DIY-relevant use. Expect to see your electrician using it on any garden lighting circuit your extension feeds.

Conductor re-identification in extensions of old wiring. If your extension is going onto a pre-2004 house, your electrician will need to re-identify old red/black conductors as brown/blue at every junction with new cable. Brown and blue heat shrink, in 2 to 5mm diameters, is the standard tool.

Strain relief on flexible cable terminations. Where a 3-core flex enters a plug, an appliance, or a fused connection unit, a short length of heat shrink over the cable jacket and the terminal entry forms a graduated stiffness transition that prevents the cable kinking and breaking at the entry point. Trade work, but you'll see it on any well-made appliance flex.

Inside maintenance-free junction boxes. As discussed above, a crimped join inside an MF junction box is typically heat-shrunk before the box is sealed. The heat shrink reinstates the conductor insulation; the MF box provides the enclosure.

What you generally won't (and shouldn't) be doing yourself: repairing damaged appliance flex, splicing mains cables in walls, or substituting heat shrink for a junction box. New circuits and modifications in an extension are Part P notifiable work in England and Wales. A registered electrician handles the mains-voltage joining; you can handle low-voltage garden lighting splicing yourself if you're confident.

Cost and where to buy

Pricing in the UK retail market falls into clear tiers.

For a one-off domestic extension job, the £4.40 Pearl Consumables kit from Screwfix covers all the indoor work you'll do yourself (mostly conductor identification and the occasional inspection of the electrician's work). Add a £6.55 adhesive-lined dual-wall kit if your extension includes any outdoor lighting circuits. Total spend: under under £12 and you're equipped.

If you're a regular DIYer with a long-term project list (rental properties, ongoing renovations), the £25.27 CMX Professional 590pc kit covers most diameters and lasts for years. The per-piece economics are dramatically better.

A 1500W heat gun is the second purchase. Roughly £15 – £25 at Screwfix, Toolstation, or Wickes. Buy one. Don't try to substitute a hairdryer, which doesn't reach polyolefin's 90 degree shrink temperature.

UK retailers stocking heat shrink tubing

• Screwfix: Pearl Consumables, Pro-Fix branded products, mid-range polyolefin assortments
• Toolstation: Termination Technology branded rolls and kits
• TLC Direct: HellermannTyton trade brand range
• Cableties.co.uk: widest specialist range, including adhesive-lined and CMX professional kits
• Amazon: budget assortment kits from £3 – £10, BASEC marking less reliable on no-name brands

Alternatives

Insulation tape (PVC electrical tape) is the cheap, accessible alternative. It works for very temporary, accessible, low-stress applications. It loses adhesion over time, peels at the ends, and never seals against moisture. For any join that will be inside a wall, outdoors, or expected to last more than a few months, heat shrink is dramatically better. Insulation tape's only legitimate role in modern wiring is colour-coding accessible cables and providing temporary insulation during diagnostic work.

Self-amalgamating tape is a stretch-and-stick rubber tape that fuses to itself. It seals against moisture and is sometimes used in place of adhesive-lined heat shrink. It works, but it's bulky, untidy, and doesn't give the clean profile of heat shrink. Worth knowing about if you can't get a heat gun to a join.

Liquid electrical tape (a brushed-on rubber compound) is sometimes marketed as a heat-shrink alternative. Avoid it for any structural join. Shrink quality is inconsistent and inspection is impossible.

Earth sleeving is the green-and-yellow PVC tube used to identify bare earth conductors at terminations. It's a fixed-diameter tube that doesn't shrink. Different product, different job. Don't confuse them.

For the actual connection, the alternatives to a crimp+heatshrink combination are: WAGO lever connectors (221 series) inside a Wagobox or Wagobox Pro, traditional screw terminal blocks (chocolate strip) inside a junction box, or maintenance-free push-fit connectors. WAGO 221s in a Wagobox Pro is the modern default for inaccessible domestic joints.

Where you'll need this

• First fix electrics - re-identifying conductors when extending pre-2004 wiring, and inside any maintenance-free junction box your electrician installs in an inaccessible location
• Second fix electrics - strain relief on flexible cable terminations at fused connection units and appliance feeds
• Outdoor wiring on garden lighting circuits, where adhesive-lined dual-wall heat shrink is used to waterproof low-voltage cable joins

These applications appear across most extension and renovation projects. If your build includes any garden lighting, any extension of older wiring, or any inaccessible cable join, heat shrink in some form will be involved.

Common mistakes

Forgetting to slide the tube on before the join. The single most common mistake. Once the crimp is made or the solder set, the connection is wider than the unshrunk tube's internal diameter and you can't fit it on. Cutting the join apart and starting over wastes time and a length of cable. Make "slide it on first" your standing rule.

Using a lighter or match. The flame chars the outer surface, leaves conductive carbon deposits, shrinks unevenly, and risks fire. Heat gun, every time. If you don't own one, borrow one or buy a £15 unit. There is no domestic situation that justifies skipping this.

Wrong diameter selection. Too small and the tube won't slide over the join. Too large and the tube doesn't grip after shrinking. Expanded diameter should be 25 to 30% larger than the largest section it has to slide over. Recovered diameter (the post-shrink size) must be smaller than the cable. Mixed-diameter assortment kits exist precisely so you can match the right size to the job.

Single-wall polyolefin in damp or outdoor locations. Standard heat shrink is moisture-resistant in the sense that water doesn't penetrate the wall, but water will track in along the cable from each end. For outdoor, buried-adjacent, or damp-location work, you must use adhesive-lined dual-wall. The adhesive flows into the cable's strand voids and seals the cable-tube interface. No adhesive lining, no waterproof seal.

Substituting heat shrink for a junction box on fixed wiring. A crimp covered in heat shrink is not a compliant fixed-wiring termination under BS 7671 Reg 526.5. For mains voltage joins inside walls, ceilings, or floors, use a maintenance-free junction box (Wagobox Pro, Ashley J803/J804, Hager Klik). Heat shrink reinstates the insulation inside the box. The box provides the enclosure. Don't conflate the two.

Cutting the tube too short. Aim for 50% overlap onto the cable insulation either side of the join, plus 5 to 10% extra length to account for longitudinal shrinkage when the tube heats. A piece that just covers the bare conductor is too short. The whole point is to bridge from insulation to insulation across the join.

Cutting lengthways or scoring the tube. A surface cut creates a stress concentration that can split when the tube shrinks. If you need to remove a piece because you've cut it wrong, slide it off, throw it away, and start over with a fresh piece. Tubing is cheap.
