The first time you cut a sink hole in a brand-new oak-effect laminate worktop and the visible front edge tears off in a six-inch ribbon, you understand why the trade buys these in bulk. The cure costs three or four pounds. It clips into the front of your jigsaw in two seconds. And almost no homeowner-facing guide explains that it exists, what it does, or why it only works as part of a three-part system with the right blade and a strip of masking tape.

What it is and why you need one

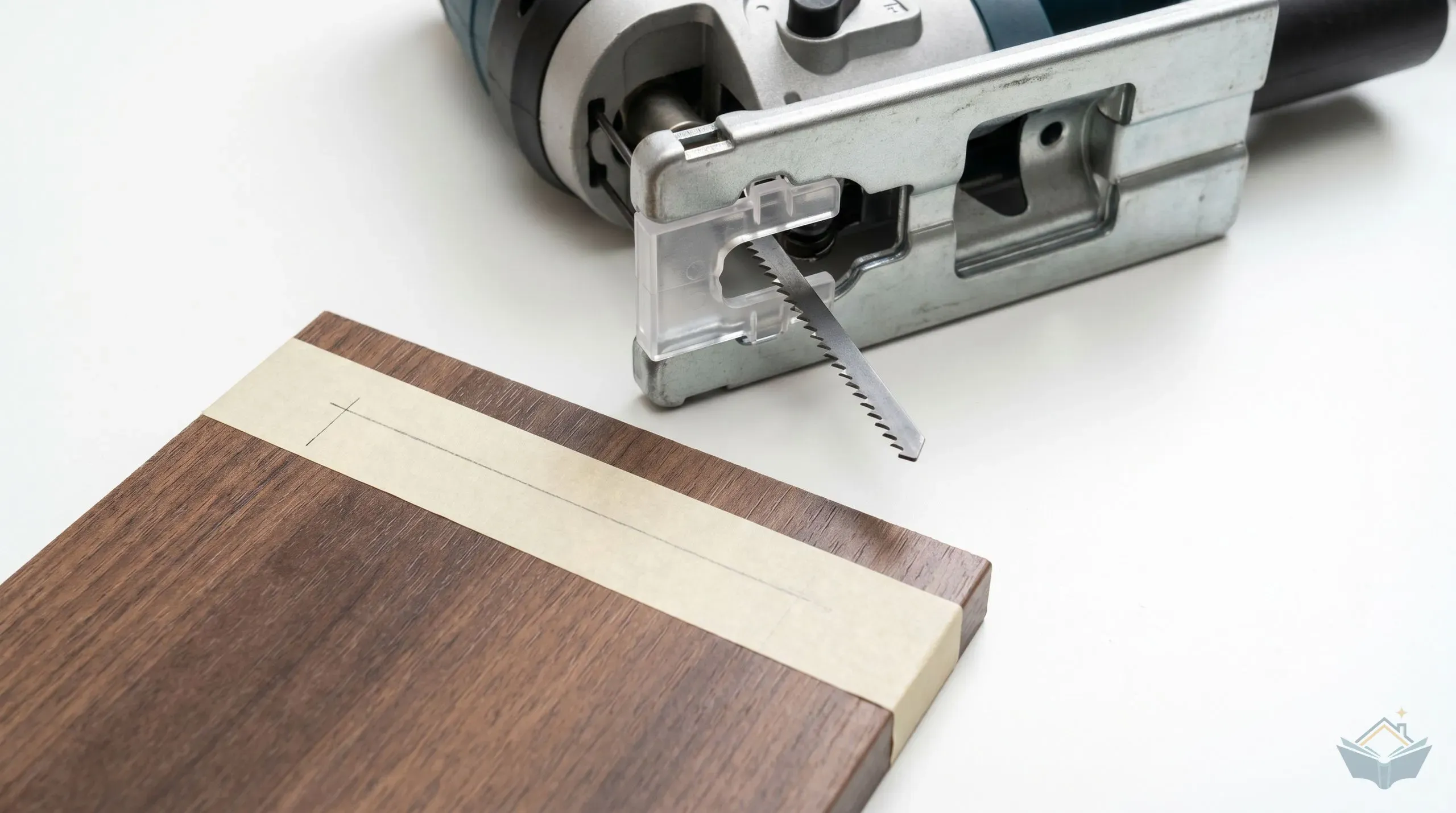

An anti-splinter guard, also called a splinter insert or zero-clearance insert, is a small piece of clear or translucent plastic that clips into a slot in the front of a jigsaw's baseplate. Roughly 40mm long by 7mm wide. It sits directly underneath the cut, surrounding the blade on both sides.

Its job is closing the gap. Every jigsaw baseplate has an opening for the blade to pass through. That opening is typically two to four millimetres wider than the blade itself, so the blade has clearance to move and so the saw can swap blades. When you're cutting hardwood with a standard blade, that gap is fine. When you're cutting laminate worktop, the gap is where the damage happens. The brittle melamine wear layer on the worktop surface is unsupported across that gap. Each time the blade strokes, surface fibres at the very edge of the cut flex into the void, lift, and chip.

The insert closes the gap to zero. On its first cut, the running blade kerfs its own slot through the plastic. The slot in the insert is now exactly the blade's width, no wider. That's the zero-clearance principle: the work surface is fully supported all the way up to the cutting edge, and there's nowhere for fibres to flex into.

You need one any time you cut sheet material with a fragile decorative face up. That means kitchen worktops, laminate flooring, melamine-faced chipboard, and veneered ply. For framing, joinery, and rough cutting in solid timber, the insert is unnecessary.

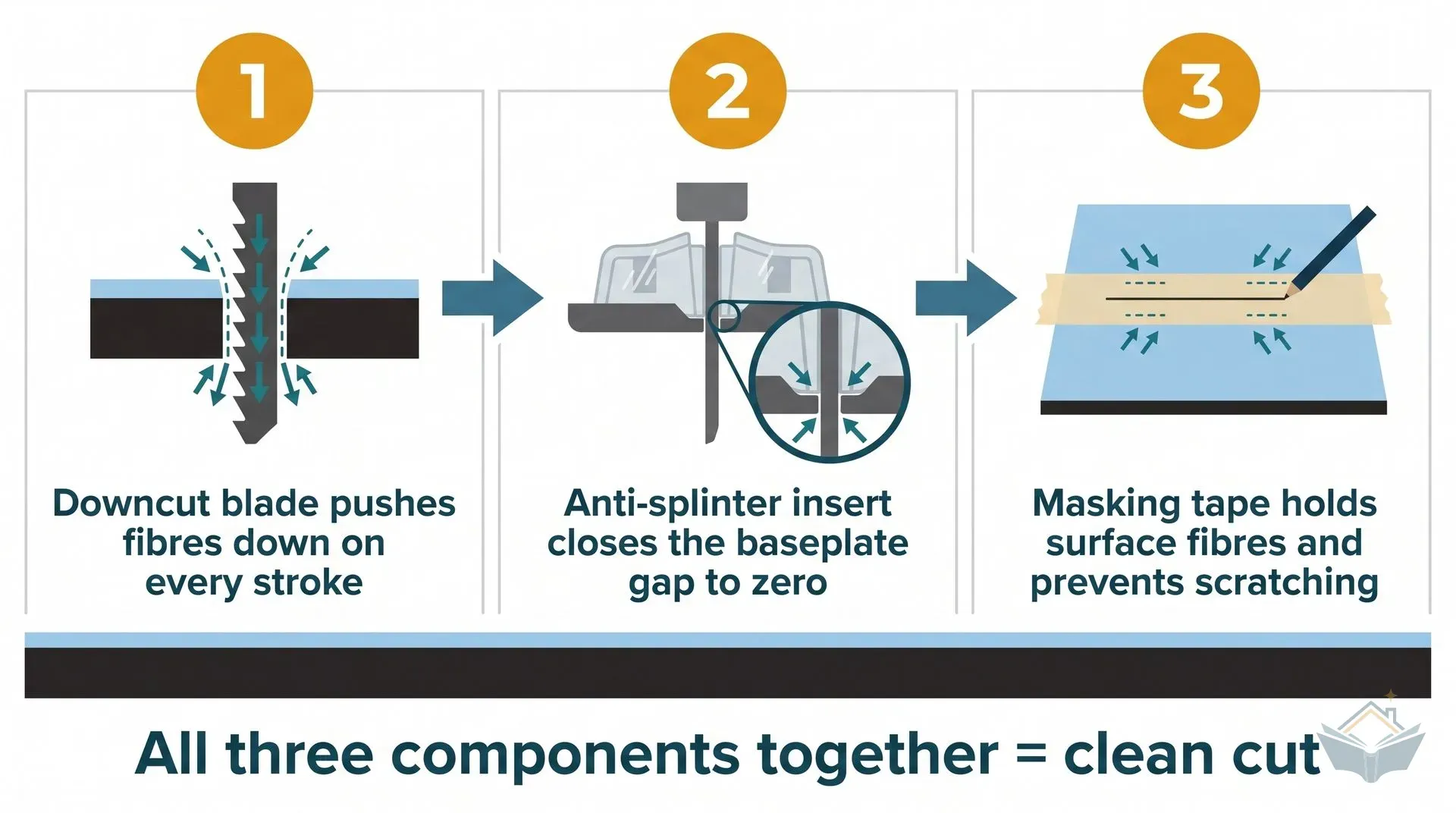

The three-item anti-chip system

Most online guides treat the anti-splinter insert, blade choice, and masking tape as three separate tips. They're not. They're a system, and each component fixes a different failure mode. Skip any one and the laminate chips.

1. Downcut blade (the cut direction)

A standard jigsaw blade has teeth pointing upward. It cuts on the upstroke. As the blade rises, the teeth pull surface fibres up through the kerf and out, which is why the top face of a laminate worktop chips when you cut it the wrong way round.

A downcut blade, also called a reverse-tooth or down-stroke blade (Bosch part numbers T101BR and T101BRF are the two you'll see in UK shops), reverses the tooth geometry. The teeth point downward, so the cutting action pushes surface fibres into the workpiece on every stroke instead of pulling them out. The visible top face stays compressed against the substrate and doesn't chip.

The trade-off: the underside now tears instead. That's fine when the underside isn't visible (sink and hob cutouts in fitted worktops), but it means you can't get a clean finish on both faces with a downcut blade alone.

2. Anti-splinter insert (the gap closer)

A downcut blade fixes the cut direction but doesn't fix the baseplate gap. Even with the teeth pushing fibres downward, the cut edge is still partly unsupported. Tiny chips along the visible kerf line are the result. The insert closes the gap. Without it, the downcut blade alone is not enough to prevent chipping at the visible cut edge.

3. Masking tape (the surface protector)

Run wide masking tape over the entire cut path on the visible face before you mark the line. Two reasons. First, the jigsaw's metal baseplate slides across the laminate as it travels, and any grit trapped in the baseplate edge will scratch the surface. Tape protects against scratching. Second, the tape's adhesive layer holds the very topmost fibres of the wear layer in place during the cut, catching anything the insert and blade missed.

There's a useful side benefit: a pencil line shows up far more clearly on tan masking tape than on dark gloss laminate.

Click to enlarge

Pendulum action must be off

This is the single most common mistake on community forums. Of eleven UK threads on worktop cutting, seven name it as the critical setting. Set pendulum (orbital) action to 0 for all laminate cuts.

Pendulum action is a small forward-swinging ellipse added to the blade's straight up-and-down motion. It's controlled by a numbered dial on the side of most jigsaws, usually 0 to 3. On a normal cut in solid timber, settings 1 to 3 clear material faster and reduce friction. With a downcut blade in laminate, that swinging motion fights the cut. The blade kicks sideways, tears the wear layer, and produces a ragged edge regardless of which insert is fitted. Run the pendulum on, you've defeated the rest of the system.

Brand compatibility, inserts are not interchangeable

Jigsaw blades use a universal T-shank fitting, so any T-shank blade fits any modern jigsaw. Anti-splinter inserts do not work like this. Each major brand uses a slightly different slot shape in the baseplate, and even within a single brand there can be incompatible variants. The wrong insert won't clip in, or worse, will sit at a slight angle and the blade will jam.

Two ordering traps catch homeowners regularly. The first: Bosch's standard PST/GST insert (part 2607010079) does not fit the GST BCE/150 CE professional series despite both being Bosch-branded jigsaws. Look at your saw's model number on the body sticker, then match it to the insert part number. The second: Festool's PS/PSB 300 insert and the CARVEX 500 insert are two different parts. They are not visually similar enough that you'd notice in the box if you ordered the wrong one.

If you don't know the model number, the saw's manual or the brand's spares lookup tool will tell you which part fits. Don't guess.

How to fit the insert properly

The insert is tool-free. It pushes or slides into a slot in the front of the baseplate. Two details catch people out.

Orientation. The rabbeted (stepped) profile faces down toward the baseplate. The smooth flat face points up toward the workpiece. There is no corresponding rabbet in the baseplate to give you a tactile reference, so it's easy to fit the insert backwards on a first attempt. Forum threads on woodwork sites are full of users describing the blade jamming on first cut because the insert went in the wrong way round. If yours doesn't sit flush with the baseplate, flip it.

Seating force. The insert needs firm pressure to clip in fully. Bare fingers usually aren't enough. Press it home against a hard flat surface like a workbench, or use a pair of pliers wrapped in cloth to push it in. A loose insert will rock during cutting and re-introduce the very gap it's meant to close.

After the first pass, the blade kerfs its own slot through the plastic. After that, the insert is matched to that specific blade and saw. Don't swap blades for a finer pitch and expect the slot to fit. The new blade may sit slightly offset and re-open the chipping issue.

How long does an insert last

Roughly two to three full worktop cutouts before the slot widens enough to re-introduce chipping. Signs to replace: the slot is visibly wider than the blade, fine cracks radiate from the slot ends, the blade rocks sideways when you wiggle it through the slot, or your last cut started to chip again after several earlier cuts came out clean.

This is why they sell in packs of five. Plan on one fresh insert per worktop cutout, with a spare in reserve. A typical kitchen extension has two cutouts (sink and hob), occasionally three with a separate prep sink. A 5-pack of Bosch inserts at £3.31-4.99 covers all of them with margin. Don't start a worktop cut with no spare. If the slot widens mid-cut, the only fix is to stop, swap the insert, and resume, and if you can't because you don't have one, you finish the cut with chipping you'll have to live with.

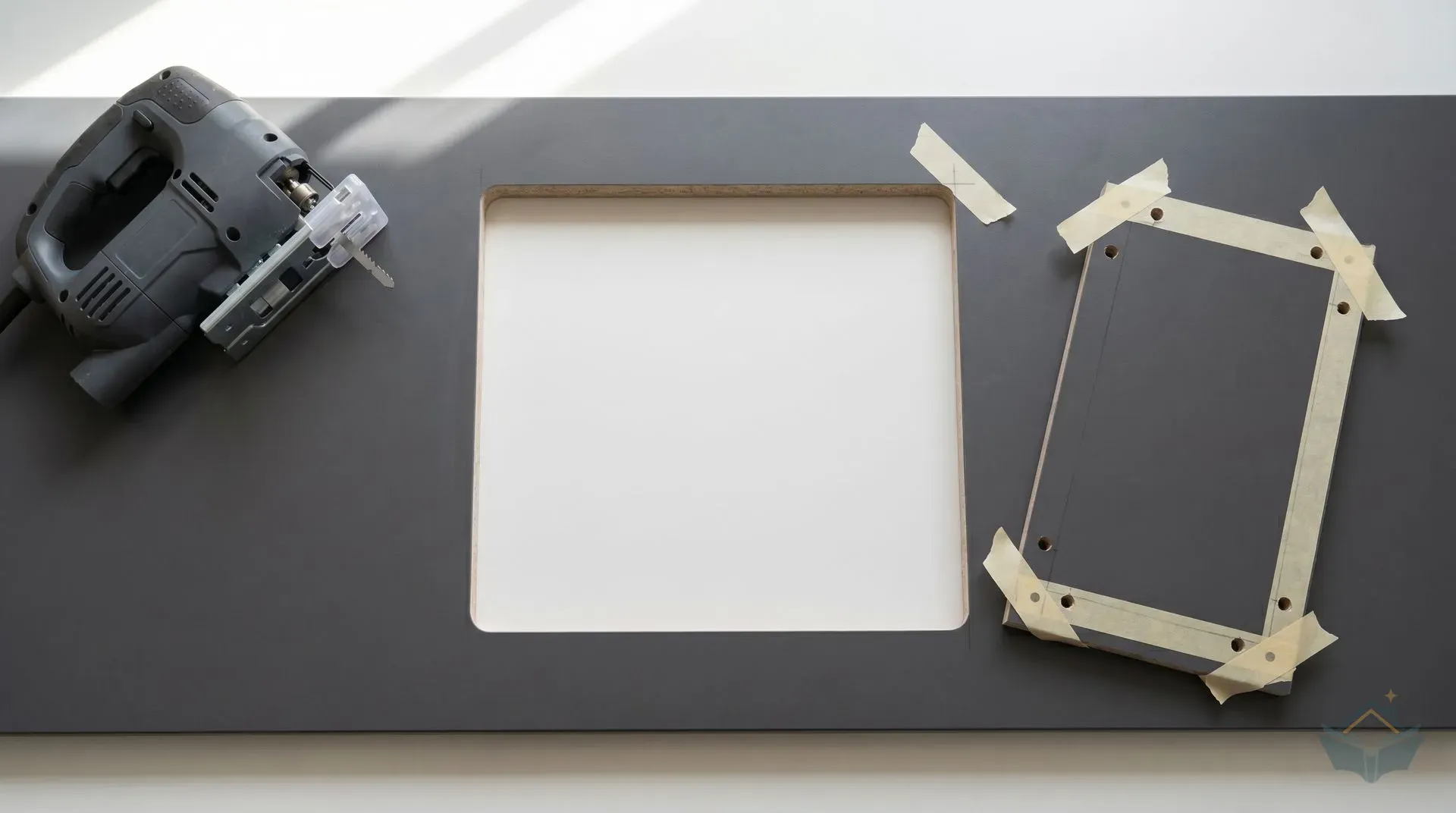

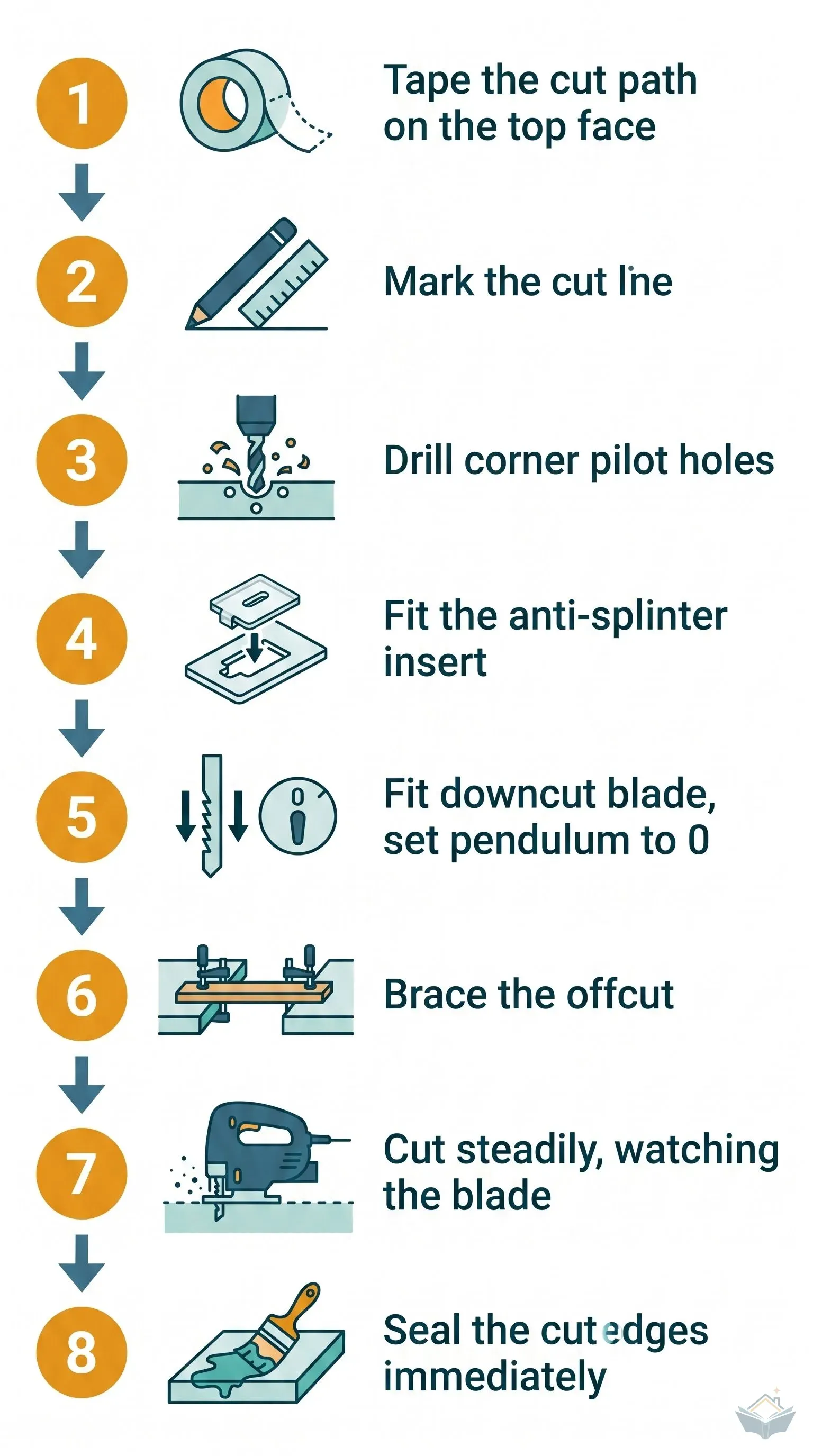

The full workflow for a worktop cutout

The insert by itself doesn't deliver a clean cut. Order matters, and so do a few details that aren't obvious until they go wrong.

Click to enlarge

Click to enlarge

Common mistakes

The five mistakes that produce a chipped worktop, in order of how often they happen.

No insert fitted at all. The insert was in the saw's accessory bag from the factory and the user never took it out. One Festool customer described finding it after three years of ownership: side-by-side cuts before and after were "splintery" versus "dead smooth". This is the most common single failure.

Insert fitted backwards. The blade contacts the rabbeted profile rather than passing through clean plastic, jams on the first stroke, or sits offset and tears the laminate.

Pendulum action left on. Already covered. Defeats the rest of the system.

Reusing a worn insert. The slot has widened from previous cuts, the blade no longer has a snug zero-clearance fit, and chipping returns. A fresh insert costs pennies. Use a new one.

Masking tape omitted. The blade and insert may produce a clean cut, but the baseplate has scratched a path across the worktop surface that no amount of polishing will remove.

What to buy

For most UK homeowners, the answer is straightforward: order a 5-pack of the genuine OEM insert for your specific jigsaw model, plus a 5-pack of T101BR or T101BRF downcut blades, plus a roll of decorator's masking tape. Total cost stays well below the budget tier and covers a full kitchen installation.

Bosch jigsaw owners

This is most UK homeowners. Bosch dominates the consumer jigsaw market through Wickes, B&Q, Screwfix and Argos. Order the Bosch 5-pack £3.31-4.99 if you have a PST 650-1000 or a GST 75 BE / GST 80. If you have a GST 140 or 150 BCE/CE (the professional blue Bosch range), order the BCE-specific pack at £4.64. They look similar in product photos but the slot shape is different. The model number on the saw body settles which to buy.

Makita and DeWalt owners

Both brands sell their inserts as single units rather than packs, at £2.99 and £2.99 respectively. Order three or four to have spares. Spare Parts World, FFX, and the brands' direct spares websites carry them.

Festool and Milwaukee owners

Festool inserts cost more per unit than the other brands but the saws are professional-tier and the inserts are made to match. PS/PSB 300 series owners order the 5-pack at £11.99; CARVEX PSC-E 18 owners need the different part at £8.99. Milwaukee inserts come in 3-packs at £11.99.

Companion blades

Pair the insert with a downcut blade pack. The standard choice is Bosch T101BR (HCS, 30mm max cut depth) at £6-10 from Screwfix. For 38mm worktops or where blade life matters, step up to T101BRF (bi-metal, 45mm max cut depth) at £17.19 for 5. The T101BRF lasts roughly five times longer and tolerates the full thickness of a standard kitchen worktop. Some users report it's slightly more prone to flex on tight curves in 40mm-plus stock, so for cleaner curves in thick material, T101BR with patient feed is sometimes preferred.

External resource

Bosch UK accessory finder

The official Bosch UK product page lists every compatible jigsaw model for both standard and BCE inserts. Use this before ordering if your saw model isn't in the table above.

bosch-professional.com

Emergency substitute if you can't get one

If you're mid-job, the merchant's closed, and the existing insert has shattered, a cardboard or thin acrylic substitute will get you through one cut. Cut a 6mm strip of acrylic or polycarbonate sheet to the baseplate slot dimensions, secure it with double-sided tape, and let the blade kerf its own slot on first contact. The principle is identical to the OEM insert. Cardboard works for a single cut but compresses too quickly to be relied on for a second.

This is a one-cut fix, not a long-term solution. Order the proper insert for next time. The OEM parts are too cheap to substitute permanently.

Where you'll need this

• Kitchen installation - cutting the sink and hob cutouts in a fitted laminate worktop, with the visible face up
• Finding a kitchen fitter - a tool a fitter will bring; useful to know exists if you're self-fitting any of the worktop work
• Flooring - shaped cuts in laminate or engineered floorboards around radiator pipes and threshold transitions

These accessories appear at second-fix stage on any extension, renovation, or kitchen replacement project where laminate sheet material needs cutting in place. The same insert-and-downcut-blade combination handles veneered ply, melamine-faced shelving, and pre-finished MDF panels, anywhere the surface needs to come out chip-free.
