A grinding disc that lets go at 11,000 rpm sends fragments of bonded abrasive across a workshop at speeds that no pair of safety glasses is rated to stop. The disc itself is the dramatic version. The everyday version is worse: a single wire broken off a brushed-on cup brush, ejected sideways, threading neatly under the bottom edge of your glasses and into your eye socket. A face shield is the only piece of PPE that addresses both. RoSPA puts UK angle grinder injuries at roughly 5,400 a year (an approximation from HASS/LASS 2000-2002 data, the most recent UK figures published), with the head and face the most common injury sites. Buying one costs less than two replacement discs.
What it is and when you need one

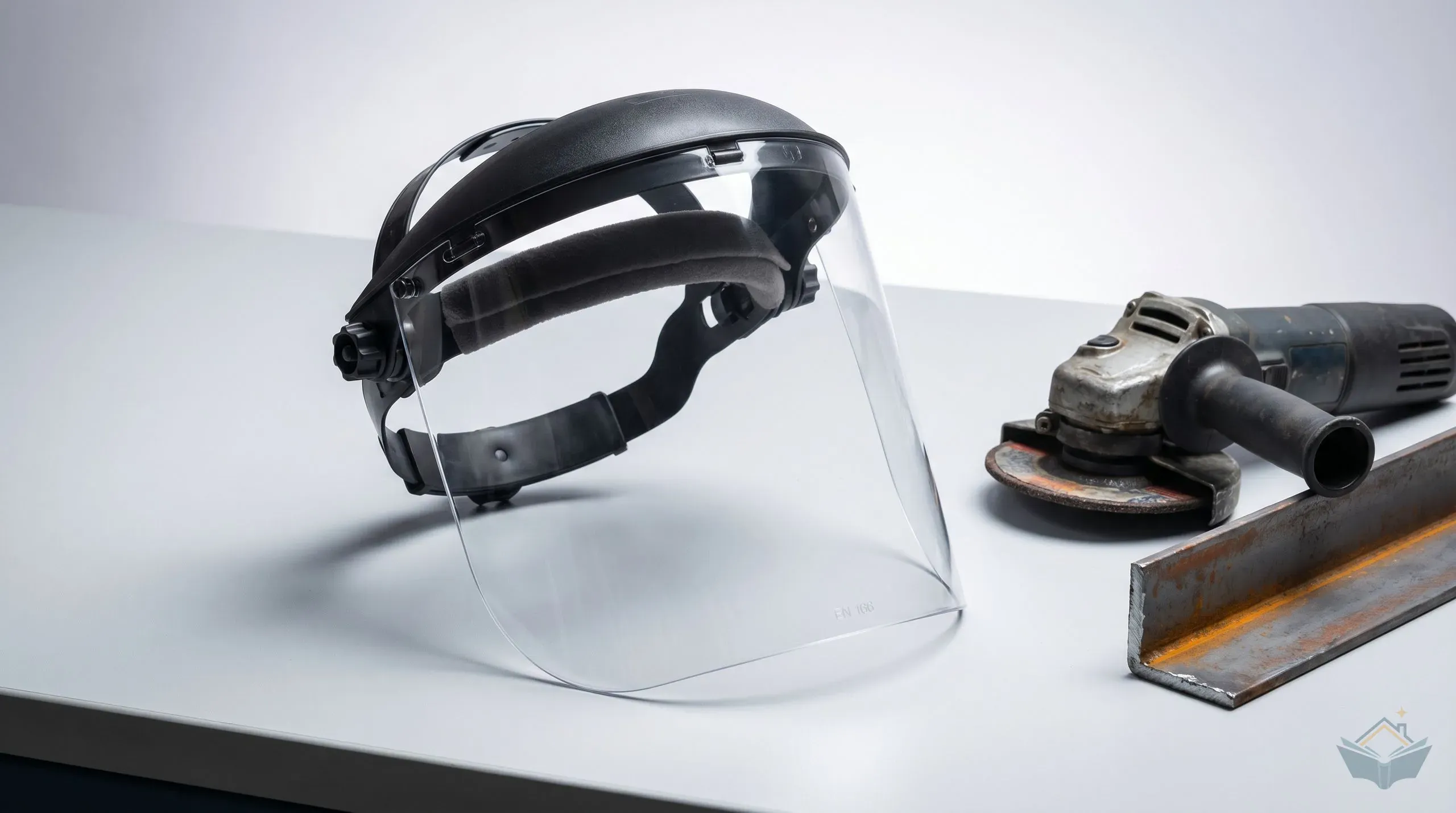

A face shield is a clear polycarbonate visor mounted on an adjustable headband (a "browguard"), worn across the whole face so it covers the forehead down past the chin. It deflects flying debris, sparks, splashes, and disc or brush fragments away from your face as a single sweep of impact-resistant plastic. Under EN 166 it is classed as a secondary eye protector. That word matters. A shield is designed to be worn over safety glasses or sealed goggles, not instead of them. Air gaps around the bottom and sides of every browguard mean fine dust and the occasional ricocheting fragment will still reach your eyes if your only protection is the visor.
You need a face shield for any task that throws material at your face under power. That's a short, specific list:
- Angle grinding (cutting, grinding, sanding flap discs, wire brush work)
- Cut-off saw or chop saw work on metal
- Bench grinder work, especially dressing or tool sharpening
- Wire wheel and wire cup brush work, where bristle ejection is constant
- Power chiselling and breaking concrete with an SDS or breaker where chips fly toward the operator
- Pressure washing, where grit and debris come back at you with the rebound
For drilling, sawing timber, hammering, sanding plasterboard, or general site visits, safety glasses are the right tool and a face shield is overkill. The trigger for a shield is high-velocity ejection from a powered tool, nothing less.
The EN 166 marking that makes face shields different from glasses
Every piece of UK eye protection is certified to EN 166 (or the newer EN ISO 16321). The marking on the lens or frame tells you exactly what impact energy the protection is rated for. This is where face shields pull ahead of every pair of safety glasses ever made.
| Marking | Test impact velocity | Typical product | What it stops |
|---|---|---|---|
| S | 12 m/s | Lab spectacles, very basic eyewear | Light bumps. Not for construction. |
| F | 45 m/s | Standard wrap-around safety glasses | Drilling debris, hand-tool chips, sanding particles. |
| B | 120 m/s | Premium safety glasses, sealed goggles, basic face shields | Angle grinder fragments, light disc shatter. |
| A | 190 m/s | Face shields only | Full disc shatter, cut-off saw fragments, wire brush bristles, projectile chips. |
Read that table again. The 190 m/s A-rating is exclusive to face shields. No goggle achieves it. No spectacle frame achieves it. The geometry of a small lens supported by thin temples cannot pass the test, regardless of polycarbonate thickness. A full visor mounted on a browguard can. If you've ever read a "do I need a face shield or are goggles enough" forum thread and come away unsure, this is the answer that ends the argument: only a Grade A face shield is rated to stop the worst-case debris from a failing 115 mm or 125 mm grinder disc.
The shield itself will be marked with a code string on the visor, something like "1 BT" or "1 AT 9". The breakdown:
- First digit is the optical class. Class 1 means continuous wear without distortion (what you want). Class 2 is intermittent. Class 3 is occasional.
- Letter is the impact grade (S, F, B, A as above).
- T after the impact grade means the shield has been tested at extreme temperatures (-5 °C and +55 °C). Without T, the impact rating is only valid at room temperature.
- 9 is the molten-metal-and-hot-solids rating, present on shields intended for welding adjacent or foundry work.
A shield marked "1 BT" is fine for grinding cool metal. A shield marked "1 AT 9" is the welding-cell or foundry spec. For homeowner extension work, a Grade B shield with the T temperature rating is the realistic minimum. Grade A is better and worth paying for if you're cutting steel regularly.
A face shield is a secondary protector
EN 166 explicitly classifies face shields as secondary eye protection. You are still required to wear safety glasses or sealed goggles underneath the shield. The browguard's open sides and the gap below the chin are where fine dust and ricocheting fragments enter. Glasses plus shield is the system. Either one alone is not.
Polycarbonate, mesh, and the welding-helmet trap

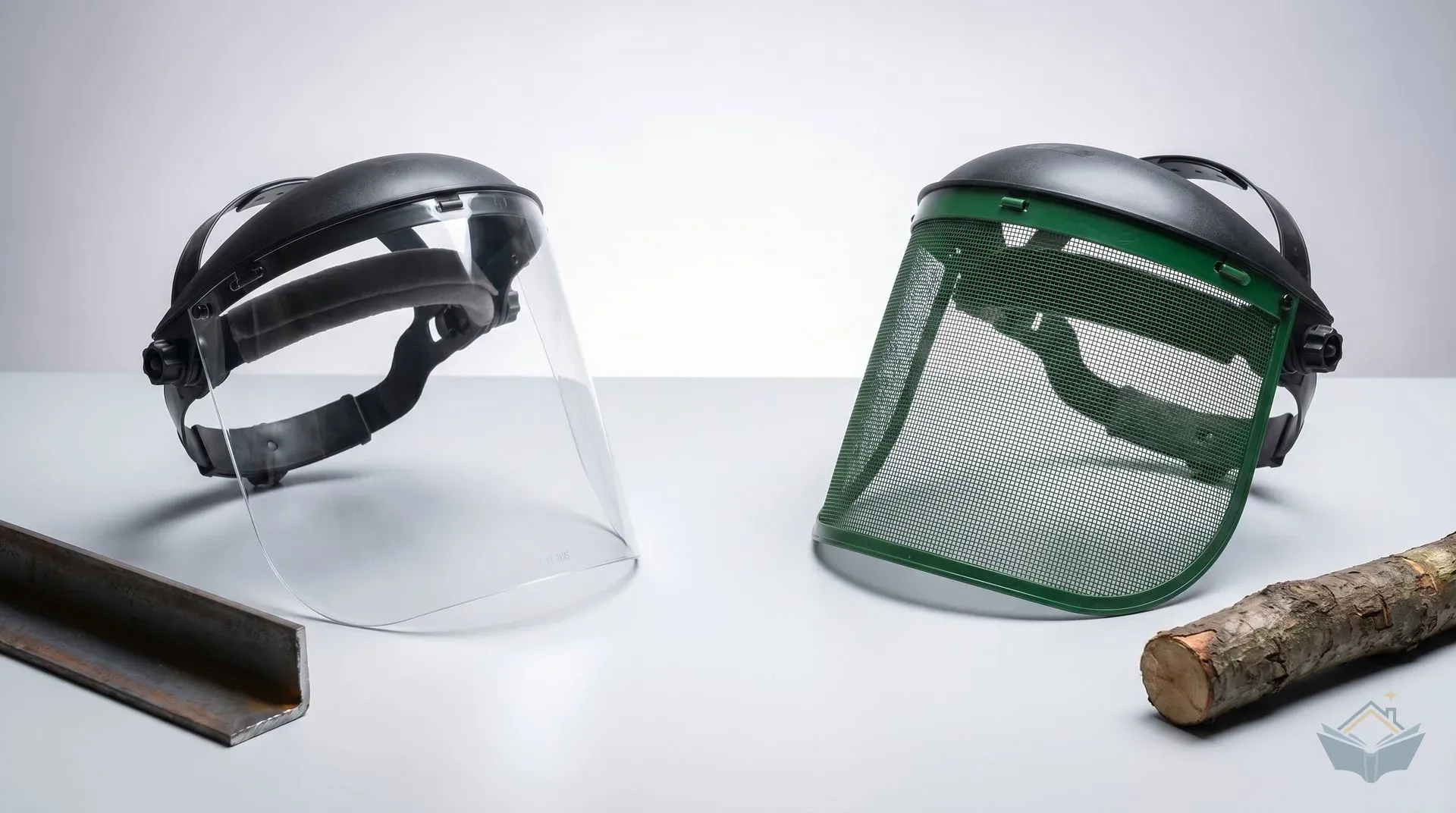

Three product categories are sold under names that sound like "face shield". Two of them will get a beginner hurt.
Polycarbonate visors are the right answer for grinding and cutting. A 1-1.5 mm clear polycarbonate sheet, optically certified, replaceable when it pits or cracks. This is what every safety guide means by "face shield". Cheap polycarbonate gets pitted by abrasive grit and metal sparks within a few hours of grinding work. That's expected. The pitting reduces visibility long before it weakens the shield. Plan to replace the visor (not the whole headgear) every few projects.
Mesh shields, certified to EN 1731, are for forestry and chainsaw work. They look similar at a glance but are not interchangeable. The mesh stops chunks of timber and chainsaw chain fragments. It does not stop hot sparks (which pass straight through the holes), fine grit, or liquid splash. Wearing a forestry mesh shield to operate an angle grinder is a category mistake. Sparks pass through the mesh and land on your face. If the packaging says "for forestry use" or "EN 1731", it is not a grinding shield.
Welding helmets with a "grind mode" are a different trap. The 3M Speedglas family and similar auto-darkening welding helmets often have a clear-mode setting marketed for grinding. They are excellent welding helmets. Bought specifically for grinding, they are massively overspec and miss the point. A homeowner buying a premium Speedglas to use an angle grinder twice has spent ten times what a proper grinding shield costs and is still wearing welding hardware. If you weld occasionally and grind often, the right answer is a dedicated face shield plus a separate welding helmet, rather than one device trying to do both.
How to wear it properly
Putting a face shield on correctly is not obvious to a first-time user, and getting it wrong removes most of the protection.
Put your safety glasses on first
The shield is a secondary protector. Glasses or sealed goggles go on first, against your face. The shield drops down over the top. If you skip the glasses, the open bottom of the shield channels dust and small fragments straight into your eye line.
Adjust the headband for a snug, level fit
Most browguards have a ratchet at the rear and a vertical adjustment for height. Tighten the ratchet so the headband holds without pressing. Set the height so the visor covers the forehead and drops past the chin when you look straight ahead.
Set the visor pivot tension
The pivot at each side of the headband should hold the visor in any position you set it. Too loose and the visor flops down or back as you move your head. Too tight and you cannot lift it cleanly between cuts. Find the middle.
Lower the visor before the tool starts
The visor goes down before the trigger goes on. Every time. The most common injury pattern is "lifted the shield to see the cut line, hit the trigger, fragment came back". If you cannot see the line clearly, stop the tool and reposition the work. Don't lift the shield.
Match the shield to a hard hat if working overhead
If you're grinding or cutting in an environment where falling debris is a hazard (under scaffolding, in a roof void, near other trades), use a helmet-mounted face shield rather than a standalone browguard. Milwaukee BOLT and similar systems clip into the hard hat shell so you get face and head protection from a single mount. Two browguards stacked under a hard hat will not fit, and a hard hat alone leaves your face exposed.
Warning
Wire brush bristle ejection is the under-rated grinder injury. A spinning wire cup or wire wheel sheds individual bristles constantly, and they fly out at angles that pass under the bottom edge of a face shield and around the side temples of safety glasses. The HSE recommends combined glasses-plus-shield protection specifically to address this. A bristle in the eye is more common than a shattered disc and harder to remove because the wire is barbed.
The buying decision: budget, mid, premium, and PAPR
Three usable tiers cover almost every situation, plus a fourth category for combined dust-and-face protection.
Budget browguard (around £9–£12). The Portwest PW91 is the standard cheap option. EN 166 Grade B impact, replaceable visor, ratchet headband. The visor is thinner than premium options and will pit faster, but at this price the right strategy is to bin and replace rather than baby it. For a homeowner doing occasional grinding on a single project, this is the rational choice. JSP and other own-brand budget shields at similar prices are interchangeable.
Mid-range with replaceable parts (around £21–£25 for the headgear, £11.16 per replacement visor). The Bollé Sphere SPHERPI is the homeowner sweet spot. EN 166 Grade B, optical class 1, well-made ratchet headband, and (the key feature) a replaceable polycarbonate visor sold separately at the price shown above. When the visor pits during grinding work, you swap the visor and keep the headgear. Over a build, that's much cheaper than buying complete shields. The JSP EVOGuard C1 industrial visor at £20.39 is a near-equivalent product at a similar price point.
Premium contoured shield (£38–£55). The Honeywell Bionic 1011623 is what you buy when you're going to use a face shield daily for months. It's a closer-fitting moulded shield with an integrated chin guard and brow seal that reduces (but does not eliminate) the need to wear glasses underneath for fine-dust protection. EN 166 Grade B with the T temperature rating. The fit is more secure when looking down at work, and the optics are noticeably clearer. Worth the money for serious DIY rebuilds. Overkill for one weekend of grinding.
Helmet-mounted system (£35–£53). The Milwaukee BOLT visor clips into a Milwaukee BOLT hard hat shell. If you're already wearing a hard hat for the structural phase of a build (steel installation, roof work) and need face protection at the same time, the integrated system is cleaner than trying to wear a browguard under a hard hat. The trade-off is that the visor is less adjustable than a dedicated browguard, and the system locks you into one brand of hard hat.
PAPR for masonry and wood dust (£380–£445). The Trend Airshield Pro is a different category of product. It's a powered air-purifying respirator (PAPR) with an integrated face visor that delivers filtered air to a sealed hood. You get face protection plus TH2P-rated respiratory protection from a single device. For homeowners spending serious time cutting masonry, machining timber on a workshop lathe, or running a track saw in a sealed garage, it solves the fogging-while-grinding problem (no separate FFP3 mask needed under the shield) and provides better protection than any disposable mask plus shield combination. That is the right ballpark for this category. Cheaper PAPRs exist but trade reviews on the Airshield Pro are consistently strong.
External resource
Screwfix Face Shields and Visors
Browguards and visors from Portwest, JSP, Bollé, and DeWalt. Free click-and-collect, next-day delivery.
screwfix.com
External resource
Toolstation Face Protection
Budget to mid-range face shields and replacement visors. Good stock of JSP and Portwest.
toolstation.com
Checking and replacing the visor
A face shield is a consumable. The headgear lasts for years. The visor does not.
The pit test. Hold the shield up to a window or bright light. If you can see individual pits, scratches, or hazing across the line of sight, the visor is past its useful life. Pitted polycarbonate scatters light, which means glare in your work area and reduced contrast on the cut line. People then lift the shield to see properly, which is the moment something hits them.
The crack check. Look along the edges of the visor where it mounts to the headband. Hairline cracks at the mounting holes are common after the shield has been knocked or dropped. A cracked visor can fragment on impact, turning one projectile into several. Bin a cracked visor immediately and fit a new one.
The seal check (premium contoured shields only). On shields with a brow gasket like the Honeywell Bionic, press gently against your forehead. The gasket should feel firm without cracks. If it has hardened or torn, replace the headgear.
The replacement cycle. For a homeowner doing a single extension build, plan on one or two visor replacements during the structural and grinding-heavy phases. Daily users replace visors weekly to monthly depending on what they're cutting. Buy a spare visor at the same time as the headgear so you've got it on the shelf when the first one pits.
Tip
Keep the spare visor wrapped in its original sleeve until you need it. Polycarbonate scratches if it slides around in a tool bag, and a "spare" that's already hazed is no spare at all. Storage matters as much as the swap.
Common mistakes
Treating the shield as primary protection. The most frequent error and the one EN 166 specifically warns against. Glasses or goggles go on first. Then the shield. If you find yourself thinking "the shield is enough on its own", read the marking again: face shields are secondary protectors by design.
Buying a forestry mesh shield because it was on offer. EN 1731 mesh is for chainsaw work. Sparks pass through the mesh holes. If the shield says forestry, professional gardener, or EN 1731, it is the wrong product for grinding.
Buying a welding helmet for grinding work. A 3M Speedglas with a clear grind mode is a welding helmet. It works for grinding, but you have spent welding-helmet money to do grinding-shield work, and the auto-darkening cartridge is doing nothing for your use case. If you don't weld, buy a face shield.
Lifting the visor between cuts. Every cut means the visor goes down before the trigger goes on. The injury data is consistent: fragments come back at the operator most often during a "quick check" with the shield raised. Stop the tool, reposition the work, then drop the visor and resume. The thirty seconds of saved time is not worth the risk.
Skipping the shield because "it's a small cut". Disc shatter is a probability event, not a duration event. A 30-second cut and a 30-minute cut have similar failure odds per cut, and a wire brush sheds bristles continuously regardless of session length. Put the shield on before the trigger, every time.
Where you'll need this
Face shields are specifically required for high-velocity, powered cutting and grinding work. On most extension and renovation projects, that's concentrated in the demolition, structure, and groundwork phases:
- Foundations and footings - breaking out existing concrete with an SDS breaker or angle grinder
- Walls and blockwork - cutting blocks and bricks with an angle grinder or cut-off saw
- Steels and lintels - cutting steel with an angle grinder, removing weld spatter, dressing cuts
- Roof covering - dry-cutting tiles with an angle grinder, where both sparks and silica are present
- First fix electrics - chasing walls with a chasing tool, breaking out for back boxes
- Tiling - cutting porcelain or natural stone with a wet-cut grinder
The shield lives with the angle grinder. If you've got a grinder out of the box, the shield comes with it. Treat them as one tool, not two.
