Mixing Paddles: How to Mix Plaster, Tile Adhesive, and Mortar Without Burning Out Your Drill
The UK guide to drill paddle mixers for plastering. Negative vs positive helix, M14 vs SDS vs hex shafts, drill power thresholds, technique, and what to buy at every price tier.
You've bought a 25kg bag of multi-finish plaster to skim a wall. You tip half into a builder's bucket, add water by eye, and stir with timber. Ten minutes later you've got a lumpy grey paste with dry pockets, working time half gone, and the wall staring at you. The plaster goes on at the wrong consistency, dries unevenly, and has to be taken off and redone. A mixing paddle costs less than a bag of plaster. Bolt one to the drill you own, and a 25kg bag mixes to lump-free cream in two minutes.
What it is and when you need one

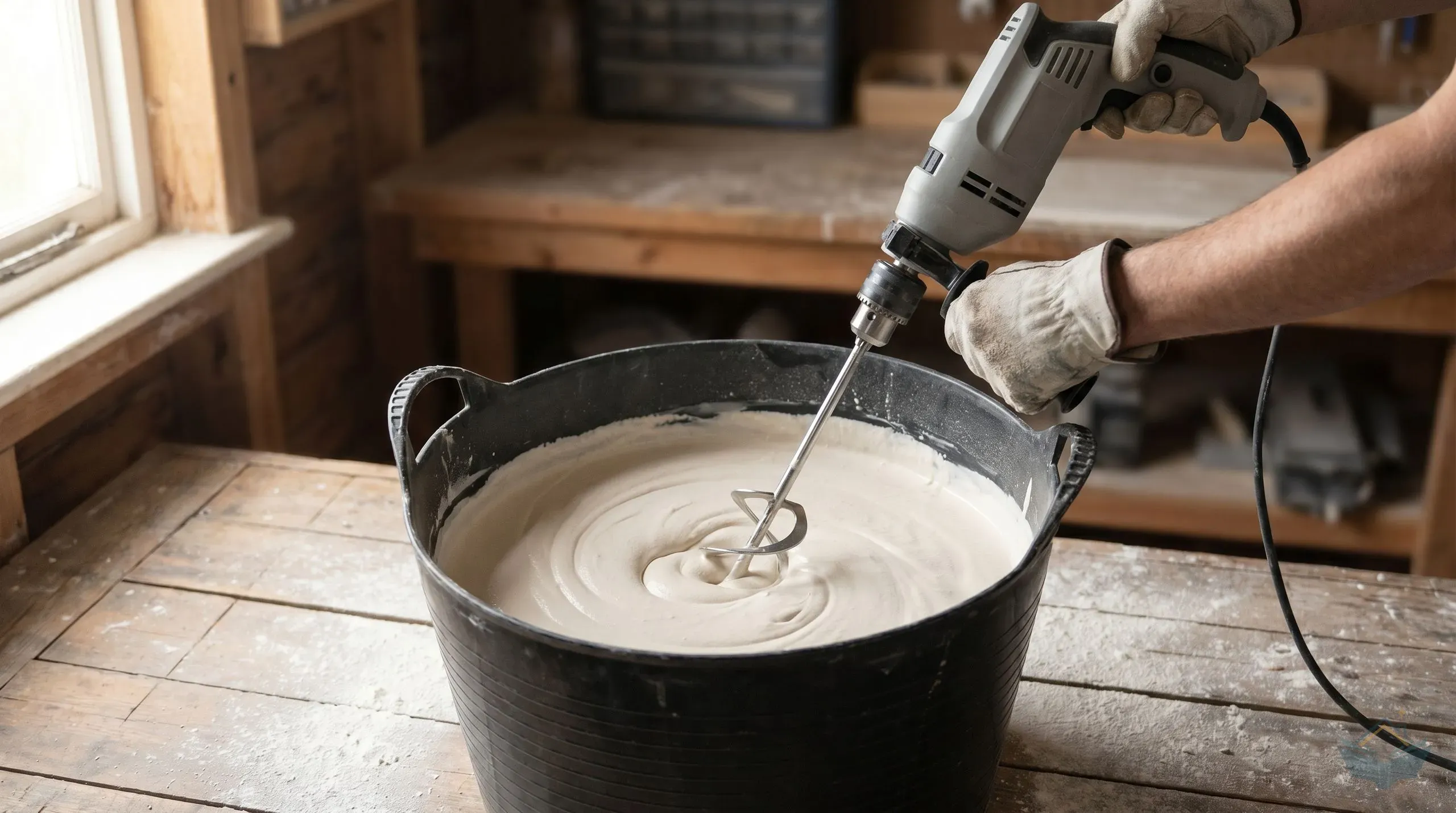

A mixing paddle is a steel shaft with a spiral, helix, or basket-shaped head that fits into a drill chuck. The drill spins the head, the head agitates a bucket of plaster (or mortar, tile adhesive, or self-levelling compound), and the result is a consistent mix without lumps or dry pockets. It is the most useful drill attachment for any wet trade.
The paddle is the cheap part. The expensive part is the drill that spins it. A 25kg bag of skim is roughly 36kg of mix once water is in, and the paddle chops through it for two minutes without stopping. A typical homeowner combi drill (18V battery or 500-700W corded) can manage one or two batches before the motor complains. For sustained work you want a dedicated paddle mixer or a corded SDS drill in rotary-only mode.
You need a paddle whenever mixing more than a few kilos of any cementitious or gypsum product: skim, bonding, sand-and-cement render, ready-mix mortar, tile adhesive, grout, self-levelling compound, small bucket-batches of concrete. The paddle replaces hand-mixing for any volume above about 5kg. Below that, hand-mixing is fine.
The paddle does NOT replace a cement mixer for serious volumes. If you're laying a sub-base, mixing mortar for a block wall, or pouring foundations, you want a barrel mixer holding 60-90 litres on its own motor. The paddle is for bucket-sized batches.

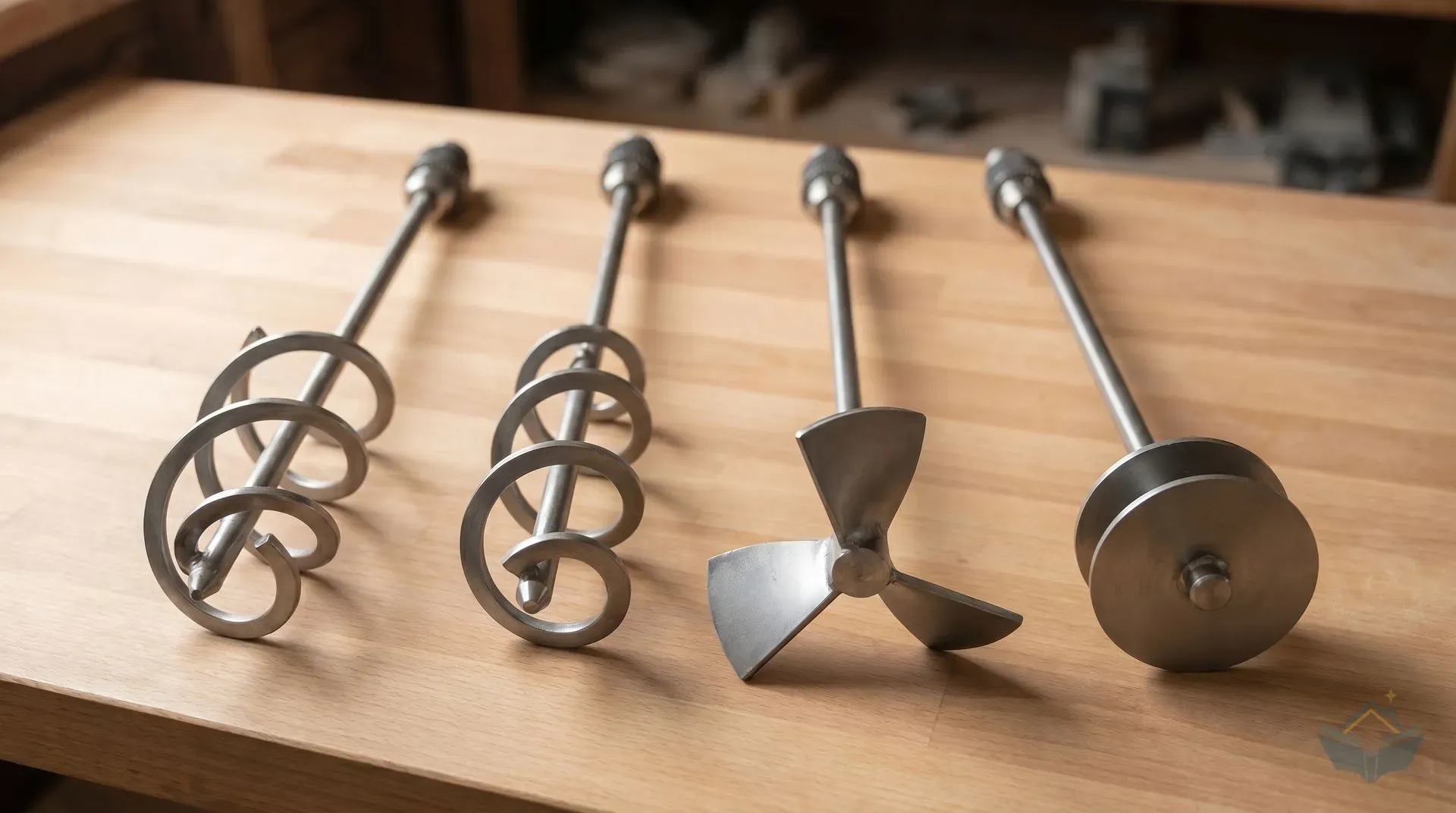

Paddle types and what they're for
There are five mixing actions you can buy a paddle in. Using the wrong type either fails to mix the material properly or beats air into it. The differences come down to which way the helix or blade pushes the material, and how much shear the head delivers.
| Paddle type | Mixing action | Best for | What goes wrong with the wrong type |
|---|---|---|---|
| Negative spiral (downward helix) | Pushes material from top down to the bottom of the bucket | Skim plaster, multi-finish, bonding plaster, drywall compound | A positive paddle pulls air into gypsum mixes, weakening them and causing pinholes in the finish |
| Positive spiral (upward helix) | Lifts material from the bottom of the bucket up towards the surface | Sand-and-cement render, mortar, thick mortar mixes | A negative paddle does not lift sand off the bucket floor; you end up with sandy water on top and dry sand stuck below |
| Heavy three-blade (MK type) | Forced upward flow with high resistance | Stiff mortar, grout, small concrete batches | A spiral paddle stalls or bends in stiff mixes; the three-blade design pushes through resistance |
| Lateral shear (KR type) | Horizontal cutting action with no vertical lift | Tile adhesive, rapid-set adhesives, resin | A spiral paddle whips air into tile adhesive and reduces its bond strength once trowelled |
| Twin disc (DLX type) | Counter-rotating discs at low RPM with minimal air entrainment | Self-levelling floor compound (SLC), liquid screed batches | A standard paddle puts air into SLC, which then pinholes the finished floor surface as the bubbles rise |
The two everyday-DIY paddle types are the negative spiral and the positive spiral. Most homeowners only need the negative spiral, because most homeowner mixing jobs are gypsum plasters and tile adhesive. For rendering or pointing brickwork, you want the positive spiral.
Mainstream UK retailers (Wickes, Toolstation, Screwfix) sell positive-helix paddles by default, labelled "general purpose" or "mortar paddle" without explaining the helix direction. The OX Pro 100x600mm at Wickes has a positive ribbon. Fine for mortar and render; use it for skim and you'll see pinholes as you trowel. Look for paddles described as "negative", "drywall", or "skim": Spreaders Plastering Supplies sells a dedicated negative M14 paddle, and Makita's P-22056 is sold as anti-clockwise (same idea, opposite spiral).

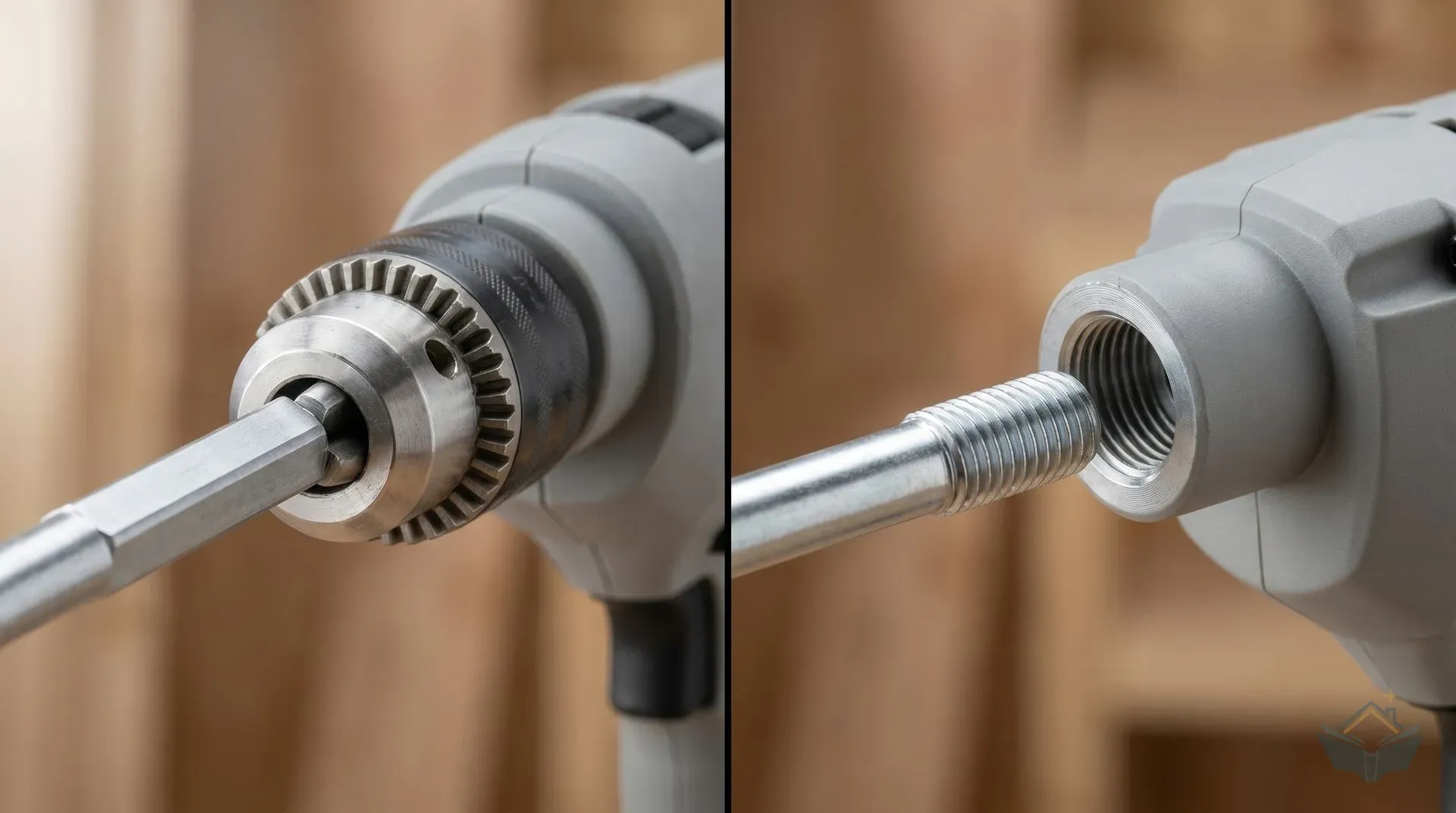

Which shaft fits which drill
Paddles come in three shaft fittings, and you have to match the shaft to the drill. Get this wrong and the paddle won't fit or won't run safely. This is the most common compatibility confusion for first-time buyers.
Hex shaft (10mm or 13mm). A plain hexagonal steel shaft that fits a standard combi or corded drill chuck. The homeowner default. Wickes, Toolstation, and Screwfix sell hex-shaft paddles in the £6 – £16 range, fitting any drill with a 10mm or 13mm chuck.
M14 thread. A male M14 metric thread that screws into a dedicated paddle mixer or an SDS-to-M14 adapter. M14 is the professional standard (Refina, Collomix, most dedicated mixers). You cannot fit an M14 paddle to a combi chuck without an adapter. Screwfix sells SDS-Plus-to-M14 adapters for around £7.
SDS-Plus shank. The slotted, splined shank that fits SDS-Plus rotary hammers directly. The workaround for homeowners with an SDS drill but no paddle mixer. The SDS drill must be set to rotary-only mode (never hammer), and ideally has variable speed and a side handle. Screwfix sells Erbauer SDS-Plus paddles in the £9 – £13 range.
Warning
Never run a paddle on an SDS drill in hammer or hammer-drill mode. The reciprocating hammer action drives the paddle into the bottom of the bucket and either snaps the shaft, bursts through the bucket, or rips the paddle out of your hands. Confirm rotary-only mode before pulling the trigger.
Decision tree: if you own a combi drill and you're doing one or two skim jobs, buy a hex-shaft paddle. If you own a 1000W+ SDS drill with rotary-only mode, buy an SDS-Plus paddle or an SDS-to-M14 adapter with an M14 paddle. If you're buying a dedicated mixer, it takes M14.
How much drill power you actually need
Mixing is the most demanding job a drill ever does. The drill runs flat-out under heavy load for one to three minutes per batch, often back-to-back. The opposite of drilling a hole. Most homeowner drills are not specified for sustained mixing.
The honest power thresholds:
A cordless 18V combi drill (roughly 450-600W continuous output) can mix one bucket of skim or tile adhesive before it needs a rest. Push harder and the motor overheats and brushes wear. Two consecutive batches will often start damaging a budget combi.
A corded combi rated 700-900W is fine for occasional mixing: a few skim batches across a weekend, a single tiling job. Heat is still a factor; rest the drill between batches.
A corded drill rated 1000W+ or a dedicated paddle mixer (1000-1800W) is the threshold for confident, sustained mixing. What a plasterer working all day uses.
An SDS drill in rotary-only mode (800-1500W) is one of the better paddle drives because the gearbox is built for sustained high-torque work. DIYnot is full of users whose combi burned out on the first tile adhesive job and who finished the project on their SDS. If you own an SDS, use it. If not, buy a hex-shaft paddle and treat your combi carefully, or buy a dedicated mixer.
Tip
Plasterers Forum, BuildHub, and DIYnot all converge on the same point: a budget dedicated mixer in the £33 – £120 range will outlast and outwork a premium combi drill on this specific job. If you've been thinking about buying a more powerful combi for "occasional mixing", the cheap dedicated mixer is the better spend.
How to mix plaster properly
The technique is half tool, half method. Follow British Gypsum's published guidance for Thistle MultiFinish and the mix is straightforward. Skip steps and the plaster sets too fast, too slow, lumpy, or with trapped air.
Measure the water first
A 25kg bag of Thistle MultiFinish takes 11.5 litres of clean, cold mains water. Measure it. A gauging bucket has a litre scale; otherwise weigh the water (1 litre = 1kg). Pour into a 30-litre flexible mortar bucket. Half-fill or more, never less, or the paddle won't engage with the mix.
Add powder to water, never the reverse
Tip the dry plaster into the water over about thirty seconds. Adding water to a dry powder bed creates lumps that no amount of mixing will break. Adding powder to water lets each grain absorb water as it falls in.
Insert the paddle before starting the drill
Lower the paddle to the bottom of the bucket with the drill off. Starting with the paddle out of the mix flicks plaster everywhere.
Start at low speed, then build
Begin at the lowest speed for 30 seconds to wet out the powder, then increase to full speed for the main mix. Keep RPM in the 400-600 range; faster whips air into the gypsum.

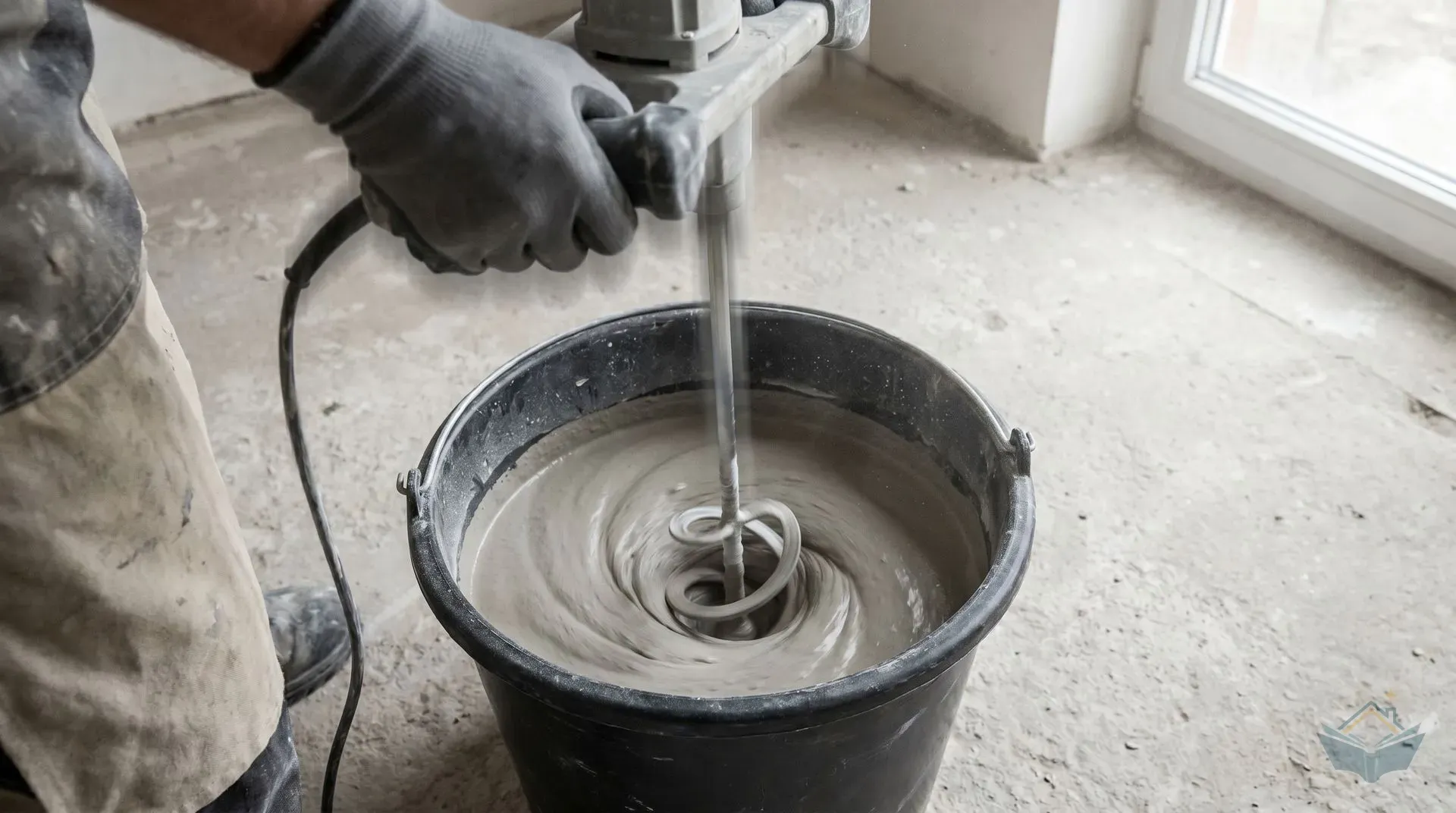

Lift and lower while mixing
Move the paddle in a slow figure-eight or up-and-down motion. This brings fresh dry pockets into the spinning head and lets mixed plaster fall back. Holding the paddle still leaves dry powder around the bucket walls and corners.
Mix for two to three minutes, never more than four
Two minutes is the target. Three is the maximum. Beyond four, air locks into the gypsum and the plaster pinholes on the wall. Set a timer.
Stop with the paddle still submerged
Bring the paddle to a stop while in the mix. Pulling a spinning paddle out of the bucket throws plaster across the room.
Clean the paddle within sixty seconds
Drop the paddle into a clean water bucket and run for thirty seconds at low speed. Plaster sets fast: leave it ten minutes and you'll be picking dried gypsum off the helix with a wire brush. Site trick when there's no clean water: drop the paddle into pea gravel and run for ten seconds. The gravel scours the paddle clean by abrasion.
For tile adhesive the technique is similar but the timing is shorter: 60-90 seconds of mixing, leave for two minutes to slake, then re-mix for 30 seconds. For self-levelling compound the technique is different again: low RPM, twin-disc paddle if possible, no air entrainment.
Warning
Cold water below 10°C extends the working time of gypsum plaster by around 30%, which sounds helpful but causes bond problems on a cold wall. Hot water above 25°C halves the working time, leaving you 20 minutes instead of 40 to get the plaster on the wall before it sets. Use clean cold mains water, and never mix new plaster in a bucket that still has dried plaster on the inside; the residue accelerates the set unpredictably.
Common mistakes
Wrong paddle for the material. A positive-helix paddle in a bucket of skim plaster pulls air into the mix and produces pinholes when the plaster is trowelled. A negative paddle in sand-and-cement mortar leaves a layer of unmixed sand at the bottom of the bucket. Match the paddle action to the material before you start.
Bucket too small. A 25kg bag of skim plus 11.5 litres of water sits at about 22 litres of mixed volume. A 14-litre builder's bucket overflows; a 20-litre bucket is right at the limit; a 30-litre flexible mortar bucket is the right size. Plasterers use the soft black flexible buckets sold at every merchant because they flex, which lets you tip plaster cleanly onto a spot board and squeeze the dried residue out for cleaning.
Bucket damage from paddle contact. Sharp-edged steel paddles scrape rubber and polypropylene buckets when held at an angle or pressed against the wall under load. The scrape contaminates the mix with rubber fragments. The fix is to keep the paddle vertical and away from the bucket walls, or buy a softer-bladed paddle (the OX MixM8 has rubber blades for this reason). One DIYnot user described his Makita paddle "chopping up" the yellow rubber bucket into the plaster, a real and underreported problem.
Mixing too long. More mixing does not produce a better result. Past the two-to-three minute mark, every extra second is putting air into the mix and shortening the working time on the wall. Stop when the mix is lump-free with a smooth-cream consistency.
Underpowered drill. A standard cordless combi drill burns out fast on tile adhesive. The smell of hot motor varnish is the warning. If you smell it, stop, let the drill cool for an hour, and either buy a dedicated mixer or use an SDS drill in rotary-only mode for the rest of the job.
What to buy
The buying decision splits into two routes: the cheap "I already own a drill" route, and the proper "I'm doing this more than once" route.
Route 1: Hex-shaft paddle for an existing combi drill
Budget hex-shaft mixing paddle (Erbauer, Wickes, Minotaur, OX Pro)
£6 – £16
The cheapest sensible setup. Buy a 100mm or 120mm hex-shaft spiral paddle and fit it into your existing combi drill or corded power drill. You'll handle one or two batches of plaster or tile adhesive comfortably; beyond that the drill protests.
Specific products that work well at this end of the market:
- Wickes Heavy Duty Paddle Mixer 120x600mm. Twin propeller, fits 10mm and 13mm chucks, suits adhesives, plaster, mortar, paste, and paint. The cheapest functional option.
- OX Pro Mixing Paddle 100x600mm. Positive ribbon (so better for mortar than skim), chrome-plated steel, hex shaft. The trade entry point.
- Minotaur Plaster Mixer 100x600mm from Toolstation. Budget end of the market, hex shaft, fine for occasional use.
- Erbauer hex-shank paddles from Screwfix. Own-brand, reliable, multiple sizes.
For tile adhesive specifically, look for a paddle marketed as a "tile adhesive paddle" or with a horizontal-shear (KR-style) head. These are slightly less common in retail but worth the search if you're doing a kitchen floor in adhesive.
Route 2: Dedicated paddle mixer with M14 paddle
If you're doing a whole extension's worth of plaster, render, or floor adhesive, a dedicated mixer is the right tool. The mixer is built for the job: high-torque gearbox, soft-start, two-handed grip, side handle, variable speed, M14 paddle thread.
The market splits into three tiers.
Budget dedicated mixer.
Budget dedicated paddle mixer (Wickes, ROKTOR, Aldi/Lidl, Draper)
£33 – £120
The Wickes Corded Paddle Mixer 1220W and the ROKTOR 1400W at Toolstation are the entry points at the bottom of this tier. BuildHub regulars praise the Aldi/Lidl seasonal mixers as better than they have any right to be at the price. For occasional homeowner use, this tier is enough.
Mid-range.
Mid-range dedicated paddle mixer (Einhell, Evolution Twister, Draper)
£89 – £140
The Einhell 1400W at Toolstation, the Draper 1400W, and the Evolution Twister are the mid-range options with variable speed and dual-handle ergonomics. This tier is the sweet spot for a homeowner who's doing a kitchen extension's worth of mixing and might use the mixer again on the next project.
Professional.
Professional dedicated paddle mixer (Refina Megamixer, Collomix XQ1)
£235 – £400
Refina Megamixer MM19, MM20, and MM30 are the entry-professional Refina models. Collomix XQ1 sits in the same range. These are what trade plasterers buy. Soft-start, slow-start, lock-on trigger, two-speed gearbox, capacity ratings up to 90 litres. Overkill for a single project but a tool that lasts twenty years.
Pair the mixer with a Refina, Collomix, OX, or Faithfull M14 paddle in the right type for your work. A Refina MR3 spiral in the £15 – £50 range is the everyday plasterer's choice. A Refina MR4 screw paddle is for stiffer mortar work. A Collomix DLX is the specialist self-levelling compound paddle.
What you also need
- A 30-litre flexible mortar bucket (£5 – £8 at any merchant). The black soft-rubber kind. Builder's buckets are too small and too rigid.
- A separate clean-water bucket. For cleaning the paddle after each batch. Any 14-litre builder's bucket will do.
- A gauging bucket or a 1-litre measuring jug. For accurate water dosing.
- A spot board or hawk. Mixed plaster goes onto the spot board so you can pick it up with a trowel and apply it to the wall.
External resource
British Gypsum Thistle MultiFinish installation guide
Manufacturer's official mixing instructions: 11.5 litres of water per 25kg bag, 40-minute working time, 90-minute set time. The standard reference for skim plaster mixing across the UK.
british-gypsum.com
Alternatives
Cement mixer (barrel mixer). For volumes above about 50 litres of mortar, render, or concrete, a barrel mixer is the right tool. Day hire from Speedy or HSS sits in the £30 – £50 range. The paddle attachment is for buckets; the barrel mixer is for wheelbarrow loads.
Hand-mixing with a gauging trowel. Below about 5kg of dry material, hand-mixing in a small bucket is faster than getting the drill out. Tile grout for a small splashback, plaster repair for a single hole, ready-mix mortar for one or two bricks: hand-mix it.
SDS drill in rotary-only mode. If you already own an SDS drill rated 1000W or above, fitting it with an SDS-Plus paddle or an SDS-to-M14 adapter is a free upgrade. The SDS gearbox is well suited to sustained heavy load. Confirm rotary-only mode and never engage hammer action.
Where you'll need this
- Plastering - mixing skim, multi-finish, and bonding plaster to a smooth lump-free paste
- Tiling - mixing tile adhesive and grout for floor and wall tile work
- Screeding - mixing self-levelling compound for floor preparation before tiling
The mixing paddle turns up at second-fix stage on any extension or renovation project that involves plastering, tiling, or floor screeding. It is also useful at small-batch concreting on garden walls, paving repairs, and any job that needs a bucketful of cementitious mix without the hassle of a barrel mixer.
Safety notes
Warning
Wet plaster, mortar, and tile adhesive contain alkaline cement or gypsum that causes skin irritation and eye burns on contact. Wear nitrile or rubber gloves when mixing, and safety glasses to protect against splashes when starting and stopping the paddle. Wash any skin contact with cold water within 30 seconds.
The paddle mixer pulls hard on your wrists when it engages a stiff mix. Keep two hands on a dedicated mixer at all times, brace the bucket against a wall or your foot, and never lock the trigger on a single-handed combi drill while mixing. If the paddle stalls in a stiff mix, release the trigger immediately rather than pushing through the resistance. A stalled mixer can break your wrist if it suddenly frees and spins.
Dust from dry plaster and tile adhesive is fine and respirable. Tip the powder slowly into the water rather than dumping it, and consider an FFP2 dust mask for repeat work in poorly ventilated rooms.
