Site Dumper Hire: Moving Spoil from the Dig to the Grab Lorry

The mini digger empties your foundation trench by mid-morning. By lunchtime a heap of clay the size of a small car sits beside the dig, and the grab lorry coming to take it away can only reach about 6 metres in from the road. So the spoil has to be carried, trip after trip, to a stockpile the lorry can actually grab. Do that by wheelbarrow and you will spend longer barrowing than the digger spent digging. A site dumper closes that gap, and most homeowners forget to book one until the spoil is piling up.

When you need one

A site dumper (also called a mini dumper, or at the smaller end a power barrow) is a self-propelled load carrier. It is a skip on the front, an engine to drive itself, and it exists to do one thing: move loose material across a site faster and with far less effort than a person with a wheelbarrow. On an extension it carries excavated spoil from the dig to a stockpile, brings hardcore or fresh concrete the other way, and shuttles muck to wherever the grab lorry or skip can reach it.

The reason you need one comes down to a mismatch. A mini digger out-digs your ability to clear spoil by hand many times over. A competent operator on a 1.5 tonne machine shifts twenty to forty cubic metres of earth in a day, and a single cubic metre of dug soil weighs well over a tonne. There is no realistic way to barrow that volume by hand in the same timeframe, and the digger itself can only swing spoil a few metres from where it sits. Meanwhile the lorry that takes it all away parks on the road and reaches roughly 6 metres in with its grab arm. The spoil has to physically travel from the trench to a stockpile inside that reach, and the dumper is what carries it.

You hire a dumper alongside a mini digger, not instead of one. The standard groundwork pairing for a domestic extension is a 1.5 tonne digger digging and a 1 tonne dumper barrowing the spoil away. See the mini digger hire guide for choosing and operating the digger itself; this page covers how the dumper works beside it. For a very small dig (a single soakaway pit or a short drain run) a wheelbarrow and a strong back will do. The dumper earns its hire fee the moment the spoil volume runs into tens of cubic metres, which is almost any full extension footprint.

~6m

Typical reach of a grab lorry's arm from where it parks on the road. Spoil has to reach a stockpile inside that distance, which is the gap a dumper closes.

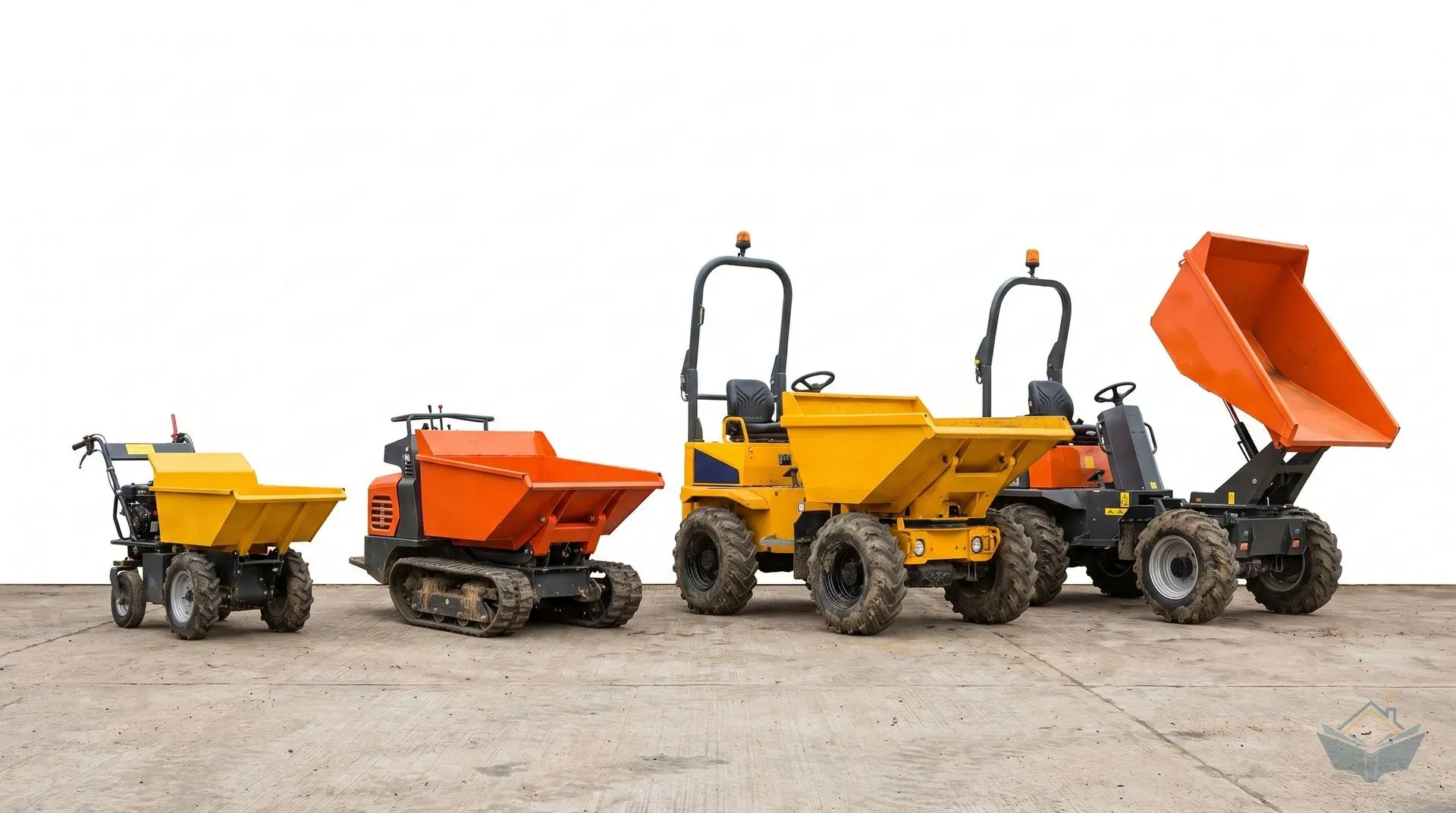

The types, and how to pick one

Dumpers come in a wide range, but for a domestic extension the choice is driven almost entirely by one thing: how wide the access is. The narrowest pinch point between the road and the back garden (usually the side gate, sometimes a carport or a shared alley) decides which machine can physically reach the dig. Measure that gap before you ring the hire company, exactly as you would for a digger, and add at least 100mm of clearance as an absolute minimum. The mini digger guide covers the side-gate measuring discipline in detail, and the same numbers apply here.

Within that constraint, the types differ by how they carry and tip the load.

The 1 tonne wheeled front-tip is the default for an extension. It is four-wheel drive, articulated in the middle so it turns in a tight radius, and it carries a tonne of spoil at walking pace, far faster than a wheelbarrow. At roughly 1.12 to 1.20m wide it clears most domestic side gates, and the roll bar folds down to pass under low obstructions or through a doorway. This is the machine the hire company puts on the trailer when you say "I'm digging extension foundations."

The high-tip is the same chassis with a hydraulic ram that lifts the skip before it tips, so the load drops from height. The point of it is tipping directly into a skip, or into the body of a grab lorry, rather than onto the ground. If your spoil plan is "tip into an 8-yard skip", a hi-tip saves you double-handling; a standard front-tip drops its load at ground level beside the skip, which then has to be loaded some other way. Note that a hi-tip needs around 1.5m of vertical clearance when raised, so check for low branches, soffits and cables.

A swivel (swing-skip) dumper rotates the skip to tip to the side without turning the whole machine. That is useful for placing spoil or backfill precisely along a trench edge, but it suits open access rather than a tight side return.

A tracked dumper swaps the wheels for rubber tracks. The tracks spread the weight, so the machine floats over soft, wet or freshly dug ground that would bog a wheeled dumper, and it does far less damage to a lawn. Tracked models are also narrower (700 to 860mm), which makes them a strong choice for both muddy sites and tight gates. They cost a little more to hire and travel more slowly, but on clay in winter they earn it.

A pedestrian power barrow (brand names like Muck-Truck and Belle come up constantly) is the fallback when nothing ride-on fits. You walk behind it. It carries 250 to 500kg, roughly three wheelbarrow loads, climbs slopes a barrow cannot, and squeezes through gaps as narrow as 600mm. It is slower than a ride-on dumper because you are still on your feet pushing it, but on a site whose only access is a 700mm passage down the side of the house, it is the difference between mechanised spoil moving and a fortnight with a shovel.

Self-drive or operated

The choice mirrors the digger. Self-drive means the hire company drops the machine and leaves you to operate it, fuel it and look after it. Operated hire means a carded operator comes with the machine and does the work. Many homeowners take the digger operated, because excavating accurately is the skilled part, then run the dumper themselves and barrow the spoil across the rest of the week.

That said, a dumper is not a toy. It is, by the numbers, the more dangerous of the two machines, because it tips over far more readily than a digger does (more on that below). If you have no plant experience at all, paying a freelance operator for the high-risk part of the job (slopes, edges, the first loaded runs) and finishing the easy flat-ground shuttling yourself is a sensible middle path, the same approach the mini digger guide recommends for the dig.

The competence and licensing question

The legal position is identical to the digger, so here is the short version. For domestic use on your own private land there is no government-issued "dumper licence". You can hire one and operate it on your own property without any formal certification. You are, however, legally required to be competent under the Provision and Use of Work Equipment Regulations 1998 (PUWER), which means you have read the operator manual, taken the handover demonstration from the hire company, and understand the controls and hazards before you start. If you are paying anyone to work on the site, it counts as a workplace and PUWER applies in full. On a commercial site the principal contractor will want a ticket: for a forward-tipping dumper that is typically CPCS A09 or the NPORS equivalent. None of that applies to your own domestic extension if you are operating the machine yourself, but if you hire a freelance operator, ask to see their card before they start. The mini digger guide sets out the full PUWER competence framing.

Rollover: the hazard that defines this machine

If you read one thing on this page, read this. A site dumper overturns far more easily than people expect, and overturning is overwhelmingly how dumper drivers are killed. HSE figures attribute over 60% of dumper deaths to the driver being crushed when the machine overturns, and HSE lists compact dumpers, alongside forklifts and tipper lorries, among the plant most prone to overturning on any worksite. The machine is tippy by design. It is short, it carries a heavy load high and forward over a small wheelbase, and the load shifts as you drive. Three situations cause almost every rollover:

• Driving across a slope instead of straight up and down it. A laden dumper traversing a gradient will roll downhill with very little warning. Always tackle slopes square on, up and down, never across the face.
• Tipping too close to an edge. Driving up onto a stockpile to tip, or reversing to the lip of a trench, puts a wheel over soft, crumbling ground that gives way under the weight. The machine then somersaults into the hole. HSE's own incident reports describe exactly this: a driver tipping on a stockpile, a wheel too near the edge, and the machine going over completely.
• Overloading or an uneven load raises the centre of gravity and unbalances the machine, especially over rough ground.

Loading, driving and tipping

The work itself is straightforward once the safety habits are in place.

Loading. Park the dumper on firm, level ground within easy swing of the digger and let the operator load the skip. Keep the load even and below the skip rim. One cubic metre of dug soil weighs roughly 1.6 tonnes, so a 1 tonne dumper carries well under a heaped cubic metre of dense clay. Do not try to heap it higher to save a trip; an overloaded skip raises the centre of gravity and is where rollovers start.

Driving. Take it steady, especially loaded. The machine is faster than a wheelbarrow but it is also heavier and harder to stop. Plan a haul route that is as flat and firm as possible, and protect anything you do not want chewed up. Even with rubber tracks or pneumatic tyres, lay timber boards or trakmats across block paving, lawns and delicate surfaces on the route from dig to stockpile. A loaded dumper will rut a wet lawn in a single pass.

Tipping. Drive up to a wheel stop on clear, flat ground, stop, then operate the tip. On a front-tip the skip pivots forward and the load slides off at ground level. On a hi-tip the skip raises first, so check overhead clearance, then it tips into the skip or lorry. Never tip while still rolling, and never tip with the machine pointing downhill on a slope. Reverse away with the skip lowered.

Sizing the stockpile and the trips

Spoil takes up more room out of the ground than in it, and this catches people out. Soil bulks as it is dug: subsoil and clay swell by roughly 20-30%, while topsoil and organic material swell more, around 40 to 50 percent. A foundation excavation that measures 17 cubic metres in the ground becomes appreciably more once it is loose, and more again once the topsoil strip is added on top. The mini digger guide sets out the bulking arithmetic in full. The practical point for the dumper is that a 20-plus cubic metre dig is a lot of one-tonne loads, which is exactly why the machine pays for itself over a wheelbarrow.

The whole chain has to line up in space. The digger fills the dumper, the dumper carries to the stockpile, and the stockpile has to sit inside the roughly 6 metre reach of the grab lorry that takes it away. For heavy spoil a grab lorry is usually cheaper than skips; the skip hire and site setup leaf covers the spoil-removal options and ordering. Either way, get removal sorted before the dig starts, or you end up with a dumper and nowhere to tip and a machine standing idle on hire.

Insurance, fuel and the rest of the admin

These are shared with the digger and covered in full on the mini digger page; the short version applies equally to a dumper. Your home contents insurance does not cover hired-in plant. If a self-drive dumper is stolen, tipped into a trench, or used to clip a neighbour's wall, you are liable for the full replacement cost. Cover the gap with the hire company's damage waiver (commonly around 15 percent of the hire rate, the simplest option for a short hire), a specialist hired-in plant policy (better value beyond a few days), or by taking operated hire, where the machine sits on the hire company's insurance. Whatever you arrange, photograph the machine on arrival so you are not charged for damage that was already there.

On fuel, hired dumpers run on white forecourt diesel from a normal filling station. The April 2022 rule change removed construction's entitlement to rebated red diesel, so do not be tempted by it. A jerry can and funnel are part of the hire kit, not optional. And do not skip the handover demonstration; it is ten minutes that prevents the operator errors that come from "the controls were different on this one."

Day rate or week rate

The arithmetic matches the digger. A bare 1 tonne wheeled dumper runs £90 – £132 per day per day or £195 – £300 per week per week before delivery, fuel and insurance, so the week rate breaks even at around three days of daily hire. Once you are likely to need it past three days, book the week, because returning early costs nothing. A pedestrian power barrow runs £150 – £235 per week per week. If you want an ex-VAT figure to sanity-check a quote, a bare 1 tonne dumper is roughly 75 to 110 pounds a day before VAT. Because the dumper and digger are hired together, line their periods up so you are not paying for one to sit idle while you finish with the other.

The mistakes homeowners make

The same handful of errors come up again and again across hire-company guidance and UK forums.

• Wrong size for the access. People spec a bigger dumper for the payload, then find it will not pass a side gate under 1.5m wide. Measure the narrowest pinch point, add 100mm, and match it against the retracted width on the actual machine's spec sheet, not a generic claim.
• No spoil-removal plan. A dumper with nowhere to tip sits idle on hire. Order the grab lorry or skips, and confirm where the lorry parks and reaches, before the digger turns its first bucket.
• Driving across slopes and tipping over edges. Drive square on, up and down, fit wheel stops at every edge, and stay belted in the seat.
• Overloading. Heaping the skip above the rim to save trips raises the centre of gravity and is a leading cause of tipping. Load level and take the extra run.
• No banksman near boundaries. A second pair of eyes on the blind side, near walls, fences, services or anyone on foot, is the difference between a finished job and a damaged neighbour's wall.
• Fuel admin. White forecourt diesel only since 2022, and most machines come with a small starter quantity and are expected back at the level they left at. The jerry can and funnel are part of the kit.

Where you'll need this

A site dumper appears at the groundwork stage of any extension or renovation project that generates more than a wheelbarrow's worth of spoil:

• Excavation and Muck Away - moving excavated spoil from the dig to a stockpile within the grab lorry's roughly 6 metre reach, working alongside the mini digger
