Electric Planer: Door Trimming, Timber Levelling, and Blade Guide

You hang a new internal door and it won't close. The frame has shifted slightly, the floor has a subtle rise, or the door was never quite right. A joiner charges around £80 to come out and adjust one door. An electric planer is £90 – £155, and it trims a door in ten minutes once you understand how to use it. Bought once, it earns back its cost the first time you use it.

But the planer is also one of the most commonly misused tools on a self-managed build. People set it too deep, go against the grain, and skip the staple check. The results are torn timber, destroyed blades, and doors that look like they were attacked rather than adjusted.

The difference between a good result and a ruined door is almost always technique.

What it is and when you need one

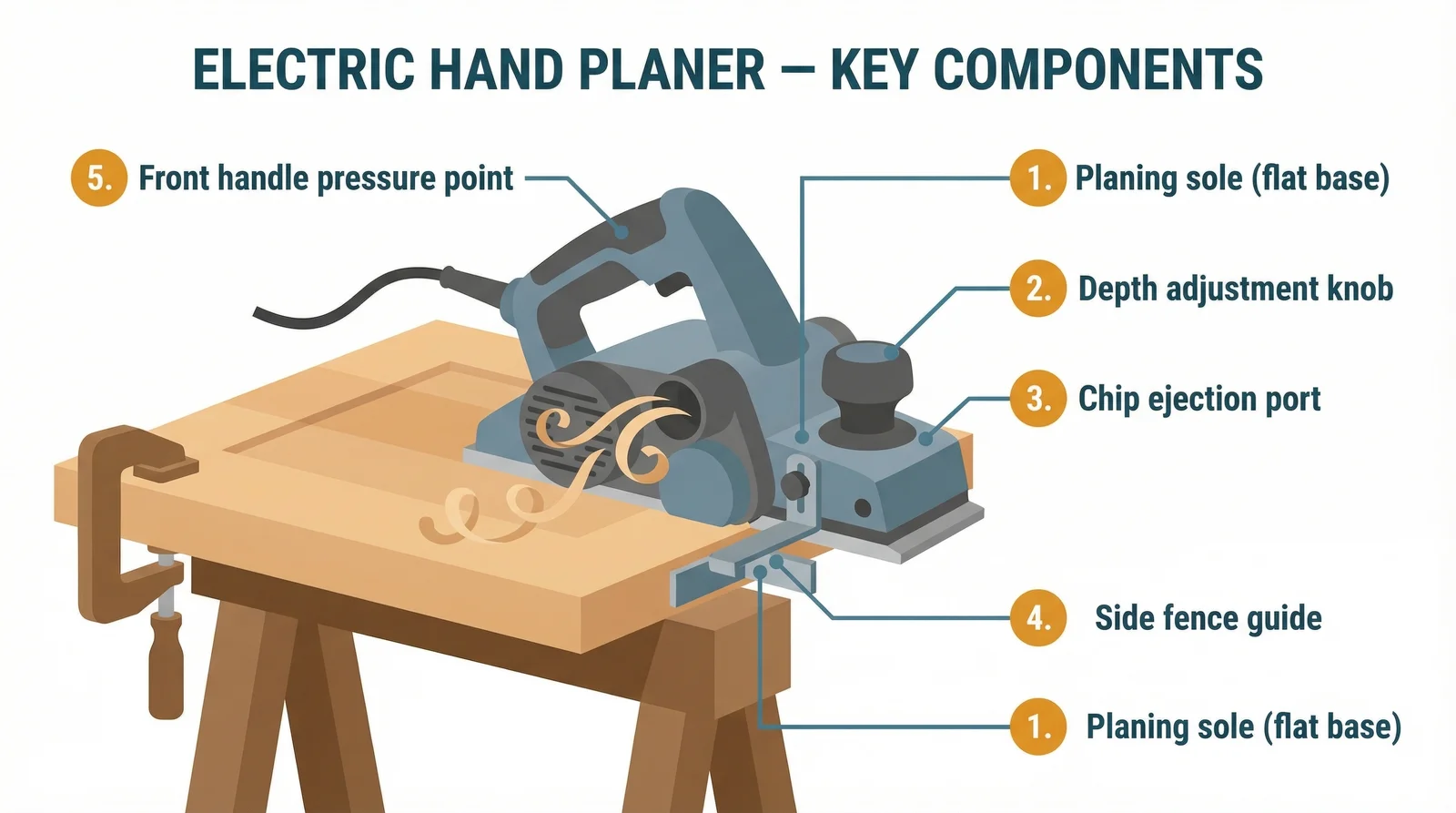

An electric planer is a handheld power tool with a rotating cutter block (a drum fitted with two or more blades) spinning at around 15,000 to 19,500 rpm. As you push the tool forward along the timber, the rotating blades shave a thin layer from the surface. The depth you're removing per pass is set by raising or lowering the front shoe (the forward section of the flat base). Raise the front shoe and you take less off. Lower it and you take more.

That's the whole mechanism. The sophistication is in how you use it, not in what it does.

The primary site use is door trimming. Doors bind at the bottom as floors settle, at the sides as frames move, and at the top as moisture causes swelling. A planer takes off 0.5mm to 2mm in a controlled pass, leaving a smooth edge that barely needs sanding. Do the same thing with a handsaw and you spend ten minutes marking, cutting, and still end up with a ragged edge that needs real cleanup.

The second common use is levelling timber on site: flattening a slightly crowned joist that's causing a floor to bounce, levelling the top of a stud wall frame before boarding, or trimming a door lining that's come out a millimetre proud.

The third use is cutting rebates. A rebate is a step-shaped groove cut along the edge of a piece of timber, used to create overlapping joints in window frames, door stops, and cabinet carcasses. Most planers accept a parallel fence (a side guide) and have a rebate depth stop, allowing you to cut a rebate to a consistent depth. The maximum rebate depth varies by model: around 8mm on budget models, up to 25mm on professional tools.

Types and variants

The electric planer comes in two fundamentally different forms. The names overlap in a confusing way, so be clear on which you're hiring or buying.

Handheld electric planer is what almost every homeowner needs. You hold the tool and push it along the timber.

Planer thicknesser (also called a bench thicknesser or surface planer) is a benchtop machine where you feed timber through a fixed drum. It's used for processing rough-sawn lumber to precise thicknesses and for jointing edges dead straight. Joiners and woodworkers use them. Extension builders don't. If a hire centre asks "planer or planer thicknesser?", you want the handheld planer.

Among handheld planers, the relevant distinctions are corded vs cordless, and power tier:

The 82mm planing width is essentially universal across UK planers. Don't overthink this spec. A wider drum would make the tool unwieldy for the kind of narrow-edge work (door edges, door linings, skirting repairs) that dominates extension use.

How to use it properly

This is the section that separates a clean result from a ruined door.

Before you touch timber: the staple check

Any site timber that has been stored, handled, or previously fitted may contain embedded nails, staples, or hidden fixings. A planer blade spinning at 16,000 rpm hits a staple and the blade is destroyed instantly. The staple then has the kinetic energy of something fired from a gun.

Before every planing session on any timber that isn't fresh from the pack, run your hand along the surface and check with a torch at an angle. If the timber has been stored on site where packers or strapping have been used, check for staples specifically. This takes thirty seconds. A new set of blades costs £8 – £17. A new door costs considerably more.

Setting the depth

The depth knob is on the front of the tool or on the front shoe itself. The scale shows the depth per pass in millimetres, typically 0 to 3mm on a budget model and 0 to 4mm on a professional tool.

For door trimming, set the depth to 0.4 to 0.5mm. That's at the shallow end of the scale. It seems very little, but a door edge is typically 35 to 40mm wide and you're shaving the full width with each pass. Multiple shallow passes give you full control. You can always take more off. You can't put it back.

The temptation is to wind the depth up to get it done faster. Don't. At 2mm depth, the planer is working harder, the blades blunt faster, the cut is harder to control, and any deviation in your line becomes amplified over the length of the door.

For rough site timber levelling where finish quality is less critical, 1 to 1.5mm per pass is reasonable. For a final finishing pass, turn it back down to near-zero.

Hardwood responds differently to softwood. Oak, ash, and iroko used in door frames and sills resist the blades more than pine or spruce. For anything you'd describe as hardwood, keep depth at 0.5mm maximum to prevent chatter (the blade skipping rather than slicing cleanly) and surface tear-out.

Grain direction

Wood fibres run along the length of the board. Plane with those fibres, meaning push the planer in the direction the grain runs, and the blades slice cleanly. Plane against the grain and you're lifting the fibres before cutting them, which creates a torn, rough surface rather than a smooth one.

On most timber, identifying grain direction is straightforward: look at the surface and you'll see the grain lines running roughly parallel to the edge. The "downhill" direction, the way the grain lines angle toward the surface, is the direction to plane. Go the other way and you'll feel it immediately: more resistance, rougher sound, rougher surface.

On timber with reversed or interlocked grain (common in some hardwoods, and in reclaimed timber where pieces have been joined), the safe approach is to reduce depth to 0.3mm and take multiple very shallow passes. Alternatively, a belt sander will surface such timber without tear-out issues, at the cost of speed.

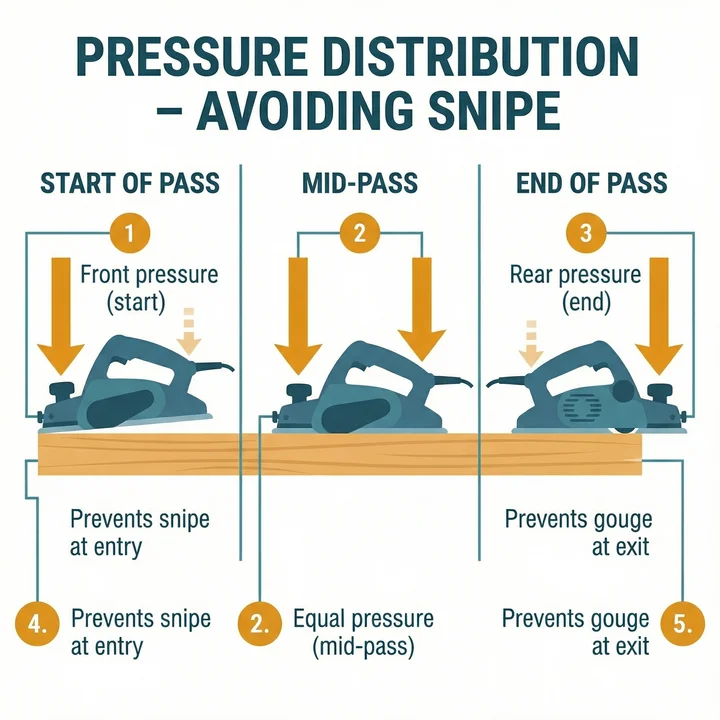

The pressure shift technique

The single most common mistake beginners make with a planer is called snipe. At the start of a pass, with only the front shoe on the timber, there's a tendency to press down on the front handle, angling the blades slightly into the surface. The result is a slightly deeper cut at the beginning of the pass. At the end of a pass, when only the rear shoe is on the timber, the same thing happens in reverse: a slight tip creates a deeper cut at the exit.

The fix is deliberate pressure distribution. At the start of the pass, apply downward pressure on the front handle and let the rear follow. Through the middle, keep pressure even on both handles. At the end of the pass, shift pressure to the rear handle as the front shoe passes the end of the board.

This sounds complicated. After three passes it becomes instinctive.

Click to enlarge

Door trimming step by step

Door trimming is the most common use and the one where technique matters most.

1. Measure what needs to come off. Close the door and check the gap (or the bind point) against a straight edge and pencil mark on both faces of the door. You need to know how much to remove before you start, not after.

2. Remove the door. Lift it off the hinges. Trying to plane a door in situ is possible but harder. The door on sawhorses at waist height, clamped or wedged so it can't move, gives you a stable working surface and full control over the planer path.

3. Check for nails. The hinge recesses may have old nails from previous adjustments. Run a torch along the edge being trimmed.

4. Set depth to 0.4-0.5mm. Wind the depth to near-minimum. You'll be making multiple passes.

5. Apply painter's tape along the cut line on both faces. The tape acts as a visual guide, prevents the planer's sole from scratching the door finish, and makes it easier to see how close you are to the line.

6. Wait for full speed. Allow the motor to reach running speed (1 to 2 seconds) before the blades contact timber. Starting on timber with a slow motor creates an immediate gouge.

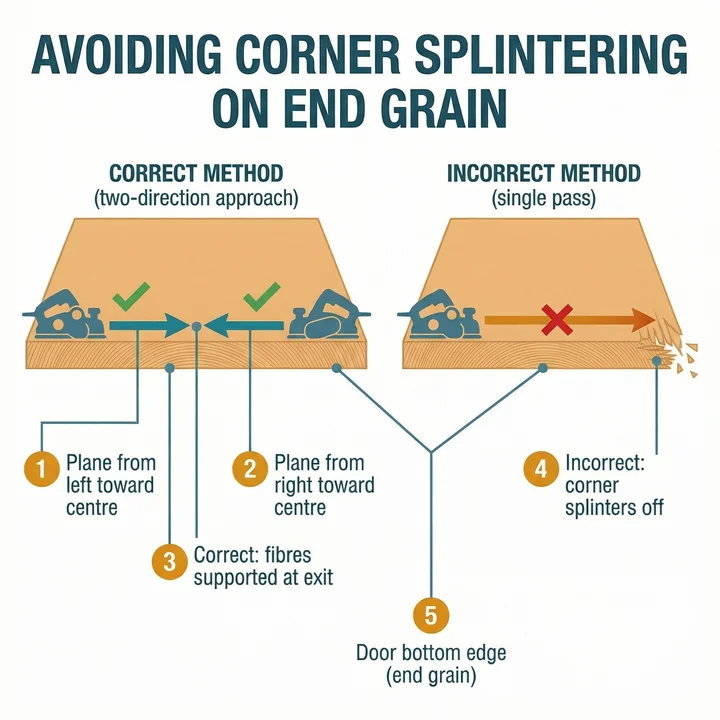

7. For end grain corners, work from the ends toward the centre. This is the technique that prevents corner splintering. Planing straight across the full width of a door bottom, from one face to the other, causes the blades to exit the far end while still cutting fibres, splitting the corner off. Instead: plane from the left edge toward the centre, stop before reaching the far corner, then plane from the right edge toward the centre. The two passes meet in the middle, and neither creates an unsupported exit.

8. Measure after each pass. Don't assume you've taken off the right amount. Check against your line on both faces.

9. Seal the exposed edge. Any raw timber that wasn't previously painted or sealed will absorb moisture and swell again. Apply a coat of wood primer or exterior-grade paint to the trimmed edge before rehinging the door.

Click to enlarge

Blade types and replacement

Two blade materials are in common use on UK planers:

HSS (High Speed Steel): The standard on most budget tools and many mid-range models. HSS blades are harder to blunt on clean softwood. They can be resharpened (a professional blade sharpening service charges £5 to £10 per blade) rather than replaced. The disadvantage is that HSS blunts quickly on abrasive materials: MDF, chipboard, plywood, and hardwood all destroy an HSS blade far faster than clean softwood.

TCT (Tungsten Carbide Tipped): The industry standard for site work. A carbide-tipped edge holds its sharpness significantly longer than HSS, particularly on the abrasive composites and hardwoods you encounter on a renovation project. TCT blades aren't resharpened; they're replaced when dull. But the higher initial cost is offset by lasting perhaps twenty times as long as an HSS blade in comparable use.

The practical recommendation: if your planer takes HSS blades (most budget models do), keep a spare set. If it takes TCT, you'll get more mileage before a swap is needed, but carry spares regardless. A dull blade announces itself with burn marks (dark streaking on the planed surface) and a changed sound, lower and more laboured than a sharp blade.

Most 82mm planers use double-edged reversible blades. This format has two cutting edges per blade. When one edge dulls, you flip the blade in the holder and use the second edge before replacing. That effectively doubles service life per blade.

Replace both blades at the same time. Running one new blade and one old blade creates an imbalance in the cutter block that causes vibration and an uneven cut.

What to buy

The community consensus is clear on brand: Bosch and Makita consistently outperform budget alternatives on blade accuracy and motor longevity. The Makita M1901 and Bosch GHO 16-82 D are the two mid-range models most often recommended on UK trade forums for exactly this category of use. Budget own-brand tools (Wickes-branded, B&Q Erbauer, Silverline) work initially but the motors wear faster and the blades are less precisely ground, which shows up as a rougher finish.

One consideration worth naming: if you already own a Makita 18V battery platform from drills or other tools, the Makita DKP180Z cordless planer uses the same battery. Picking up the bare tool for £135 – £230 and using a battery you already own is a legitimate argument. Same logic applies to DeWalt 18V and Milwaukee M12 platform owners.

Planer vs belt sander vs router

These three tools are sometimes treated as interchangeable for timber edge work. They're not.

Planer: bulk material removal along an edge or surface. Produces a flat surface ready for sanding or painting. Fast. Not suitable for precise decorative profiles.

Belt sander: surface refinement. Use after the planer to produce a finish-quality surface. A belt sander won't remove a millimetre quickly; that's not what it's for. Use it to smooth the planed surface, remove machine marks, and bring the timber to painting quality.

Router: precise profiles, rebates, and decorative edges. A router with the right bit cuts a chamfer or rebate to a defined depth with more repeatability than a planer fence. Use a router when the profile needs to be exact or when you're creating decorative edges that will be seen. Use a planer when you need to remove material across the face or edge of timber.

A common sequence in door fitting: planer to take off the required material, belt sander to smooth the planed edge, hand sanding block to remove any remaining marks before painting.

Alternatives

A hand plane does the same job and is the only real alternative. It's slower, requires considerably more skill to use well, and produces no noise or dust. For a single door trim on a quiet Sunday morning, a hand plane is entirely reasonable. For any quantity of material removal across a project, the electric planer wins on time and consistency.

A circular saw with a straight edge guide is the right tool for removing 5mm or more from a door edge. A planer struggles to maintain a perfectly straight line over the full 78 inches of a door, particularly for larger cuts where pass count accumulates. Cut with the saw first; clean up the edge with the planer if needed.

Safety

Electric planer blades run at 15,000 to 19,500 rpm. At that speed the blades are invisible and the cutter block looks like a smooth cylinder. This creates a cognitive hazard: the tool looks safe when it's actually at maximum danger. Multiple UK forum members have reported finger injuries from touching the cutter block while the motor was still spinning down, or while adjusting depth with the motor still connected.

The rules that prevent almost all injuries:

1. Allow the motor to stop completely before setting down the tool. The cutter block spins on after you release the trigger. Keep it pointed away from your body and any surface until the sound has completely stopped.
2. Never adjust blade depth or inspect the cutter while the tool is plugged in. Disconnect the power before any access to the blade area.
3. Check for embedded nails before every session. One nail at full rpm has enough energy to cause a serious laceration or eye injury from a fragment.
4. Wear safety glasses. Planers produce shavings rather than fine dust, but chips and fragments eject at speed from the port.
5. Use the dust bag. Without it, shavings spread several metres across the work area, cover every surface, and create a slip hazard on a site with loose material underfoot. The bag fills fast at shallow settings where the port is narrow; check and empty it frequently.

Where you'll need this

Electric planers appear across multiple phases of any extension or renovation project:

• Windows and doors - trimming new doors to fit the frame after hanging; adjusting door frames where reveals are out of square
• Flooring - trimming timber floorboards to width at perimeter rows; levelling battens before laying boards
• Second fix electrics - trimming door linings and architrave timber where carpentry has come out slightly proud
• Roof structure - chamfering rafter edges; levelling timber where bearing surfaces need adjustment before boarding
• Kitchen installation - trimming kitchen unit plinths and end panels to fit where floors or walls are not perfectly level or square
