Nail Guns: First Fix, Second Fix, Gas vs Pneumatic - The Complete UK Guide

Your carpenter quotes £200 to nail off the roof structure. You know it's two hours of work. The reason labour costs are that high isn't skill at this stage: they own a professional-grade Paslode nailer and you don't. A rented first fix nailer at [CostRange: missing price data for nail-gun-hire-first-fix-per-day] for the day, and you can drive the same nails yourself, correctly, while your carpenter watches. Or your builder uses it on your account. Either way, understanding this tool means you're not at the mercy of whoever happens to have one.

What it is and when you need one

A nail gun drives nails into timber at high speed using compressed air, gas, or battery power. That's it. The mechanism is a piston striking a driver blade that pushes the nail through a loaded strip or coil. On a gas model, combustion drives the piston. On a pneumatic, an air compressor does. On a battery model, a solenoid or flywheel does.

The reason trades use nail guns instead of hammers isn't just speed, though speed is real. An experienced user with a first fix nailer can drive 30 nails in the time it takes to hand-nail four or five. The reason is accuracy: a nail gun drives nails to a consistent depth, at a consistent angle, without splitting the timber. Hammer nailing misses, glances, bends nails, and drives at whatever angle the hammer swings.

On an extension project, you'll encounter two distinct types of use, and they require different tools.

First fix work: structural framing, roof rafters, joists, noggins, studwork, sheathing boards. Nails here are 50mm, 63mm, or 90mm, with ring-shank profiles (more on that below), and they carry structural loads. The tool that fires them is sometimes called a framing nailer.

Second fix work: skirting boards, architrave, door linings, coving, beading, trim. Nails here are small brads (16-gauge or 18-gauge, typically 32mm to 63mm), almost invisible when set below the surface. The tool is a brad nailer or finish nailer.

These are not interchangeable. A first fix nailer won't accept brads. A brad nailer can't drive 90mm ring-shank nails. Buy or hire the right one for the job in hand.

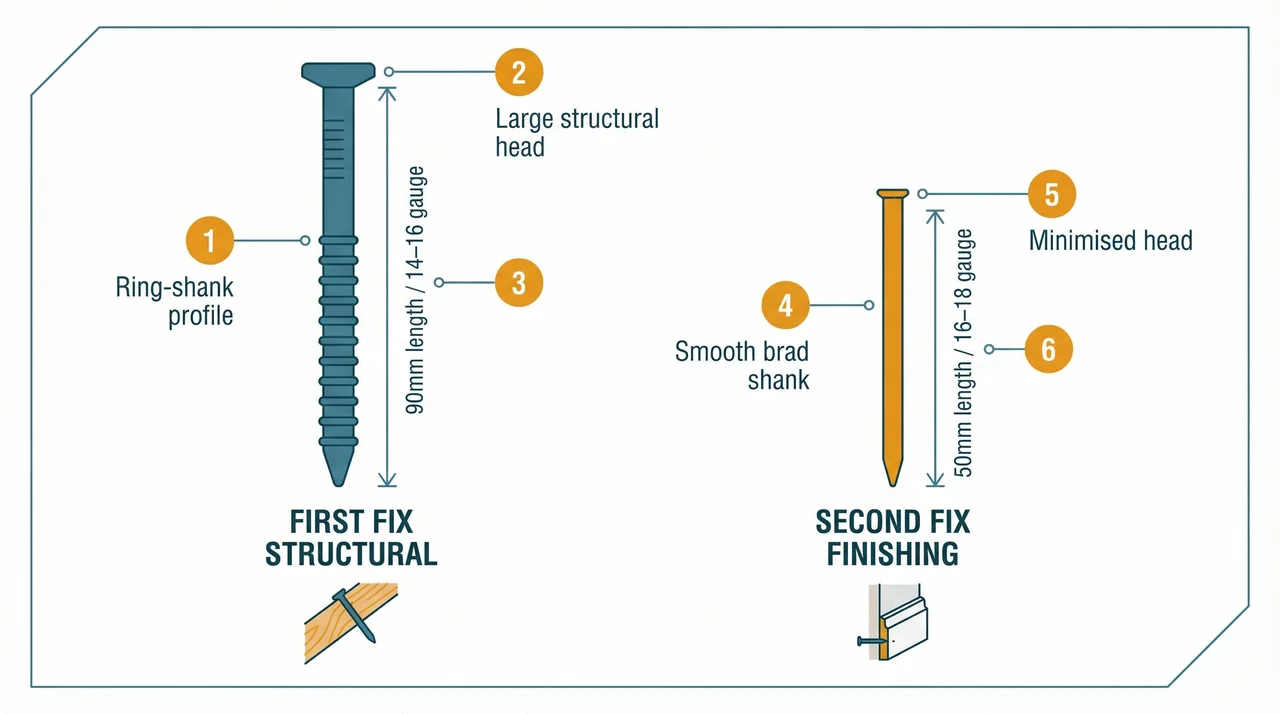

Ring-shank vs smooth: why nail profile matters for structural work

Most people assume a nail is a nail. This is fine for finishing trim, where the nail's only job is to hold a piece of moulding in place. It's wrong for structural timber.

Ring-shank nails have a series of annular rings (circular ridges) machined along the shank. These rings bite into the timber fibres as the nail is driven, creating a mechanical interlock that resists withdrawal. Ring-shank nails resist withdrawal far more effectively than smooth-shank nails of the same length.

For roof rafters, joists, noggins, and sheathing, withdrawal resistance is the critical property. Wind loads, roof loads, and live loads (the force of people and materials on the structure) are trying to pull the connections apart. A ring-shank nail resists that. A smooth nail doesn't, not reliably.

For second fix work, smooth brads are correct. Skirting isn't carrying structural loads. A ring-shank brad would be overkill, and the rings would make it very difficult to punch below the surface cleanly for filling.

The practical rule: ring-shank for anything structural or hidden, smooth for anything that will be filled, painted, and seen.

First fix vs second fix: the full comparison

There's a third type worth knowing: the coil nailer, which holds 200–300 nails in a coil magazine rather than a stick of 20–55. Coil nailers are used for high-volume work, such as nailing off plasterboard across a whole extension, where reloading every 30 nails would kill the pace. If your builder is fitting plasterboard and they want a coil nailer on site, it's a legitimate request.

Click to enlarge

Gas, pneumatic, or battery: which power source for an extension

This is the decision that confuses most homeowners before they've used either tool. Here's the honest assessment for UK extension work.

Gas nailers (cordless, self-contained)

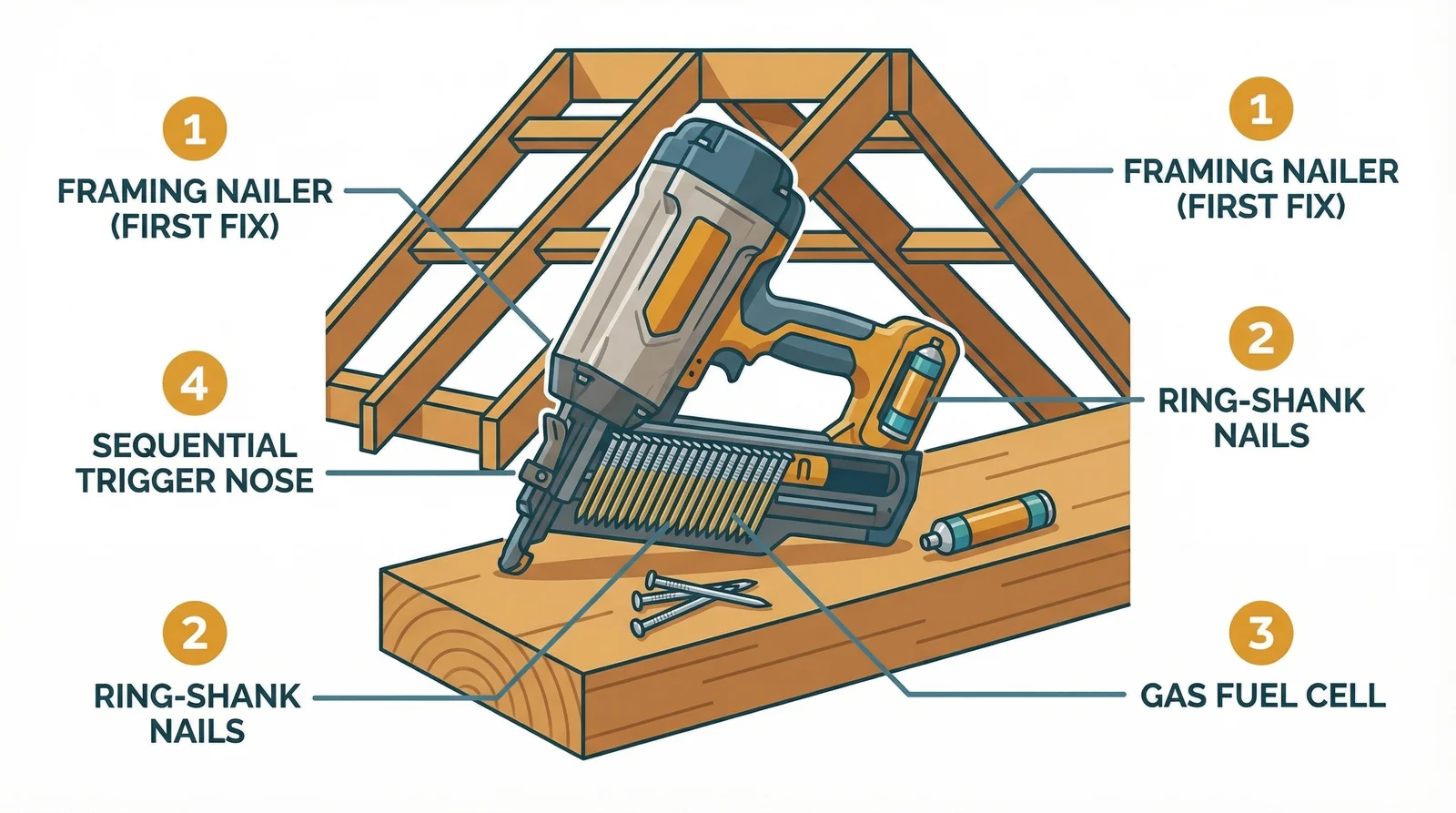

The trade standard in the UK for mobile site work. A small fuel cell (a canister of liquefied petroleum gas, roughly the size of a lighter) sits in the handle. When you fire, gas ignites and drives the piston. The tool is fully self-contained: no compressor, no hose, no cable, no generator. Pick it up and go.

The Paslode IM350+ is the UK benchmark for first fix. The IM65A is the benchmark for second fix. Both are expensive ([CostRange: missing price data for nail-gun-gas-first-fix-paslode-im350] for the first fix model, [CostRange: missing price data for nail-gun-gas-second-fix-paslode-im65a] for the second fix). The price buys you reliability and the fact that every trades professional in the UK knows how to use it, troubleshoot it, and get parts for it.

Running costs: each framing fuel cell is [CostRange: missing price data for nail-gun-paslode-fuel-cell-framing] and fires 1,100 shots. For second fix, finishing cells are [CostRange: missing price data for nail-gun-paslode-fuel-cell-finishing] per 1,000 shots. On a full extension project you might use six to ten framing cells in total. The structural nailing happens in bursts concentrated on roofing week and framing week, not continuously.

Pneumatic nailers

A pneumatic nailer uses compressed air from a separate compressor via a hose. The bare tool is much cheaper: a decent pneumatic framing nailer is [CostRange: missing price data for nail-gun-pneumatic-first-fix-entry]. Add a small oilless compressor at £80 – £200 and your total setup cost is still well below a single Paslode.

The pneumatic wins on running cost and cold-weather reliability. Compressed air is not temperature-sensitive. And the tool itself is lighter, since there's no battery or gas mechanism. The compressor does all the work.

The drawback is the hose. On an open floor slab or ground-level framing, the hose is manageable. On a roof structure where you're moving along rafters and turning in tight spaces, a trailing hose creates trip hazards and restricts movement. For roofing work specifically, the mobility of a gas nailer wins.

Battery nailers

Cordless battery nailers (DeWalt XR, HiKOKI, Makita) are increasingly common for DIY buyers who already own 18V batteries on a platform. They work well for first fix use where you're not doing sustained overhead work all day. The main complaint in the UK trade community is weight: a battery framing nailer is heavier than a gas model, and that extra weight becomes significant after an hour of nailing off rafters overhead.

One specific warning: the HiKOKI battery framing nailer had a documented double-firing issue (firing two nails when one was intended) that the manufacturer acknowledged. Double-firing in structural timber is a problem because it means you can't control nail count or placement. If your battery nailer is misfiring, stop and establish why before continuing on structural work.

Battery nailers make sense if: you already own batteries on the platform, your use is concentrated rather than sustained, and you're not doing hours of overhead roofing work.

The recommendation for a UK extension project: hire a gas nailer (Paslode IM350+ for first fix, IM65A for second fix) rather than buying. The hire cost is [CostRange: missing price data for nail-gun-hire-first-fix-per-day] per day, [CostRange: missing price data for nail-gun-hire-first-fix-per-week] per week. Structural nailing on a roof frame takes one to three days. Second fix trim nailing takes another two to three days, spaced over a week. Hire for each phase as you need it.

If your builder has their own Paslode, you don't need to hire. If they're charging you labour for nail gun work without owning the tool, that's worth questioning.

How to use a nail gun properly

Nail guns look simple to operate. They are. The technique is not complicated. But there are several failure modes that new users hit immediately, and all of them are preventable.

Loading

Strip nailers take sticks of nails (usually 20 to 55 nails per strip depending on nail size). The nails are held together in a plastic or paper weld. Open the magazine, insert the strip with the nail heads in the correct orientation (the tool's manual shows this clearly), close the magazine until it clicks. Never force the magazine closed. If it's not closing smoothly, the strip isn't seated correctly.

Paslode nails for the IM350+ are sold as nail-and-fuel packs (1,100 nails plus one fuel cell, [CostRange: missing price data for nail-gun-nails-per-1000] for nails alone). Use manufacturer or approved-compatible nails. Third-party nails that are close but not exact in wire gauge or collation angle cause misfires and jams. Timco nails are widely cited as compatible with Paslode tools and represent a cost saving without reliability loss, but verify compatibility for your specific model before buying in bulk.

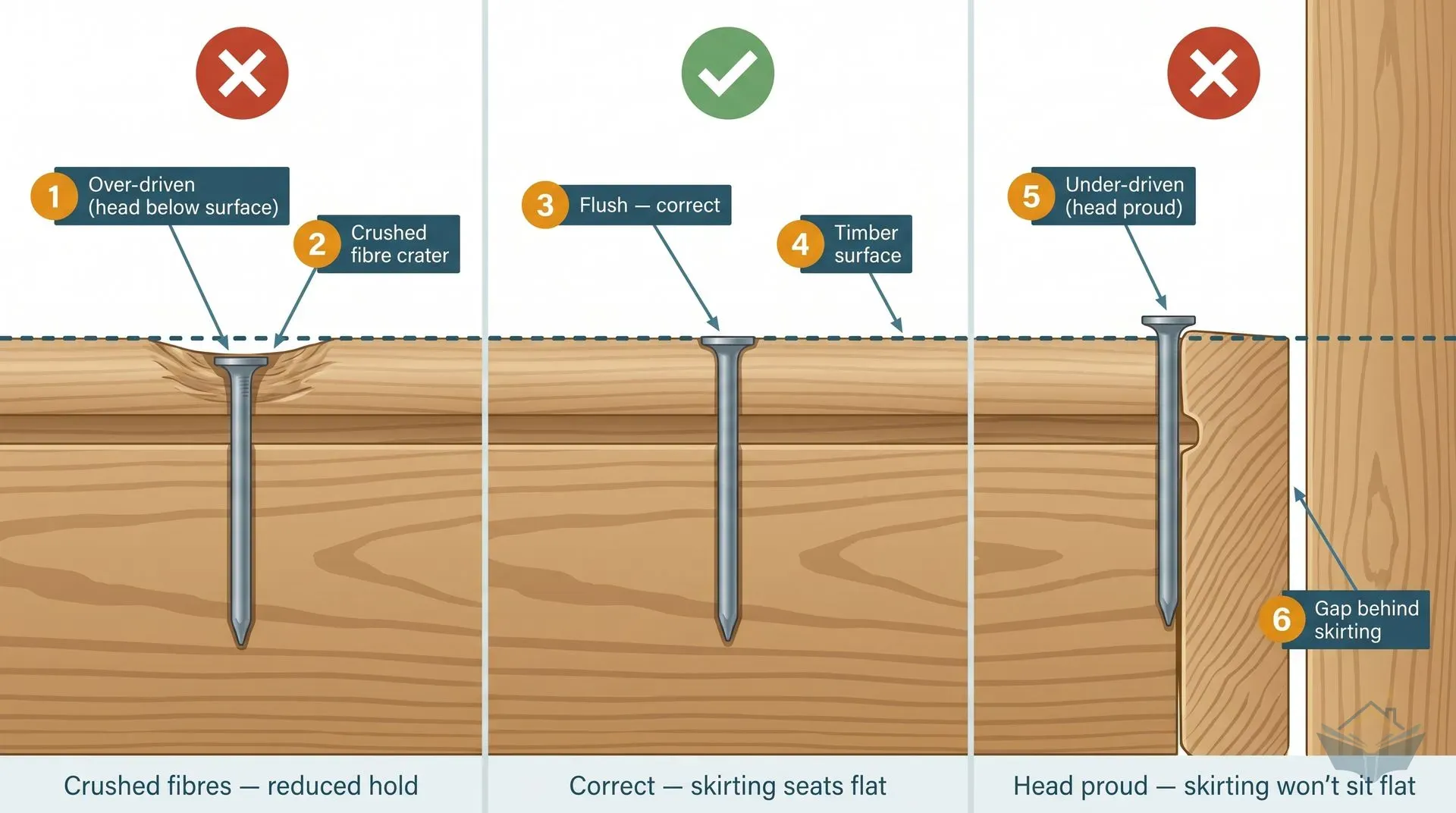

Depth of drive

Every nail gun has a depth adjustment. This is a knurled ring or a dial on the nose of the tool that moves the contact point forward or back, changing how deep the nail sits when it stops.

Over-driven nails (nails driven too deep) crush the timber fibres around the head. In structural timber, this reduces the holding capacity of the connection. In plasterboard, it breaks the paper face and reduces the board's pullover resistance. In skirting and architrave, it creates dents you then have to fill.

Under-driven nails (nails that haven't gone flush) protrude and prevent the next layer from sitting flat. Plasterboard won't seat properly against a protruding nail head. Skirting boards will spring out at the fixing points.

Set your depth on a scrap piece of the same material before firing any production nails. Drive three or four test nails. The nail head should sit flush with the timber surface, or very slightly below. Not flush with a surrounding crater, not standing proud. Adjust and test until it's right, then leave the setting alone unless you change material.

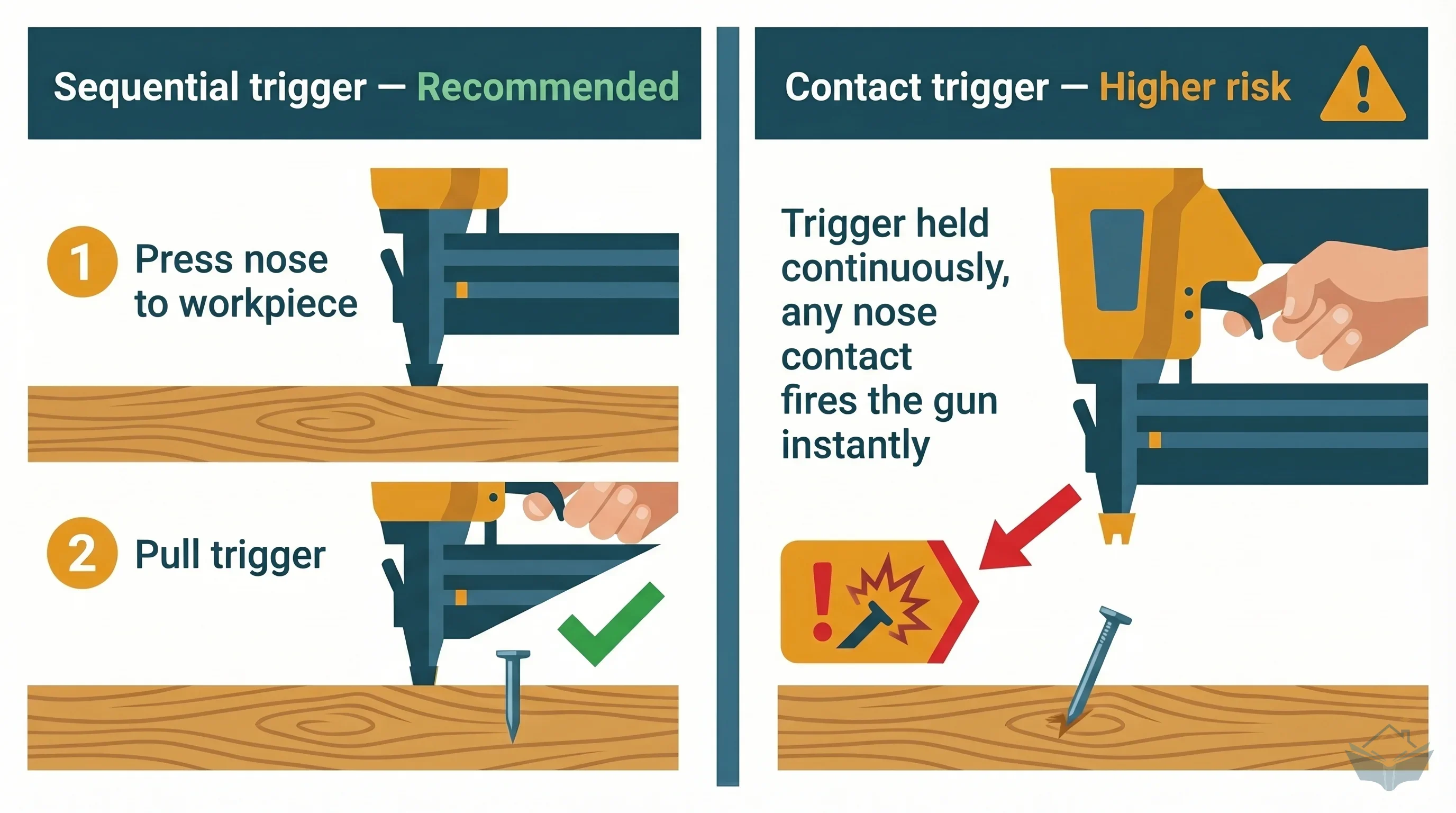

Trigger types: sequential vs contact

This is the most important safety concept for a beginner.

A sequential trigger (also called a single-shot trigger) requires two separate actions to fire: you press the nose contact (the safety tip at the front of the barrel) against the timber, then pull the trigger. Each nail requires this sequence. It's slightly slower but precise, and the vast majority of injuries to hands and feet are prevented by it.

A contact trigger (also called a bump trigger or bounce-fire) fires the moment the trigger is held down and the nose contact touches any surface. This allows very rapid nailing by moving the tool along a framing member while holding the trigger, firing on contact. It's the fast mode. It's also the mode that causes injuries.

The statistical picture is clear: the risk of injury is roughly double with a contact trigger compared to a sequential trigger. Over half of nail gun injuries affect hands and fingers, caused by the tool bouncing off the work, by the contact safety depressing against a body part, or by the nail ricocheting.

Use sequential trigger for all extension work. The speed difference is not meaningful for a homeowner doing one project. The Paslode IM350+ ships with a sequential trigger as standard. Don't modify it.

Clearing a jam

Jams happen. A nail feeds slightly off-angle, the nose contacts at a shallow angle, a previous nail doesn't fully drive. When the tool won't fire and there's a nail stuck in the nose, follow this sequence exactly:

1. Disconnect power. For a gas nailer, remove the fuel cell. For a pneumatic, disconnect the air hose.
2. Keep the nose pointed away from people.
3. Open the nose latch or jam clearance mechanism (the Paslode IM65A has a quick-release nose for exactly this). On other models, the front plate or magazine door releases.
4. Remove the jammed nail or partial strip with needle-nose pliers. Never use your fingers.
5. Check the driver blade is fully returned before closing the nose.
6. Reconnect power and test on scrap before continuing.

What to buy

For a full extension project: hire, don't buy

A full extension uses a nail gun heavily during three phases (roof structure, first fix carpentry, and second fix trim) and barely at all the rest of the time. Buying a [CostRange: missing price data for nail-gun-gas-first-fix-paslode-im350] Paslode for occasional use makes poor economic sense. Hire as needed.

Hire centres stock the Paslode IM350+ as their standard first fix nailer, and you'll get the professional-grade tool without the capital outlay. Budget for nails and fuel cells separately (the hire centre supplies the bare tool only).

If you're buying

There are legitimate reasons to buy: you're building multiple structures (extension plus outbuilding, for instance), you're managing a long project where hire costs would exceed purchase cost, or you want the tool for future use.

The Paslode IM350+ at [CostRange: missing price data for nail-gun-gas-first-fix-paslode-im350] is the first fix purchase. It's expensive. The second-hand route is well-trodden: Paslode gas nailers appear frequently on Facebook Marketplace, eBay, and local classified ads at £200 to £350 for used IM350 and IM350+ models. The tool is serviceable and repairable, and Paslode parts are widely available. Buying second-hand is reasonable if you check the driver blade (it should not be cracked or pitted) and verify the fuel cell fires it correctly before committing.

For second fix, the Paslode IM65A F16 at [CostRange: missing price data for nail-gun-gas-second-fix-paslode-im65a] is the equivalent benchmark. The angled magazine (the IM65A variant) allows nailing into corners and tight spaces (skirting returns, door linings meeting walls) where a straight magazine fouls on the adjoining surface. If you're doing any quantity of second fix trim work in a room with corners (which is all rooms), the angled magazine is the right choice.

If buying pneumatic, a mid-range framing nailer from Bostitch (F33PT-E for studwork, available from specialist fastener suppliers) paired with a small oilless compressor at £80 – £200 gives you a reliable setup at lower total cost than a Paslode, with lower running costs thereafter. The trade-off is mobility and cold-weather reliability, not performance.

Nail sizes by application

This is the reference most guides don't include. Here's what nail to use for each structural and finishing task on an extension:

One thing to verify before you start: if your structural engineer has issued a framing specification (sometimes called a connections schedule), nail size and frequency for the structural elements will be specified there. Follow it. The above table is the general trade standard for UK residential work, but a specific engineer specification overrides it.

Alternatives

Hand nailing with a claw hammer is always an alternative. It's slower, harder to control for depth, and more physically demanding. For small quantities of nails or awkward access where a nailer can't fit (very tight internal corners, for instance), hand nailing is the right call. Not a replacement for the nailer on volume work.

A screwgun (a collated screwdriver for driving drywall screws from a strip) is an alternative to a coil nailer for plasterboard. Many builders prefer screws for plasterboard: they offer better pull-through resistance and allow adjustment if a board needs to come off. Nails are faster; screws are more forgiving.

For skirting and architrave, if you own a decent 18V drill/driver and no brad nailer, fine finishing nails driven by hand and punched below the surface is a viable approach. It takes longer and the results look identical once filled and painted.

Safety

Nail gun injuries are disproportionately common relative to how simple the tool looks. According to HSE data, hand-held power tool injuries are one of the leading causes of construction site accidents, and nail guns sit near the top of that category. The mechanism is almost always the same: something goes wrong, a reflex brings a hand near the nose, and the contact safety fires.

The five rules that prevent almost all injuries:

1. Sequential trigger only. Not contact mode. Ever, for a homeowner.
2. Nose points away from people at all times. Including yourself. Including when you're repositioning between shots.
3. Never bypass the contact safety. It is not an inconvenience. It is the only thing preventing the tool from firing when it touches your leg, your hand, or a bystander.
4. PPE is non-negotiable. Safety glasses (EN166:2002) at minimum, since brads ricochet off hard surfaces. Ear protection: pneumatic nailers and gas nailers run at 95–105 dB(A). Brief bursts don't accumulate to a daily dose quickly, but across a full nailing day, ear protection matters. Work gloves prevent minor lacerations when handling nail strips.
5. Disconnect power before clearing jams. Remove the fuel cell or disconnect the hose. Every time.

Where you'll need this

Nail guns appear across multiple phases of any extension or renovation project:

• Roof structure - first fix nailer for nailing rafters to wall plates and ridge, securing ceiling joists and noggins, fixing any sheathing board
• First fix electrics - brad nailer for timber noggins between studs (cable support), and attaching cable clips to exposed timber
• Plastering - coil nailer for nailing plasterboard to timber frame at speed during boarding out
• Second fix electrics - second fix nailer for fitting skirting boards to new walls before socket faceplates go on
• Flooring - first fix nailer for secret-nailing solid timber floorboards or fixing timber battens for floating floors
• Decoration - brad nailer for attaching trim, coving, and decorative beading
