Infrared Paint Stripper: The Lead-Safe Way to Strip Paint from Pre-1970 Properties

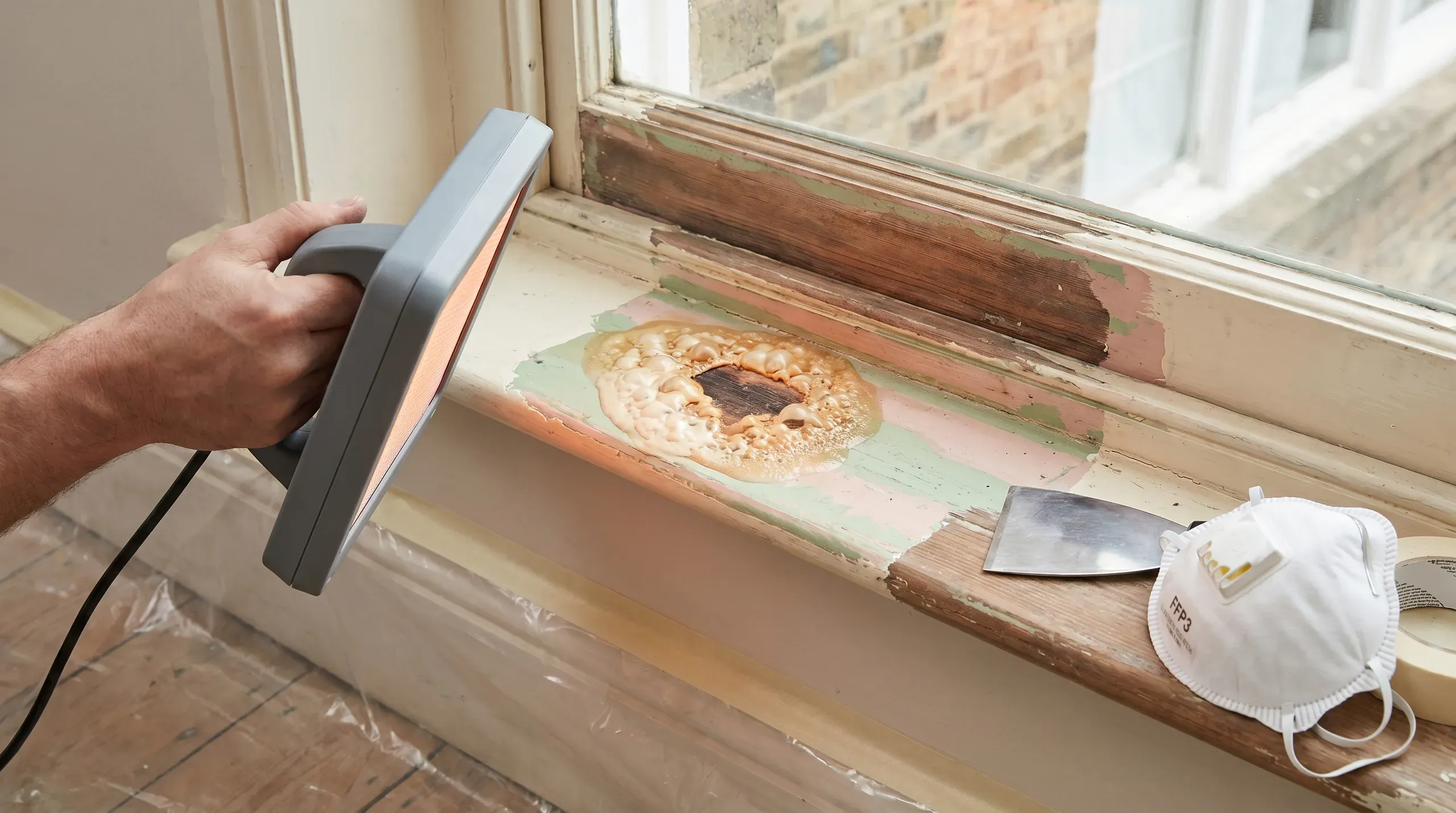

You're stripping the paint off a 1930s sash window in a semi that hasn't been touched since the 1970s. There are nine layers of paint, and the bottom three are bound to be lead-based primers. Reach for a heat gun on full power and you'll get the paint off fast, but at 600°C you'll vaporise the lead into the breathing zone of every person in the house. An infrared paint stripper does the same job at well under 500°C, with paint that lifts as solid strips rather than dust, and no fume. It's slower. It's also the difference between a clean job and a contaminated one.

The infrared paint stripper is the tool the heritage trade has used for two decades and the mainstream UK DIY market has only just discovered. Most homeowners have never heard of it. Most builders' merchants don't stock one. Hire centres don't have them either. But for a Victorian, Edwardian, or pre-1970 property where lead paint is likely on every original timber surface, this is the tool the regulations push you toward.

What it is and when you need one

An infrared paint stripper is a flat panel containing a ceramic or quartz heating element that emits infrared radiation. The radiation passes through the paint film and heats the timber substrate beneath. The paint then softens and releases from underneath as the bond between paint and timber breaks down, rather than being burned off the top. You hold the panel a short distance from the surface for between three and sixty seconds depending on the model, then move it on and scrape the warm paint off with a stripping knife.

The mechanism matters because of what it doesn't do. A heat gun blows air at 400 to 650°C across the paint surface. At those temperatures, lead pigments and lead driers in old paint can vaporise, producing ultra-fine fume that passes straight through paper masks and FFP2 respirators into the lungs. An infrared stripper keeps the surface temperature well below 500°C (typically 170°C on a Speedheater, 200 to 260°C on more powerful units), which is the regulatory ceiling under the Control of Lead at Work Regulations 2002. Lead stays in the paint matrix as solid strips, which you can collect and bag rather than breathe.

The primary use case is exactly that: stripping lead paint from pre-1970 timber joinery. Original sash windows, panel doors, skirting, architrave, dado rails, and external timber on Victorian, Edwardian, and inter-war properties. Where decorators a generation ago used a blowlamp and turpentine, the modern equivalent for any homeowner who values their lung health is infrared.

There are secondary uses. Infrared works well on thick alligatored paint anywhere it's accumulated to the point that chemical strippers struggle to penetrate. It's also kinder to the timber than a heat gun: less risk of scorching, no airborne fume, and the heat penetrates so the paint releases cleanly rather than smearing.

When NOT to use one

If you've confirmed by swab test that no lead paint is present, an infrared stripper is the slower, more expensive choice. A modern heat gun at full temperature will strip post-1992 paint considerably faster, and you don't need the lead-safe technique at all.

Infrared also struggles where heat guns shine: deep mouldings, ornate spindles, and tight internal corners. The flat panel can't reach into a profile. The smaller Speedheater Cobra head (around 90 by 70 mm) is better at this than a full-size panel, but neither matches a heat gun with the right shave hook for a beaded architrave. Many heritage decorators run a three-tool strategy: infrared for the flat sash rails, heat gun (set below 500°C) plus shave hook for mouldings, chemical stripper for glazing bars and putty.

The other gap is glass. On in-situ sash windows, the radiated heat can crack older or stressed glass within seconds. The standard advice in the period property community is to remove the sash from the box frame and lay it flat on trestles before stripping. If that's not practical, work the rails first, keep the panel back from the glazing line, and accept that the bars themselves are a chemical-stripper job.

Types and what to look for

There are two products that matter on the UK market and a small flotilla of generic Amazon imports underneath them. Hire centres do not stock them.

The Spengar is a single-panel tool with a ceramic plate. It's the tool you buy if you've got one Victorian house's worth of joinery to strip and don't expect to use it again. Direct from spengar.com it's currently around £60; you'll see £75 on slightly older reviews. Free UK shipping, one-year warranty, and ships with a UK 3-pin plug.

The Speedheater Cobra is the Swedish-made tool that the heritage and conservation trade uses. Smaller head, much faster heat-up, and designed for joinery rather than flat panels. Tensid UK is the official UK distributor and doesn't publish prices on the website, so you call them. Eco-Strip and Brouns & Co also sell it. Expect £215 – £320 for the head alone; the renovation kit with scrapers and case is a few pounds more.

If you're choosing between them, the question is what you're stripping. Sash windows in a Victorian terrace where most of the work is on stiles, rails, and beading: Cobra. Larger flat areas like a Georgian panel door or external boarding: Spengar. Both: most heritage decorators own both.

How to use it properly

The tool is forgiving compared to a heat gun, but only if you respect the working distance and time. Hold it too close, hold it too long, or come back to a section you've just heated, and you'll scorch the timber underneath the paint. Scorched timber will telegraph through the next paint coat as a dark patch, which means sanding back to bare wood before repainting. Defeats the point.

Setting up

Strip outdoors or in a well-ventilated room with windows wide open and the door to the rest of the house closed. Lay heavy plastic sheeting on the floor under the work area to catch the paint chips. Tape the sheeting up the wall a foot or so to stop chips bouncing under the skirting. The whole point of infrared is that the paint comes off as solid pieces rather than dust, so the sheeting is your collection system.

If you're working on a sash window, take the sashes out of the box frame if you can. Resting the sash flat on trestles gives you full access to all four faces, removes the glass-cracking risk while you work the rails, and lets you do the entire job sitting down. The cords or chains can be reattached after re-painting; if it's a tilt-action modern sash, the manual will tell you how to release them.

Remove all the hardware you can. Sash lifts, pulls, latches, hinges. Paint built up over a hardware screw is the slowest paint to strip and the most likely to gouge. Take it off, strip the surface clean, refit the hardware after repainting.

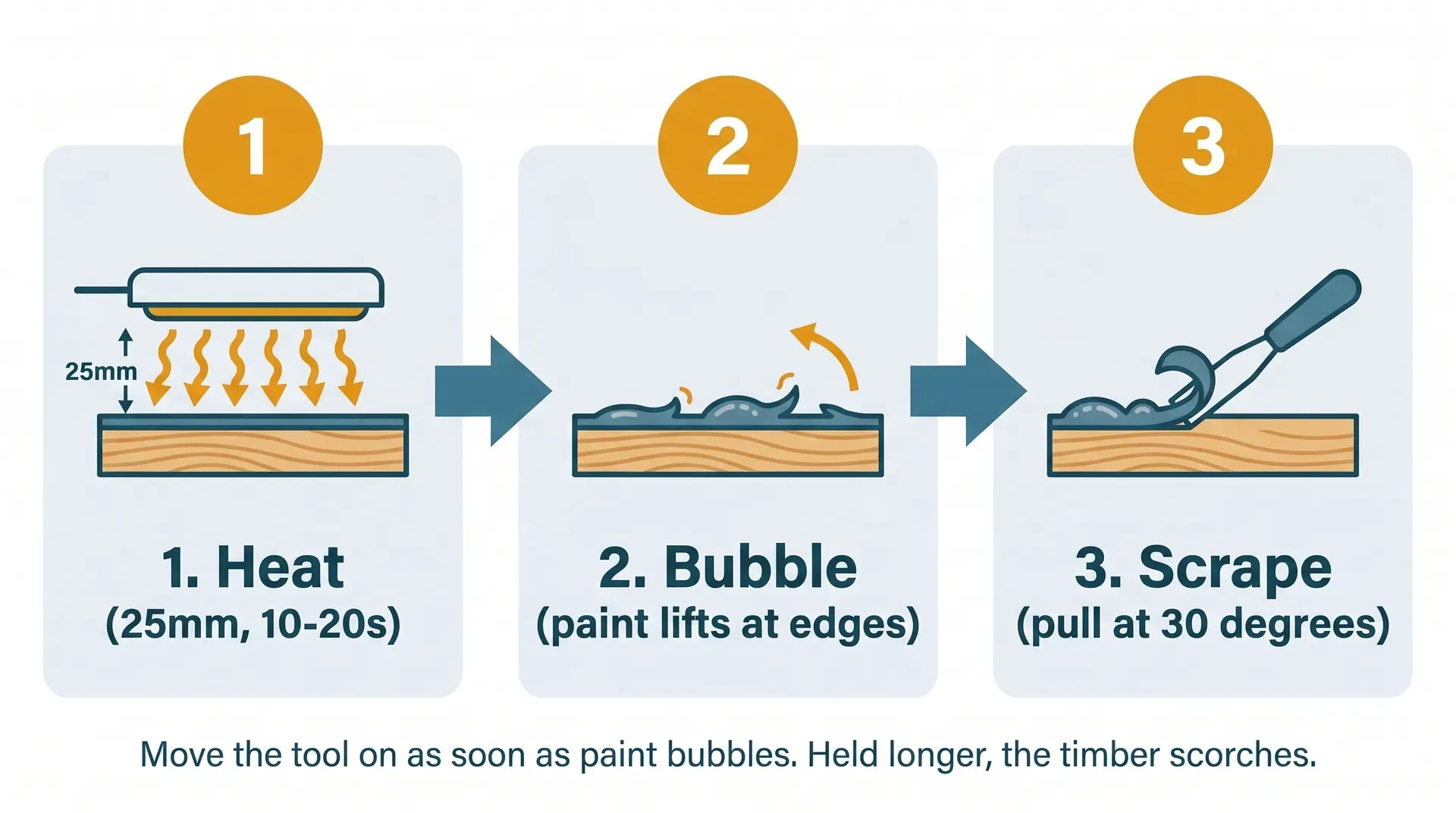

Working distance and time

The two parameters that matter are how far you hold the panel from the surface and how long you hold it there. Both vary by model.

For the Spengar, around 25 mm off the surface for 10 to 20 seconds on a typical four-to-six-layer paint film. For thicker paint (alligatored, ten or more layers), 20 to 30 seconds. For the Cobra, around 25 mm off the surface for 3 to 7 seconds on a typical paint film. The manufacturer claims under 3 seconds; treat that as best-case on a well-maintained tool with thin paint. In practice, plan on 5 seconds and adjust.

The signal that the paint is ready to scrape is bubbling at the edges of the heated patch. The film lifts visibly off the substrate, and a stripping knife pushed into the edge will slide under the softened paint as a single piece. If you hold the tool too long, the paint goes brown, then black, then smokes. That's the timber underneath cooking. Move the tool on and discard the scorched section, because it won't take paint cleanly afterwards.

Boiled linseed oil applied to the timber an hour before stripping (a heritage decorator's trick) extends the workable window: the heated patch stays soft for longer, giving you more scraping time before it cools and re-bonds to the timber.

Scraping technique

Pull, don't push. A pull-stroke stripping knife at a shallow angle (around 30°) lifts the warm paint as a continuous strip. The knife should be sharp enough that you don't have to lean on it; if you're forcing it, you're either too early (paint not soft yet) or too late (paint cooled). Reheat for another five seconds and try again rather than gouging.

For mouldings, use shaped shave hooks matched to the profile. A combination shave hook with three or four blade profiles on one handle covers most ovolo, ogee, and bead profiles you'll meet on UK joinery. The Speedheater Cobra's renovation kit includes a useful set of scrapers; for the Spengar you'll need to buy them separately.

Drop scraped paint directly into a metal bucket lined with a heavy-duty plastic bag. Don't let it accumulate on the sheeting under the window. The reason is partly fire (warm paint chips against more warm paint chips against a forgotten infrared panel resting on its panel face equals a small fire), partly contamination (every step on a paint chip grinds it into smaller particles, which become breathable dust).

Click to enlarge

What not to do

Don't rest the panel face-down on the timber. Even when switched off, residual heat will scorch a perfect rectangle into the surface. Set the tool down with the panel facing up or in the manufacturer's stand.

Don't reheat a section you've just stripped. The bare timber absorbs IR more efficiently than painted timber, and a five-second pass on bare wood is enough to scorch.

Don't expect heat-gun speed. A Spengar covers about 250 by 65 mm per pass after 15 seconds of heat. That's roughly 1.6 square metres an hour of bare-timber output, including scraping. A heat gun is faster on simple surfaces. Infrared trades speed for safety on lead paint, not for raw productivity.

The lead paint rules

Read this before you start any pre-1970 stripping job. The infrared tool removes the worst hazard (vaporisation), but it does not remove every hazard.

Even at 200°C surface temperature, scraping warm paint generates fine particulate. The paint chips themselves contain lead in solid form. Drop one on a wooden floor and grind it under your boot, and you've created breathable dust. Walk through the work area with the same boots, and you've tracked lead into the rest of the house. The HSE rules on respiratory protection, containment, and disposal apply equally to infrared and heat-gun stripping when the paint contains lead.

A useful habit on a multi-day stripping job is to designate one entrance to the work area and keep a doormat with a damp microfibre cloth on it. Step on the cloth before leaving the work area. It traps the residual dust on the soles of your boots and keeps the rest of the house clean. Replace the cloth daily. Wash separately from household laundry.

Infrared vs heat gun vs chemical stripper

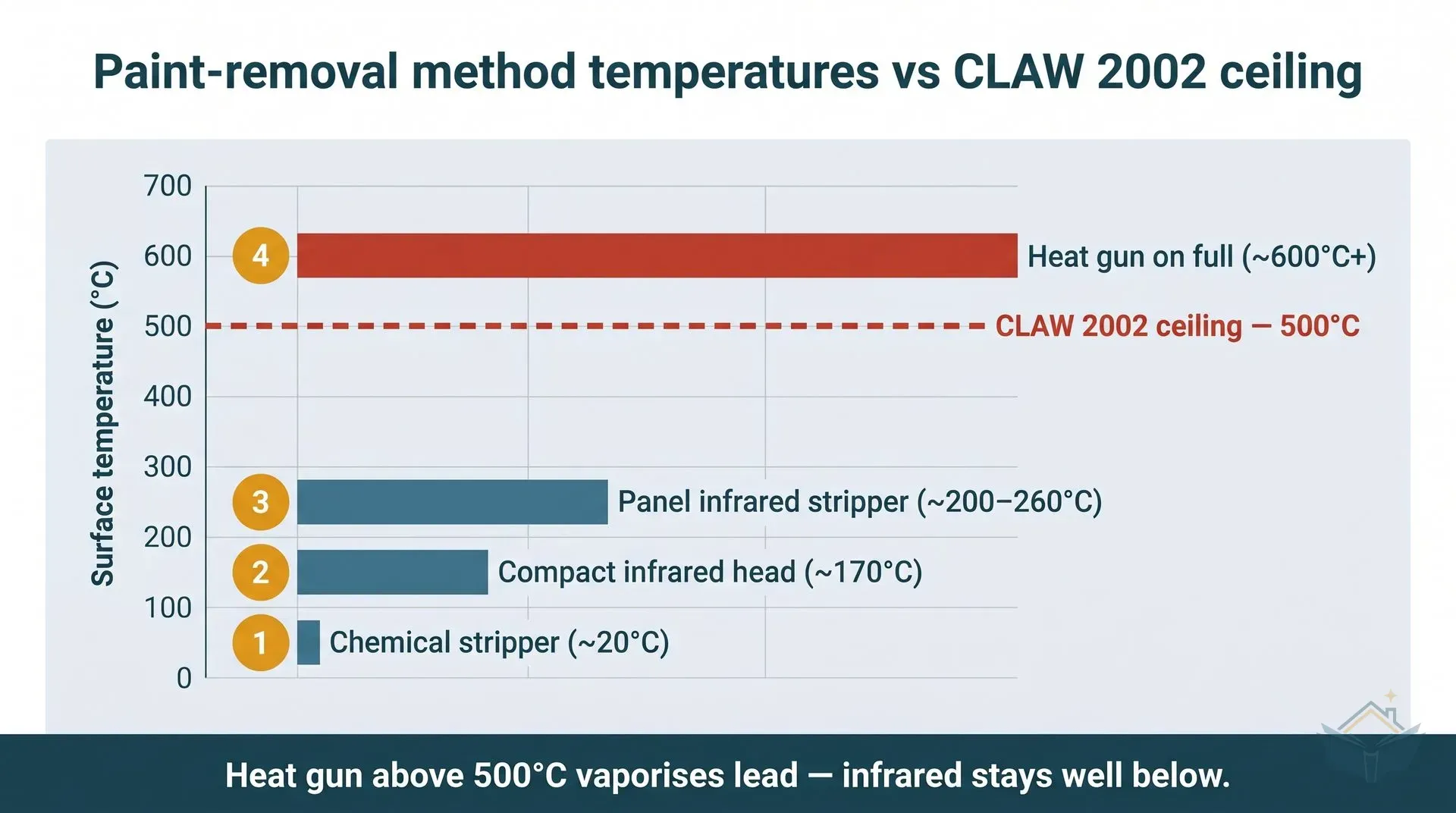

For any pre-1970 property where lead is likely or confirmed, the choice is between infrared, a temperature-controlled heat gun set below 500°C, and a chemical stripper. Each has a place.

For a single sash window, chemical stripper plus patience is the cheapest route. For a whole house's worth of joinery, infrared pays for itself on the time saved. For mouldings within that infrared job, a temperature-controlled heat gun is the sensible companion tool, used carefully below 500°C with the same FFP3 respirator and containment as for infrared.

The reference on the heat-gun side of the decision tree is at the heat gun knowledge page, which covers temperature control, nozzle types, and the same lead-paint regulatory framework from the heat-gun perspective.

Other things to know

Public liability insurance for decorators sometimes excludes heat-gun use because of the fire risk. Infrared, with its lower surface temperature and contained heat, is more likely to be covered. If you're a homeowner doing the work yourself this is irrelevant, but if you're hiring a heritage decorator and they only use infrared, this is one of the reasons.

Some heritage conservationists argue against stripping paint at all on listed buildings or those of historic interest, because the layered paint history has archaeological value. If your property is listed (Grade I, Grade II*, or Grade II), check with your local conservation officer before stripping any original paint. Listed building consent may be required for the work, and removal of historic finishes can be a breach of consent conditions.

Bulb life on infrared strippers is long but finite. Speedheater bulbs are rated for 3,000 to 5,000 hours. Spengar uses a ceramic plate rather than bulbs and has no advertised replacement interval. For a single-project user, neither is a concern. For sustained trade use, factor a replacement bulb into the running cost.

Where you'll need this

These tools come into play whenever a pre-1970 property has timber surfaces being prepared for repainting. The buildwiz tree currently focuses on a kitchen extension worked example, where the case is rare but real: extensions to period properties often include refurbishment of original window joinery in adjacent rooms.

The infrared paint stripper appears across heritage and renovation work generally:

• Stripping original sash windows, panel doors, skirting, and architrave in any pre-1970 property
• Preparing original external timber (boards, fascias, soffits) for repainting on Victorian, Edwardian, and inter-war houses
• Refurbishment of stair balustrades, dado rails, and internal joinery during decoration phases
• Removing thick alligatored paint layers from any timber surface where chemical stripper alone is too slow

The companion knowledge for any project that uses one is the heat gun page (for the mouldings and pipework that infrared can't reach), and the shave hook page once it's published, for the scraping technique the tool depends on.
