Hand Plane: Block, Smoothing, and Jack Plane Guide for UK Site Work
How to choose, set up, sharpen, and use a hand plane for door fitting, end grain trimming, and final-pass adjustments. UK prices, brand tiering, and the complement to an electric planer.
You've trimmed a door bottom with an electric planer and the result is decent, but the corners have splintered slightly and the long edge has a faint ripple where you couldn't keep the depth perfectly even. The door fits, but it doesn't look finished. Five minutes with a sharp hand plane removes the splintering, takes the high spots off, and leaves an edge that needs no sanding. The right tool for the last 0.5mm is almost never an electric one.
The hand plane is the tool most homeowners assume is obsolete. It isn't. It's the tool a carpenter reaches for when the electric planer has done the bulk work and the result still isn't right. It's also the only tool that handles end grain (the cut face at the end of a board, where the wood fibres run perpendicular to the surface) without tear-out on softwood. Buy a good one, learn to set it up, and it will outlast every power tool you own.
What it is and when you need one
A hand plane is a precisely-machined cast iron or steel body holding a sharpened steel blade (called the iron) at a fixed angle, with the cutting edge protruding through a slot in the flat base (the sole). You push the plane along the timber and the blade shaves a thin layer from the surface. The depth of cut is controlled by a screw that raises or lowers the iron. The lateral position of the cut is controlled by a lever that tilts the iron side to side.
That's the whole mechanism. Like the electric planer, the sophistication is in the setup and technique, not in the tool itself.
The primary site uses are three:
Final-pass surface work after an electric planer. An electric planer leaves faint blade marks across the surface from each pass of the rotating drum. A sharp bench plane removes those marks and produces a finish-quality surface in one or two strokes.
End grain trimming. Door bottoms, mitre cuts on architrave, and the cut ends of skirting all expose end grain. An electric planer tears end grain on softwood unless you set the depth absurdly shallow and skew the tool. A sharp low-angle block plane slices end grain cleanly, leaving a glassy surface.
Small fit adjustments. Trimming a casing that's 0.5mm proud, chamfering the edge of a windowsill, fitting a door lining where one corner needs to come down 1mm. Reaching for an electric tool for adjustments this small is overkill, slower (allowing for setup time), and harder to control.
Hand planes also have a cost advantage worth naming. A budget block plane sits at £25 – £35, costs nothing to run, never needs a battery, makes no noise, and produces shavings that sweep up cleanly rather than the fine dust an electric planer creates.

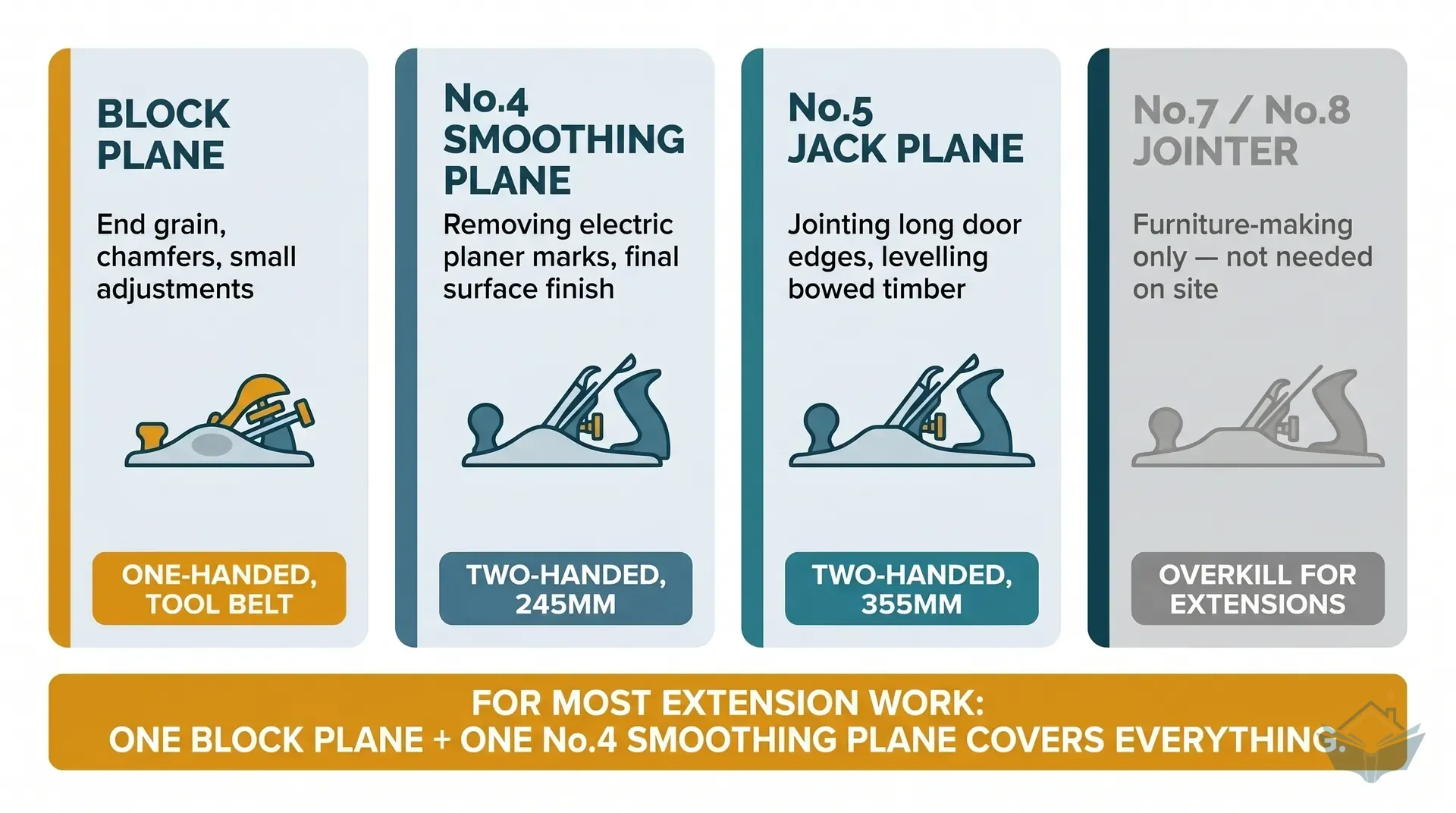

Types and variants
Hand planes are numbered in a system inherited from Stanley's original Bailey pattern catalogue, which dates from the 1860s. The numbers refer to length and intended use. For site carpentry on an extension, three planes cover almost everything.
| Plane type | Length | Blade width | Held with | Best for |
|---|---|---|---|---|
| Block plane (e.g. Stanley 9½) | ~150mm | 40–45mm | One hand | End grain, chamfers, small adjustments, fitting work, door bottom corners |
| No.4 smoothing plane | ~245mm | 50mm | Two hands | Final surface finishing on flat boards, removing electric planer marks, smoothing skirting and architrave |
| No.5 jack plane | ~355mm | 50mm | Two hands | General-purpose work, jointing the long edge of a door or board, levelling slightly bowed timber |
The two distinctions that matter for a homeowner are:
Block plane vs bench plane (No.4 / No.5). A block plane is short, low-profile, and held in one hand. The blade sits with the bevel facing up at a low angle (12° on a low-angle block plane, around 20° on a standard-angle one), which makes it ideal for cutting across end grain. A bench plane is longer, two-handed, and the blade sits bevel-down at 45°. The longer sole bridges across small dips in the timber, which is why a No.5 is the right tool for jointing the long edge of a door.
Standard-angle vs low-angle block plane. The bed angle is fixed in the casting. Add it to the blade bevel angle (typically 25-30°) to get the effective cutting angle. A standard-angle block plane (20° bed + 25° bevel = 45° effective angle) is more forgiving on long grain. A low-angle block plane (12° bed + 25° bevel = 37° effective angle) excels on end grain and difficult interlocked grain. For a first plane, the standard angle is more versatile. If end grain on door bottoms is your main reason for buying, the low angle is the right choice.
The numbered system continues up to No.8 (a 600mm jointer plane for finishing long boards), but anything beyond a No.5 is for furniture making, not extension work.

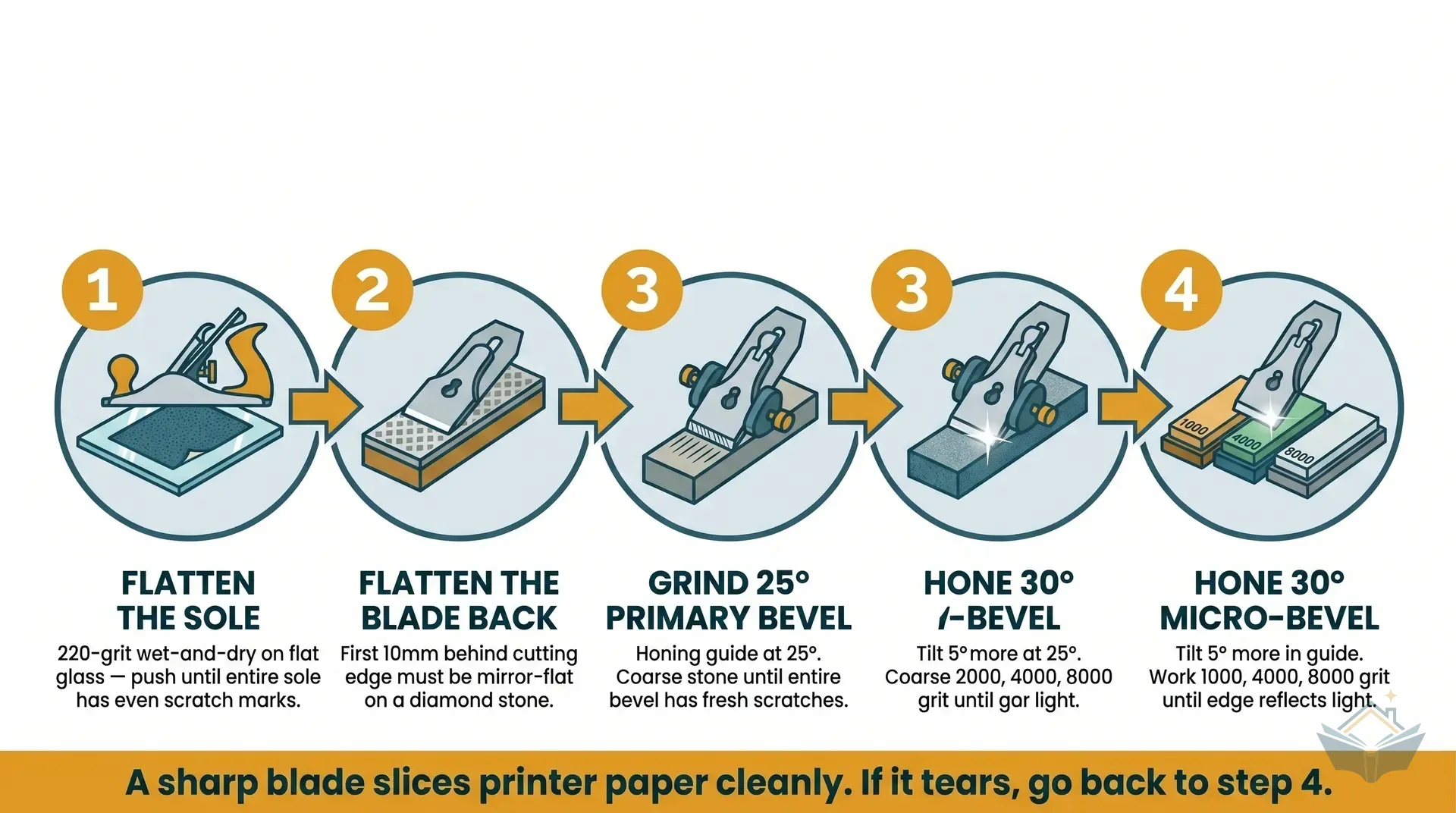

Setup: the step everyone skips
Here is the gotcha that nobody mentions in the buying guides. A budget hand plane straight out of the box is not ready to use. The blade is ground to shape, not honed to cutting sharpness. The sole may not be perfectly flat. The chip breaker may sit in the wrong position. Skip the setup and the plane will tear timber, chatter across the surface, and leave you convinced the tool is rubbish.
This is the single biggest source of "hand planes don't work" complaints on UK trade forums. The plane works fine. It just hasn't been set up.
The four setup steps, in order:
1. Flatten the sole (lap it). Stick a sheet of 220-grit wet-and-dry abrasive paper to a known-flat surface (a piece of float glass or a granite worktop offcut works). Retract the blade so it doesn't protrude, then push the plane back and forth along the abrasive with even pressure. After a couple of minutes, scratches will show where the sole is high. Continue until the entire sole has consistent scratching. On a budget Faithfull or Silverline plane this might take 20-30 minutes. On a Stanley Bailey it's typically 5-10 minutes. On a premium Lie-Nielsen or Veritas, the sole is already flat to a high tolerance and lapping isn't needed.
2. Flatten the back of the blade. The flat side of the iron (opposite the bevel) needs to be polished mirror-flat for the first 10mm or so behind the cutting edge. Use a coarse diamond stone or 400-grit wet-and-dry on glass, then progress through finer grits to 1200 or higher. This is the single most important step. A blade that isn't flat on its back cannot be sharp at the edge, no matter how well you grind the bevel.
3. Grind the primary bevel to 25°. A honing guide (a small jig that holds the blade at a fixed angle, available for £6-£15) makes this trivially easy. Set the blade in the guide so the bevel sits flat on a coarse stone. Push and pull until the entire bevel has fresh scratches across its full width.
4. Hone a 30° micro-bevel. Tilt the blade up by 5° in the guide so only the very tip of the edge contacts the stone. Work through your finer stones (1000-grit, then 4000-grit, then 8000-grit if you're going premium) until the edge reflects light like a mirror. This micro-bevel is what does the actual cutting. Because it's only the last fraction of a millimetre of steel, it can be re-honed in two minutes when the blade dulls, without re-grinding the full primary bevel.
A sharp blade slices printer paper cleanly along its full edge, with no tearing or skipping. If it tears the paper, it isn't sharp enough. If it shaves arm hair off your forearm, you're done.
Once the plane is set up, the chip breaker (the second piece of steel that sits on top of the blade) goes 1mm to 2mm back from the cutting edge. Closer for difficult grain, further back for fast bulk removal. The chip breaker's job is to curl shavings up and prevent them lifting the wood fibres ahead of the cut, which is what causes tear-out. Most beginners ignore it. Setting it correctly is the difference between a plane that tears and a plane that doesn't.
How to use it properly
Once set up, the plane is straightforward to use. The technique that separates a clean result from a rough one comes down to four things.

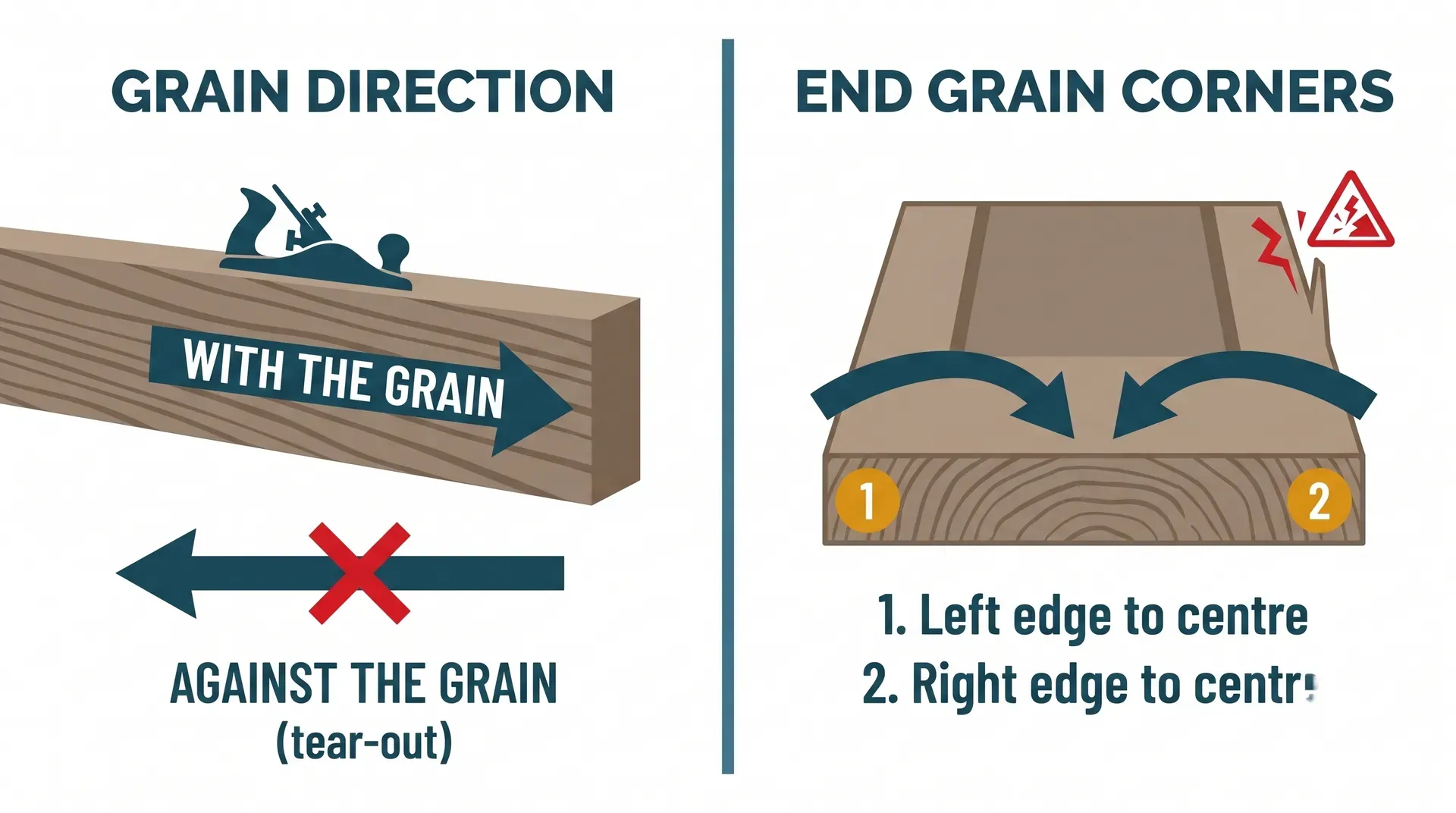

Read the grain direction
Wood fibres run along the length of a board. Plane in the direction the fibres rise toward the surface and the blade slices them cleanly. Plane the opposite way and the blade lifts the fibres before cutting them, producing a rough, torn surface.
Look at the edge of the board. The grain lines angle slightly. Plane "downhill" along those lines, in the direction they slope toward the surface. If you start a pass and feel sudden resistance, hear a rough chattering sound, or see torn fibres in the cut, you're going the wrong way. Stop, turn the board around, and try the other direction.
On reclaimed timber or hardwoods with interlocked grain, no direction is fully clean. In that case, take very fine shavings (depth set to near-zero) and accept that final cleanup will need a sanding block.
Set a fine cut, not a deep one
The depth adjustment knob raises or lowers the blade. For finishing work, the blade should protrude from the sole by a fraction of a millimetre. The shaving you take off should be translucent enough to see daylight through it, almost like tissue paper. If you can see substantial steel below the sole, the cut is too deep, the plane will jam, and the surface will be rough.
The temptation, particularly for beginners, is to wind the blade out so something visible comes off. Resist it. Multiple fine shavings produce a finish-quality surface. One thick shaving produces a rough one.
Pressure shifts through the stroke
At the start of a pass, weight goes onto the front knob. Through the middle, weight is even on both hands. At the end of the pass, weight shifts to the rear handle (the tote). This is the same principle as the electric planer: even pressure prevents the plane from tipping into the work and gouging at the start or end of the stroke.
For a long board, plan the stroke so you can complete it in one continuous push without breaking step. Stopping mid-stroke creates a step in the surface where the blade has paused.
End grain technique
End grain is where the fibres run perpendicular to the cut. Rather than slicing along fibres, the blade is shearing across them. Two techniques apply:
Skew the plane. Rather than pushing it straight along the line of cut, angle the body of the plane 20-30° to the direction of travel. This effectively reduces the cutting angle of the blade and makes end grain shear cleanly.
Work from both edges toward the centre. Going straight across an end-grain face from one side to the other causes the blade to exit the far edge while still cutting fibres, which splits the corner off. Plane from one edge inward, stop before the far corner, then plane from the other edge inward. The two cuts meet in the middle and neither creates an unsupported exit.
This is the same technique as for an electric planer on a door bottom, and for the same reason. The hand plane just gives you more control because you can feel the cut and stop the moment the resistance changes.
Door fitting in particular
The most common site use is fitting an internal door after the electric planer has done the bulk trim. The sequence:
- Electric planer to remove the bulk of the material (typically 1-3mm).
- Block plane to clean the corners and the end grain at top and bottom.
- No.4 smoothing plane (or no.5 jack plane on a long edge) to take a final pass along the long edges, removing the electric planer's blade marks.
- Sanding block (120-grit, then 180-grit) to break the sharp arrises (the corner edges) and prepare the timber for paint.
- Seal the trimmed edge with primer or undercoat before rehinging. Raw timber will absorb moisture and swell again if left unsealed.
For a hollow-core door (the type used for most internal doors in modern UK housing), the electric planer is fine for the bulk. But check the lippings (the solid timber strips at the door edges). Once those are gone, you've reached the cardboard honeycomb core and the door is finished.
How to check the plane is working correctly
Before committing to a real piece of timber, test the plane on a piece of scrap pine.
The shaving test. A correctly set plane on softwood produces a continuous, translucent shaving that comes out the throat in one piece. If shavings are thick and chunky, the depth is too deep. If they're irregular or the plane chatters, the blade isn't sharp enough or the chip breaker is set wrong. If shavings come out torn or in fragments, you're going against the grain.
The lateral test. Run the plane along a flat board. If one side of the cut is deeper than the other, the blade is sitting at an angle. Use the lateral adjustment lever (the small lever above the blade) to tilt the blade until the cut is even across the full width.
The flatness test. After several passes along a flat scrap, place a steel rule across the planed surface in multiple directions. Light should not show under the rule. If it does, the sole is not flat (and you need to lap it again), or your technique is tipping the plane.
A well-set plane that's been sharpened correctly should pass these tests within a few minutes of starting. If you can't get a clean shaving on softwood scrap, stop and check the setup. There's no point trying to use the plane on real work until the test passes.
What to buy
Hand planes split cleanly into four price tiers. Each tier earns its price in genuine quality differences: tighter casting tolerances, harder steel, less setup work, and better blade-bed contact.
| Tier | Block plane price | Bench plane price | Representative models | Setup needed |
|---|---|---|---|---|
| Budget | £25 – £35 | £25 – £50 | Faithfull No.4 (£28); Faithfull No.5 (£47); Silverline (avoid) | Significant. Sole flatness varies. Plan 30-60 minutes setup plus blade honing. |
| Mid-range | £50 – £70 | £70 – £130 | Stanley 9½ block plane; Stanley Bailey No.4; Stanley Sweetheart 12-136; Quangsheng (Workshop Heaven) | Modest. 10-15 minutes lapping; honing always required. |
| Premium | £165 – £425 | £165 – £425 | Lie-Nielsen No.60½ (£195); Lie-Nielsen Bronze Low-Angle (£165); Veritas Low-Angle Block; Clifton bench planes | Minimal. Sole is flat from the factory. Hone the blade and use. |
For a homeowner doing a single extension build, the right answer is mid-range. A Stanley Bailey 9½ block plane and a Stanley No.4 smoothing plane covers virtually every site task. Total spend around £120-£140, both planes will outlast the project by decades, and the setup time is reasonable.
If your budget is tight, a Faithfull No.4 at £28 plus a £40 sharpening setup (honing guide, diamond plate, finishing stone) gives you a working plane for under £75. You'll need patience for the initial sole lapping, and the casting may have minor flaws that take work to dial out. Community consensus is consistent: Faithfull is workable if you're prepared to fettle (UK trade slang for the setup and tuning work). It's not workable if you expect the plane to function out of the box.
If money is no object and you want a tool that's a pleasure to use, the premium Lie-Nielsen and Veritas planes sit in a different league. The casting tolerances are an order of magnitude tighter than budget planes. The blades are A2 or PM-V11 steel which holds an edge two to three times longer than the carbon steel in budget tools. For a single extension they're overkill. For someone who'll keep using the plane for the next twenty years on multiple projects, they're the right buy.
A separate consideration: vintage Stanley and Record planes from before 1980 are a genuine bargain on the UK market. £15-£40 buys a working No.4 or No.5 from eBay or a car boot sale, with quality that meets or exceeds current Stanley Sweetheart production. The catch is that you need to know what you're looking at. Check for cracks in the body casting, rust on the sole and in the mouth, and a working frog (the wedge that holds the blade). For someone willing to research and inspect carefully, vintage is the value sweet spot. For someone who wants to buy once and use straight away, new mid-range is simpler.
A note on the bench-plane-only argument
The UK woodworker Paul Sellers has a much-discussed video titled "Why not to use a Block Plane" arguing that a No.4 bench plane handles every task a block plane is normally bought for, making the block plane unnecessary for most workers. The argument has merit. A No.4 with a sharp blade and well-set chip breaker can clean up end grain, trim chamfers, and fit small components. Sellers' point is that beginners often buy a block plane first because it looks simpler, then struggle because it's actually harder to set up than a bench plane and offers less control on long runs.
For pure furniture making, his argument stands. For site carpentry on an extension build, the case is different. A block plane is one-handed, fits in a tool belt, and is the right tool for trimming a corner of architrave while standing on a stepladder. Working over a doorway with a No.4 in two hands is awkward. The two tools coexist for a reason: each does its job better than the other in specific situations. The honest framing is that a No.4 is the more versatile single plane to buy first, but a block plane earns its place once the work moves onto site.
Alternatives
The electric planer is the obvious power-tool counterpart and the right tool for bulk material removal. Set the depth to 1-2mm per pass and the planer takes off material at perhaps fifty times the rate of a hand plane. A hand plane shines after the electric planer has done its work, taking off the final 0.5mm and cleaning the corners. The two tools are complementary, not competing. The full electric planer guide covers depth setting, blade types, and door-trimming technique in detail.
A belt sander covers some of the same ground for surface preparation. The difference is in the result: a hand plane leaves a flat, crisp surface with sharp corners. A belt sander rounds corners and leaves a slightly fuzzy surface from the abrasive. For finishing painted timber that will be hidden under skirting or covered by trim, the sander is faster. For exposed edges where a sharp arris matters, the plane wins.
A spokeshave handles curved edges that a flat plane cannot reach. It's a niche tool for chair-making and curved component work. Almost no extension project needs one.
For extremely fine final adjustments (paring 0.1mm off a tenon shoulder, for example), a sharp chisel is more controllable than any plane. Chisels also handle inside corners and stopped cuts that a plane physically cannot reach.
Where you'll need this
Hand planes appear at the finishing stages of any extension or renovation project where exposed timber is being fitted:
- Trimming and fitting internal doors during second fix carpentry, after the electric planer has done the bulk removal
- Cleaning up architrave and skirting mitres where saw cuts have left rough end grain
- Chamfering windowsill edges, handrail noses, and exposed timber edges for a finished appearance
- Final-pass surface work on planed-all-round timber (PAR) that will be visible after painting
- Small fit adjustments to door linings, casings, and trim where electric tools are excessive
These tasks span first-fix carpentry through to second-fix and snagging. A carpenter on site will reach for a hand plane multiple times a day during these stages. For a self-managed project, owning your own pair (block plane plus No.4) means you can correct small issues yourself rather than calling the carpenter back.
Safety
Hand planes are among the safest power-free tools on a site, but the blade is genuinely sharp and a few rules apply.
A hand plane blade will cut you to the bone if you run a finger along the cutting edge. Treat it the way you'd treat a chisel. When changing the blade, work over the bench with the iron on a soft surface. When the plane is not in use, retract the blade fully (wind the depth knob until the iron sits below the sole), or set the plane on its side rather than face-down. Storing the plane sole-down on a hard surface dulls the blade against grit on the bench and risks chipping the cutting edge.
The other risk is the workpiece. Always clamp or wedge the timber so it cannot move. Pushing a plane along an unsecured board can cause the board to slide unexpectedly, and the plane along with it. A pair of bench dogs (the round wooden pegs that pop up from a workbench surface) or a quick-release vice solves this in seconds.
Pine resin builds up on the blade with sustained planing. The resin causes the blade to drag and the cut to roughen. Wipe the blade and sole occasionally with a rag dampened with white spirit or turpentine to clear the resin. A waxed sole (rub a candle along the underside) reduces friction noticeably, especially on softwoods.
