M-Class Dust Extractor: Tool-Connected Fine Dust Capture for Indoor Work

You're three weeks into the second-fix phase. A carpenter is cutting MDF kickboards on a saw stand in what's now your kitchen. Fine grey dust drifts everywhere. You can taste it. Your toddler's bedroom is across the hall. The carpenter is wearing a paper mask and cheerfully tells you it'll all hoover up later.

It will not all hoover up later. Wood dust is an IARC Group 1 carcinogen, in the same risk classification as asbestos and tobacco smoke. MDF dust contains formaldehyde on top of that. Once it's airborne in a domestic interior, fine particles settle on every fabric, lodge in carpet pile, and stay airborne for hours after the cut. Sweeping makes it worse. A household vacuum without sealed M-class filtration redistributes it through the exhaust.

A dust extractor solves the problem at source. It captures fine dust at the tool, before it reaches the air. Under COSHH, that's the primary control. The dust mask is the last line of defence, not the first.

What it is and what it does

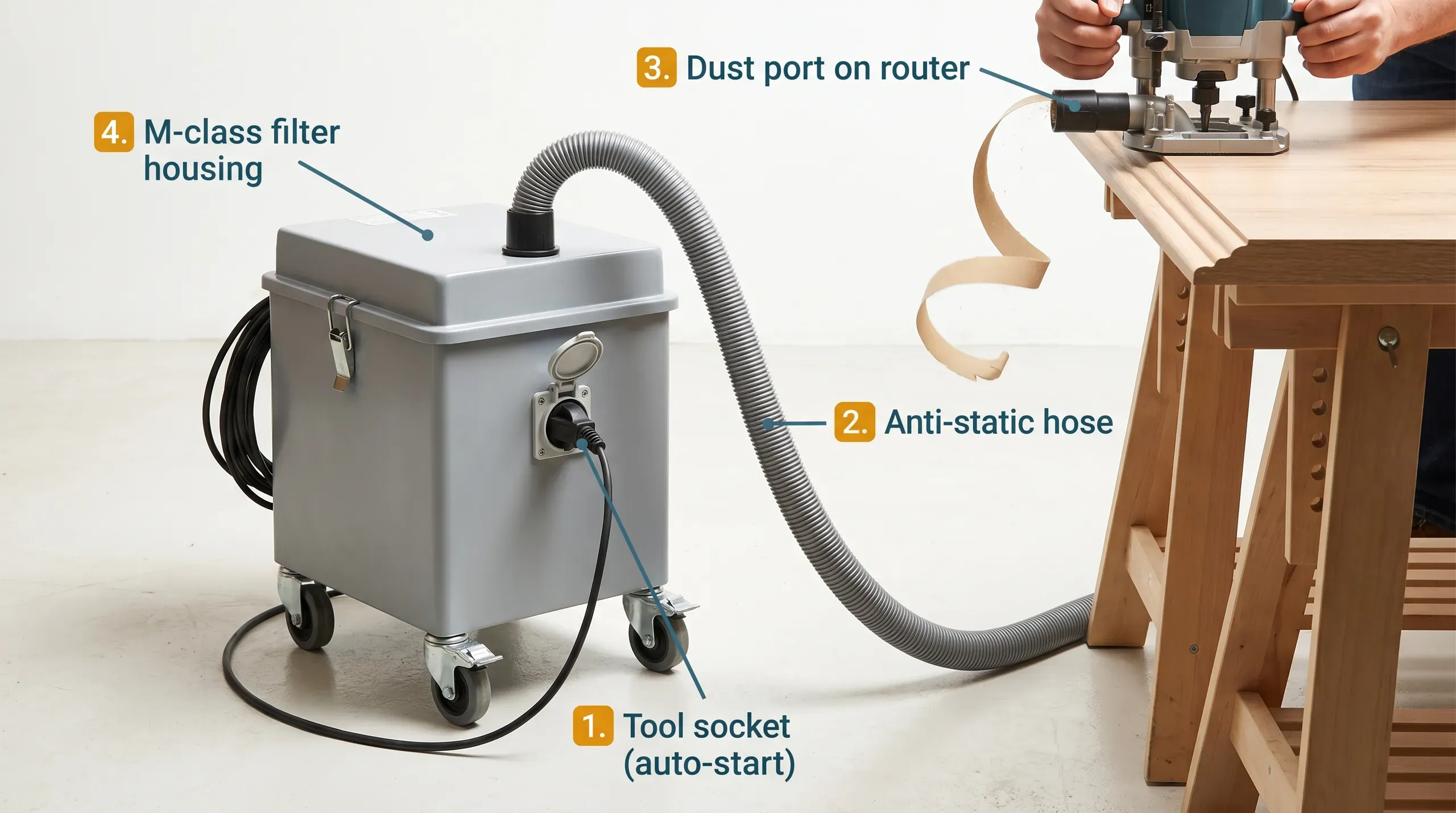

A dust extractor is a vacuum unit purpose-built to connect directly to a power tool's dust port. The hose runs from the extractor to the tool. As the tool cuts, dust travels straight up the hose into a sealed bag inside the extractor. A high-grade filter behind the bag stops anything that escaped the bag. What comes out of the exhaust is clean air.

That's the principle. The category sits between two things people often confuse it with.

A standard wet-dry shop vacuum does the same general job but with looser filters, larger debris in mind, and no dedicated tool integration. A built-in workshop dust collection system (the kind a joinery shop runs through ducted trunking) handles many machines at once but isn't portable.

The dust extractor lives in the middle: portable, single-tool, and built around fine dust rather than chips and offcuts. It's a tool you wheel into the room you're working in, plug your power tool into, and forget about. The relevant features that separate it from a wet-dry vacuum are class certification, automatic filter cleaning, and tool-activated start. All three matter. Cross-reference the wet-dry vacuum guide for the broader site-cleanup tool that handles bulk debris and water spills.

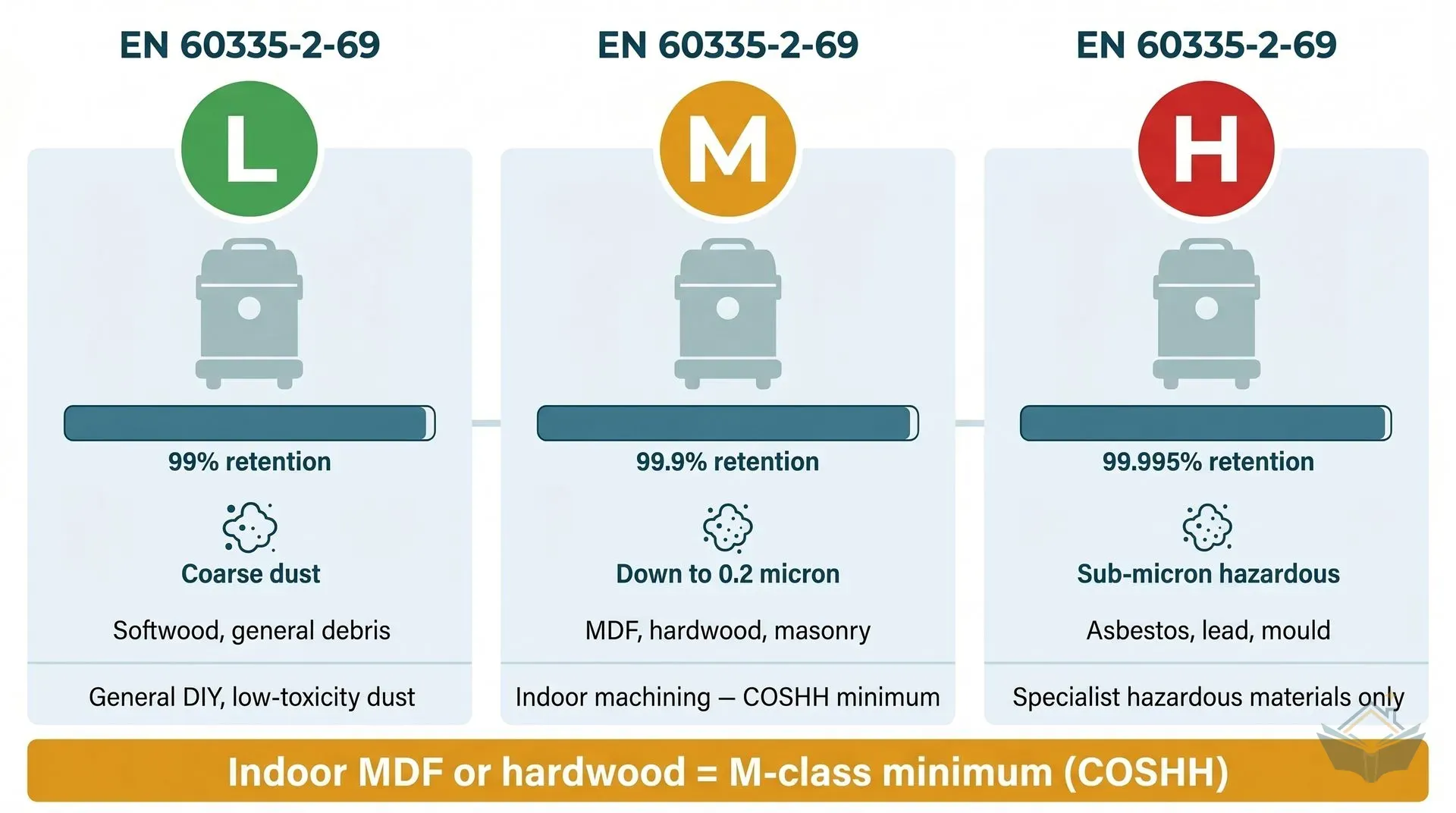

L-class, M-class, H-class: which you need

Dust extractor classes are defined under EN/IEC 60335-2-69, the European standard for industrial wet-dry cleaners. Three classes apply to construction work.

For a homeowner doing extension work, the M-class line is the one that matters. The HSE's position is unambiguous: when machining MDF, hardwood, or masonry indoors, M-class is the minimum engineering control. L-class extractors are not adequate for fine wood dust. H-class is for hazardous materials that aren't relevant to a normal renovation.

A few products muddy the water. Some L-class machines ship with HEPA filters that exceed M-class filtration on paper. They still aren't M-class certified. Certification requires the audible alarm for low airflow, the bag-full indicator, and formal testing to the standard. On a professional site, only certified machines satisfy COSHH. For a homeowner cutting MDF in your own kitchen, the air-quality outcome with a HEPA-equipped L-class machine is similar, but you've lost the alarm that tells you the bag is full and suction has dropped below the safe threshold. Buy or hire M-class. The price difference is small.

The HSE has flagged construction dust as a 2024-25 enforcement priority and announced plans for around 4,000 proactive inspections. If you're employing trades on your build, M-class extraction is what they should be turning up with.

Wood dust is the reason this exists

Dust extraction can feel like overkill until you understand the underlying risk. The numbers are these.

Wood dust was classified by IARC as a Group 1 human carcinogen in 1995 and the classification has never been downgraded. The relative risk for nasal adenocarcinoma in workers exposed to hardwood dust is around 16 times that of the unexposed population. The HSE Workplace Exposure Limit for hardwood and softwood dust is 3 mg/m³ as an 8-hour time-weighted average for hardwood and MDF, 5 mg/m³ for softwood. Mixed dust defaults to the lower hardwood limit.

Around 12,000 lung disease deaths annually in the UK are linked to workplace dust exposure across all sources. Wood dust is one of the top contributors.

This isn't an industrial-scale concern that doesn't apply to your project. Cutting twenty linear metres of MDF skirting indoors with a mitre saw and no extraction will exceed the 8-hour WEL for the operator within an hour. The fine particles settle across the room and re-aerosolise every time someone walks across the floor. Your family breathes them for weeks.

Extraction at source removes the dust before it reaches the air. That's why COSHH puts engineering controls at the top of the hierarchy and respiratory protective equipment at the bottom. Get the engineering right and the mask is a backup, not a primary defence.

Auto-clean changes everything for sustained work

The biggest practical difference between a budget M-class extractor and a mid-range or pro one is automatic filter cleaning.

Fine dust loads filters quickly. Without auto-clean, you're stopping every twenty to thirty minutes to bang the lid, shake the filter, or pop the cover. Suction drops noticeably long before that, which means the dust capture rate at the tool drops too. A clogged filter is one of the most common reasons people give up on tool-connected extraction and just cut without it.

Auto-clean systems pulse the filter periodically. Two implementations dominate the UK market.

Pulse cleaning uses a brief burst of compressed air directed back through the filter, dislodging accumulated dust into the bag below. Bosch's AFC system (on the GAS 35 M AFC) cleans the filter every 15 seconds while the extractor runs. Festool's AUTOCLEAN system on the CTM MIDI I AC lets you choose the interval: 15, 30, 60, or 120 seconds. The shorter intervals suit fine work like sanding. Longer intervals reduce noise and pulse frequency for cleaner cutting work.

Electronic back-flush systems work similarly but use brief reverse airflow rather than a compressed-air pulse. Different mechanism, similar outcome.

The practical effect is the difference between extracting cleanly through a full sanding session and stopping every fifteen minutes to recover suction. Trade users describe auto-clean as the feature that justifies the Festool premium, and the threads are consistent on this. For a homeowner doing two weeks of finishing work on an extension, the question is whether to hire an auto-clean machine for £100 a week or buy a budget manual-clean unit and learn to live with frequent stops.

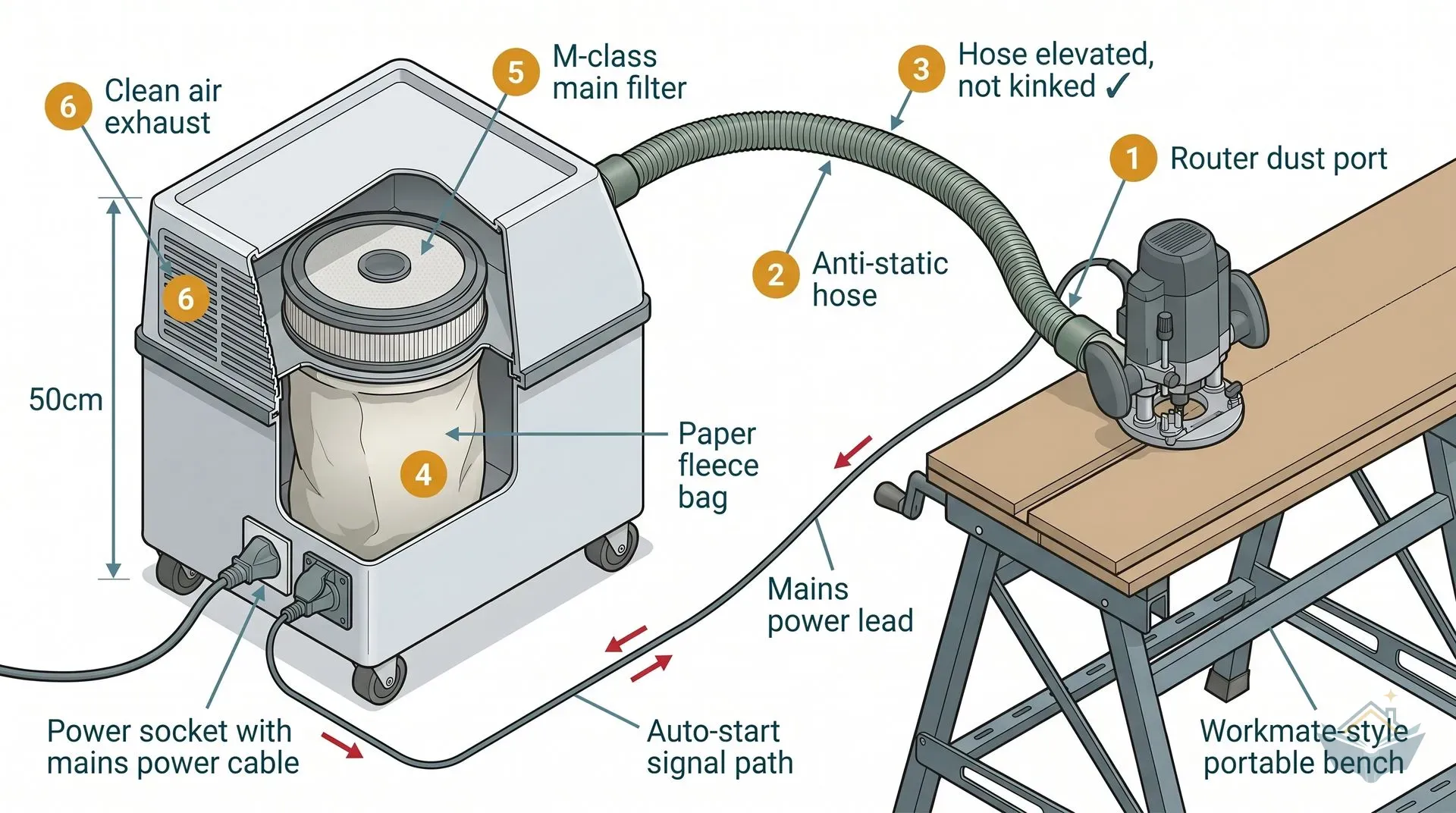

Auto-start: the tool plugs into the extractor

The second feature that separates a dust extractor from a vacuum is the auto-start power socket on the front of the unit.

The mechanism is straightforward. Your power tool plugs into the extractor's socket. Pulling the trigger on the tool draws current through the socket, which the extractor detects and ramps up to full suction. Releasing the trigger stops the tool, but the extractor continues running for a programmed run-on period (typically 5 seconds) to clear residual dust from the hose. Then it stops too.

The benefits are concrete: no separate switching, no extractor running while you're not cutting (which fills the bag with ambient dust and shortens filter life), and a clean hose that doesn't dump residue into your work area when you next pick the tool up.

The thing to watch for is ramp-up lag. Some extractors take a fraction of a second to reach full suction after the tool starts. On a router doing a long pass, that lag means the first inch of cut dumps dust before extraction is fully active. The fix is to feather the trigger briefly before committing to the cut, or to use a model with electronic ramp-up that anticipates demand.

Festool's premium models add Bluetooth remote activation, which lets you trigger the extractor from a button on a battery pack rather than running mains-cabled tools. Useful on cordless setups. Optional for everyone else.

How to use it properly

The extractor itself is mostly passive equipment. The technique is in how you connect, what you connect to, and how you maintain suction across a working session.

Match hose to tool port. Festool standardises on 27mm twist-lock for handheld tools and 36mm for larger machines. Most other brands use 32mm or 35mm. Bosch's Click & Clean system uses bayonet fittings that require their own adapters. Mismatched diameters cost suction at the connection. A 35mm hose forced onto a 27mm tool port leaks air around the joint and the tool collects dust at the cut despite the extractor running flat-out. Adapter kits cost £15-25 and solve most cross-brand problems.

Keep the hose under 4 metres. Suction drops sharply with hose length. The standard 3m or 3.5m hose that ships with most M-class extractors is the practical maximum. If you need to extend, use a hose extension matched to the original diameter rather than coiling 7m of hose into a tangle.

Don't kink the hose. A bent or pinched hose loses suction immediately. Lay the hose so it drapes naturally between extractor and tool. The retractable hose hooks on premium extractors aren't decorative. They keep the hose off the floor and prevent the most common source of suction loss.

Use a paper fleece bag. All M-class extractors take an inner bag that goes inside the main collection chamber. The bag captures fine particles before they reach the main filter. Running without a bag means every gram of dust hits the main filter, which clogs faster, costs more to replace, and reduces extraction efficiency in between cleans. Fleece bags cost £4-8 each. Use them.

Empty at two-thirds full. Airflow drops sharply once a bag exceeds about 65% capacity. The bag-full indicator on M-class units (it's part of the certification) flags this with an audible alert. Don't ignore it. A near-full bag dramatically reduces suction at the tool, which means dust escapes capture and reaches the air.

Run a pre-session pulse. On auto-clean machines, the pulse cycle starts when the tool starts. Some users prefer to trigger an initial filter clean manually before each session begins. Five seconds of clean filter at the start of a long sanding run is meaningful.

Hoses, accessories, and adapters

Hose work is where new users lose suction without realising it.

UK M-class extractors use one of four hose diameters. 27mm is the workshop standard for handheld power tools, particularly on Festool and high-end Bosch models. 32mm and 35mm are common on Makita, DeWalt, and mid-tier Bosch machines. 38mm and 50mm appear on industrial units and floor-cleaning attachments.

Anti-static hoses are worth the small premium when you're working near a computer, around painted finished surfaces, or in any environment where static discharge would attract or release dust. The hose itself is electrically conductive (typically green-sleeved on Festool) and connects through to the extractor's earth path. Static build-up otherwise causes fine dust to cling to surfaces around the work area, which defeats the point of having extraction in the first place.

For tool brands that don't share hose fittings, adapter kits are the answer. Festool adapters fit Makita, DeWalt, and Bosch tool ports. Most M-class extractors ship with one or two universal adapters in the box. If you've inherited a mixed kit of tools, factor in £20-40 for adapters when budgeting.

A cyclone separator is an optional pre-stage device that captures the bulk of coarse material before it reaches the extractor. It bolts onto a barrel or wheeled cart, sits between the hose run, and dramatically extends the time between bag changes. UK forum users routinely describe routing or sanding sessions where the extractor bag stays nearly empty because the cyclone has caught 95% of the material upstream. For anyone doing sustained finishing work, a cyclone pays back its £80-150 cost within a few projects through reduced bag and filter consumption.

What to buy

The M-class market splits cleanly into three tiers.

The community consensus is consistent. For a homeowner doing one extension, the Trend T33A at £220-230 from Toolstation or Screwfix is the value pick. It's genuine M-class with HEPA filtration, takes a 5m hose (longer than most), and includes auto-start. The trade-off is a manual filter shake mechanism rather than auto-clean, so you'll stop occasionally to clear suction during long sanding sessions.

For ongoing DIY work or a build that runs into more projects afterwards, the Bosch GAS 35 M AFC is the mid-range workhorse. Auto-clean every 15 seconds, large 35-litre capacity, and tool socket compatibility with most major brands. Around £540-640 from UK retailers.

Festool sits at the top. The CTM MIDI I AC is the model with programmable AUTOCLEAN intervals; the standard CTM MIDI I is the same machine without auto-clean at £640. Whether the £100-150 premium for AC is worth it comes down to how much sustained fine-dust work you do. For a homeowner doing one or two weeks of cabinet making and finish work, hire it. For a tradesperson cutting MDF five days a week, it's the obvious choice.

A few common assumptions worth correcting. The Mirka DE 1230 L PC, often listed alongside M-class extractors in trade guides, is L-class. The "L" in the model name is the dust class, not a configuration code. It's an excellent dust-free sanding extractor for paint and decorating work but not COSHH-compliant for MDF or hardwood. The Milwaukee M18 FPOVCL cordless is similarly L-class despite excellent HEPA filtration. The DeWalt DWV902M, which appears on older buying guides, has been discontinued in the UK; current DeWalt M-class options are different model numbers.

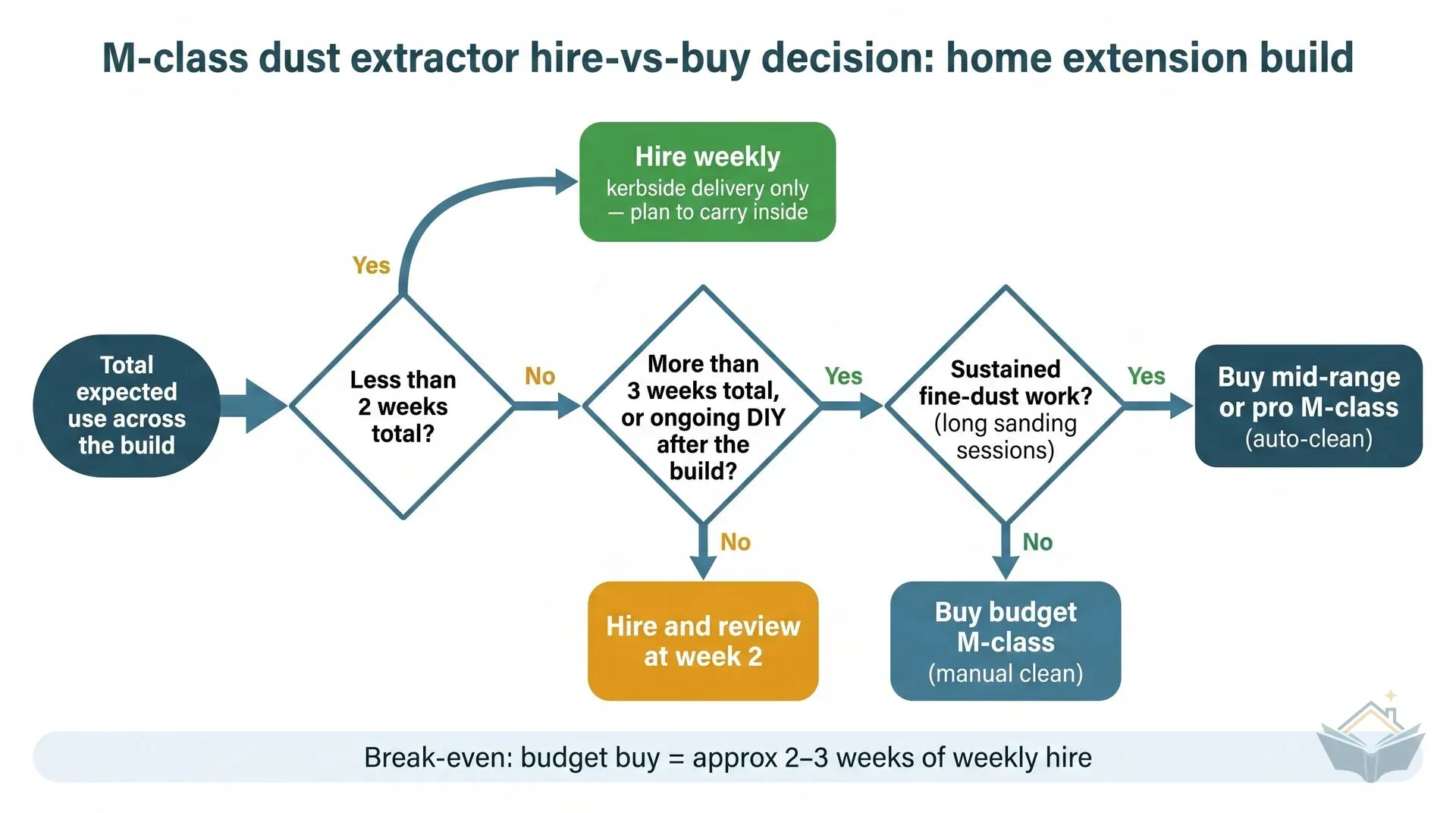

Hire vs buy

The decision is largely a maths problem with one twist.

UK hire rates for M-class extractors run £80-120 per week from major hire chains. The Hireman quotes £91-118 depending on model, SAB Supply offers £80 weekly, and Speedy/HSS sit in the same range.

covers the typical band. Local independent hire shops sometimes go lower, particularly for shorter terms or weekend rates.

A budget M-class extractor at £180-260 breaks even against weekly hire at around two to three weeks of use. If your build needs the extractor for less than that, hire makes sense and you're done thinking about it.

The twist is that an extension build doesn't use the extractor for one continuous block. It uses it for a few days during sheet material breakdown, again during studwork and skirting installation, and again during finish sanding. Spread across six months, that's potentially 4-6 hire weeks at £100 each, or £400-600 in hire costs. Buying a Trend T33A outright is cheaper.

The decision rule is this. If you'll use it for less than two weeks total, hire. If you'll use it for three weeks or more, buy the Trend or Vacmaster M-class budget unit. If you're a homeowner who does ongoing DIY beyond this build, buy a mid-range Bosch or step up to the auto-clean tier.

One practical caveat on hire: M-class hire units arrive on kerbside delivery and the driver doesn't carry them inside. The Hireman, SAB Supply, and most national chains specify this. A 35-litre extractor weighs around 12-15kg empty. Plan accordingly.

What you connect it to

The whole point of a dust extractor is the tool on the other end of the hose. The tools that need it during an extension build are these.

A router profiling MDF or hardwood worktop edges. This is among the dustiest cuts on a renovation, with fine particles ejected at the bit and travelling several metres if uncaptured.

A mitre saw cutting MDF skirting, architrave, or hardwood door linings. Even with the standard saw bag attached, fine dust escapes around the cut. An extractor on the saw's port via adapter is dramatically more effective.

A belt sander finishing timber edges. Sanding produces the finest dust of any operation on the build, and an extractor at the tool prevents the airborne cloud that otherwise covers the room.

A track saw breaking down sheet materials. Plunge saws are designed around extraction; without it, the cut quality drops and the room fills with fine dust.

An oscillating multi-tool doing flush cuts and detail sanding. Most multi-tools have small dust ports that benefit from M-class extraction.

A bench-mounted thicknesser or table saw if your temporary workshop runs to one. These produce volumes of chips that an M-class extractor handles with the inner bag changed regularly.

The tools that don't need the extractor during normal operation are the SDS drill (the dust comes from the bit, not a port), the impact driver (no dust generation), and most cordless drills. For drilling fixing holes in masonry there's a separate category of on-tool dust extraction (a shroud that slides over the SDS bit), but that's a different product.

Common mistakes

Treating L-class as good enough for MDF. It isn't. L-class is for general site debris and softwood. Indoor machining of MDF, oak, beech, ash, or any masonry needs M-class minimum. The HSE position on this is unambiguous, and L-class for MDF work is the most common compliance failure on renovation sites.

Running without a bag. The main filter clogs in hours rather than weeks, suction drops, and the cost of filter replacement (£40-80 per filter) far exceeds the cost of bags (£4-8 each). Always run with a bag.

Mismatched hose diameter. A 35mm hose on a 27mm tool port leaks air and dust escapes the cut. Buy the right adapter, or run a hose that matches your most-used tool's port.

Trusting the dust mask alone. Under COSHH, RPE is the residual control after engineering controls have done their job. A mask without extraction protects only the wearer, and only imperfectly. Anyone else in the building still breathes the dust. The HSE's exact words on this: "you should not just rely on a mask for high risk tasks."

Using a household vacuum for fine dust. Standard hoover filters cannot handle sub-micron particles. The motor heats, the filter clogs, and the exhaust blows fine wood dust back into the room at high velocity. UK forum members have reported filter fires on household vacuums repurposed for woodworking dust. Don't.

Where you'll need this

M-class dust extractors appear wherever you're machining timber, sheet materials, or masonry indoors during a renovation.

• Kitchen installation - routing worktop joints, cutting MDF kickboards, trimming end panels
• Flooring - cutting laminate planks, sanding floorboards, breaking down underlay sheets
• Second fix electrics - chasing cables into masonry where on-tool extraction connects to a chasing tool
• Decoration - sanding filled walls, sanding architrave, stripping old paint with a scraper
• Windows and doors - trimming MDF door linings, fitting hardwood frames

These tools and tasks appear across all stages of any extension or renovation project. The extractor lives wherever the cutting and sanding is happening at any given week.
