Belt Sander: Aggressive Stock Removal, Grit Sequence, and When Not to Use One

The planer takes the bulk off. The orbital sander adds the polish. The belt sander is the tool in the middle, and it's the one homeowners most often misuse, because they buy it expecting something like a big random-orbital and discover within seconds that it's a different animal entirely. A belt sander left stationary on a worktop for two seconds gouges a visible dip. The same tool, kept moving, flattens a glued-up board in a minute that would take half a morning by hand.

The mistake almost everyone makes on first use: they press down. They expect to feel the tool working, the way you do with a palm sander. A belt sander already weighs three to six kilos. That's the working pressure. Add your bodyweight and the belt digs, the workpiece scorches, and the surface is ruined before you've noticed.

This page covers how the belt sander fits into the timber finishing sequence, how to choose grits, how to keep the tool moving, and the specific surfaces it should never touch.

What it is and when you need one

A belt sander is a handheld power tool with a continuous loop of abrasive paper, the belt, running over two rollers at speeds typically between 250 and 500 metres per minute. The belt presents a long flat sanding surface to the timber, removing material in a linear motion along the grain.

The defining characteristic is aggression. A 76mm belt sander running at 350 m/min removes timber roughly ten times faster than a random-orbital sander on the same grit. That's the reason you'd use it. It's also the reason you'd ruin a piece of work with it.

The primary site uses on a self-managed extension are bulk material removal jobs where speed matters more than fine finish:

• Smoothing the surface of a solid timber door after the electric planer has trimmed it to size
• Removing old paint, varnish, or filler from timber before refinishing
• Flattening a glued-up timber worktop or repaired section
• Levelling feathered patch repairs where new timber meets old
• Shifting dried glue, caulk residue, or paint runs that won't come off any other way

It is not a finishing tool. The belt sander leaves linear scratches that need to be removed by a finer tool before paint or varnish goes on. The sequence is planer to take the bulk off, belt sander to flatten, then orbital to finish.

Belt sizes and the 75mm versus 76mm question

UK belt sanders come in three handheld sizes:

• 75mm × 533mm – the most common DIY format
• 76mm × 533mm – functionally identical to 75mm in practice, but listed as a separate spec
• 100mm × 610mm – professional, heavier, used for floor sanding and large flat work

The 75mm and 76mm distinction confuses every homeowner who shops for replacement belts. Manufacturers maintain separate product codes. Abrasive suppliers stock them as different lines. The boxes look the same.

Practically, they are interchangeable in handheld belt sanders. The 1mm difference sits inside the manufacturing tolerance of the belt itself, and the rollers on every belt sander are slightly crowned (wider in the middle than at the edges), which centres the belt regardless. UK woodworking forum users with decades of practical experience confirm that a 75mm belt fits and runs in a 76mm sander without issue. The reverse is also true.

This matters because 75mm belts are often a few pounds cheaper than 76mm equivalents from the same supplier. If your sander is listed as 76mm but a 75mm pack is half the price, buy the 75mm pack.

The 100mm belt sanders are not interchangeable with the 75 or 76mm tools. Different size, different belt path. If you have a 100mm Makita 9403 or 9404, you buy 100mm belts.

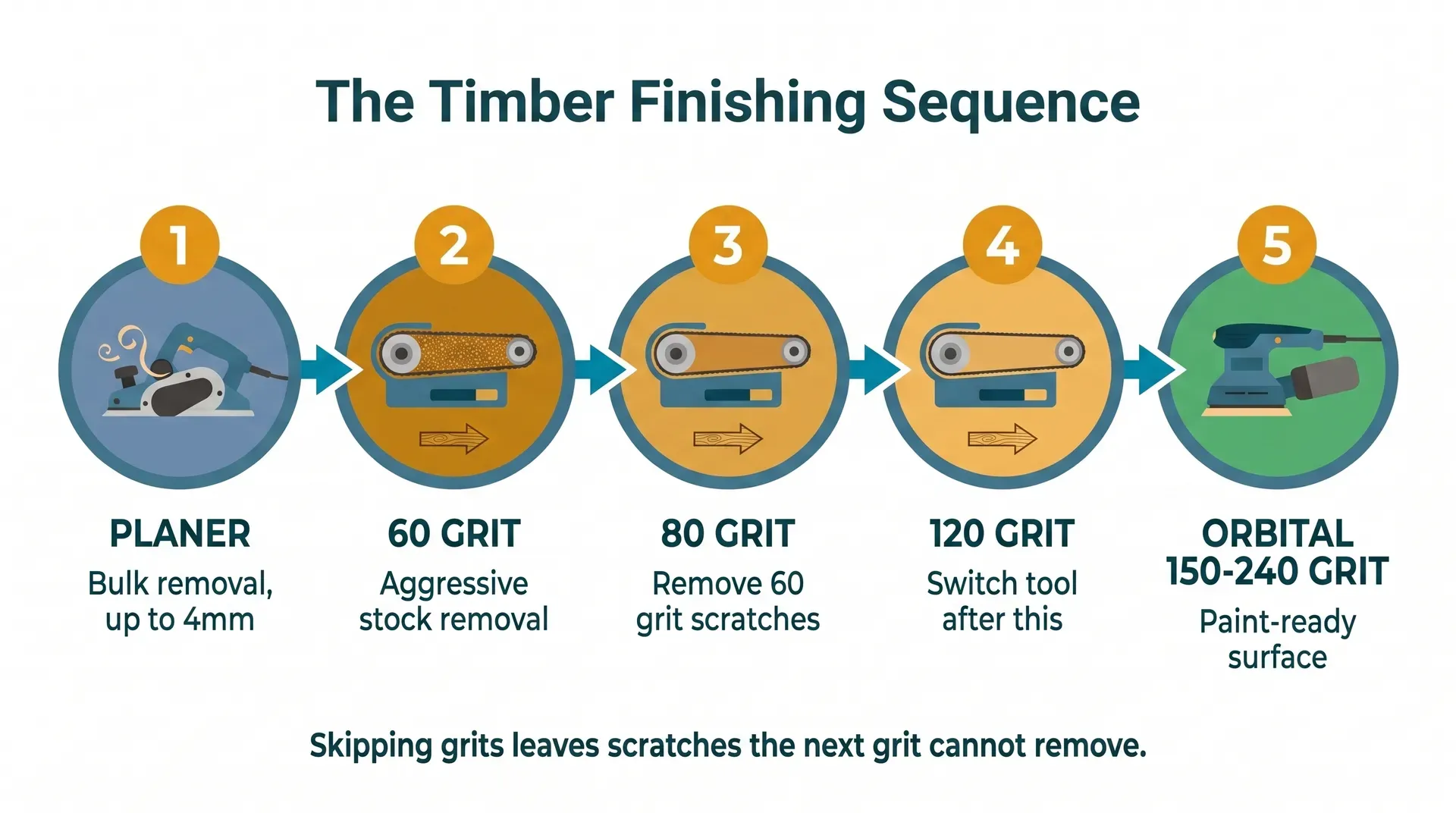

Grit selection: the 60 to 120 sequence

The single most useful piece of guidance on belt sanders is the grit progression for general timber work. Skipping grits or starting too coarse causes nearly every poor finish.

60 grit is the starting point for almost all jobs that need a belt sander. Bulk paint or varnish removal, levelling rough planed timber, flattening a glued-up panel. Coarser grits exist (40, 24) but they're for floor sanding hire machines, not handheld work on furniture or doors. 60 grit removes material fast and leaves deep scratches that the next grit removes.

80 grit is the second pass. It removes the scratches left by 60 grit and continues levelling. On clean softwood that wasn't badly damaged to start with, you can sometimes start here.

120 grit is where the belt sander stops. The surface should now be flat, free of obvious scratches, and slightly fuzzed. Going finer than 120 with a belt sander is rarely worth it because the linear scratch pattern will still show under finish, however subtle. The fix is to switch tools.

150 to 240 grit on a random-orbital sander is the next stage. The orbital's circular and random orbit motion produces no directional scratch pattern, which is what you need under paint, varnish, or oil. The belt sander cannot replicate this no matter how fine the grit.

The handoff point is firm: 120 grit on the belt sander, then random-orbital. Don't try to get a finish out of a belt sander alone.

For old paint or varnish on hardwood floors, the starting grit drops further: 40 grit for the worst of it, then 60, then 80, then 100. Floors get walked on so the surface tolerance is forgiving.

For doors, worktops, and any visible furniture surface, 60 to 80 to 120 then orbital is the right sequence.

Dust extraction: not optional indoors

Belt sanders produce significant volumes of fine wood dust. The onboard collection bag fitted to most models captures perhaps half of it on a good day. The rest goes into the air, your lungs, and every horizontal surface in the room.

For a homeowner sanding a single door in an open garage with the door rolled up, the dust bag plus an FFP3 mask is the practical minimum. For any indoor work, particularly on hardwood or composite materials, the dust bag is not an adequate control.

UK COSHH 2002 regulations classify wood dust as a hazardous substance. The Workplace Exposure Limit for hardwood dust is 3 mg/m³ averaged over an 8-hour shift. Hardwood dust is a Group 1 carcinogen, the same classification as asbestos, with a documented link to sinonasal cancer. Softwood dust at 5 mg/m³ is less severe but still causes occupational asthma and dermatitis. The HSE specifically identifies powered sanding as a high-risk activity and recommends on-tool extraction using a Class M or H rated unit, not just a dust mask.

The practical setup for any sustained indoor sanding:

1. Connect the sander's dust port directly to a Class M wet-dry vacuum or a dedicated dust extractor using the supplied hose adapter
2. Wear an FFP3 mask in addition to the extraction, not instead of it
3. Open windows where possible and limit the duration of any single session
4. Empty the vacuum drum or change the bag outdoors, wearing the mask

A budget Class M wet-dry vacuum costs £180 – £260. A mid-range model with auto-clean filter (which prevents suction loss during extended use) is £450 – £650, but worth it for anyone planning multiple days of sanding work. For a single weekend project, weekly hire at £80 – £120 is the cheaper route.

MDF is the worst case. The binders used in MDF release formaldehyde when machined, and the dust particles are extremely fine. Sanding MDF without Class M extraction in a domestic setting is genuinely hazardous, not just inadvisable. If you find yourself reaching for a belt sander on MDF, stop and read the next section.

When NOT to use a belt sander

The belt sander destroys some materials almost instantly. Knowing the no-go list prevents most ruined workpieces.

Plywood and MDF veneer surfaces. The face veneer on cabinet-grade plywood is typically 0.6 to 1.5mm thick. A belt sander on 80 grit removes that in two or three seconds. Once you've cut through the veneer, there's no fix. The piece is scrap. Use a random-orbital sander at 180 grit minimum, and let the orbital do the work over more time.

MDF flat surfaces. The face of MDF is denser than the core and produces a smooth surface only while that face layer is intact. A belt sander cuts through the dense face quickly, exposing the softer core which then absorbs paint and water unevenly. The surface looks fine while you're sanding and reveals the damage when finish goes on. Hand-sand MDF or use an orbital, never a belt sander.

Decorative profiles, mouldings, and crisp edges. A belt sander has a flat platen. It cannot follow a curved profile and will flatten the high points of a moulding while doing nothing to the low points. On any timber with a profile you want to preserve, including glazing bars, panel mouldings, and chamfered edges, hand sand or use a detail sander.

Veneered furniture. Same problem as plywood veneer. The decorative veneer on furniture is typically 0.5mm and disappears under a belt sander before you've registered the scratch.

Surfaces where directional scratches will show. Light-coloured paints and clear varnishes both reveal belt sander scratches that orbital sanding would have hidden. If the surface will be seen and finished clear, stop the belt sander at 120 grit and finish with the orbital.

The general rule: if you can replace the timber easily and the cost of a mistake is low, the belt sander is fine for bulk work. If the timber is a one-off, valuable, decorative, or veneered, use a different tool.

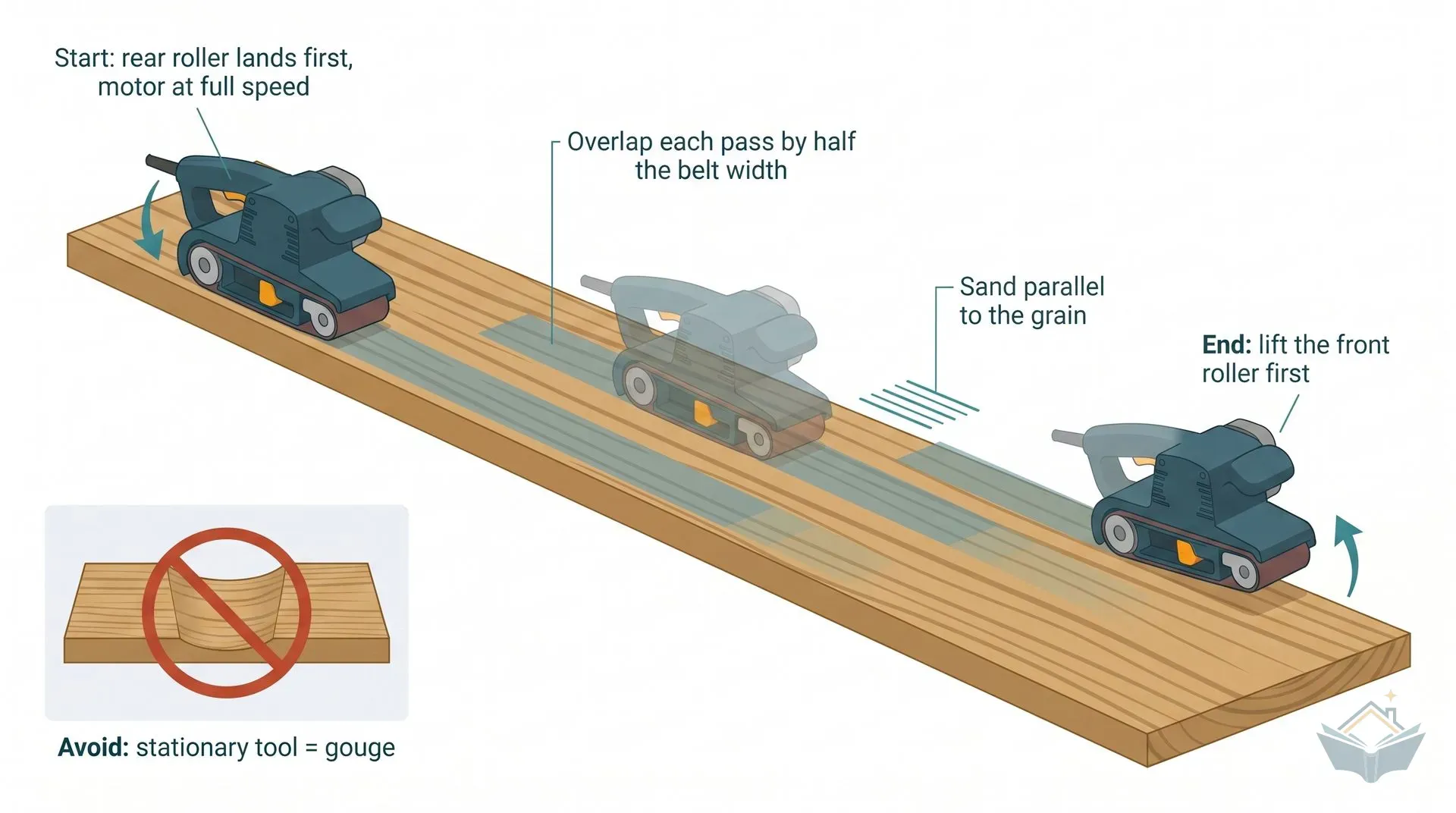

Technique: the rules that prevent gouging

Three rules govern belt sander technique. Break any of them and the workpiece suffers.

Keep moving, always. The belt sander cuts continuously while in contact with timber. A stationary tool produces a visible dip within seconds, and a deep gouge within five seconds. The fix is constant motion. Side to side, forward and back, but never paused. If you need to stop, lift the tool off the surface first.

Start the tool off the work. Squeeze the trigger with the sander held above the workpiece. Let the motor reach full speed (about a second). Lower the rear roller onto the timber first, then bring the front down so the full belt is in contact. At the end of the pass, lift the front first, then the rear. The reason: a belt sander dropped onto timber with a slow motor leaves a deep scoop where the belt was still spinning up, and a sander tipped down at the end of a pass cuts a rear-edge gouge for the same reason.

Plane in the direction of the grain. The same principle as the planer. Pushing the belt sander against the grain lifts and tears wood fibres rather than slicing them, leaving a rough surface that no amount of finer sanding hides. Look at the grain lines on the surface and run the belt parallel to them.

Within those three rules, the working technique is straightforward:

• Overlap each pass by roughly half the belt width. Full coverage with no missed strips.
• Let the weight of the tool do the work. Don't press down. The five-kilo Makita 9403 is heavy because it's designed to need no extra pressure.
• Don't tilt the sander on edges. The platen is flat and the timber edge is square; tilting rounds the edge into a curve you didn't want. Keep the sander level and let the belt pass over the edge cleanly.
• Move the tool in long, smooth strokes the length of the workpiece, not short choppy passes.
• Check progress every thirty seconds. Belt sanders remove material fast, and what looked like a millimetre of timber to remove can be gone before you've thought about stopping.

Click to enlarge

What to buy

The community consensus on UK forums is consistent across years: the Makita 9911 (76mm, 640W, variable speed, auto-tracking) is the mid-range pick most often recommended for homeowners, and the Makita 9403 or 9404 (100mm) is the professional choice for floor work and sustained use. The Bosch PBS 75 A is the recommended budget-to-mid model when the Makita is over budget. Below £45, the Titan and ROKTOR work but the bearings, tracking, and motor longevity are noticeably weaker. Acceptable for a one-off job, not a long career.

If you already own batteries on a Milwaukee M18, Makita LXT, or Ryobi ONE+ platform, the cordless bare tool option is legitimate. Without an existing battery investment, corded is the default choice. The runtime limitations on cordless belt sanders, particularly under sustained sanding load, make them frustrating as a primary tool.

Replacement belts are the running cost. A pack of five is £8 – £15 in generic aluminium oxide, slightly more for OEM brands or premium open-mesh belts (Mirka Abranet) which resist clogging and last longer on dusty materials. Buy belts in mixed grit packs so you're not switching to coarse paper because you've run out of fine.

Alternatives

The random-orbital sander is the most common alternative, and for many homeowners it's the better first sander to own. Random-orbital sanders are gentler, harder to ruin a workpiece with, and produce a paint-ready surface from start to finish on softwood and clean timber. Where the belt sander wins is bulk material removal: stripping old paint, flattening glued-up panels, taking down a high spot. Where the orbital wins is anything else.

A floor sanding hire machine is the right tool for whole-room floor sanding. Handheld belt sanders work for localised floor patches but you'd take three days to do what a drum or belt floor sander does in three hours.

Hand sanding with a sanding block remains the right choice for delicate work, mouldings, and the final touch-up before paint. It's slow but it produces no powered hazards and gives you full control.

For paint stripping on furniture, a heat gun followed by hand scraping is often gentler on the timber than a belt sander, and avoids spreading paint dust through the room.

Safety

The belt sander hazards are different from a planer's. Blades aren't the issue. The risks are dust, the moving belt, and fire.

The belt itself runs at hundreds of metres per minute. Loose clothing, long hair, or trailing cables get caught instantly. Tie hair back, sleeves rolled or cuffed, no jewellery on the wrist. The belt also wanders off the rollers if tracking is set wrong, with a sharp lateral motion that can pull at fingers. Adjust tracking before contact with timber, never during a pass.

Heat builds up at the contact patch. A loaded belt full of sawdust pressed against timber for too long generates enough heat to scorch the wood, and in extreme cases enough to ignite a dust-laden bag. UK Electrical Safety First specifically warn against switching from sanding wood to sanding metal without first emptying the dust bag, because metal sparks landing in a sawdust-loaded bag can start a smouldering fire that develops slowly.

The dust hazard runs through every aspect of belt sander use:

• Wear FFP3 protection minimum, face-fit tested if you're using one regularly
• Connect to Class M extraction for any indoor work, particularly on hardwood or MDF
• Empty the dust bag or vacuum drum outdoors
• Don't store a dust bag full of fine sawdust near heat sources

The electrical hazards are standard. Use an RCD-protected socket. Fully unwound extension lead. Inspect the cable before each use, particularly near the strain relief at the tool end where flex damage typically appears first.

Where you'll need this

Belt sanders appear at multiple finishing stages of any extension or renovation project:

• Windows and doors - smoothing solid timber doors after the planer has trimmed them; stripping old paint or varnish from inherited doors before refinishing
• Flooring - localised patch sanding on timber floorboards where a hire machine isn't worth the cost; levelling repaired board sections
• Kitchen installation - flattening and refinishing solid timber worktops after fitting; removing scorch marks or damage from worktop surfaces
• Decoration - surface prep on bare timber before priming; removing paint runs and filler bumps from previous finishes
• Snagging checklist - addressing patch repairs, glue residue, and proud edges flagged during the final walk-through
