Laser Measures: Why a £40 Distance Tool Replaces Your Tape for Most Jobs

You're measuring up the kitchen for a new extension layout. A tape measure needs two hands and ideally two people: one holding each end. By the tenth reading you've made at least one transcription error because you forgot whether 3.42m was the back wall or the side wall. A laser measure does the entire room in five minutes by yourself, with every reading logged on the device's memory. It costs less than a takeaway dinner. It's the single most useful 40 pounds tool a homeowner will buy during a kitchen extension.

What it is and when you need one

A laser measure (also called a laser distance meter or LDM) projects a short pulse of laser light at a target surface. The pulse reflects off the surface and returns to a sensor in the device. The internal electronics measure the time-of-flight (or, on cheaper models, the phase shift of the return signal) and convert that to a distance reading. You see the number on an LCD display in less than a second.

Modern laser measures show the distance to the millimetre over ranges from 0.05m to 50m or more, accurate to ±2mm at typical room distances. They run on AAA batteries (or built-in rechargeable lithium on better models) and fit in a jacket pocket. Most include calculation modes for area (length × width) and volume (length × width × height), and some include indirect measurement modes using Pythagoras to work out heights or distances you can't reach directly.

You need one whenever you're:

• Measuring up rooms for kitchen design, layout planning, or quoting tradespeople
• Calculating areas for tiling, flooring, plastering, painting, or insulation
• Estimating volumes for materials like concrete, screed, or insulation fill
• Checking site dimensions against drawings during a build
• Measuring high or awkward distances (ceiling heights in rooms with no scaffolding, distances across pits or trenches, chimney heights from the ground)

For the most precise short-distance work (cabinet making, joinery to the millimetre under 500mm), a steel rule or quality tape measure is still more accurate. For room-scale measurements, a laser measure beats a tape on speed, accuracy, and ease of use by every metric.

±2mm at 50m

A typical mid-range laser measure achieves ±2mm accuracy at 50m, which is better than any tape measure can deliver in real-world use (where tape sag and eyeballing parallax routinely add 5-10mm of error over 5m or more).

How a laser measure works

The principle is simple. The device emits a pulse of laser light, the pulse hits the target surface, some of the light reflects back, and the device measures how long the round trip took. Light travels at almost exactly 1 metre per 3.33 nanoseconds, so a 5-metre return trip takes about 33 nanoseconds. The internal electronics resolve nanosecond-scale time differences and convert the result to a millimetre reading.

Some cheaper laser measures use phase-shift detection rather than time-of-flight: the laser pulses at a known frequency, and the phase difference between emitted and returned pulses tells the device how far the light travelled. Both methods work; the difference in user experience is small. Phase-shift devices tend to be slightly slower over long ranges. Time-of-flight devices tend to be slightly more expensive.

The visible red or green dot you see on the target is the laser itself. You aim by pointing the device at the spot you want to measure. The dot is just bright enough to see at the maximum rated range under indoor lighting; for outdoor or long-range measurements, you may need a target plate (a small white or red panel) clamped to the far wall to make the dot visible.

What you can do with one beyond simple distance

Modern laser measures include calculation modes that turn distance readings into useful project data without a separate calculator.

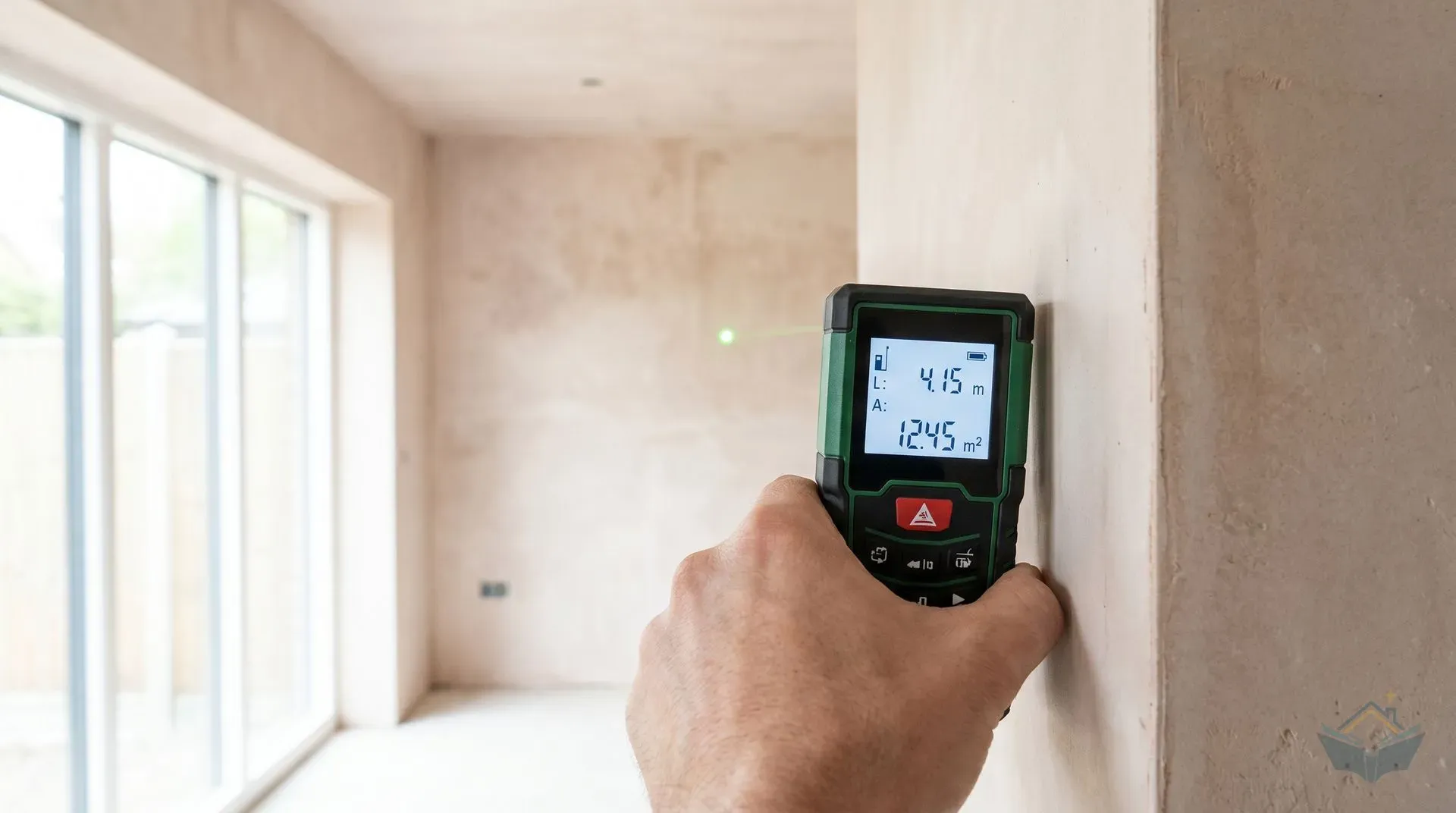

Area mode

Press the area button, take two readings (length and width), and the device shows the area in square metres. Useful for:

• Quoting tile areas (measure each wall, sum the areas, subtract the door)
• Estimating flooring quantities for laminate or LVT
• Calculating insulation coverage for an extension extension
• Sizing paint quantities (most UK paints quote coverage as m² per litre)

Click to enlarge

Volume mode

Three readings (length, width, height) give cubic metres. Useful for:

• Estimating concrete or floor screed quantities for a slab
• Sizing the volume of insulation needed for a loft or wall cavity
• Working out the volume of waste a skip needs to hold

Indirect mode (Pythagoras)

If you can't measure a height directly (because there's no ladder, or you can't reach a feature), you can use Pythagoras. Stand at one point, measure the distance to the top of the feature and to the bottom. The device works out the vertical height between the two points.

This is useful for measuring the height of an existing roof ridge from ground level, the height of an extension's bifold opening from a position outside on the patio, or the depth of a chimney from the ground when you can't get up close.

Memory and history

Better laser measures store the last 10-30 readings in memory. You can review them on the LCD or, on Bluetooth-equipped models, transfer them to a smartphone app for sketching room plans on the fly. The Leica Disto and Bosch Zamo apps both work well for this.

How to use it properly

Setting the reference point

Every laser measure has a reference point - the position from which the distance is measured. Most have three options:

• Front edge (default): distance from the front face of the device. Useful when butting the device against the corner you're measuring from.
• Back edge: distance from the rear face. Useful when measuring from a flat wall outward.
• Tripod thread: distance from the threaded mount on the bottom (matches a camera tripod thread, 1/4-inch UNC).

Set the right reference for each measurement. Most user mistakes come from the device being on "back edge" mode when held against a wall, which adds the device's body length (50-150mm) to every reading. The setting persists between readings until you change it.

Targeting

Aim the laser dot at the surface you want to measure to. The dot is small (about 6mm at 10m), so be precise. For corners, aim at the corner itself. For walls, aim at a point near the centre of the wall where the surface is flat and matt-finished.

Glossy or transparent surfaces (glass, polished metal, very wet surfaces) reflect the laser away from the device. The LCD shows an error and refuses to take a reading. Either move closer (under a metre often works), aim at a sticker or piece of tape stuck to the surface, or use a dedicated target plate.

Outdoor use and bright daylight

The visible laser dot fades to nearly invisible in direct sunlight at ranges over about 20m. Three workarounds:

• Use a target plate - a small white or red panel clamped to the far wall to give the laser something easier to see and more reflective.
• Use a green laser measure rather than red. Green is significantly more visible to the human eye in daylight.
• For very long ranges, use a laser sight add-on (some Leica Disto models support clipping a small optical scope to the device, which lets you confirm the laser is hitting the right spot at 50m+ range).

For most domestic measurements (rooms, gardens up to 20m, simple outdoor wall lengths), the standard red laser is fine. For longer or sun-flooded ranges, plan for one of the workarounds.

What to buy

The market is dominated by three brands: Bosch, Stanley, and Leica Disto. A handful of cheaper own-brand and Chinese-made devices fill the budget tier.

Budget: under 80 pounds

The Bosch Zamo (around 40 pounds at Screwfix and Toolstation) is the standard entry-level option. 20m range, ±3mm accuracy, simple distance/area/volume modes. The Stanley TLM65 (around 45-55 pounds) and the Stanley TLM99 (around 55-70 pounds) sit at this price point with similar specs and slightly different feature sets. The Magnusson own-brand laser measure at Screwfix (around 30 pounds) is the cheapest tested option, with a 30m range and ±2mm accuracy.

For occasional use (one extension, then the tool sits in the drawer), any of these is fine. The Bosch is probably the most popular for a reason - the build quality is reliable and the interface is easy to learn.

Mid-range: 80-150 pounds

The Bosch GLM 50-27 CG (around 100-140 pounds) and Stanley TLM330 (around 85-120 pounds) are the targets here. 50m range, ±2mm accuracy, green laser (much more visible in daylight than red), backlit display, multiple measurement modes including indirect (Pythagoras). The Bosch is Bluetooth-enabled and pairs with the Bosch Levelling Remote app for transferring measurements to a phone.

This tier is the right choice for someone managing a multi-week build with daily measurement use, or for someone planning multiple projects over the next few years. The green laser visibility alone justifies the price difference for outdoor or large-room work.

Pro: Leica Disto and high-end Bosch

The Leica Disto D2 (around 150-200 pounds) is the entry point to the professional Leica range. Bluetooth, ±1.5mm accuracy, robust construction, and full app integration with Leica's planning software. The Leica Disto X4 and D510 add tilt sensors (which let you measure angles and verify whether your laser is horizontal), camera-based aiming for outdoor long-range work, and ±1mm accuracy.

The Bosch GLM 100C at around 200 pounds sits in this tier with similar features. Beyond 250 pounds you're in territory only quantity surveyors and specialist trades need - features like full 3D point capture and integrated cameras for distance-and-image logging.

For a homeowner extension project, the Bosch GLM 50-27 CG mid-range is the sweet spot. Pro tools are overkill unless you're starting a side business in property surveying.

Where a tape measure still wins

A laser measure is not a complete replacement for a steel tape. Three situations where the tape is still the better tool:

Very short measurements under 100mm. Most laser measures have a minimum range of 50mm or so, and reading accuracy at the bottom of the range is poor. For socket plate dimensions, kitchen door reveals, or any sub-100mm measurement, a steel rule or pocket tape is faster and more accurate.

Curved or irregular surfaces. A laser measures a straight line. A tape can follow a curve (a flexible tape against a round column, an arched window head). For these, the tape is the only viable option.

Marking out cuts. A laser tells you a distance; it doesn't help you mark or cut to that distance. For marking cut lines on timber, plasterboard, or worktops, a tape measure plus a pencil and square is irreplaceable.

A practical tradesman's setup is a quality 5m steel tape (Stanley Fatmax or similar) for short-range and marking work, plus a laser measure for everything else. Each tool does what the other can't.

Click to enlarge

Maintenance

A laser measure is a sealed electronic device with very few user-serviceable parts. Standard care:

• Replace AAA batteries when the low-battery indicator appears. Don't wait for full failure - a partially-failed battery causes intermittent miss-reads.
• Clean the laser emitter and sensor windows with a soft microfibre cloth. Dust or fingerprints on the front face reduce range and reliability.
• Don't drop the device on a hard surface. The internal mechanism is calibrated, and a hard knock can shift the calibration permanently. The device will still produce readings but they'll be 5-10mm off, which is enough to cause noticeable errors on a project.
• If the device gets wet (most modern laser measures are IP54-rated, so splashproof but not waterproof), dry the case before storage. Moisture inside the case fogs the optics over weeks.

For a calibration check, measure a known distance (a 5m tape measure stretched along a wall, an existing 2.4m door) and compare. If the reading agrees within ±2mm, the device is fine. If it's off by 5mm or more, it's drifted out of calibration and needs replacing or sending to the manufacturer.

Where you'll need this

• Measuring and layout - recording every dimension of the room for kitchen design and layout planning
• Sourcing units and worktops - confirming wall lengths and ceiling heights for unit and worktop ordering
• Designer vs self-source - taking accurate dimensions to provide to a kitchen designer or use in a planning app
• Tiling - calculating wall and floor areas for tile quantities
• Insulation - sizing insulation rolls and rigid boards by m² coverage
• Plastering - wall and ceiling areas for plaster quantity ordering

In all these cases, the laser measure replaces 30+ minutes of awkward two-person tape work with five minutes of one-person measuring. For a kitchen extension specifically, where dozens of dimensions need recording for the design and ordering process, the laser measure pays for itself before you've ordered the kitchen units.

Safety

UK laser measures are typically Class 2 lasers, with an output below 1mW in the visible spectrum (635nm red or 532nm green). Class 2 is considered safe for momentary exposure because the human blink reflex protects the eye. The laser turns off after a few seconds of inactivity, limiting exposure even if you accidentally aim at a face.

The lithium batteries in rechargeable models are subject to standard battery safety: don't crush, puncture, or expose to fire. Recycle dead batteries through household battery banks rather than throwing in general waste.

Cheap laser measures from unverified sellers sometimes use higher-power lasers without proper labelling. Stick to recognised brands sold through established UK retailers to be confident the laser is genuinely Class 2 and safe.
