Worktop Jigs: Mason's Mitre Joints That Actually Disappear

What a worktop jig does, why a 1/2-inch shank router is mandatory, the Trend KWJ900 trade default, and the joint sequence that produces a gap-free finish. Buy from £45 – £65.

By Ian

Project managed a £182k Oxfordshire kitchen extension

The single visible joint in a fitted kitchen tells the truth about who installed it. A laminate L-shape worktop has one corner where two lengths meet, and that corner is what the eye lands on the moment somebody walks into the room. A trade install routs both pieces with a worktop jig, joins them with worktop bolts, and you cannot find the seam. A homeowner install butts two factory-cut ends together, fills the seam with a strip of silicone, and a year later that silicone is grey, the seam has lifted, and the worktop reads as a kit assembly rather than a fitted kitchen.

Worktop jigs are the tool that separates the two outcomes. They cost more than most homeowners expect for a single-purpose tool. A weekend hire of jig and router is the right answer for a one-build kitchen. A purchase makes sense if you're fitting more than one kitchen or if you intend to do other people's worktops afterwards.

What a worktop jig is and what it does

A worktop jig is a heavy aluminium template, typically 900mm or 1000mm long, with cut-outs and slotted positions that guide a router to cut three things: a male mitre profile, a matching female mitre profile, and a series of bolt channels that draw the two pieces together. The jig clamps to the worktop with toggle clamps. A router fitted with a 1/2-inch shank straight cutter and a 30mm guide bush traces the inside of the cut-outs. The cuts are made in a specific sequence that produces two perfectly matching curved profiles. When the two worktops are pulled together with worktop bolts, the curves nest cleanly, the joint is gap-free, and the laminate surfaces sit flush across the joint.

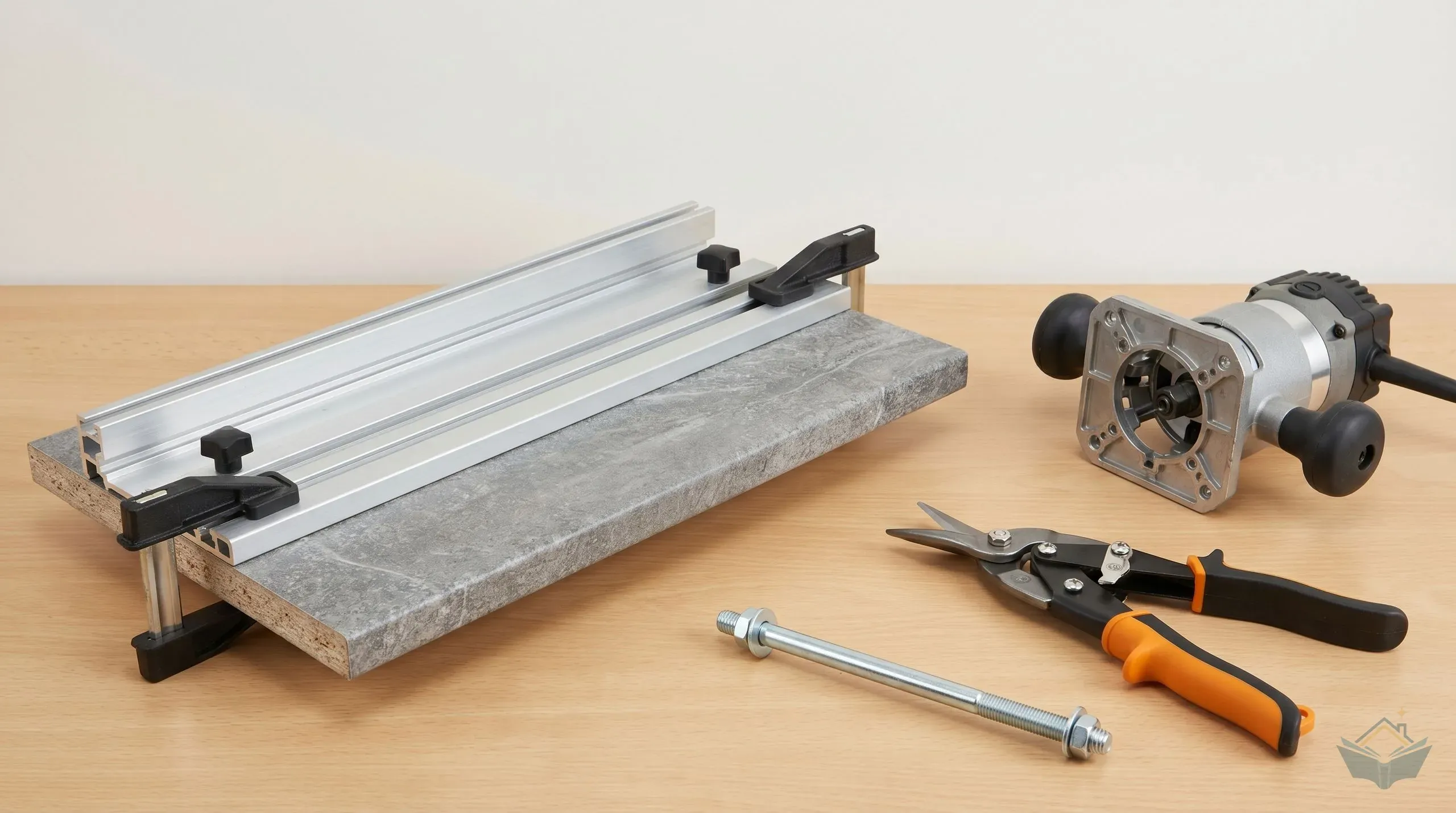

The Trend KWJ900 is the UK trade default. It handles 600mm and 650mm worktops (the two standard kitchen depths) and produces both 90 degree corner joints and end-to-end butt joints. The Unika UN-WJ-1 and Faithfull FAIWORKJIG are alternatives at slightly lower price points but with a similar feature set. For a homeowner doing one kitchen, any of the three are adequate. For trade use, the Trend is the established choice.

JigWorktop depthsJoint typesApprox price
Trend KWJ900600mm, 650mmMason's mitre, butt joint, end profiling£80 – £205 (Trend KWJ range)
Trend KWJ700600mm onlyMason's mitre, butt jointWithin the Trend KWJ range above
Unika UN-WJ-1600mm, 650mmMason's mitre, butt joint£45 – £65
Faithfull FAIWORKJIG600mm, 650mmMason's mitre, butt jointSimilar to the Unika

Why a 1/4-inch shank router will not do this work

This is the single most important fact in this guide. Worktop joints must be cut with a 1/2-inch shank router. A 1/4-inch shank machine, common in homeowner toolboxes for hinge work and light second-fix routing, is not adequate.

The reason is the depth of cut and the size of the cutter. A worktop is typically 38mm to 40mm thick. The mitre profile cuts through almost the full depth, taken in several passes of increasing depth (the jig instructions give the maximum depth per pass). The cutter is a 12.7mm or 19mm diameter straight bit, which is a large amount of TCT mass spinning at 18,000 rpm. The forces involved exceed the capacity of a 1/4-inch collet to hold the bit securely. Under sustained load, a 1/4-inch shank can flex, the cutter can vibrate, and worst case the bit pulls out of the collet partway through the cut. That ends with damaged worktop and significant injury risk.

A 1/2-inch shank router has a heavier collet, a larger motor, and a base designed to take the side load of a sustained cut. The Trend T11EK, the Festool OF 2200, and the Makita RP2301FCXK are all 1/2-inch routers in the trade range. Check the collet before you buy or hire: some popular 1400W routers, such as the Bosch POF 1400 ACE, take only 1/4-inch or 8mm bits.

Warning

The printed instructions on every Trend worktop jig specify a 1/2-inch shank router and an 8mm or 12.7mm 1/2-inch shank cutter. This is a structural specification, not a recommendation. Cutting worktop joints with a 1/4-inch router risks bit ejection and injury. Hire a 1/2-inch router for the weekend if you don't own one. Wear eye and hearing protection, and use extraction plus an FFP3 mask: cutting chipboard makes fine dust.

What you also need

The jig is one piece of a four-part system. The other three matter as much.

A 1/2-inch shank router with at least 1500W motor power and a plunge base. The Trend T11EK and the Makita RP2301FCXK are the trade defaults; a hire shop's 1/2-inch router is the budget choice.

A 30mm guide bush specific to the jig. The Trend KWJ900 ships with a 30mm guide bush. Other jigs require their specified bush; check the printed instructions before buying.

A 12.7mm 1/2-inch shank straight cutter, two-flute TCT, around 50mm cutting length. The Trend C153 1/2-inch shank version is the typical part number.

A pack of worktop bolts (also called worktop connector bolts, hex-head with butterfly clamps). Six bolts per joint is standard for a 600mm-deep worktop. A pack is cheap. Wickes, Toolstation, B&Q, and most kitchen merchants stock them.

A worktop joint sealant approved for the worktop, used according to its instructions. A silicone release spray is not a joint sealant. Do not combine sealants or add a PVA coating unless the worktop and sealant manufacturers specify that preparation.

ColorFill, for example, is a colour-matched joint sealant and repair compound. Apply it to the joint before assembly as Unika specifies, and use its recommended solvent to clean excess. It is not a finishing wipe over an already assembled silicone joint.

The joint sequence: female first, male second

Worktop jigs only work if you cut the joint in the correct order, on the correct side of each piece, with the correct cutter offset. The instructions on every jig are explicit about this; the Trend manual is colour-coded for clarity.

The standard 90-degree corner joint between two 600mm worktops:

  1. Identify the female piece (the one that runs through the corner)

    On a typical L-shape kitchen, the longer run is the female piece. The female cut produces a concave curve along the front edge of the worktop. The shorter return run is the male piece, with a matching convex curve.

  2. Clamp the jig over the female piece in the female position

    Each jig has a marked or labelled position for the female cut. Position the jig with its registration arrow against the front edge of the worktop, with the jig overhanging the corner area to be cut. Clamp using the toggle clamps; the jig must not move during the cut.

  3. Set progressive cutting depths

    Support and clamp the worktop with clearance for the cutter beneath it. Follow the jig manual's depth increments, routing through the full board thickness over several passes. Do not leave a chipboard web to cut away with a knife. Check the cutter's cutting length and the router's plunge travel before starting.

  4. Cut the female profile

    Set the worktop face up or face down as the manual specifies for this joint and its handedness. Keep the guide bush against the specified edge of the slot and follow the marked feed direction so the cutter enters the postformed front edge. Use progressive depth passes and the finishing pass specified by the jig maker. Support the offcut and let the cutter stop before lifting the router clear.

  5. Cut the bolt channels in the female piece

    Use the jig's bolt-recess template on the underside, with the cutter and bush specified for it. Set the recess depth for the bolts and worktop thickness, keeping clear of the finished face. Follow the manual for positions and number of bolts.

  6. Reposition the jig over the male piece

    Move the jig to the male position on the second worktop length. The male position is on the opposite side of the jig and produces the matching convex curve. Clamp.

  7. Cut the male profile

    Repeat the routing sequence. The bush guides the cutter around the male cut-out, producing a curve that mirrors the female cut.

  8. Cut the bolt channels in the male piece

    Rout the matching bolt recesses on the underside of the male piece, aligned with those on the female piece.

  9. Dry assemble, then bond and bolt

    Test-fit the profiles and bolts before applying sealant. For ColorFill, apply it to the mitre faces before assembly, then bring the pieces together, align their top faces and tighten the bolts according to the instructions. Use a different sealant only if the worktop maker permits it, following that product's complete preparation and assembly method.

  10. Remove excess sealant

    Clean excess ColorFill with the specified ColorFill solvent and method. Do not substitute a damp cloth or add silicone over the seam. Observe the product's curing time before exposing the joint to water.

The joint, done correctly, is invisible from a normal viewing distance. You can see the seam if you crouch and look closely, but no kitchen visitor will spot it.

What to buy versus what to hire

For most homeowner kitchen fits, hiring is the right call.

OptionCostRecommendation
Hire jig + 1/2-inch router for a weekendWeekend hire rate (Brandon Hire, HSS, Speedy Hire)Right for a one-kitchen install. Jig is in the toolbox of every hire shop.
Buy jig only, hire router for weekend£80 – £205 jig, plus router hireRight if you also have other 1/2-inch router needs
Buy full kitJig, plus a 1/2-inch router, cutters and bushesRight if doing two or more kitchens, or planning to fit kitchens for friends/family
Pay a kitchen fitter to make the jointAsk your fitter for a per-joint priceRight if the homeowner has zero router experience and wants no risk

The hire option is genuinely the right call for most extensions. A kitchen has typically one, occasionally two, joint cuts. A weekend hire gets you the entire kit, with a known-good jig that's been used by trade fitters and properly maintained.

For purchase: the Trend KWJ900 (Trend KWJ range £80 – £205) from D&M Tools or Trend's direct site, plus a Trend GB30 30mm guide bush and a Trend C153 1/2-inch 12.7mm cutter, then a 1/2-inch shank router for the full setup.

The Faithfull and Unika alternatives at lower price points cut adequate joints but the jig clamping mechanism and the cutout machining are not quite as precise. For a homeowner buying once, the Trend is worth the premium over the budget alternatives.

Where you'll use it

Worktop jigs are single-purpose tools that come out for one stage of one phase of a build:

  • Worktop installation for every L-shape or U-shape laminate worktop with internal corners
  • Sourcing units and worktops for understanding which worktop materials work with which jigs (laminate yes; solid wood yes with caveats; quartz, granite, sintered stone no, those need specialist stone fabrication)

Solid surface worktops (Corian, Hi-Macs) are usually fabricated by the supplier rather than jointed on site. Quartz, granite, and sintered stone always come pre-cut and template-fitted by the stone fabricator. This jig is for laminate and solid wood, the two materials a homeowner can realistically cut on site.

Common mistakes

Using a 1/4-inch shank router. Already covered. The single most dangerous mistake possible with worktop work. Always 1/2-inch shank.

Wrong guide bush size. Each jig is engineered for a specific bush. Using the wrong size shifts every cut by the difference between the two diameters. The cuts will not mate together.

Cutting both pieces in the female position. The female profile is concave; two female cuts cannot mate. The jig is reversible to give you a male and female position; reverse it for the second cut. Read the instructions.

Not sealing the cut chipboard. Exposed chipboard absorbs moisture. Seal the joint with the system specified by the worktop maker before assembly; do not improvise a release-spray or PVA treatment.

Skipping the worktop bolts. Manufacturer-approved joint sealant alone does not hold a worktop joint flat. The bolts pull the two faces together mechanically; the approved joint sealant seals. Both are needed.

Using the wrong face or feed direction. Face-up and face-down setups vary with the joint and its handedness. Follow the jig's diagram so the cutter enters the postformed edge rather than breaking out through it. There is no universal rule to rout every cut from the underside.
