Nail Punches: How to Sink Pin Heads So Filler and Paint Can Hide Them
What a nail punch is, the three tip sizes that match panel pin to oval nail, and how to use one without bruising the timber. Buy a three-piece set from £6.
A homeowner finishes hanging the skirting around a new extension. The mitres are tight, the lengths are scribed, and the paint job two weekends from now will be the moment the room starts to look finished. Then they look at the panel pins. Each head sits proud of the timber surface by half a millimetre. Filler will not bridge that gap cleanly, paint will sink into each pinhead like a constellation of tiny dimples, and the skirting reads as DIY rather than trade. A nail punch and ten minutes would have fixed it before the filler tube came out.
Nail punches are the cheapest, smallest second-fix tool, and they make the difference between a finish that looks fitted and one that looks improvised. The kit is a three-piece set in three tip sizes, costs less than a pint, and lasts decades.
What a nail punch is

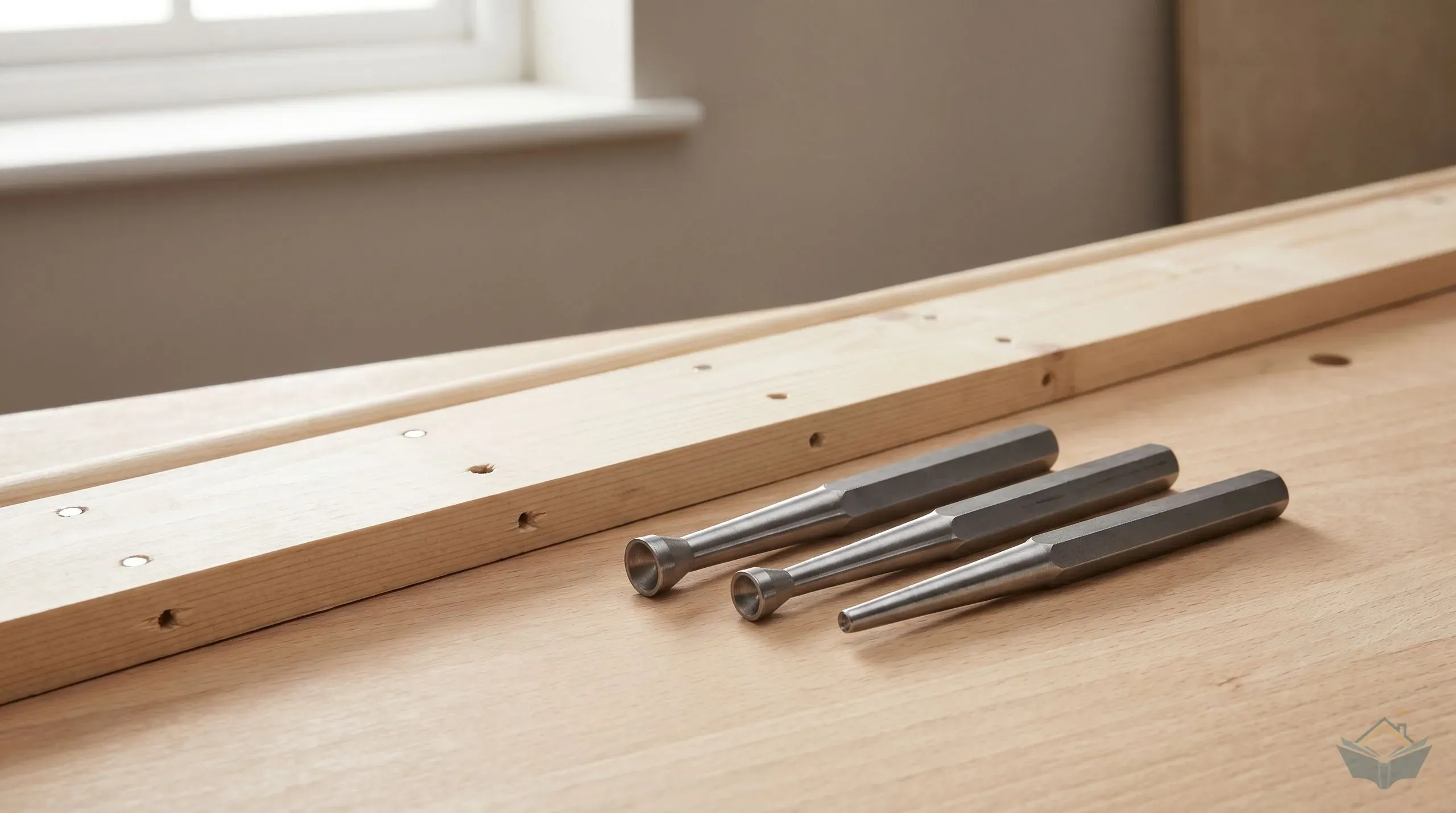

A nail punch (also called a nail set or pin punch) is a short hardened steel rod with a tapered tip at one end and a hexagonal or octagonal shank at the other. The tip is concave, hollowed slightly so it cups the head of a panel pin or oval nail rather than skidding off it. You hold the punch on the pinhead, strike the back with a hammer, and the tip drives the pin a millimetre or two below the timber surface. A skim of caulk or wood filler then bridges the recess flush, and paint or stain finishes the surface as if the fixings were never there.
The tip is the working end. The cup geometry is what stops the punch slipping off a pin and bruising the timber. A flat-tipped pin punch, common on cheap hardware, slides off the head on the first off-centre strike, dents the wood, and creates the very mark you were trying to avoid.
Nail punches are graded by tip diameter. The standard three-piece set covers 0.8mm, 1.6mm, and 2.4mm (sometimes labelled 1/32", 1/16", 3/32"), which match the head sizes of common UK panel pins, oval nails, and lost-head nails respectively. A homeowner needs all three because the pin you reach for varies with the timber and the joint.
| Tip size | Pin size match | What it's for |
|---|---|---|
| 0.8mm (1/32") | Panel pins under 30mm, 1mm-shaft pins | Beading, bead mouldings, light architrave fixings, fine cabinet trim |
| 1.6mm (1/16") | Standard panel pins 30-40mm, oval nails up to 40mm | Skirting and architrave on softwood, internal door stops, cabinet plinths. The middle size you reach for most. |
| 2.4mm (3/32") | Lost-head nails 50-65mm, oval nails over 40mm | Floorboards (where lost-head nails are still used), heavy architrave fixings, structural pins |
If you're buying one, buy the 1.6mm. If you're buying for a build, buy the three-piece set; they normally cost 6 to 10 pounds together.
Why a flat punch will not do the job
Beginners sometimes reach for the smallest screwdriver in the toolbox or any pointed steel rod and treat it as a substitute. Two things go wrong.
A flat-tipped tool slips off the curved head of a panel pin on the first strike. When it slips, it travels sideways, and the leading edge of the shank lands on bare timber. That leaves a crescent-shaped bruise next to the pin. On bare softwood, that bruise lifts when the timber takes up moisture from the first paint coat, and the dent reads through every coat above it.
A pointed tool (a centre punch, for instance) drives a hole straight through the pinhead instead of seating on it. The pin sometimes goes in further than intended; sometimes the head sheers off and the pin skews in the timber. Either way, the result is messier than a clean cup-tip strike.
The cup tip on a proper nail punch is shaped to nest on a panel pin head. The pin centres itself in the cup. The strike drives straight down. The punch leaves a clean, centred dimple in the timber. The whole point of the tool is that geometry.
Setting depth: half to one millimetre below flush
This is the question every first-time user asks. How far do you sink the pin?
The answer is consistent across UK trade guides: the head should sit between half a millimetre and one millimetre below the surface of the timber. Deep enough that wood filler or caulk will fill the recess and bridge cleanly. Not so deep that the recess becomes a crater the filler shrinks back into.
A single firm hammer tap with a 16oz claw hammer is usually enough. Two taps is acceptable. More than that and you're overworking the joint, the timber compresses, and you risk a cratered finish. Hold the punch perfectly vertical, line the cup over the pin head, strike once, check, and repeat once more if needed.
Tip
For a homeowner project, the right depth is the depth at which you can drag a fingernail across the timber surface and feel the recess but not catch on a sharp edge. That's the depth that fills cleanly with one knife of caulk and sands flush.
Caulk versus wood filler: which to use over the recess
Once the pin is sunk, you fill the recess. Two options, and the choice depends on whether the timber is being painted or stained.
Decorator's caulk (acrylic, water-based, dries flexible) is the right fill for any internal painted joinery. It bridges the pin recess, takes paint cleanly, and stays flexible enough to absorb the small movements the timber makes through seasons. Knife it on, smooth with a damp finger, paint over once dry. Most UK trade decorators use Everbuild Painters Mate, Polyfilla One Strike, or Dulux Trade Painters Caulk. Around 2 to 3 pounds a tube.
Wood filler (resin-based or two-part) is the right fill for any timber being stained, varnished, or oiled, where caulk would show as a flexible band of different colour. Wood filler dries hard, sands smooth, and takes stain similarly to the surrounding timber. Ronseal Multipurpose Wood Filler and Toupret Bois are the trade defaults. Match the colour of the filler to the timber, or use a filler designed to take stain.
For pin-sized recesses (under 2mm across), caulk on painted work and natural-coloured wood filler on stained work cover every realistic case. Specialist wax filler sticks (used at the very end after staining and finishing) are the third option for jobs where you've already finished the timber and need to disguise a pin head you missed.
How to use a nail punch correctly
The technique is short and the mistakes are predictable.
Drive the pin almost flush with the hammer first
Use a hammer to drive each panel pin until its head is just proud of the surface, around 1 to 2mm above flush. Do not try to hammer the pin all the way home. The hammer face is much wider than the pin head, and the last millimetre or two will end with the hammer striking the timber surface and bruising it.
Pick the right punch tip
Match the tip diameter to the pin head. A 1.6mm punch on a 1.6mm panel pin sits cleanly. A 2.4mm punch on a 1.0mm panel pin will sometimes drift off-centre. Use the smallest tip that the pin head will sit cleanly inside.
Hold the punch vertical
Grip the punch between thumb and first two fingers, flat-end down, against the pinhead. The shank should be perpendicular to the timber surface. Any tilt and the punch will drift on impact, gouging the wood.
Strike once, firmly, with the elbow not the shoulder
A single confident hammer tap drives the pin half a millimetre into the timber. Look at the punch head, not the pin. The tip is small and the eye naturally tracks the strike point above. A heavy strike will over-sink the pin; a tentative strike won't move it. Aim for one decisive tap.
Check the depth and repeat if needed
Drag a fingernail across the joint. If you feel a slight dip but no edge, the pin is at the right depth. If the head is still proud, one more tap. If the recess is deep enough that you can fit a fingernail in, you've gone too far and will need to overfill with caulk to bridge it.
Warning
A nail punch with a chipped or mushroomed striking end is a hazard. The hardened steel can fragment under hammer impact, and steel chips travelling at hammer-strike velocity reach skin and eyes easily. Inspect the punch ends before each session. If the striking face is flared or cracked, dress the rim with a bench grinder (cool in water frequently to avoid de-tempering the steel) or replace the punch. The whole tool costs under 4 pounds.
Where you'll use it
Nail punches earn their place on every second-fix and finishing job:
- Skirting and architrave for sinking panel pins and oval nails before caulking and painting
- Hanging internal doors for door stops, doorstop blocks, and architrave around the frame
- Kitchen installation for beading around end panels, plinth fixings, and decorative cornice mitres
- Flooring for tongue-and-groove boards where lost-head nails are still used at the perimeter
The tool comes out roughly when the room is being filled and made ready for paint. It stays on site through every paintable joinery detail until the room is decorated.
What to buy
Nail punches are inexpensive and the budget tier is genuinely good enough.
| Tier | Price | Models | Buy if... |
|---|---|---|---|
| Budget single | £2-4 | Faithfull FAINP116, Stanley 0-58-913, Wickes own-brand 1.6mm | You only need one size and won't be doing repeated finishing work |
| Three-piece set | £6-12 | Faithfull FAINS3, Roughneck 31-100, Stanley 58-930 set, Magnusson 3-piece set | You're doing skirting, architrave, and door stop work. The default homeowner buy. |
| Premium / specialist | £15-25 | Veritas brass nail set, Stiletto NS1216, Knipex 49 11 series | You enjoy fine joinery and the difference between competent and good matters |
The Faithfull FAINS3 three-piece set in 0.8, 1.6, and 2.4mm is the trade default at most UK builders' merchants. Around 8 pounds. Hardened tips, hexagonal shanks that won't roll off the bench, and the three sizes that cover every realistic homeowner job. The Roughneck and Stanley equivalents are interchangeable. For a single tool, the 1.6mm Stanley single punch at around 3 pounds is sufficient if you only need to sink standard panel pins.
Tip
Tape a strip of low-tack masking tape to the timber around the pin before sinking it. The tape acts as a small target around the pin and absorbs any accidental hammer strike that misses the punch. Lift the tape after sinking the pin; the timber surface stays unmarked and the tape collects any caulk or filler overspill.
Common mistakes
Hammering the pin in too far before reaching for the punch. Once a pin head is below the surface, the punch cannot reach it cleanly. Drive the pin almost-flush first, then sink with the punch.
Using a centre punch as a substitute. Centre punches have pointed tips designed to mark steel for drilling. The point will pierce a panel pin head and skew the pin in the timber. Cup-tipped nail punches only.
Striking off-centre. The cup tip self-centres on a pin if the punch is held vertical. Tilt the punch and the cup loses its grip; the next strike slips off and bruises the timber. Vertical, every time.
Using filler too thick to bridge a sunk pinhead. Stiff filler shrinks as it dries and pulls back from the recess, leaving a small crater. Decorator's caulk or thin filler bridges cleanly the first pass.
Skipping the punch on stained joinery. A pinhead sitting proud of stained skirting reads as silver dots through every coat of finish above it. Sink first, fill with stainable filler, finish over.
Using the smallest punch tip on every pin size. Mismatching the tip causes the head to skew. Match tip diameter to pin head; the three-piece set is sized for exactly this reason.
