Plumb Bobs: Why Gravity Still Beats Batteries

A new-build partition wall that leans 8mm over its height looks fine until you hang the kitchen units. The doors won't sit flush. The worktop hits the wall at one end and gaps at the other. That's a strip-out, a re-stud, and a week lost. The plumb bob would have caught it in thirty seconds flat, before a single screw went in.

What it is and when you need one

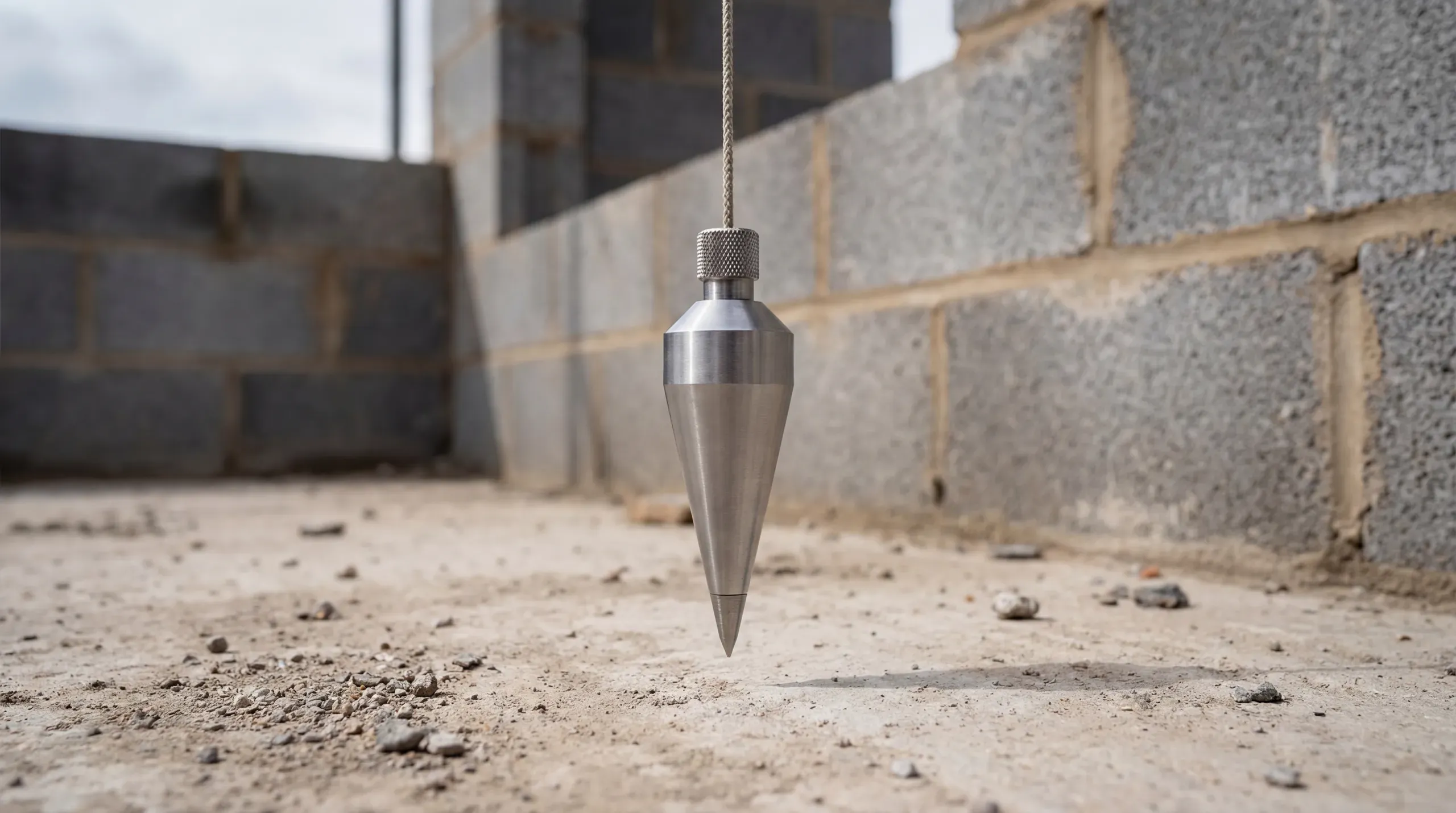

A plumb bob is a pointed weight on a string. You hold the string at the top of a surface, let the weight hang freely, and gravity pulls it into a perfectly vertical line. No batteries, no calibration, no drift. It works the same way it did when the Egyptians used it to build pyramids, and it'll work the same way on your extension.

The name comes from the Latin "plumbum," meaning lead, because that's what the earliest versions were made from. Modern plumb bobs are steel or brass with a hardened steel point at the tip.

You need one whenever you're checking whether a surface is truly vertical ("plumb"), transferring a point from ceiling to floor (or floor to ceiling), or setting out the position of a new wall. Spirit levels do some of these jobs, but over tall walls or long vertical distances, a plumb bob is more reliable. Gravity doesn't lie, and it doesn't need flip-testing.

Plumb bob vs spirit level

This is the question that starts arguments on every trade forum. The answer is simple: they're complementary tools, not competitors.

A spirit level is faster for routine checks. Laying blockwork, you'll hold a 1200mm level against each course to check it's plumb. Quick, one-handed, done. But a spirit level only checks the section of wall it's touching. If the wall bows between your measurement points, you'll miss it.

A plumb bob checks the full height of a wall in one go. Hang it from the top, measure the gap at the bottom, and you know whether the entire surface is vertical. On a 2.4-metre stud wall, that's the difference between checking three spirit-level positions and hoping they agree, versus one plumb bob measurement that tells you everything.

How to use it properly

This is where most guides stop at "hang it up and look at it." That's about as useful as telling someone to drive by sitting in a car and pressing the pedals. The technique matters.

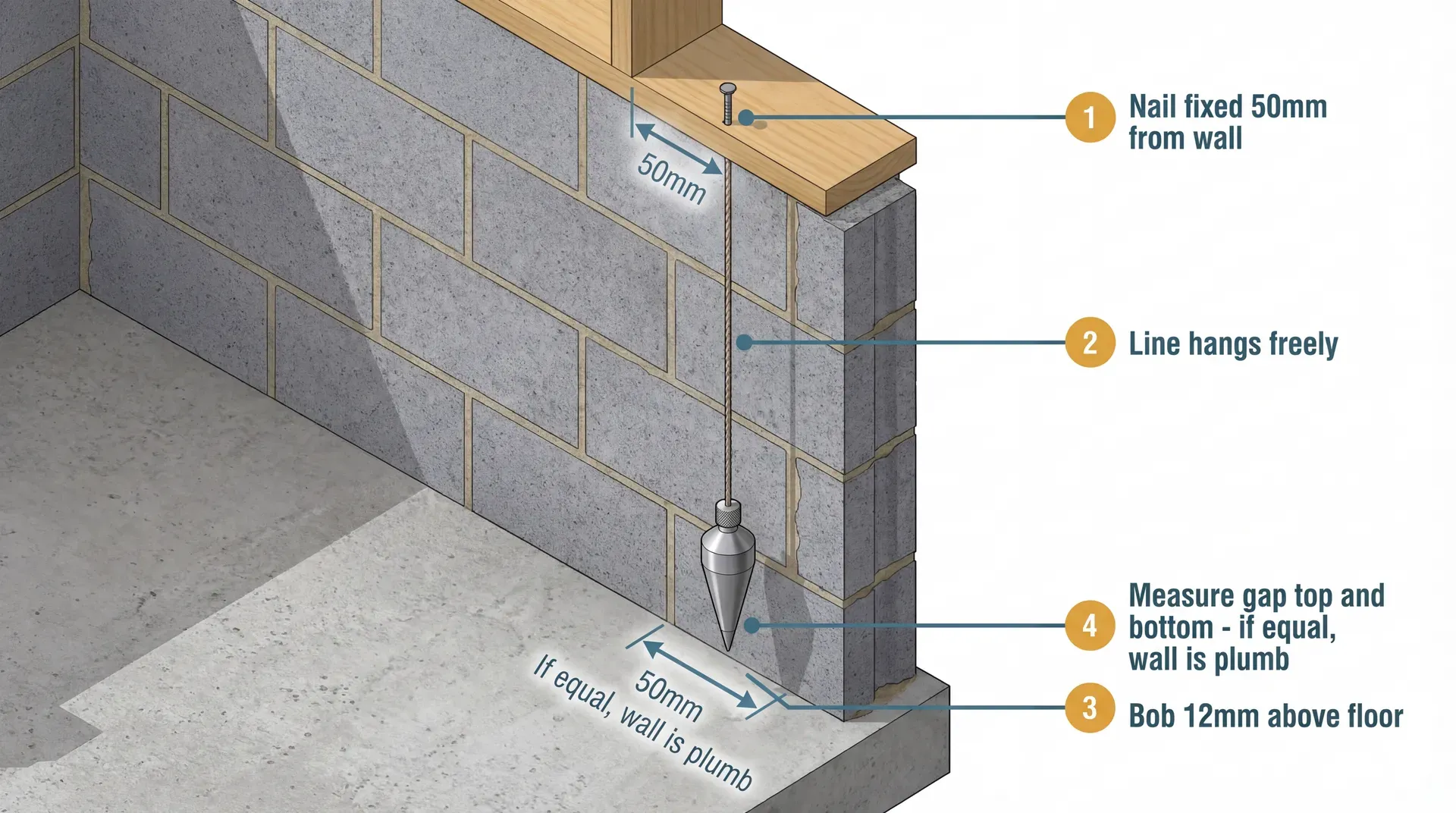

Checking a wall for plumb

Mark a point 50mm in from the wall, near the top. Drive a nail at that mark (or pin the line to it). The 50mm standoff keeps the bob from touching the wall surface, which would give you a false reading.

Let out enough line so the bob hangs the full height of the wall, with the tip sitting about 12mm off the floor. Not touching the floor. Not touching the wall. Hanging free.

Now wait. This is the step beginners skip, and it's the one that matters most. The bob will swing when you release it. Even a tiny oscillation shifts the tip by several millimetres. You need it completely still. Dead stop. No movement at all.

Click to enlarge

Once the bob is still, measure the distance from the line to the wall at the bottom. If it matches the 50mm at the top, the wall is plumb. If it doesn't, the difference tells you exactly how far the wall is leaning and in which direction.

Speeding up the settling

Waiting for a heavy bob to stop swinging can test your patience. Two techniques help.

The quickest fix: have someone gently steady the bob with their fingers until the swing dampens, then release. Two-person operation, but fast.

Working alone, try the oil-damping method. Set a shallow tray of clear oil (vegetable oil works fine) on the floor, and let the bob's tip dip into it briefly. The viscosity kills the swing almost immediately. Lift the bob back out once it's still. This is an old decorator's trick that most people have never heard of, and it works brilliantly in situations where you're doing repeated checks.

Transferring points from ceiling to floor

This is the other core use. You're fitting a partition wall and need to mark the floor position directly below a ceiling mark (or vice versa). Hold the line at the ceiling mark, let the bob hang down, wait for it to settle, and the tip marks the point on the floor directly below.

The technique is the same: bob must hang free, 12mm off the floor, dead still before you mark. For ceiling-to-floor transfers during first-fix electrical work, this gives you the exact position for floor-level socket runs that align with ceiling-level light positions.

Mark at least three reference points (top, middle, bottom of the wall line) rather than relying on a single transfer. On older UK properties with uneven plasterwork, walls can bow between transfer points. Three marks reveal the bow.

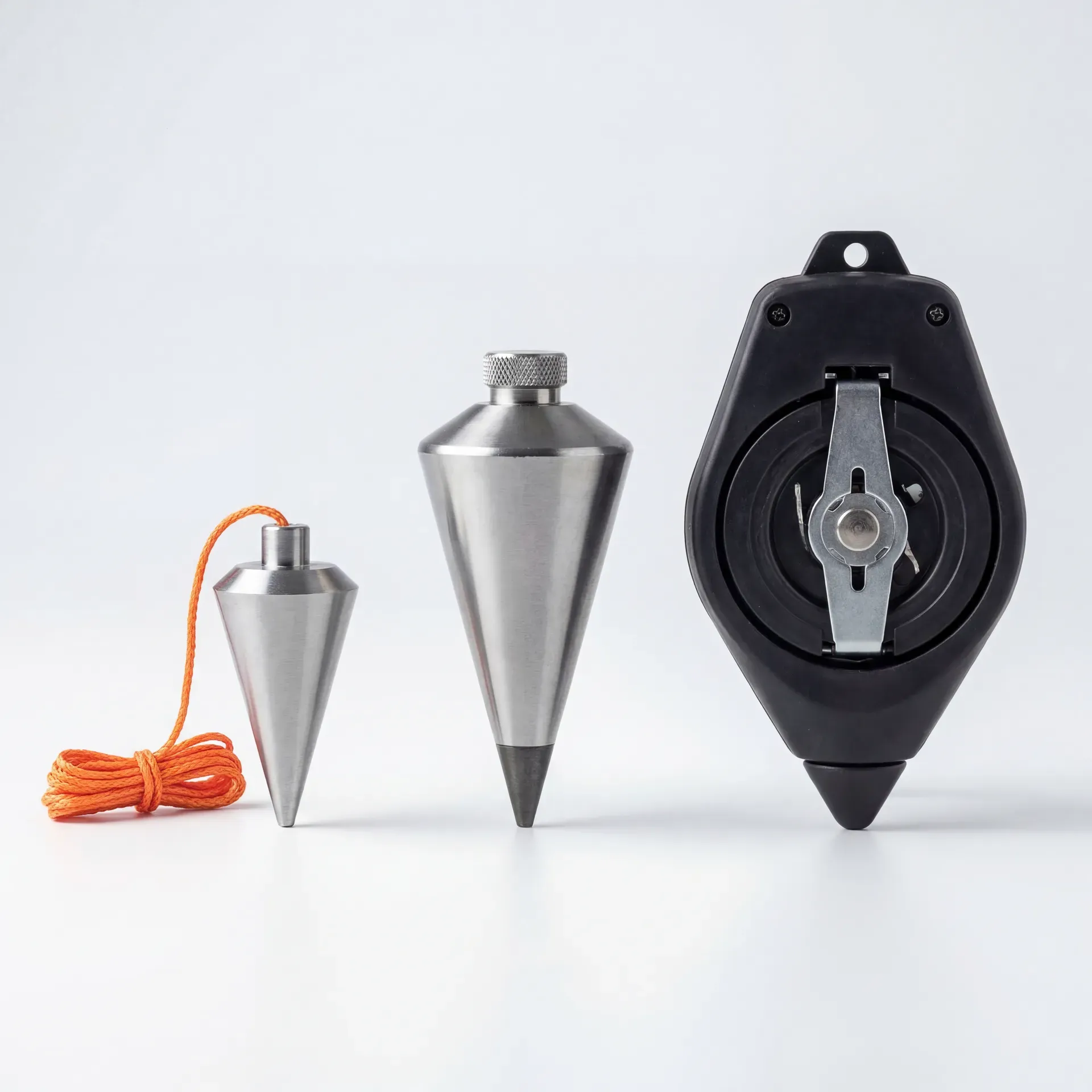

Types and what to buy

Plumb bobs are cheap tools. The budget options work perfectly well for a homeowner managing a build, and you don't need to spend more than a few pounds unless you're using one daily on site.

For a homeowner checking their builder's work, buy the Screwfix Essentials set or the Draper from Toolstation. Under a fiver, comes with a line, does the job.

Click to enlarge

If you're doing setting-out work outdoors (marking foundation lines, checking formwork), go heavier. A 130g bob drifts in the slightest breeze. A 200-400g bob resists wind far better. The Monument range is a professional UK brand, and their steel bobs in the 8oz to 1lb range hit the sweet spot for construction use.

The Tajima Plumb-Rite is a different beast entirely. It's a 400g self-stabilising bob inside a housing with a self-retracting 4.5m line. It attaches via a setting pin (push into plasterboard or timber), a strong magnet (steel surfaces), or a hook. It's designed to be used by one person without a helper, and it settles faster than a traditional bob because of the internal stabilisation. At around £33 it's worth it if you're a sole-trader electrician or plumber doing point transfers every week. For a one-off kitchen extension, the £5 option does the same job.

Brass vs steel

Brass plumb bobs are the traditional choice for surveyors and precision work. Brass is non-magnetic (useful near electrical equipment), corrosion-resistant, and heavier per volume than steel. Monument's brass range starts at around £11 for a 45g bob and climbs to £40 for a 16oz/454g bob. Professional surveying bobs from Seco (available at York Survey Supply Centre) start at around £36 including VAT.

For a homeowner, brass is unnecessary. Steel works perfectly. The only practical advantage of brass is its non-magnetic property, which matters in survey work but not when you're checking a kitchen wall.

What to look for

The tip must be sharp and undamaged. A bent or blunted tip shifts the point of the bob off its true centre, which means your "vertical" line isn't vertical. If you drop a plumb bob onto concrete and ding the tip, replace it. Some higher-end bobs (Monument brass, Seco survey) have replaceable hardened steel tips, which is a useful feature for professionals but not something a homeowner needs to worry about at the £5 price point.

The line matters too. Braided nylon is the standard for UK construction use. It doesn't stretch, it doesn't rot in damp conditions, and it doesn't kink. The Screwfix Essentials set comes with 18m of braided nylon line, which is more than enough for any domestic job.

Plumb bob vs laser level

Laser levels can project a vertical line, which does the same job as a plumb bob in many situations. So do you need both?

A laser level is faster and more convenient indoors. A plumb bob never runs out of battery, never needs calibrating, and works in conditions where a laser beam becomes invisible. For a homeowner managing a build, a £5 plumb bob in your pocket is insurance against the day your laser batteries are flat, the sun washes out the beam, or you need a quick check and the laser is in the van.

Trade electricians on UK forums still carry plumb bobs as backup even after buying expensive laser levels. The recurring story: a laser that sat unused in a toolbox for months, batteries corroded, and the traditional bob saved the day. If you do own a laser level, store it with the batteries removed.

Where you'll need this

Plumb bobs appear across multiple phases of any extension or renovation project:

• Foundations and setting out - transferring layout marks from profiles to trench positions, checking formwork is plumb before pouring
• Walls and blockwork - verifying tall walls are plumb over their full height, cross-checking spirit level readings on new blockwork
• First-fix electrics - transferring datum points from floor layout to ceiling positions before plasterboard goes up and cables are concealed
• First-fix plumbing - marking vertical pipe run positions, ensuring soil stack alignment between floors
• Kitchen installation - checking wall verticality before fitting units, transferring ceiling marks to floor for island positioning
• Snagging - final plumb checks on all walls, door frames, and window reveals before sign-off

Common mistakes

Rushing the settle. The bob is still swinging and you mark anyway. Even a tiny oscillation moves the tip by millimetres. Wait. If you can see any movement at all, it hasn't settled.

Letting the bob touch something. Wall, floor, skirting board, a tool on the ground. Any contact deflects the line. The bob must hang completely free during the reading.

Using a lightweight bob outdoors. A 130g bob in a slight breeze drifts enough to give false readings. If you're working outside, use a heavier bob (200g minimum) or shield the area from wind.

Ignoring a damaged tip. A dropped plumb bob with a dinged tip no longer points to true centre. At the budget price point, replace it rather than trying to reshape it.
