Corner Blocks: The Right Way to Pull a Line Between Quoins (and the No-Touch Rule That Saves a Wall)

A 6-metre rear wall on a single-storey extension comes in 15mm out of true across its length. The bricklayer had pulled a line between two solid corners, but each brick was tapped gently up against the string as it was bedded. A millimetre of line displacement per brick is almost invisible. Multiply it across forty bricks on a long course and the whole wall bows visibly when you sight down it. Ripping it down and relaying costs a day of labour and a few hundred pounds of replacement mortar and cut bricks. A pair of £5 – £18.50 plastic corner blocks, used properly, would have prevented every millimetre of that error.

What they are and when you need them

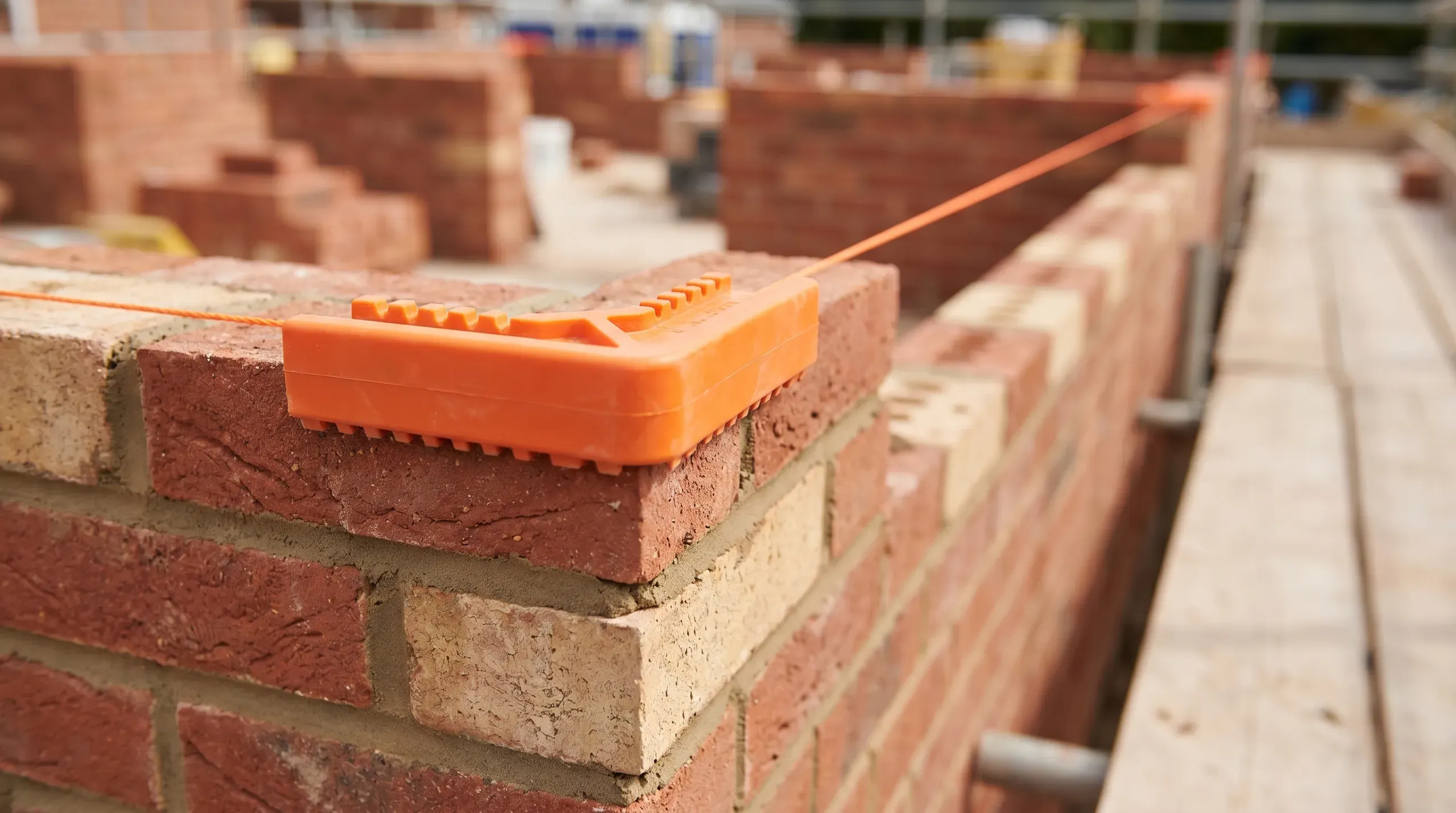

Corner blocks are L-shaped clips that hook over the outer face of a brick or block at the corner of a wall. The builder's line threads through a channel in the block and is tensioned against the matching block at the opposite corner. The L-shape grips the arris (the front top edge of the brick) and the line sits at the exact height of the course being laid.

You use corner blocks when you've already built up your corner leads, called quoins, to three or four courses and now need to fill in the straight run between them. They're the speed tool for infill brickwork, not the tool you use before you have a corner to grip.

A spirit level tells you whether each corner is plumb and each course is level. Corner blocks and the line they carry tell you whether every brick between those corners sits on the same straight plane. The two jobs are different and you need both.

You'll reach for corner blocks through most of the structure phase of any extension: external cavity walls, internal block partitions, garden walls, retaining walls. They're not a precision instrument, they're a positioning aid. The precision comes from the corners you already built.

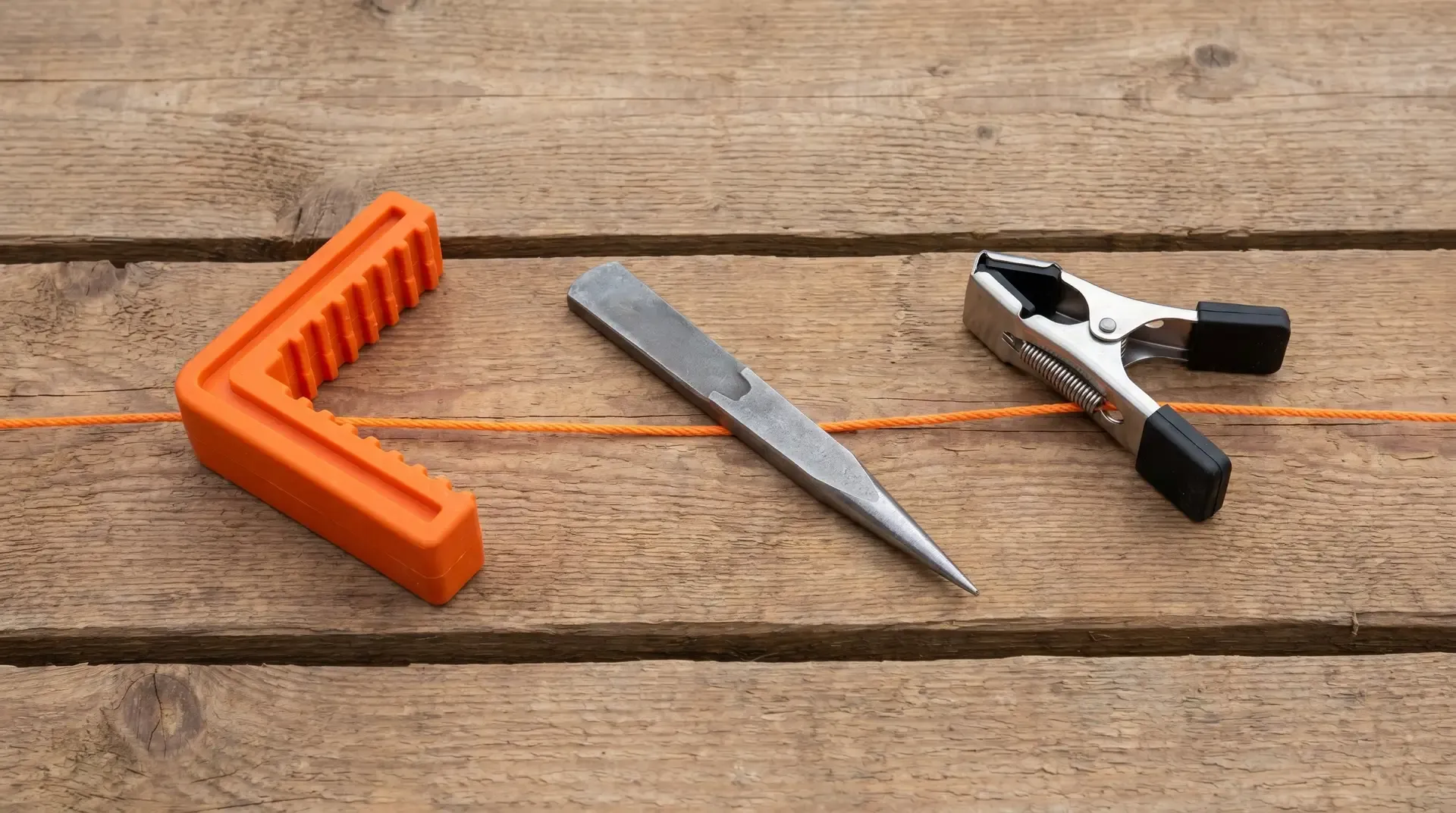

Corner blocks vs line pins vs line runners

Three tools do broadly the same job. Each has a moment where it's the right one.

Line pins are the starter tool. They go into fresh mortar on the first course of a wall, before you have any corners to work from. They're also how you set an intermediate datum on a long wall where blocks can't reach. The trade-off is that every time you pull a pin out, you leave a hole in the joint that has to be pointed in later.

Corner blocks are the infill tool. Once both corner leads are up and cured enough to take the grip of the block without shifting (about an hour after laying in normal conditions), you swap to blocks. There's no mortar damage because the blocks grip the outside face of a brick, not a joint. They slide up one course in about five seconds, which matters when you're laying forty bricks a course across six courses.

Spring-clip runners such as the Faithfull £8 model (FAILBRUN) are the awkward-geometry tool. They clamp with a spring-loaded jaw onto any edge between about 90mm and 120mm, which means you can use them without a built corner lead at all. Bricklayers reach for runners on internal angles, bay fronts, and situations where there isn't a proper quoin to clip a block onto. They're slower than blocks on standard straight runs, so most professionals keep a pair in the toolbox and use them situationally.

Click to enlarge

Types and variants

Corner blocks look almost identical in the rack but the grip materials and geometries vary more than the price difference suggests. The difference shows up on site, on a breezy day, when one pair stays put and the other skates off the brick.

The basic L-shape in ABS plastic is what you find on the shelf at a retail merchant for under a fiver. It works. It works best on a calm day, on a flat brick face, with the line pulled firmly but not viciously. On a rough stock brick or in gusty weather, the flat face of a smooth plastic block wants to skate off the corner. You can tension it harder to hold it in place, but hard tension on a smooth plastic block tends to either slip suddenly or deform the block.

Rubberised TPR blocks (Ragni RCB-O2 is the one you'll see most often in Screwfix and Toolstation) fix the grip problem with a grooved rubber surface that bites into the brick face. They cost roughly twice a basic plastic pair and they stay put. For any job beyond a one-weekend garden wall, the rubber blocks earn the extra three pounds on the first windy afternoon.

The Spear & Jackson 10701S takes a different approach. The block body is moulded rubber at 87.5 degrees rather than a true right angle. Under line tension the block wants to close up to 90 degrees, and that closing force squares it mechanically into the brick corner. One 38-year-veteran bricklayer in an Amazon review described these as his favourites because they grip even on metal brick profiles where a flat plastic block just pings off. Professionals who work off profiles rather than built leads (more common on new-build cavity walls) often standardise on these.

The Footprint 624 has a design detail the others don't: a cut-out window through the block so you can read the gauge marks on a profile rod through it. Irrelevant for a homeowner doing a one-off garden wall. Genuinely useful if you're working to a marked story rod at each corner.

Marshalltown's aluminium MCB507 sits at the top of the range at three to four times the price of rubber blocks. The value proposition is weight and rigidity: aluminium blocks don't flex under tension, won't crack in cold weather, and have enough mass that wind can't nudge them. For a full-time professional on exposed sites, worth it. For a homeowner laying a rear extension over three weekends, overkill.

How to use corner blocks properly

The tool is blunt simple. The technique is where beginners come unstuck.

Step 1: Raise the corner leads first

You do not pull a line across open foundations and start laying from one end. You raise each corner first, with the spirit level checking plumb and level on every single brick at each corner for the first three courses. Use a gauge rod or story rod to check that course height is dead right (75mm per course for standard bricks: 65mm brick plus 10mm bed joint). Three or four courses at each corner, perfectly plumb and gauged, is your foundation for everything that follows.

Only now do you fit corner blocks.

Step 2: Seat the blocks at course height

Place one block over the top course brick at each corner. The vertical face of the L-shape wraps down the outside face of the brick. The horizontal face sits on top, flush with the arris that you're laying the next course to. The line channel in the block sits at exactly the arris height of the course you're about to lay.

Thread the nylon line through the channel, wrap it around the back of the block (or through the integral line tidy if the block has one), and take the line to the opposite corner. Fit the second block the same way, pull the line taut, and secure.

Step 3: Tension the line

Pull the line tight enough that plucking it produces a clean "ping" note rather than a dull flop. A good test: lift the line with your finger at the midpoint and let it go. It should snap back to horizontal, not flop back into a curve. If it flops, pull tighter or check the blocks haven't slipped.

Don't over-tension. A line pulled so tight it strains the blocks will either stretch the blocks off the corner or stretch the line itself, which gives you a false reference.

Step 4: Lay to the line, never touching it

This is the single rule that separates walls that stay straight from walls that bow. Experienced bricklayers call it the no-touch rule and it's the difference between a 15-year career and a wall that has to be rebuilt.

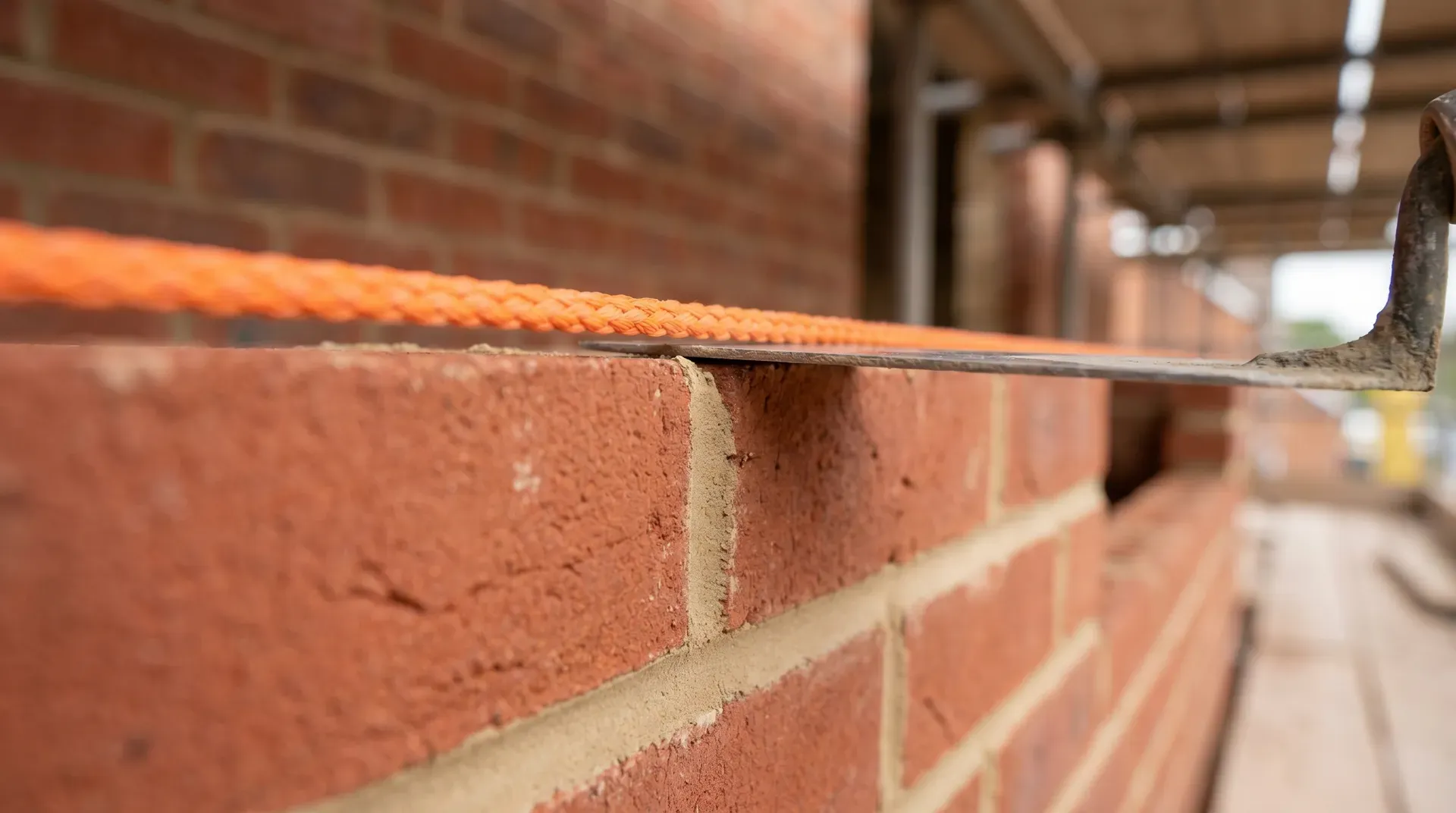

The arris of every brick in the course must sit just inside the line, never pressing against it. A gap of about 1-2mm (roughly a trowel blade's thickness) between the line and the brick face is correct. Sight along the line from one end: every brick face should appear to sit the same small distance behind the string, forming a straight plane.

Click to enlarge

When a brick is bedded hard against the line, the line deflects outward by a millimetre or two. The next brick is then tapped up to the displaced line, and it sits a millimetre further out. The one after that is further out again. The error compounds along the course and across the courses above. On a 4-metre run at 40 bricks per course, two millimetres of displacement per brick gives you an 80mm deviation by the end of the wall. This is exactly how long walls end up with visible bows. Once the error is in, the only fix is pulling the wall down.

Step 5: Raise the line one course

When the course is complete and you've struck the joints, lift both blocks simultaneously. Slide each up so the line channel sits at the arris of the next course. Check the line is at the same height at both ends (a quick spirit level across the top of both blocks catches any error). Lay the next course.

You don't need to re-check plumb on every brick. Check the corners remain plumb every three or four courses with the spirit level. Run the level across the top of the course every few rows to confirm gauge. The line handles straightness; the level handles plumb and level.

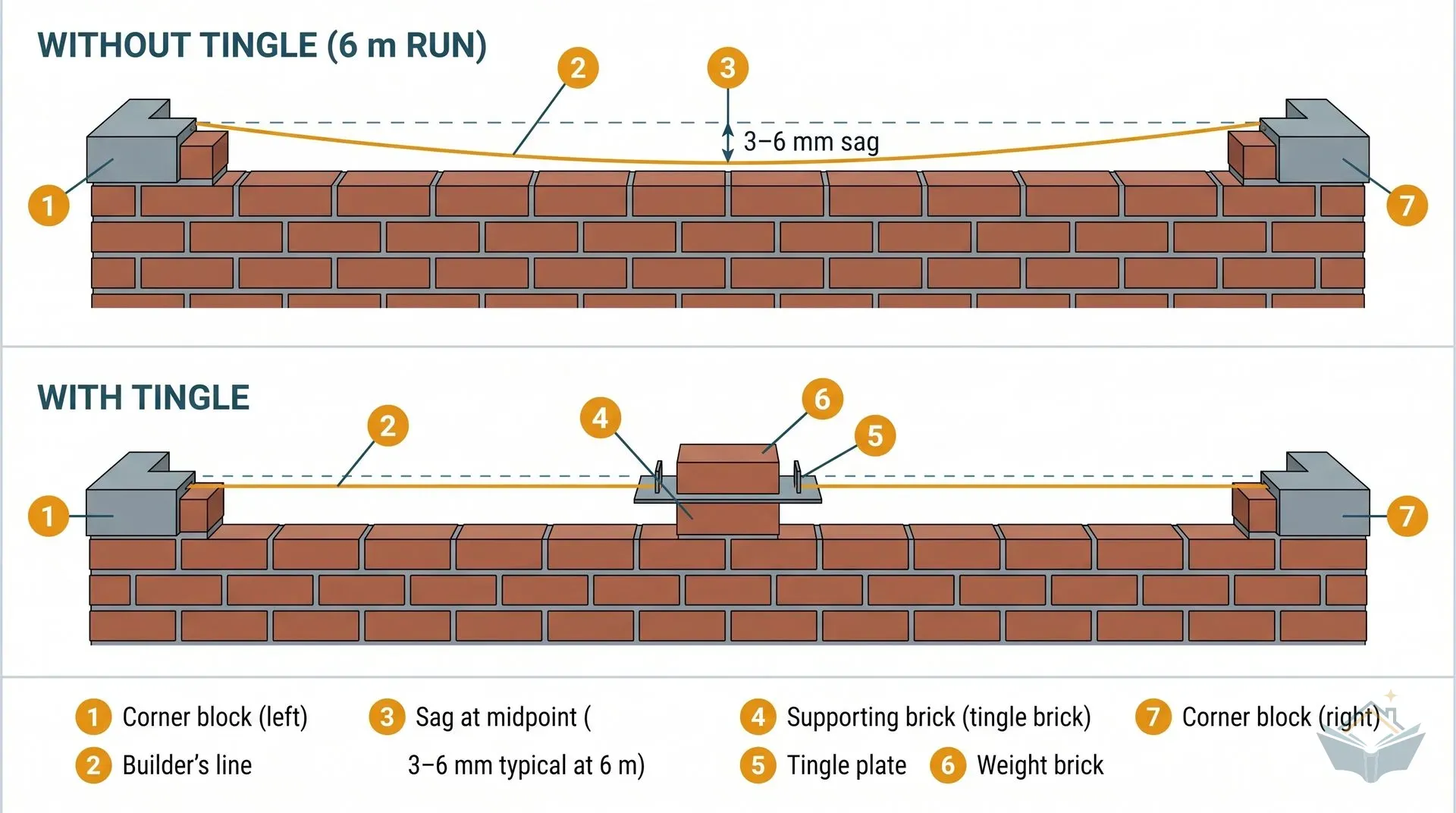

The 4-metre sag rule and tingle plates

String has mass. Over any run longer than about 4 metres, the line sags visibly in the middle no matter how hard you tension it. By 5 or 6 metres the sag at midspan is enough to throw off the middle bricks of the course by several millimetres below the line at the corners. Lay to a sagging line and you get a convex wall, with the middle proud of the ends.

The fix is a tingle plate. Lay a supporting brick at the midpoint of the long run, check it for level against the line at the corners, then rest a thin metal plate (the tingle) on top with the line threading through two vertical slots. A brick placed on top of the tingle weights it down. The line is now supported at the midpoint at the correct height.

Marshalltown's M86P pack of four blocks ships with tingles included. Footprint and Ragni sell tingles separately. You can also improvise one: a folded piece of cement bag paper under the line, held down by a brick, does the same job for free.

What to buy

A working setup for blocks, line, and a pair of tingles is an inexpensive bit of kit. The variables are grip reliability and build durability, not price.

Best all-round pick for a homeowner: Ragni RCB-O2 rubberised corner blocks. Around £7 from Screwfix or Toolstation, or currently £6 on sale at Wickes. Polypropylene body with TPR rubberised overlay and cling-on teeth. High-vis orange stays findable in mortar spatter. One-year warranty. These are the blocks you'll see in a working bricklayer's toolbag more often than any other brand.

Budget floor: BlueSpot 34635 L-shaped ABS plastic blocks. Around £4 from Sealants and Tools Direct, or up to £7 at B&Q. Basic flat-faced ABS plastic, no rubber overlay, 3-month guarantee. Adequate for a single garden wall on a calm weekend. Not the block for a full extension build where you'll be using it across weeks of bricklaying in variable weather.

Made in Britain: Footprint 624 engineer-plastic blocks. Around £4 from SB Tools UK. Flat plastic with a cut-out viewing window for gauge-rod visibility, narrow line channels, glove-friendly grip. Footprint have been making bricklaying tools in Sheffield since the Victorian era. Pair them with braided nylon line for a complete setup at budget prices.

Grip specialist: Spear & Jackson 10701S angled rubber blocks. Price varies widely by retailer (Bricklayers World is typically cheapest, Zoro UK is pricier), or about £11 for a set with 30m of braided line. The 87.5-degree rubber geometry mechanically squares into the corner under tension. Grips metal brick profiles where plastic blocks slip. Recommended by long-service bricklayers who work off profiles rather than built leads.

Professional workhorse: Marshalltown M86P pack. Around £8 for four blocks plus tingles. Bright yellow plastic that's impervious to water and stays visible against brick dust. The pack gives you two pairs, which is worth it if you're running multiple line setups simultaneously or need spares.

Combo kit with line included: Ragni RCBL pack. Around £12 at Highland Fasteners. Two rubberised yellow corner blocks plus 76m of multi-strand braided nylon line that won't fray when cut. If you don't already own line, this is better value than buying blocks and line separately.

Spring-clip alternative: Faithfull FAILBRUN brick line runner. Around £8 per runner. Spring-loaded stainless-steel jaw fits any brick edge between 90mm and 120mm. Anti-slip rubber pads. Useful when you don't have a raised corner to grip, such as internal angles or before leads are built.

Common beginner mistakes

Blocks on a green corner. Fitting corner blocks before the lead mortar has taken an initial set means the blocks can shift as you tension the line, and the corner itself can move. Give each lead at least an hour before you clip blocks onto it. On cold days, longer.

Line pulled tight against the brick face on the first course. The no-touch rule applies from the first course onwards. Any brick that pushes the line moves the reference for every brick that follows.

Ignoring sag on long runs. A 5-metre wall with no tingle will come out convex in the middle, however hard you pulled the line. Tingle anything over 4 metres.

Using blocks in place of pins for the first course. You can't. There's no corner to grip yet. First course needs pins driven into the foundation mortar, or spring-clip runners if you'd rather not pin.

Tension creep. On a long line, the tension drops across an afternoon of laying as the line takes a set. Check the pluck test every few courses and re-tension if it flops.

Alternatives

A line pin does the same job at the first-course stage and anywhere along a wall where there's no corner to clip onto. Pins and blocks are complementary, not competitive. Most bricklayers carry both and use pins for the first course, switch to blocks once leads are up, and drop back to pins if they need a mid-wall datum on a long run.

Some DIY bricklayers cut a timber block at 90 degrees from scrap 100x50 and tie the line around it with a half hitch. This works on a one-off garden wall. It's slower than a bought block, doesn't offer gauge markings or a line channel, and the grip is less reliable on a smooth brick face. The "never buy corner blocks again" approach is a YouTube talking point, not a time-saver on a real build. The difference in cost between a home-made block and a Ragni pair is a single fiver. The time saved across an extension build is hours.

Metal brick profiles (vertical aluminium or steel rails clamped at each corner with gauge markings up the face) are the alternative to built leads. Line attaches to the profile directly, either through clips on the profile or via corner blocks gripped to the profile edge. Profiles are faster than building leads for long cavity walls and are the industry standard for new-build work. For a homeowner on a single extension, building the leads with the spirit level is simpler and cheaper than buying a set of profiles.

Where you'll need this

Corner blocks come out whenever there's brickwork or blockwork between two established corners.

• Walls and blockwork - the core use, guiding every course of infill brickwork between raised quoins
• Steels and lintels - checking the run of courses around padstones and above steel beams
• Building control inspection: structure - a straight wall face is one of the things an inspector eyes immediately

These tools appear across the structure phase of any extension, loft conversion, garage conversion, or garden wall build, not just kitchen extensions.

Safety

Corner blocks are not dangerous on their own, but the line they carry can catch people out.

A block under high tension that pings off a corner sends a taut nylon line whipping back. It's not a serious injury risk, but at eye height on a busy site it can sting or catch an eyelid. Wear safety glasses when tensioning lines, especially if you're using smooth plastic blocks on a rough brick face where slippage is more likely.

Loose line across a site is a trip hazard. When you pause work, either pull the line tight and secure it, or wind the excess around one of the blocks. A loop of invisible orange nylon across a walkway will put a labourer on the ground faster than you'd think.
