2m Straight Edge: Checking Walls and Floors Against NHBC Tolerances

Why a 2m straight edge is not the same as a spirit level, the NHBC ±3mm and ±5mm tolerances every homeowner should know, and which one to buy.

By Ian

Project managed a £182k Oxfordshire kitchen extension

A plastered wall can be perfectly plumb and still wrong. Plumb but undulating is the failure a spirit level cannot see: the surface reads vertical while carrying a hollow that only shows at a low angle in raking light, typically weeks after the decorator has painted. A 2m straight edge held against the wall catches the same hollow in thirty seconds, while the plasterer is still on site to skim it before the paint goes on.

Straight edges and spirit levels measure different things. A wall can be plumb without being flat, and flat without being plumb. NHBC standards (the warranty body that covers most new-build work in the UK) specify both, and the 2m straight edge is the tool that checks the flatness side of the equation. It is not optional kit if you're inspecting plasterwork, screed, or any wall finish on a build. A decent aluminium edge costs less than calling a plasterer back, and lasts decades.

What a 2m straight edge is

A 2m straight edge (sometimes called a feather edge, plastering feather edge, or aluminium straight edge) is a rigid 2-metre length of extruded aluminium with one or both edges machined dead straight. The classic plastering profile is a feather edge, where one edge tapers to a thin chamfered line so the tool can be drawn down a wet plaster surface without the body of the edge dragging in the finish. The non-feather profile is a rectangular box section that sits on a flat surface and tells you whether the surface deviates from the edge.

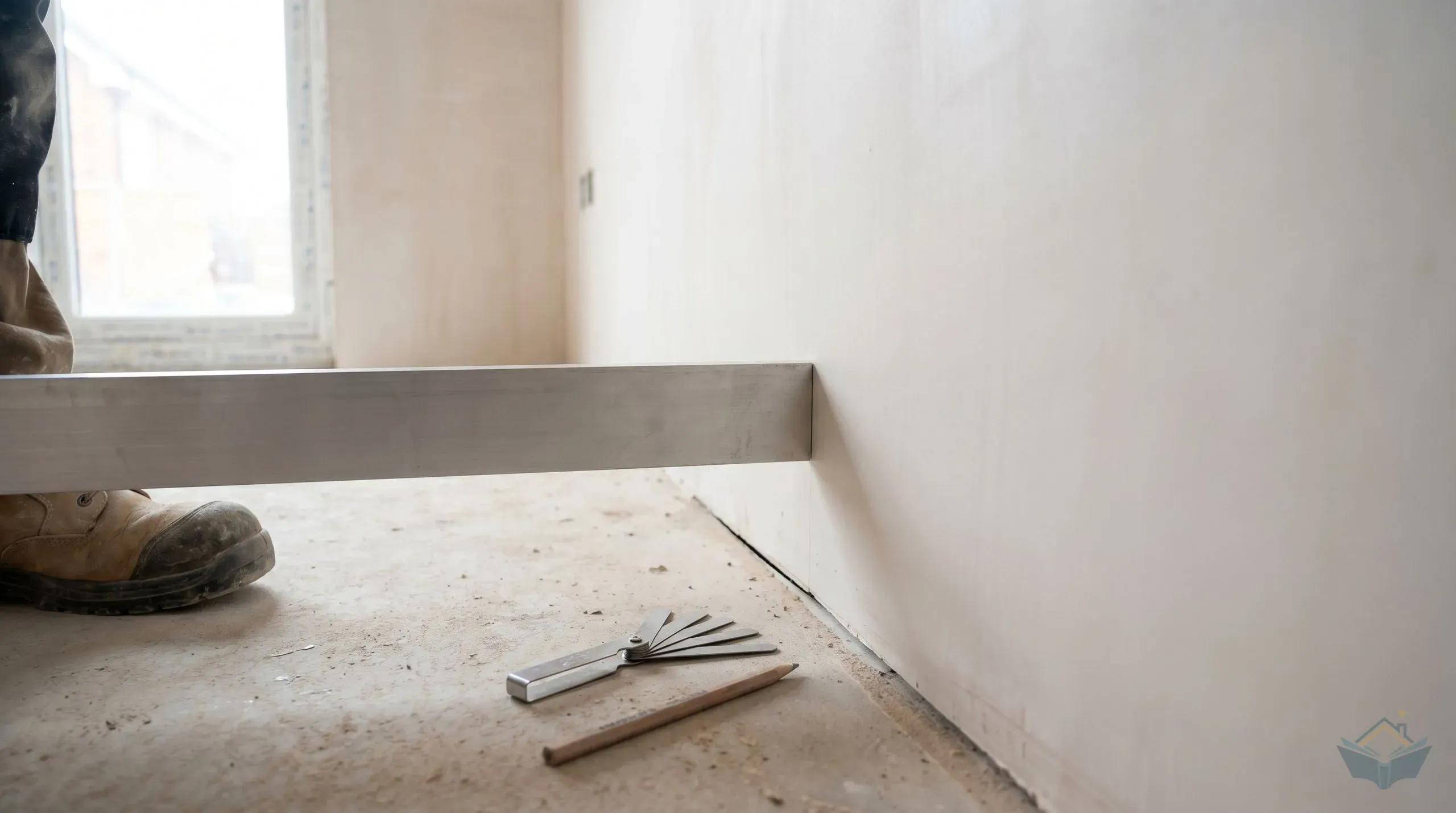

The straight edge is the reference. You hold it flat against the wall or floor, and you measure the gap between the edge and the surface at any point along its length. A perfectly flat surface produces zero gap. Any visible gap is a hollow or a high spot.

For an extension build, a 2m length is the standard. NHBC flatness tolerances for walls and ceilings are measured with a 2m straight edge. Shorter straight edges (1m, 1.5m) are useful for smaller surfaces but won't tell you whether a wall meets the warranty body's flatness specification. Longer edges (2.4m, 3m) exist for trade screed work but are unwieldy for residential walls.

Spirit level versus straight edge: different tools, different jobs

This is the question that most homeowners never realise they should ask. The two tools look similar. They are not interchangeable.

A spirit level measures whether a surface is plumb (vertical) or level (horizontal). The vials show whether the line of the spirit level is parallel to the gravity vector. A wall can be perfectly plumb (the level reads centre-bubble) and still have a hollow or hump in it; the level only checks the line it touches. Move the level six inches sideways and the new line might also read plumb, but the surface between the two positions could be undulating.

A 2m straight edge measures whether a surface is flat (planar). The edge is the reference; the gap between edge and surface tells you the deviation. A wall can be flat (the straight edge sits with no gap) and still be leaning out of plumb. The straight edge only checks flatness, not verticality.

For a complete check, you need both. Plumb the wall with a spirit level. Then check flatness with a straight edge. Both must pass for the wall to meet warranty tolerances.

ToolMeasuresWhat it tells you
Spirit level (1.2m or 2m)Plumb (vertical) and level (horizontal)Whether the surface is leaning
2m straight edgeFlatness (planarity)Whether the surface has hollows or humps
Both togetherPlumb AND flatThe complete quality check

NHBC tolerances: the numbers every homeowner should know

The National House Building Council publishes warranty standards for new-build residential work. These standards specify the maximum acceptable deviations for plasterwork, blockwork, screed, and other finishes. They are the benchmark for whether a finish is acceptable.

The headline numbers, from NHBC Standards clause 9.1.3 (Chapter 9.1, A consistent approach to finishes):

SurfaceToleranceWhat it means
Plastered wall±3mm over 2mHold the straight edge against the wall. If you can fit a 3mm gauge anywhere along the 2m, the wall is borderline. Anything more is a defect.
Plastered ceiling±5mm over 2mSlightly more relaxed for ceilings, which are seen at an angle.
Plasterboard joints±3mm over 450mmChecked with a short straight edge across each board joint.

For a kitchen extension, the two checks that matter most are walls (±3mm) and ceilings (±5mm). For screeded floors, the flatness limit depends on the surface regularity class in the screed specification, so ask the screed installer which class they are working to before they start. Check every surface at handover and note any failures on the snagging list before the trade is paid in full.

Tip

Take feeler gauges with the straight edge. A cheap set of automotive feeler gauges from any tool merchant lets you measure the exact gap between straight edge and surface. Without feeler gauges you can estimate but not measure precisely. The gauges turn the straight edge from a qualitative tool into a quantitative one.

How to use a straight edge properly

The technique is simple but the diagnostic detail matters.

  1. Choose the inspection surface and orientation

    For a wall, hold the straight edge vertical for plumb-and-flat checks (combined with spirit level for plumb), then horizontal across the wall to check for horizontal undulations. For a floor, lay the edge flat on the surface in any direction.

  2. Press the edge firmly against the surface

    Both ends of the straight edge must contact the surface. If the surface is convex (humped), the edge will rock between two high points and the centre of the edge will sit clear of the surface. If the surface is concave (hollow), the ends of the edge will sit on two high points and the centre will sit clear by the depth of the hollow.

  3. Inspect the gap along the entire length of the edge

    Look down the length of the edge against the surface. Any visible gap means a deviation from flat. Daylight or a torch behind the edge highlights small gaps.

  4. Measure the gap with feeler gauges

    For any gap that's visible, slide a feeler gauge into the gap and find the largest blade that fits. That's the deviation in millimetres. Compare against the relevant NHBC tolerance for the surface you're checking.

  5. Move the edge to a new position and repeat

    A single straight edge position only checks one 2m line. To verify a whole wall or floor, move the edge to multiple positions: end-to-end across the surface, diagonal across corners, and at different heights for a wall. Multiple positions catch deviations a single check would miss.

For walls specifically, take three checks: one near the floor, one mid-height, one near the ceiling. Then take diagonal checks corner to corner. The pattern of gaps tells you whether the deviation is a localised hollow (one position fails, others pass), a general bow (multiple positions fail at the centre), or a leaning wall (passes flatness but fails plumb).

Reading the surface: hollows, humps, and how each one happens

The pattern of gap and contact tells you what went wrong.

Hollow (concave deviation): The straight edge ends touch the wall, the centre is clear. The wall has a low spot in the middle. On plaster, this usually means the second coat was too thin in that area, or the first coat dried unevenly. Fix by re-skimming the affected area.

Hump (convex deviation): The straight edge centre touches the wall, the ends are clear. The wall has a high spot in the middle. On plaster, this means too much material in that area. Fix by sanding back or re-skimming flush.

Wave (multiple alternating high and low spots): The straight edge rocks across multiple contact points. The wall has a wavy surface, often from a plasterer who used too much or too little water in the mix and worked the surface unevenly. Fix is usually a full re-skim.

Diagonal lean (the edge is flat but doesn't sit plumb): The wall is flat but tilted. The flatness check passes; the plumb check fails. This is a different defect (probably a leaning stud frame or a poorly laid bottom course of blockwork) and the fix involves the structural layer, not the finish.

What to buy

For a single extension build, the budget tier is genuinely good enough.

TierApprox priceModelsBuy if...
Budget aluminium feather edge£20-40Refina 2m feather edge, Faithfull FAIPLAST2 2m straight edge, Bonus Tools 2m feather edgeYou only need one straight edge for occasional use; the bare minimum
Mid-range professional feather edge£40-80Refina Pro feather edge, Marshalltown 2m, Tyzack 2m feather edgeYou're checking plaster carefully and want a tool that won't bend
Top-tier surveyor's straight edge£80-150Stabila 09614 2m straight edge with built-in level vials, MOB 2m precision straight edgeYou're inspecting multiple builds or want a single tool that combines plumb and flat checks

For a single recommendation: the Refina 2m Plastering Feather Edge from Plastering Supplies UK is the trade default. Aluminium extrusion, one feather edge for plaster work, one rectangular edge for flat checks. Light enough to use one-handed, rigid enough not to bow under its own weight. If budget is the priority, the cheaper Faithfull or Bonus Tools alternatives are functionally similar.

For a buy-it-once option, the Stabila 09614 2m straight edge has built-in level vials, which means it doubles as a long spirit level. The premium gives you both checks in one tool and saves toolbox space, but the basic Refina at a quarter the price covers the same flatness check.

Warning

Never use a 2m straight edge as a lever, a spreader, or a pry bar. The aluminium extrusion is rigid only when used as a reference; loaded sideways or at the ends, it bends permanently. A bent straight edge is a useless straight edge. Store it horizontal on hooks or vertical against a wall, never thrown into the back of a van.

Where you'll use it

The straight edge comes out at every quality-check moment in the build:

  • Building control structure inspection for checking blockwork is within tolerance before plaster
  • Plastering for checking plaster flatness before painters arrive
  • Tiling for checking the substrate is flat enough for large-format tiles (check the tile and adhesive maker's flatness requirement, which is often tighter than the plaster tolerance)
  • Flooring for checking screed flatness before underlay and floor finishes
  • Snagging checklist for the final quality walk-round and any post-handover defect claims

The tool earns its place primarily at handover. If you're paying a builder in stages, do a flatness check before each payment milestone for the relevant trade.

Common mistakes

Confusing flat with plumb. A flat wall is not necessarily plumb, and a plumb wall is not necessarily flat. Use both spirit level and straight edge for a complete check.

Using a too-short edge for the spec. NHBC wall and ceiling tolerances are measured over 2m. A 1m or 1.5m straight edge cannot verify those tolerances. The right length matters.

Pressing too hard. The edge must contact the surface at its highest points without forcing. Press too hard and the aluminium flexes, the gap reading is wrong, and the diagnostic is meaningless.

Skipping the diagonal check. Multiple positions catch deviations a single check would miss. Three positions per wall (low, mid, high) plus two diagonals is the complete check.

Using the feather edge as a flat reference. The feather edge is for spreading plaster, not for measuring. Use the rectangular edge of the straight edge for flatness checks.

Storing the edge flat on the floor. Aluminium picks up dings and dents from foot traffic and tool contact. Wall-store it vertical or hang it horizontal on hooks above head height.
