Wire Strippers: Types, Techniques, and What to Buy for UK Domestic Wiring

A nicked conductor caused by a careless strip can sit inside a wall for years before it fails. One documented case on an electricians' forum: an RCBO (a type of circuit breaker that protects against both overload and earth faults) tripped 48 hours after a new circuit was energised. The fault was traced to a microscopic nick in a 1mm conductor, invisible to the naked eye, caused by a cable stripper set to the wrong gauge. The conductor touched earth when bent into the back box. That's a call-back, a wall opened up, and a repair. The right wire strippers, used properly, prevent this.

What wire strippers are and when you need them

Wire strippers remove the plastic insulation from electrical cable without damaging the copper conductor inside. You need them any time a cable is being connected to something: a socket faceplate, a light switch, a consumer unit terminal, a junction box.

In UK domestic wiring, the cable you'll encounter most is twin-and-earth (officially designated 6242Y). It's a flat grey cable containing two insulated cores (brown for live, blue for neutral in modern wiring) and a bare copper earth wire. The outer grey sheath needs stripping back to expose the individual cores, and then each core needs its insulation stripped back to expose bare copper for the terminal connection.

Two separate stripping operations, two different techniques. The outer sheath is tough PVC. The inner core insulation is thinner and more delicate. Get the outer sheath removal wrong and you'll cut into the core insulation. Get the core strip wrong and you'll nick the copper. Both are problems.

UK cable sizes you'll encounter

Before buying a wire stripper, you need to know what cable sizes it has to handle. UK domestic circuits use specific sizes of twin-and-earth cable, all measured by the cross-sectional area of each conductor in square millimetres (mm2).

Cables up to 2.5mm2 have solid copper cores (a single thick wire). Larger cables, 6mm2 and above, increasingly use stranded cores (multiple thin wires twisted together). This matters because stranded cores are easier to nick and harder to strip cleanly. Any wire stripper you buy for a typical extension project needs to handle at least 1.0mm2 to 4.0mm2. If your electrician is running a shower or cooker circuit, 6mm2 capability is worth having.

A quick note on AWG (American Wire Gauge): some tools, especially American brands sold in the UK, list their range in AWG rather than mm2. The key conversions are 14 AWG (roughly 2.5mm2), 16 AWG (roughly 1.5mm2), and 18 AWG (roughly 0.75mm2). If a product lists only AWG sizes, check the mm2 equivalent before buying.

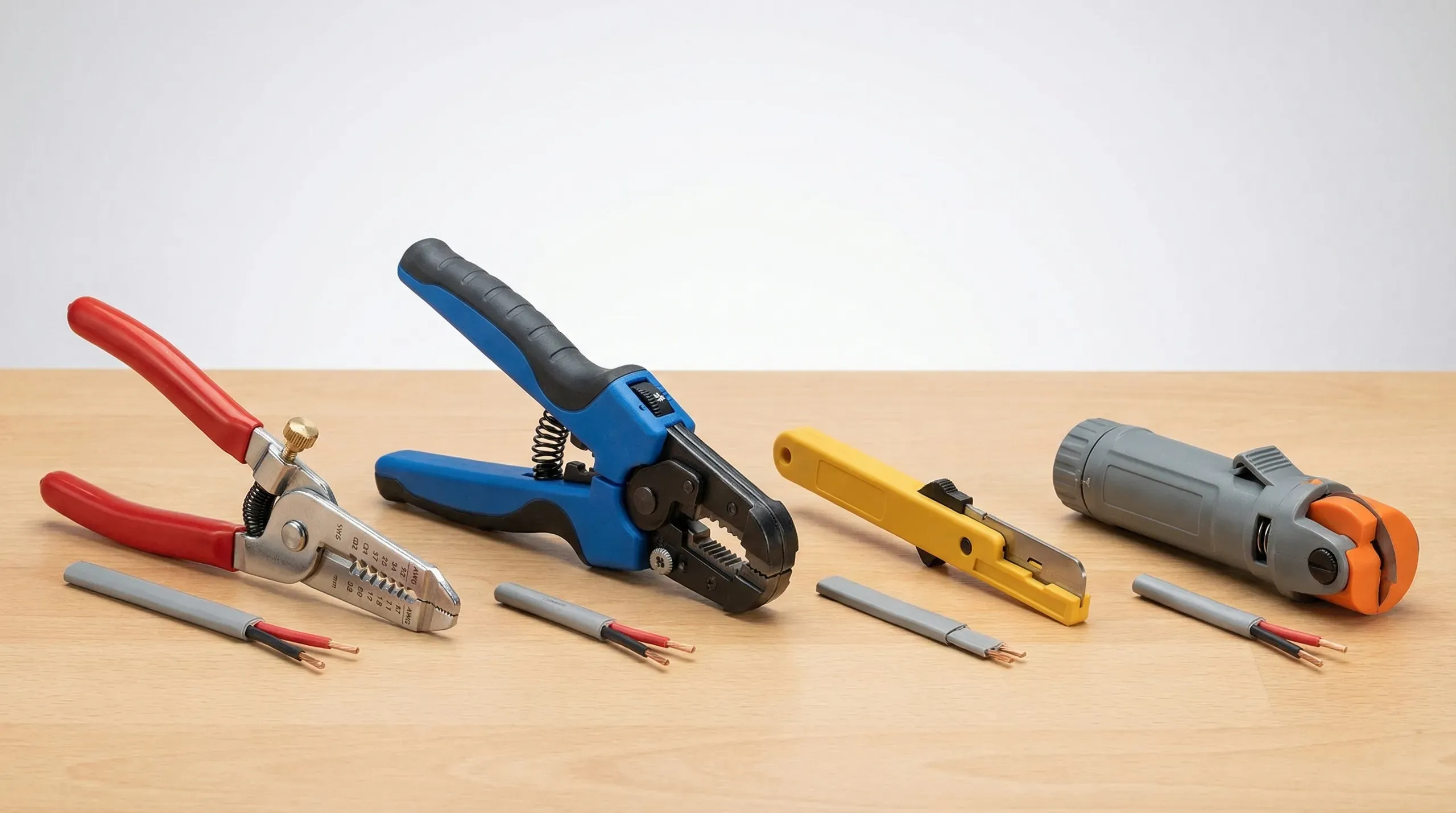

Types of wire stripper

There are four types worth knowing about. The first two cover most homeowner needs. The others are specialist.

Click to enlarge

Manual adjustable strippers

The simplest type. A pair of plier-like handles with a set of notched holes in the jaws, each sized to a specific wire gauge. You insert the cable end into the correct hole, squeeze, and pull. Some have a thumbscrew to fine-tune the cutting depth.

They work. But they demand you select the right hole every time, and if you're slightly off, you'll either fail to cut through the insulation (too loose) or score the copper underneath (too tight). For a homeowner stripping a handful of cables, they're adequate. For anything repetitive, they're slow and tiring.

Automatic self-adjusting strippers

These are the game-changer for non-professionals. Insert the cable, squeeze the handles, and the tool strips the insulation in one motion. The jaws automatically adjust to the wire diameter, so there's no hole selection or thumbscrew fiddling.

The CK T1260 is the default choice among UK electricians for domestic work. It handles twin-and-earth cable up to 2.5mm2 without adjustment, strips both the outer sheath and inner cores, and costs around £15-27. Professional electricians on trade forums consistently recommend it as their everyday tool, with some reporting a single pair lasting ten years of daily use. Others go through a set every six to nine months of heavy commercial work. For a homeowner doing one extension project, a pair will last the entire build and beyond.

The Stanley FatMax Automatic is the main alternative at a similar price point (see the comparison table below). It includes a built-in crimping function, which sounds useful but professionals report it's awkward to use. Buy it for the stripping, not the crimping.

Dedicated T&E flat cable strippers

These are purpose-built for flat twin-and-earth cable. The Jokari flat cable stripper is considered the best on the market by trade reviewers and professional electricians alike. It automatically adjusts to cable width, strips inner cables two or three at a time, and handles everything up to 6mm2.

Where the Jokari excels over the CK is in tight spaces. Inside back boxes (the metal or plastic enclosures behind sockets and switches) and around consumer units, the CK's body can be too bulky to reach. The Jokari's head is slimmer. If you're doing a lot of second-fix termination work, it's worth owning both.

The downside: Jokari strippers struggle on damp cables. The manufacturer recommends French chalk on the cable surface to improve grip. They sit in the mid-to-professional price range, more expensive than the CK but still reasonable for the quality.

Professional rotary strippers

The Knipex ErgoStrip and Knipex Self-Adjusting models sit at the top of the range. The ErgoStrip is specifically praised for round cables and flexible cord (the type used on appliance leads), where flat-cable tools don't work well. The Self-Adjusting model covers 0.2-6.0mm2 with replaceable blades and an adjustable depth stop.

Unless you're wiring an entire house or doing regular electrical work, these are overkill. As one electrician put it on a trade forum: "At that price they'd need to terminate sockets while you drank a cup of tea."

How to strip cable properly

Stripping the outer sheath from twin-and-earth

You need to remove about 75-100mm of outer grey sheath to give yourself enough working length on the individual cores. There are two approaches.

Using a cable stripper (recommended for beginners): Position the stripper where you want the sheath to end. Squeeze and pull towards the cable end. The tool cuts through the grey PVC without touching the cores inside. Check the exposed cores for any marks or damage from the blade. If you see scoring on the inner insulation, your tool is cutting too deep.

The cheese-wire method (used by most professional electricians): Cut the bare earth wire (the CPC, or circuit protective conductor) at the point where you want the sheath to end. Grip the cut end of the earth wire with pliers and pull it back through the sheath. The wire acts like a cheese wire, slicing the grey PVC open from inside. Peel the split sheath off and trim it.

This method is fast, uses no special tool, and is taught in electrical colleges as a knife-free alternative. There's an ongoing debate among electricians about whether pulling the earth wire work-hardens the copper. The practical consensus: it doesn't matter. Trim the last 10mm off the earth wire after stripping and you've removed the most stressed section. The earth must be sleeved with green-and-yellow sleeving at every termination point regardless of stripping method.

Stripping the inner core insulation

This is where precision matters. You're removing the thin coloured insulation from the individual cores to expose bare copper for the terminal connection. Strip too little and you won't have enough copper in the terminal. Strip too much and bare copper will be exposed outside the terminal, creating a shock risk.

How much to strip: 8-10mm for most domestic socket and switch terminals. But don't guess. Look at the terminal on the faceplate, switch, or consumer unit you're connecting to. Most modern UK socket faceplates have a strip gauge moulded into the back of the unit, a small notch or marking that shows exactly how much insulation to remove. Use it.

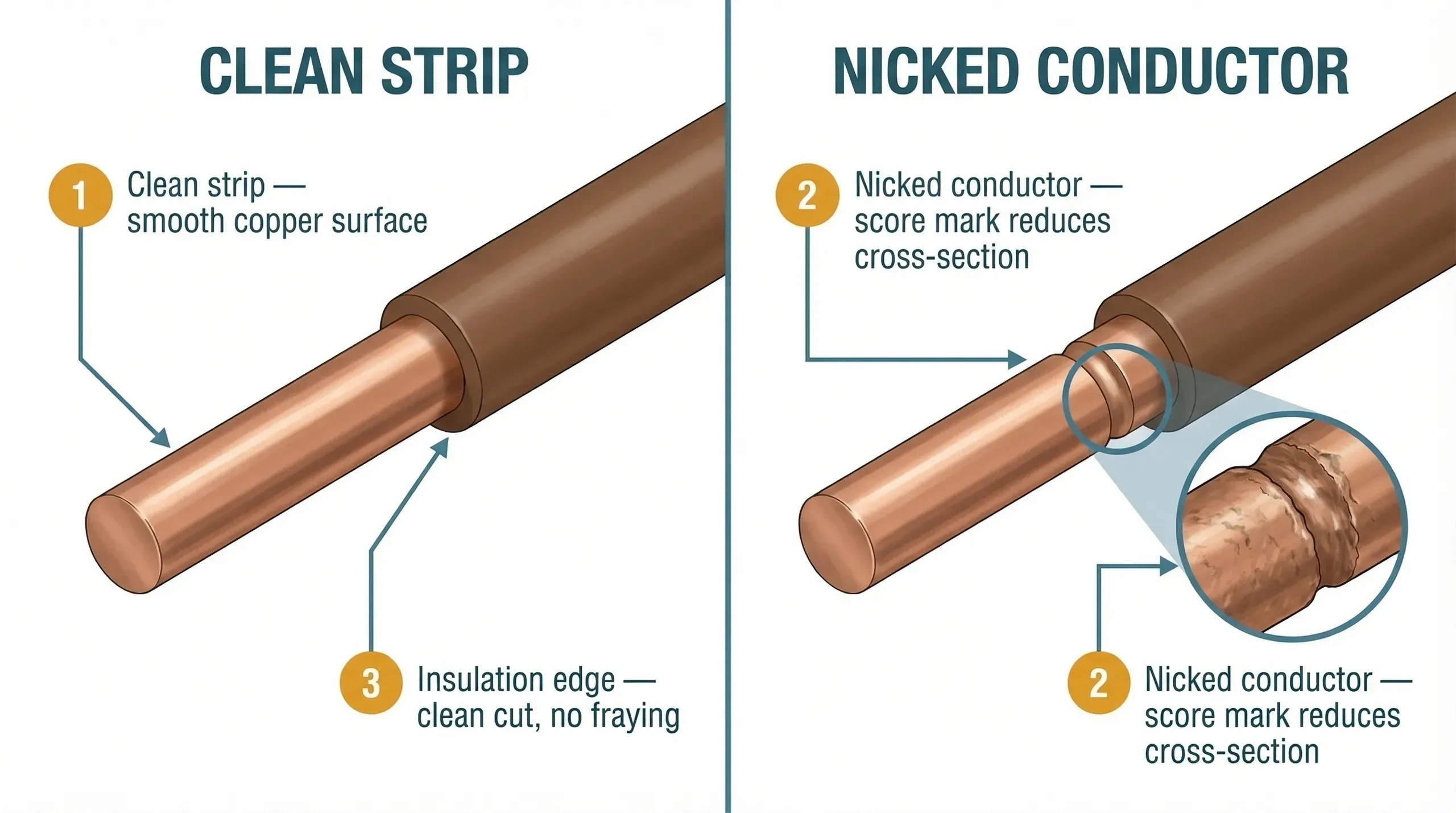

Using automatic strippers on cores: Insert the core into the stripper so the jaws close at the correct strip length. Squeeze and pull. The insulation should come away cleanly, leaving shiny copper with no marks. Rotate the stripped end and inspect it from all angles. Even a faint ring scored into the copper surface is a nick. Cut and re-strip.

Click to enlarge

How to check your strippers are working correctly

Before starting any wiring work, test your strippers on a scrap piece of the same cable you'll be using.

Strip a 10mm section from a spare core. Hold the stripped end up to the light and rotate it slowly. The copper should be uniformly smooth with no circumferential marks. Run your fingernail along the stripped section. You should feel nothing but smooth metal. If your nail catches on a ridge, the strippers are cutting too deep.

Adjust the depth (on manual strippers) or try a different notch. On automatic strippers, the problem is usually worn blades. CK T1260 blades are replaceable, though some electricians find it cheaper to buy a new pair than source replacement blades.

If you're stripping stranded cable (6mm2 and above), check that no individual strands have been cut. A 6mm2 cable with three strands severed is no longer a 6mm2 cable. It's a fire risk.

What to buy

For a homeowner managing an extension project, buy the CK T1260 or Stanley FatMax Automatic. Either one handles all the cable sizes you'll encounter during first fix and second fix (1.0mm2 through 2.5mm2), and both are available at Screwfix and Toolstation. The CK is the one UK electricians overwhelmingly recommend on trade forums.

Don't bother with VDE-rated strippers (rated for work on live circuits up to 1,000V AC) unless you're a qualified electrician. VDE stands for Verband der Elektrotechnik, a German certification body. The tools meet IEC 60900:2018, an international standard for insulated hand tools. They cost roughly double the standard equivalent, and professional VDE strippers cost significantly more again. As a homeowner, you should never be stripping live cable. Isolate the circuit at the consumer unit, verify it's dead with a voltage tester, then strip. Standard tools are fine.

Part P: what you're allowed to do

Wire strippers are a tool, not a regulated activity. But the work you'll use them for is regulated under Part P of the Building Regulations (in England and Wales). The key distinction:

Non-notifiable work (you can do this yourself without telling Building Control): replacing a socket faceplate, adding a spur from an existing socket, replacing a light fitting. This is where wire strippers earn their keep for a hands-on homeowner.

Notifiable work (requires either a Part P registered electrician or a Building Control application): installing a new circuit, any work in a bathroom or kitchen within specified zones, adding to the consumer unit. Your electrician handles this. You might still do cable preparation work under their direction, but the certification is theirs.

Where you'll need this

• First fix electrics - stripping cable ends for connections at the consumer unit and back boxes
• Second fix electrics - stripping cable insulation for final connections to socket faceplates, switches, and light fittings

Wire strippers appear during any electrical work on any extension or renovation project. First fix involves running cables through the structure and making initial connections. Second fix, after plastering, is where every socket, switch, and light fitting gets its final connection. Both stages demand clean, precise cable preparation.

Safety notes

Wear safety glasses when stripping cable. Snipped-off insulation and copper offcuts are small, sharp, and tend to ping off in unexpected directions. Not dramatic, but copper in the eye is an A&E visit.

Keep stripped cable ends short. If you've stripped 50mm of insulation when you only needed 10mm, cut the excess copper off rather than trying to bend it into a terminal. Excess bare copper inside a back box is a short circuit waiting to happen.
