Core Drills: How to Cut Clean Holes Through Walls for Pipes and Ducting

Click to enlarge

A plumber charges £80 – £150 to drill a single hole through your wall for a waste pipe. A typical extension needs three or four of these holes for waste, soil, and ducting. That's £300 – £600 for a few minutes of drilling per hole. A day's hire of a core drill costs £25 – £45. The maths is obvious, but the tool itself isn't straightforward. Use the wrong bit size, skip the safety clutch, or drill from the wrong side of the wall, and you'll understand why some people pay the plumber.

What it is and when you need one

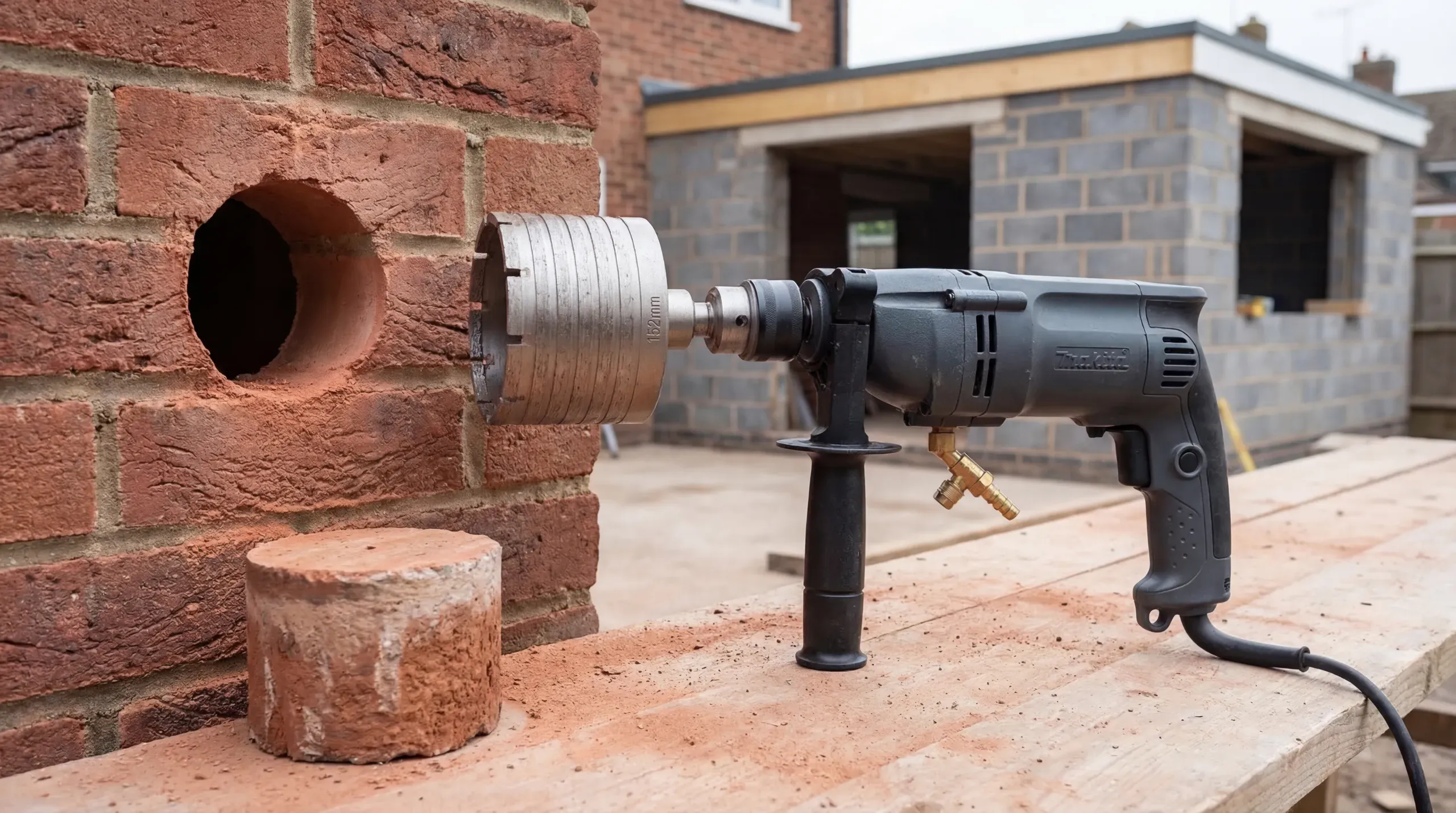

A core drill cuts large-diameter circular holes through masonry, brick, concrete, and blockwork. Where a standard drill bit bores a small hole by removing all the material in its path, a core bit works like a hollow cylinder with diamond-embedded teeth around its rim. It cuts a ring, leaving a solid plug (the "core") inside that you knock out when the cut is complete. That's how you get a 150mm hole through a wall without demolishing half of it.

You need a core drill whenever a pipe or duct has to pass through a solid wall. The most common jobs on an extension or renovation: 110mm soil pipe through the foundation wall to connect to the existing drainage, 100mm bathroom vent through an external wall, 150mm ducting for a kitchen extractor fan, and 100mm boiler flue penetration. Standard drill bits top out at about 25mm diameter. Anything larger than that is core drill territory.

The drill motor itself looks like a heavy-duty version of a standard power drill, but with one critical difference: a safety clutch. If the bit jams in the wall (and at some point it will), the clutch disconnects the motor from the chuck so the drill body doesn't spin violently in your hands. Without a clutch, a jammed core bit at full torque can break your wrist or throw you off a ladder. This isn't optional safety equipment. It's the difference between a controlled tool and a dangerous one.

Types and variants

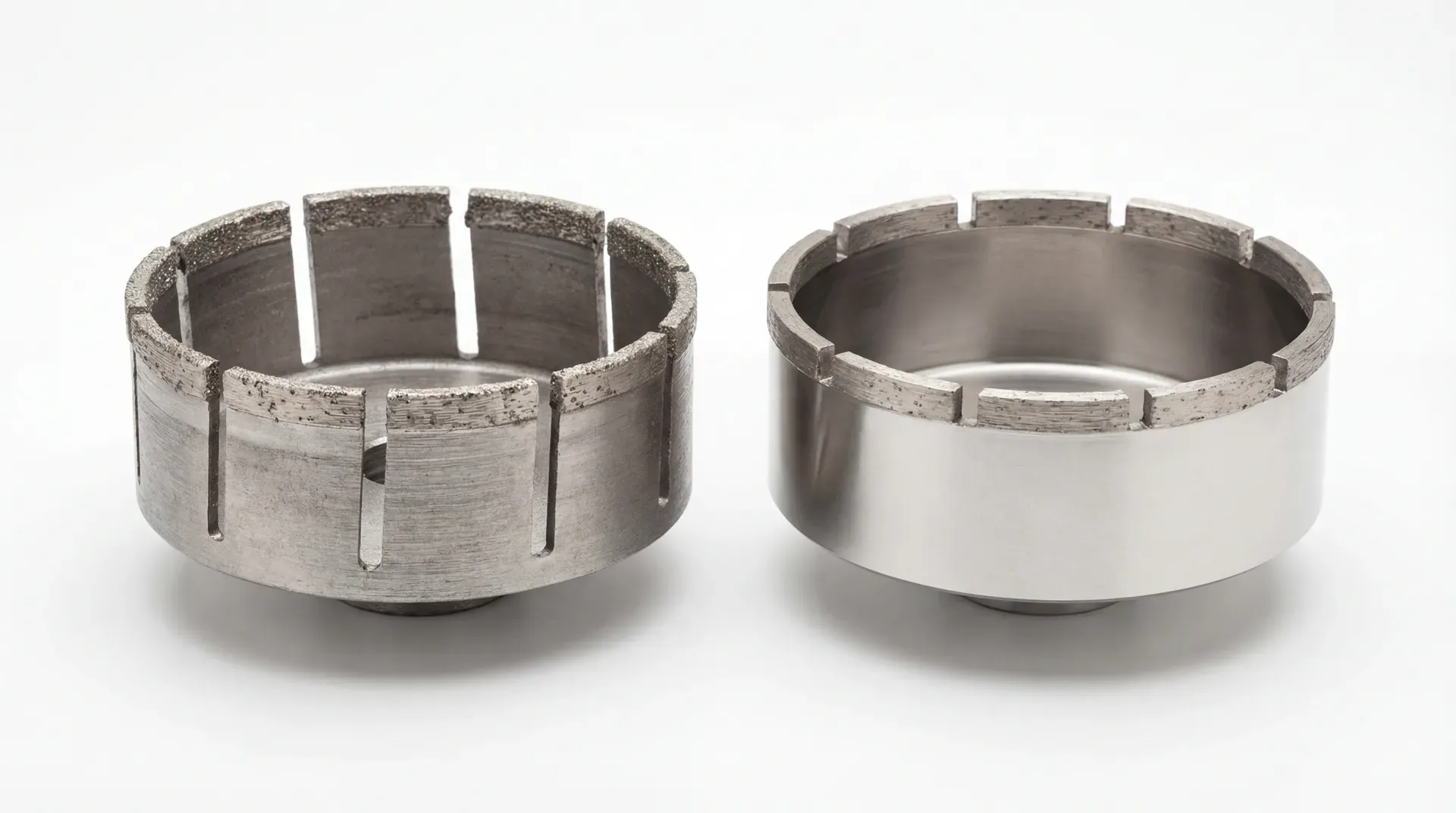

Core drilling breaks down into two approaches: wet and dry. The choice depends on what you're drilling through and where.

Dry diamond core drilling is what most homeowners will use. No water supply needed, no slurry to manage. You mount a diamond core bit onto a compatible drill (either a dedicated core drill motor or an SDS drill with an adaptor), and cut directly into the masonry. Dry bits have slots cut into the barrel that help clear dust during drilling. For standard blockwork, brick, and lightweight masonry on a domestic extension, dry drilling is practical and effective.

Wet diamond core drilling uses a continuous water feed to the cutting face. The water flushes debris, cools the bit, suppresses dust, and dramatically extends bit life. Wet drilling is faster, quieter, and produces cleaner cuts. It's the professional standard for reinforced concrete, thick stone walls, and high-volume work. But it introduces complications: you need a water source (mains tap or pressurised bottle), a way to manage the slurry, and extra caution around electrics because you're mixing water with a power tool.

For a typical single-storey extension through cavity blockwork or brick, dry drilling handles every hole you'll need. Wet drilling becomes worth the setup when you're cutting through reinforced concrete, engineering brick, or stone walls thicker than 300mm.

Click to enlarge

Dedicated core drill vs SDS with adaptor

A dedicated diamond core drill motor (like the Makita 8406 or DEWALT D21570K) is purpose-built for the job. It runs at lower RPM than a standard drill, has a built-in safety clutch, accepts core bits directly via 1/2" BSP thread, and typically draws 850W to 1300W. The motor is designed to maintain torque at low speeds, which is exactly what diamond cutting requires.

An SDS drill with a core bit adaptor is the budget route. If you already own an SDS drill, you can buy an SDS-to-1/2" BSP adaptor for £7 – £8 and mount dry diamond core bits onto it. This works for softer materials (standard blockwork, soft facing brick) in smaller diameters. But SDS drills run at higher speeds than dedicated core drills, lack the specialised clutch mechanism, and their hammer action must be switched off for core drilling (diamond segments shatter under impact). For anything above 107mm diameter or in harder materials, a dedicated unit or hired rig is the better choice.

Which bit size for which pipe

This is the question every forum thread comes back to, and the answer that catches most beginners out: the bit must be larger than the pipe. A 110mm pipe will not fit through a 110mm hole. The pipe enters the wall at an angle, the socket (the wider joint) sits inside the wall thickness, and you need clearance to manoeuvre the pipe into position.

The soil pipe sizing trips up more people than anything else. A 110mm pipe through a 110mm hole is physically impossible once you account for the entry angle and the pipe socket. Community consensus across multiple trade forums is clear: 127mm is the minimum for a 110mm soil pipe, and 150mm makes the job noticeably easier. The extra clearance also allows for an insulation sleeve if the pipe passes through an external wall.

How to use it properly

Core drilling isn't difficult, but the consequences of doing it wrong range from a ruined core bit (£40 – £60 wasted) to a serious injury. Follow this sequence every time.

Before you drill

Scan the wall. Use a cable and pipe detector across the drilling area. Regulations require cables to run in safe zones (vertically from sockets and switches, horizontally at a consistent height), but in older properties those rules may not have been followed. Hit a live cable with a core bit and the result is an electrical fault at best, electrocution at worst.

Confirm the bit size. Check the table above. Measure the actual outside diameter of the pipe or duct you're fitting, not the nominal size printed on the packaging. Then choose the correct bit.

Set up RCD protection. Plug the drill into a 30mA RCD adaptor, or confirm the circuit is RCD-protected at the consumer unit. This is an HSE requirement when using electrically powered equipment, and doubly important if any water is involved. An RCD trips in milliseconds if current leaks to earth through your body. Without one, the drill keeps running.

Mark your depth. Wrap a strip of tape around the core bit barrel at the depth matching your wall thickness. For a standard cavity wall (two leaves of block or brick with a cavity between them), total thickness is typically 280mm to 300mm. You may need a 200mm extension bar to reach through.

Drilling technique

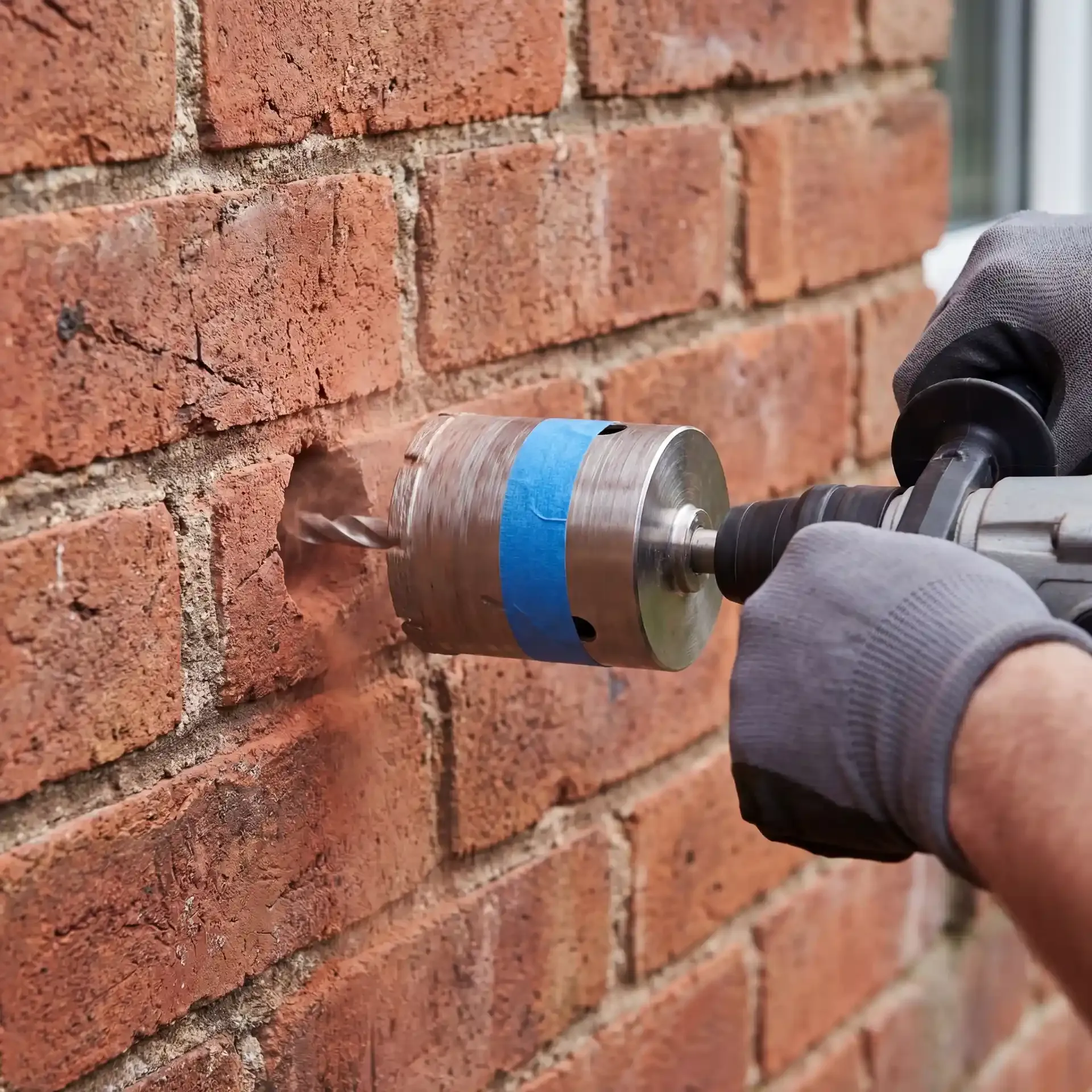

Start with the pilot bit. Most core bit assemblies include a pilot drill that mounts through the centre of the core barrel. The pilot bit goes in first, anchoring the core bit's position and preventing it from wandering across the wall surface. Some users remove the pilot once the core bit has established a groove (about 10mm deep), which speeds up the cut. Either approach works.

Click to enlarge

Apply gentle, steady pressure. Diamond cutting works by abrasion, not by force. Pushing too hard overheats the segments, reduces their cutting speed, and can deform the bit barrel. Let the bit do the work. If you see sparks, you're pushing too hard or the bit is worn.

Drill in stages. Go in 20 to 30mm, then withdraw the bit and clear the dust. This prevents the core from clogging inside the barrel and stops the bit from overheating. On a 280mm cavity wall, you'll withdraw and clear four or five times during the cut.

When you reach the cavity (the gap between the two leaves of a cavity wall), the bit will suddenly meet less resistance. Keep going steadily. The bit may try to snatch as it re-engages the outer leaf. This is where the clutch earns its keep.

Which side to drill from? Drill from the side where you want the cleanest finish. The exit side always gets some blowout (chipping around the hole edge). For external walls, if the render or pointing matters, drill from outside in. If the internal finish matters more, drill from inside out. Never drill halfway from each side and hope the holes meet. They won't.

Extension bars

Standard core bits have a cutting depth of about 150mm. A single leaf of blockwork or brick is typically 100mm to 115mm, so a standard bit handles the inner leaf. For the full wall thickness (including cavity and outer leaf), you need an extension bar. These thread onto the bit assembly between the drill chuck and the core barrel, adding 150mm to 200mm of reach.

Check extension bars are dead straight before use. Even a slight bend causes the bit to wobble inside the hole, which increases friction, causes jamming, and can crack the core bit barrel. Hold the bar at eye level and roll it on a flat surface. If it doesn't roll smoothly, don't use it.

Hire vs buy

Most homeowners on an extension project will need a core drill for two to four holes over one or two days. That makes this a clear hire-not-buy decision for the drill motor itself, though buying your own bits can make sense.

The threshold calculation: hiring a drill for three separate days at £35 – £45 per day costs £105 – £135 in drill hire alone, plus bit wear charges. A Makita 8406 plus an Erbauer three-core kit (38mm, 52mm, 117mm with accessories) totals about £320 from Screwfix. If you'll drill six or more holes across the build, buying starts to make financial sense. For two to four holes, hire wins.

What to buy

If you're buying, here are the options that matter at UK retail.

Drill motors

The DEWALT D21570K (1300W, 127mm max capacity, 240V) is available at £228 – £255 depending on retailer. The higher wattage gives it an advantage over the Makita on harder materials. It's currently the best value dedicated core drill at UK retail.

The Makita 8406 (850W, 152mm max capacity, 240V) runs £255 – £280. Lower power than the DEWALT but handles up to 152mm diameter, which covers kitchen extractor ducting. Community users report it lasting years with heavy use. "I paid £150 for my Marcrist but it still looks like new after many holes" said one DIYnot user, but the drill motor is the more important investment than premium bits for occasional use.

Don't look at cordless core drills for domestic use. The Bosch Expert cordless at £1,150 bare (no battery) is a professional tool priced for professional budgets. Corded is the right choice.

Core bits and kits

The Erbauer kit at £64 is the standout value for a homeowner on an extension project. It covers the two most common penetrations (52mm for service entries, 117mm for bathroom vents) and includes the adaptor and extension bar that you'd otherwise buy separately. If you also need 127mm for a soil pipe or 152mm for kitchen ducting, add individual bits at £40 – £57 each.

Marcrist is the UK's premium core bit manufacturer (based in Doncaster). Their bits feature rooftop diamond segments for a quiet, easy start, and dynamically balanced barrels for low vibration. They last significantly longer than budget bits. But for a homeowner drilling four to six holes total, an Erbauer bit won't wear out before the job is done. Save the Marcrist money for something else.

Alternatives

If you only need small-diameter holes (up to about 25mm) through masonry for cable runs or small pipe entries, an SDS drill with standard masonry bits does the job at a fraction of the cost. No core bit needed.

For homeowners who own an SDS drill but not a core drill, chain drilling is a budget alternative for softer materials. Drill a circle of closely spaced small holes (8mm to 10mm) around the circumference of your target hole, then knock out the centre with a bolster chisel and club hammer. The result isn't as clean as a core-cut hole, but it works for hidden penetrations behind kitchen units or below floor level. Don't attempt this on engineering brick or dense concrete. It won't work.

If the hole is at height (above a window, high on a gable wall) and you'd need scaffolding or a tower to reach it safely, paying a professional may cost less than hiring the scaffold plus the drill. Several forum users who started planning a DIY core drill job at height ended up concluding the same thing: "might work out cheaper to pay someone."

Where you'll need this

• Drainage - cutting large-diameter holes through foundation walls for waste pipes and drainage connections
• Extractor and ventilation - cutting holes through external walls for extractor ducting and ventilation outlets

Core drills are used during groundwork and fit-out phases of any extension or renovation project. The total number of penetrations depends on the project scope, but a typical single-storey extension needs two to four core-drilled holes.

Safety

Beyond the clutch warning above, core drilling has specific hazards that standard drilling doesn't.

Dust. Drilling through masonry generates silica dust. The HSE workplace exposure limit for respirable crystalline silica is 0.1 mg/m3. In practical terms: wear a proper FFP3 dust mask (not a paper dust mask), and if you're drilling indoors, open windows and use dust extraction if your setup supports it. Dry core drilling produces far more airborne dust than wet.

Electricity near water. If you're wet-drilling, the combination of water and a mains-powered tool demands rigorous electrical precautions. The Electricity at Work Regulations 1989 require precautions in wet environments. Use a 30mA RCD, ensure the drill is double-insulated, and never disconnect the water hose while the drill is plugged in.

Structural considerations. For pipe penetrations through load-bearing walls, holes under 150mm diameter in standard blockwork don't typically require a lintel. But check with building control if the hole is near a corner, near the DPC, or in a wall carrying unusual loads. For holes through a brick lintel above a window (a common route for kitchen extractors), get structural advice first.
