Manual Tile Cutters: How to Score, Snap, and Get Clean Straight Cuts

A kitchen floor tiled with 600x300mm porcelain, and you've bought a £17tile cutter with a 400mm bed. Every tile needs rotating to fit, the scoring wheel skips on the harder glaze, and half your snaps wander off-line. You burn through a box of tiles in wasted cuts, buy a second cutter that's still too small, and end up borrowing your tiler's Sigma. That's £50wasted and a day lost. The right cutter, bought once, avoids all of it.

What it is and when you need one

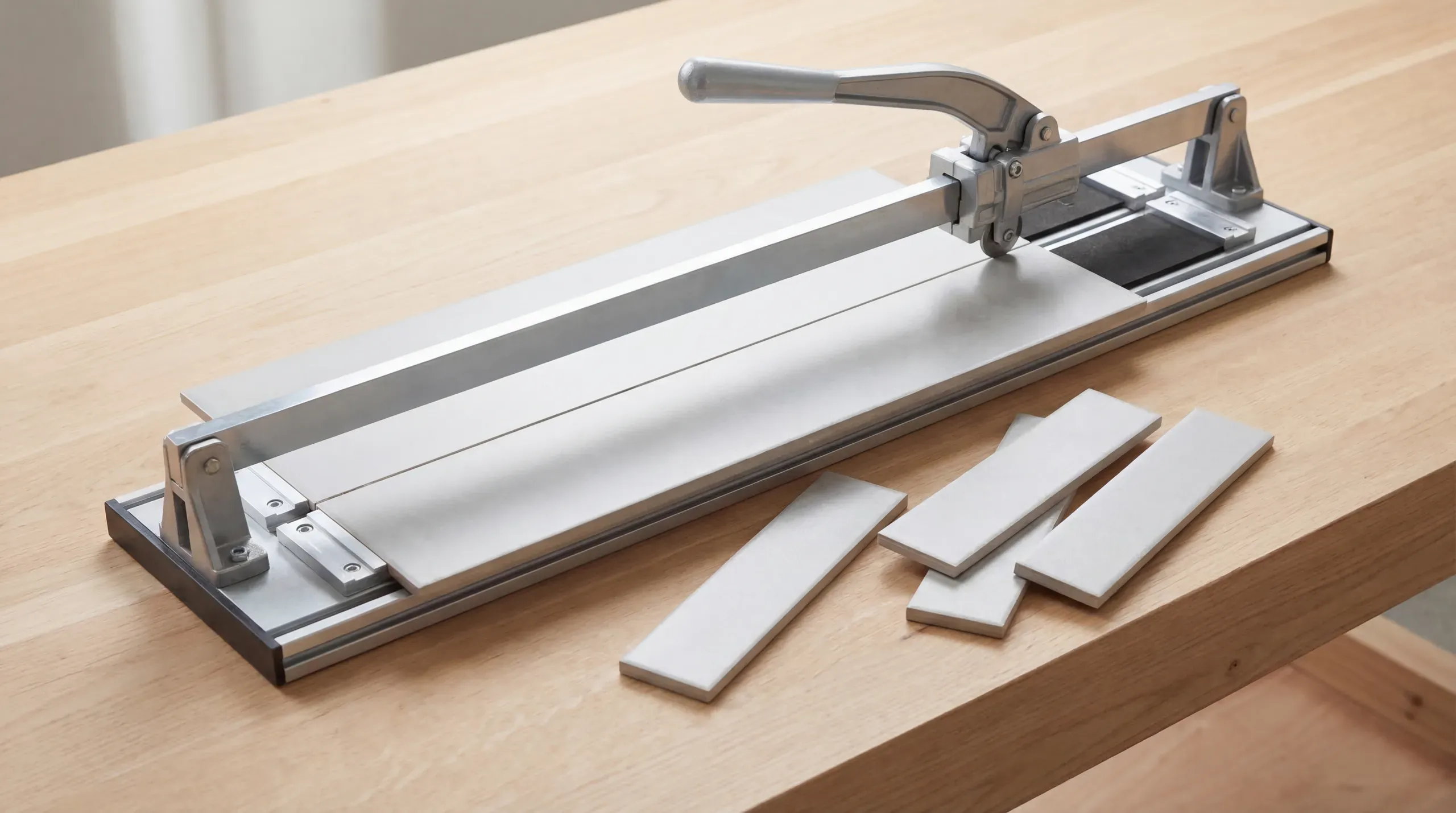

A manual tile cutter (sometimes called a rail cutter or score-and-snap cutter) is a bench-mounted tool that cuts ceramic and porcelain tiles in straight lines. A tungsten carbide scoring wheel runs along a steel rail, scratching a groove into the tile's glazed surface. Then a breaker bar (a raised ridge beneath the handle) applies downward pressure along that score line, and the tile snaps cleanly in two.

No water. No dust. No electricity. That's the main advantage over an electric wet saw. You can use a manual cutter in a bathroom, a kitchen, a living room, right where you're tiling, without spraying water everywhere or trailing extension leads. Professional tilers carry both types, but for wall tiles and straightforward floor work, the manual cutter does most of the volume.

You need one whenever you're tiling any surface with straight cuts. Kitchen splashbacks, bathroom walls, floor tiles. If your project involves tiling (and most extensions do at some point), a manual cutter handles the majority of the cuts you'll make.

Types and how to pick the right size

Manual tile cutters vary in three ways that matter: cutting length, maximum tile thickness, and build quality. Get the first two right and you won't waste money.

Cutting length

The cutter's bed must be at least as long as the longest dimension of your tile. Sounds obvious, but it's the most common buying mistake.

Common UK tile sizes: 300x300mm (small wall), 600x300mm (standard wall and floor), 600x600mm (large floor), 900x300mm (wide wall format), and increasingly 1200x600mm (large format). Tile sizes have been growing steadily. What was a "large" tile five years ago is now standard stock at Wickes and Topps Tiles.

If you need diagonal cuts (tiles laid at 45 degrees to the wall), the maths changes. A diagonal across a 600mm square tile is about 850mm. So your 600mm cutter can't make that cut. In practice, diagonal porcelain cuts on a manual cutter have a very high failure rate anyway. Use an electric wet saw or angle grinder for those.

Maximum tile thickness

Budget cutters handle tiles up to about 10mm thick. Mid-range models reach 12mm. Professional Rubi and Sigma cutters go to 15-20mm.

Standard UK ceramic wall tiles are 6-8mm thick. Porcelain floor tiles run 8-10mm. So a budget cutter technically handles both, right? Technically, yes. In practice, the scoring wheel pressure, rail rigidity, and breaker bar quality on a £17cutter make clean porcelain cuts unreliable. The specs might say 10mm, but the experience will say otherwise.

The four tiers

Click to enlarge

How to use it properly

The technique is simple. Getting it right every time takes understanding why each step matters.

Before you cut

Mark your cut line on the tile face with a pencil or fine marker. A felt-tip works on glazed surfaces. Measure twice. The tile goes face-up in the cutter (glazed side facing you), pushed firmly against the fence at the back.

Line up your mark under the scoring wheel. On budget cutters, this alignment step is fiddly because the fence wobbles. On a Rubi or Sigma, the fence locks solid. That difference alone accounts for half the accuracy gap between tiers.

Scoring

This is the step that makes or breaks the cut.

1. Position the wheel at the far edge

   Start with the scoring wheel at the edge of the tile furthest from you. The wheel needs to engage the tile edge cleanly.

2. Score in one continuous pass

   Push the handle away from you (or pull towards you, depending on the model) in a single firm, smooth motion. Consistent speed. Consistent pressure. The wheel should make an audible scratching sound along the entire length. If the sound changes or stops, the wheel has skipped, and the score is compromised.

3. Do not rescore

   One pass. That's it. Going back over the score line is the most common beginner mistake. A second pass creates a ragged, unpredictable fracture line because the wheel bounces in and out of the first groove. The tile will break unevenly or shatter.

Snapping

Reposition the handle so the breaker bar sits over the score line. Press down firmly but steadily. The tile should separate cleanly along the scored line with a satisfying crack.

Too tentative and the tile won't snap. Too aggressive and it shatters into fragments. You're aiming for decisive, not violent. Think of it like cracking an egg: confident and controlled.

If the breaker bar marks the tile surface (common on budget cutters), lay a strip of masking tape along the score line before snapping. The tape protects the glaze.

Finishing the edge

A freshly snapped tile has a sharp, slightly rough edge. Run a tile file or diamond rubbing stone along the cut edge, working from the glazed face downward. Two or three passes smooths it enough to sit neatly against a wall or neighbouring tile. The grout joint hides the rest.

The porcelain problem

This deserves its own section because it catches people out constantly.

Ceramic tiles have a relatively soft clay body with a glazed surface. Easy to score, easy to snap. Porcelain tiles are denser, harder, fired at higher temperatures. The scoring wheel has to work harder, and the snap requires more force distributed more evenly.

Budget and mid-range cutters (the Vitrex 400mm, VonHaus, Faithfull range) will cut small-format porcelain wall tiles. 300x300mm, even 600x300mm in thinner formats. But large-format porcelain floor tiles (600x600mm, 10mm thick) regularly defeat these cutters. The score wanders at the far end of the tile, the snap goes off-line, and you waste tiles.

Professional tiling forums are unanimous on this. Budget cutters on large porcelain: expect breakage. The Rubi TS range and Sigma Series 3 are recommended repeatedly for reliable porcelain performance. An 18-year-old Sigma still cutting clean porcelain is a frequently cited example of their durability.

If you're tiling a kitchen floor with 600x600mm porcelain (which is the most common choice in UK kitchen extensions), you have three options:

1. Buy a semi-pro or professional manual cutter (Rubi PRACTIC-61 or Sigma 2G, covered in the buying section below)
2. Buy an electric tile cutter instead (around £60 – £120 for a decent one)
3. Hire a professional cutter for the project duration

Buying a £25Vitrex and hoping for the best is the expensive option, because you'll waste tiles at £2 – £5 each until the maths forces you to upgrade anyway.

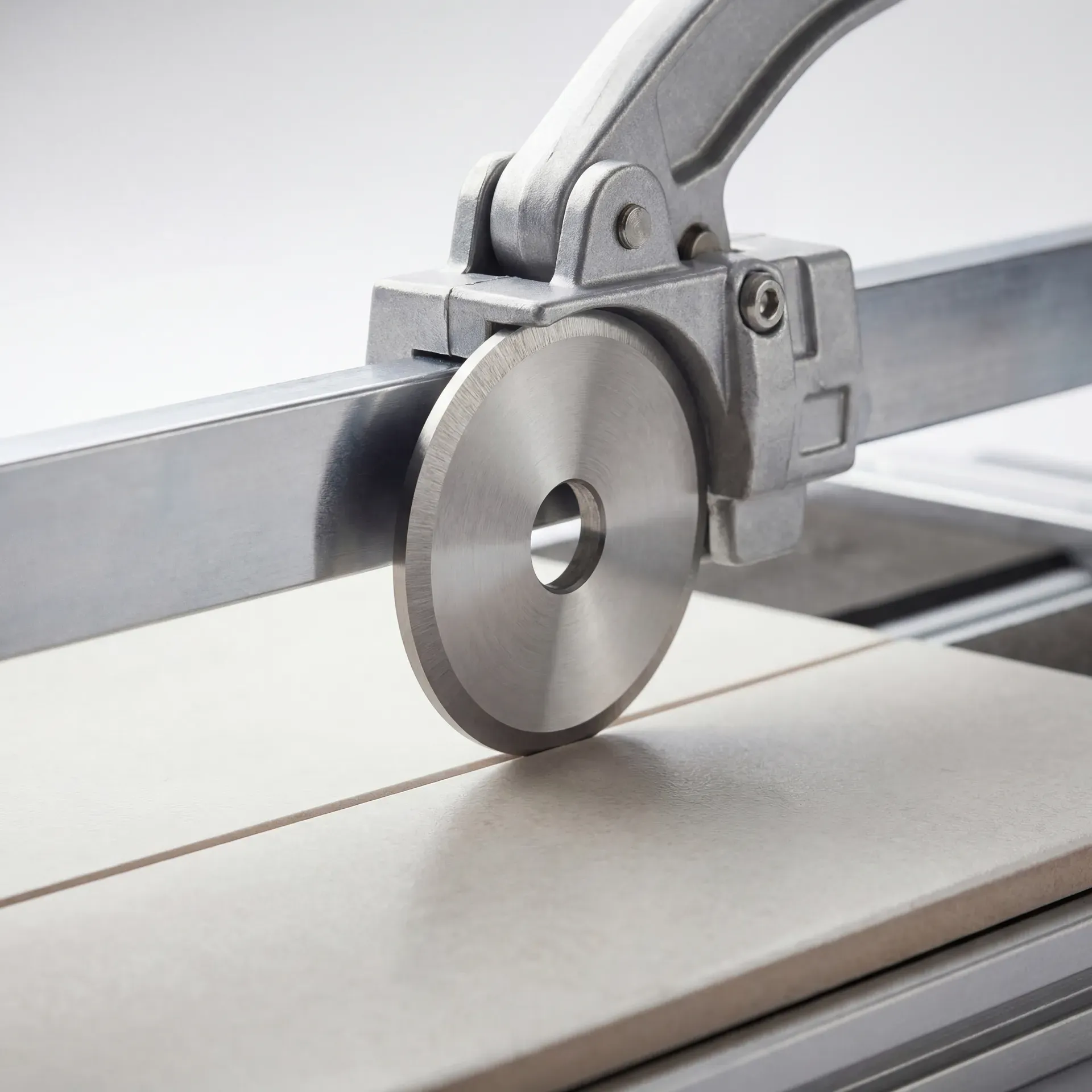

Scoring wheels: the part you'll need to replace

The scoring wheel is a small tungsten carbide disc that does all the actual cutting. It wears down. When cuts start deteriorating (ragged edges, incomplete scores, the wheel skating rather than biting), the wheel needs replacing, not the cutter.

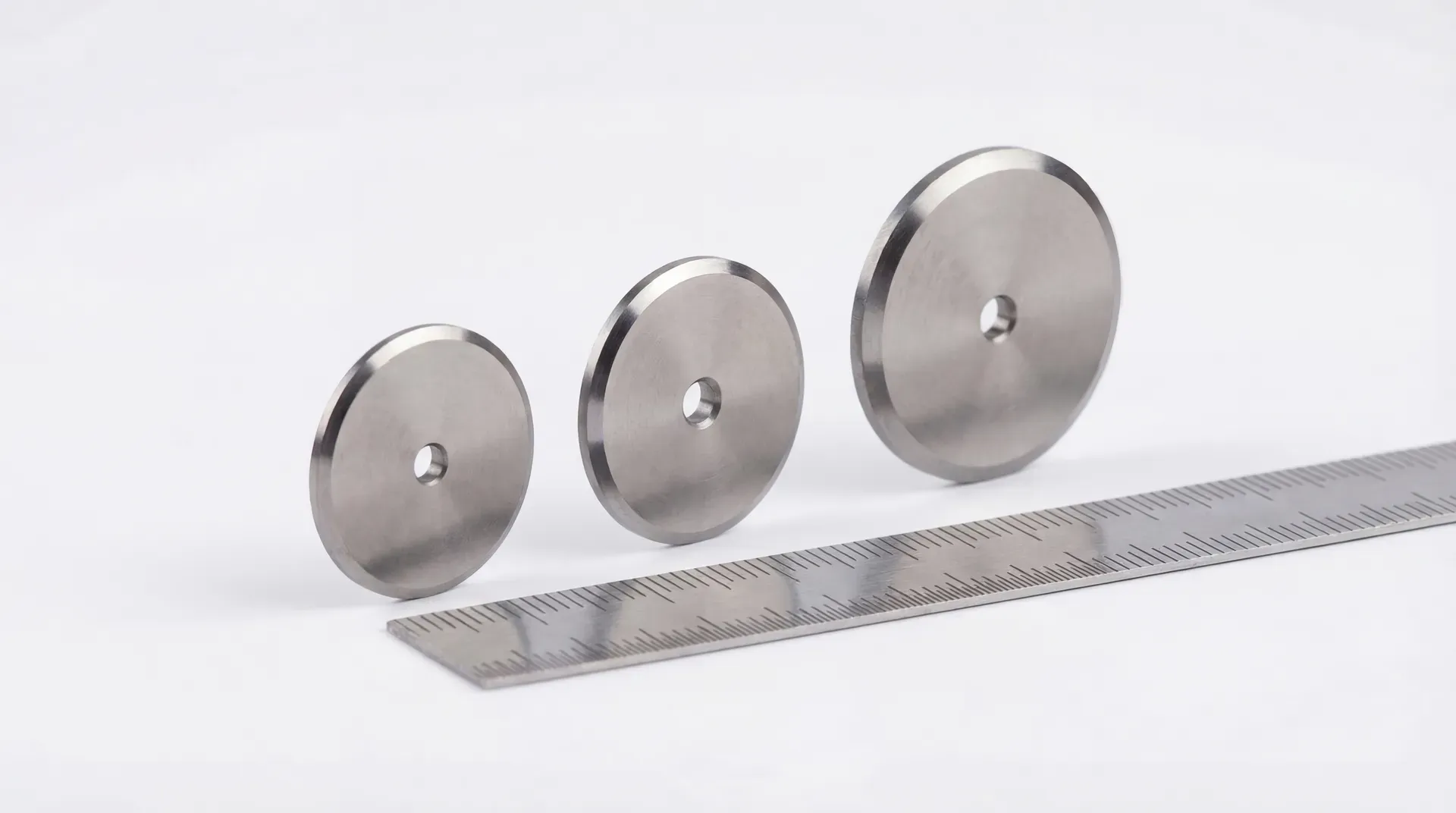

Which size wheel

Most cutters ship with a 6mm wheel. If you're cutting porcelain, swap it for an 8mm wheel before you start. This single change (costing £10 – £24 depending on brand) makes a measurable difference to snap quality on harder tiles.

Rubi and Sigma wheels are brand-specific and not interchangeable between manufacturers. A Rubi Silver 6mm two-pack costs about £20from specialist retailers like Pro Tiler Tools. Sigma replacement wheels run £10 – £24 depending on diameter.

Click to enlarge

What a manual cutter cannot do

Be clear-eyed about the limitations. A manual cutter is for straight lines on flat tiles. Beyond that, you need different tools.

Curved cuts and L-shapes. An electric wet saw is the only clean option. You can rough-cut with tile nippers, but the finish is poor.

Narrow strips under 35mm. The breaker bar can't apply even pressure on thin strips. The tile crumbles rather than snapping. Use tile nippers to nibble away material, or cut on an electric wet saw.

Diagonal cuts on porcelain. Even experienced tilers with quality Sigma cutters report that diagonal porcelain cuts wander off-line 95% of the time. The geometry concentrates stress unevenly. Use an electric wet saw or an angle grinder with a diamond blade.

Natural stone. Marble, granite, travertine, slate. All too hard and too variable for score-and-snap. Electric wet saw with a diamond blade. No exceptions.

Glass tiles. Specialist glass cutter or electric wet saw with a specific glass-cutting blade.

Checking your cutter is working properly

A manual cutter doesn't need calibration like a spirit level, but it does need checking.

The rail test. Push the handle along the full length of the rail without a tile loaded. It should glide smoothly with no sticking, no wobble, no lateral play. If it catches or feels gritty, clean and lubricate the rail. On ball-bearing models, this should feel buttery smooth. On cheaper bush-bearing models, some resistance is normal, but catching or jerking means worn bearings.

The wheel check. Look at the scoring wheel edge under good light. It should be a clean, continuous circular edge. If you see flat spots, chips, or uneven wear, the wheel is dull. Score a spare tile. The line should be uniform along its full length. If it's scratchy at one end and clean at the other, the wheel is done.

The fence check. Load a rectangular tile and push it against the fence. It should sit flat and square. Wiggle it. If the fence flexes or the tile rocks, your cuts will come out at slight angles. On budget cutters, this is the first thing that fails.

What to buy

For a homeowner tiling during an extension project, here's the straightforward advice.

Ceramic wall tiles only (splashback, bathroom walls). A Vitrex 400mm from Screwfix (around £26) or Wickes (£26) does the job. It's basic, the fence is wobbly, but for 30-50 straight cuts on 6mm ceramic, it works. Don't spend more unless you're also doing floors.

Standard floor tiles (ceramic or thinner porcelain, up to 600mm). The Faithfull FAITLC600 at Screwfix (around £60) is the practical choice. 600mm cutting length, 12mm thickness capacity, ball-bearing handle, 425mm diagonal capability. VonHaus 600mm (around £35 – £40 from Amazon) is a popular budget alternative that reviews well.

Porcelain floor tiles (600x600mm, 10mm thick). This is where spending more saves money. The Rubi PRACTIC-61 PLUS (around £77from Pro Tiler Tools or Amazon) is the entry point for reliable porcelain cutting. If your budget stretches, a Sigma 2G (around £141) is the tiling forum favourite for porcelain. Both will last decades and hold resale value.

Large format or frequent tiling. The Rubi Speed-62 Magnet (around £254with case) or Sigma 90cm models are professional-grade. Overkill for one project, but if you're tiling multiple rooms or plan to tile again in future, they're a one-time purchase. Check eBay and Facebook Marketplace for used Rubi TX and Sigma models from retired tilers. These tools last so long that secondhand ones still cut perfectly.

Alternatives

If your project involves curved cuts, L-shapes, notches around pipes, or thick porcelain, an electric tile cutter (wet saw) handles everything a manual cutter does and more. It's slower for straight cuts, messier (water spray), and needs an outdoor or well-ventilated workspace, but it's the universal solution. Budget electric cutters start around £45–£80 at Screwfix.

For a typical tiling job, most people benefit from having both: the manual cutter for fast straight cuts (the majority of the work) and an electric cutter for the awkward shapes. If you can only buy one and your tiles include porcelain, the electric cutter is the safer choice.

Tile nippers (around £12 – £20) are essential alongside either cutter for nibbling small notches and trimming narrow edges. They're not a substitute for a cutter, but a companion tool.

Where you'll need this

• Tiling - making straight cuts on wall and floor tiles throughout the tiling phase

Safety

Manual tile cutters are low-risk compared to power tools, but cut tile edges are sharp.

Sweep up tile offcuts and shards regularly. Thin ceramic slivers on a floor are invisible until you kneel on one.
