TCT Planer Blades: The Right Choice for Hardwood, MDF, and Site Timber

A joiner arrives on site to trim four solid oak internal doors and skim the bottom edge of a run of MDF skirting to clear a slightly uneven screed. He has one pair of HSS blades in his bag. By the second door the edge is ragged. By the MDF he's burnishing, not cutting, leaving a glazed surface that the painter then has to sand flat. He blames the planer. The planer was fine. He used the wrong blade for the material.

TCT blades are the default choice the moment timber stops being clean softwood. Hardwood, MDF, chipboard, OSB, reclaimed joists, anything with adhesive binder or abrasive grit, TCT is what a carpenter reaches for and what HSS can't do. The companion page on HSS planer blades covers the softwood case and when HSS is actually the better choice. This page is everything else.

What TCT planer blades are

TCT stands for Tungsten Carbide Tipped. The blade body is ordinary tool steel, the same as any other planer insert. What's different is the cutting edge: a thin strip of sintered tungsten carbide (a compound of tungsten metal and carbon, formed under pressure and heat) is bonded to the steel body along the cutting face. The bond is a braze joint, not a weld or a mechanical fit, a silver-based alloy (typically 49% silver with added manganese) melted at dark cherry heat, drawn into a 0.003-0.005 inch gap between the carbide and the steel by capillary action, cooled to a permanent composite. You can see the seam as a faintly different shade along the cutting edge.

Carbide is harder than steel and harder than anything likely to be in the timber you're cutting. On the Rockwell A hardness scale (the appropriate scale for cemented carbide), TCT blades measure 86-93 HRA, roughly equivalent to 70+ on the Rockwell C scale used for steel. HSS by comparison is HRC 63-65. Carbide stays sharp far longer because it resists abrasive wear from resin binders, grit and dense timber fibres that would dull HSS in minutes.

The trade-off is brittleness. Carbide is harder but it doesn't bend. Hit a nail with HSS and the edge chips or rolls over and you get a nicked but still usable blade. Hit a nail with TCT and the carbide can shatter, taking a chunk out of the cutting edge. Sometimes the braze joint fractures and the whole insert cracks. The blade is ruined, the cutterhead may be marked, and in a bad case the debris can damage the host planer. Nail contact is the one genuine risk with TCT.

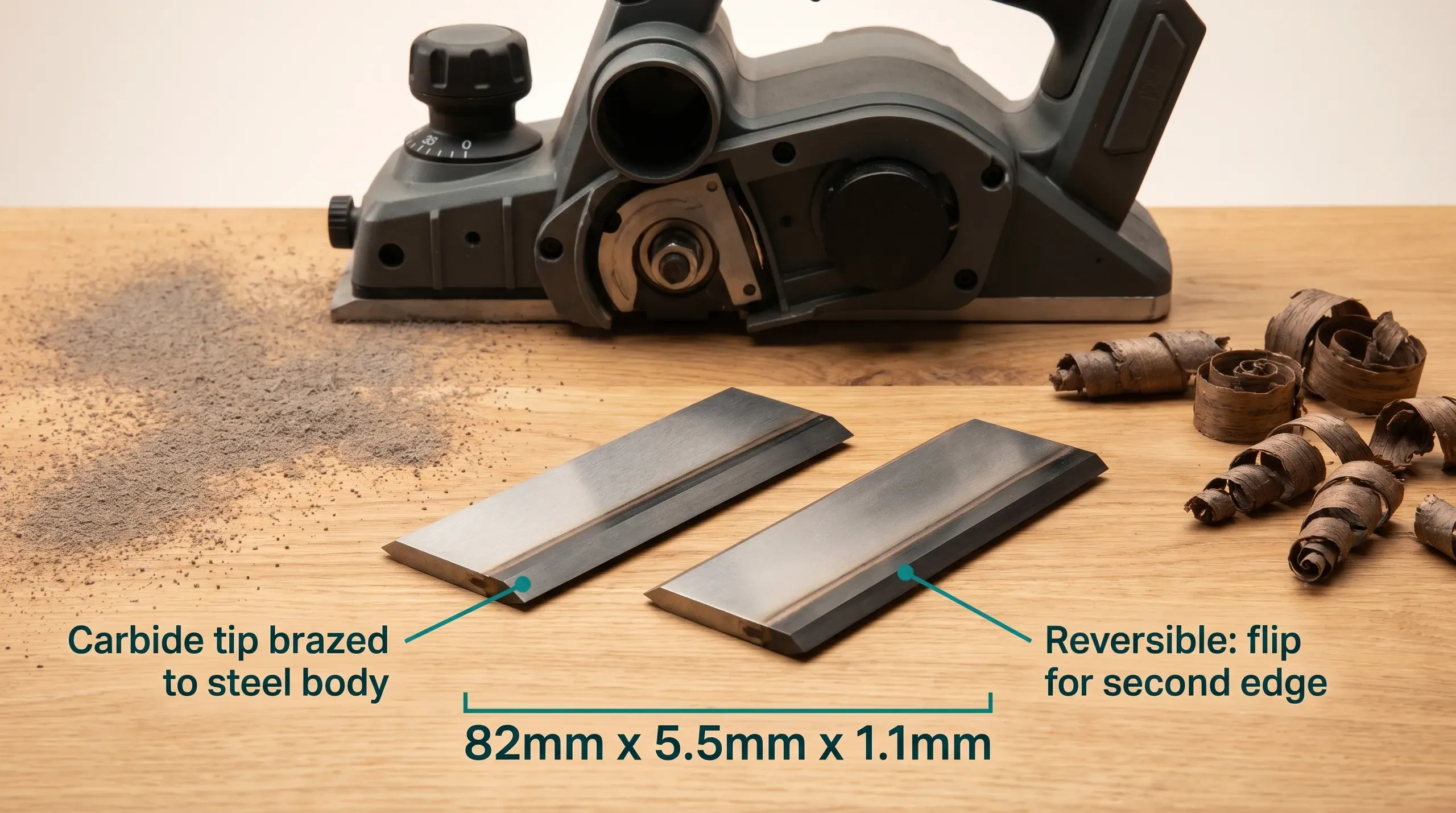

The standard size is the same 82mm x 5.5mm x 1.1mm reversible insert used for HSS. Two cutting edges per blade, two blades per host planer, so one pair gives you four working edges before replacement. Both blade types are reversible, so on a like-for-like pair-for-pair basis the carbide lifespan advantage on abrasive material is roughly 20x. Carbide can look up to 40x longer-lived only if the comparison is against a single-edge HSS blade, which is not the standard product on the shelf.

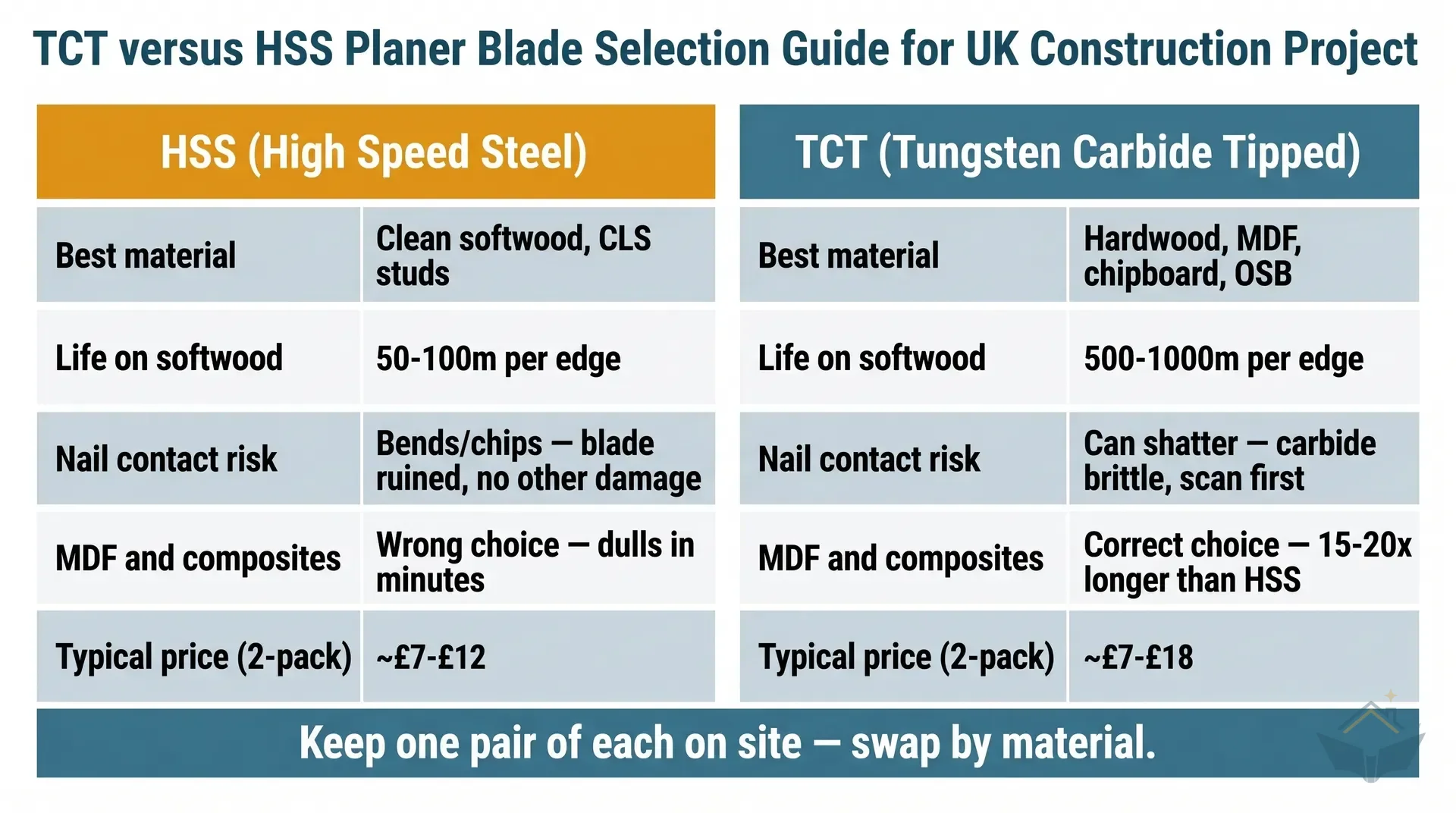

TCT vs HSS: the decision

The single most common mistake is buying HSS because it's cheaper. On the wrong material, HSS is more expensive, because you burn through three pairs before TCT needs its first flip.

The summary: TCT is the right answer whenever the timber contains anything harder than clean pine fibres. That includes hardwood, anything glued (MDF, chipboard, OSB, plywood), anything painted or coated, anything that's been rained on and gathered grit, and anything reclaimed. On a kitchen extension, that covers most of the fitting and finishing work. The softwood studs and CLS framing are the HSS jobs.

A sensible stock position for any builder's van or homeowner's toolbox is one pair of each type. Swap between them by material. A pair of TCT outlasts a pair of HSS on anything abrasive, and a pair of HSS absorbs the nail hits that would shatter TCT.

Why TCT wins on engineered boards

The abrasive-binder problem is the single best argument for TCT and the one most homeowners don't understand until they've tried HSS on MDF and paid for it in ruined blades.

MDF, chipboard, OSB and most plywoods contain synthetic resin binders (urea-formaldehyde, phenol-formaldehyde or polymeric MDI) that hold the wood fibres together. Cured resin is closer in hardness to glass or fine ceramic than to wood. An HSS edge pushing through cured resin wears away the same way a kitchen knife wears on a ceramic plate. The edge rolls over within minutes, then rounds, then stops cutting altogether.

Carbide resists this wear at the atomic level. The tungsten carbide particles are so much harder than cured resin that the binder wears away around them, leaving the carbide edge intact. You can plane MDF skirting for a full day on one pair of TCT blades and still flip them the next morning for a fresh second edge.

The same principle applies to chipboard (harder, more abrasive, the worst test of any blade), OSB (chunky softwood strands in resin, easier than chipboard but still TCT territory), and structural plywood (softwood or hardwood veneers in phenolic glue, forgiving on faces but brutal on exposed plies at the cut edge). If you're planing any of these, TCT is the default and HSS is the mistake.

Standard specification and host tool compatibility

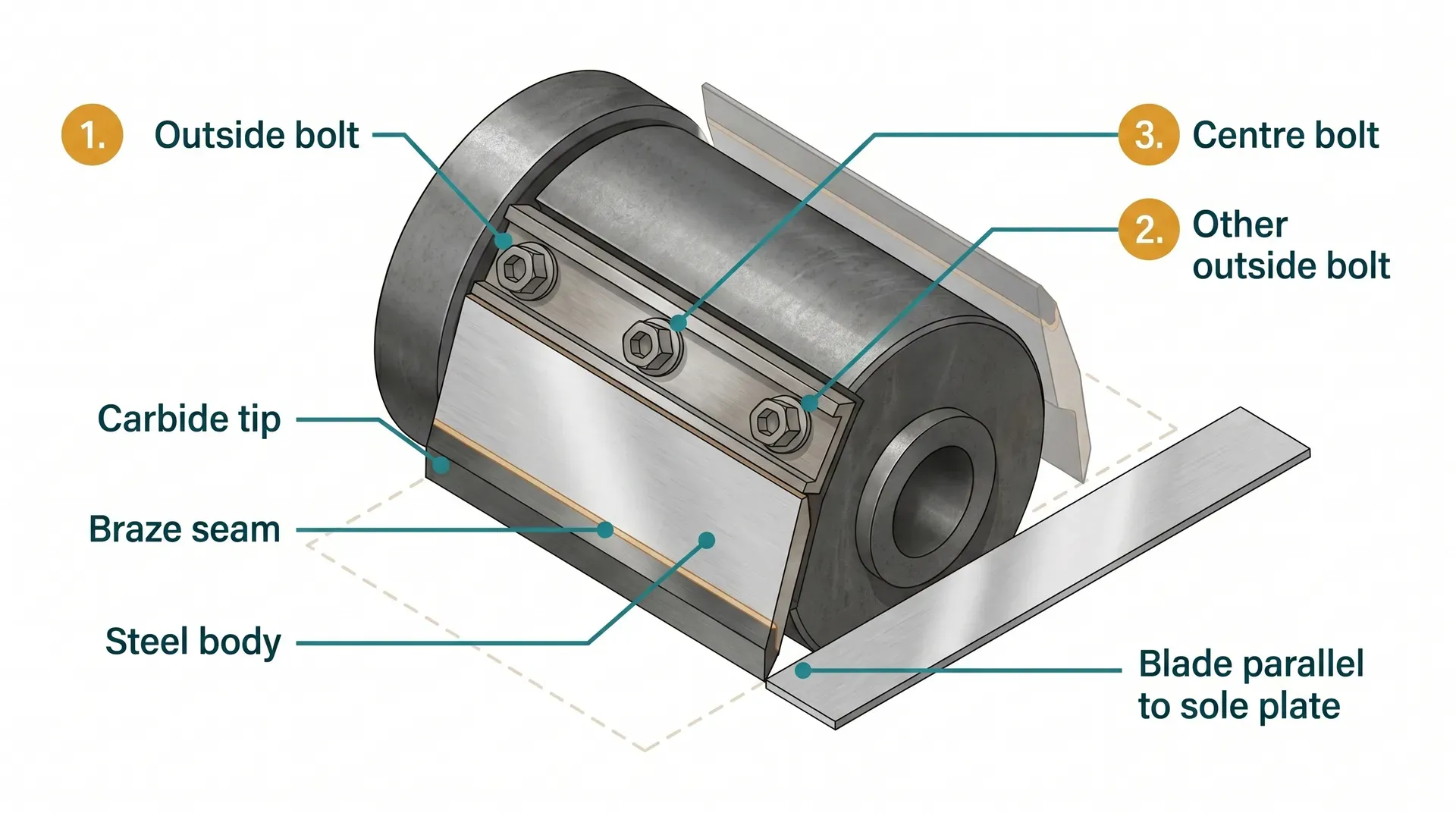

The blade you need, almost certainly, is the 82mm x 5.5mm x 1.1mm reversible insert in the TCT version. Exactly the same physical footprint as the HSS standard, so anything that takes one takes the other. With one important exception, covered below.

Click to enlarge

How to fit TCT blades

The fitting procedure is identical to HSS and is covered in detail on the HSS planer blades page. Unplug, zero the depth, clean the clamp, slide the blade in, check with a straight edge, torque outside-in in sequence, rotate by hand to check for fouling. Same for both blade types.

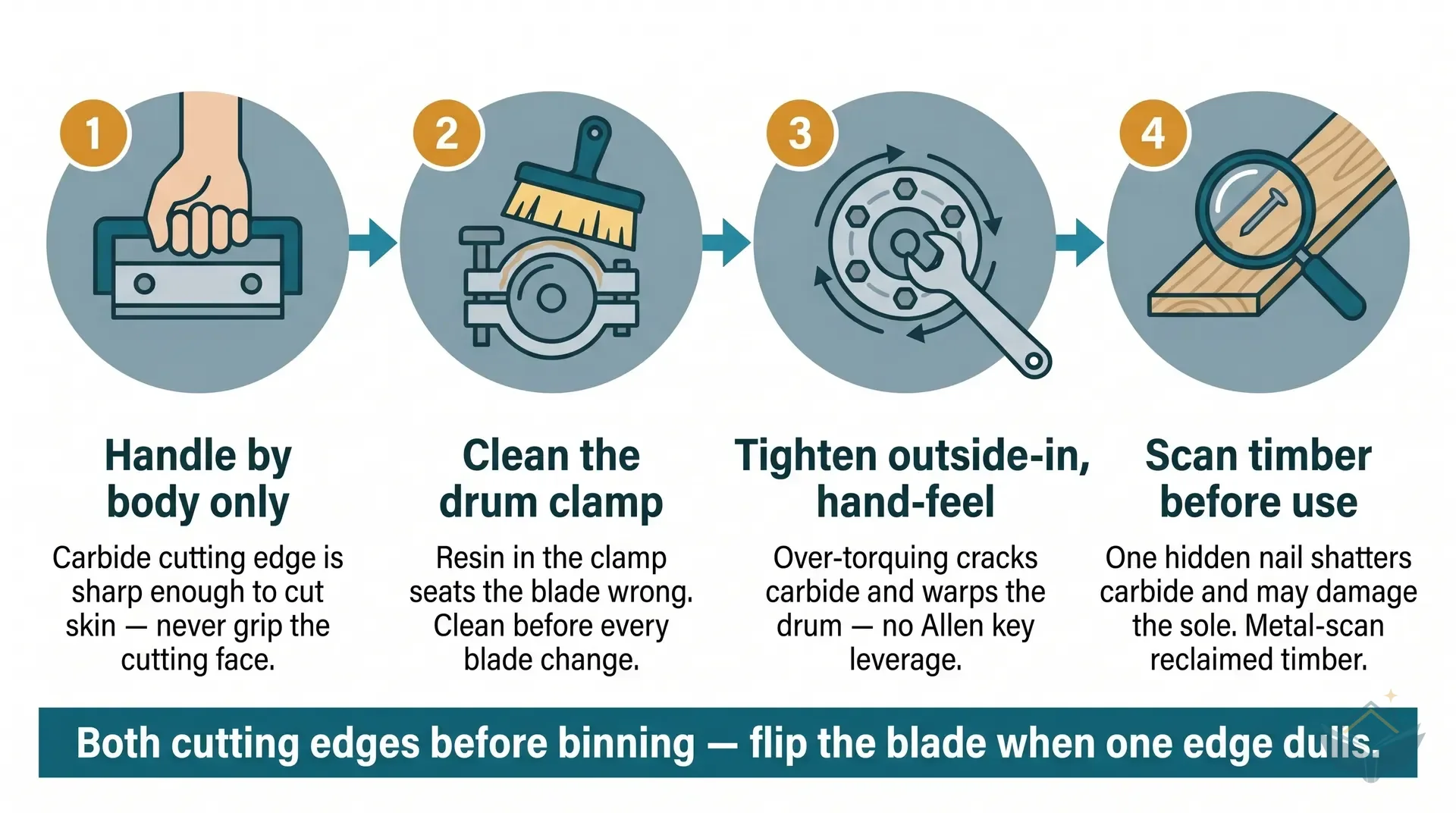

Two things differ with TCT in practice. First, be careful handling the blade, carbide edges are sharp enough to take skin without effort, and chipping a fresh edge against a spanner makes the blade useless before you've even fitted it. Handle by the body, not the cutting face. Second, the clamp torque matters slightly more. A carbide edge doesn't tolerate the small flex an HSS blade can absorb. Tighten evenly, outside-in, hand-feel plus a quarter turn, then check by rotating the drum before firing the tool.

Lifespan and when to flip

A TCT edge on clean softwood gives 500-1000 metres of planing, roughly five to ten times an HSS edge. On MDF, oak, or chipboard, the gap widens: 15-20x HSS lifespan per edge. A single pair flipped to the second edge can carry a 30m² kitchen extension's worth of carpentry, door trimming, MDF skirting, architrave, lining adjustments, from start to finish, provided the timber is clean.

Signs the edge is done are identical to HSS: the finish goes from smooth to slightly rough, to visibly ridged, to burnishing with smoke and heat rather than cutting. At the first whisper of rough finish, stop and flip the blades (same procedure as HSS, loosen clamps, slide blade out, rotate end-for-end, reseat, retorque). That gives you the second edge.

When both edges are done, the blade is finished. Unlike HSS, there is no viable home sharpening option. The carbide edge requires diamond grinding wheels running to tight geometric tolerances (the grind angle is typically 17-18 degrees, slightly more obtuse than HSS to protect the brittle edge from chipping). Industrial grinding services charge £15-£25 per pair, more than a new pair of branded blades costs. Replace, don't resharpen. The economics don't work at 82mm portable planer scale. The exception is workshop thicknessers running solid carbide 170mm or 260mm blades at £60+ per set, there, resharpening makes sense. Not for handheld 82mm.

Nail contact and the brittleness problem

Nails and TCT are a bad combination. A single 50mm galvanised wire nail hidden in a reclaimed joist will chip both TCT blades worse than it chips HSS, often taking a triangular nick out of the carbide, and occasionally splitting the braze joint so the carbide edge detaches. The detached fragment becomes loose in the cutterhead and can damage the planer's sole or ejection port as it exits at 15,000+ rpm.

This is why TCT is not a "just put it in and forget" option. The extra lifespan assumes the timber is clean. On reclaimed timber or any old framing there's no such assumption.

Before running TCT over anything suspicious:

1. Eyeball the timber for visible fixings: nails, screws, staples, brackets, picture hooks, wall-plug remnants, metal strapping from the bundle.
2. Run a metal detector over both faces. A Zircon StudSensor or a basic pinless detector costs £15-£25 and pays for itself the first hit. Pass it slowly at two angles, metal oriented perpendicular to the scan direction won't show.
3. Check for painted or filled areas on old timber. Old filler hides broken-off screws. Paint hides nails that have been punched below the surface.
4. Probe knot centres with a bradawl on anything old. Shrinkage cracks in knots can hold embedded grit from soil or concrete dust that wrecks the first pass.

Hard knots in hardwood are the second risk. European oak knots approach the hardness of mild steel at the centre. At normal feed rate a TCT edge will survive the knot, but a jammed feed against a knot can snap the carbide tip. Slow the feed rate dramatically over any knot larger than a 10p coin. If the knot is loose in its socket, plane around it and finish with a sander.

What to buy

Almost every 82mm planer owner in the UK is choosing between five or six options. Here's where each sits.

Budget pick: Screwfix generic TCT 82mm 2-pack, £7.99. 4.6 stars across 124 reviews, compatible with most 1.1mm-slot planers. One quality failure report in the reviews where blades cracked within 30 minutes, which is the downside of unbranded budget carbide, braze quality and tungsten-carbide grade vary between batches. For light occasional use or as a backup pair this is the value option. For a full day of site use, spend the extra £3-4 for a named brand.

Default pick: Trend PB/29 82mm x 5.5mm x 1.1mm TC, £7.49 direct from Trend Direct UK. The single best value TCT blade in the UK at the time of writing. Trend is a long-established UK brand, the PB/29 fits Trend, Bosch, DeWalt, Hitachi, Metabo, Black & Decker and AEG planers, and at £7.49 delivered it's cheaper than the Screwfix generic. This is the blade to stock on the shelf.

DeWalt DT3906-QZ TCT 2-pack, £10-12 from Tools4Trade and ITS. The DeWalt-branded direct equivalent. Fits DW677/678/680 DeWalts natively, also fits Bosch GHO and most other 82mm 1.1mm-slot planers. Quality consistent, availability excellent at Screwfix and Toolstation.

Bosch Pro TC 82mm 2-pack, £12.48 at Toolstation. Fits Bosch planers natively (GHO, PHO ranges) and any other 1.1mm-slot planer. Slightly sharper out-of-box than the DeWalt equivalent. Worth the small premium for Bosch planer owners or for anyone wanting clean finish on hardwood.

Makita D-07945 TCT 2-pack, £16-20 at Screwfix, Toolstation and Wickes. The mandatory choice for Makita planer owners (KP0800 family, DKP180, DKP181). Thicker 1.5mm geometry that matches the Makita clamp. Don't substitute, the price premium isn't brand tax, it's a different physical spec.

Faithfull TCT 82mm Reversible, £17.86. Available from 12,000+ UK stockists. 1.2mm thick rather than 1.1mm, so check your planer spec before buying. Premium UK brand with reliable quality.

Silverline K20 TCT 82mm, £9.42. Solid carbide (not TCT) in K20 grade. Cheaper per pair than the Trend but from a more variable brand. Acceptable for occasional use.

Skip anything that looks like a no-name multipack on eBay or Amazon marketplace unless reviews specifically confirm the brand. Counterfeit TCT with under-spec carbide grades is common at the bottom of the market and fails the braze test on the first hard knot.

Storage and disposal

Store flat in the original plastic wallet. TCT carbide itself doesn't rust (tungsten carbide is chemically inert), but the steel body and the braze seam can corrode in damp conditions. A light wipe of machine oil (3-in-1 or WD-40) on the body before long-term storage prevents rust forming around the braze and weakening the joint.

Don't stack blades loose in a toolbox. Carbide edges chip against each other or against tools. A small felt-lined rack, or even a folded piece of cardboard with slots for each blade, prevents 90% of storage damage.

Disposal: carbide tips are not hazardous waste and spent blades go in general refuse. They're still sharp enough to cut through a bin bag and injure refuse workers, so wrap each blade tightly in cardboard and tape it closed before binning. Or drop them in the scrap metal skip at a household waste recycling centre, the steel body has salvage value and the carbide tips can be reclaimed industrially.

Typical use on an extension build

A 30m² kitchen extension on clean new timber will run through one pair of TCT blades, flipped once, for the whole job. That covers door trimming, MDF skirting and architrave, chipboard floor repairs, OSB roof decking edges, hardwood threshold fitting, and any softwood planing the carpenter can't be bothered to reach for HSS for. The total spend is £8-12 in consumables. Against the cost of buying HSS three times and still getting a worse finish on MDF, TCT is the economical choice.

On a job involving significant reclaimed timber, budget two pairs of TCT and assume one will be chipped by nail contact despite all your scanning. The cost is trivial compared to the time spent hand-cleaning reclaimed timber with an HSS blade that dulls every half-metre.

Where you'll need this

• Install internal doors and ironmongery: solid hardwood door leaves and engineered MDF-core doors both want TCT rather than HSS.
• Skirting, architrave and second fix trim: MDF skirting and architrave are the textbook TCT case. HSS is wrong here.
• First fix carpentry: switch to TCT for chipboard flooring repairs, OSB decking edges, and any engineered structural timber.

These blades turn up whenever a build involves hardwood, engineered boards, or dirty timber, a pattern that applies across extensions, loft conversions, garage conversions and renovation work generally. Keep a pair on the van alongside an HSS pair and pick by material.

Common mistakes

Using TCT on suspect reclaimed timber without scanning. The carbide lifespan advantage assumes clean timber. Nail contact shatters carbide far worse than it damages HSS. Spend two minutes with a metal detector before running TCT over anything you didn't bring from the merchant.

Buying unbranded TCT for a full day's site use. The £3-4 saving over Trend or DeWalt is wiped out the first time a cheap braze joint fails mid-cut. Named brands for anything beyond occasional home use.

Matching only on the 82mm dimension, not the full spec. Makita TCT is 1.5mm thick, Faithfull is 1.2mm, most others are 1.1mm. Mixing thicknesses in the same planer ruins the finish and risks blade ejection. Match all three dimensions: length, width, thickness.

Attempting to sharpen TCT at home. Diamond wheels cost £80+, the jig setup to maintain 17-18 degree geometry on both edges is specialist, and the economic return is negative at £8-12 per new pair. Replace.

Binning a pair with one edge used. Exactly the same mistake as HSS and exactly as common. Before throwing blades out, check whether you flipped them. Half your carbide is still sharp.

Running dulled TCT past the point of smooth finish. Once the edge glazes over and starts burnishing rather than cutting, the next pass can heat-crack the carbide or fracture the braze. Flip at the first whisper of rough finish, replace when both edges are done. Don't push on.
